Fisher & Paykel CG905D User manual

GAS STAINLESS COOKTOP
CG604D & CG905D models
INSTALLATION GUIDE
HK SG
5906E 10.18

IMPORTANT SAFETY INSTRUCTIONS!
Particular attention shall be given to the relevant
requirements regarding ventilation.
Read these instructions carefully before installing
this product.
Please make this information available to the
person installing the appliance as it could reduce
your installation costs.
This appliance is to be installed and serviced only
by an authorised person.
Installation must comply with your local building
and local gas authority codes and electricity
regulations.
Incorrect installation, for which the manufacturer
accepts no responsibility, may cause personal
injury or damage and could invalidate any
warranty or liability claims.
Appliances are factory set for LPG but are
convertible to Town gas (Singapore) and Town
gas (Hong Kong). If in doubt, refer to the local gas
network operator or gas supplier to confirm gas
type at installation site.
Do not modify this appliance.
Do not use or store flammable materials on or near
this appliance.
Do not spray aerosols in the vicinity of this
appliance while it is in operation.
SAFETY AND WARNINGS
1
WARNING!
Cut hazard
Take care - some panel edges are sharp.
Failure to use caution could result in injury
or cuts.
WARNING!
Electrical shock hazard
Before carrying out any work on the
electrical section of the appliance, it must
be disconnected from the mains electricity
supply.
Connection to a good earth wiring system
is absolutely essential and mandatory.
Alterations to the domestic wiring
system must only be made by a qualified
electrician.
Failure to follow this advice may result in
electrical shock or death.

3
SAFETY AND WARNINGS
1
Packing elements (eg plastic bags, polystyrene
foam, staples, packing straps etc) and tools should
not be left around during and after installation,
especially if they are within easy reach of children,
as these may cause serious injuries.
Before you install the appliance,
please make sure that
the local distribution conditions (nature of gas and
pressure) and the adjustment of the appliance are
compatible. For adjustment conditions for this
appliance see ‘Gas rate summary’.
a suitable disconnection switch is incorporated in
the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations.
A means of disconnection with at least a 3 mm
air gap contact separation in all poles must be
incorporated into the fixed wiring in accordance
with the wiring rules, unless the local wiring rules
allow for alternative means.
the appliance is connected to a 220V - 240V 50Hz
(10 A) power supply only and earthed via the
power supply cable.
there is a power outlet within reach of the power
supply cable (900 mm from the centre rear of the
product). This must be accessible after installation.
The power supply cable should not touch any
metal parts.
if the power supply cable is damaged, it is replaced
only by the special cable: Part no. 534906 TRMNL
BLOCK-FLEX ASSY HITEMP GOG UK, obtainable
from authorised Fisher & Paykel Service Agents.
the supply connection point (gas shut-off valve) is
accessible after installation.
the benchtop is made of a heat resistant material.
the installation complies with all the requirements
of National and Local Authority Gas, Electric and
other relevant Codes and Regulations.
When you install the appliance
We do not recommend you seal this appliance
into the bench with silicone or glue. Doing so will
make future servicing difficult. Fisher & Paykel
will not be liable for any costs associated with
removing or replacing a sealed-in appliance, nor
for repairing any damage that may be incurred by
doing this.
If installed with an approved flexible hose, the
hose should not come in contact with the bottom
of the appliance or any sharp edges. Flexible hose
assemblies should be meet National and Local
Authority codes and regulations.
Seal exposed bare edges of the cutout with an
oil-based paint or moisture-proof polyurethane to
prevent possible moisture creeping between the
cooktop trim and the benchtop.
If, after following the instructions given, correct
performance cannot be achieved, please contact
your nearest Fisher & Paykel Authorised Service
Centre, Customer Care, or contact us through our
local website listed at the end of this document.

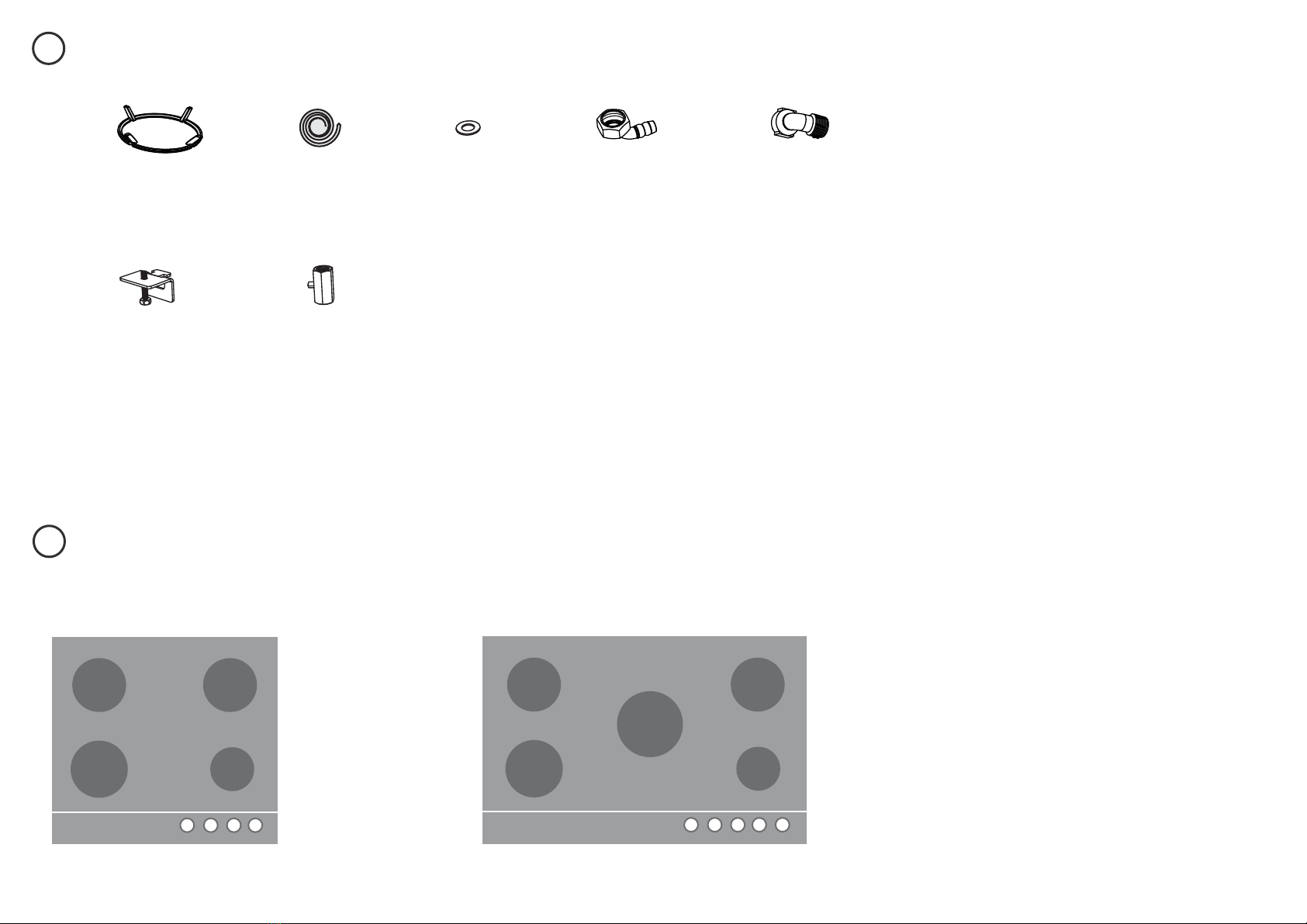

PARTS SUPPLIED
2
Wok stand (1) Fibre washers (1)Foam tape (1)
Clamping
brackets (4)
and screws (4)
3GAS RATE SUMMARY
All appliances are factory set for LPG or Town Gas.
CG604D CG905D
SEMI-RAPID SEMI-RAPID SEMI-RAPID SEMI-RAPID
MINI WOK RAPID
WOK
AUX AUX
Gas Elbow (1) Elbow 1/2“ BSP
external thread (1)
LPG test point
adaptor (1)

5
3GAS RATE SUMMARY
HONG KONG
SINGAPORE
BURNER
GAS TYPE
AUX SEMI-RAPID RAPID MINI WOK WOK
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
TG (G110)
(1.5 kPa/15 mbar)*
1.30 1.20 1.55 1.60 2.10 3.00 2.60 3.80
1.10
2.30
2.30
5.50
LPG (G30)
(2.9 kPa/29 mbar)*
0.55 1.10 0.76 2.36 0.94 3.33 0.94 3.33
0.73
0.73
0.50
4.86
BURNER
GAS TYPE
AUX SEMI-RAPID RAPID MINI WOK WOK
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
Jet size
(mm)
Nominal
rating
(kW)
TG (G110)
(0.8 kPa/8 mbar)*
1.50 1.1 2.07 2.36 3.20 3.33 3.50 3.33
1.30
2.50
2.50
4.86
LPG (G30)
(2.9 kPa/29 mbar)*
0.55 1.1 0.76 2.36 0.94 3.33 0.94 3.33
0.69
0.69
0.51
4.45
*Nominal pressure with the two semi-rapid burners on High.

6
4PRODUCT & CABINETRY DIMENSIONS
Product and cabinetry dimensions (mm)
CG604D CG905D
Aoverall height of product (excluding burners, dials and pan supports) 64 64
Boverall width of product 600 900
Coverall depth of product 530 530
Dheight of chassis (below top of bench) 59 59
Ewidth of chassis 555 856
Fdepth of chassis 486 486
Goverall width of cutout 560 865
Hoverall depth of cutout 490 490
Icorner radius of cutout max. 10 max. 10
Jdistance from top of bench to centre of gas inlet on product 30 30
Kdistance from edge of chassis to gas inlet on product 21 21
A
KD
B
E
C
G
F
J
H
I
Note: Gas inlet connection is
located in the rear right corner.
TOP TOP
REAR
FRONT
SIDE

7

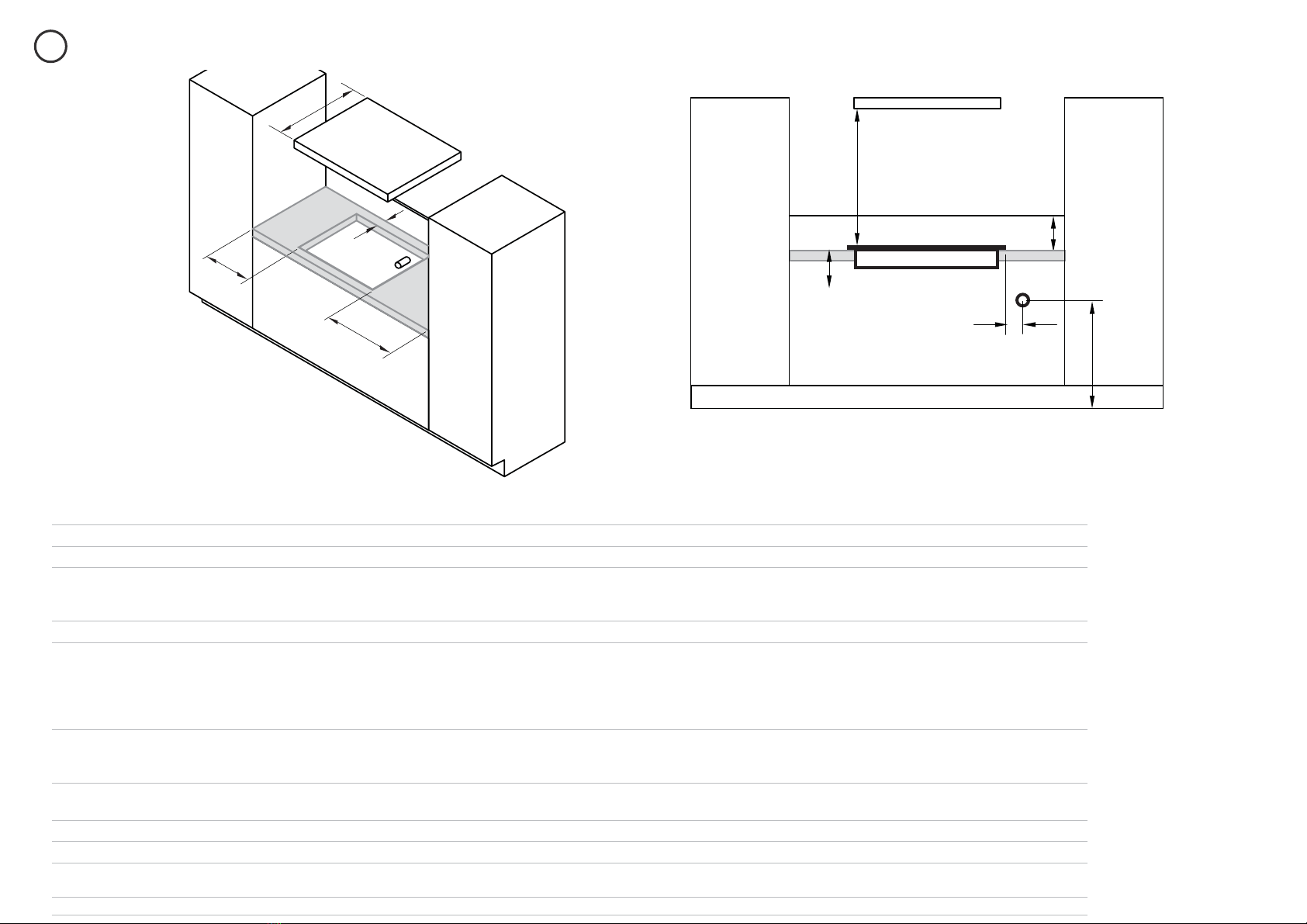

5CLEARANCE DIMENSIONS
Clearance dimensions (mm)
CG604D CG905D
Aminimum clearance from left edge of cutout to nearest combustible surface 130 130
Bminimum clearance from right edge of cutout to nearest combustible surface 115 115
C
minimum clearance from rear edge of cutout to:
nearest combustible surface
nearest non-combustible surface
160
45
160
45
Dminimum height of non-combustible material when used on adjacent walls 150 150
E
minimum clearance from cooktop surface to:
rangehood
any other overhead exhaust fan
downward facing combustible surface
downwards-facing tiled or re resistant surface
650
800
650
500
650
800
650
500
F
minimum clearance below top of benchtop to:
combustible surface
Fisher & Paykel oven or nearest non-combustible surface
70
65
70
65
Gminimum distance from right edge of cooktop to gas connection point on wall
(if using a exible hose) 250 250
Hdistance from oor to gas connection point on wall (if using a exible hose) min. 800 - max. 850 min. 800 - max. 850
Imaximum overall depth of overhead cabinetry 600 600
Note: Ensure there is an earthed power outlet within 900 mm of the centre rear of the product. The gas connector on the wall should be 800-850 mm (H) above the
oor and to a distance of at least 250 mm (G) outside the width of the product, on the right-hand side. It should be accessible with the product installed.
FRONT
ISO
E
H
D
F
G
A
I
B
C

8
6
98
7

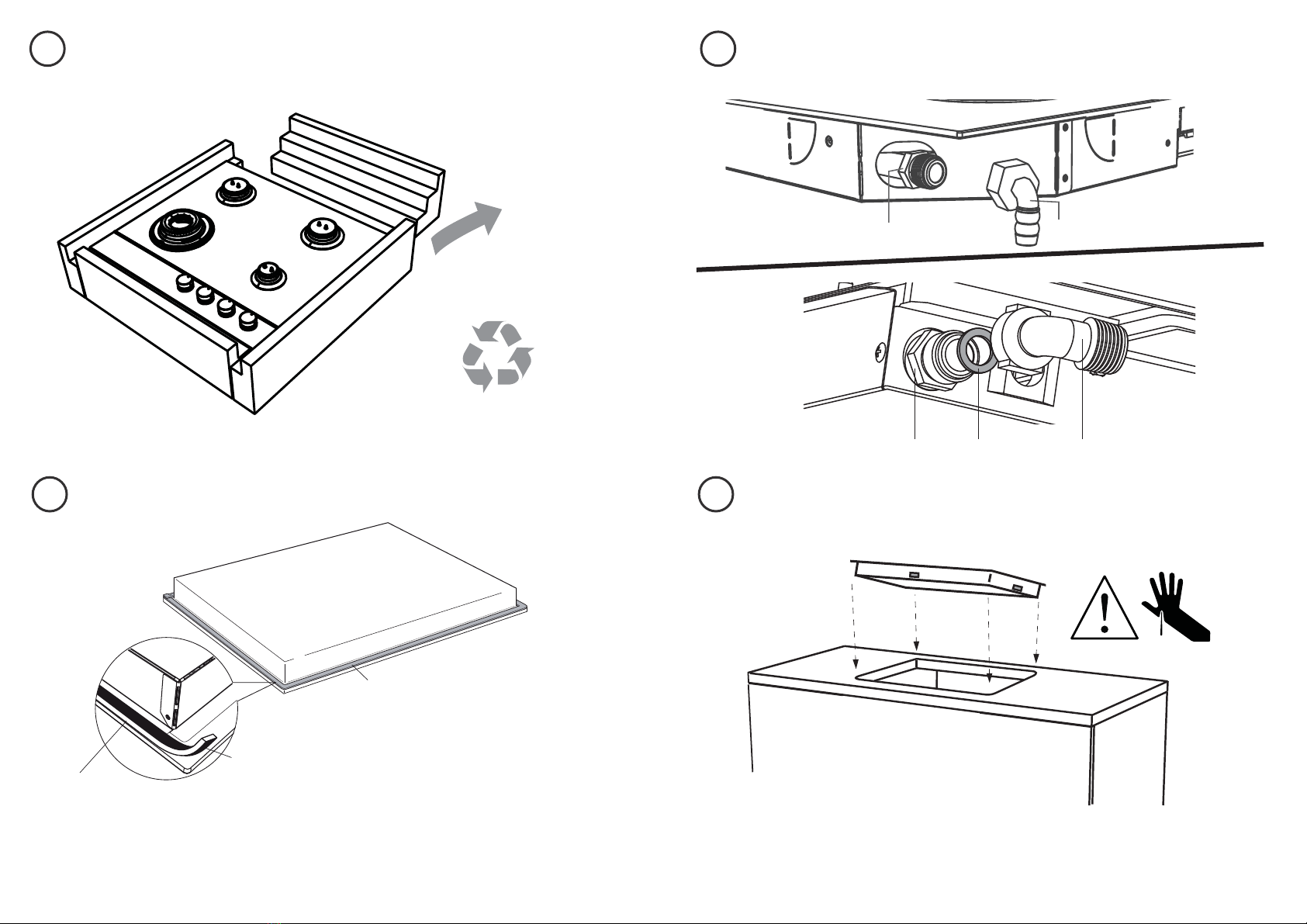

DISCARD PACKAGING
LOWER GENTLY INTO THE CUTOUTAPPLY ADHESIVE FOAM TAPE AROUND EDGE
FIT THE ELBOW AND WASHER
Recycle responsibly
Model may vary from illustrations shown
Foam Tape
Adhesive side
Ensure edge of tape
lines up with outer
edge of cooktop
1 Turn the cooktop upside down and
place it on a soft surface.
2 Spread the seal around the edges, with
the adhesive side facing down to form a
continuous seal around the cooktop.
3 Using a sharp cutter or trimmer knife,
trim the excess sealing material around
the edge of the cooktop. Take care not
to damage the benchtop.
Floating nut Elbow (1/2” BSP thread) & Washer
Floating nut Fibre washer Elbow (1/2” BSP external thread)
HONG KONG
SINGAPORE

9
11
13
12

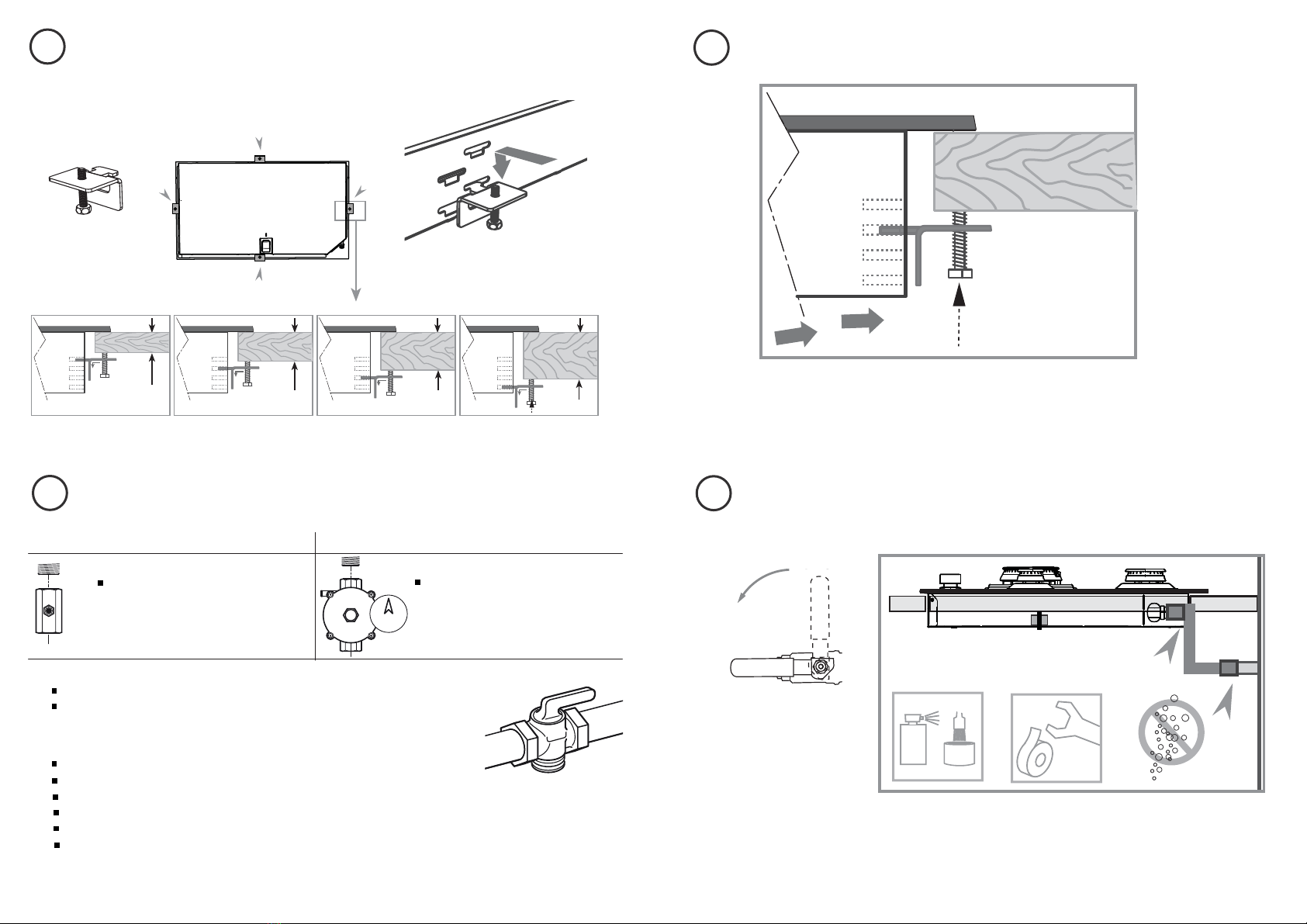

10 SECURE TO BENCHTOP
CHECK ALL CONNECTIONS FOR GAS LEAKS
CONNECT TO GAS SUPPLY
FIT CLAMPING BRACKETS BASED ON THE
BENCHTOP THICKNESS
16-20mm 20-30mm
x 4
30-40mm 40mm+
view from below
x 4
Repeat on all the other sides
GAS
ON
GAS
ON
Please check for leaks with soap solution
TG
ALL Models
Make sure the connection point will be accessible with the cooktop installed.
To enable the gas supply to be readily shut o by the customer, make sure the connection
is tted with an isolating valve close to the cooktop.
Adjust to obtain a test point pressure of
1.5 kPa (Hong Kong) or 0.8 kPa (Singapore)
with all the burners operating at the
highest setting.
Ensure the hose is long enough to allow for removal of cooktop for servicing.
Make sure the connector is located as shown in step 5 CLEARANCE DIMENSIONS.
The hose assembly must be certied, with an Rp ½”(ISO 7‐1) female thread connection.
The hose assembly must be as short as practicable and comply with relevant local code and regulation requirements.
The hose must not be kinked, subjected to abrasion or permanently deformed.
The hose must not be near or in contact with any hot surfaces
(e.g. base of metal hotlplate, ue, or chassis of underbench oven etc.)
If connecting the gas with a exible hose:
LPG
Make sure the supply pressure
is regulated to 2.90 kPa, with
all the burners operating at
highest setting. Arrow

10
Duplicate data
label
14
16
15
AFFIX DUPLICATE DATA LABEL SOMEWHERE
ACCESSIBLE & PLUG COOKTOP IN
TEST OPERATION
FIT PAN SUPPORTS
yellow tiplifting o
good ame
To check that the ignition system operates correctly, light each burner by itself, then all burners in
combination.
Check for a well‐defined blue flame without any yellow tipping.
If any abnormality is evident, check that the components of the burner assembly are located properly
If proper operation cannot be obtained, contact Customer Care or your nearest F&P Authorised
Service Centre.
The cooktop must not be used by the customer until proper operation has been achieved.
Ensure the pan supports are located securely
and in the correct orientation (refer to User guide)

11
17 FINAL CHECKLIST
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please
visit our local website listed at the end of this document or contact your local Fisher & Paykel
dealer.
www.sherpaykel.com
TO BE COMPLETED BY THE INSTALLER
Have you installed the clamping brackets?
Have you verified that the type of model (factory-set for LPG or
Town Gas) matches the type of gas at the site of installation?
Have you used the fibre washer supplied?
Have you leak-tested all connections?
Is the appliance set to the correct working pressure?
Have you affixed the supplied duplicate data plate label on an adjacent
surface accessible to the customer?
Is the cooktop earthed?
Have you checked that the power supply cable is NOT touching the cooktop?
OPERATION:
Do all burners ignite both individually and in combination?
Are the flames consistent and appropriately sized?
Have you demonstrated the basic operation to the customer?
Installer’s name:
Installer’s signature:
Installation company:
Date of installation:
LEAVE THESE INSTRUCTIONS WITH THE CUSTOMER

CG604D型和CG905D型
氣體煮食爐
安裝說明書
HK SG
5906E 10.18

重要安全須知！
必須特別注意相關的通風要求。
在安裝氣體煮食爐之前仔細閱讀本說明書。
請讓氣體煮食爐安裝人員閱讀本說明書，因為這
可以降低安裝成本。
氣體煮食爐只能由授權人士進行安裝和維修。
必須按照當地的建築法規和電氣法規要求進行安
裝。
安裝不當可能會造成人身傷害或財物損失，製造
商對此不承擔任何責任，保固或責任求償自動失
效。
氣體煮食爐在出廠前設定為使用液化石油氣，但
可以轉換使用新加坡煤氣和香港煤氣。如有疑
慮，請向當地供氣公司諮詢，確認安裝點供應哪
種氣體。
切勿改動氣體煮食爐。
切勿在氣體煮食爐上或周圍使用或存放易燃物。
切勿在使用氣體煮食爐時在周圍噴氣霧劑。
安全警告
警告！
割傷危險
小心 — 面板邊沿很鋒利。
如不小心，可能會造成人身傷害或割傷。
警告！
觸電危險
在處理氣體煮食爐的電氣部分之前，必須斷
開總電源。
必須連接良好接地線。
如果要改動室內佈線，必須由資深電工進行
改動。
如不遵照此建議，可能會造成觸電甚至死
亡。
1

安全警告
在安裝過程中和安裝之後，切勿把包裝材料（例
如塑膠袋、聚苯乙烯泡沫、搭扣和包裝帶）放在
氣體煮食爐附近，尤其不能放在兒童夠得到的地
方，否則可能會造成嚴重人身傷害。
在安裝氣體煮食爐之前確保
當地的供氣條件（氣體類型和壓力）與氣體煮食
爐調節條件一致。參看氣體氣速摘要一節瞭解氣
體煮食爐的調節條件。
在永久性佈線中安裝一個符合當地佈線法規要求
的合適斷路開關。根據當地的佈線法規，安裝在
固定佈線系統裡的斷路開關的所有電極的觸點氣
隙間隔為3mm，除非當地佈線法規允許採用替代
方法。
氣體煮食爐連接220V-240V 50Hz (10A)電源，並
通過電源線中的地線接地。
在氣體煮食爐電源線所及的地方裝有電源插座
（距氣體煮食爐後中心900mm）。在安裝氣體煮
食爐之後，插座所在位置必須便於使用者插拔插
頭。電源線不得接觸任何金屬零件。
如果電源線破損，必須用斐雪派克授權維修代
理商提供的專用電源線更換：534906 TRMNL
BLOCK-FLEX組件HITEMP GOG 英國
在安裝氣體煮食爐之後，氣源接頭（氣體截流
閥）所在位置必須便於使用者開關氣體。
灶台用耐熱材料製成。
氣體煮食爐安裝符合國家和當地供氣公司、供電
公司的要求和其他相關法律法規的要求。
在安裝氣體煮食爐時
建議你不要用矽膠或膠水把氣體煮食爐固定在灶
台上，否則日後很難維修。斐雪派克不承擔與拆
卸或安裝膠粘氣體煮食爐相關的任何費用，對在
此過程中可能發生的修理損壞不承擔任何責任。
如果安裝符合法規要求的軟管，軟管不應接觸氣
體煮食爐底面或任何鋒利邊沿。軟管應該符合國
家和當地供氣法律法規的要求。
開口裸露邊沿用油漆或防水聚氨酯密封，防止濕
氣滲入氣體煮食爐邊沿和灶台之間。
如果在根據氣體煮食爐安裝說明安裝之後，氣體
煮食爐達不到要求的性能，請聯絡最近的斐雪派
克授權服務中心或客戶服務部，或者登錄本指南
封底列出的地區網站聯絡我們。
1

隨機提供的零件
2
鐵鍋架(1) 纖維墊圈(1)雙面膠(1)
固定支架(4)
螺絲(4)
3氣體氣速摘要
所有的燃氣灶是在出廠時設置為與液化石油氣或天然氣的使用。
CG604D型CG905D型
中火 中火 中火 中火
小鐵鍋 大火
鐵鍋
小火 小火
氣體彎頭(1)彎頭
1/2" BSP外螺
紋(1)
液化石油氣測試
點轉接頭(1)

3氣體氣速摘要
香港
新加坡
爐頭
氣體類型
小火 中火 大火 小鐵鍋 鐵鍋
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
煤氣 (G110)
(1.5 kPa/15 mbar)*
1.30 1.20 1.55 1.60 2.10 3.00 2.60 3.80
1.10
2.30
2.30
5.50
液化石油氣 ( G30)
(2.9 kPa/29 mbar)*
0.55 1.10 0.76 2.36 0.94 3.33 0.94 3.33
0.73
0.73
0.50
4.86
爐頭
氣體類型
小火 中火 大火 小鐵鍋 鐵鍋
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
噴管直徑
(mm)
額定值
(kW)
煤氣
( G110)
(0.8 kPa/8 mbar)*
1.50 1.1 2.07 2.36 3.20 3.33 3.50 3.33
1.30
2.50
2.50
4.86
液化石油氣 ( G30)
(2.9 kPa/29 mbar)*
0.55 1.1 0.76 2.36 0.94 3.33 0.94 3.33
0.69
0.69
0.51
4.45
* 兩個中火鍋爐頭打到最大時的額定壓力。

4氣體煮食爐尺寸和櫥櫃尺寸
氣體煮食爐尺寸和櫥櫃尺寸(mm)
CG604D型CG905D型
A氣體煮食爐總高度（不包括爐頭、旋鈕和平底鍋架） 64 64
B氣體煮食爐總寬度 600 900
C氣體煮食爐總深度 530 530
D底板高度（灶台上表面之下） 59 59
E底板寬度 555 856
F底板深度 486 486
G開口總寬度 560 865
H開口總深度 490 490
I開口轉角半徑 最大10 最大10
J灶台上表面到氣體煮食爐進氣管中心的距離 30 30
K底板邊沿到氣體煮食爐進氣管的距離 21 21
A
KD
B
E
C
G
F
J
H
I
注意：進氣管接頭位於右後方。
頂面 頂面
背面
正面
側面

A
I
B
C
5間隙尺寸
間隙尺寸(mm)
CG604D型CG905D型
A開口左邊到最近的可燃性表面的最小間隙 130 130
B開口右邊到最近的可燃性表面的最小間隙 115 115
C
開口後邊到下列各項的最小間隙：
最近的可燃性表面
最近的非可燃性表面
160
45
160
45
D在背面牆壁上使用的非可燃性材料的最小高度 150 150
E
氣體煮食爐表面到下列各項的最小間隙：
抽油煙機
其他懸空排氣扇
面朝下的可燃性表面
面朝下的瓷磚或耐火表面
650
800
650
500
650
800
650
500
F
灶台上表面到下列各項的最小間隙：
可燃性表面
斐雪派克烤箱或最近的非可燃性表面
70
65
70
65
G氣體煮食爐右邊到牆壁上進氣管接頭的最小距離（如果使用軟管） 250 250
H地面到牆壁上進氣管接頭的距離（如果使用軟管） 最小800 — 最大850 最小800 — 最大850
I吊櫃最大總深度 600 600
注意：確保在距氣體煮食爐後中心900mm範圍內裝有帶接地線的電源插座。牆壁上的進氣管接頭應該位於氣體煮食爐右邊，距地面的高度為800-850mm
(H)，距氣體煮食爐的距離至少250mm (G)。在安裝氣體煮食爐之後，進氣管接頭應該便於操作閥門。
正面
ISO
E
H
D
F
G

6
98
7
處置包裝材料
慢慢放入開口內在邊上貼一圈雙面膠
安裝彎頭和墊圈
採用負責任的方式回收利用
你購買的型號可能與圖中所示的型號有差異
ᚗጳ
ԥᘈӬᏙޠΚ
ጃߴᚗጳᜟᄈቇ
ᡞตᝦѵݽ
1 把氣體煮食爐翻過來放在柔軟表面上。
2 把密封圈套在四周，讓有不乾膠的一面
朝下，使氣體煮食爐四周密封良好。
3 用鋒利刀子裁掉氣體煮食爐四周密封
圈的突出部分。注意不要損傷氣體煮食
爐。
浮動螺母 彎頭（1/2" BSP螺紋）和墊圈
浮動螺母 纖維墊圈 彎頭（1/2" BSP外螺紋）
香港
新加坡

11
13
12
10 固定在檯面上
檢查所有接頭是否漏氣
連接氣源
根據檯面厚度安裝固定支架
16-20mm 20-30mm
x 4
30-40mm 40mm+
從下面往上看
x 4
對其他三面重複此步驟
GAS
ON
ᡞ
໡
ྰ
ܛԥ࠯ဵ
ጃߴ௦ᓟӶԋ၇ᡞตᝦϟࡤܼ߰௦ដȄ
࣐Πܼ߰ᘟ໡ྜȂጃߴӶᎭߗᡞตᝦޠӵРԋ၇ႥᚕሩȄ
ױขၑᘉޠᔇΩ።࿾ژ1.5kPaȞ෬ȟ
ܗ0.8kPaȞུђۄȟȂױܛԥᝦᓟ҉ژ
ഷτЭΩȄ
ጃߴ೻ᆔ٘஋ߞȂܼܷ߰ଷᡞตᝦໍ՘ᆱঔȄ
ጃߴ௦ᓟ՞ဋ໣ራԄಒĶؐܛȄ
೻ᆔ҇໹࢑೾ႇᇰᜍޠRp ½”ġĩISO7-1ĪҕᖴવȄ
೻ᆔ҇໹ᅿѠ૗฼Ȃ҇໹ಓӬ࿌ӵࣻᜱݳࡢݳ೤ޠؒȄ
೻ᆔϛூ҉๗Ȃ֐ࠍৡܿആԚᑒ཭ܗҘεܓᡑםȄ
೻ᆔϛூᎭߗܗ௦ដӉեึዦߓȞپԄߝ឵ึዦݗۼഌȃྮၿܗحѯίޠጒۼݗ๊ȟȄ
Ԅݏң೻ᆔഀ௦ྜȈ
షϾҰݷ
ጃߴױᔇΩ።࿾ژ2.90kPaȂ
ױܛԥᝦᓟ҉ژഷτЭΩȄ
጑ᓟ
請查看與肥皂溶液洩漏
