Fisher & Paykel MINIMAL User manual

MINIMAL
CID84RDTB4
DOWNDRAFT INDUCTION COOKTOP
INSTALLATION GUIDE
UK IE
INSTALLATION GUIDE

3
SAFETY AND WARNINGS
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.
!WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Disconnect the appliance from the mains
electricity supply before carrying out any work
or maintenance.
• Connection to a good earth wiring system is
essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
! WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges are sharp.
READ AND SAVE THIS GUIDE
General Use
zRead these instructions carefully before installing this product.
zSave these instructions for the local electrical inspector’s use.
zInstallation must comply with your local building and local electricity regulations.
zThis appliance is to be installed and serviced only by Fisher & Paykel trained and
supported service technician or qualified person.
zThe manufacturer accepts no responsibility for the incorrect installation of appliances.
Incorrect installation may result in personal injury, damage to property and may invalidate
any warranty or liability claims.
zDo not modify this appliance.
zDo not use or store flammable materials on or near this appliance.
zPacking elements (eg plastic bags, polystyrene foam, staples, packing straps etc) and
tools should not be left around during and after installation, especially if they are within
easy reach of children, as these may cause serious injuries.
zMake sure you recycle the packaging material.
zBefore disposing of any appliance, make sure that it can no longer be used and that all
hazardous parts are removed or made harmless, so that children playing with the old
appliance cannot harm themselves.
zOnly genuine replacement parts may be used for servicing the appliance. These are
available from your nearest Fisher & Paykel Service Center.
zThis cooktop must be connected to the mains power supply only by a suitably
qualified person.
zDO NOT use adapters, reducers, or branching devices when connecting the cooktop to the
mains power supply to prevent overheating and fire.
zThe power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75 oC at any point.
zCAUTION: This appliance is not intended to be used with gas hobs.
WARNING!
To prevent overheating of the electronic components adequate supply of cool air and direct
unrestricted ventilation to the room is required. A gap of min. 4mm height over the width of
the cooktop chassis is required to allow the internal ventilators operating unrestricted.
(Refer to ‘Clearances’)

4
INSTALLATION CONSIDERATIONS
Please ensure the following:
zA suitable disconnection switch is incorporated in the permanent wiring, mounted and
positioned to comply with the local wiring rules and regulations. A means of disconnection
with at least a 3mm air gap contact separation in all poles must be incorporated into the
fixed wiring in accordance with the wiring rules, unless the local wiring rules allow for
alternative means.
zThe benchtop is made of a heat resistant material.
zThere is adequate flow of cool air from the cabinetry to the base of the cooktop. You
may ventilate from adjacent cupboards, but ensure that the available air supply will not
be restricted.
zThe ventilation area must be equivalent to 40cm Refer to 'Clearances'.
zThe power supply cable is not accessible through cupboard doors or drawers.
zThe isolating switch is easily accessible by the customer.
zYou use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall
surfaces surrounding the cooktop.
zThe cooktop will not be installed directly above a dishwasher, fridge, freezer, steam oven,
washing machine or clothes dryer, as the humidity may damage the cooktop electronics.
zThe installation will comply with all regulations relating to the discharge of air, clearance
requirements and other applicable standards and regulations.
zYou consult local building authorities and by-laws if in doubt regarding installation.
zThe installation will comply with all regulations relating to the discharge of air.
Please ensure the following:
zFlush mounting or sealing this appliance into the bench with silicone or glue may make
future servicing difficult. Fisher & Paykel will not be liable for any costs associated with
removing or replacing a sealed-in appliance, nor for repairing any damage that may be
incurred by doing this.
zSeal exposed bare edges of the cutout with an oil-based paint or moisture-proof
polyurethane to prevent possible moisture creeping between the cooktop trim and
the benchtop.
zTake extreme care not to chip, crack, or break the top glass surfaces during installation.
A heavy metal tool or part accidentally dropped on the glass could damage it.
zIf, after following the instructions given, correct performance cannot be achieved, please
contact your nearest Fisher & Paykel Authorised Service Centre, Customer Care, or contact
us through our local website listed at the end of this document.
WARNING!
The owner carries all risk for flush mounting the cooktop. The owner must ensure the
cooktop has been cut out from the countertop before servicing can be carried out.
Fisher & Paykel will not be liable for any costs associated with removing or replacing a flush-
mounted and/or sealed-in product, nor for repairing any damage that may be incurred by
doing this.
BEFORE INSTALLATION DURING INSTALLATION

5
TOOLS AND COMPONENTS
zKeep all packing materials until the unit has been inspected.
zInspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
zFisher & Paykel is not responsible for shipping damage.
zProduct can be vented to the front or rear using supplied components. The below
accessory kits can be purchased separately to expand venting options.
zTo purchase accessory kits, visit fisherpaykel.com
PARTS SUPPLIED
OPTIONAL ACCESSORY KITS
Wrench
Recirculation filter
housing (1)
Hex key
Recirculation outlet (1) 62mm extender
block (2)
Crosshead
screwdriver
500mm straight
ducting: 222 x 89 (1) 300mm straight
ducting: 218 x 55 (1)
Side clips (4)
90° transition elbow:
222 x 89 - 218 x 55 (1)
Router Duct tape
Silicone Cutter
COMPONENTS REQUIRED
82394: D1-C-218-55
z1m ducting*
z218 x 55 connector
82395: E90-218-55
z90° horizontal elbow
*Reduced length illustrated
Foam tape (1)

6
PRODUCT DIMENSIONS
Actual product dimensions may vary by ± 2 mm
PRODUCT DIMENSIONS MM
A Overall height of cooktop 217
B Overall width of cooktop 830
C Overall depth of cooktop* 534
D Depth of cooktop surface 515
E Height of chassis 49
F Width of chassis 799
G Depth of chassis 488
H Depth of front overhang of cooktop glass** 13
I Depth of rear overhang of cooktop glass** 13
J Depth of left overhang of cooktop glass** 15
K Depth of right overhang of cooktop glass** 15
L Height of venting*** 500–899
M Height of venting outlet 37
N Width of venting outlet 340
O Width of ducting 222
P Depth of ducting 89
Q Height of horizontal ducting 59
R Depth of venting**** 380–591
S Minimum clearance below cooktop 200
T Height of glass** 6
Not illustrated: Depth from front of cooktop to centre
of terminal block 368
Not illustrated: Width from right of cooktop to centre
of terminal block 198
*Including filter box at rear
**Including chassis flange
***From underside of glass to base of outlet. Using supplied components.
****Using supplied components.
PLAN
FRONT
ISOMETRIC
PROFILE
B
f
n
j
t
k gh i
d
A
s
e
l
c
m
o
p
r
q
Adjustable foot

7
ACCESSORY DIMENSIONS
ACCESSORY DIMENSIONS MM
A Overall height of horizontal elbow 58
B Overall width of horizontal elbow 257
C Overall depth of horizontal elbow 257
D Overall height of ducting 55
E Overall width of ducting 218
F Overall depth of ducting 1000
G Overall height of connector 58
H Overall width of connector 222
I Overall depth of connector 98
HORIZONTAL ELBOW
CONNECTOR
DUCTING
a
g
d
b
e
h
i
c
f

8
CUTOUT
CUTOUT DIMENSIONS MM
A Overall width of cutout 807
B Overall depth of cutout 492
C Minimum depth at rear 50
D Corner radius of cutout max 10
FRONT FRONT
PLAN PLAN
PROUD INSTALLATION FLUSH INSTALLATION
Bec
cf
Ad
b
dh
g
CUTOUT DIMENSIONS MM
A Overall height of routered recess* 6
B Overall width of routered recess 835
C Overall depth of routered recess 520
D Overall width of cutout 807
E Overall depth of cutout 492
F Minimum depth at front and rear 50
G Corner radius of routered recess 4.5
H Corner radius of cutout max 10
*Shimming may be required to align glass flush with benchtop. Shims not supplied.
A

9
CLEARANCES
CLEARANCE DIMENSIONS MM
A Minimum clearance from cook surface to:
zUnprotected overhead cabinet centered
above cooktop*† 650
zProtected overhead cabinet centered
above cooktop*† 500
B Minimum clearance below countertop** 415
C Minimum clearance from side of cutout to
nearest adjacent combustible surface 40
D Maximum depth of combustible
overhead cabinetry 330
E Minimum distance between overhead cabinets
(centred above cooktop) 830
F Minimum clearance from rear of cutout 50
zMinimum clearance from rear of cooktop 39
G Minimum depth clearance inside cabinetry
for ducting*** 140
H Minimum ventilation gap at the front of
the cooktop 5
I Minimum diameter of ventilation holes equivalent to 40cm
*Combustible surface definition: any materials of a building structure or decorative structure
made of wood, compressed paper, plant fibres, vinyl/plastic or other materials that are capable of
transferring heat or being ignited and burned. Such material shall be considered combustible even
though flame-proofed, fire-retardant treated or surface-painted, or plastered.
†A = 650mm minimum clearance between the top of the cooking surface and the bottom of
an unprotected wood or metal cabinet; or A = 10mm minimum when bottom of wood or metal
cabinet is protected by not less than 6mm thick flame-retardant millboard covered with not less
than No. 28 MSG sheet steel, 0.4mm-thick stainless steel, 0.6mm-thick aluminum, or 0.5mm-thick
copper.
**From underside of cooktop glass. Required for cleaning access.
***Refer to venting preparation for more information.
b
hi
a
e
f
d
c
c
g
FRONT PROFILE: CROSS SECTION
ISO

10
VENTING PREPARATION
VENTING TO THE FRONT
VENTING TO THE SIDE
VENTING TO THE REAR
zA toe kick height of at least 60mm is required.
zFront facing venting is achievable in both island and wall installations providing adequate
airflow is present at the outlet location.
zVenting to the front through the same cabinet can be achieved using the supplied ducting
components. A maximum venting height of 899mm* can be achieved alongside a maximum
venting depth of 591mm. These distances can be extended by using accessory kit
D1-C-218-55.
zVenting to the front through the adjacent cabinet can be achieved through the use of
accessory kits D1-C-218-55 and E90-218-55.
zA space of 140mm is required at the rear of the cabinetry to house the ducting components.
Alternately, if vertical ducting is to pass through any shelving, ensure a cutout of 232mm x
100mm has been created in all shelves.
zAccess through the base of the cabinetry to connect ducting components is recommended.
zEvery 3m or additional bend drops extraction performance by 2%.
zA toe kick height of at least 60mm is required.
zVenting to the side is achievable in both island and wall installations providing adequate
airflow is present at the outlet location.
zVenting to the side can be achieved through the use of accessory kits D1-C-218-55 and
E90-218-55 and can be configured via the front or the rear.
zA space of 140mm is required at the rear of the cabinetry to house the ducting
components**. Alternately, if vertical ducting is to pass through any shelving, ensure a
cutout of 232mm x 100mm has been created in all shelves.
zAccess through the base of the cabinetry to connect ducting components is recommended.
zEvery 3m or additional bend drops extraction performance by 2%.
zA toe kick height of at least 60mm is required.
zRear facing venting is only achievable in island installations providing adequate airflow is
present at the outlet location.
zVenting to the rear through the same cabinet can be achieved using the supplied ducting
components. A maximum venting height of 899mm* can be achieved alongside a maximum
venting depth of 591mm. These distances can be extended by using accessory kit
D1-C-218-55.
zVenting to the rear through the adjacent cabinet can be achieved through the use of
accessory kits D1-C-218-55 and E90-218-55.
zA space of 140mm is required at the rear of the cabinetry to house the ducting
components**. Alternately, if vertical ducting is to pass through any shelving, ensure a
cutout of 232mm x 100mm has been created in all shelves.
zAccess through the base of the cabinetry to connect ducting components is recommended.
zEvery 3m or additional bend drops extraction performance by 2%.
*From underside of glass to base of outlet | **When vertical ducting and elbow housed within cabinetry onlyAll dimensions are in mm
ISO: VENTING TO FRONT
PROFILE: SEPARATE HOUSING PROFILE: SHELVING
140
100
60 – 20060 – 200
65 35
90 50
Rear edge
of cutout
Rear edge
of cutout

11
ELECTRICAL CONNECTION
Before connecting the cooktop to the mains power supply check that:
zThe domestic wiring system is suitable for the power drawn by the cooktop.
zThe voltage corresponds to the value given in the rating plate.
zThe power supply cable sections can withstand the load specified on the rating plate.
CONNECTION MAX. CURRENT DRAW MAX. LOAD VOLTAGE
Single-phase 34A 7400W 220-240V~
Two-phase 34A 7400W 380-415V~ 2N~
Three-phase 34A 7400W 380-415V~ 3N~
220-240V~
380-415V~ 2N~
380-415V~ 3N~
SINGLE-PHASE CONNECTION
CONNECTION LOCATION
CONNECT POWER
TWO-PHASE CONNECTION
THREE-PHASE CONNECTION
junction box
BASE
1 3 5
2
L N PE
4
1 3 5
2
L1 L2 N PE
4
1 3 5
2
L1 L3L2 N PE
4
1 3 5
2
L N PE
4
1 3 5
2
L1 L2 N PE
4
1 3 5
2
L1 L3L2 N PE
4
1 3 5
2
L N PE
4
1 3 5
2
L1 L2 N PE
4
1 3 5
2
L1 L3L2 N PE
4
Ensure cable is tightened with screw.
You may have to remove the screw
first before fitting the clamp.
Ensure cable is tightened with screw.
You may have to remove the screw
first before fitting the clamp.
Ensure cable is tightened with screw.
You may have to remove the screw
first before fitting the clamp.
4
N
321
L1L2L3
4
N
321
L2L1
4
N
32
5
1
L
5
5
4
N
321
L1L2L3
4
N
321
L2L1
4
N
32
5
1
L
5
5
4
N
321
L1L2L3
4
N
321
L2L1
4
N
32
5
1
L
5
5
clamp
screw
clamp
screw
clamp
screw
1Open the junction box cover
and connect the wiring to the
terminal block.

12
INSTALL DUCTING
2 5
1
6
Prepare the toe kick panel to the
illustrated specifications.
We recommend sealing the panel
with a waterproof barrier to
prevent any moisture damage.
3
Slide assembly under cabinetry
and slot into the elbow. Tape
to secure.
Cut the vertical ducting to the
required length and slot into the
elbow. Tape to secure.
4Fit the outlet to the ducting and
tape to secure.
Align the outlet to the toe kick
panel and adjust the height
to suit. To increase the height,
rotate the foot clockwise and to
decrease, rotate anticlockwise.
Cut any excess thread to remove.
Loosen the screws at the sides
of the outlet and fit the toe
kick. Rotate screws to clamp
into place.
334mm
max panel thickness: 16mm
13mm 34mm
60mm –
200mm

13
2
1
3
Turn the cooktop upside down
on a protective cover.
Apply adhesive foam seal around
the glass overhang, 5mm from
the edge of the glass.
Ensure the adhesive side facing is
down to form a continuous seal
around the cooktop.
Trim the excess sealing
material using a sharp cutter
or trimmer knife.
Take care not to damage
the benchtop.
4
Align vertical ducting to the
outlet to the cooktop before
rotating and lowering it into
the cutout.
Tape the ducting to secure.
Attach the four side clips
to the cooktop chassis.
Ensure the clips are
oriented correctly.
Slot the two filter housing
components together. If using the
supplied 62mm extension blocks*,
add between the two filter
housing components as required.
Fit to the rear of the cooktop.

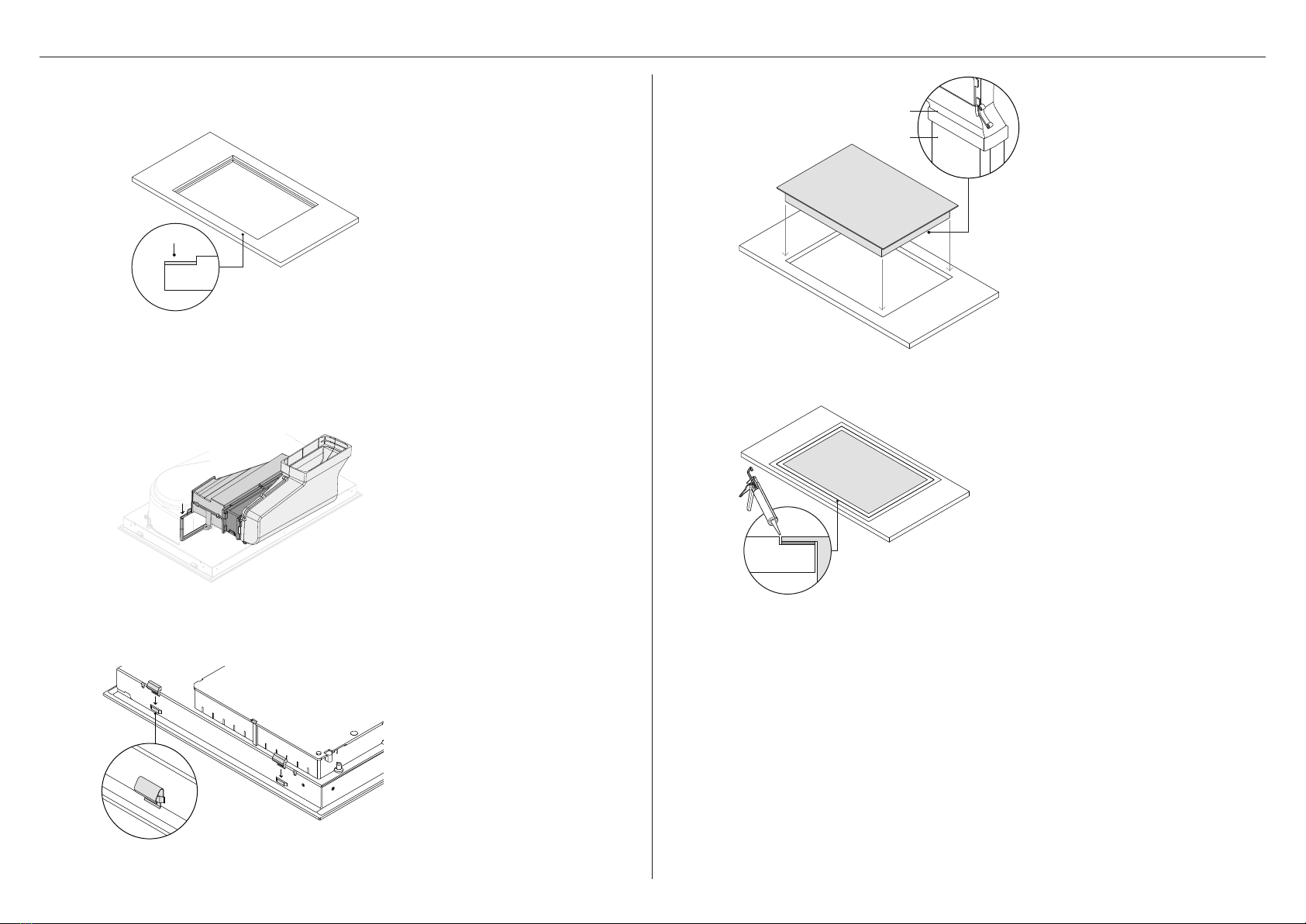

INSTALL COOKTOP – PROUD
5
6
5mm
Ducting
Filter housing
Optional 62mm
extender block
*When installing in a 600mm deep cabinet, extension blocks are not required. If installing into a 700mm deep cabinet, both
supplied extension blocks should be used.

14
2
1
6
Prepare the countertop for flush
installation. Use a router to cutout
the edges of the countertop to
specified depth (6mm). Ensure all
bare edges are sealed. Refer to
'Installation Considerations'.
Attach an adhesive tape along
the edges of the routered recess.
Apply silicone in the gap between
countertop and cooktop.
Wipe off any excess silicone.
INSTALL COOKTOP – FLUSH
adhesive
3
4
Slot the two filter housing
components together before
fitting to the rear of the cooktop.
Attach the four side clips
to the cooktop chassis.
Ensure the clips are
oriented correctly.
Ducting
Filter housing
Align vertical ducting to the
outlet to the cooktop before
rotating and lowering it into
the cutout.
Tape the ducting to secure.

15
INSTALLER CHECKLIST
TO BE COMPLETED BY THE INSTALLER
GENERAL
Read safety and warnings in the user guide before operating the cooktop.
Specified clearance maintained.
Unit is level–front to back and side to side.
All packaging materials have been removed.
Touch controls and displays are functioning.
Cooking zones are functioning correctly. Turn on all of them to a high setting and leave
them on for at least one minute.
There is a constant flow of cool air from the cabinetry to the base of the cooktop.
Cooktop is securely clamped.
Basic operation has been demonstrated to the customer.
VENTILATION
Ensure all ducting components are taped securely.
Check outlets are clear and not obstructed.
ELECTRICAL
Receptacle with correctly rated over-current protection is provided for service
cordconnection.
Adequate ground connection.
Power supply cable is not touching the cooktop and accessible.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date

592497B 11.21
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
