Fisher & Paykel CI302DTB User manual

NZ AU GB IE
User guide
Induction cooktop
CI302DTB, CI603DTB, CI604DTB,
CI754DTB & CI905DTB models

1
Contents
Safety and warnings 2
Introduction 8
Choosing the right cookware 9
Using your induction cooktop 10
Using your cooktop’s special features 16
Cooking guidelines 29
Care and cleaning 32
Troubleshooting 33
Warranty and service 35
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2Safety and warnings
Operation and maintenance
WARNING!
Electrical Shock Hazard
Do not cook on a broken or cracked
cooktop. If the cooktop surface should
break or crack, switch the appliance off
immediately at the mains power
supply (wall switch) and contact a
qualified technician.
Switch the cooktop off at the wall before
cleaning or maintenance.
Failure to follow this advice may result
in electrical shock or death.
WARNING!
Fire Hazard
Unattended cooking on a hob with fat
or oil can be dangerous and may result
in fire.
NEVER try to extinguish a fire with
water, but switch off the appliance and
cover flame, eg with a lid or fire blanket.
Do not store items on cooking surfaces.
Failure to follow this advice may result
in serious burns or death.

3
Safety and warnings
WARNING!
Health Hazard
This appliance complies with
electromagnetic safety standards.
However, persons with cardiac
pacemakers or other electrical
implants (such as insulin pumps)
must consult with their doctor or
implant manufacturer before using
this appliance to make sure that their
implants will not be affected by the
electromagnetic field.
Failure to follow this advice may result
in death.

4Safety and warnings
Operation and maintenance
WARNING!
Hot Surface Hazard
During use, accessible parts of this
appliance will become hot enough to
cause burns.
Do not let body, clothing or any item
other than suitable cookware contact
with the ceramic glass until the surface
is cool.
Never leave metal objects (such as
kitchen utensils) or empty pans on the
cooktop as they can become hot very
quickly.
Beware: magnetisable metal objects
worn on the body may become hot in
the vicinity of the cooktop. Gold or silver
jewellery will not be affected.
Keep children away.
Handles of saucepans may be hot to
touch. Check saucepan handles do not
overhang other cooking zones that are
on. Keep handles out of reach of
children.
Failure to follow this advice could result
in burns and scalds.

5
Safety and warnings
Important safety instructions
Never leave the appliance unattended when
in use. Boilover causes smoking and greasy
spillovers that may ignite.
Never use your appliance as a work or storage
surface.
Never leave any objects or utensils on the
appliance.
Do not place or leave any magnetisable objects
(eg credit cards, memory cards) or electronic
devices (eg computers, MP3 players) near
the appliance, as they may be affected by its
electromagnetic field.
We recommend using plastic or wooden
kitchen utensils for cooking with your induction
cooktop.
Never use your appliance for warming or
heating the room.
After use, always turn off the cooking zones and
the cooktop as described in this manual (ie by
using the touch controls). Do not rely on the pan
detection feature to turn off the cooking zones
when you remove the pans.

6Safety and warnings
Important safety instructions
Do not allow children to play with the appliance
or sit, stand, or climb on it.
Do not store items of interest to children in
cabinets above the appliance. Children climbing
on the cooktop could be seriously injured.
Do not leave children alone or unattended in the
area where the appliance is in use.
Children of less than 8 years old must be kept
away from the appliance unless continuously
supervised. This appliance can be used by
children aged from 8 years and above, and
persons with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge, if they have been given supervision
or instruction concerning the use of the
appliance in a safe way and they understand
the hazards involved. Cleaning and user
maintenance shall not be done by children
without supervision.
Do not repair or replace any part of the
appliance unless specifically recommended in
the manual. All other servicing should be done
by a qualified technician.
Do not use a steam cleaner to clean your
cooktop.
Do not place or drop heavy objects on your
cooktop.

7
Safety and warnings
Important safety instructions
Do not stand on your cooktop.
Do not use pans with jagged edges or drag pans
across the ceramic glass surface as this can
scratch the glass.
Do not use scourers or any other harsh/abrasive
cleaning agents to clean your cooktop, as these
can scratch the ceramic glass.
If the power supply cable is damaged, it must
only be replaced by a qualified technician.
Do not operate your cooktop by means of an
external timer or separate remote-control
system.

8
Introducing your cooktop
Congratulations on your new purchase. Your Fisher & Paykel induction cooktop is the ultimate in
induction cooking, giving you the speed, precision, and simplicity of electronic control, and the
easy-care elegance of a ceramic glass surface. For more information, visit our local website listed
on the back cover.
A word on induction cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by
electromagnetic vibrations generating heat directly in the pan, rather than indirectly through
heating the glass surface. The glass becomes hot only because the pan eventually warms it up.
This technology has a number of advantages over traditional radiant energy cooking:
Heat-up times are much faster.
Use is safer as no heating takes place unless a suitable pan is placed on the cooking zone.
As heat is transferred without loss, you save energy.
Before using your new cooktop
Read this guide, taking special note of the ‘Safety and warnings’ section.
Remove any protective film that may still be on your cooktop.
Using the touch controls
The controls respond to touch, so you don’t need to apply any pressure.
Use the ball of your finger, not its tip.
Make sure the controls are always clean, dry, and there is no object (eg a utensil or a cloth)
covering them. Even a thin film of water may make the controls difficult to operate.
Introduction

9
Choosing the right cookware
Important!
Only use cookware with a base suitable for induction cooking.
Look for the induction symbol on the packaging or the bottom of
the pan.
You can check whether your cookware is suitable by carrying out
a magnet test. Move a magnet towards the base of the pan. If it is
attracted, the pan is suitable for induction.
If you do not have a magnet:
1 Put some water in the pan you want to check.
2 Follow the steps under ‘To start cooking’ opposite.
3 If does not flash in the display and the water is heating, the pan is suitable.
Cookware made from the following materials is not suitable: pure stainless steel, aluminium or
copper without a magnetic base, glass, wood, porcelain, ceramic, earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is similar in size as
the cooking zone. A small pot on a large cooking zone may not be detected. Always centre your
pan on the cooking zone.
Always lift pans off the cooktop– do not slide, or they may scratch the glass.

10
* Maximum output when set on PowerBoost.
** PowerBoost is not available when cooking zones are bridged.
See ‘Using your cooktop’s special features.’
CI302DTB model
Using your induction cooktop
CI604DTB model CI603DTB model
CI754DTB model CI905DTB model
Cooking
Zone
Zone
Diameter
Power PowerBoost Recommended
minimum pan size
1 145 mm 1400 W 2200 W * 120 mm
2 180 mm 1850 W 3000 W * 145 mm
3 210 mm 2300 W 3700 W * 145 mm
4 180/260 mm 1850/2600 W 3000/5500 W * 125 mm (inner zone)
250mm (dual zone)
5 SmartZone 2100 W 3700 W ** 120mm (un-bridged)
250mm (bridged)
5
5
1
1
3
21
2
2
2
4
4
1
1
5
5
5
5

11
GentleHeat
indicators
if one is lit:
gentle heat is
activated
GentleHeat
control
Heat
Setting
Display
Cooking
Zone
identifier
Bridging
Zone
indicator
Zone timer
indicator
if brightly lit:
timer is selected
and ready to be set
if dimly lit:
timer is
counting down
Timer
Display
Timer Control
if on:
timer is active
if off:
timer is off

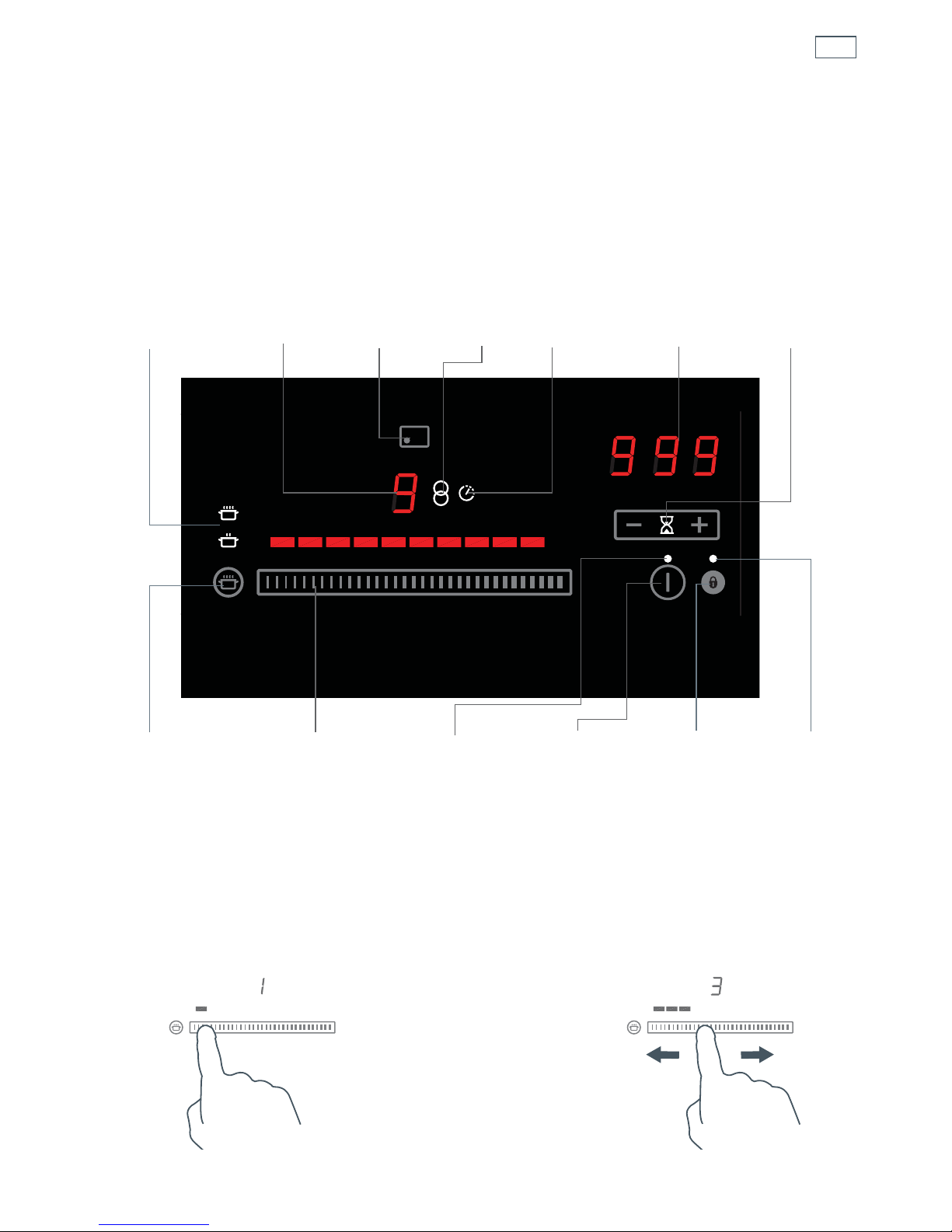

Control panel
Using your induction cooktop
Keylock
control:
Locks the
controls
(except
ON/OFF)
to prevent
unintended
use
if on:
controls
(except
ON/OFF) are
locked and
unresponsive
if off:
controls are
responsive
if on:
cooktop is on
if off:
cooktop is off
Setting selector:
Touch this area or
slide your finger
along it to select
the heat setting.
The display lights
above the selector
correspond to the
setting levels (0-9)
ON/OFF
control
Turns the
cooktop on
and off
To select a setting on the selector:
Touch at one point to “jump” to a
specific setting
OR slide your finger along the selector.

12 Using your induction cooktop

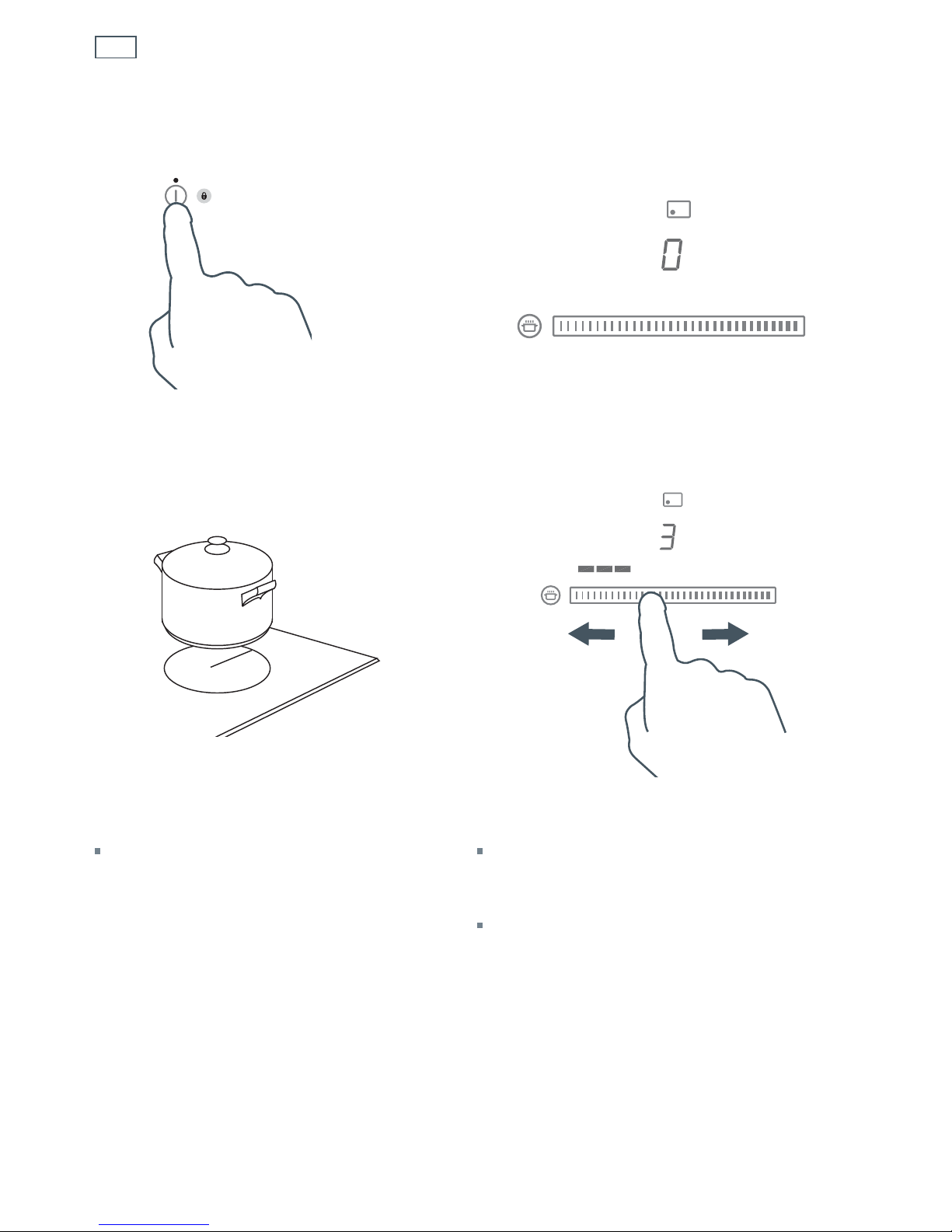

To start cooking
1 Touch and hold the ON/OFF
control for 2 seconds.
A white indicator light will glow.
3 Place a suitable pan on the
cooking zone you wish to use.
Make sure the bottom of the pan
and the surface of the cooking
zone are clean and dry.
Important!
Always place small pans in the centre
of the cooking zone.
4 Select a heat setting by touching or sliding
the setting selector with your finger.
If you don’t choose a heat setting within 20
seconds, the cooktop will automatically
turn off. Start with step 1 again.
You can modify the heat setting at any time
during cooking.
2 0will appear in the cooking zone displays.

13
If a display flashes alternately with the heat setting
This means that:
you have not placed a pan on the correct cooking zone or
the pan you’re using is not suitable for induction cooking or
the pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The cooktop will automatically turn off after 10 minutes if no suitable pan is placed on it.
Dual zone cooking (CI905DTB & CI603DTB models only)
When using a small pot on the dual cooking zone, be sure to centre it so that the inner zone will
detect the pan. If the pan covers the outer zone, then the outer zone will automatically switch
on.

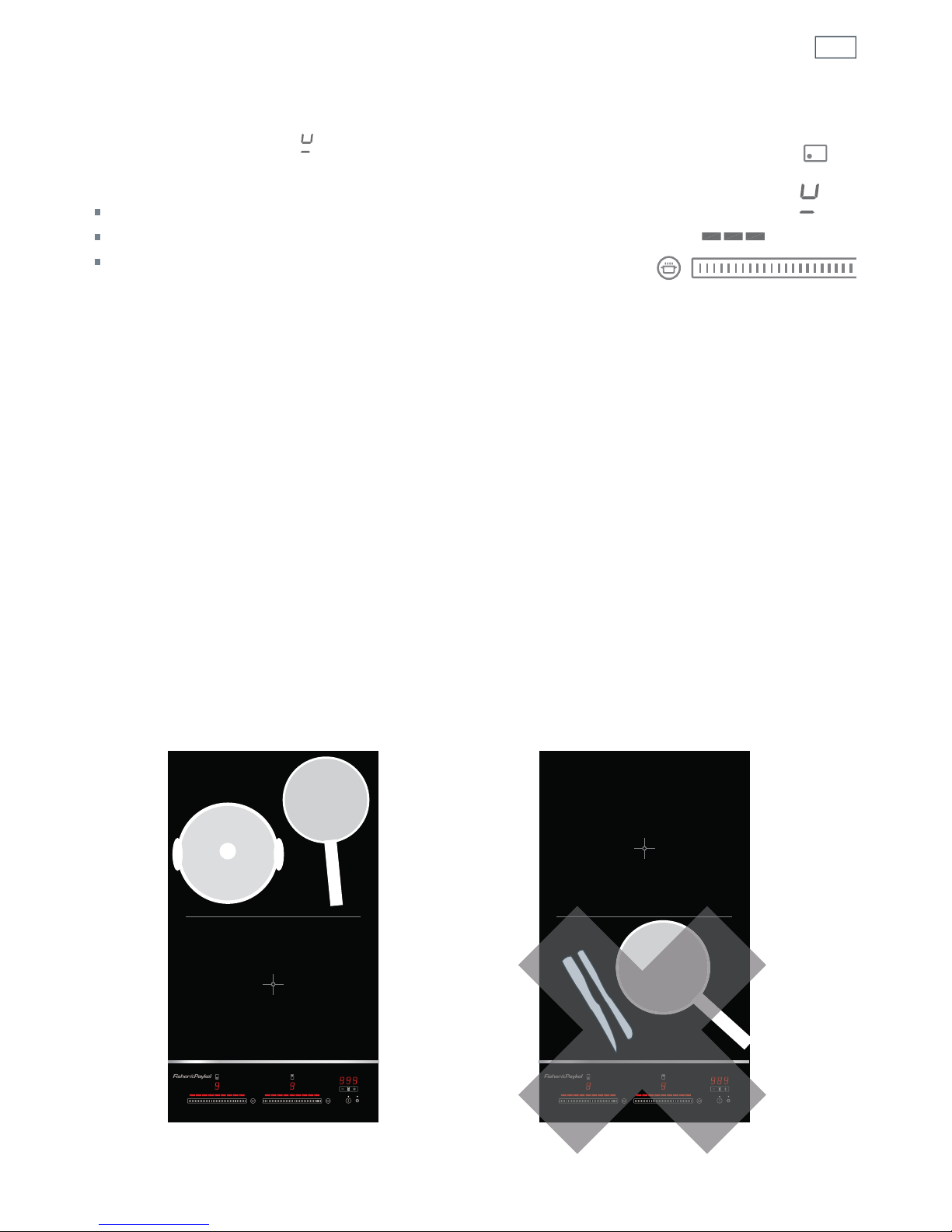

SmartZones (CI604DTB & CI302DBT models only)
The SmartZones are large. You may place several small pots on the SmartZone and they will be
detected as if they were one large pot.
Important!
The whole of the SmartZone is activated when a pot is detected. This means that other magnetisable items
(such as cutlery) sitting in the cooking zone will heat up.
Never leave cutlery or other magnestisable items on your cooktop.
Using your induction cooktop

14 Using your induction cooktop
When you have finished cooking
1a Turn the cooking zone off by touching or
sliding down to 0.
Make sure the display shows 0.
1b Turn the whole cooktop off by
touching the ON/OFF control.
2 Beware of hot surfaces
Hwill flash in the window of any cooking zone that is too hot to touch. It will remain on and
steadily lit even when the cooktop is turned off. It will disappear when the surface has cooled
down to a safe temperature.

15
Locking the controls
You can lock the controls to prevent unintended use
(for example children accidentally turning cooking zones on).
When the controls are locked, all controls except the ON/OFF control are disabled.
To lock the controls
1 Make sure that the cooktop is turned on but no cooking zone is in use.
2 Touch and hold the keylock control for 5 seconds. The white indicator light above the
control comes on, indicating that the controls are locked.
Note: the cooktop will automatically turn off after 20 seconds, but the controls will still be locked
when you turn the cooktop on again.
If any controls are accidentally touched while the cooktop is locked the white ‘lock’ indicator
light will flash and the cooktop will remain locked.
To unlock the controls
1 Make sure the cooktop is turned on.
2 Touch and hold the keylock control for 3 seconds. The white indicator light above the
control goes out.
3 You can now start using your cooktop.
Using your induction cooktop

16 Using your cooktop’s special features
Using the PowerBoost feature
This feature enables you to sear meat or bring liquid to the boil very quickly. When a cooking
zone is set for PowerBoost, it uses more than 100% of the power of that particular cooking zone,
resulting in a boost of intense heat.
Important!
PowerBoost heats food and liquids very quickly. Do not leave the cooktop unattended when using this
feature.
To set a cooking zone for PowerBoost
When PowerBoost is set
The cooking zone will be on PowerBoost (more than 100%) for 10 minutes, Pwill then flash for
a few seconds before the cooking zone automatically reduces the heat to setting 9(100%).
To quit the PowerBoost setting
Either touch or slide the setting selector to a new setting or to 0to turn the cooking zone off.

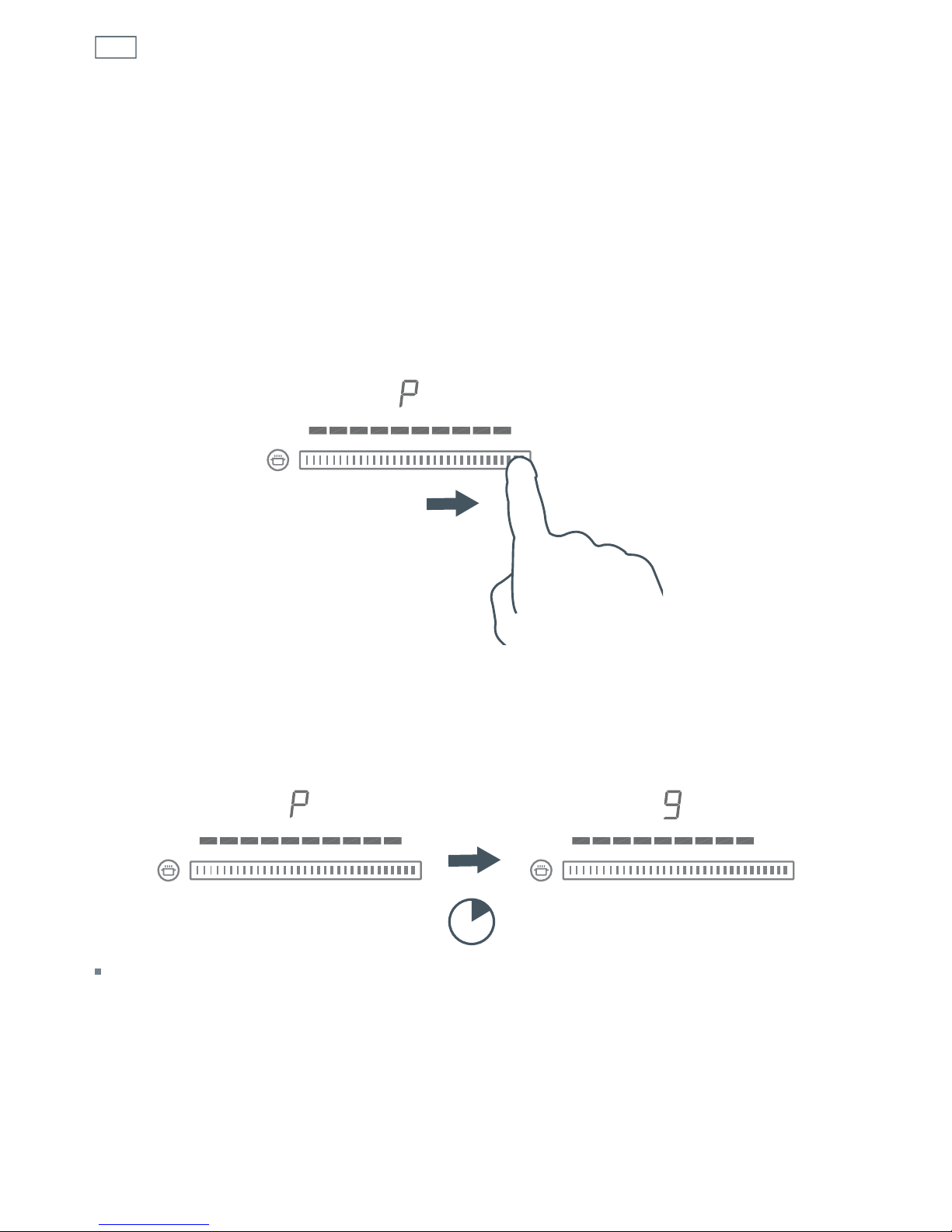

1 With the cooktop turned on, touch or slide the setting selector up to the last setting on the right
until Pis displayed.
10 mins

17
Note:

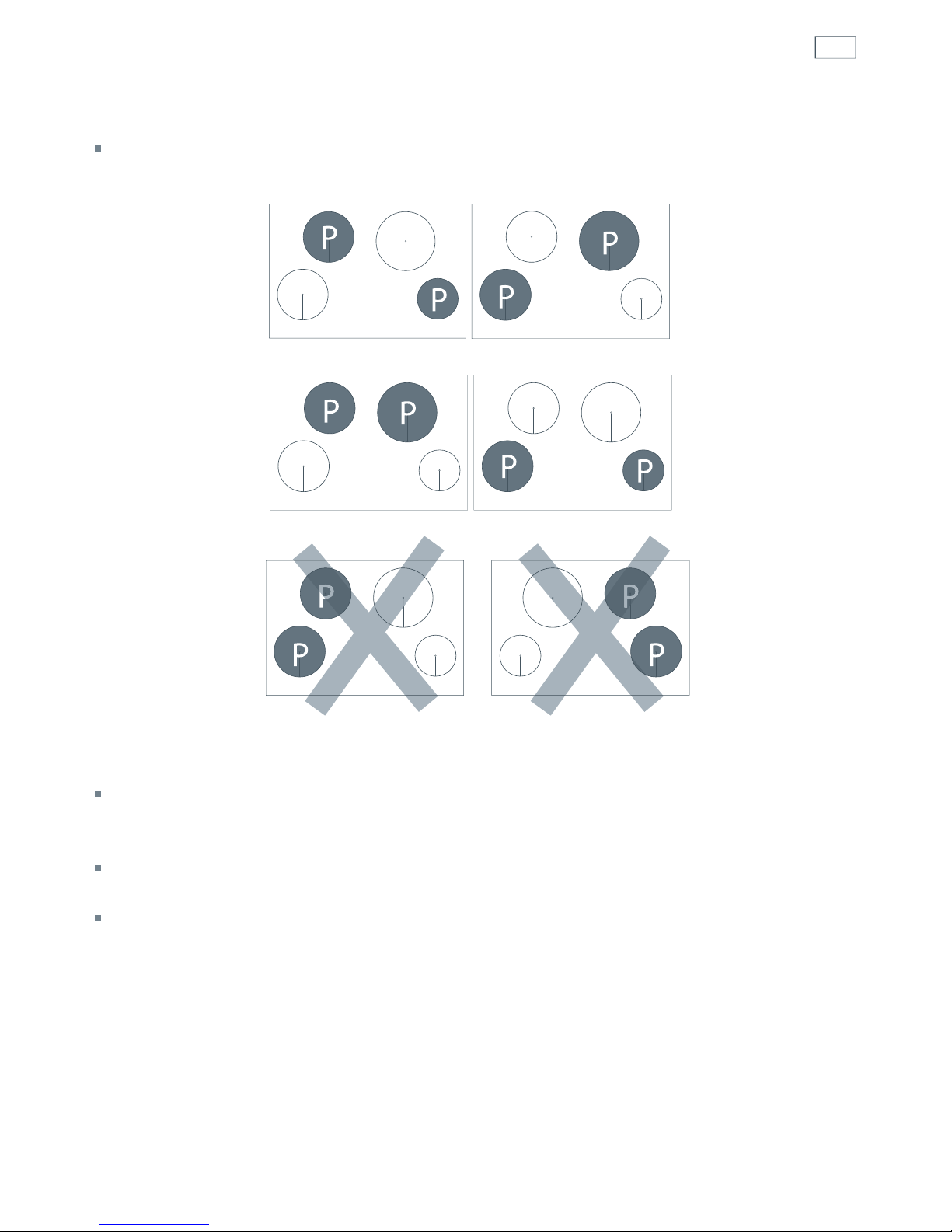

You can set two (CI603DTB, CI604DTB and CI754DT) or three (CI905DTB) cooking zones for
PowerBoost, as long as one is not behind the other. For example:
If one cooking zone is set to PowerBoost and you accidentally select a second cooking zone
immediately in front or behind it also setting it to PowerBoost, the first cooking zone will warn
you that the configuration is not possible, flash Pand then automatically reduce its power level.
When a cooking zone is set for PowerBoost, the cooking zone immediately in front of or behind
may automatically reduce its power level.
PowerBoost is not available if cooking zones are bridged.
Using your cooktop’s special features
CI754DTB model shown as an example

18
Using the GentleHeat feature
There are two Gentle heat settings.
The Low setting is ideal for the most delicate cooking tasks (such as melting chocolate), as
the cooking zone will provide a very low continuous gentle heat.
The Medium setting is ideal for keeping cooked food warm and the gentle warming of
delicate foods.
To set a cooking zone for GentleHeat
To quit the GentleHeat setting
Either touch or slide the setting selector to a new setting or to 0to turn the cooking zone off.
Using your cooktop’s special features
1b If you want the Medium setting, touch
the GentleHeat control again to select
the Medium setting.
The Medium setting indicator above
will glow and the Low setting indicator
goes out.
Touching the control a third time will
switch off the cooking zone altogether.

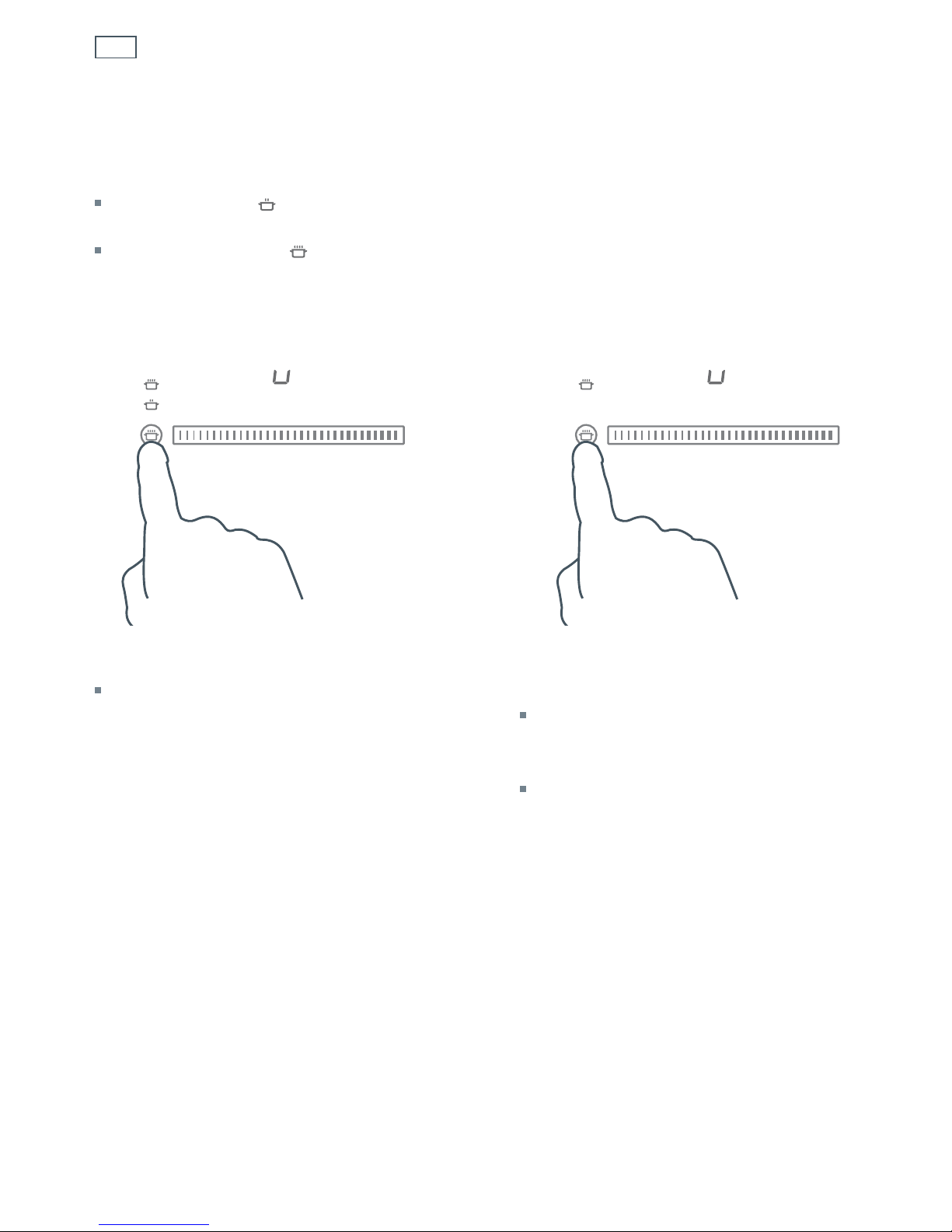

1a With the cooktop turned on, touch the
GentleHeat control.
The Low setting indicator above will
glow and U will show in the display.
