Fisher & Paykel OB60 Series User manual

NZ AU GB IE SG
User guide
Built-in oven
OB60 single, double,
and compact models

1
Contents
Safety and warnings 2
Oven controls and setting manual mode 4
Oven controls and setting the clock 5
First use 8
Using your oven 9
Oven functions 10
Baking charts 12
Cooking with ‘auto-off’ 16
Using the electronic timer 18
Automatic cooking 19
Care and cleaning 20
Troubleshooting 32
Warranty and service 33
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2Safety and warnings
Your built-in oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using your oven:
WARNING!
Hot Surface Hazard
Accessible parts may become hot when this oven is in use.
To avoid burns and scalds, keep children away.
Do not touch hot surfaces inside the oven.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes.
Take care when opening the oven door.
Let hot air or steam escape before removing or replacing food.
Failure to follow this advice could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Disconnect the oven from the power supply before any cleaning or
maintenance.
Failure to do so may result in death or electrical shock.

3
Safety and warnings
Important safety instructions
Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Safe food handling: leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warmer weather.
Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this
will irreversibly damage the enamel.
Do not stand on the door, or place heavy objects on it.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the oven.
Caution. Hot air can blow from under the control panel as part of the oven’s cooling system.
Do not keep flammable substances in the oven.
Do not operate your appliance by means of an external timer or separate remote-control system.
If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified person in order to avoid a hazard.
Under unfavourable electrical supply conditions, the appliance may cause temporary voltage
drops.

4Oven controls and setting manual mode
MODELS WITH ANALOGUE TIMER
Important!
The oven will not work until the analogue timer has
been set either to manual mode or to cook with
‘auto-off’.
To set manual mode
Turn the analogue timer knob clockwise to the symbol.
You should be able to hear a click as you turn the knob
beyond the 120-minute mark.
You have now set the oven to manual mode.
Note: you may hear some ticking even after you have set the
oven to manual mode. This is normal.
To set cooking with ‘auto-off’
See section ‘Cooking with ‘auto-off’’ for instructions.
Temperature
knob
Function
knob
Analogue
timer
Temperature
indicator light
Function
indicator light

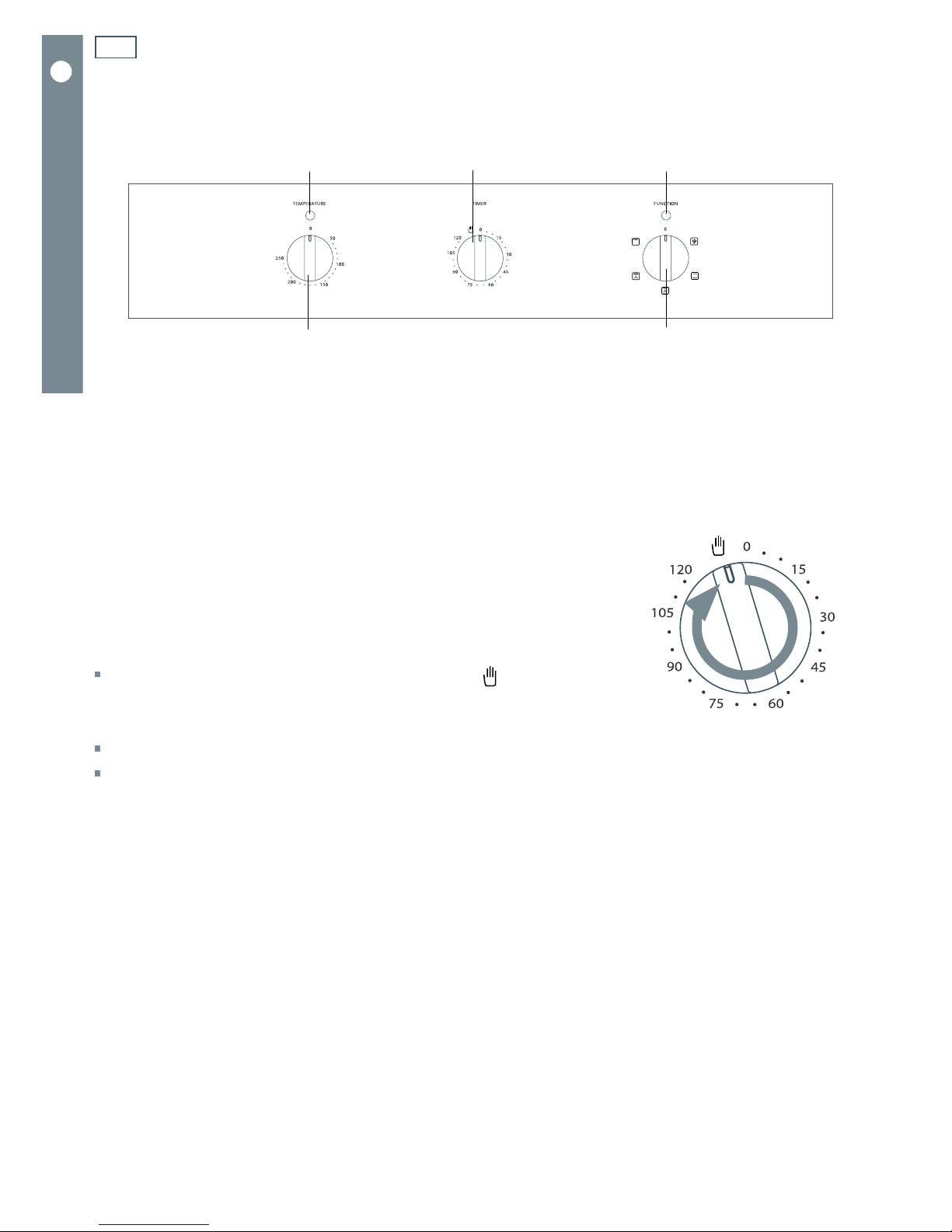

Fig. 1 Control panel – Models with analogue timer
Fig. 2 Setting the oven
to manual mode

5
If the display shows It means that... For more information
A
U
T
O
flashing The oven is ready to be set for
cooking with ‘auto-off’.
See section ‘Cooking with auto-off’steadily lit The oven is set for cooking with
‘auto-off’.
flashing and
beeping
Cooking with ‘auto-off’ has
finished.
Oven controls and setting the clock
MODELS WITH THREE-BUTTON CLOCK
Buttons
sets the clock, shows the time of day when
oven is cooking with ‘auto-off’ set
decreases time and beep volume
increases time
Illuminated symbols
To set the clock
When the power to the oven is turned on or restored after a power failure, 0.00 will flash in
the display.
1 Press .
2 Press and until you have the correct time of day.

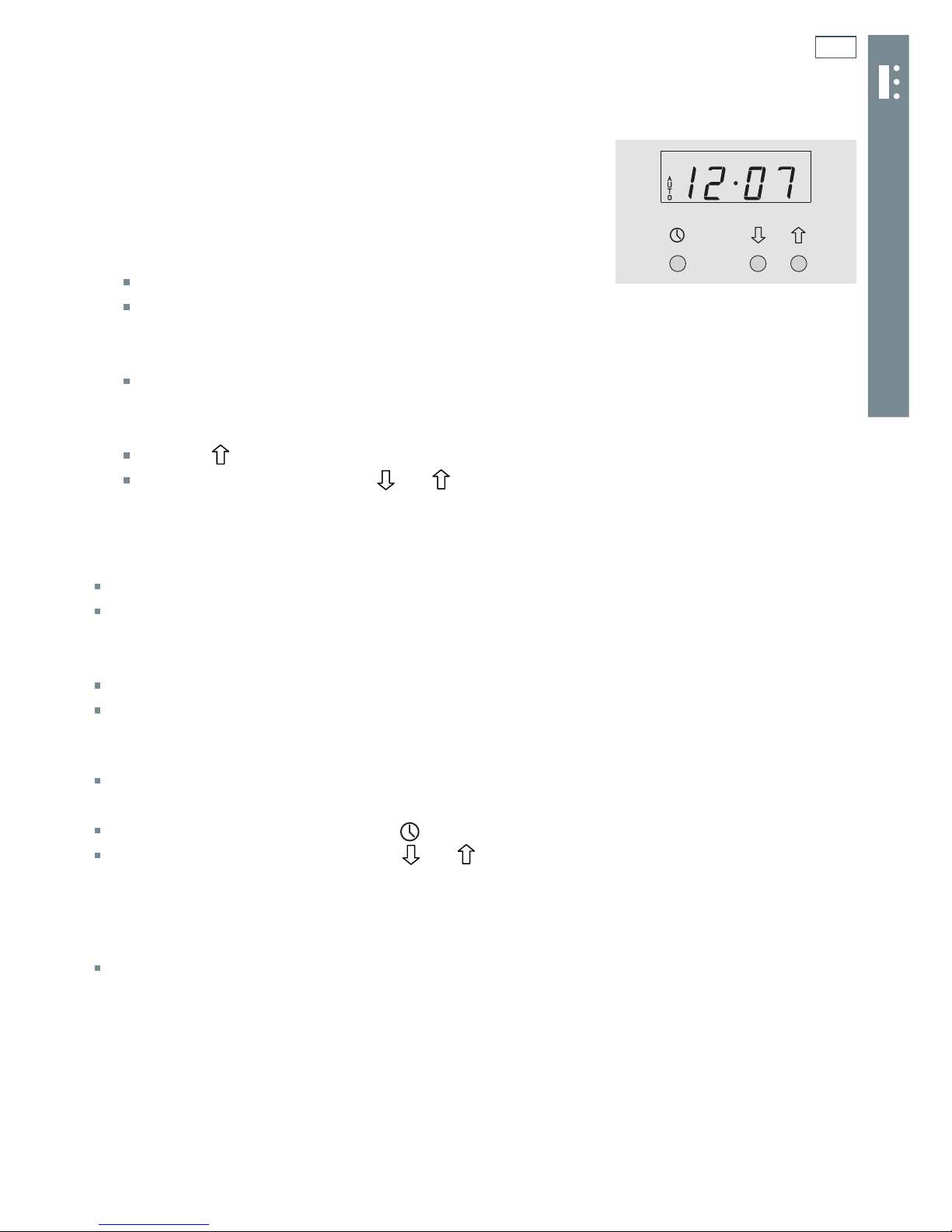

Fig. 5 Clock display and
control buttons
Temperature knob Function knob
Temperature
indicator light
Clock display Function
indicator light
Control buttons
Temperature
knob
Function
knob
Clock display
Temperature
indicator light
Function
indicator light

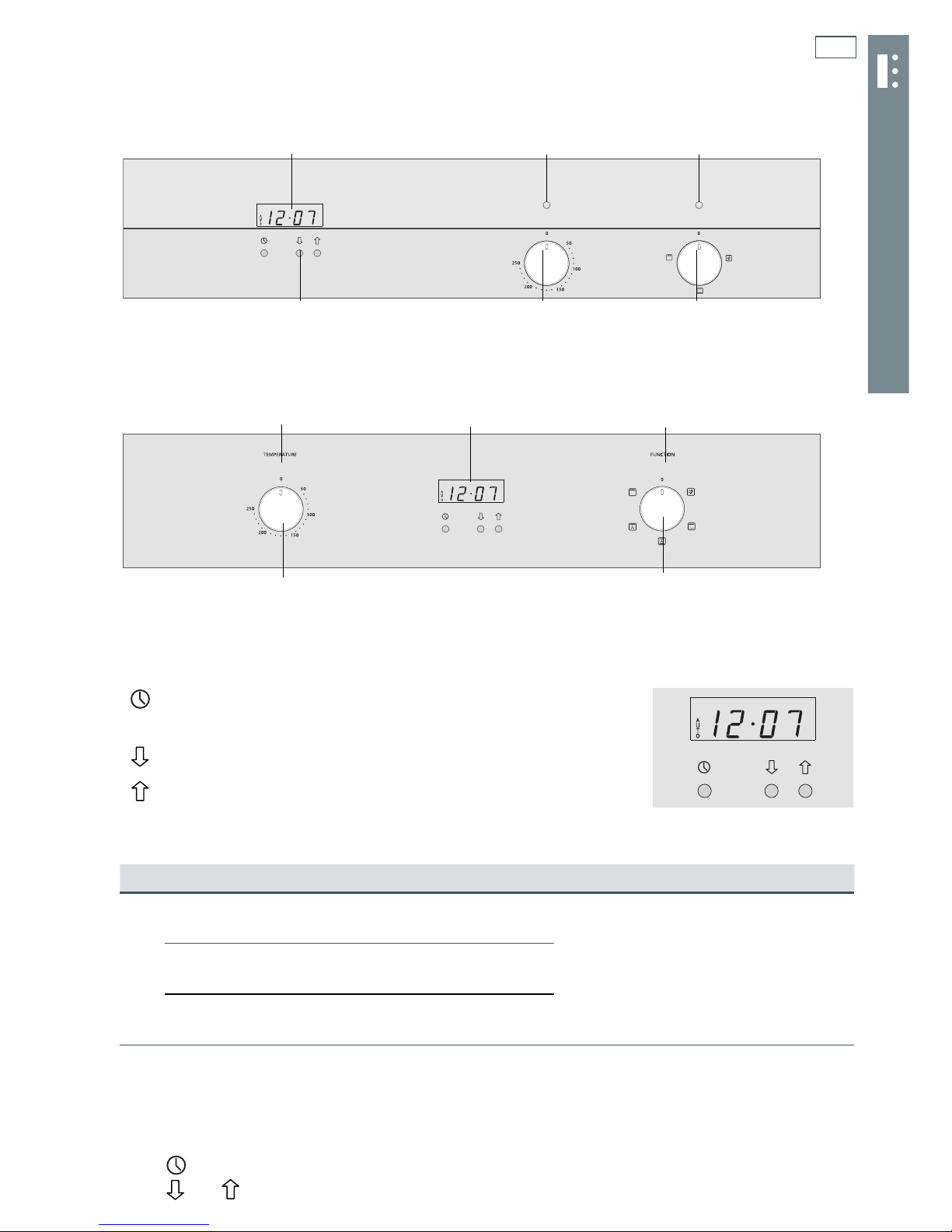

Fig. 3 Control panel- Compact models with two cooking functions
Fig. 4 Control panel- Single models with four cooking functions

6
Temperature knob Function knob
Temperature
indicator light
Clock display Function
indicator light
Control buttons
Oven controls and setting the clock
Fig. 6 Control panel- Compact and single models with seven cooking functions
MODELS WITH SIX-BUTTON CLOCK
Fig. 7 Control panel- Double models with seven-function full oven and two-function compact oven
23
14 5
678
Fig. 8 Control panel- Double models with two seven-function ovens (full or compact upper oven)
23
14 5
678
1 Control buttons
2 Upper oven function knob
3 Upper oven temperature knob
4 Lower oven function knob
5 Lower oven temperature knob
6 Lower oven temperature indicator light
7 Upper oven temperature indicator light
8 Clock display

7
Oven controls and setting the clock
MODELS WITH SIX-BUTTON CLOCK

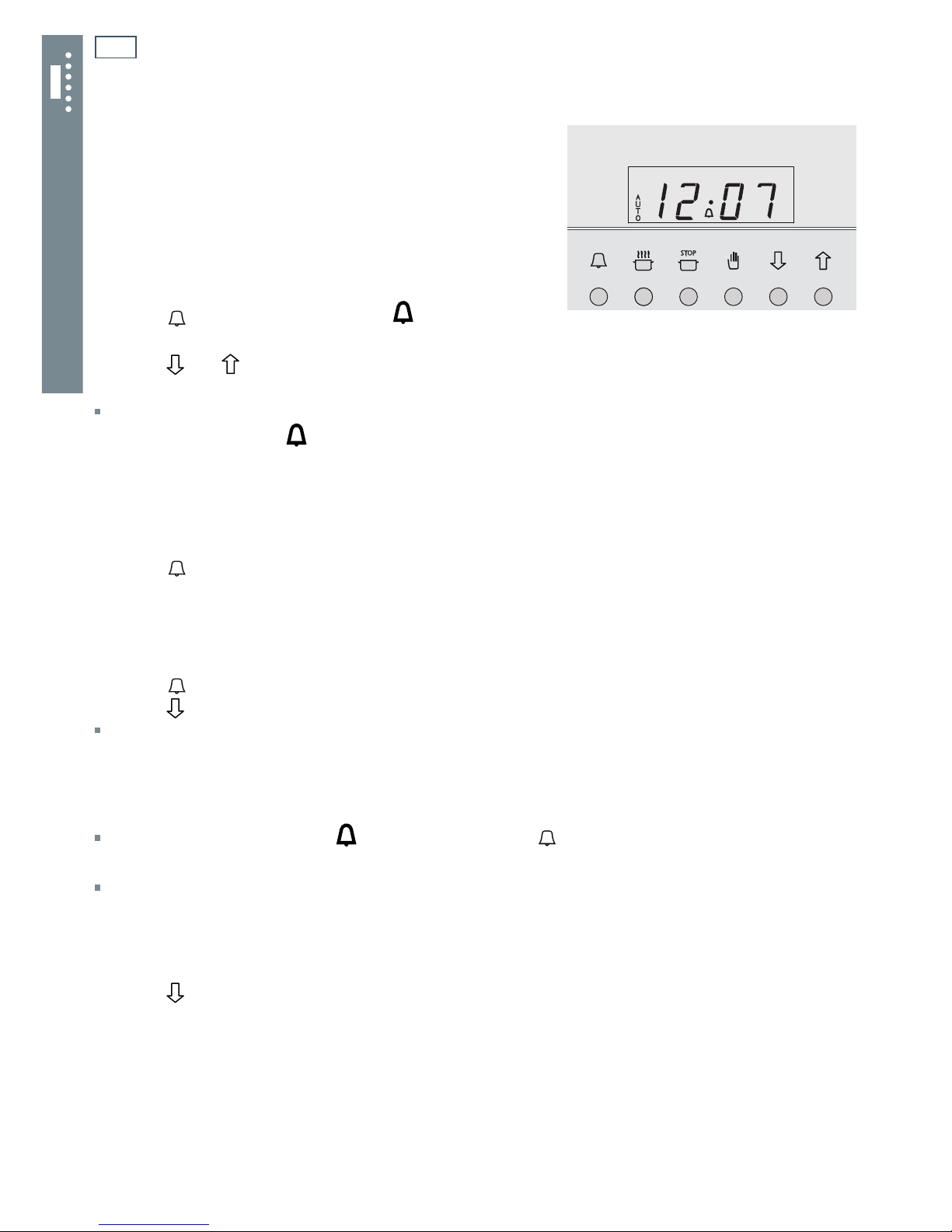

Fig. 9 Clock display and
control buttons
Buttons
sets the timer
sets the cooking time for automatic cooking
sets the stop time for automatic cooking
sets the clock, returns oven to manual mode,
cancels automatic cooking
decreases time and beep volume
increases time
Illuminated symbols
To set the clock
When the power to the oven is turned on or restored after a power failure, 0.00 and AUTO will
flash in the display.
1 Press .
2 Press and until you have the correct time of day.
If the display shows It means that... For more information
A
U
T
O
flashing with
0.00 The clock needs to be set. See instructions below.
steadily lit The oven is set for automatic
cooking.
See section ‘Automatic cooking’
flashing and
beeping
Automatic cooking has finished
or has been set incorrectly (the
stop time is before the time of
day).
steadily lit The timer is set. See section ‘Using the electronic timer’
flashing and beeping The set time is up.

8First use
Important!
Some models only have some of the features and accessories listed above. For information on accessories,
contact Customer Care.
Before using your new oven for cooking or baking, please:
1 Read this user guide, taking special note of the ‘Safety and warnings’ section.
2 Remove all accessories and packaging. Make sure you peel any protetctive film off the surfaces.
Discard the film immediately, keeping it out of reach of children.
3 If your model has side catalytic panels and sliding shelf supports, check that these are fitted. If
they aren’t, see ‘Care and cleaning’ for instructions.
4Depending on your model, set manual mode (models with analogue timer) or set the clock
(models with electronic clock). The oven will not work until this has been done.
For models with analogue timer, see ‘Oven controls and setting manual mode’ for
instructions.
For models with electronic clock, see ‘Oven controls and setting the clock’ for
instructions.
5
Slide in the shelf/shelves and grill tray as shown in ‘Using your oven’.
6 Condition the oven. Heat it on maximum temperature for the times below:
60 minutes using Bake
30 minutes using Fan Forced
15 minutes using Grill
Note: some of these functions may not be available in some models.
There will be a distintcive smell during the conditioning. This is normal, but make sure your
kitchen is well ventilated.
7 Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.
Fig. 10 Oven parts
(ovens vary – drawing for purposes of illustration only)
1 Control panel
2 Knobs
3 Side rack
4 Grill tray
5 Oven door and handle
6 Step-down oven shelf
7 Flat oven shelf
8 Side catalytic panel
9 Rubber seal
Not illustrated:
Sliding shelf supports
Fat filter
Grill rack
Baking tray
2
2
6
9
7
3
4
8
5
1

9
1 Slide in the shelves you will need, making sure that:
they are between the two wires of a shelf position or
on the sliding shelf supports
the stop notches point down
the guard rail is at the back.
Note: the grill tray should be positioned between the two
wires of a shelf position or on the sliding shelf supports,
and orientated as shown.
2 Select a function.
The oven light(s) will come on.
In single and compact models, the function indicator
light will also come on.
3 Set the temperature.
The temperature indicator light will come on.
It will go out when the oven has reached the set
temperature.
During cooking
The temperature indicator light may come on and go out
again as the oven maintains the temperature.
A cooling fan may automatically come on at different times
and blow out warm air below the control panel. It may continue
to run even after the oven has been turned off. This is normal.
Set the temperature back to off (0) before changing functions.
When you have finished cooking
Turn both the function and temperature knobs to the off (0) position.
Using your oven

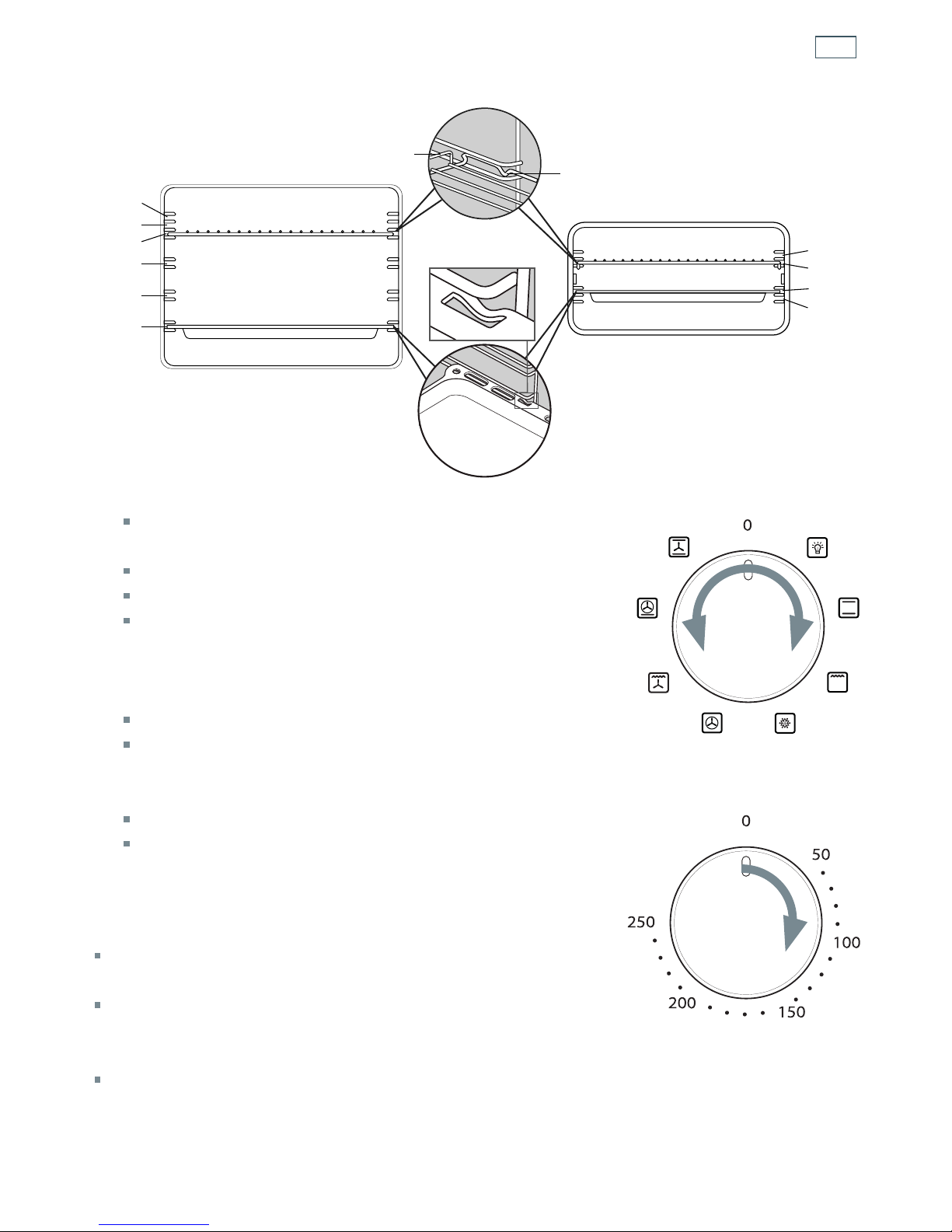

Fig. 12 Turning the function knob
(functions and knobs may vary)
Fig. 13 Turning the temperature knob
(knobs may vary)
Fig. 11 Positioning the shelves and
grill tray – full and compact ovens
Shelf positions Guard rail
Stop notch
Stop notch
(NZ AU SG models only)
Shelf positions
4
3
4
5
6
2
1
2
1
3

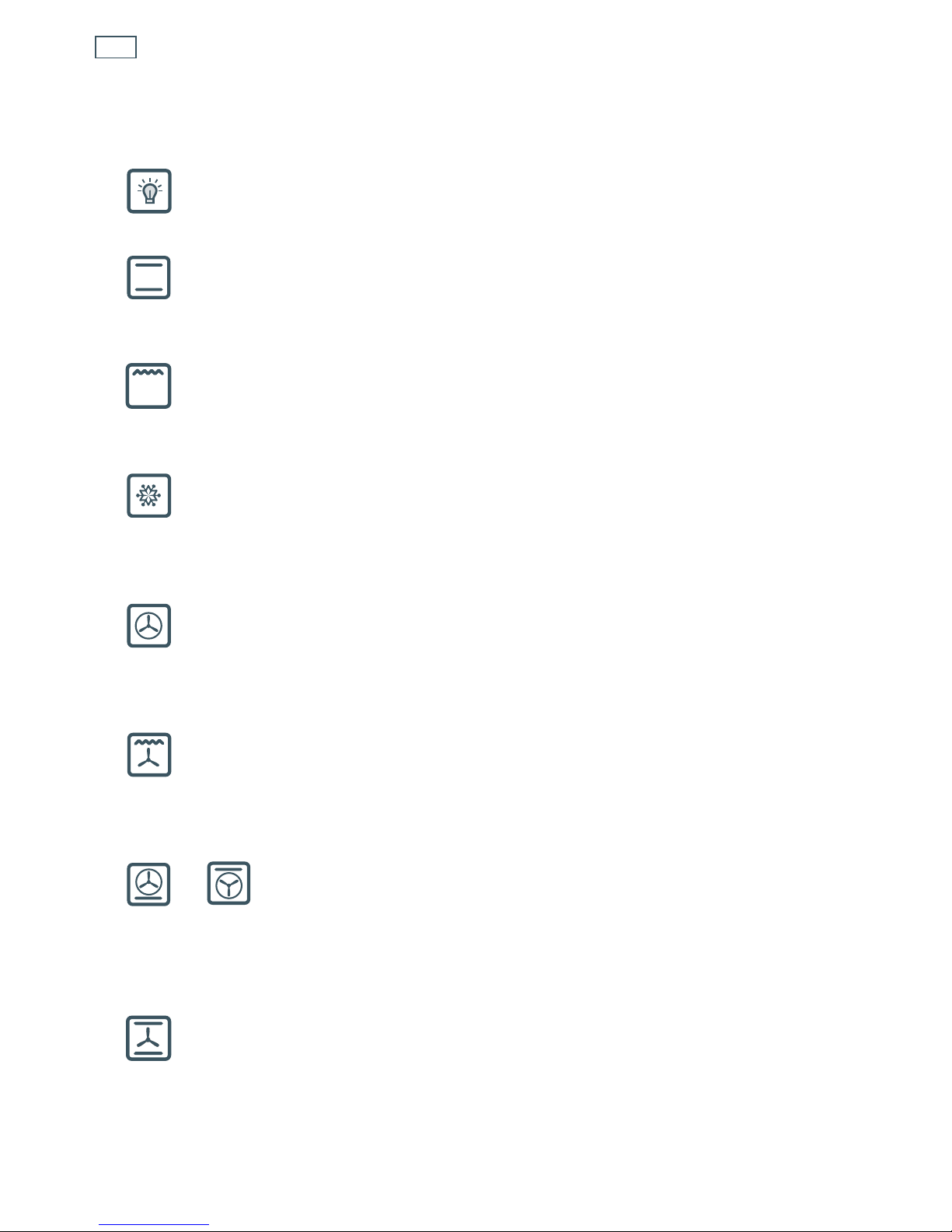

10 Oven functions
Depending on your model, your may only have some of these functions.
OVEN LAMP
Only the oven light comes on. It remains on in all the cooking functions.
BAKE
This is the traditional method of baking. It is best to bake on only one shelf at a time in this
function. Ideal for large cakes and dishes that bake for several hours.
GRILL
Use with the oven door closed and the temperature set no higher than 225°C. For best results,
use the topmost shelf position when you want quick browning (eg toast).
DEFROST
Only the oven fan comes on. Use with the temperature set to off (0). The fan circulates air around
the oven, speeding up the defrosting process by approximately 30%. Note: this function is not
for cooking food.
FAN FORCED
Great for multi-shelf cooking. The consistent temperature ensures baking is well risen. Cookies
are crisp on the outside and chewy in the middle, meat and poultry are deliciously browned and
sizzling while remaining juicy and tender.
FAN GRILL
Use with the oven door closed and the temperature set no higher than 220°C. Ideal for roasting
tender cuts of meat and poultry. Use the lower shelf positions for larger items eg a whole
chicken.
OR WARM
Use this function to keep cooked food hot and to warm plates and serving dishes. To reheat food
from cold, set the temperature to 150°C and reduce it to 70-100°C only when the food is piping
hot. Note: this function is not for cooking food and the temperature cannot be set higher than
150°C.
FAN BAKE
Ideal for dishes like lasagne that need to brown on top and also single trays of small cakes or
biscuits that bake in less than an hour.

11
Important!
Safe food handling: leave food in the oven for as short a time as possible before and after cooking or
defrosting. This is to avoid contamination by organisms which may cause food poisoning. Take particular
care during warmer weather.
Notes on baking:
Preheat the oven before baking.
Do not place anything, including water, ice or aluminium foil on the oven floor.
Remove the fat filter before baking (some models only).
Using the fat filter (some models only)
Use the fat filter only when roasting meat and poultry on Fan Bake, Fan Grill or
Fan Forced. It helps to keep your oven clean and reduces splatter and smoking.
Clean the fat filter after every use. See ‘Care and cleaning’.
Remove the fat filter before baking: gripping the top flap, slide up to unhook it from the rear
panel.
To replace the fat filter: align with the circle in the rear panel, then slide down to hook into place.
Important!
If the fat filter is not cleaned after every use, the grease build-up will block and shorten the life of the fan
element.
Oven functions
Fig. 14 Removing and replacing the fat filter

12 Baking charts
Please note:
The settings in the following charts are guidelines only. Follow the instructions in your recipe or
on packaging and be prepared to adjust the oven settings and baking times to achieve the best
possible results for you.
Shelf positions are counted from the oven floor up (1 is the lowest, 4 or 6 the highest).
Arrange oven shelves before you turn the oven on, then preheat the oven to the required
temperature (until the temperature indicator light goes out).
Full ovens are ideal for multi-shelf baking or larger items.
Compact ovens are the ideal and most energy-efficient choice for baking small or flat items (eg
cookies, pizza) on a single shelf; however, they have not been designed for multi-shelf baking.
Settings in bold indicate the recommended oven function.
Baking chart - full ovens
The shelf positions recommended below use the flat oven shelf (not the step-down shelf)
used either with or without sliding shelf supports. Note: the step-down shelf and sliding shelf
supports are not supplied with all models.
BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes single shelf 2 180-190 13-17
multi shelf not recommended
Scones single shelf 2 210-230 8-12
multi shelf not recommended
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 155-165 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart 1 220, then 180* 10, then 20-30*
continued...
* This is a two-stage baking process: adjust the temperature after the first stage.

13
Baking charts
Baking chart - full ovens
FAN BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes single shelf 2 150-170 13-17
multi shelf not recommended
Scones single shelf 2 200-220 8-12
multi shelf not recommended
Sponge
two small (20 cm),
staggered on shelf 2 160-175 20-30
one large (26 cm) 2 150 30-40
Light fruit cake 2 150-160 80-100
Rich fruit cake not recommended
Apple pie 1 160 35-45
Custard tart not recommended
FAN FORCED
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes single shelf 2 150-170 13-17
multi shelf 1 and 5** 150-170 15-20
Scones single shelf 2 210-230 8-12
multi shelf 1 and 5** 210-230 10-14
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 155-165 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart not recommended
** Use the flat shelf in position 1 and the step-down shelf in position 5.

14 Baking charts
Baking chart - compact ovens
The shelf positions recommended below use the step-down shelf without sliding shelf supports.
BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes 2 180-190 13-17
Scones 2 210-230 8-12
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 155-165 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart 1 220, then 180* 10, then 20-30*
continued...
* This is a two-stage baking process: adjust the temperature after the first stage.

15
Baking charts
Baking chart - compact ovens
FAN BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes 2 150-170 13-17
Scones 3 200-220 8-12
Sponge
two small (20 cm),
staggered on shelf 2 160-175 20-30
one large (26 cm) 2 150 30-40
Light fruit cake 2 150-160 80-100
Rich fruit cake not recommended
Apple pie 1 160 35-45
Custard tart not recommended
FAN FORCED
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes 2 150-170 13-17
Scones 2 210-230 8-12
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 150-160 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart not recommended

16 Cooking with ‘auto-o’
Use the analogue timer to automatically turn the oven off when the set cooking time
has elapsed.
To set the oven for cooking with ‘auto-off’
1 Select the function and set the temperature.
2 Turn the analogue timer knob to the length of time you want the
oven to cook (up to 120 minutes).
Important!
If the oven is in manual mode and you want to set it to a length of time, make sure you start turning the
timer knob anti-clockwise. Forcing the knob from the symbol clockwise to
O (off) could damage it.
When ‘auto-off’ is set
The analogue timer will immediately start counting down: you
will see the knob slowly rotating anti-clockwise towards the 0 (off) position.
To cancel the ‘auto-off’ setting, set the oven to manual mode by turning the analogue timer
clockwise to the symbol.
When the cooking time is over
The oven will automatically turn off.
Notes:
The oven will NOT beep or ring when the set cooking time has elapsed.
The oven may turn off before the marker on the timer knob lines up with the 0 (off) position.
This is normal.
Fig. 15 Setting the timer to
turn the oven off automatically
Fig. 16 Changing from manual mode to cooking with ‘auto-off’
MODELS WITH ANALOGUE TIMER

17
MODELS WITH THREE-BUTTON CLOCK
Cooking with ‘auto-o’
Use ‘auto-off’ to automatically turn the oven off
when the set cooking time has elapsed.
To set the oven for cooking with ‘auto-off’
1 Set the oven:
Check the clock shows the correct time (eg 12:07).
Select the function and set the temperature.
The oven will turn on.
2 Set the cooking time:
Decide how long the food will take to cook,
allowing time for preheating if necessary
(eg 40 minutes).
Press .
While AUTO is flashing, use and to set the cooking time (eg 40 minutes).
Notes on setting the cooking time
If the cooking time is 99 minutes or less:
you can set it in 10-second steps
the remaining time will count down in seconds (min.sec).
If the cooking time is 100 minutes (ie 1 hour 40 minutes) or more:
you can set it in 1-minute steps
the remaining time will start counting down in minutes (h.min).
When ‘auto-off’ is set
The time will start counting down and the clock display will show the remaining time with AUTO
steadily lit.
To see the current time of day, press .
To cancel the ‘auto-off’ setting, press and together. The current time of day will appear in
the display. Turn the function and temperature knobs to
O (off).
When the cooking time is over
The oven will automatically turn off (eg at 12:47). AUTO will start flashing, the current time of day
will appear in the display and the timer will beep:
1 Press any button to stop the beeping and return the oven to manual mode.
2 Turn the function and temperature knobs to O (off).
Fig. 17 Three-button clock display
and control buttons

18
You can use the timer at any time, even when
the oven is not in use.
Important!
The timer does NOT turn the oven off.
To set the timer
1 Press . 0.00 will show and the symbol
will start flashing.
2 Press and to set the time you want (up to 23 hours
and 59 minutes, in 1-minute steps).
After a few seconds, the clock will show the
time of day with the
symbol steadily lit.
The timer is now counting down.
To check the remaining time
Press .
To cancel the timer
1 Press .
2 Press until the time is reset to 0.00
After a few seconds, the clock will show the time of day.
When the set time is up
The timer will beep and the
symbol will flash. Press to stop the beeping and turn the timer
off.
After a few seconds, the clock will show the time of day.
To adjust the beep volume
Press to hear the next volume level. The last one selected will be stored.
Fig. 18 Six-button clock display
and control buttons
Using the electronic timer
MODELS WITH SIX-BUTTON CLOCK
