Fisher & Paykel OB60C Series User manual

WALL OVEN
SERVICE MANUAL
NZ AU GB
OB60C models

Brand: Fisher & Paykel
Model Description CA CA
NEW LOGO Market
OB60NC7CEX1
Single compact oven, 7 functions, classic, electronic clock,
stainless steel.
80983 81498
AA
OB60NC9DEX1
Single compact oven, 9 functions, designer, electronic clock,
stainless steel
80982 81497
AA
OB60SC5CEX1 Single oven, 5 functions, classic, electronic clocK, stainless steel 80980 81495
AA
OB60SC5CEW1 Single oven, 5 functions, classic, electronic clock, white 80981 81496
AA
OB60SC7CEX1 Single oven, 7 functions, classic, electronic clock, stainless steel 80948 81485
AA
OB60SC7CEX1 Single oven, 7 functions, classic, electronic clock, stainless steel 85425 81530
GB
OB60SC7CEW1 Single oven, 7 functions, classic, electronic clock, white 80979 81494
AA
OB60SC7CEW1 Single oven, 7 functions, classic, electronic clock, white 85426 81531
GB
OB60SC9DEX1
Single oven, 9 functions, designer, electronic clock, stainless
steel
80947 81484
AA
OB60SC9DEX1
Single oven, 9 functions, designer, electronic clock, stainless
steel
85424 81529
GB
OB60SC9DEPX1 Single oven, 9 functions, designer, electronic clock, stainless
steel, pyrolytic self clean
80946 81483
AA
OB60SC9DEPX1
Single oven, 9 functions, designer, electronic clock, pyrolytic self
clean, stainless steel
85432 81528
GB
OB60SC7CEPX1
Single oven, 7 functions, classic, electronic clock, pyrolytic self
clean , stainless steel
80975 81490
AA
OB60SC7LEX1
Single oven, 7 functions, designer, electronic clock, stainless
steel
80976 81491
AA
OB60SC7VMX1 Single oven, 7 functions, designer, minute timer, stainless steel 80977 81492
AA
OB60SC5LCX1
Single oven, 5 functions, designer, electronic clock, stainless
steel
80978 81493
AA
OB60SC7CEPX1
Single oven, 7 functions, designer, electronic clock, stainless
steel, pyrolytic self clean
85427 81532
GB
OB60SC7VEX1
Single oven, 7 functions, designer, electronic clock, stainless
steel
81114 81505
AA
OB60SC7VEW1
Single oven, 7 functions, designer, electronic clock, white
81115 81506
AA
OB60SC11DEPX1
Single oven, 11 functions, designer, electronic clock, stainless
steel, pyrolytic self clean
81113 81504
AA
OB60SC11DEPX1
Single oven, 11 functions, designer, electronic clock, stainless
steel, pyrolytic self clean
81225 81511
GB

Brand: Fisher & Paykel
Model Description CA
NEW LOGO Market
OB60SC8DEPX2 Single oven, 8 functions, designer, electronic clock, stainless steel. 81739
AA
OB60SC7CEPX2 Single oven, 7 functions, classic, electronic clock, stainless steel 81741
AA
OB60SC7CEX2 Single oven, 7 functions, classic, electronic clocK, stainless steel 81742
AA
OB60SC7CEW2 Single oven, 7 functions, classic, electronic clock, white 81743
AA
OB60SC6CEPX2 Single oven, 6 functions, classic, electronic clock, stainless steel 81744
AA
OB60SC5CEPX2 Single oven, 5 functions, classic, electronic clock, stainless steel 81747
AA
OB60SC5CEX2 Single oven, 5 functions, classic, electronic clock, stainless steel 81748
AA
OB60SC5LCX1EL Single oven, 5 functions, classic, electronic clock, stainless steel 85422
AA
OB60SC7CEX2 Single oven, 7 functions, classic, electronic clock, stainless steel 81876
GB
OB60SC5CEX2 Single oven, 5 functions, classic, electronic clock, stainless steel 81877
GB

FEATURED PRODUCT & CONTACT ADDRESSES
OB60C
Fisher & Paykel Appliances Ltd U.K
Turing Hose, Ortensia Drive
Milton Keynes
England, MK17 8LX
tel: [phone]
fax: [phone]
email: customer.care@sherpaykel.co.uk
Fisher & Paykel Appliances
Unit D2
North Dublin Corporate Park
Swords
Co Dublin
Ireland
tel: [phone]
fax: [phone]
email: customer.care@sherpaykel.ie
Fisher & Paykel Appliances Ltd
PO Box 58-546, Botany
78 Springs Rd, East Tamaki
Manukau 2013
New Zealand
tel: [phone]
fax: [phone]
email: [e-mail]
Fisher & Paykel Customer Services Pty Ltd
PO Box 798, Cleveland, QLD 4163
A.C.N. 003 3335 171
19 Enterprise Street Cleveland, QLD 4163
Australia
tel: [phone]
fax: [phone]
email: [e-mail]
Fisher & Paykel Appliances Ltd
Singapore
150 Ubi Avenue 4
Sunlight building #02-00
Singapore 408825
tel: [phone]
service tel: [phone]
fax: [phone]

CONTENTS
1 SERVICE REQUIREMENTS 6
1.1 Health & Safety 6
1.2 Specialised Tools 6
2 DIMENSIONS & SPECIFICATIONS 7
2.1 Product Dimensions 7
2.2 Cabinetry Dimensions 9
2.3 Electrical Ratings 10
2.4 Electrical connection 10
2.5 Elements 10
3 TECHNICAL OVERVIEW 11
3.1 Model Number Description, Product Codes & Service Versions 11
3.2 Serial Number 12
3.3 Oven Cavity Fan 13
3.4 Cooling Fan & Venting System 13
3.5 Door Lock 15
3.6 Temperature Sensor 16
3.7 Mechanical Thermostat 16
3.8 Function Switch 17
3.9 Clock Module 17
3.10 Temperature Module 18
3.11 Function Module 18
3.12 User Interface Harness 18
3.13 Limiters 19
3.14 Power Board 19
4 OPERATION 20
4.1 Control Panel INVENS 21
4.2 Setting the Clock INVENS 23
4.3 Condition the oven 24
4.4 Control Panel GEOP 25
4.5 Using the Timer GEOP 29
4.6 Automatic Cooking GEOP 27
4.7 User Preferences GEOP 29
4.8 Sabbath Mode 31
4.9 Trouble Shooting 33
4.9.1 Alert Codes 37
5 PYROLYTIC SELF CLEAN 38

CONTENTS
6 DIAGNOSTICS 42
6.1 Entering the Technician Mode 42
6.2 Technician Mode Navigation 42
7 FAULT DIAGNOSTICS 46
7.1 User Alert Codes 47
7.2 Failure Alerts 47
7.3 SYMPTOM:Oven under cooking 49
7.4 SYMPTOM:Baking Burns on the top 50
7.5 SYMPTOM:Baking burns on the bottom 50
7.6 SYMPTOM:Oven seems to be functioning normally but does not heat 50
7.7 SYMPTOM:Oven heats slowly or fails to reach preset temperature 51
7.8 SYMPTOM: No clock display but oven works 51
8 SERVICING PROCEDURES 52
8.1 Removal of the inner glass and door hinge 52
8.2 Removal of handle and outer door glass 52
8.2 Removal of the Fan Shroud 53
8.3 Removal of the Fan Element 53
8.4 Removal of the Grill Element 53
8.5 Removal of the Bake Element 54
8.6 Removal of the Cavity Fan 54
8.7 Removal of the Cooling Fan 55
8.8 Removal of the Control Panel 55
8.9 Removal of the Function Module 56
8.10 Removal of the Clock module 57
8.11 Removal of the Door Switch 57
8.12 Removal of the Power board. 58
8.13 Removal of the Venting Thermal Activator 59
8.14 Removal of the outlet vent & actuator 60
9 WIRING DIAGRAMS
9.1 Wiring Diagram 61
9.2 Wiring Diagram 62

71 SERVICE REQUIREMENTS
1.1 Health & Safety
Note: When servicing the wall oven, Health and Safety issues must be considered at all times. Specic safety
issues are listed below with their appropriate icon. These are illustrated throughout the service
information to remind service people of the Health and Safety issues.
1.1.1 Electrical Safety
Ensure the mains power has been disconnected before servicing the wall oven. If the
supply is required to be on to service the oven, make sure it is turned o when
removing any electrical component or connection to avoid electrical shock.
1.1.2 Electrostatic Discharge
An anti-static strap is to be used as electrical static discharge (ESD) protection when
servicing electronic components.
1.1.3 Good Working Practices
Ensure the work area is in a tidy and orderly condition at all times so as not to cause a
hazard while service work is being completed. Always clean and tidy the oven and work
after service is completed.
1.1.4 Insulation Test
Megger test to check insulation.
Warning: Short together the phase and neutral pins on the plug so as not to damage any
electronic circuitry.
1.1.5 Sheet Metal Edges
When working around cut sheet metal edges use appropriate gloves or protection to
eliminate the chance of receiving a laceration.
1.2 Specialised Tools
For servicing this product, specialised tools are required.

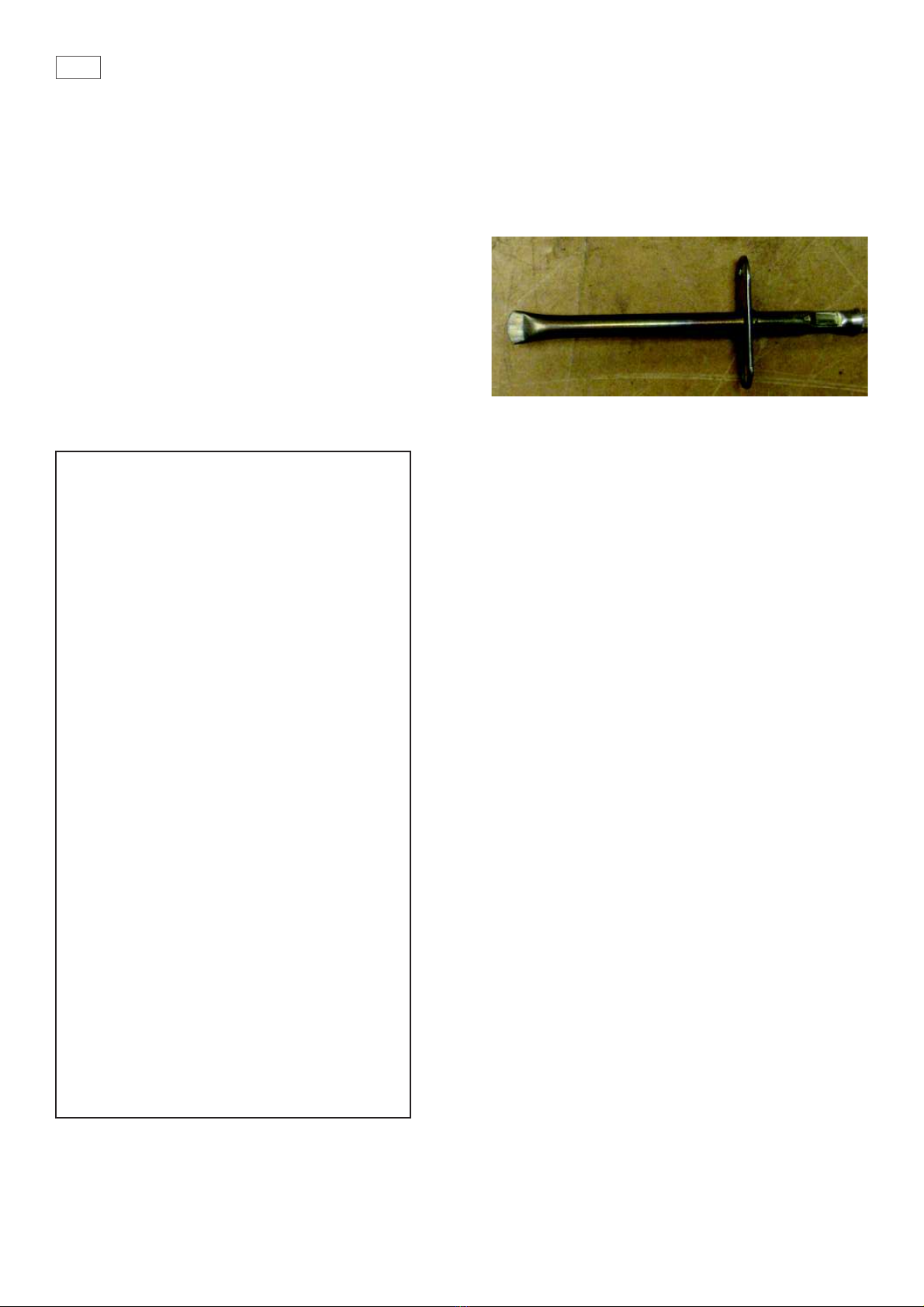

1.2.1 Static Strap
To be used as ESD (electrostatic discharge) protection when replacing or handling
electronic components.

82 DIMENSIONS & SPECIFICATIONS
2.1 Product Dimensions

9
2.2 Cabinetry Dimensions
Important!
Some environmental factors and cooking habits can cause condensation in and around the oven during use. To
protect surrounding cabinetry from possible damage caused by frequent or excessive condensation, we recommend
moisture-proong the oven cavity.

10

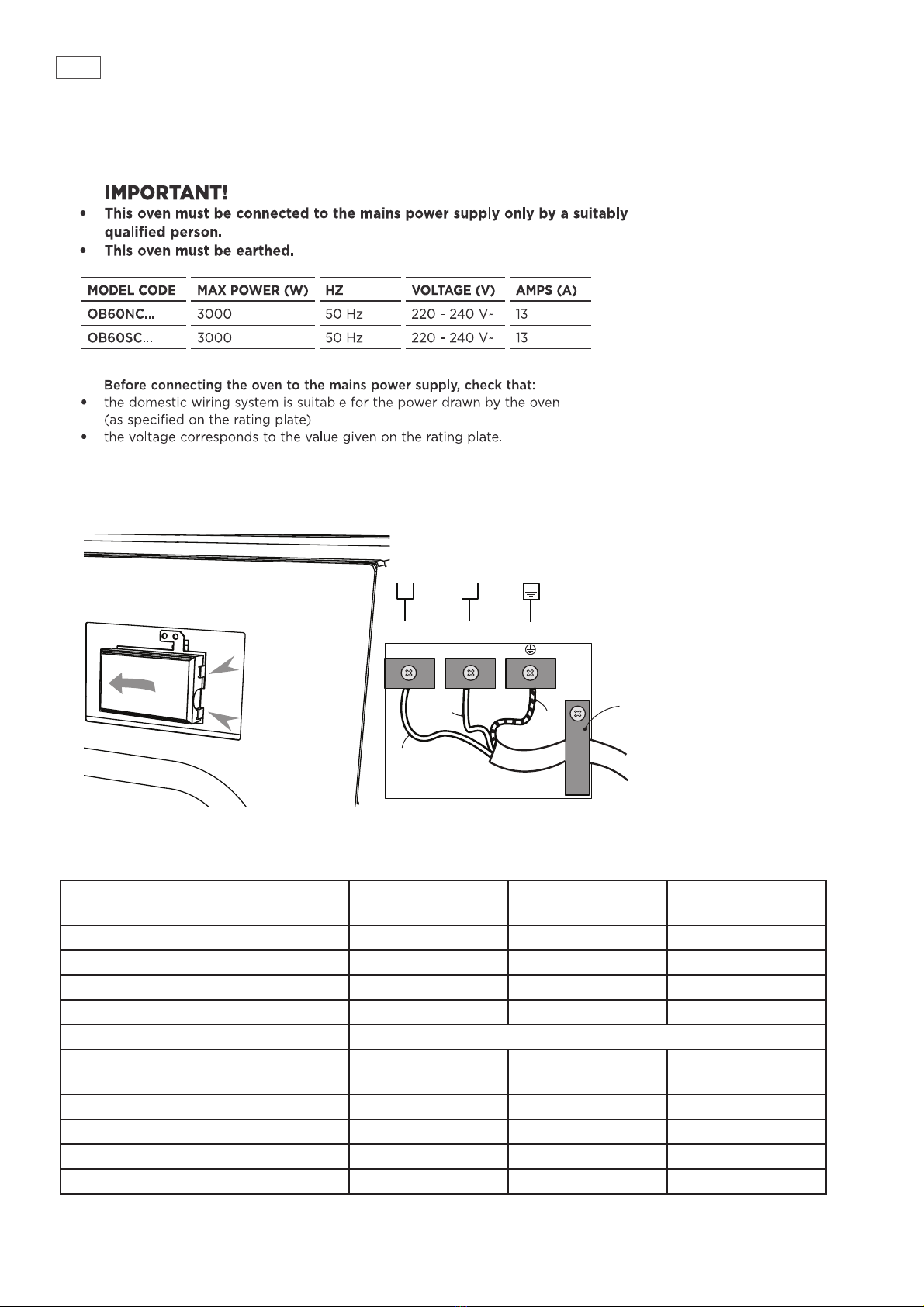

2.4 Electrical connection
2.5 Elements
2.3 Electrical Ratings
All elements used in the OBC models are Incaloy hermatically sealed elements.
OB60 Wattage
(W)
Max amps
(A)
Resistance
(Ω)+ - 5%
Fan Element 2500 10.8 21
Upper Inner Grill Element 2000 8.7 52
Upper Outer Grill Element 1200 5.2 44
Bake 1200 5.2 44
OB60 compact Wattage
(W)
Max amps
(A)
Resistance
(Ω)+ - 5%
Fan Element 1400 6.1 37
Upper Inner Grill Element 2000 8.7 52
Upper Outer Grill Element 1200 5.2 44
Bake 1200 5.2 44
Unclip
and lift up
LN(L2)E
Brown
(Live)
Ensure cable
clamp is tightened
with screw
(you may have
to remove the
screw rst
before tting
the clamp)
L
N
Green
& Yellow
(Earth)
Blue
(Neutral)
OOOO

11 3 TECHNICAL OVERVIEW
3.1 Model Number Description, Product Codes & Service Versions
E.g. OB60SC7VEX1
Type OB = Oven Built In
Width 60 = 60cm
Cavity B = Double Cavity
H = Double Under Bench
N = Compact Oven
S = Single Cavity
L = Large Cavity
Functions 7 = 7 Oven Functions
Family C = Classic
D = Designer
L = Commercial
V = Exclusive
Features E = Electronic clock
M = Electronic Minute Timer
T = Soft Touch Control
P = Pyrolytic Self Clean
C = End of Cook Timer
Series 1 = 1st Iteration
The product code is a dedicated number used to identify model variations e.g. dierent colour, market
etc.
e.g. :80831 -A is a single stainless steel, AA product. The -A relates to the service version of the product.
The Service version is used to signify that some new components or features are not retro-table to
earlier product versions.
e.g. 80831-B uses a number of dierent parts (which are contained in a separate parts manual) to 80831-
A, so is important to only order parts for the correct product code with correct service version.

12
3.2 Serial Number
The serial number consists of three letters and six digits and contains the following information:
Example:
M I P 123456
Sequential Serial Number
Manufacturing Plant Code
FISHERPAYKUL Code indicates month of manufacture
CUMBERLAND Code indicates year of manufacture
Cumberland Code
Letter C U M B E R L A N D
Year 1 2 3 4 5 6 7 8 9 0
Fisherpaykul Code
Letter F I S H E R P A Y K U L
Month 1 2 3 4 5 6 7 8 9 10 11 12
Manufacturing Plant Codes
F Refrigeration – New Zealand
N Laundry – New Zealand
T Thailand
X Mexico
P Mexico post 2011
In the example above, the appliance was manufactured in the 2nd month in 2013 at the Mexican
manufacturing plant.
The serial plate is located on the lower left hand front of the chassis, and can be viewed when the door is
in the open position.
worn, or if the door does not close properly, do not start a Self Clean cycle. Call your Authorised
Clean cycle. For instructions, see ‘Care and
nt

13
3.3 Oven Cavity Fan
The oven cavity fan turns on as soon as the mode is
selected.
The fan should always operate when the fan element is
on.
Voltage: 230 V
Wattage: 30 watts
3.4 Cooling Fan & Venting System
The cooling fan specications
Voltage: 230 240 V
Frequency: 50 HZ
Wattage: 14 watt
The venting system allows a small amount of air to ow through the cavity from an inlet at the left rear, to
an outlet in the top. The outlet air is ducted to the cooling fan and then expelled.

14

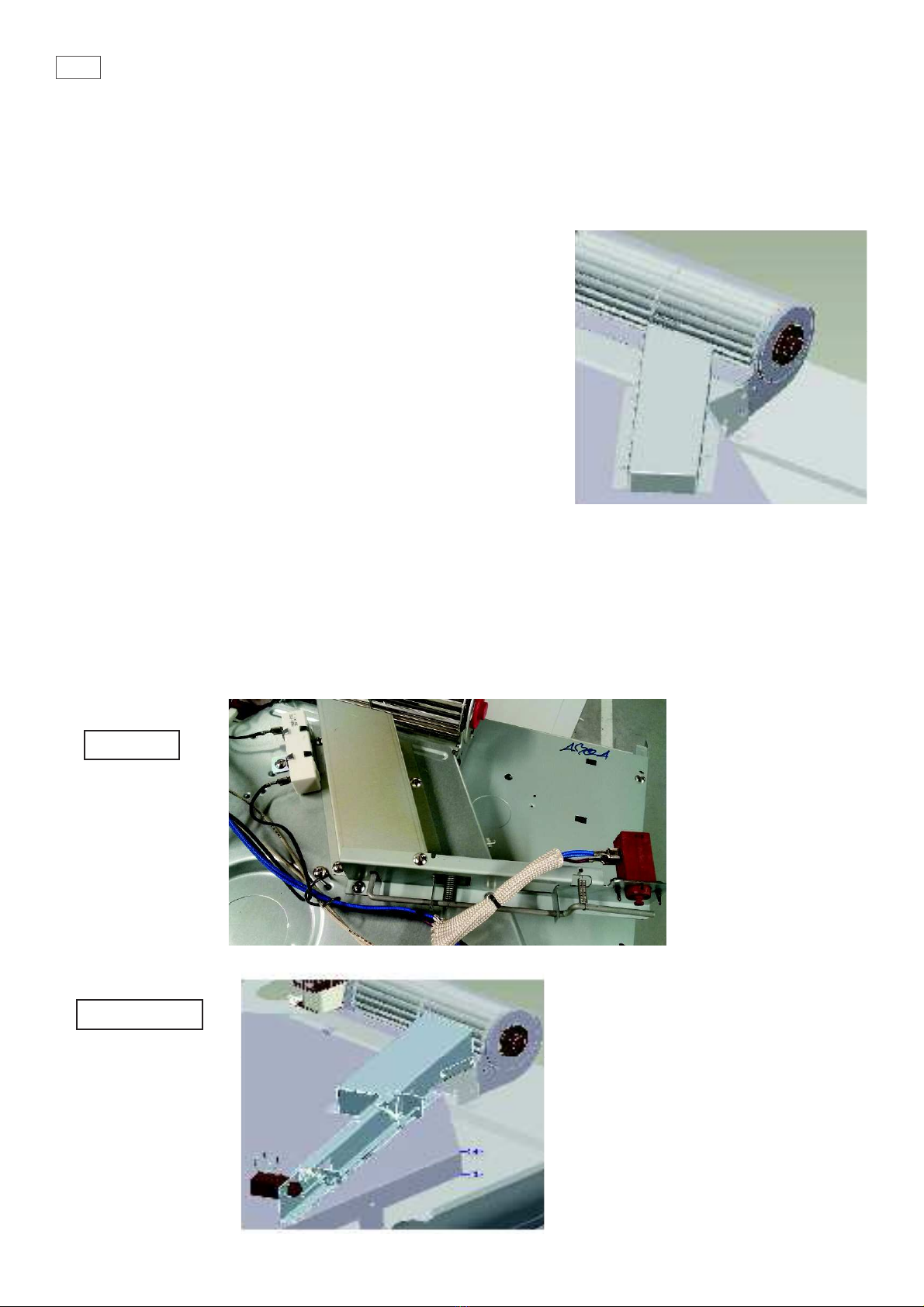

The outlet vent sits in the top right of the cavity liner, this carries the vapours up through the duct to the
cooling fan and is then expelled.
These models have valves on the inlet and outlet vents. The valves are operated by wax actuators and
are driven by the oven controller. This allows the venting rate to be customised to suit the oven function
being used by the customer, and helps eliminate condensation.
The Pyro version includes a catalytic converter in the outlet to reduce smoke and CO during a self clean
function.
High Spec Multi and Pyro
Inlet Valve
Outlet Valve

15
The micro switches are activated by a cam, which
tells the PCB when the door is‘unlocked’ or‘locked’.
The board needs to see a ‘locked’ signal for the
pyro cycle to work and an ‘unlocked’ signal for the
cooking functions to work. The stoppers are used
to stall the motor to force it to change direction.
The start-up direction of the motor is random so
if it starts in the wrong direction the stoppers are
used to reverse it to go the right way.
Voltage: 220-240 V / 50 Hz
Resistance: 100 M Ohms
Wattage: 4 watts
Max operating temp : 120 deg C
3.5 Door Lock

16
3.7 Temperature Sensor
Voltage: 5 VDC
Max current: 2 mA
Max ambient temp: 540°C
Resistance: 1080 ohms +/– 5 ohms at 21°C
Refer to the chart on the following page for
sensor values.
Degrees ºC Degrees ºF Resistance Ω
0 32 1000
1 33.8 1004
2 35.6 1008
3 37.4 1011
4 39.2 1015
5 41 1019
6 42.8 1023
7 44.6 1027
8 46.4 1030
9 48.2 1034
10 50 1038
11 51.8 1042
12 53.6 1046
13 55.4 1049
14 57.2 1053
15 59 1057
16 60.8 1061
17 62.6 1065
18 64.4 1068
19 66.2 1072
20 68 1076
21 69.8 1080
22 71.6 1084
23 73.4 1087
24 75.2 1091
25 77 1095
26 78.8 1099
27 80.6 1102
28 82.4 1106
29 84.2 1110
30 86 1114
OB60 Models

17

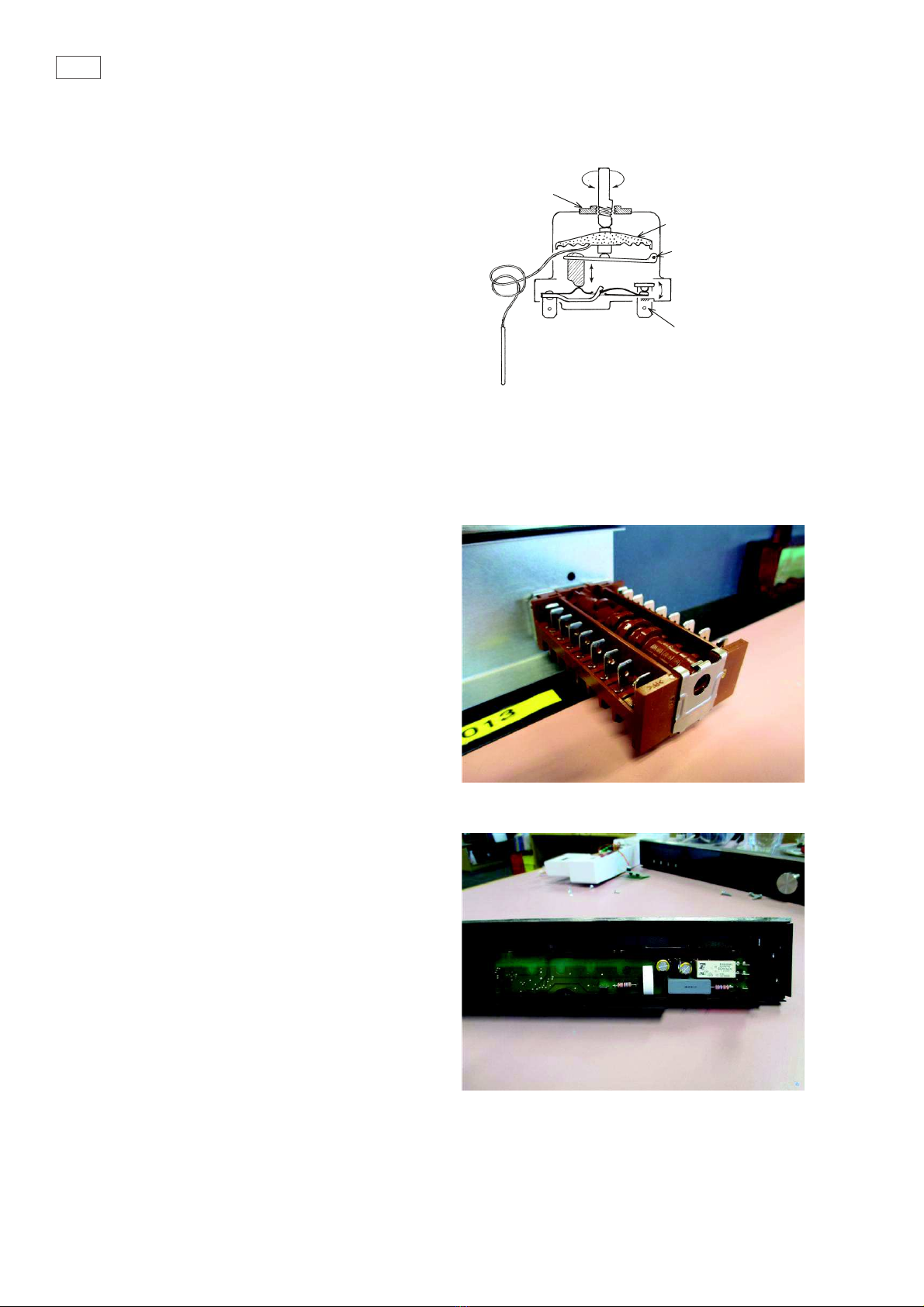

3.10 OB60 Clock Module
3.9 OB60 Function Switch
The OB60C model only uses a
mechanical type thermostat.
The thermostat is used to switch the
oven element on and o to maintain
temperature.
3.8 OB60 Mechanical Thermostat
The function switch is only used in OB60
models, and is used to select the oven
functions.
The function switch has 7 functions.
when switched on will operate the light in the
oven as well.
Refer to product wiring diagram on page 60
Some OB60 models use a clock module which is
a user interface display.
This module shows the time, and allows the user
to select automatic cooking and a cook timer.
10 C.
Regulating
shaft
Bellows
Thermostat
bulb
Operating
leve
r
Capillary
tube
Shaft
housing
Main switch
contacts

18
3.11 Temperature Module
The OB60C models use a display module as a
customer interface to show cooking temperature.
This temperature is illuminated and shown on the
control panel.
The module uses a harness to communicate with
the clock module, and has an encoder for the
customer to select temperature.
The module also has LED lights which show red
while heating, and turn white when the oven is at
the correct temperature.
3.12 Function Module
The OB60C models use a function module as
a customer interface, and shows the cooking
function selected by illuminating the icon on the
control panel.
The module uses a harness to communicate with
the clock module, and has an encoder for the
customer to select the oven function.
The module also has an illuminated white halo
around the control knob.
3.13 User Interface Harness
The temperature and function modules are
linked to the clock module via the user interface
harness.
This harness uses knob encoders for the
customer interface for selecting the oven
function or selecting the oven temperature.

19
3.14 Limiters
All models have a fan run on limiter which is set
to 55 deg C.
This limiter will keep the cooling fan running until
the cavity temperature drops below 55 deg C.
The over temp limiter is one shot type Honest
Well TY24, the trip temperature is 110 deg C. refer
to parts manual.

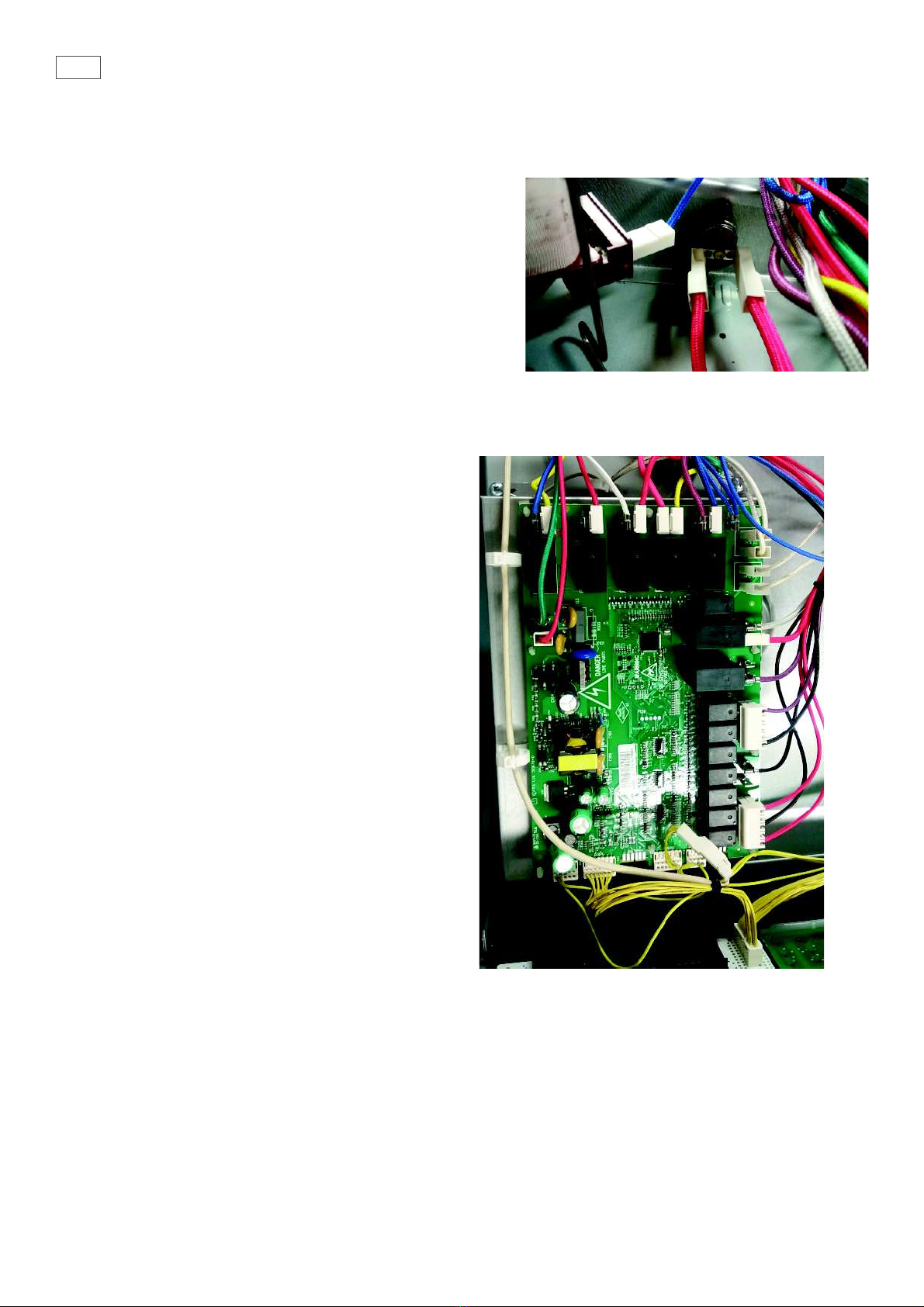

3.15 Power Board
The power board is located in the top panel area,
and is held in place by clips.
The power board is connected to the clock via a
harness and controls the following components:
• Elements
• Door switch
• Temperature sensor.
• Door lock (pyro model only)
• Lights
• Rotisserie motor
• Cavity fan
• Cooling fan
The power board is a GOEP type board so is used
in both the pyrolytic model and multifunction
model. This means if being changed for any reason,
the model ID must be selected for the product it is
being tted to.
Refer to section 6 for more detail.

20
4 OPERATION
Function Stage Oven
Fan
Cooling
Fan
Lights Vent
Fan 18W
Grill
Outer
Element
1500W
Grill
Inner
Element
2900W
Bake
Ele-
ment
1500W
Fan
Element
2500W
Bake preheat X X X X X
Cook X X X 83% X
Fan Bake preheat X X X X X
Cook X X X X X 83% X
Fan
Forced
preheat X X X X
Cook X X X X X
Grill Cook X* X X X X
Vent Bake preheat X X X X X
Cook X* X X X 83% X
Fan Grill Cook X X* X X X X
Pastry
Bake
preheat X X X X X
Cook
<210 ºC
X X X X X 40% X
Cook
>210 ºC
X X X X X
Roast COOK
(20min)
X X* X X X X
Cook X X X 83% X
Classic
Bake
preheat X X X X X
cook
< 210 ºC
X X X X 40% X
>210 ºC X X X X X
Pizza
bake
Oreheat X X X X X
Cook X X X X X 40% X
Cook X X X X X
Self Clean <250 ºC X X X X
>250 ºC # X* X X X 50%
>250 ºC # X* X X 50% X
Warm cook X X X X 83% X
Dehydrate cook X X X X X
Rapid
proof
cook X X X X 25% X 20%
Slow cook preheat X X 30
cook X X X X 100
Oven Mode Elements and Fan Profiles
