Fisher & Paykel OB90 Series User manual

NZ AU GB IE
User guide
IZONA CookSpace
multifunction pyrolytic oven
OB90 models

1
Contents
Introduction 2
Safety and warnings 3
The control panel 6
Setting the clock and first use 7
Using your CookSpace oven 8
Oven functions 9

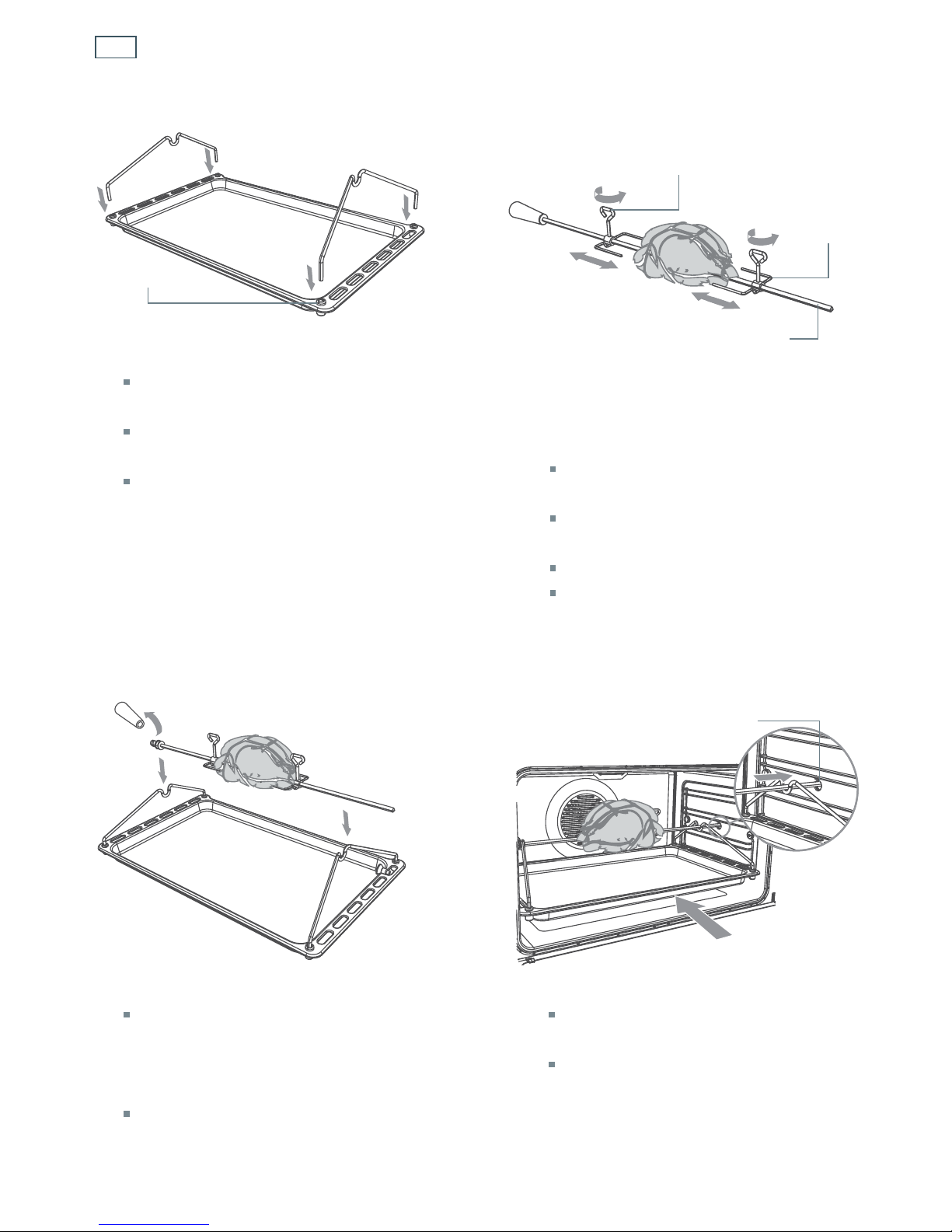

Using the rotisserie 10
Using the timer 12

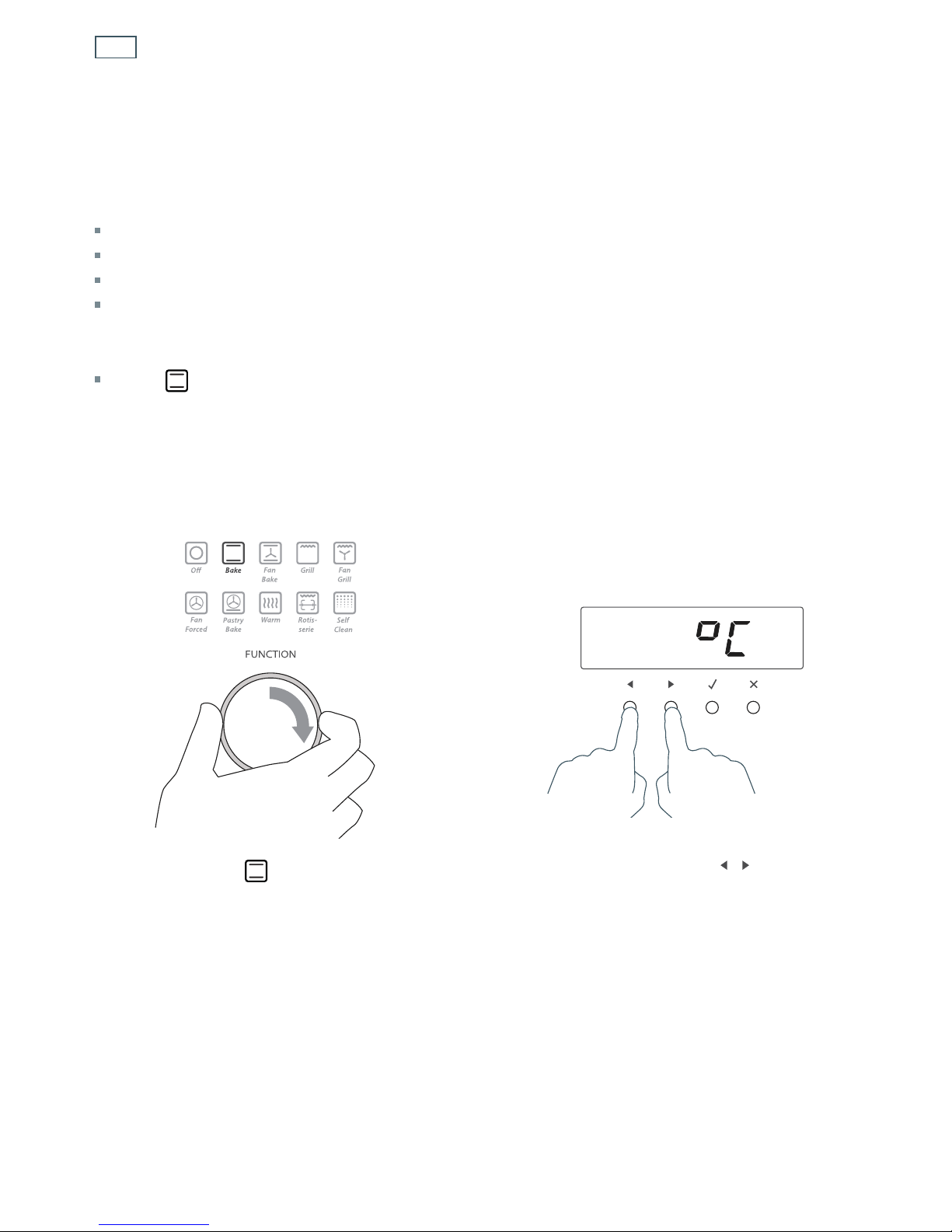

Automatic cooking 13
Baking chart 15

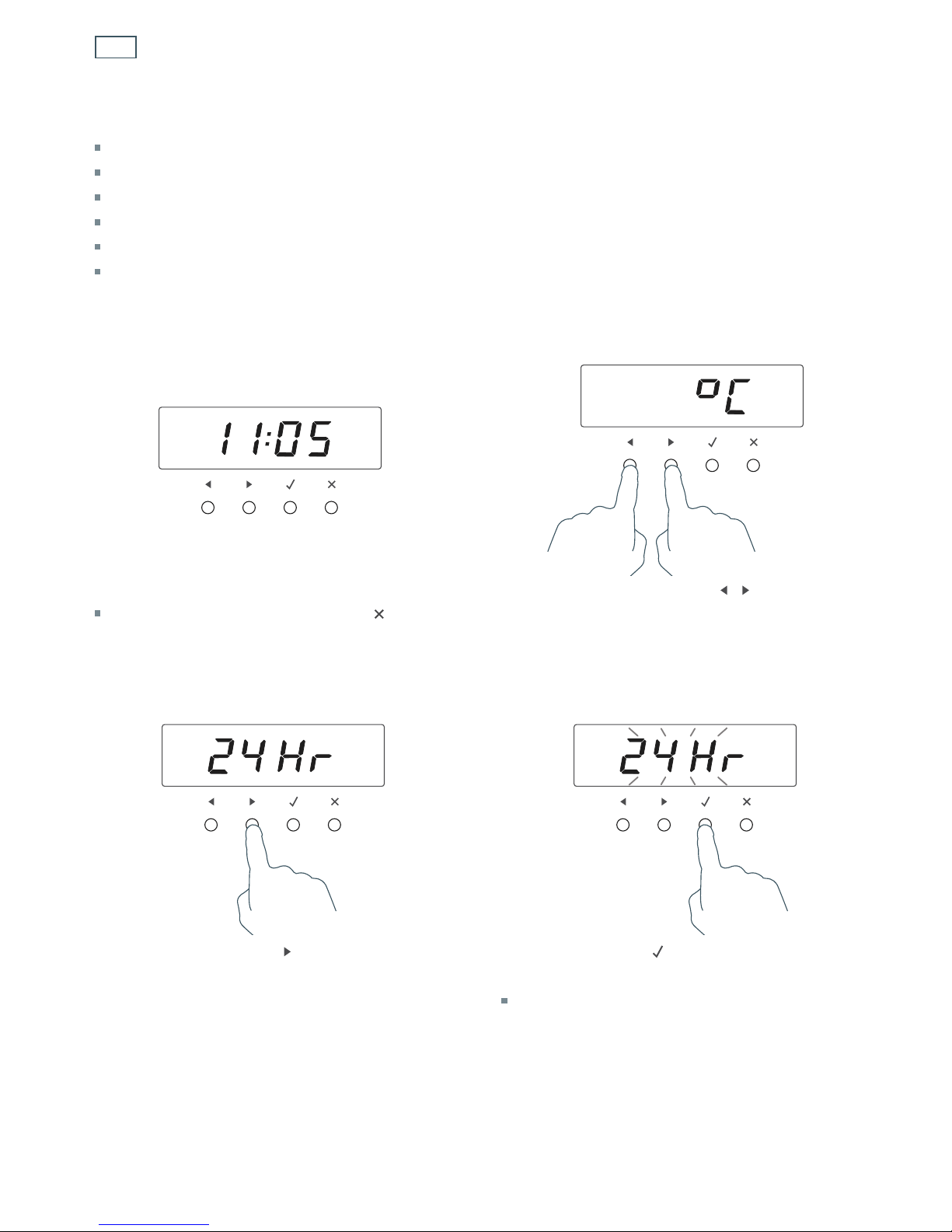

User preference settings 16
Sabbath setting 18
Care and cleaning 20
Using the Self Clean function 30
Troubleshooting 33
Alert codes 36
Warranty and service 38
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2
Congratulations on your new purchase. Your Fisher & Paykel IZONA CookSpace oven has a
number of features to make cooking a great experience for you:
a choice of eight oven functions, including Rotisserie
a convenient, no-mess, pyrolytic Self Clean function – see ‘Using the Self Clean function’
intuitive electronic controls and displays
illuminated halos around the dials for visual feedback
preference settings – see ‘User preference settings’ and ‘Sabbath setting’.
Before you start
Make sure the installer has completed the ‘Final checklist’ in the Installation instructions.
Read this guide, taking special note of the ‘Safety and warnings’ section.
Remove all the packaging and check that you have all the accessories listed below.
Make sure you follow the instructions under ‘Setting the clock and first use’ before using your
oven for cooking or baking.
1 Oven vent louvres
2 Control panel
3 Stainless steel strip
4 Side racks
5 Grill tray and rotisserie
6 Oven door and handle
7 Oven seal
Not illustrated:
Baking tray
Step-down oven shelf
Oven shelf
Grill rack
2
3
4
5
7
6
1
Introduction

3
Safety and warnings
WARNING!
Hot Surface Hazard
Accessible parts may become hot when in use.
To avoid burns and scalds, keep children away.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes.
Use care when opening the oven door. Let hot air or steam escape before
removing or replacing food.
Do not touch heating elements or interior surfaces of the oven. Heating
elements may be hot even though they are dark in colour. Interior surfaces
of an oven become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials contact heating elements
or interior surfaces of the oven until they have had sufficient time to cool.
Other surfaces of the appliance may become hot enough to cause burns -
among these surfaces are the oven vent, the surface near the oven vent, and
the oven door.
Failure to follow this advice could result in burns and scalds.
Operation
Your CookSpace oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following safety instructions in mind when you are using it:
WARNING!
Electrical Shock Hazard
Turn the oven off at the wall before replacing the oven lamp.
Failure to follow this advice may result in death or electrical shock.
WARNING!
Fire Hazard
Follow the instructions on starting a Self Clean cycle carefully. Items made
from combustible materials (for example: wood, fabric, plastic) may catch fire
if left in the oven during a Self Clean cycle.
Do not place aluminium foil, dishes, trays, water or ice on the oven floor
during cooking, as doing so will irreversibly damage the enamel; lining the
oven with aluminium foil may even cause fire.
Never use your appliance for warming or heating the room. Persons could be
burned or injured or a fire could start.
Storage in or on appliance: flammable materials should not be stored in an
oven or near its surface.
Failure to follow this advice may result in overheating, burning, and injury.
WARNING!
Cut Hazard
Take care - some edges are sharp.
Failure to use caution could result in injury or cuts.

4Safety and warnings
Important safety instructions
To reduce the risk of fire, electrical shock, injury to persons, or damage when using the oven,
follow the important safety instructions listed below:
Read all the instructions before using the oven. Use the oven only for its intended purpose as
described in these instructions.
Proper installation: be sure your appliance is properly installed and earthed by a qualified
technician.
Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Do not leave children alone. Children should not be left alone or unattended in the area where
the appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Children or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Do not place heavy objects on the oven door.
Wear proper apparel. Do not wear loose fitting or hanging garments when using the appliance.
They could ignite or melt if they touch an element or hot surface and you could be burned.
User servicing: do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be referred to a qualified technician.
Do not use water on grease fires. Smother the fire or flame or use a dry chemical or foam type
extinguisher.
Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces could result in
burns from steam. Do not let potholders touch hot areas or heating elements. Do not use a towel
or a bulky cloth for a potholder. It could catch fire.
Do not heat unopened food containers. They can build up pressure that may cause the container
to burst and result in injury.
Safe food handling: leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warm weather.
Always keep oven vents unobstructed.
Do not operate your appliance by means of an external timer or separate remote-control system.

5
Safety and warnings
Important safety instructions
Caution. Hot air can blow from the vent at the top of the oven as part of the oven’s cooling
system.
Placement of oven shelves: always position shelves in the desired location while the oven is cool
(before preheating). If a shelf must be removed while the oven is hot, do not let the oven mitts or
potholder contact hot heating elements in the oven or the base of the oven.
Do not clean the oven seal or use any oven-cleaning products on it. It is essential for a good seal,
which ensures that the oven operates efficiently. Care should be taken not to rub, damage or
move it.
Do not use oven cleaners, harsh/abrasive cleaning agents, waxes, or polishes. No commercial
oven cleaner, oven liner, or protective coating of any kind should be used in or around any part of
the oven. Do not use harsh/abrasive cleaners, scourers or sharp metal scrapers to clean the oven
door glass since they scratch the surface, which may result in the glass shattering.
Clean only the parts listed in this manual.
Do not use a steam cleaner to clean any part of the oven.
Before starting a Self Clean cycle, remove oven shelves, side racks, and all other cookware/
utensils, and wipe up large food spills or grease deposits.
Before starting a Self Clean cycle, make sure you move any pet birds to another, closed and well-
ventilated room. Some pet birds are extremely sensitive to the fumes given off during a Self Clean
cycle, and may die if left in the same room as the oven during such a cycle.
During a Self Clean cycle, the oven reaches higher temperatures than it does for cooking. Under
such conditions, the surfaces may get hotter than usual and children should be kept away.
Do not store things children might want above the oven. Children could be burned or injured
while climbing on the oven to retrieve items.
Do not install or operate the appliance if it is damaged or not working properly. If you receive a
damaged product, contact your dealer or installer immediately.
Use only bakeware approved for oven use. Follow the bakeware manufacturer’s instructions.

6
-+
The control panel
Locking the control panel
You can lock the control panel to prevent unintended use (eg children playing with the oven).
Doing so will disable the dials and all the buttons.
To lock the control panel
1 Make sure the oven is not in use (the function dial is turned to Off ) and neither automatic
cooking nor the timer is set (no indicator is lit in the display).
2 Press and hold the select button until you hear a beep and --- appears in the temperature
indicator.
To unlock the control panel
Press and hold the select or cancel button until you hear a beep and the temperature
indicator becomes blank.
Clock indicator (see ‘Setting the clock and first use’)
Cooking time indicator (see ‘Automatic cooking’)
Display
Stop time indicator (see ‘Automatic cooking’)
Function indicators (see ‘Oven functions’)
Function dial (see ‘Using your CookSpace oven’)
Function dial halo
Temperature dial halo
Temperature dial (see ‘Using your CookSpace oven’)
Temperature indicator
(see ‘Using your CookSpace oven’)
Scroll Select Cancel
Timer indicator (see ‘Using the timer’)

7
Setting the clock and rst use
1 Ensure the power supply to
the oven is on.
4 Set the time by pressing the scroll
buttons. Holding the buttons down will
speed up the scrolling.
5 Press the select button to confirm.
The clock indicator will soon disappear
but the clock is now set.
2 Select the clock by
pressing the right
scroll button twice.
The clock indicator
will appear and the
colon will flash.
3 Press the select button
to confirm.
The display will flash
to indicate the clock is
ready to be set.
First use: conditioning the oven
It is important to condition your oven before using it for cooking and baking. Conditioning will
burn off any manufacturing residues and ensure that you get the best results right from the start.
1 Make sure you have set the clock.
2 Slide in the shelves and the grill tray. See ‘Using your CookSpace oven’ for instructions.
3 Heat the oven for:
30 minutes at 200
o
C using Bake then
15 minutes at 200
o
C using Fan Grill
There will be a distinctive smell while you are conditioning the oven.
This is normal, but make sure the kitchen is well ventilated during the conditioning.
4 Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.
Setting the clock
You will need to set the clock to make full use of your oven.

8
-+

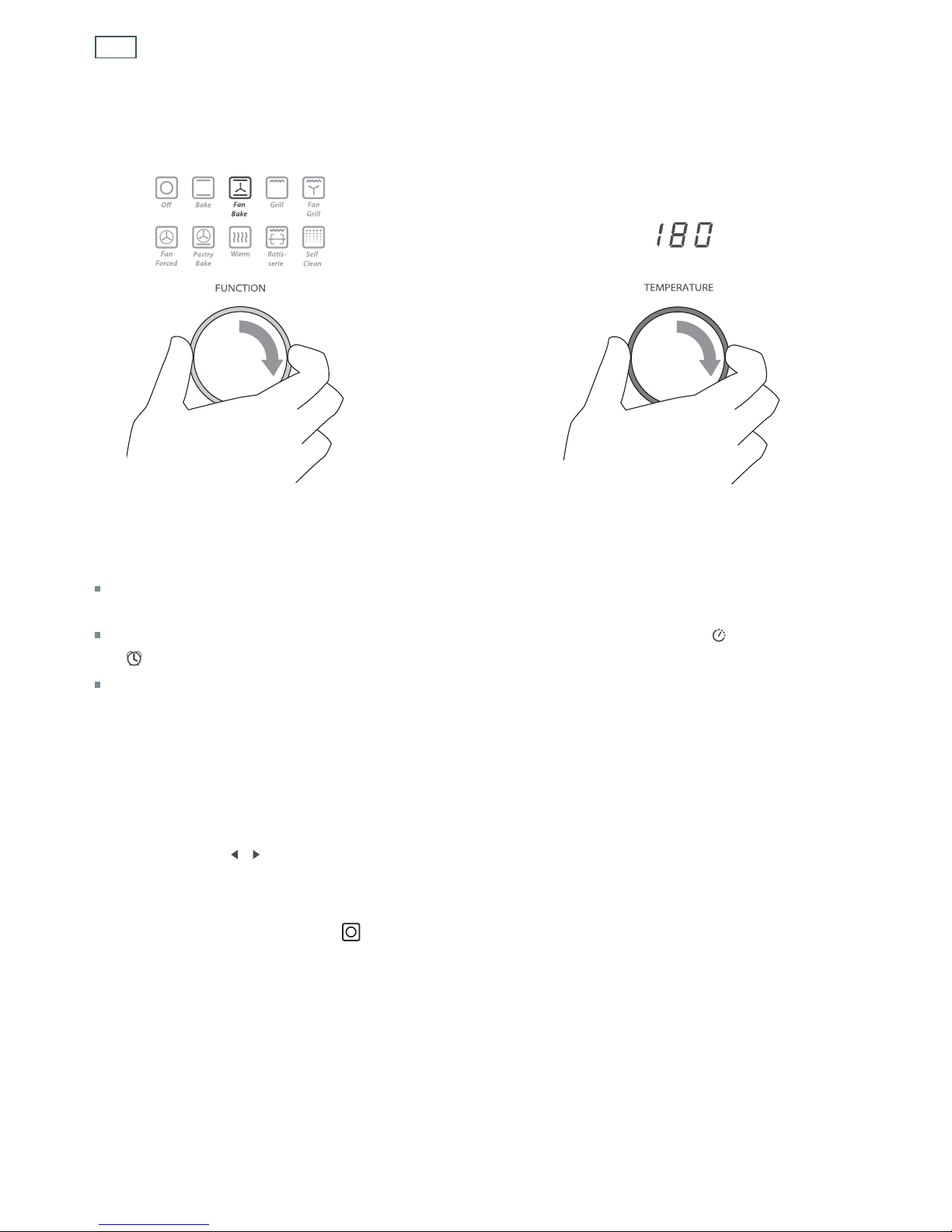

Using your CookSpace oven
1 Slide in the shelves you will need, making
sure that:
they are between the two wires of a shelf
position
the stop notches point down
the guard rail is at the back.
Note: the grill tray should be positioned
between the two wires of a shelf position
and orientated as shown.
3 Set the temperature.
While the oven is heating up, the halo
will glow red and the temperature
indicator will alternately show the
actual and set temperatures.
When the oven has reached set
temperature, a long tone will sound
and the halo will turn white.
Note: Grill provides instant radiant
heat, so the halo will stay red and
there will be no tone.
- - - - - -
4
When you have finished cooking, turn
the function dial to Off .
2 Select a function.
The halo will glow white.
4
12
3
Shelf
positions
Guard rail
Stop notch
(NZ AU
models only)
Stop notch

9

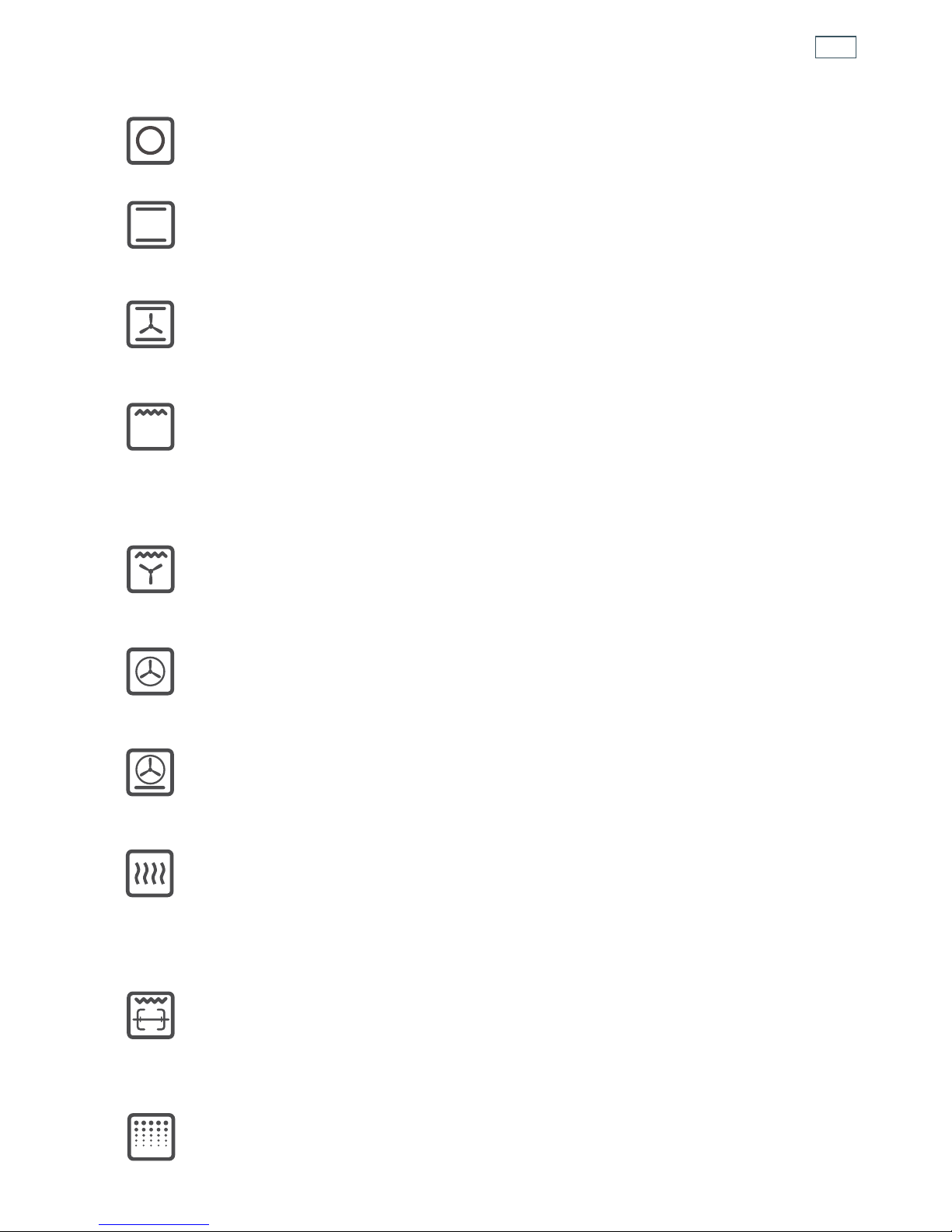

Oven functions
Off
Selecting this will turn the oven off.
Bake
This is the traditional method of baking. It is best to bake on only one shelf at a time in this
function. Ideal for large cakes and dishes that bake for several hours.
Fan Bake
Ideal for dishes like lasagne that need to brown on top and also single trays of small cakes or
biscuits that bake in less than an hour.
Grill
Grill is the most suitable function for ‘finishing off’ many meals, for example browning the top
of potato gratin and frittata. Use Grill to toast bread or to grill your favourite chicken, fish and
steak. Note: heat levels are from LO (50% power) to HI (100% power), with settings from 1 to 9 in
between. Grill provides instant radiant heat, so the temperature dial halo will stay red.
Fan Grill
Ideal for roasting tender cuts of meat and poultry. Use the lower shelf positions for larger items
eg a whole chicken.
Fan Forced
Great for multi-shelf cooking. The consistent temperature ensures baking is well risen. Cookies
baked on Fan Forced are crisp on the outside and chewy in the middle.
Pastry Bake
Excellent for sweet and savoury pastry foods, for moist breads and brownies and cookies that
you want extra chewy.
Warm
Use this function to keep cooked food hot and to warm plates and serving dishes. To reheat food
from cold, use a cooking function at 150°C, then switch to Warm set between 70-90°C only when
the food is piping hot. Note: this function is not for cooking food and the temperature cannot be
set higher than 90°C.
Rotisserie
Rotisserie is a delicious way to cook meat and poultry. The slowly rotating food is basted
continuously in its own juices, making it tender on the inside and well browned and full of
flavour on the outside. See ‘Using the rotisserie’.
Self Clean
The Self Clean cycle takes care of the mess and grime that is traditionally associated with oven
cleaning. See ‘Using the Self Clean function’ for details. Note: this is NOT a cooking function.

10 Using the rotisserie
1 Prepare the rotisserie supports.
Place the grill tray on the
benchtop.
Insert the supports into the lock
studs.
Push the supports all the way
down to lock them in firmly.
3 Position the skewer on the supports.
Place the skewer on the
supports, and check that the
meat does not touch the grill
tray.
Twist the handle off. It must not
be left in the oven.
4 Place the rotisserie in the oven.
Slide the grill tray all the way to
the back on shelf position 1.
Push the skewer through the
hole cover on the right-hand
wall of the oven, then insert it
fully into the rotisserie drive
hole.
2 Secure the meat.
Important!
Take care, the forks are sharp!
When securing the meat, ensure that:
the skewer goes through the
centre of the meat
the forks hold the meat firmly in
place
the fork screws are tightened
there are no loose or projecting
parts. Poultry should be trussed.
Note: the rotisserie can rotate up
to 6 kg of meat.
Lock stud
Rotate the fork screws to
loosen and tighten
Fork
Skewer
Rotisserie drive hole

11
Using the rotisserie
When you have finished using the rotisserie
1 Turn the oven off.
2 Using oven mitts, carefully disengage the right end of the skewer from the rotisserie drive hole.
3 Slide out the grill tray and place it on a heat-resistant surface.
4 Twist the handle onto the left end of the skewer.
5 Lift the skewer off the supports by the handle.
6 Loosen the fork screws and slide the meat off the skewer.
Tips for using the rotisserie
For food safety reasons, we do not recommend using the rotisserie with stuffed meat.
If your meat is too big or heavy (over 6 kg) for the skewer, place it on top of the grill rack in the
grill tray, and use Fan Forced . This function will give a result similar to a rotisserie.
Use a meat thermometer to ensure that meat is cooked through to a safe temperature.
See ‘Care and cleaning’ for advice on cleaning the rotisserie parts.
5 Select the Rotisserie function.
The skewer will start rotating.
Check that the meat does not touch
the grill tray or the grill element at the
top of the oven.
6 Set the temperature.
We recommend around 210 °C.

12 Using the timer
You can use the timer at any time, even if you are not using the oven.
If the time is more than an hour, the display will count down in minutes (hr:min). If it is less than
an hour, it will count down in seconds (min:sec).
You can set the timer for up to 23 hours 59 minutes.
Important!
The timer does NOT turn the oven off.
1 Select the timer by pressing
the right scroll button once.
The timer indicator will
appear and the colon will
flash.
3 Set the time by pressing
the scroll buttons.
Holding the buttons
down will speed up the
scrolling.
To modify the timer setting
1 Make sure the display shows the remaining time counting down.
2 Press the select button.
3 Press the scroll buttons to set a new time.
4 Press the select button to confirm.
To cancel the timer setting
1 Make sure the display shows the remaining time counting down.
2 Press the cancel button until the display shows the time of day and the timer indicator
disappears.
When the set time is up
The display will show 0:00 and a tone will sound every 15 seconds.
Press any button to stop the tone sounding. The display will revert to showing the time of day.
5 If you want to check the time of day,
you can toggle between this and the
timer countdown by pressing the
scroll buttons.
4 Press the select button to confirm.
The timer will then begin to count down.
2 Press the select button to
confirm.
The display will flash to
indicate the timer is ready
to be set.

13
Automatic cooking
You can set the oven to automatically turn on later, cook for a preset time (cooking time), then
automatically turn off at a preset stop time. See the example and instructions below (steps 1 to 7).
If you start cooking manually and only want the oven to turn off automatically after a
set cooking time: simply set the cooking time following steps 1 to 3 below. The oven will
automatically turn off when the cooking time is over.
Important!
Safe food handling: leave food in the oven for as short a time as possible before and after cooking or
defrosting. This is to avoid contamination by organisms which may cause food poisoning. Take particular
care during warmer weather.
Example: It is 11:05 a.m. You want your food to cook for 1 hour, and you would like it to be ready
by lunchtime (12:30 p.m.)
Set the cooking time
Set the stop time
1 Check the clock shows the
correct time of day.
4a Press the right scroll button once to
scroll to the stop time indicator.
4b Press the select button to confirm.
3a Press the right scroll
button to set the cooking
time. Make sure you
allow for preheat time in
your calculation.
3b Press the select button
to confirm.
2a Press the right scroll button
three times to scroll to the
cooking time indicator.
2b Press the select button to
confirm.
5a Press the right scroll button to set the
time you would like your food to be ready
by (ie the stop time).
5b Press the select button to confirm.

14 Automatic cooking
7 Set the temperature.
When automatic cooking is set
The oven and the lights will stay off, the halos will be unlit, but your oven is now set for
automatic cooking. It will automatically turn on at the required time.
In a few seconds, the display will show the time of day with the cooking time and stop time
indicators lit.
Note: you can modify the function and temperature while the oven is waiting to start cooking.
When the stop time is reached
The oven will automatically turn off and a long tone will sound.
To check the set cooking time and stop time
Use the scroll buttons.
To cancel automatic cooking
Turn the function dial to Off .
6 Select a function.
Select function and temperature

15
Baking chart
Please note:
The settings in the following chart are guidelines only. Follow the instructions in your recipe or
on food packaging and be prepared to adjust the oven settings and baking times to achieve the
best possible results for you.
Shelf positions are counted from the base up (1 is the lowest, 4 the highest).
Arrange oven shelves before you turn the oven on, then preheat the oven to the required
temperature. Place items in the oven only when the long tone has sounded and the temperature
dial halo has turned from red to white.*
Single shelf positions below use the flat oven shelf; where a multi shelf arrangement is
recommended, the higher position uses the step-down shelf.
Due to the width of the oven, a single shelf can usually accommodate double the standard
recipe.
Food Note on
arrangement
Shelf
position(s)
Best
function
Temperature (
O
C) Time
Small cakes single shelf 2Bake 180-190 13-17 mins
multi shelf 1 and 3 Fan Forced 160-170 16-21 mins
Scones single shelf 2Fan Forced 210-230 8-12 mins
multi shelf 1 and 3 Fan Forced 210-230 8-12 mins
Sponge
two small pans (20
cm),on single shelf 2Bake 170-190 25-35 mins
one large pan
(26 cm) 2Bake 175 30-40 mins
Light fruit cake two pans (21 cm)
on single shelf 2Bake 155-165 1 hr 30 mins
Rich fruit cake exact baking time
will depend on size 2Bake 130-150 3-6 hrs
Apple pie single shelf 1 Bake 185 35-45 mins
Custard tart single shelf 1 Bake 220, then 180** 10, then
20-30** mins
Quiche single shelf 1 Bake 180-200 30-40 mins
Meringues single shelf 1 Bake 100-120 1 hr
Bread rolls single shelf 1 Bake 210-230 15-20 mins
Muffins 2 x 12 muffin trays
on single shelf 3Fan Forced
or Fan Bake 190-200 10-15 mins
Pastry case
(baked ‘blind’) one 21 cm flan tin 1 Pastry Bake 200
10 mins with
beans, then 10
mins without
* Note: the colour change and tone may occur some time after the set temperature has
been reached. This is because—when heating up from cold—your oven is designed to
initially heat to a temperature somewhat higher than what you have set. This is to
provide optimal baking conditions right from the start.
** This is a two-stage baking process: adjust the temperature after the first stage.

16 User preference settings
You can set your oven to:
display the temperature in degrees Celsius or Fahrenheit
give audio feedback (tones and beeps) or operate quietly
display time as 12-hr or 24-hr
operate with the display off
have its lights on or off during cooking
operate in Sabbath setting (see ‘Sabbath setting’ following).
How to change preference settings
1 Check the display shows the time of day.
If you’re unsure, press the cancel button
twice.
3 Press the right scroll button to scroll to
the setting you want to change. Refer to
the table following.
4 Press the select button to select the
particular setting.
The display will flash.
2 Press and hold the scroll buttons
together for 3 seconds to enter the user
preference menu.

17
User preference settings
5 Press the right scroll button to scroll
through the options for that particular
setting. Refer to the table below.
6a Press the select button to save the new
option .
6b For all options except ‘Display off’ :
press the cancel button to quit the user
preference menu.
Setting Default option Alternative option(s)
TEMPERATURE SCALE
Select between degrees
Celsius or Fahrenheit.
AUDIO FEEDBACK
Turn the beeps and tones
on or off.*
TIME SCALE & ‘DISPLAY
OFF’ OPTION
Select between 24-hr or
12-hr clock display or
set ‘Display off’ option if
you only need the basic
functionalities of your oven.
OVEN LIGHTS
Have the light off during
cooking if you want to save
power or want the food you
cook to be a surprise for
others!
SABBATH SETTING
BEEPS/TONES ON BEEPS/TONES OFF
CELSIUS
24 HR
LIGHTS ON
DURING COOKING
LIGHTS OFF
DURING COOKING
FAHRENHEIT
12 HR DISPLAY OFF **
See ‘Sabbath setting’ for
instructions.
* The timer tone and alert beeps will sound even if you save the BEEPS/TONES OFF option.
** With this option saved, you can still use the oven but the display will be unlit and the
buttons will be unresponsive. To quit this option and enable the display, press and hold the
cancel button.
SABBATH OFF

18 Sabbath setting
This setting is designed for religious faiths that observe a ‘no work’ requirement on the Sabbath.
While your oven is in Sabbath setting
The display, dial halos and indicators will be unlit, the buttons will be unresponsive.
No tones or beeps will sound.
No alert codes or temperature changes will be displayed.
The oven lights will stay on. If you want the oven lights to be off during Sabbath setting, first
select the ‘Lights off’ option as described in ‘User preference settings’, and only then set Sabbath
setting.
Bake is the only function available in Sabbath setting.
How to set Sabbath setting
1a Select the Bake function.
1b Set the desired temperature.
1c Wait until the oven starts up.
2 Press and hold the scroll buttons
together for 3 seconds to enter the user
preference menu.
