Fisher & Paykel RS2484SLK1 User manual

RS2484SLK1 + RD2484L4D
24'' integrated refrigeration column - panel ready (Stainless interior)
Selected Model
Model number RS2484SLK1 +RD2484L4D
Dimensions
Overall Width (in.) 23 3/4''
Depth (in.) 24''
Overall Height (in.) 84''
Exterior Appearence
Built-in Yes
Seemeless Cabinetery Installation Integrated into kitchen cabinetry
Freestanding Yes
Frontage Color Custom Panels
Features
Configuration Single-door integrated column refrigerator
Performance 3 cooling mode
Temperature Management System ActiveSmart™
Door swing Left
Interior Lighting LED, top and sides
Sabbath Mode Yes
Door opening angle 90° to 115°
SmartTouch™ Control Panel Interior, central
Automatic closing bins Yes
Soft close bins Yes
Storage bin Transparent with white and aluminum
frame
Temperature zone 2 independent refrigeration zones
Capacity
Total Capacity 12.4 cu.ft
Interior Appearance
Interior Stainless Steel
ActiveSmart™
Compressor Type Variable
Defrost Type Automatic
Door Alarm Yes
Multiflow Air System Yes
Electrical Requirements
Volts; Hertz; Amps 115V; 60Hz; 10 Amp
Required units and accessories
Joiner kit (grey) AJ-RS84LR
Accessories (Included)
Single Bottle Holders 4
Accessories (optionnal)
Contemporary Round Stainless Steel
Handle AHS-RD84
Contemporary Series Square Stainless
Steel Handle AHD3-RD84
PRO Round Stainless Steel Handle AHC-RD84
PRO Series Square Stainless Steel HandleAHV2-RD84
Accessories (required)
EZKleen™ Stainless steel door panel RD2484L4D
Warranty
Full 2 years Entire Appliance; In-Home; Parts & Labour
5 years warranty Sealed system (parts only)
Powered by TCPDF (www.tcpdf.org)
The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us,
may be incomplete or may change without notice

0
1
345678965638895
4 4 4
345678965    
!
"#$%&''()$*+),(-.(/%-012, 345(67894: 345(67894: 345(67894:
;
"#$%&''(<*0,)(-.(/%-012, 8=>9?45(64@8: 79>9?45(6AB9: 7C>9?45(6=@A:
D
"#$%&''(0$/,)(-.(/%-012,(
6$E2'10*F+(.%-F,(0--%(/&F$':
745(6A8B: 745(6A8B: 745(6A8B:
345678938895
G--%(2'$&%&F2$ 7B5(6@B3HH: 7A5(6AABHH: 975(6389HH: I$*+),(
6*F2'10*F+(/&2J&+*F+:
7AB'K(6883J+: 9B7'K(689=J+: 944'K(68@AJ+:
G--%()*F+$ L$,,*2)(MB@ L$,,*2)(MB@ L$,,*2)(MB@
345NOP459OP
Q
R
S

01
2
45568945894959
60 6 61
455689495989      
!
"#$%&'()*(+)),(-./#0 12(1345(678729 12(1345(678729 12(1345(678729
:
;$+'&()*(+)),(-./#0 <1=>3?@(6?A<9 7>(>3?5(6B8>9 72(>3?5(61AB9
C
D#-'&()*(+)),(-./#0(
6#EF0G+$/%(+)),(&./+0#9
(>3?@(6<29 >3?@(6<29 >3?@(6<29
4556894959H5I
!
"#$%&'()*(+)),(-./#0 11(134@JKL4<(134@(6<214LKL78489 11(134@JKL4<(134@(6<214LKL78489 11(134@JKL4<(134@(6<214LKL78489
:
;$+'&()*(+)),(-./#0 <1(>3?@(6?A<9 7>(>3?5(6B8>9 72(>3?5(61AB9
C
D#-'&()*(+)),(-./#0 M$/(A34@JKLM.E(<@(6<BLKL7A9 M$/(A34@JKLM.E(<@(6<BLKL7A9 M$/(A34@JKLM.E(<@(6<BLKL7A9
455689NOP QRST QRST QRST
U.E$MGM(V#$%&'()*(W'.$/0#XX(X'##03YGX')M(+)),(-./#0(
6$/F0G+$/%(&./+0#3Z,.F[#'X9
\ ??0Z(678[%9 AA0Z(67A[%9 BB0Z(6>8[%9
]^_`abcd^eccf^ghijka^bc^lj^dhi`mhnb`fje^hie^mobbje^lp^nhloijbdhqjfr s^tccf^uhiekj^qob^oa^hvhokhlkj^ha^hi^cgbocihk^hnnjaacfp^mcf^lcbu^wbhoikjaa^wbjjk^eccf^ghijka^hie^_`abcd^eccf^ghijka^hie^d`ab^lj^g`fnuhaje^ajghfhbjkpr
9O98 4H898
60 6 61 60x6 60x61 6x6 6x61 61x61
54959                
y
z{|}~}{ W'.$/0#XX(X'##0(-./#03YGX')M(-./#0 <1=134@(6?A?9 7>(134@(6B8B9 72(134@(61A29 ?<(134@(6<8B?9 ?1(134@(6<7<B9 ?1(134@(6<7<B9 A>(134@(6<>B49 A2(134@(6<A7<9

{~}}{

W'.$/0#XX(X'##0(-./#0 ?@(6<879 ?@(6<879 ?@(6<879 ?@(6<879 ?@(6<879 ?@(6<879 ?@(6<879 ?@(6<879 YGX')M(-./#0 7@=K=B@((
6A<=K=<A79 7@=K=B@((
6A<=K=<A79 7@=K=B@((
6A<=K=<A79 7@=K=B@((
6A<=K=<A79 7@=K=B@((
6A<=K=<A79 7@=K=B@((
6A<=K=<A79 7@=K=B@((
6A<=K=<A79 7@=K=B@((
6A<=K=<A79

}~}{
|
}|
W'.$/0#XX(X'##0(-./#03YGX')M(-./#0 7=134@=K=?@(
61>=K=<879 7=134@=K=?@(
61>=K=<879 7=134@=K=?@(
61>=K=<879 7=134@=K=?@(
61>=K=<879 7=134@=K=?@(
61>=K=<879 7=134@=K=?@(
61>=K=<879 7=134@=K=?@(
61>=K=<879 7=134@=K=?@(
61>=K=<879

^^wbhiehfe^bcj^qonq^ujoub^oa^^dd^obu^buj^cgbocihk^wbhoikjaa^eccf^ghijkr^cf^_`abcd^eccf^ghijk^oiabhkkhboci^h^n`abcd^bcj^qonq^^¡¢£^¤^¡^¤dd^nhi^lj^dhi`mhnb`fje^hie^mobbje^lp^nhloijbdhqjfr^¥uj^_`abcd^eccf^ghijk^ujoub^ijjea^
bc^lj^he¦`abje^hnncfeoikpr
]]^§¨bfh^kcjf^fokkja^hfj^fj©`ofje^mcf^h^^¤dd^bcj^qonq^oiabhkkhbocir

01
2
456789889686
4 !"#$%!&$%'())*+',&-'./#')-#)(-(.!&$'($0'!$%.(**(.!&$'&,'12%.&"'0&&-' )($#*%3'4&-'56'($0'7,',!*#%'&,'./#'8#*&5')($#*')-#)(-(.!&$'0&5$*&(0'./#' ,&*0#-'&$'9::;<==:9>?@:A9>B:CCDEFG@E9>H;IJ?>DFACK LMNOPQRSQT
U7VVWXYVWWZ[ZVVW\
][VYVYV^Y_ `4ab]c0dYVWXY ^
U9YW\VWWZ[cVVcV
YXWX1efgfhe`idfgf0i1a^
jkjlmn'opp""q'
rkplsn'otu""q
vlsn'7'wjlsn orr""'7'wr""q
rx'plmn'ovyt""q
plmn'
oru""q
pkjlrn
oxu""q
rn'oyj""q sn'orup""q jmkvlsn'opvs""q
yn'ojrv""q
rn'oyu""q'
rn'oyu""q
run'oyus""q
yun'ojrvu""q
vun'ojvvs""q
vv'vlsnz{|sj'vlsn'ojxvs|{|rusu""q
}~~~ ~~ 
6d
rn'oyu""qrn'oyu""q

01
2
456789889686


   
!!!"#$%"!"&!"%$%"
!!!"
!
"
!
'()*(+),-./0)1.*2-0)1(-03)4*) 5.6702).60.3)+().8(42)/-.314*9) :4+1),.*0-).++./150*+);6./70+3
 " !"
6<=
"



&
!">?" >?
!!!"#$%"!"&!"%$%"
!!!"
!
"
!

"!"  
'()*(+),-./0)1.*2-0)1(-03)4*) 5.6702).60.3)+().8(42)/-.314*9) :4+1),.*0-).++./150*+);6./70+3

! @"



60A
>?" ">?
"



&

01
2
4556589655
60 61 6
45565894969495   
!"#$%&'(&#'')&*
+,-&
'./01&2/345)/#&()'2&()'0$&'(&#'') 6,7&*8,91 6:7&*::,1 ;67&*9<;1
=
>"0"252&#'')&?@/3)30?/A&$'&3#B3?/0$&C3@@AA&
*<<8-DED(5@@&"0$/)03@&3??/441
<<&<F67&*6+61 <G7&*;8:1 <:&<F67&*G<+1
H
>"0"252&#'')&?@/3)30?/A&$'&3#B3?/0$&C3@@AA&
*+,-DED)/#5?/#&"0$/)03@&3??/441
G&8F<:7&*<<,1 G&8F<:7&*<<,1 G&8F<:7&*<<,1
IJKLMNOPLQJRPSTJRPSUVJWMXYULVPZJLQ[L\ IIJ]SLNJUSVJYUW^OQLJV_LJ`ONVSTJQSSPJaMUL^NJSPJ_MUQ^LNJVSJXLJTMUORMWVOPLQJMUQJRYVVLQJXZJWMXYULVTMbLP\
c')&+,-&#'')&4C"0d&3&%"0d/&@"2"$"0d&e'@$&"4&45..@"/#&C"$%&f'5)& 3..@"30?/g&h%"4&."0&("$4&"0&$%/&e')/%'@/4&'(&$%/&$'.&%"0d/&*i1g jklmnmop
qrstutvwxyttuz{ux|xx|vv}|x|~}
qt}}txxu{xtxt|tyux|x||{ut{
{utuy|x

&./0&#'')&$'&+,-g

&@"d0&$%/&%"0d/&@"2"$"0d&e'@$&/)$"?3@@f&C"$%&$%/&e')/&%'@/g

&04/)$&$%/&."0&$%)'5d%&$%/&e')/&%'@/g&4/&3&%322/)&$'&#)"/&$%/&."0&
$%)'5d%&$%/&%'@/g
004556589
655 4556589



M^^ M^^
i

INTEGRATED COLUMNS
RS1884FJ, RS2484FJ, RS084FJ,
RS2484S & RS084S models
INSTALLATION GUIDE
US CA
847985C 05.18

1
TABLE OF CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to
our website fisherpaykel.com or contact your local Fisher & Paykel dealer.
1 SAFETY AND WARNINGS
2 INTEGRATED COLUMNS
3 COMPONENTS LIST

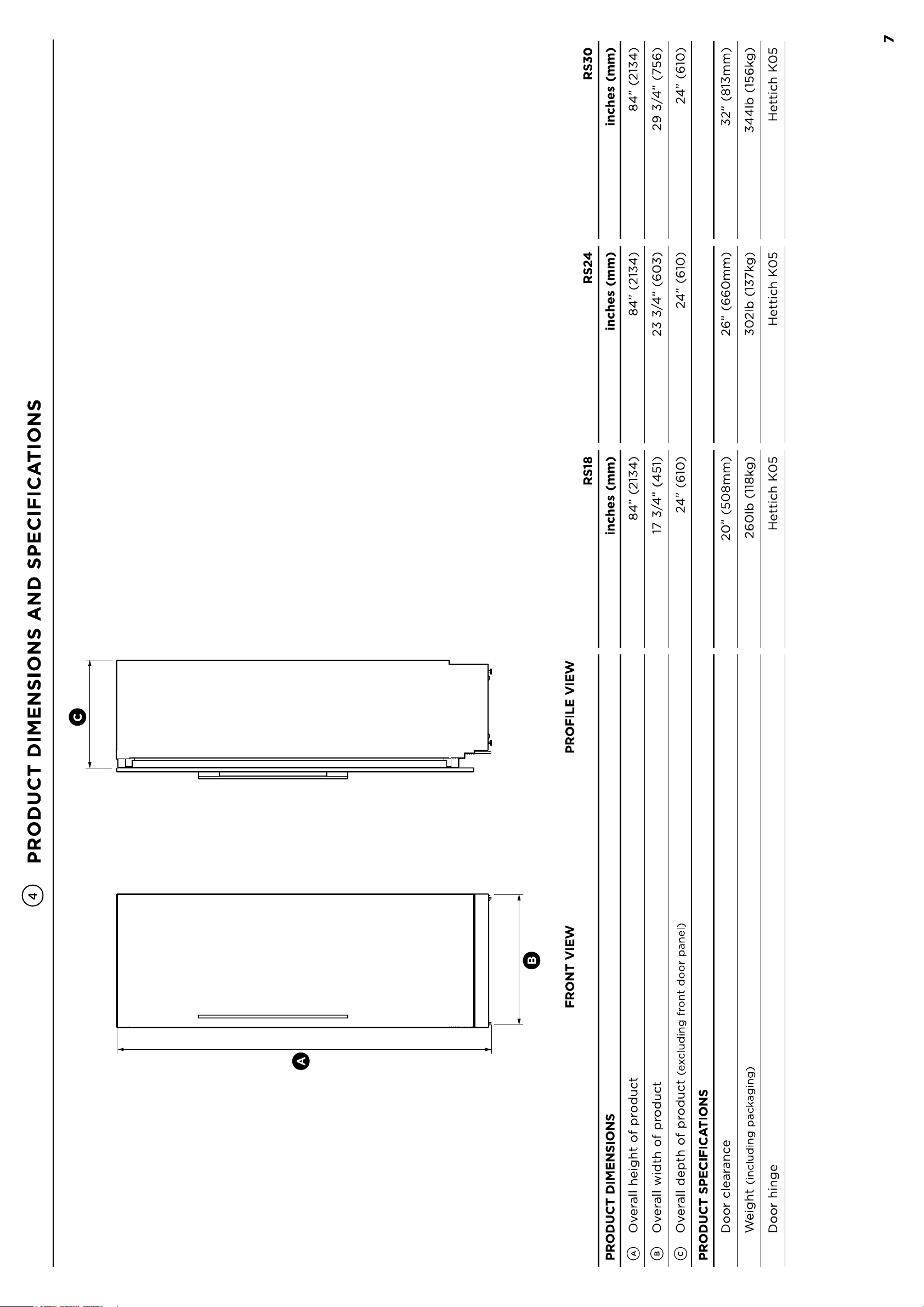

4 PRODUCT DIMENSIONS AND SPECIFICATIONS

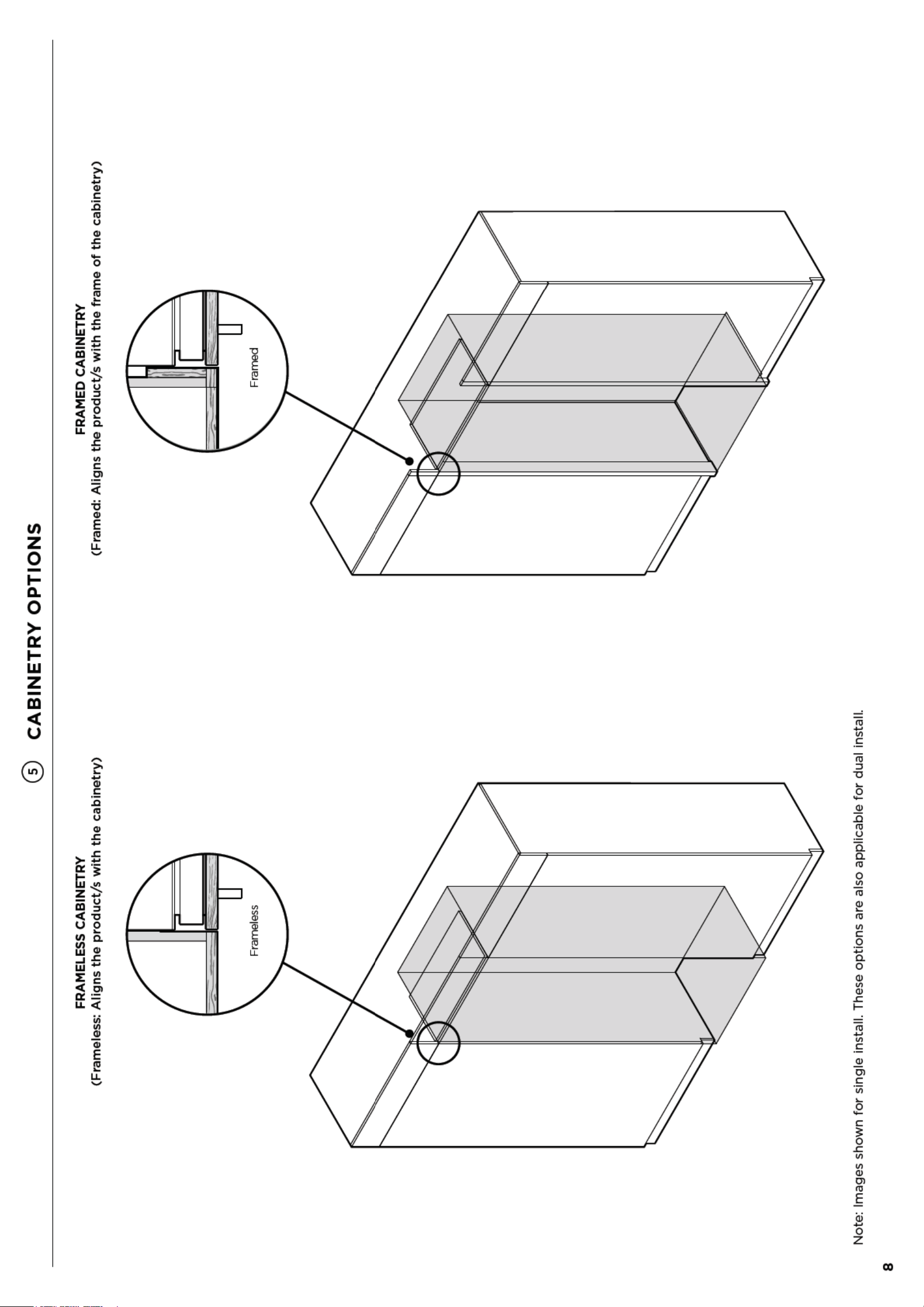

5 CABINETRY OPTIONS

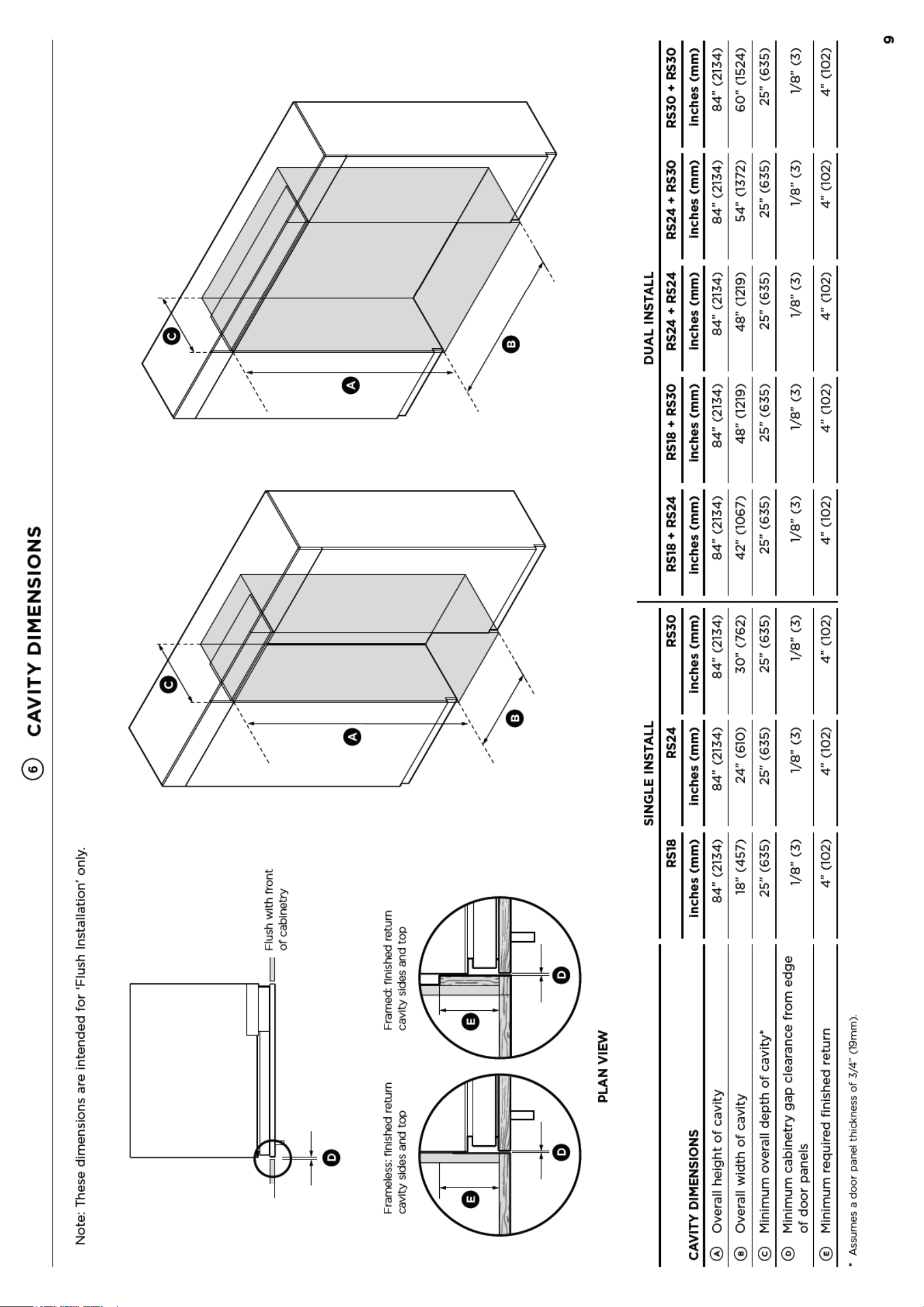

6 CAVITY DIMENSIONS

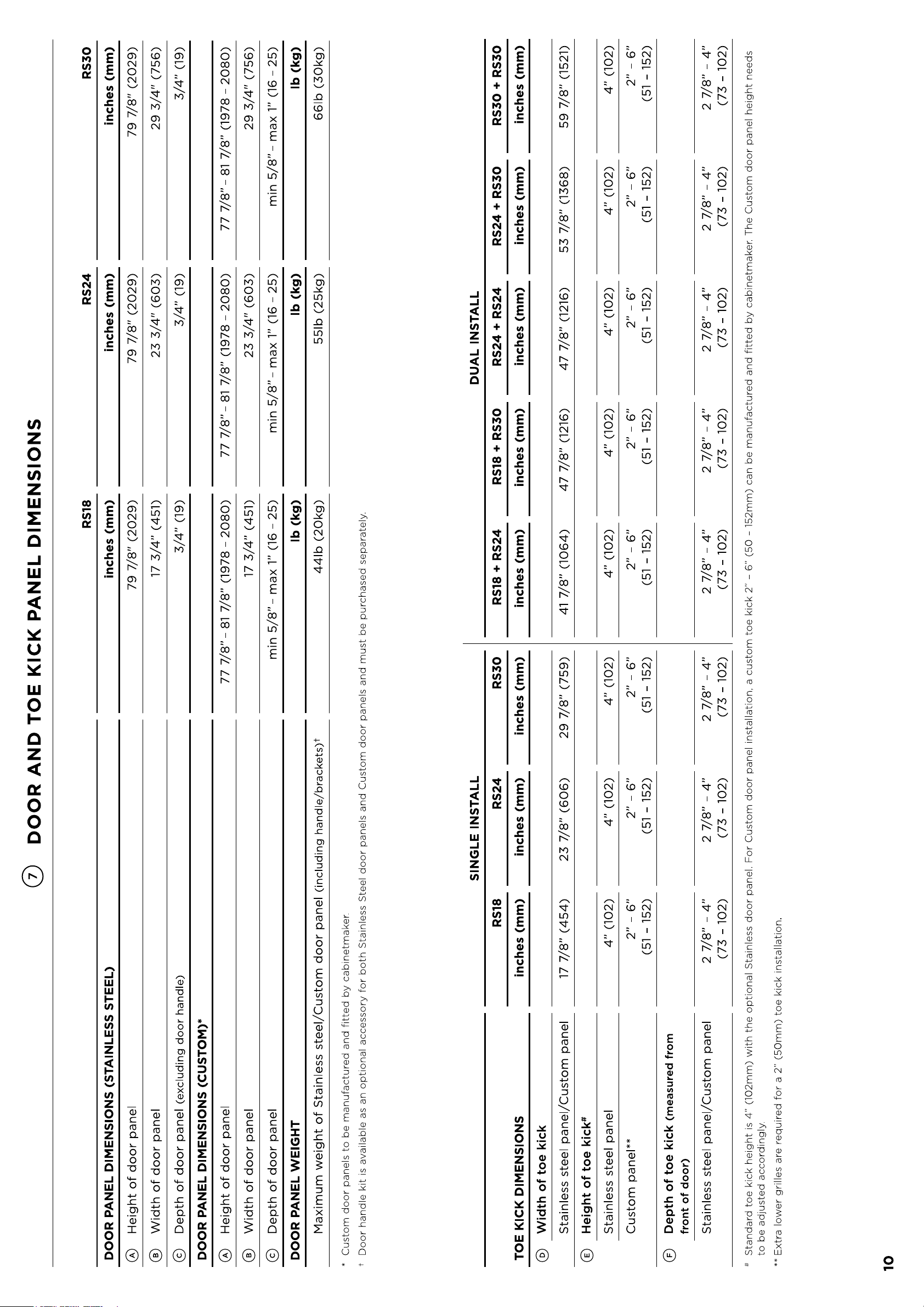

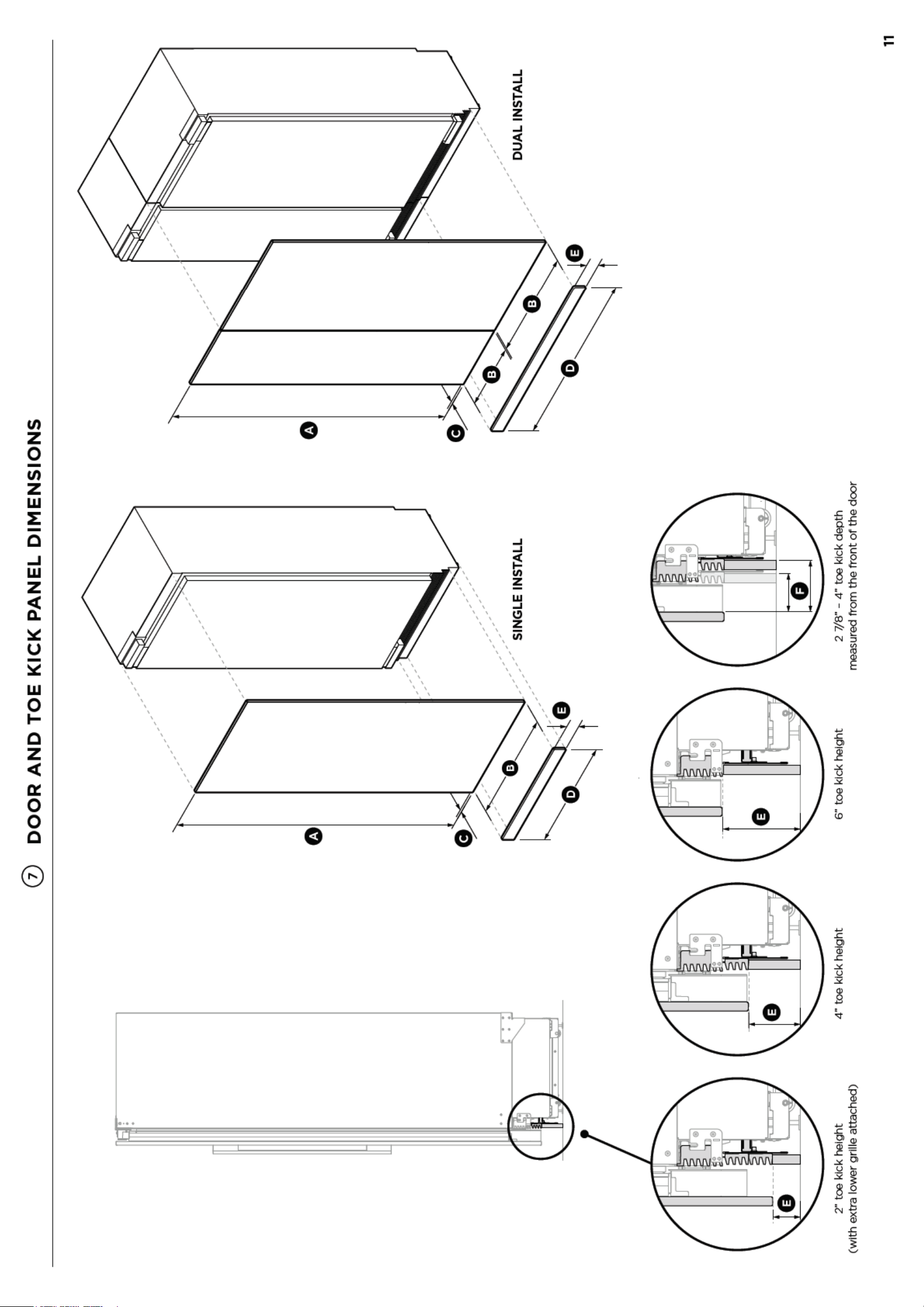

7 DOOR AND TOE KICK PANEL DIMENSIONS
8 CUSTOM DOOR PANEL DIMENSIONS

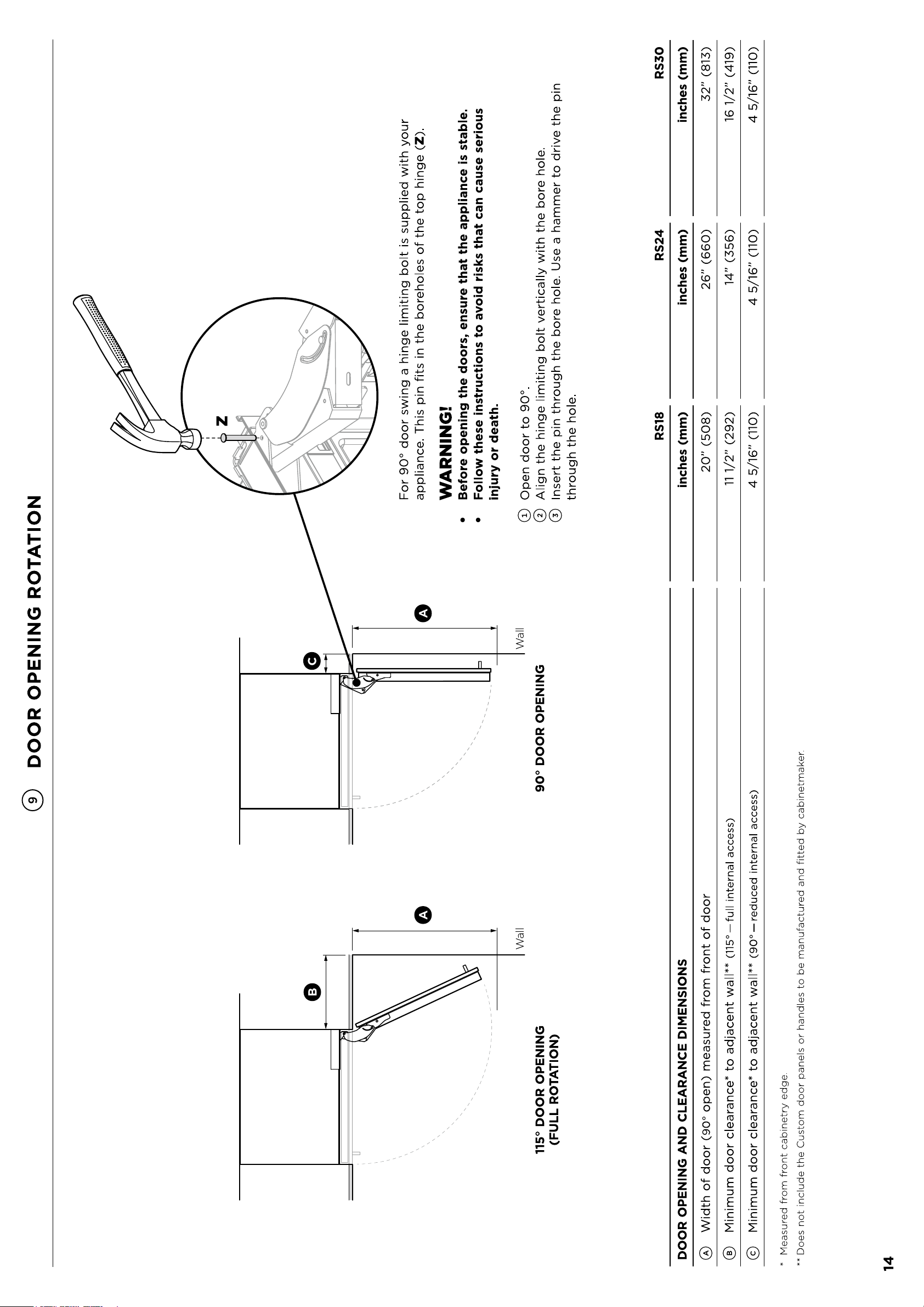

9 DOOR OPENING ROTATION
!0 ELECTRICAL AND PLUMBING
!1 BEFORE INSTALLATION
!2 UNPACKING AND MOVING YOUR PRODUCT
!3 ATTACH THE ANTI-TIP BRACKET
!4 CONNECT TO WATER AND POWER SUPPLY
!7 INSTALL WATER FILTER
OR
!5 SINGLE INSTALLATION !6 DUAL INSTALLATION
OR
!8 INSTALL BRACKETS TO DOOR PANEL
(STAINLESS STEEL)
!9 INSTALL BRACKETS TO DOOR PANEL
(CUSTOM)
@0 INSTALL DOOR PANELS
@1 INSTALL TOE KICK
@2 INSTALL TOE KICK GRILLE
@3 INSTALL CABINET TRIMS
@4 INSTALL FLOW DIVIDER AND DOOR TRIMS
@5 OPTIONAL — CHANGING OVER DOOR HINGES
@6 FINAL CHECKLIST

2
1 SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings outlined in this installation
guide before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury
topersons.
!WARNING!
Cut Hazard
Take care — panel edges are sharp. Failure to use caution could result
in injury or cuts.
!WARNING!
This appliance is top-heavy and must be secured to prevent the
possibility of tippingforward.
To ensure that the appliance is stable under all loading conditions, the
anti-tip bracket and fittings supplied must be installed according
tothe following installation instructions by a professional installer.
2 INTEGRATED COLUMNS
Note: Interchangeable door hinges available for each model.
18” (457mm)24” (610mm)30” (762mm)
FREEZER
RS1884FJ RS2484FJ RS3084FJ
REFRIGERATOR
RS2484S RS3084S

3
3 COMPONENTS LIST
Installation kit — included with the appliance
Door panel attachment kit (848191)
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
Side bracket
(6x)
Bracket slider
(6x)
Side spacer bracket
(6x)
M4 Hex key
(1x)
For SS door panels:
8Gx16 Mush washer screw
(30x)
For Custom door panels:
M5x12 Cross-head screw
(30x)
Anti-tip bracket assembly
#10x40
Pan Head
Philips Screw
#10x40
Pan Head
Philips Screw
Install fasteners kit
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
Anti-tip bracket
(1x)
10x30mm Masonry plug
(5x)
10-12x35mm Pan head screw
(5x)
Cabinet depth alignment
gauge (4x)
8Gx16 Countersunk screw
(7x)
Barbed plug
(2x)
Supplied in separate bag Supplied in separate bag Supplied in separate bag
Hinge limiting bolt
(3x)
Air toe kick seal
(1x)
Flow divider cap
(1x)

4
3 COMPONENTS LIST
MI (miscellaneous items) pack — included with the appliance.
INTEGRATED COLUMNS
RS1884FJ RS2484FJ, RS3084FJ,
RS2484S & RS3084S models
COLONNES ENCASTRABLES
Modèles RS1884FJ, RS2484FJ, RS3084FJ,
RS2484S et RS3084S
USER GUIDE
GUIDE D’UTILISATION
US CA
SERVICE & WARRANTY
SERVICE ET GARANTIE
ΣΈΡΒΙΣ ΚΑΙ ΕΓΓΎΗΣΗ
SERVIZIO E GARANZIA
SERVICE & GARANTIE
HUOLTO JA TAKUU
SERVICE OG GARANTI
保修和维修
服務和保修
INTEGRATED COLUMNS
RS1884FJ, RS2484FJ, RS3084FJ,
RS2484S & RS3084S models
INSTALLATION GUIDE
US CA
847985C 05.18
User guide
(1x)
Service & Warranty
(1x)
Installation guide
(1x)
Water filter installation kit — included in MI pack of Freezer models only
Water filter
(1x)
1/4” (6mm) Adaptor
(2x)
Collet locking clip
(2x)
1/4” (6mm) Stainless steel braided hose
(1x)
Adaptor tube
(1x)
Toe kick installation kit — Fisher & Paykel (Stainless steel) toe kick is not included with the
appliance.
Toe kick
(1x)
Standard toe kick height is 4” (102mm) with the optional stainless door panel.
For Custom door panel installation, a custom toe kick 2”–6” (50–152mm) can be manufactured and fitted by
cabinetmaker. The Custom door panel height needs to be adjusted accordingly.
An extra bottom grille is required for a 2” (50mm) toe kick installation.
Install parts — included with the appliance. Attached to back of appliance.
Door panel side extrusion
(2x)
Alcove side trim assembly
(1x)

5
3 COMPONENTS LIST
Door handle kit— not included with the appliance and must be purchased separately.
EVO1 handle kit (CA: 24980) F&P (D3) handle kit (CA: 24979)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
EVO1 Handle
(1x)
M5x25 Hex screw
(4x)
F&P (D3) Handle
(1x)
M5x25 Hex screw
(4x)
EVO2 (U handle) (CA: 24982) S handle (RD3) kit (CA: 24981)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
EVO2 (U handle)
(1x)
M5x25 Hex screw
(4x)
S handle (RD3)
(1x)
M5x25 Hex screw
(4x)
Door panels
Stainless steel door panel (1x) Custom door panel
Fisher & Paykel (Stainless steel)
door panel is not included
with the appliance and must
be purchased separately.
Customers can supply their
own Custom door panel to
match their cabinetry.
Dual install joiner kit (CA: 24985)— included with the appliance (Freezer model only). Attached
to back of appliance. Used for any of the dual install options shown below.
Left/Right Left/Left Right/Right
WALL
Included in each joiner kit:
Top joiner fastener kit
M5x20 Cap screw
(1x)
M5x16x1 Plain washer
(1x)
Bottom joiner fastener kit
M6 Washer
843453
M5 Washer
M5 x20
Cap Screw
847984
M6 x 12
Cap Screw
248072
8Gx16
Mush Washer
840371
10 x 50
Dual Lock
M6 Nut
839455
M5 Nut
839107
M6x16 screw plastic washer
M6x16 Washer screw
(1x)
M6x12x3.2 Plastic washer
(1x)
M6 Hex nut
(1x)
Top joiner bracket kit
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
8Gx16 Mush washer screw
(2x)
Central spacer
(1x)
Center trim assembly
(1x)

6
3 COMPONENTS LIST
Hinge change kit — not included with the appliance and must be purchased separately.
Hinge change assembly
Hinge top pocket
(1x)
K05 Top adapter bracket
(2x)
Lower hinge bracket
(2x)
M5 Nut
(2x)
Alcove top bracket
(2x)
K05 Bottom adapter bracket
(2x)
Top (fixed) grille assembly
Top (fixed) grille
(1x)
MODEL LEFT HINGE TO RIGHT HINGE RIGHT HINGE TO LEFT HINGE
RS18 848186 848185
RS24 848188 848187
RS30 848190 848189
Each kit includes: Hinge change assembly (1x), Top (fixed) grille assembly (1x)

7
4 PRODUCT DIMENSIONS AND SPECIFICATIONS
RS18 RS24 RS30
PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm)
AOverall height of product 84” (2134) 84” (2134) 84” (2134)
BOverall width of product 173/4” (451) 233/4” (603) 293/4” (756)
COverall depth of product (excluding front door panel) 24” (610) 24” (610) 24” (610)
PRODUCT SPECIFICATIONS
Door clearance 20” (508mm) 26” (660mm) 32” (813mm)
Weight (including packaging) 260lb (118kg) 302lb (137kg) 344lb (156kg)
Door hinge Hettich K05 Hettich K05 Hettich K05
PROFILE VIEWFRONT VIEW
A
B
C

8
5 CABINETRY OPTIONS
FRAMELESS CABINETRY
(Frameless: Aligns the product/s with the cabinetry)
FRAMED CABINETRY
(Framed: Aligns the product/s with the frame of the cabinetry)
Note: Images shown for single install. These options are also applicable for dual install.
E
DD
E
Frameless
E
DD
E
Framed

9
6 CAVITY DIMENSIONS
SINGLE INSTALL DUAL INSTALL
RS18 RS24 RS30 RS18 + RS24 RS18 + RS30 RS24 + RS24 RS24 + RS30 RS30 + RS30
CAVITY DIMENSIONS inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm)
AOverall height of cavity 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134)
bOverall width of cavity 18” (457) 24” (610) 30” (762) 42 1/4”(1073) 48 1/4” (1225) 48 1/4” (1225) 54 1/4” (1377) 60 1/4” (1530)
cMinimum overall depth of cavity* 25” (635) 25” (635) 25” (635) 25” (635) 25” (635) 25” (635) 25” (635) 25” (635)
dMinimum cabinetry gap clearance from edge
of door panels 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3)
eMinimum required finished return 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102)
* Assumes a door panel thickness of 3/4” (19mm).
Note: These dimensions are intended for ‘Flush Installation’ only.
E
D
D
Flush with front
of cabinetry
PLAN VIEW
E
DD
E
E
DD
E
B
A
C
B
A
C
Frameless: finished return
cavity sides and top
Framed: finished return
cavity sides and top
