Fisher & Paykel HP60IDCHX2 User manual

BUILT-IN INTEGRATED
RANGEHOOD
HP60IDCHX2 & HP90IDCHX2 models
INSTALLATION GUIDE / USER GUIDE
NZ AU ROW

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide
may not be available in all markets
and are subject to change at any time.
For current details about model and
specification availability in your country,
go to our website fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 7
Operating instructions 15
Cleaning and maintenance 16
Parts and accessories 18
Customer Care 19
CONTENTS

3
Thank you for purchasing a Fisher & Paykel product.
Thousands of hours go into the design, engineering, testing and perfecting of each
Fisher & Paykel appliance. The care and attention given to creating these beautiful
products doesn’t stop once it has found its home with you.
This use and care manual will answer most of your questions about the set-up, use
andon-going maintenance of your Fisher & Paykel product; however if you require
further information about your product and its use please consult our website for
solutions and further contact information to discuss with a service representative.
To ensure you receive all relevant product updates and the best service possible,
please register your Fisher & Paykel products through our website.
INTRODUCTION

4
SAFETY AND WARNINGS
! WARNING!
8.2 kg
(HP60)
11.5 kg
(HP90)
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury.
The appliance must be installed onto a solid wall, stud, beam or
truss. Weight of the product is 8.2 kg (HP60)/ 11.5 kg (HP90).
! WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic
wiringsystem must only be made by a qualified electrician.
Failure to follow this advice may result in electrical shock or death.

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including
thefollowing:
●●Read the entire set of instructions before installing or using this appliance.
●●Please make this information available to the person installing the appliance –
doingso could reduce your installation costs.
●●Always switch the power off prior to installation, servicing or cleaning of
therangehood.
●●This appliance must be installed and connected to the mains power supply only
by asuitably qualified person according to these installation instructions and
in compliance with any applicable local building and electricity regulations.
Failuretoinstall the appliance correctly could invalidate any warranty or
liabilityclaims.
●●To comply with electrical safety regulations, the rangehood must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the rangehood from the power
forthe purpose of internal cleaning or maintenance.
●●A power outlet should be within 750 mm of the motor assembly and can either be
onthe wall, behind the chimney or in the ceiling.
●●If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
●●Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.
●●Attention should be given to ensure that any applicable regulations concerning
thedischarge of exhaust air are fulfilled.
●●Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to
andrequest permission from the person in charge of the building.
●●Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
●●There shall be adequate ventilation of the room when the rangehood is used at
thesame time as appliances burning gas or other fuels.
●●The minimum distance between the supporting surface for cooking vessels on
thecooktop and the lowest part of the rangehood shall be 600 mm or 650 mm
ifinstalled over a gas cooktop.
●●Stainless steel is very easily damaged during installation if abraded or knocked
bytools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
●●To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
●●This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unlessthey have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
●●Children should be supervised to ensure they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

6
●●You must read the details concerning the method and frequency of cleaning.
●●There is a fire risk if cleaning is not carried out in accordance with the instructions.
●●Never leave frying food unattended since grease can overheat and catch fire.
Theriskof fire is even greater in the case of used oil.
●●Do not flambé under the rangehood.
●●Never use the rangehood without the filters in place.
●●During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
●●CAUTION: accessible parts may become hot when used with cooking appliances.
●●Remove all packaging, including protective wrappings, before use.
SAFETY AND WARNINGS

7
INSTALLATION INSTRUCTIONS

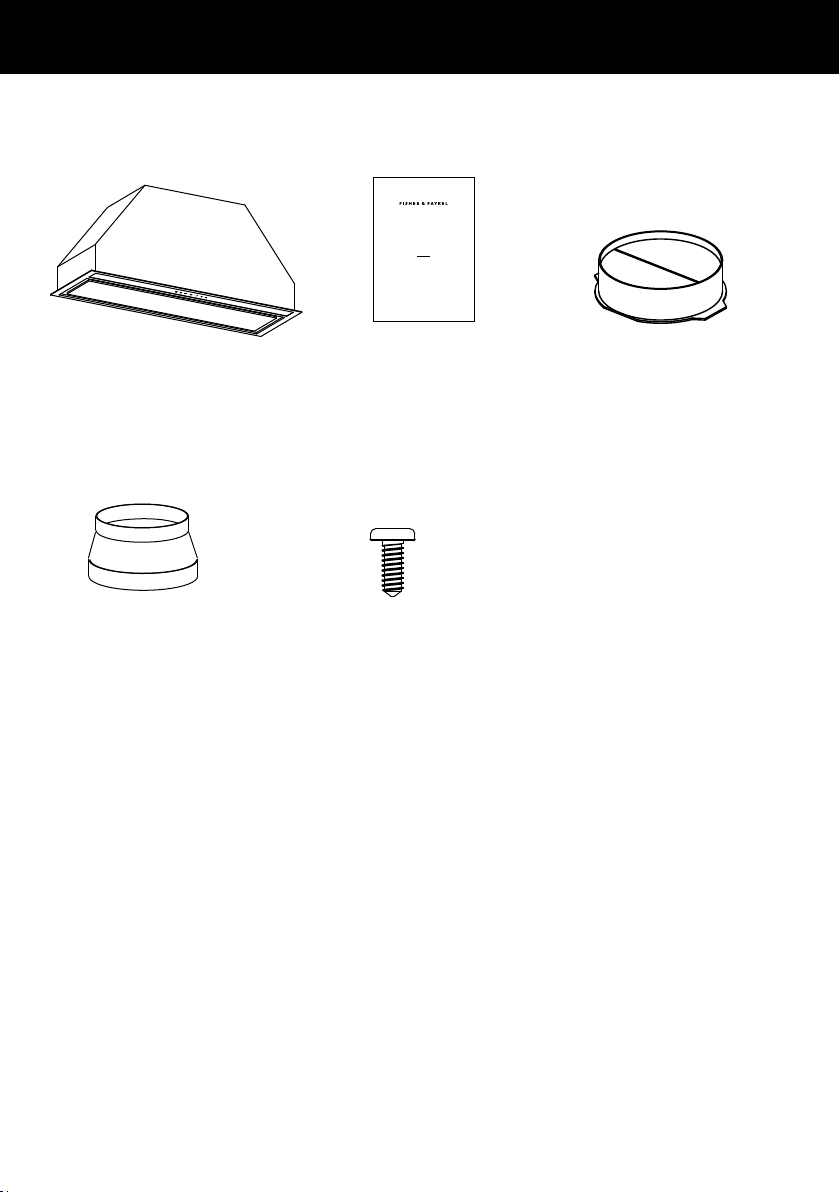

Contents of packaging
13mm screw
(2)
Installation instructions
User guide manual
(1)
125mm ducting
adapter (1)
Rangehood
(1)
BUILT-IN INTEGRATED
RANGEHOOD
HP60IDCHX2, HP90IDCHX2,
HP60IDCHX3 & HP90IDCHX3 models
INSTALLATION GUIDE / USER GUIDE
NZ AU ROW
150mm ducting adapter
with non return flap
(1)

8
INSTALLATION INSTRUCTIONS
J
K
H
I
G
E
B
F
C
A
D
M
N
O
(A)
M
N
Power cord location
Ducting adapter
ØL

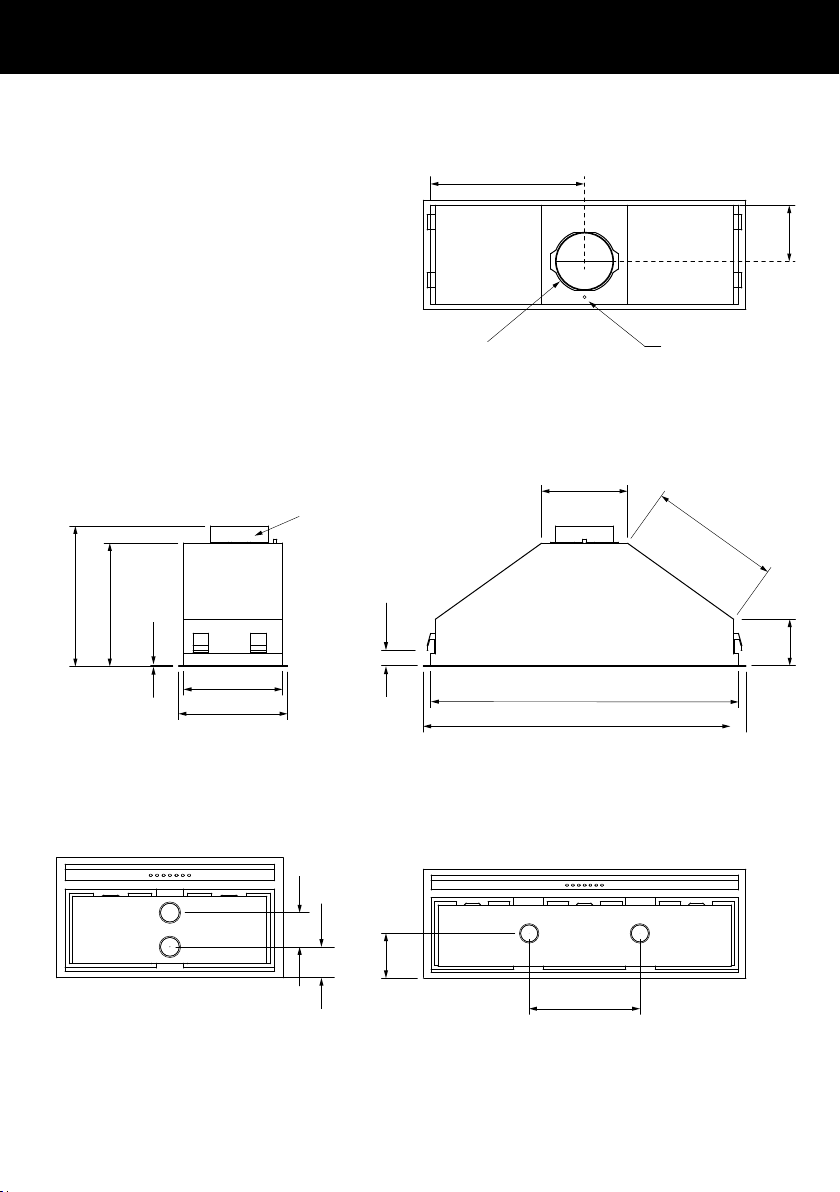

Product and cabinetry cutout dimensions
HP60 HP90

9
INSTALLATION INSTRUCTIONS
HP60 HP90
PRODUCT DIMENSIONS mm mm
AOverall height of product
(with ducting adapter)
350
(395)
315
(360)
BOverall width of product 530 830
COverall depth of product 280 280
DThickness of flange 2 2
EWidth of chassis 492 792
FDepth of chassis 255 255
GHeight of side of chassis 120 120
HWidth of top surface of chassis 220 220
ILength of angled surface of chassis 260 335
JDistance from centre of ducting outlet
toback of chassis
145 145
KDistance from centre of ducting outlet
toside of chassis
245 395
LDiameter of ducting outlet 150 150
MDistance between centre of lights 80 285
NDistance from centre of light to back ofproduct 70 115
Length of power cord 950 950
CABINETRY CUTOUT DIMENSIONS
Overall width of cutout 500 800
Overall depth of cutout 260 260
OBase of brackets/clips to bottom of chassis min. 15 – max. 40 min. 15 – max. 40
IMPORTANT!
Actual product dimensions may vary by ± 2mm.
Please read the entire instructions before installing the rangehood.

10
INSTALLATION INSTRUCTIONS

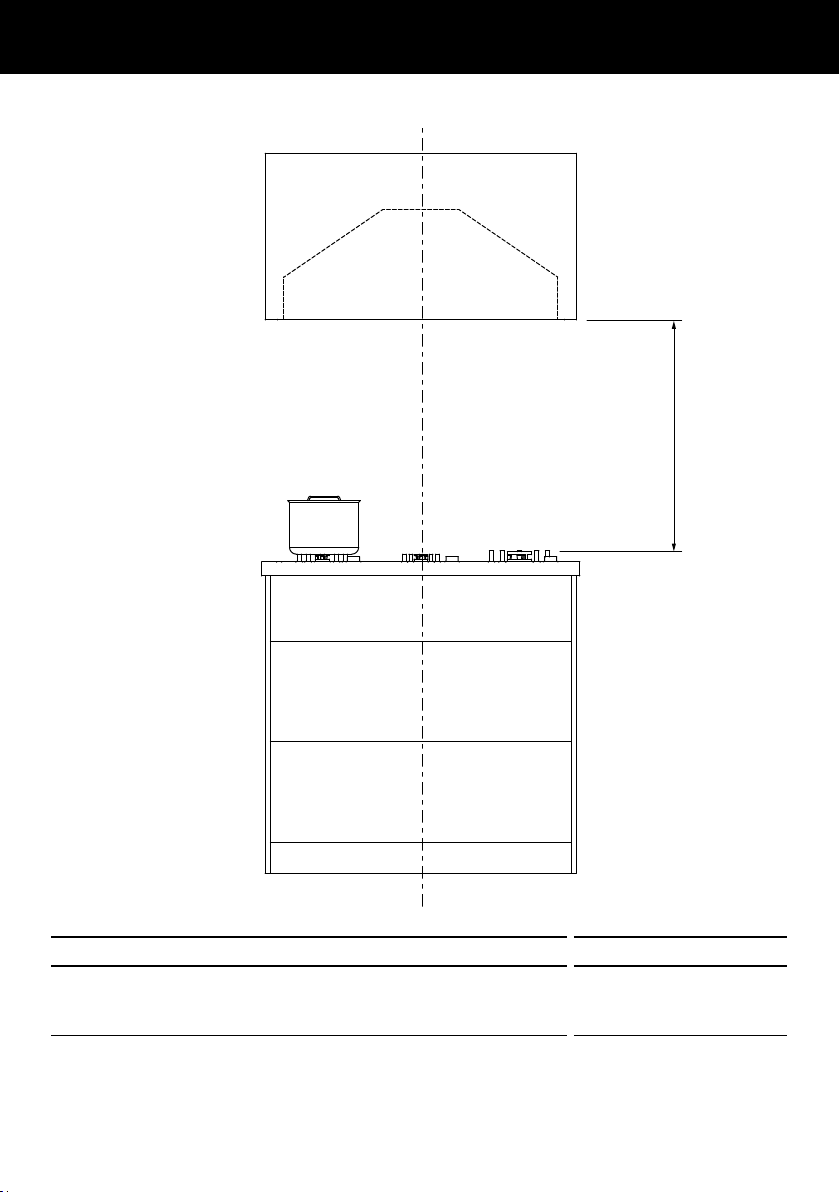

Height of rangehood
MINIMUM CLEARANCES mm
PHeight top of cooktop to base of product
Electric cooktop
Gas cooktop
min. 600 – max. 750
min. 650 – max. 750
Rangehood installation height above the cooktop is the user’s preference.
Lower installation heights will improve the efficiency of capturing cooking odours,
grease, and smoke. This rangehood must be installed between the minimum and
maximum dimensions indicated in the table above.
P

11
INSTALLATION INSTRUCTIONS
Venting requirements
IMPORTANT!
To reduce risk of fire and to properly exhaust air, be sure to duct air outside —
Donotvent exhaust air into spaces within walls or ceilings or into attics,
crawl spaces, or garages.
The range hood can be installed to operate with the exhaust air ducted externally
fromthekitchen or with the exhaust air recirculating within the kitchen.
External venting
For best results:
●●Use the shortest and straightest duct
route possible. Elbowsandtransitions
increase noise and reduce air flow
efficiency.
●●Use rigid or semi-rigid ducting 150mm
diameter with a 160mm (minimum)
round hole inthe wall or ceiling.
Note: In difficult installations where
flexible ducting is required ensure
thatit is pulledtight.
Recirculating
This range hood can be installed to recirculate within
thekitchenwhere ducting externally is not practical.
Thecarbon filters fit on the blowers within the cavity of the
range hood and absorb odours as they pass over the filters.
The exhaust air then passes through the blower unit and the
diverter before recirculating back into the kitchen from the
side vents at the top ofthechimney.
Note: A ducting hole is not required in the wall or ceiling
when installing a range hood to berecirculated.
To operate this range hood with the air recirculating the
followingis required:
●●Carbon filters (refer to ‘Parts and Accessories’).
●●150mm ducting. The ducting diameter must match
thediameterorthe blower outlet.
●●150mm louvered vent.
Recirculate with carbon filters
Vent through roof Vent through exterior wall

12
INSTALLATION INSTRUCTIONS
Installation
WARNING!
This product is heavy and requires two persons for installation.
WARNING!
Failure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards.
The manufacturer is not liable for any damage caused by not following these instructions.
1Prepare for installation.
Before installing your cooker hood:
●●Please read the instructions carefully.
●●Unpack the cooker hood and check that all functions are working.
●●Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
●●The stainless steel and glass surfaces of the cooker hood are very easily damaged
during installation if grazed or knocked by tools. Take care to protect the surfaces
during installation.
●●Protect the hob surface below with cardboard, or the like, to prevent damage occurring
whilst the cooker hood is being installed above.
2Fit the 150mm ducting adapter with non return flap tothecooker hood using the
screwssupplied.
3Provide an opening on the underside of the cupboard (seeproduct and cabinetry
cutout dimensions).

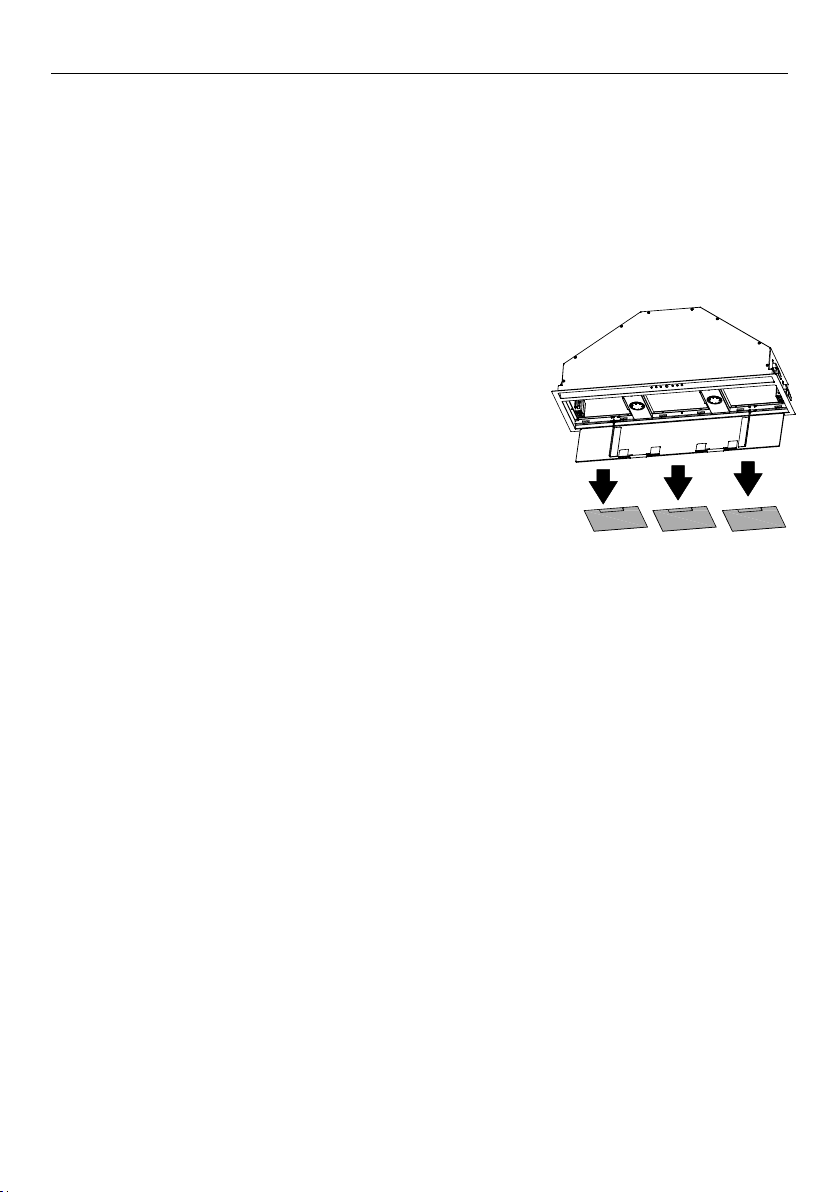

4Remove the filters and face plate of the cooker hood.
IMPORTANT!
Venting directly into the cabinet with no ducting and louvered vent is not permitted.
To recirculate your perimeter insert range hood:
1Determine the desired location of the 150mm louvered vent on your cabinetry.
Thelouvered vent can be placed on the side or front of your cabinet provided there
issufficient clearance from the surrounding cabinetry to enable ventilated air to
recirculate back into your kitchen.
Note: Placement of the louvered vent on the top of your cabinetry is not recommended.
This should only be done if objects can be prevented from falling through the louvers
into the blower.
2Create a cutout in your cabinet to fit the 150mm louvered vent. Place the louvered vent
on the hole created and secure (A).
3Connect the blower outlet to the louvered vent with a length of 150mm rigid ducting,
and secure the joints with aluminum tape. Ensure there is no slack in the ducting.
Recirculation
venting options
A
Side To p Front

13
INSTALLATION INSTRUCTIONS
360˚
1
360˚
2
360˚
360˚
360˚
360˚
3 4
5
6

14
INSTALLATION INSTRUCTIONS
5Lift the rangehood and fit through the opening of the cupboard till
the spring loaded brackets / clips hold the product in place.
6Secure rangehood while tightening the 4 brackets / clips.
7Connect duct and plug rangehood in.
width
depth
2.3
2.2
2.1
x4
width
depth
2.3
2.2
2.1
x4
width
depth
2.3
2.2
2.1
x4

15
OPERATING INSTRUCTIONS
Touch control panel
CONTROL PANEL FEATURES
Filter cleaning
alert
Activated regularly to alert of the need to clean filters.
It can be deactivated with a singlepress.
Timer Turn the timer on.
The fan operates for 5minutes at the current speed
andeach descending speed before turning off.
Lights Turn the lights on or off.
The lights turn on tothe last level selected.
Press and hold to adjust the level of light.
Power on/off Turn the rangehood on or off.
The fan automatically turns on to operate at level 1.
Fan speed 1 – 3 Adjust the fan speed levels from 1 – 3 with 1 being
thelowest level and 3 being the highest.
The fan speed level icon illuminates red when selected.

16
CLEANING AND MAINTENANCE
WARNING!
●●Unplug or disconnect the appliance from the power supply before servicing orcleaning.
●●When replacing the bulb, let the bulb cool, andassure that power to the rangehoodhas
been turned off. Use new bulbs according to that indicated ontherangehood nameplate.
IMPORTANT!
●●Never use abrasive or oil based cleaners.
●●Wear gloves to protect against sharp edges.
Maintenance
The rangehood should be cleaned regularly using
a mild, liquid detergent and a clean soft cloth to avoid
a build-up of grease occurring. Avoid the use of
corrosive chemicals, abrasive cleaning products, hard
brushes and steel wool pads. Grease deposits are
corrosive which can cause damage to your rangehood.
Note: in areas of high humidity or coastal environments,
cleaning should be carried out more frequently.
Aluminium filters
●●Depending on use, and at least once a month, the aluminium grease filters
should be removed and cleaned with hot soapy water or in a dishwasher.
●●If washed in a dishwasher, the filters should be placed in an upright position
to prevent food from falling on them.
●●After rinsing and drying, replace the filters.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
1Open the glass panel.
2Pull the relative filter catch, tilting it downwards until it disengages from the supports.
3Reverse these instructions when refitting the filters.
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and
odours from cooking vapours before the air is channelled back into the kitchen.
The active carbon filters must be replaced periodically to work properly, at least once
every three months, depending on the frequency with which the rangehood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could be
flammable and therefore regular replacement is recommended.
360˚

17
Light bulb replacement
ILCOS D code: DRR-3.5-220/240-GU10-50/50
1. To replace a light bulb, first disconnect the
rangehood from its power supply.
2. Apply finger pressure to the face of the light bulb
and twist one quarter turn anti-clockwise—the light
bulb will now be free to drop out.
3. Remove the faulty bulb and fit replacement bulb into
the lamp holder.
4. Refit the light bulb by applying finger pressure and
twist one quarter turn clockwise.
Note: replacement bulbs are not covered
byManufacturer’s Warranty.
CLEANING AND MAINTENANCE
Bulb replacement

18
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
LED bulb 792603
Aluminium filter 792429
Recirculation carbon filter x2 792481
Ducting 150mm kit (eaves) PD-RHK150E
Ducting 150mm kit (wall) PD-RHK150W
