Fisher-Price POWER WHEELS 78537 Use and care manual

Owner’s Manual with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 78537
Tools needed for assembly: Phillips Screwdriver, Hammer, and Safety Scissors (tools not included).
Use only with a Power Wheels®12 Volt Lead-Acid Rechargeable Battery and
a Power Wheels®12 Volt Charger with Type “12V” Connector (included).
Product features and decoration may vary from the picture above.
JEEP and the Jeep grille design are registered trademarks of DaimlerChrysler Corporation and are used under license.
©DaimlerChrysler Corporation
Goodyear (and winged foot design) and Wrangler (for tires) are trademarks
of The Goodyear Tire & Rubber Company, used with permission.

2
Table of Contents
Important Information
AImportant Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BWarnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CParts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
DParts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
EBattery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
FAssembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
GLabel Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
HBattery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
IBattery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
JRules for Safe Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
KHow to OperateYour Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
LCaring forYour Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MProblems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
NLimited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
OAuthorized Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
• Your new vehicle requires adult assembly. Please set
aside at least 45 minutes for assembly.
• You must charge your battery for 18 - 30 hours
before you use your vehicle for the first time. We
recommend that you start charging your battery before
beginning assembly. Please see Battery Charging
beginning on page 8 for detailed instructions.
• Read this manual carefully for important safety
information and operating instructions before using
your vehicle. Keep these instructions for future
reference as they contain important information.
• This vehicle is designed for use on grass, asphalt or
other hard surfaces, on hills or flat terrain, by children
3 years of age and older.
• This vehicle has adjustable play seat belts. Please
note that the adjustable seat belts are designed to be
a play feature only and do not function as protective
safety restraints.
• To prevent damaging the motors and gears, do not tow
anything behind the vehicle or overload it. Do not exceed
the maximum weight capacity of 130 lb. (60 kg).
• For safety reasons, your vehicle has been pre-set so
that it will only operate at low speed. You must remove
the high speed lock-out screw to allow operation of
the vehicle at high speed. Please see page 22 for
detailed instructions.
A
• If you have any questions about your Power Wheels®
vehicle, please call our toll-free service lines at
1-800-348-0751 from 8 AM to 5 PM (EST) Monday
through Friday. Trained customer service representatives
are available to take your call in English or French.
Habla Español? Si usted tiene alguna pregunta ó
necesita asistencia llame gratis 1-800-348-0755 para los
Estados Unidos.Tenemos representantes que hablan
español para atender su llamada.
• For your convenience, Power Wheels®maintains an
Authorized Service Center Network with more than
400 authorized service centers nationwide. Our
authorized service centers will repair or replace parts
under warranty at no extra charge, and can perform
non-warranty repairs for a minimal charge. Please see
the Authorized Service Center list beginning on page 27
to find the authorized service center nearest you, or call
1-800-348-0751.
• Please complete and return the enclosed Registration
Card today, or call 1-800-348-0751 to register your
vehicle by phone.

3
WARNING
• Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s
unassembled state, or by electrical items. Care should be taken in unpacking and assembly
of the vehicle. Children should not handle parts, including the battery, or help in assembly of
the vehicle.
• Keep small parts and plastic bags out of children’s reach. Dispose of plastic bags properly.
• Adult supervision is required. Children do not have the judgement necessary to avoid many
accidents. Be sure that children operating this vehicle can do so safely and that they are
supervised at all times.
• Never use near steps, driveways, steep inclines, roadways, alleys, swimming pool areas or
other bodies of water.
• Always wear shoes or sneakers when operating this vehicle.
• Never allow more than two riders; one driver and one passenger.
• The riders should sit on the seat when the vehicle is in operation.
•Hot motors. Handle carefully.
• Never alter this vehicle or its electrical system in any way. Alterations could cause a fire
resulting in injury and could also ruin the electrical system.
• Use of the wrong type battery or charger could cause a fire or explosion, resulting in
serious injury.
• Use of Power Wheels®components in products other than Power Wheels®vehicles could
cause overheating, fire or explosion.
• The battery must be handled by adults only.The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Read the cautions on the back panel of the battery.
• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the vehicle until
you have replaced the worn or damaged part as it could possibly cause a fire resulting
in injury.
Warnings
B
CAUTION
• This package contains small parts. Adult assembly is required.
• Use the charger in dry locations only.

Parts
C
4
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than
return this product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no
parts are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment.Wipe all metal parts with a paper towel
to remove any excess lubricant.

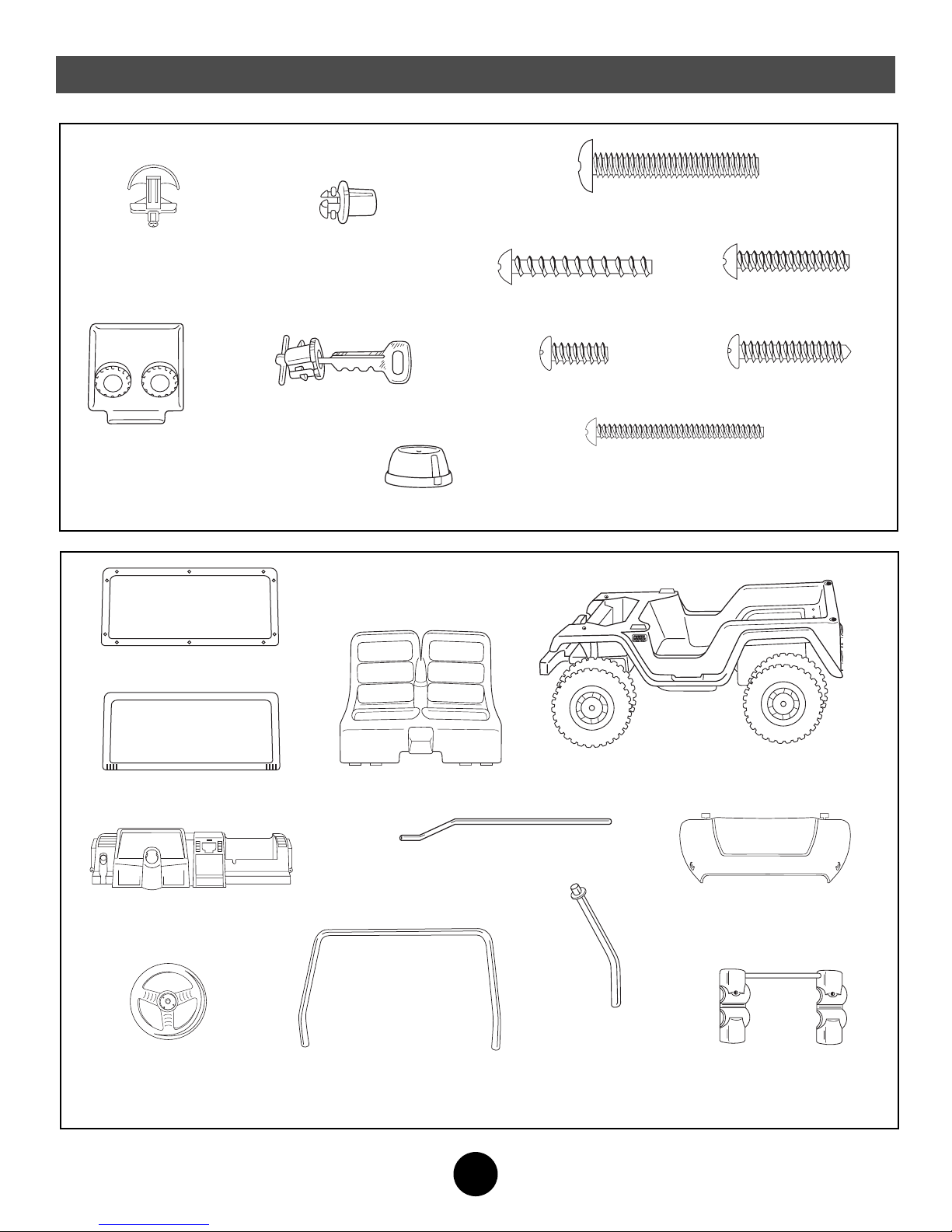

Steering Wheel Cap
Microphone
Gas Cap
Short Seat Belt Strap - 2
Small Parts Bag
Taillight Housing Set
Taillight Lens Set
12 Volt Charger
Long Seat Belt Strap
Lens Guard - 2
Headlight Lens - 2
Battery Retainer
12-VOLT
CHARGER
12 Volt Battery
Pb
Light Cover – 2
KCTM Light Rack, Rear
KCTM Light Rack, Front
Windshield Bracket - 2 Windshield
Hinge Pin - 2

5
Parts
Knob Plate
Hood Latch – 2 Dashboard Knob – 2
Key Assembly
#8 x 1" Screw – 11
#10 x 1" Screw – 2
#6 x 11/2" Screw – 4
Sport Bar
Not Shown: Label Sheet - 2, Literature Bag
Steering Column
.354 Cap Nut – 3* All Screws Shown
Actual Size
Vehicle Body
Dash Hood
Seat
*For your convenience, an extra .354 cap nut
has been included.
Steering Wheel
#8 x11/4" Screw – 10
Sport Bar Support - 2
Sport Bar Bracket Set
11/2" x 1/4" Machine Screw - 2
#10 x1/2" Screw – 2
Windshield (Back Half)
Windshield (Front Half)

6

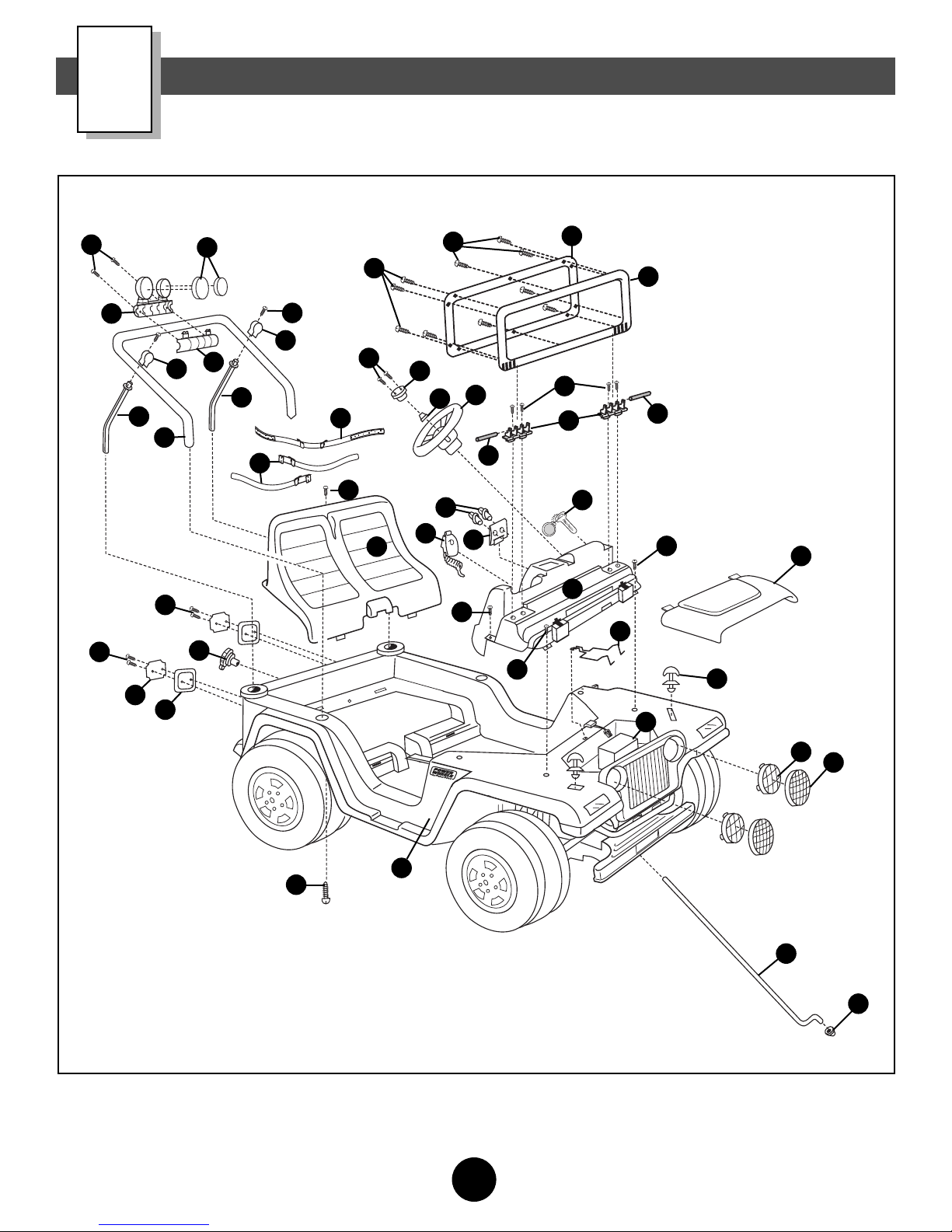

Parts Diagram
D
1
2
3
4
6
5
10
18
17 19
33
31
31
30
25
27
26
34
14
13
13
12
8
9
16
11
33
24
7
23
22
36
32
32
35
10
10
3
37
28
29
15
15
20
21
37
10
38
10

7
1 Vehicle Body 1
2 Steering Column 1
3 .354 Cap Nut 2
4 Hood Latch 2
5 12 Volt Battery 1
6 Battery Retainer 1
7 Light Cover 2
8 Taillight Lens 2
9 Taillight Housing 2
10 #8 x 1" Screw 11
11 Gas Cap 1
12 Dash 1
13 #10 x 1" Screw 2
14 #10 x 1/2" Screw 2
15 #8 x 11/4" Screw 10
16 Knob Plate 1
17 Dashboard Knob 2
18 Microphone 1
19 Key Assembly 1
20 Steering Wheel 1
21 Steering Wheel Cap 1
22 Seat 1
23 Long Seat Belt Strap 1
24 Short Seat Belt Strap 2
25 Headlight Lens 2
26 Lens Guard 2
27 Hood 1
28 Windshield, Front 1
29 Windshield, Back 1
30 Sport Bar 1
31 Sport Bar Support 2
32 Sport Bar Bracket 2
33 #6 x 11/2" Screw 4
34 11/2" x 1/4" Machine Screw 2
35 KC™ Light Rack, Front 1
36 KC™ Light Rack, Rear 1
37 Windshield Hinge Pin 2
38 Windshield Bracket 2
Parts Diagram
No. Part Quantity
No. Part Quantity

CAUTION
Use the charger in dry locations only.
Battery Charging
E
WARNING
• The battery must be handled by adults
only.The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the
battery could result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the
electricity involved in charging the battery.
• Use of the wrong type battery or charger
could cause a fire or explosion, resulting
in serious injury.
• Use of Power Wheels®components in
products other than Power Wheels®
vehicles could cause overheating, fire
or explosion.
• Read the cautions on the back panel of
the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If
damage or excessive wear is detected, do
not use the charger or the vehicle
until you have replaced the worn or
damaged part.
• Never alter this vehicle or its electrical
system in any way. Alterations could
cause a fire resulting in injury and could
also ruin the electrical system.
8
About Thermal Fuses
Your Power Wheels®12 volt battery is equipped with a
built-in thermal fuse.The thermal fuse is a self-resetting
safety device which automatically “trips” and shuts down
operation of the vehicle if the vehicle is overloaded or the
driving conditions too severe. Once a fuse has “tripped”, it
will automatically reset itself after approximately 25
seconds and allow the vehicle to resume normal
operations.To avoid repeated automatic shutdowns, do
not overload the vehicle by exceeding the 130 lb.
maximum weight capacity or by towing anything behind
the vehicle. Avoid severe driving conditions, such as
driving up very steep slopes or running into fixed objects,
which can cause the wheels to stop spinning while power
is still being supplied to the motors. Make sure your child
stops the vehicle before switching speeds or direction.
If a thermal fuse in a battery continually trips under
normal driving conditions, please contact your local
Power Wheels®Authorized Service Center. For the
location of the Authorized Service Center nearest to
you, see page 27.

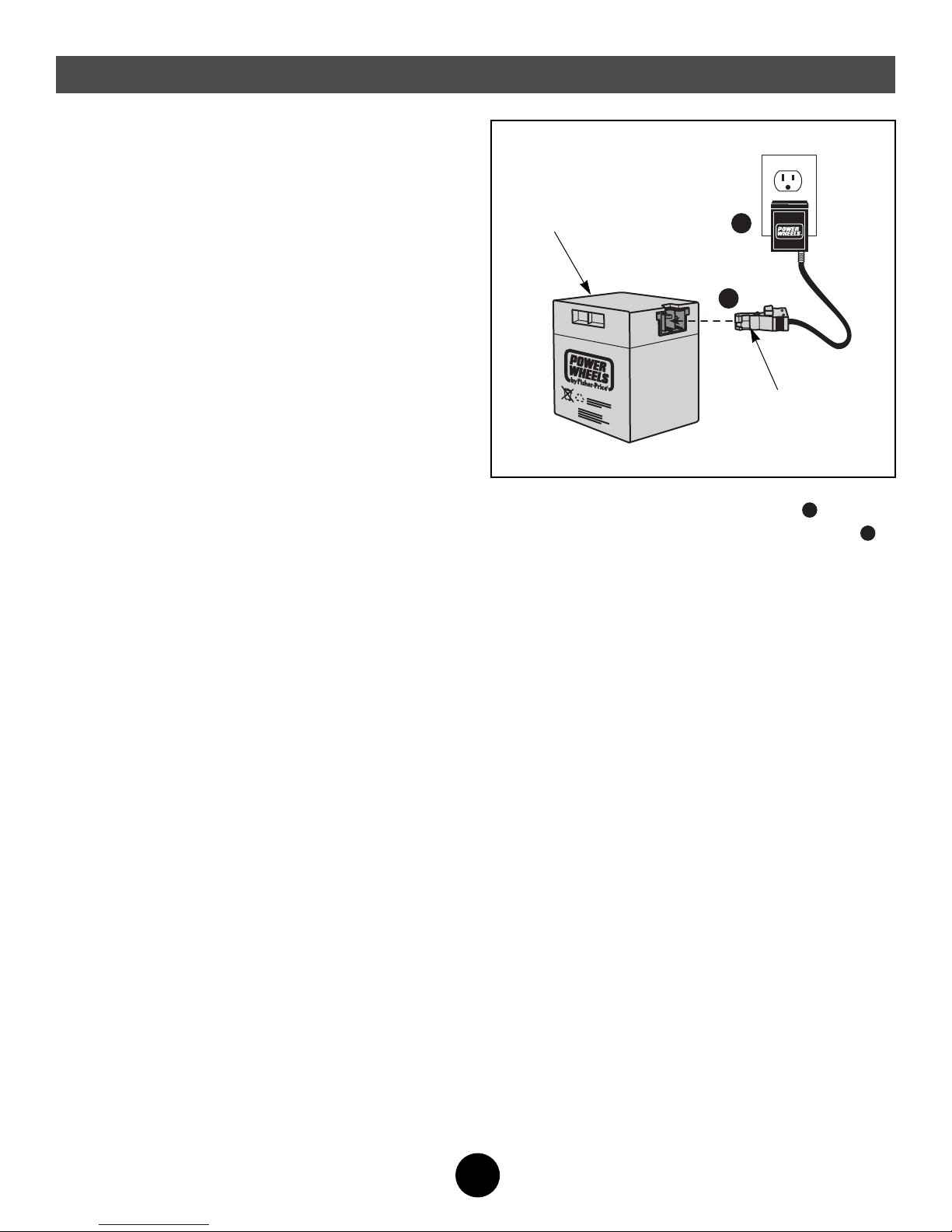

Battery Charging
9
Important Notes
• Your new battery must be charged for at least 18 hours
before you use it in your vehicle for the first time.
• You do not need to remove the battery from your
vehicle to recharge it.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• We recommend that you start charging your battery
before beginning assembly of your new vehicle.
• Before charging the battery, examine the battery case
for cracks and other damage which may cause sulfuric
acid (electrolyte) to leak during the charging process.
If damage is detected, do not charge the battery or
use it in your vehicle. Battery acid is very corrosive and
can cause severe damage to surfaces it contacts.
• Do not charge the battery on a surface which could be
damaged by the acid contained inside the battery.Take
precautions to protect the surface on which you charge
your battery.
• Use only a Power Wheels®12 volt charger with type
“12V” connector (120 VAC 60 Hz 28W with an output of
12 VDC 1200mA) to charge your Power Wheels®
rechargeable 12 volt battery.
Pb
• Plug the charger connector into the battery .
• Plug the charger into a standard 120 volt wall outlet .
Note: If power flow to the wall outlet is controlled by a
switch, make sure the switch is “ON”.
• Before first-time use, charge the battery for at least 18
hours. Never charge the battery longer than 30 hours.
• Recharge the battery for at least 14 hours after each
use of your vehicle. Do not charge the battery longer
than 30 hours.
• Once the battery is charged, pull firmly on the charger
connector to disconnect it from the battery. Unplug the
charger from the wall outlet.The battery is now ready to
be installed in your vehicle. Please see the Battery
Installation section on page 20 for detailed instructions on
installing your battery.If your battery is already installed in
your vehicle, simply re-connect the motor harness
connector to the battery and lower and fasten the hood.
2
1
Battery
Charger
Connector
1
2

HI LO KC
COOL
HEAT
Dash View
30
13 3
6
12
4
11 5
25
16
24
4

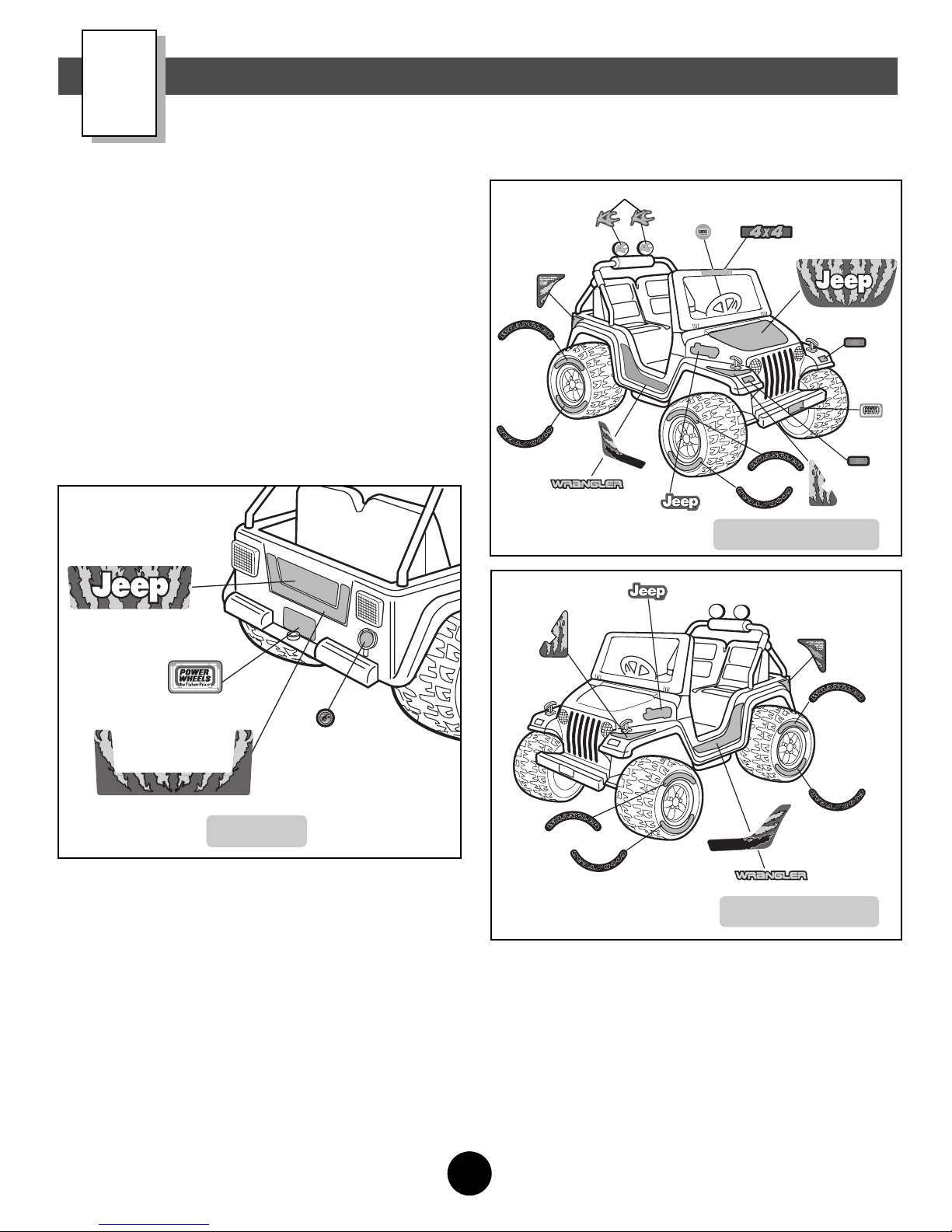

• Before applying labels to the dash, wipe the dash with a
clean, dry cloth to make sure it is free of dirt and oils.
Make sure your hands are clean and dry.
• Apply labels as shown. For best results, avoid
repositioning a label once it has been applied.
• Position the dash on the vehicle body. Make sure the
holes in the dash tabs align with the holes in the vehicle
body and that the channel cover is captured by the dash.
• Insert two #10 x 1"screws through the holes towards the
rear of the dash (closest to the hood area) and into the
vehicle body .
• Insert two #10 x 1/2"screws through the holes towards the
frontof the dash (closest to the passenger compartment)
and into the vehicle body .
• Tighten each screw with a Phillips screwdriver.
Do not over-tighten.
2
1
Assembly
F
1
2
3
10
• Snap the knobs into the knob plate.
Note: Gently squeeze the tabs on the knobs together
before inserting the knobs into the knob plate.
Knob Plate
Knobs
Dash Knob Plate
Pocket
Key Assembly
Microphone
Cord
• Bend the end of the microphone cord sothat it forms a“T”.
• Insert the end of the microphone cord through the square
opening in the dash pocket. Pull gently on the cord to make
sure it is secure in the dash.
• Hook the microphone onto the “U” slot on the dash pocket.
• Position the bottom edge of the knob plate in the opening
in the dash.
• Snap the top of the knob plate into the dash.
• Snap the key assembly into the dash.
T-End
2
1
1
2
1
2
Dash
Channel
Cover
Tab

Assembly
6
7
11
• Insert the end of the steering column through the hole in
the steering rod.
• Fit a cap nut onto the end of the steering column.
• While supporting the steering column, tap the cap nut
with a hammer to secure it on the steering column.
Helpful Hint! You may want the help of another person
to support the steering column while you tap the cap nut
with the hammer.
Steering Rod
Cap Nut
End of Steering Column
Bottom View
• Turn the vehicle body upright.
• Position the steering wheel so that the spokes form a
“Y” as shown.The tab on the steering wheel stem
should face up.
• Fit the steering wheel onto the steering column.
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the
steering column.
Helpful Hint! You may want the help of another person
to support the steering column while you tap the cap nut
with the hammer.
Steering Wheel
Cap Nut
Steering
Column
“UP”
Tab
5
Steering
Column
Hole
Bottom View
• Wipe the steering column with a paper towel to remove
any excess lubricant.
• Turn the vehicle body on its side.
• Insert the straight end of the steering column up through
the hole in the vehicle body wall and out through the
hole in the dash.
8
Steering Wheel
• Fit the steering wheel cap into the center of the steering
wheel with the screw holes aligned.
• Insert two #8 x 1" screws as shown.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
Steering
Wheel
Cap
#8 x 1" Screws

Assembly
12
• Fit the lens tabs on the back of a lens assembly into the
headlight slots in the grille.
• Press firmly to snap the lens assembly into the grille.
• Repeat this procedure to snap the other lens assembly
into the grille.
Grille
Tabs
Slots
10
• Fit the wide notch in the side of a headlight lens under
the wide tab on a lens guard.
• Press firmly on the inside of the headlight lens to snap it
into the lens guard.
• Repeat this procedure to assemble the other headlight
lens to the remaining lens guard.
Lens
Lens Guard
9
• Insert a hood latch into one of the holes in the vehicle
body, near the hood area.
• Twist the base of the hood latch 1/4turn to secure it in
the vehicle body.
• Repeat this procedure on the other side of the hood
area to attach the other hood latch to the vehicle body.
Hood Latch
Hole
11
Hood
Latch Hole
Hood
Tabs

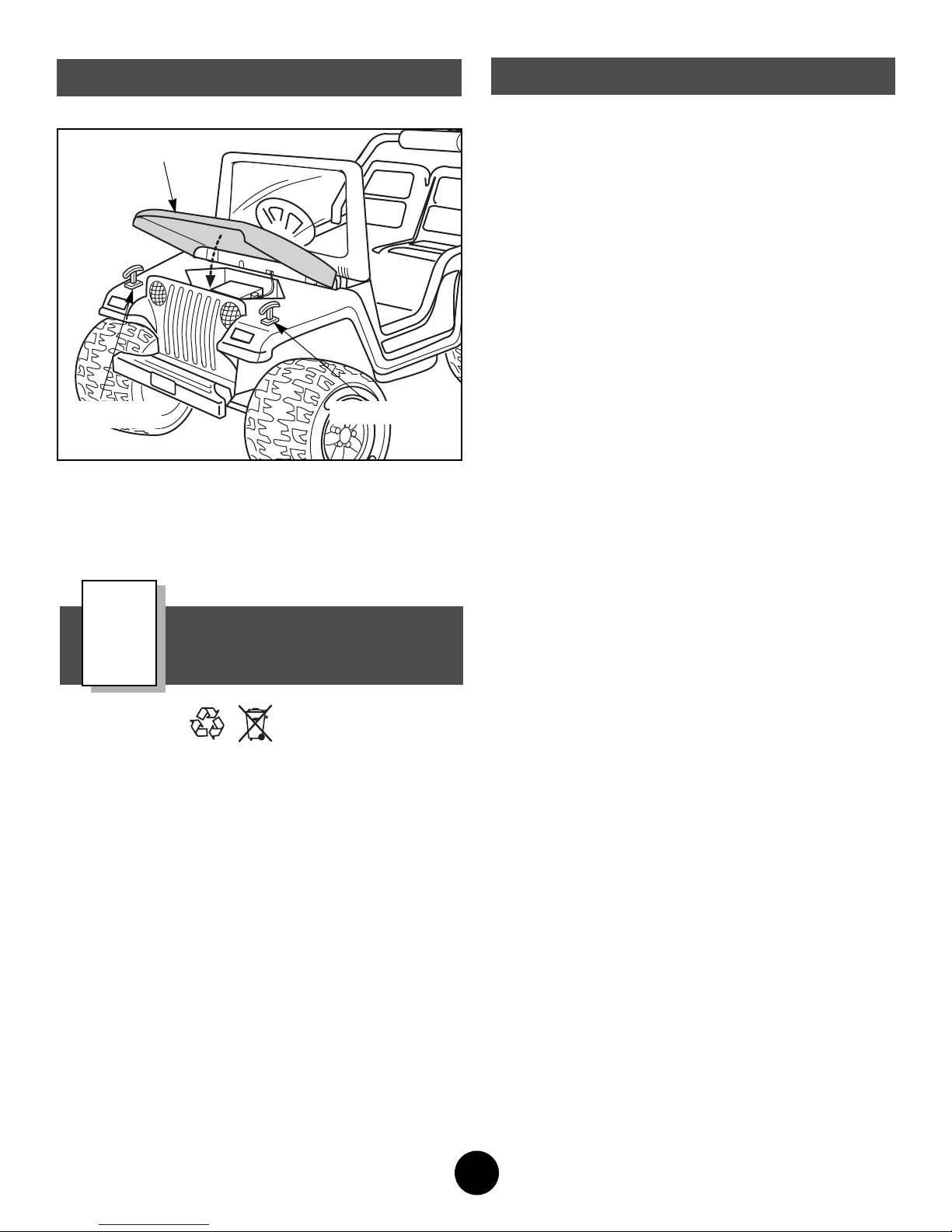

• Position the hood over the front of the vehicle body
as shown.
• Insert the tabs on the hood into the slots in the
vehicle body.
• Close the hood.
Slot Slot
12
Wide
Notch
Wide Tab

Assembly
13
14
15
16

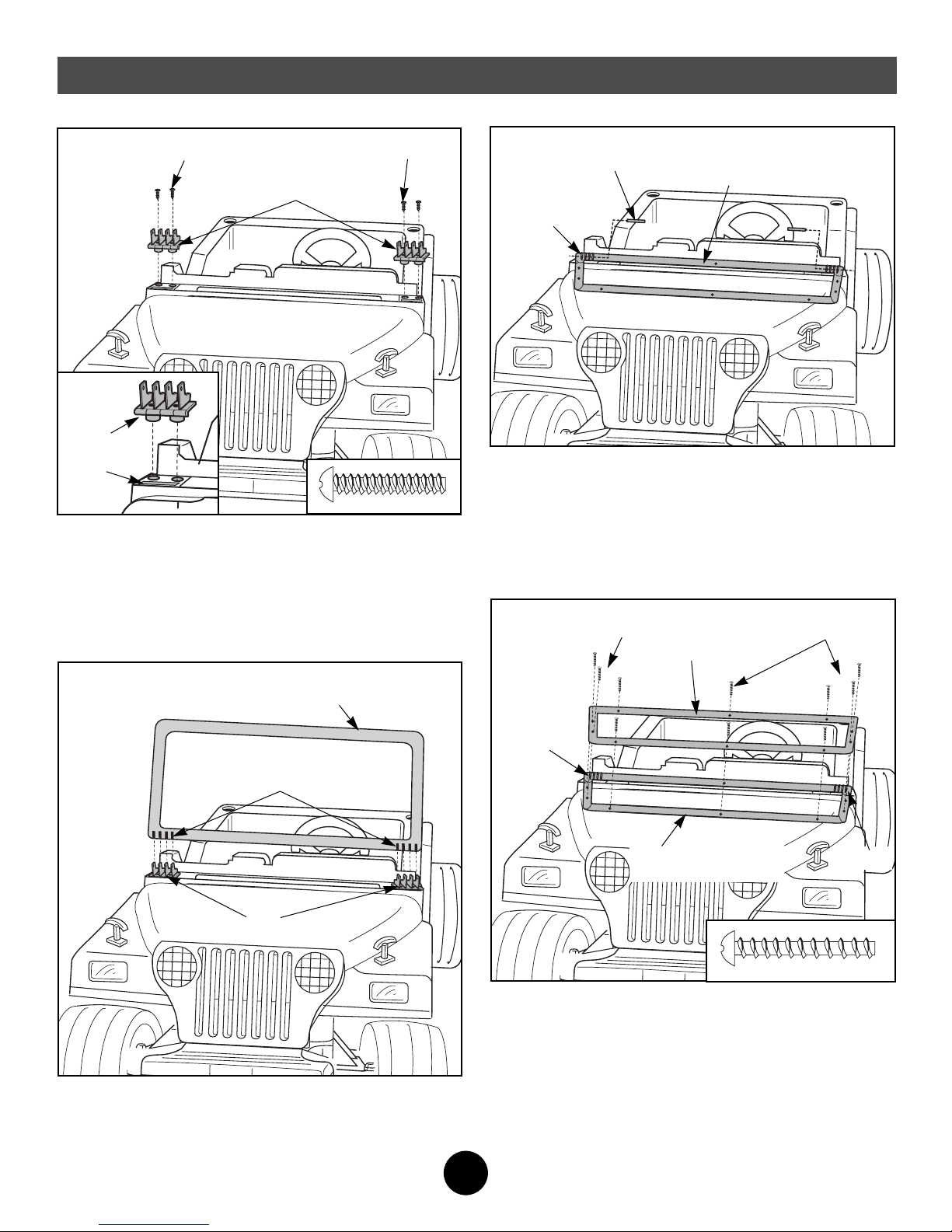

• Fit the screw pegs on the windshield brackets into the
holes in the top surface of the dash. Press firmly to fit
the lip on each windshield bracket into the slot in the top
of the dash.
• Insert two #8 x 1" screws into each windshield bracket.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Windshield
Brackets
#8 x 1" Screws #8 x 1" Screws
13
Lip of
Bracket
Slot
• Align the slots in the front half of the windshield frame
with the tabs on the windshield brackets.
• Fit the front half of the windshield frame onto the
windshield brackets as shown.
Windshield Frame -
Front Half
Slots
Tabs
Hinge Pin
Windshield
Bracket
Windshield
Frame -
Front Half
• Rotate the front half of the windshield frame down so it
lays flat on the vehicle body.
• Working from the center of the vehicle, insert a hinge pin
through the holes in the windshield frame and the holes
in a windshield bracket, as shown.
• Repeat this procedure to secure the front half of the
windshield frame to the other windshield bracket.
Slots
Slots
Windshield Frame -
Front Half
• Fit the back half of the windshield frame onto the front
half of the windshield frame. Make sure the slots at the
bottom of the two windshield frame halves are aligned.
• Insert ten #8 x 11/4" screws into the back half of the
windshield frame.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Helpful Hint! Squeeze the two windshield halves together
while tightening the screws.
• Lift the assembled windshield to the raised position.
#8 x 11/4"
Screws #8 x 11/4"
Screws
Windshield
Frame -
Back Half

Assembly
14
19

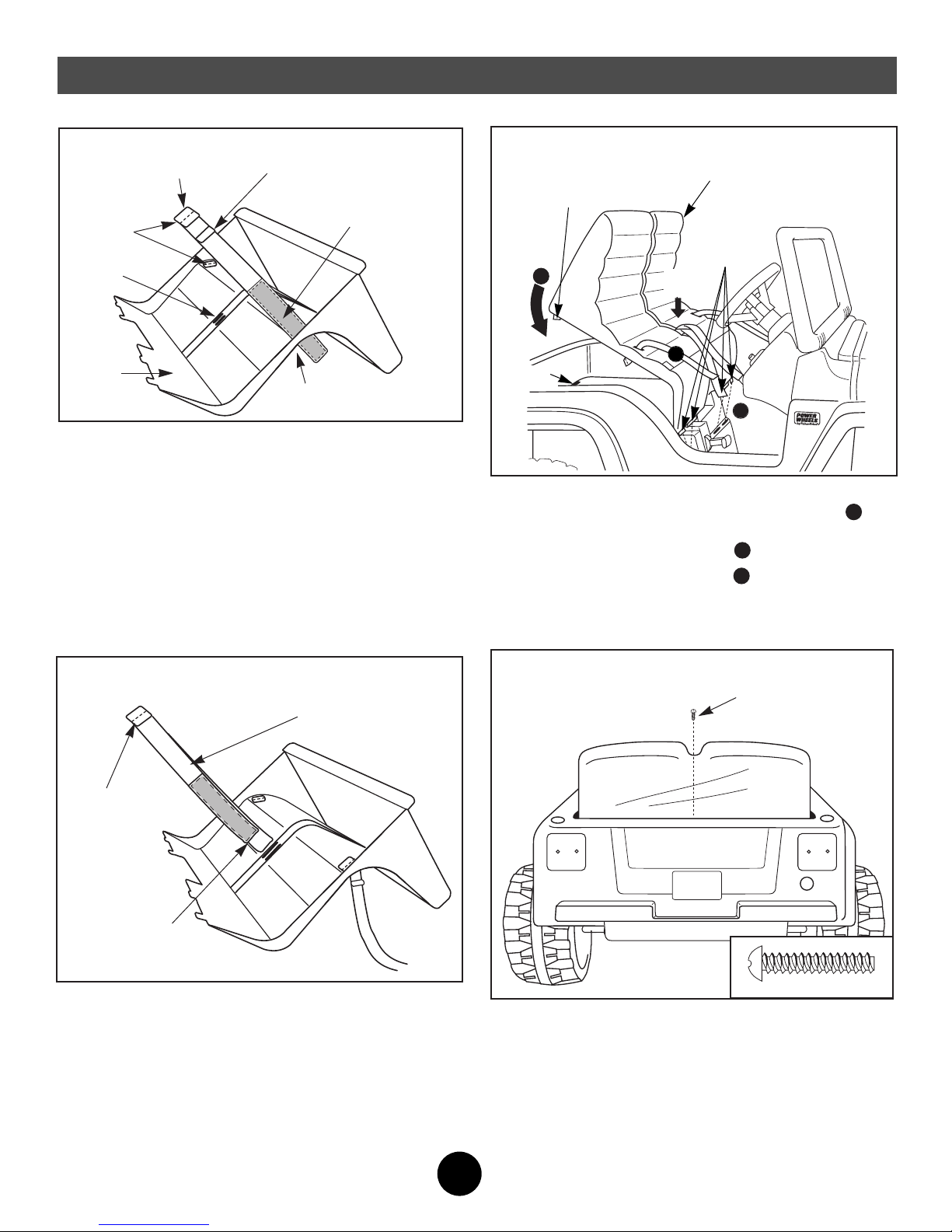

• With the seat at an angle, insert the tabs on the front
edge of the seat into the slots in the foot-well wall .
• Push down firmly on the edge of the seat above each
tab to snap the tabs into the slots .
• Rotate the back of the seat down to snap the seat
back tabs into the slots in the vehicle body. Push down
firmly on the seat back.
11 3
11 2
11 1
Seat
Tabs
Seat Back Tabs
Slot
1
2
11 3
PUSH
HERE
20 #8 x 1" Screw
• Insert a #8 x 1" screw into the rear of seat as shown.
• Tighten the screw with a Phillips screwdriver.
Do not over-tighten.
18
• Insert each fastener end of the long seat belt strap
through a slot in the center of the seat. Make sure the
fasteners face the outer edge of the seat.
• Pull each side of the long seat belt strap evenly through
the slots. Make sure to pull each T-loop through a slot.
• Turn the seat upright.
T-Loop
Fastener End
Long Seat Belt Strap
17
• Turn the seat upside down.
• Insert the fastener end of a short seat belt strap through
the slot near the outer edge of the seat. Make sure the
side of the seat belt with the fastener faces the outer
edge of the seat.
• Pull the short seat belt strap completely through the
slot until the last T-loop at the opposite end of the belt
catches against the slot. You will pull one T-loop through
the slot.
• Repeat this procedure to assemble the other short seat
belt strap.
Short Seat
Belt Strap
Fastener End
Seat
Slot
End
T-Loops
Slot
T-Loop (Pull through slot)

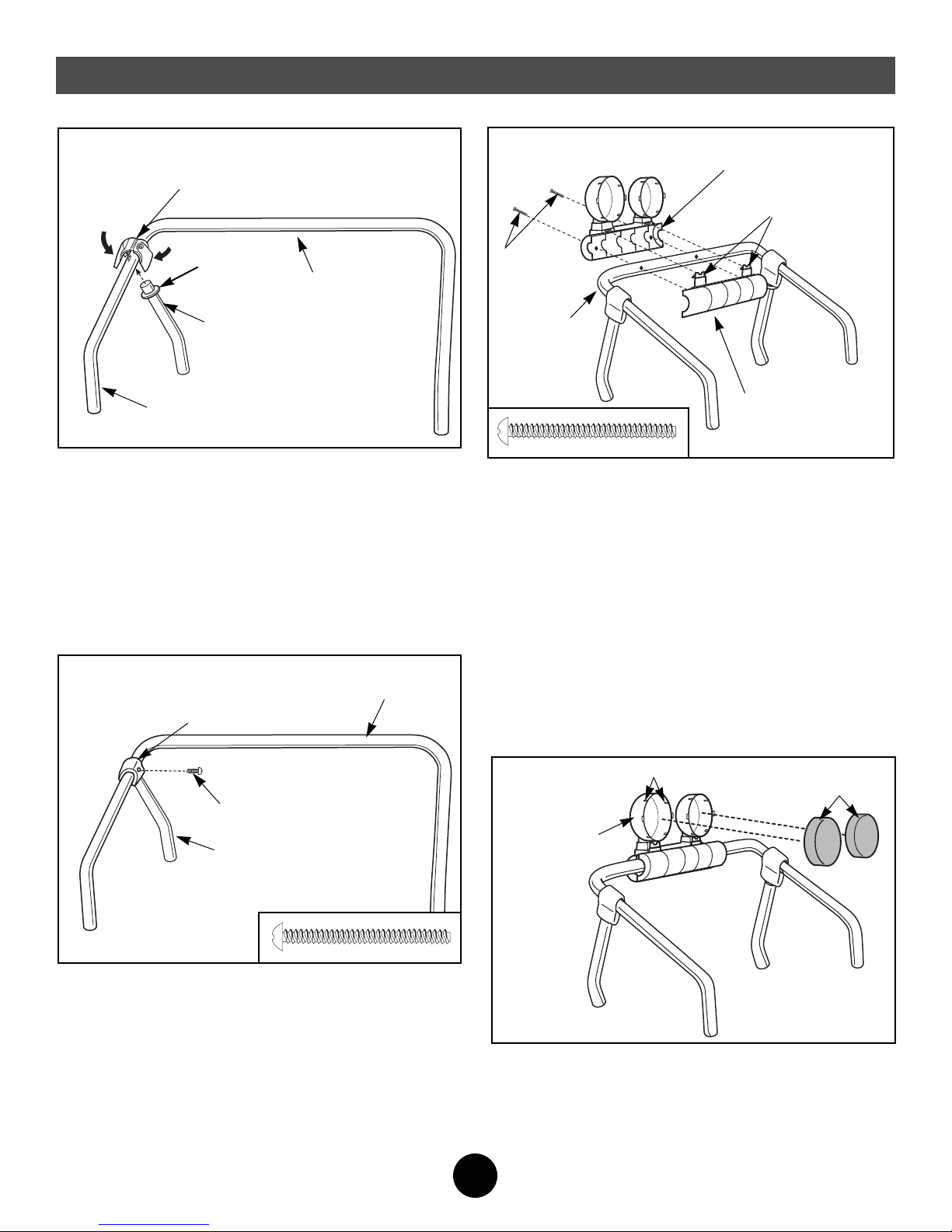

Sport Bar
KCTM Light Rack -
Front Half
• Position the sport bar with the ends on a flat surface,
as shown.
• Fit and hold the front and back halves of the KCTM light
rack against the sport bar. Make sure the two KCTM light
rack halves are aligned, and that the screw holes in the
KCTM light rack are aligned with the screw holes in the
sport bar.
• Snap the tabs on the front half of the KCTM light rack into
the slots below the light housings on the rear half of the
KCTM light rack.
• Insert two #6 x11/2" screws through the holes in the back
of the KCTM light rack, through the sport bar, and into the
front half of the KCTM light rack.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
KCTM Light Rack - Back Half
Tabs
23
Assembly
• Align the four tabs on the inside of a light cover
with the four slots in one of the light housings on the
KCTM light rack. (Make sure the light covers are
positioned with the wide spaced tabs at the top.)
• Push firmly on the light cover to snap it to the housing.
•Repeat this procedure on the other side of the
KCTM light rack to assemble the other light.
Light Covers
Housing
Slots
24
21
• Using safety scissors, remove the sport bar
brackets from the plastic connector. Dispose of the
plastic connector.
• Position the sport bar upright.
• Position a sport bar bracket onto one of the sport bar
side legs, as shown.
• Fit the ring on a sport bar support against the end of the
sport bar bracket.
• Fold the sport bar bracket over the sport bar to close it
around the sport bar and sport bar support.
Sport Bar
Sport Bar Bracket
Sport Bar Support
Side Leg
Ring
22
• Insert a #6 x 11/2" screw into the sport bar bracket
as shown.
• Tighten the screw with a Phillips screwdriver.
Do not over-tighten.
• Repeat steps 21 and 22 to attach the other sport bar
support to the other sport bar side leg.
Sport Bar Bracket Sport Bar
Sport Bar Support
15
#6 x 11/2"
Screws
#6 x 11/2" Screw

Assembly
28
27
Taillight
Housing
Taillight
Lens
• Using safety scissors, remove the taillight lenses and the
taillight housings from the plastic connectors. Dispose of
the plastic connectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a taillight housing.
• Position the taillight housing with lens against the vehicle
body with the screw holes aligned, as shown.
• Insert two #8 x 1" screws through the taillight lens and
housing and into the vehicle body as shown.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to attach the other taillight.
• Position the gas cap so that its tether points down.
• Snap the gas cap into the hole under the right taillight.
Gas Cap
Tether
26
25
• Fit the sport bar and sport bar support legs into the holes
in the vehicle body.
• Push down firmly on a sport bar side leg while pulling
up on the side fender to fit the sport bar into the
vehicle body.
• Repeat this procedure on the other side of the
vehicle body.
Sport Bar
Side
Fender
PULL HERE
PUSH
HERE
Rear
Wheel
Well
11/2" x 1/4" Screw
#8 x 1" Screws
• Insert a 11/2" x 1/4" machine screw into the hole closest
to the front of the vehicle in the underside of the rear
wheel well, through the vehicle body and into the end
of the sport bar.
• Tighten the screw with a Phillips screwdriver.
Do not over-tighten.
• Repeat this procedure on the other side of the
vehicle body. 16

Label Decoration
17
G
Jeep and the Jeep grille design are registered trademarks of
DaimlerChrysler Corporation and are used under license.
©DaimlerChrysler Corporation.
®
®
®
Proper label application will help to keep the labels
looking their best! When applying labels, keep the
following guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the
vehicle with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has
been applied to the vehicle.
• After applying a label, rub the label firmly with a
clean, dry cloth to make sure the label is adhered
to your vehicle. Start at the center of a label, and
smooth towards the outer edges to remove
air bubbles.
One-time assembly is now complete.
IMPORTANT NOTES:
• Please carefully read the owner’s information in this
manual and teach your child about proper vehicle opera-
tion and rules for safe driving before allowing operation
of this vehicle.
• For safety reasons, your vehicle has been pre-set so that
it will only operate at low speed (21/2mph, maximum).
Make sure that your child can safely operate this vehicle
at low speed before removing the high speed lock-out
screw to allow operation of the vehicle at high speed
(5 mph, maximum).
Todisconnect high speed lock-out,please seepage22.
Left Side View
Right Side View
Back View
26
19
23
8
10
29
18
27
2
28
28
20
15
31
*7
21
21
22
14
22
22
9
22 21
21 31
*1
15
17
*Apply label 7 before
applying label 31
*Apply label 1 before
applying label 31

Battery Installation
H
18
Pb
Important Note: Use only a Power Wheels®12 volt battery.
Use of any other battery will damage your vehicle. Make
sure that you charge the battery for at least 18 hours using
the enclosed Power Wheels®12 volt charger before
operating your vehicle for the first time. Charge the battery
for at least 14 hours after each use of the vehicle. Never
charge the battery longer than 30 hours. Failure to follow
these instructions may damage your battery and will void
your warranty. It is easier to install the battery before
assembling the hood to your vehicle. If you have already
assembled the hood to your vehicle, you may want to
remove it to install the battery.
1
2
3
• Lift the hood to access the battery compartment.
• Place the Power Wheels®battery upright in the
battery compartment.
• Insert the looped end of battery retainer ( ) into the slot
in the vehicle body near the dash.
• Squeeze the battery retainer arms ( ) and fit them into
the slots in the vehicle body.
Battery
Compartment
Hood
Motor
Harness
Connector
Front of Vehicle
Pb
Battery Retainer
Slot
Slot
Arm
Looped End
1
2
1
2
• Plug the motor harness connector into the battery.
Pb
Motor Harness
Connector
Battery
4
Battery

Battery Care
and Disposal
Battery Care and Disposal
I
If a battery leak develops, avoid contact with the leaking
acid and place the damaged battery in a plastic bag. See
information below for proper disposal.
If acid comes in contact with skin or eyes, flush with cool
water for at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of magnesia
or egg whites immediately. Never give emetics or induce
vomiting.Call a physician.
• Charge a new battery for at least 18 hours before first
use. Never charge the battery longer than 30 hours.
Overcharging or undercharging the battery may shorten
battery life and decrease vehicle running time.
• After the first charge, recharge the battery for at least
14 hours after each use. Never charge the battery longer
than 30 hours. Charge the battery after each use,
regardless of how long the vehicle was used.
• The battery must be upright while charging.
• Do not allow the battery to run down completely
before charging.
• Charge the battery before storing the vehicle.
• Charge the battery at least once per month, even if the
vehicle has not been used.
• Leaving the battery in a discharged condition will
ruin it.
•Do not store the battery in temperatures above 75° F
or below -10° F.
•Prevent the battery from moving freely inside the battery
compartment. Always use the battery retainer to secure
the battery in the battery compartment.
•Examine the battery, charger and its connector for
excessive wear or damage each time you charge the
battery. If damage is detected, do not use the charger
or the battery until you have replaced the worn or
damaged part.
• Your Power Wheels®battery is a sealed lead-acid
battery. It must be recycled or disposed of in an
environmentally sound manner.
• Do not dispose of a lead-acid battery in your regular,
household trash.The incineration, landfilling or mixing of
sealed lead-acid batteries with household trash is
prohibited by law in most areas.
• Return the battery to a federal or state approved lead-
acid battery recycler, such as a Power Wheels®
authorized service center, or a local seller of automotive
batteries. Contact your local waste management officials
for other information regarding the environmentally sound
collection, recycling and disposal of lead-acid batteries.
Care
Disposal
Battery Installation
19
• Lower the hood.
• Lift the hood latches and fit the latch pegs onto the hood
to close it.
Hood Latch
Hood
Hood Latch
5

20
Rules for Safe Driving
J
5. Do not operate this vehicle with more than two riders;
one driver and one passenger seated in the seating
area. A child who is not sitting on the seat or who is
standing on the vehicle could fall off, cause a tip-over or
block the driver’s view. A child could be seriously injured.
6. Always wear shoes or sneakers when operating
this vehicle.
7. Never put anything near any moving parts. Rotating
parts such as motors, gear boxes and wheels can snag
fingers, hair, etc., causing serious injury. Do not allow
operation of the vehicle when it is on its side or in an
upside-down position.
8. Do not operate the vehicle near flammable vapors
(gasoline, paint thinner, acetone, liquid wax, etc.).
The vehicle’s electrical switches, like most electrical
switches, emit an internal spark when first turned on
or turned off.The presence of flammable liquids or
vapors could cause an explosion or a fire. Keep all
flammable products in tightly sealed containers and
away from the vehicle.
9. Do not allow a child to operate the vehicle without
proper adult supervision.To prevent unsupervised use
of the vehicle, disconnect the motor harness from the
battery when the vehicle is not in use.
To disconnect the motor harness connector
and battery:
• Raise the hood to access the battery.
• Unplug the motor harness connector from the battery.
• Lower the hood and fasten the hood latches.
Teach Safety Rules to Children
While children can quickly develop the skill necessary to
drive this vehicle, it is important to remember that their
judgement skills are still very immature. Unsupervised
driving by children can lead to serious injury.Before
children use this vehicle, an adult should carefully evaluate
the driving area as well as the children’s skill level and
ability to drive this vehicle safely. Children are not always
able to recognize or anticipate hazards, even when they
have been taught about them.There is no acceptable
substitute for adult supervision.
Teach appropriate safety rules to your child before allowing
operation of this vehicle.These rules should also be
reviewed with neighborhood children or other playmates
who want to drive this vehicle.
1. Do not allow any child to drive the vehicle in the street or
near moving (motorized) vehicles.
2. Do not allow any child to drive near bodies of water
(such as pools or creeks), obstructions (such as
furniture, low tree limbs or play equipment), or drop-offs
(such as stairs or decks).
3. Do not allow any child to drive the vehicle in the dark.
A child could encounter unexpected obstacles and have
an accident. Operate the vehicle only in the daytime or in
a well-lit area.
4. Teach your child to avoid driving on steep inclines or
slopes. Restrict your child’s driving to areas that are fairly
level with gentle inclines or slopes of no more than 10°.
• While driving down a steep slope, the vehicle may
gain unsafe speed, even if the foot pedal is released
to stop.
• While driving across a steep slope, the vehicle may tilt
and tip over.The wheels could lose traction,
causing the vehicle to slip.
• While driving up a steep incline, the motor may stop
and the vehicle could roll backwards at an unsafe speed.
WARNING
• Adult supervision is required. Children do
not have the judgement necessary to avoid
many accidents. Be sure that children
operating this vehicle can do so safely and
that they are supervised at all times.
• Never use near steps, driveways, steep
inclines, roadways, alleys, swimming pool
areas or other bodies of water.
• Always wear shoes or sneakers when
operating this vehicle.
• Never allow more than two riders; one driver
and one passenger.
• The riders should sit on the seat when the
vehicle is in operation.
10°
Incline should never be more than 10°
