FisherrZ500 Severe Service Ball Valves
Contents
Introduction 1.................................
Scope of Manual 1.............................
Description 1.................................
Specifications 1...............................
Installation 5
....................................
Operation 7...................................
Maintenance 8
..................................
Troubleshooting 9.............................
Packing Replacement 11.......................
Actuator Mounting 13.........................
Parts Ordering 17
................................
Parts List 17.....................................
Figure 1. Fisher Z500 Severe Service Ball Valve
X1200
Introduction
Scope of Manual
This instruction manual provides installation, operation, maintenance, and parts information for the Fisher Z500
Severe Service Ball Valve (see figure 1).
Do not install, operate, or maintain Z500 valves without being fully trained and qualified in valve, actuator, and
accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to
carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you
have any questions about these instructions, contact your Emerson Process Management sales office before
proceeding.
Description
The Z500 severe service ball valve is a split body bolted design, available as fire safe, full or reduced port, with a
blowout proof stem. It can be lever operated, gear operated, or actuated. The Z500 severe service ball valve line is a
simplistic two-piece floating ball design with integral metal seat meant to provide tight metal seating shutoff in high
temperature, high pressure, and erosive applications across all industries.
Specifications
Specifications for these valves are shown in table 1.
Instruction Manual
D103803X012
Z500 Valve
February 2015

Instruction Manual
D103803X012
Z500 Valve
February 2014
2
Table 1. Specifications
Valve Sizes
Z500: NPS J1/2, J3/4, J1, J1-1/2, J2, J3,
J4, J6, J8, J10, J12, J14, J16, J18, J20,
J24, J26, J28, J30 and, J36
Maximum Working Pressures(1)
Forged Steel Valves: Consistent with applicable
pressure-temperature ratings in table 1 per ASME
B16.34, but do not exceed the material temperature
capabilities shown below.
Shutoff Classification(1)
Z500: Valves are tested to API 598 in the preferred
flow direction. Class V type B per FCI 70-2 in reverse
flow in bi-directional design (Must be specified)
Construction Materials
See table 2
Temperature Capabilities(1)
Welded and Threaded Ends: SA105 - 800_F, F22
1000_F, F91 1200_F, F316 1400_F
Flanged End Connections: SA105 - 600_F, F22 800_F,
F91 1000_F, F316 1000_F
Packing Constructions
Carbon Steel Valve Bodies: Wire reinforced graphite
stem packing AISI 4130 nitrided packing gland
Stainless Steel: Wire reinforced graphite stem
packing 316 SST nitrided packing gland
Dimensions
Contact your Emerson Process Management sales
office
Standard Flow Direction
Preferred Flow Direction: Preferred flow for optimal
sealing is forward into the integral seat
Flow Coefficients
Contact your Emerson Process Management sales
office
Maximum Ball Rotation
90 degrees
Actuator Mounting
The preferred mounting orientation is vertical. Other
orientations are acceptable
Approximate Weight
Contact your Emerson Process Management sales
office
Options
JReduced port, JDouble reduced ports,
JExpanded outlet, JScraper seats, JHVOF
coating options, JBi-directional sealing, JHigh
cycle constructions, JLockouts
1. The pressure/temperature limits in this bulletin, and any applicable code or standard limitation, should not be exceeded.

Instruction Manual
D103803X012
Z500 Valve
February 2014
3
Table 1. Valve Body Materials, End Connections, and Ratings
Pressure Class Bore Port Size, NPS End Connection Valve Body Materials
CL150 through 1500
0.65
1/2
Buttweld, Socketweld, FNPT
SA105, F22, F91, and F316
3/4
1
1.15
1
1-1/2
2
1.5
1-1/2
2
2-1/2
3
2
2
Buttweld, Socketweld, FNPT,
RF, RTJ
2-1/2
3
4
3
3
RF, RTJ
4
6
44
6
66
8
88
10
10 10
12 12
14 14
16 16
18 18
20 20
24 24
26 26
28 28
30 30
36 36
-continued-

Instruction Manual
D103803X012
Z500 Valve
February 2014
4
Table 1. Valve Body Materials, End Connections, and Ratings (continued)
Pressure Class Bore Port Size, NPS End Connection Valve Body Materials
CL2500
0.65
1/2
Buttweld, Socketweld, FNPT
SA105, F22, F91, and F316
3/4
1
1.15
1
1-1/2
2
1.5
1-1/2
2
2-1/2
3
2
2
Buttweld, Socketweld, FNPT,
RF, RTJ
2-1/2
3
4
3
3
RF, RTJ
4
6
44
6
66
8
88
10
CL4500
0.65
1/2
Buttweld, Socketweld F22, F91, and F316
3/4
1
1.15
1
1-1/2
2
1.5
1-1/2
2
2-1/2
3
Table 2. Standard Construction Materials for NPS 1/2 through 18 Valves
PART MATERIAL
Balls F22, 316, F91, and 410
Bodies F22, SA105, F91, and F316
Upstream seats 410/F6A, F22, 316, and F91
Body gaskets S17400, N07718, S66286
Springs S17400, N07718, S66286
End adaptor F22, SA105, F91, and F316
Coatings HVOF chromium carbide
Packing Flexible graphite with S41000 stainless anti-extrusion rings
Shafts (stem) S17400 nitrided, N07718 nitrided, S66286 nitrided (QPQ - quench polish quench)
Key Zinc plated carbon steel
Stem adaptor AISI 4130, 4140

Instruction Manual
D103803X012
Z500 Valve
February 2014
5
Installation
WARNING
Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal
injury.
Personal injury or equipment damage caused by sudden release of pressure may result if the valve assembly is installed
where service conditions could exceed either the valve body rating or the mating pipe flange joint rating. To avoid such
injury or damage, provide a relief valve for overpressure protection as required by government or accepted industry codes
andgoodengineeringpractices.
Check with your process or safety engineer for any additional measures that must be taken to protect against process
media.
If installing into an existing application, also refer to the WARNING at the beginning of the Maintenance section in this
instruction manual.
WARNING
When ordered, the valve configuration and construction materials were selected to meet particular pressure, temperature,
pressure drop, and controlled fluid conditions. Responsibility for the safety of process media and compatibility of valve
materials with process media rests solely with the purchaser and end-user. To avoid possible personal injury and because
some valve/trim material combinations are limited in their pressure drop and temperature ranges, do not apply any other
conditions to the valve without first contacting your Emerson Process Management sales office.
WARNING
The valve drive shaft is not necessarily grounded to the pipeline when installed. Personal injury or property damage could
result from an explosion caused by a discharge of static electricity from valve components if the process fluid or the
atmosphere around the valve is flammable. If the atmosphere around the valve or the process fluid is flammable,
electrically bond the drive shaft to the valve.
WARNING
Personal injury could result from packing leakage. Valve packing was tightened before shipment; however the packing
might require some readjustment to meet specific service conditions. Check with your process or safety engineer for any
additional measures that must be taken to protect against process media.
When a valve is shipped bare stem:
a. Valve is shipped in the open position with exposed stem
b. Valve will included two stem keys.
When a valve is shipped with mounting kit only:
a. Valve will ship in the in open position
b. Valve will have the mounting finger-tight to the valve
c. Customer shall ensure proper mounting of the actuator

Instruction Manual
D103803X012
Z500 Valve
February 2014
6
d. Customer shall ensure valve stem has not been pushed or forced down into the valve
e. Customer shall ensure no binding occurs when mounting the actuator
i. Customer shall ensure the correct alignment is done when mounting the actuator
ii. No hammering or forcing down of the stem adaptor is allowed
f. Customer shall ensure all bolts are torqued down appropriately
g. Customer shall ensure the actuator mounting surface is completely flush with the mounting bracket. For
additional information on actuator mounting, refer to the Actuator Mounting section in this instruction manual
on page 13.
h. Customer shall ensure the mounting can allow for or can accommodate expansion of the stem or adaptor at high
temperatures. See table 5.
When a valve is shipped with actuator:
a. Valve will be shipped in the required fail position
b. All bolting will be torqued as required
c. Emerson recommends that the customer not remove the actuator for final installation in the line
1. Inspect the valve prior to installation into the piping system to ensure there is no shipping damage. End protectors
and shipping materials must be removed to allow a complete inspection.
2. Inspect the actuator, if included, for damage and then cycle the valve with the actuator from open (the normal
shipping position) to closed to open to ensure proper functioning. This operation should be smooth.
CAUTION
Make sure the valve is installed in the correct orientation. Put the high pressure side (body side) on the upstream side. The
arrow on the valve should point from the high pressure to low pressure side when the valve is closed. The valve could be
damaged if installed incorrectly.
Weld End Valves
WARNING
Emerson Process Management is not responsible for improper installation or inspection of any valve which falls outside the
criteria presented in this instruction manual. Requests for additional information on unique situations should be directed
to your Emerson Process Management sales office.
CAUTION
Weld fill between the valve and pipe should never be used to correct for improper pipe installation length or misalignment.
Additional welding beyond what is required may cause the valve to reach higher temperatures and have a larger
heat-affected zone, which can cause permanent damage to the valve or its components.
Foradditionalinformation,refertoASMEBoilerandPressureVesselCodeSectionIX.

Instruction Manual
D103803X012
Z500 Valve
February 2014
7
Procedure
Initial Preparation
1. Ensure the valve is in the fully open position so that vital sealing areas of the ball are not exposed to weld spatter.
2. Never make arc strikes on the valve body or end adaptor except inside the groove intended for butt welding or
inside the corner of the joint for socket welding. Arc strikes made on areas which are not intended to be welded can
cause a localized increase in hardness and micro-cracks, and can otherwise compromise the intended mechanical
properties of the material.
3. Attach the welding ground strap to the side of the valve being welded.
4. Install the valve into the piping system prior to welding in order to minimize piping loads. Orient the valve with the
stem vertical, if possible, and install the piping such that pipe loads are minimized on the valve.
5. Weld the valve into the line using welders and procedures fully qualified per ASME Boiler and Pressure Vessel Code
Section IX.
6. Ensure that the valve body temperature always remains below 427_C(800_F).
Post-Weld Heat Treatment
CAUTION
Depending on valve body materials used, post weld heat treating may be required. If so, damage to internal parts is
possible. Do not place the entire valve in a stress relief furnace, or cover the entire valve with stress relieving blankets, as
this could damage the valve. Contact your Emerson Process Management sales office for additional information.
1. Weld the valve into the line using qualified welders and procedures per Section IX of the ASME Boiler and Pressure
Vessel Code. If specific procedures are required, contact your Emerson Process Management sales office for written
guidance based on pipe and valve materials.
2. Apply post weld heat treat in accordance with valve material and code requirements. Only local post weld heat treat
on each end of the valve must be used.
Final Inspection after Post-Weld Heat Treatment
After post weld heat treat, verify valve body studs and packing studs are tight.
CAUTION
Before cycling the valve in the line, make sure the line is clean of weld slag and other debris that could damage the valve.
Cycle the valve after installation to ensure proper functioning. This operation should be smooth.
1. Cycle the valve to verify proper operation. Ensure that the torque required to cycle the valve has remained within
acceptable limits.
2. Verify that the body and packing bolting are tightened to the correct torque per table 2.
3. Install proper insulation as required for insulated piping systems.
Operation
1. No routine maintenance or lubrication is required. No tightening of body studs should be necessary. Packing
bolting may be retightened if a stem packing leak is noted during operation.

Instruction Manual
D103803X012
Z500 Valve
February 2014
8
2. Actuators supplied with the valve may require maintenance per the actuator manufacturer's recommendations. For
valves supplied with gears, the grease in the gearbox might need to be cleaned out and replaced periodically. Use
only high temperature grease recommended for gearboxes.
3. Metal-seated ball valves have high torques. See table 2.
Table2.AcceptableTorqueRanges for Body and Packing Bolting
Nominal Stud Size (Inches) Acceptable Torque Minimum (lbf•in) Acceptable Torque Maximum (lbf•in)
1/4 40 110
3/8 72 170
1/2 240 500
5/8 480 960
3/4 780 1600
7/8 1320 2500
11980 3600
4. Valves operate clockwise to close and counter clockwise to open. Gears and actuators are marked with arrows and
symbols to show valve position and operating direction. Lever operated valves have an integral stop plate so that
only the correct operating direction is possible. The lock plate has the “O” for open and the “C” for closed marked to
show proper position. The lever is always aligned with the ball bore for positive proof of ball position. Gears and
actuators have adjustable stops for proper ball positioning.
5. The ball is mate lapped to the end adaptor seat. Both the top of the stem and the stem adaptor are marked to show
the proper orientation of the lapped side of the ball.
6. This valve should be either normally open or normally closed. Throttling with this valve is not recommended for
extended periods. Throttling for brief periods during startup or shutdown is allowed.
Maintenance
Valve parts are subject to normal wear and must be inspected and replaced as necessary. The frequency of inspection
and replacement depends upon the severity of service conditions.
WARNING
Avoid personal injury from sudden release of process pressure. Before performing any maintenance operations:
DDo not remove the actuator from the valve while the valve is still pressurized.
DDisconnect any operating lines providing air pressure, electric power, or a control signal to the actuator. Be sure the
actuator cannot suddenly open or close the valve.
DUse bypass valves or completely shut off the process to isolate the valve from process pressure. Relieve process pressure
from both sides of the valve. Drain the process media from both sides of the valve.
DVent the power actuator loading pressure and relieve any actuator spring precompression.
DUse lock-out procedures to be sure that the above measures stay in effect while you work on the equipment.
DAlways wear protective gloves, clothing, and eyewear when performing any maintenance operations.
DThe valve packing area may contain process fluids that are pressurized, even when the valve has been removed from the
pipeline. Process fluids may spray out under pressure when removing the packing hardware or packing rings.
DCheck with your process or safety engineer for any additional measures that must be taken to protect against process
media.
1. If valve maintenance is required, contact your Emerson Process Management sales office.

Instruction Manual
D103803X012
Z500 Valve
February 2014
9
Troubleshooting
Operation
DStem adaptor/actuator may be misaligned-- Remove actuator and stem adaptor, then reassemble per assembly
procedures for actuators.
DOver-tightened stem packing-- Loosenpackingtohandtight,cyclevalveand retighten per procedures following
torque table 4.
DInadequate air supply-- Increase air supply or install larger solenoid or quick exhaust valve. Refer to actuator
manufacturer's specifications.
Valve will not Rotate
DValve body ID or bore is clogged-- Flush or clean valve ID and try to cycle valve.
DActuator is not operating correctly or has failed-- Replace or repair actuator and try to cycle valve.
DStem keys have sheared-- Remove adaptor and determine why keys sheared, insert new keys, reassemble and try to
cycle valve.
Valve Stem Packing Leaking
DPacking flange bolting is loose-- Tighten packing bolting. See Packing Replacement section, step 7 on page 12 of
this instruction manual.
DPacking is damaged or improperly installed-- Depressurize valve, remove old packing and replace with new per
assembly instruction steps 3 to 5.
Valve Body Gasket Leaking
DBody bolting is loose-- Tighten body bolting per table 3 and figure 2.
DBody gasket dirty or damaged-- Contact your Emerson Process Management sales office.
Table 3. Body Bolt Torque Values
BOLT SIZE RECOMMENDED TORQUE
mm Inch lbf•ft lbf•in N•m
13 1/2 20 240 27
16 5/8 40 480 54
19 3/4 65 780 88
22 7/8 110 1320 149
25 1165 1980 224
29 1-1/8 240 2880 325
32 1-1/4 335 4020 454
35 1-3/8 450 5400 610
38 1-1/2 600 7200 814
41 1-5/8 725 8700 984
44 1-3/4 1000 12000 1356

Instruction Manual
D103803X012
Z500 Valve
February 2014
10

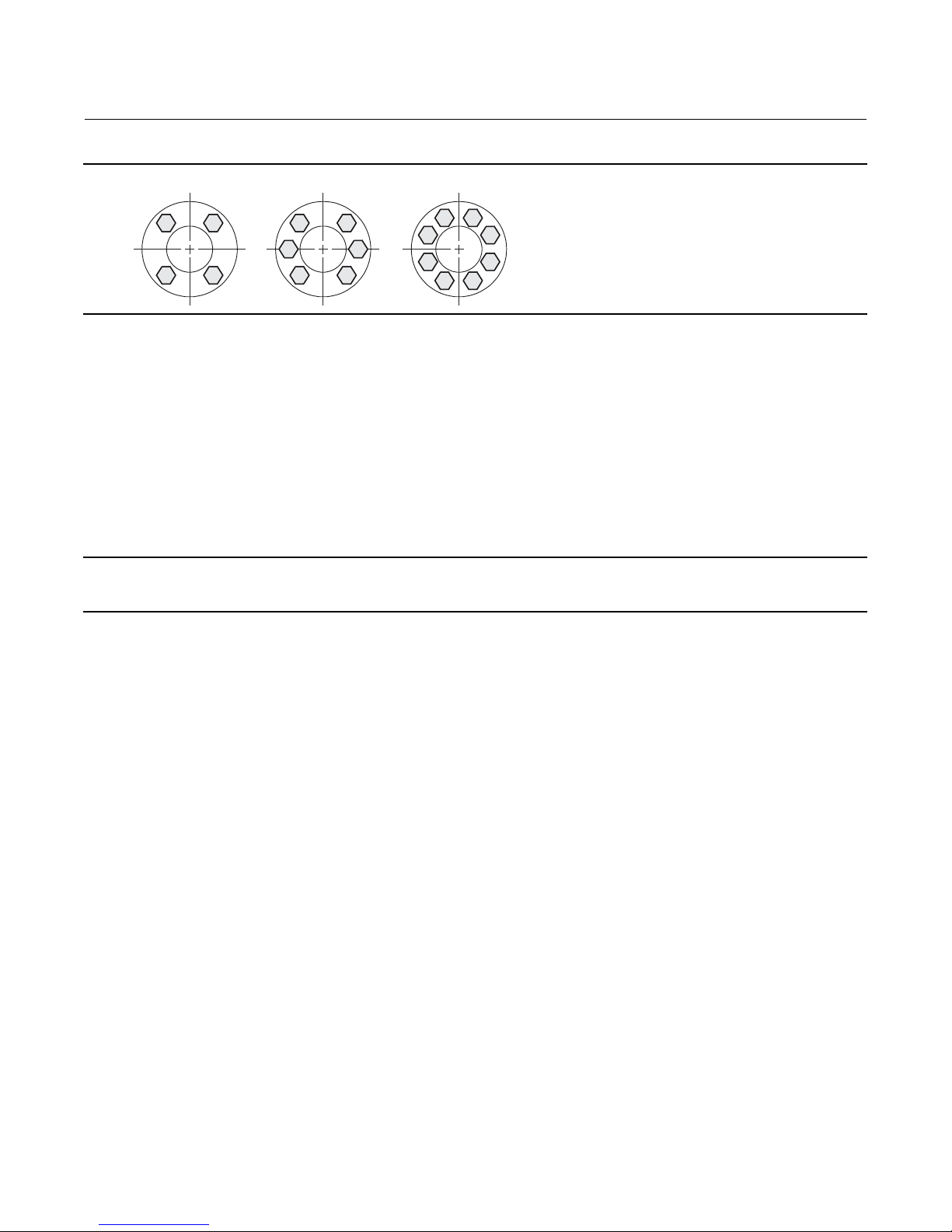

Figure 2. Bolting Tightening Pattern
1
1
1
2
2
2
3
33
4
44
5
5
6
6
7
8
Valve Leaking through Ball or Seating Area
DValve body ID or bore is clogged-- Flush or clean valve ID and try to cycle valve.
DValve is not fully closed-- Close valve, taking care not to over torque.
DActuator travel stops are not set correctly-- Set stops and cycle, checking for leaks.
DSeat or Ball is damaged-- Contact your Emerson Process Management sales office for repair.
Note
If you need additional trouble-shooting assistance, please contact your Emerson Process Management sales office.

Instruction Manual
D103803X012
Z500 Valve
February 2014
11

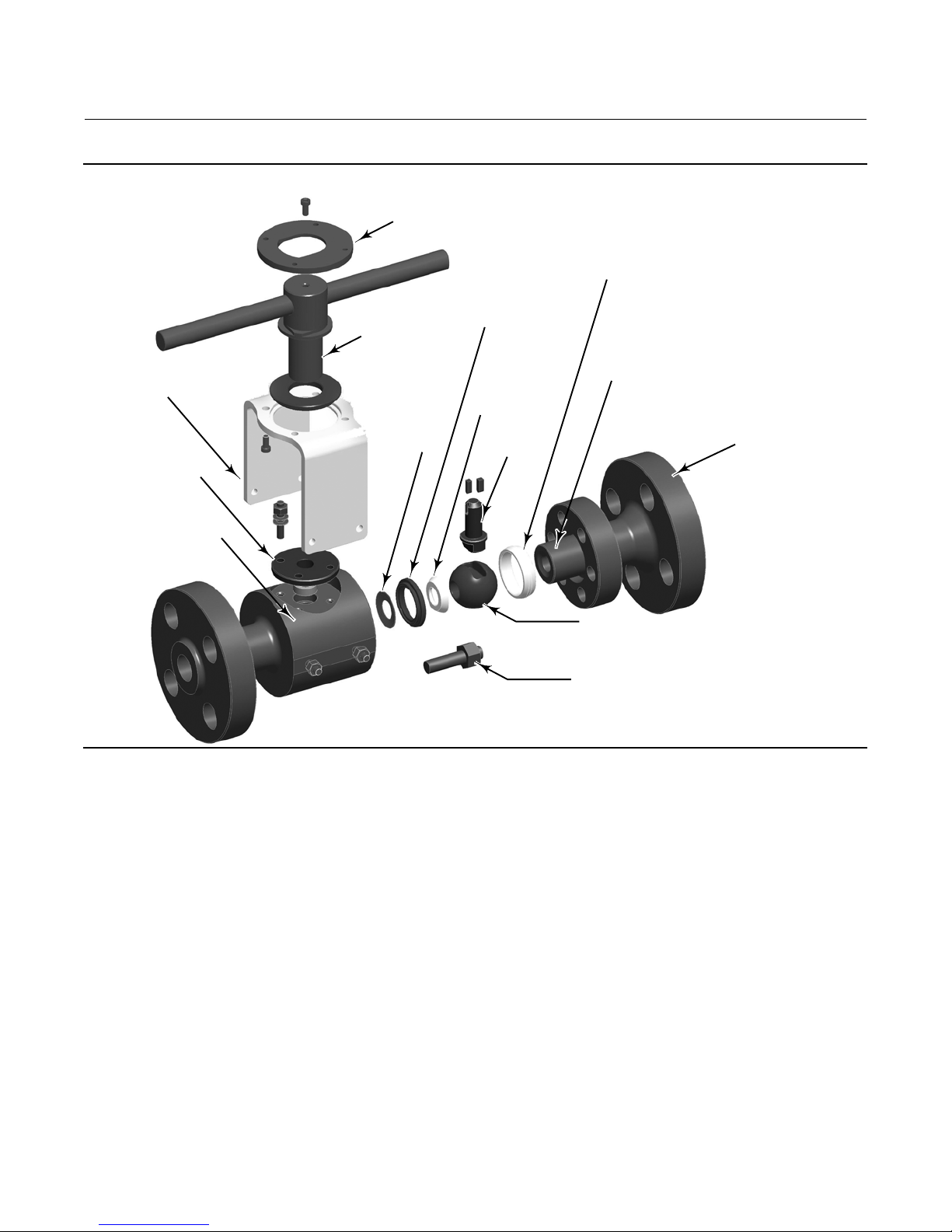

Figure 3. Sectional View
BODY
STUD
STEM
SEAT HOLDER
VALVE BODY
SIDE-MOUNTED
BRACKET
X1207
UPSTREAM
SEAT
DISK
SPRING
PACKING
GLAND
METAL VALVE
BODY GASKET
INTEGRAL
METAL SEAT
END ADAPTOR
MACHINED STOPS
STEM
ADAPTOR
BALL
Packing Replacement
1. Loosen the packing studs.
2. Remove the packing rings from the packing box, being careful not to damage the packing box.
3. Inspect the clean packing box to ensure all surfaces are clean and undamaged.
4. Insert the bottom end ring of the stem packing. Use the packing flange to press the bottom end ring into position.
5. Insertthedieformedrings.Usethepackingflangetopresstheringintoposition.

Instruction Manual
D103803X012
Z500 Valve
February 2014
12
Figure 4. Assembly Steps
Figure 5. Insert Top End Ring
6. Insert the top end ring of stem packing. Use the packing flange to press the top end ring into position.
Figure 6. Use Packing Flange
7. Bolt up the packing flange. Use 4 washers (all apex up) for every stud. Make sure that the markings on the studs and
nuts are facing out. Tighten the nuts in a star pattern (figure 2). Tighten the nuts with applicable torque (table 4).

Instruction Manual
D103803X012
Z500 Valve
February 2014
13
Figure 7. Bolt Up the Packing Flange
Actuator Mounting
1. Mount the stem adaptor on top of the stem with the two keys. Make sure it fits onto the stem easily without
hammering.
2. Position the mounting bracket onto the body. Use copper-based anti-seize lubricant on the bracket studs and nuts.
Make sure the markings on the studs and nuts are facing out. Leave the nuts finger tight.
Figure 8. Mount the Stem Adaptor

Instruction Manual
D103803X012
Z500 Valve
February 2014
14
Figure 9. Position the Mounting Bracket

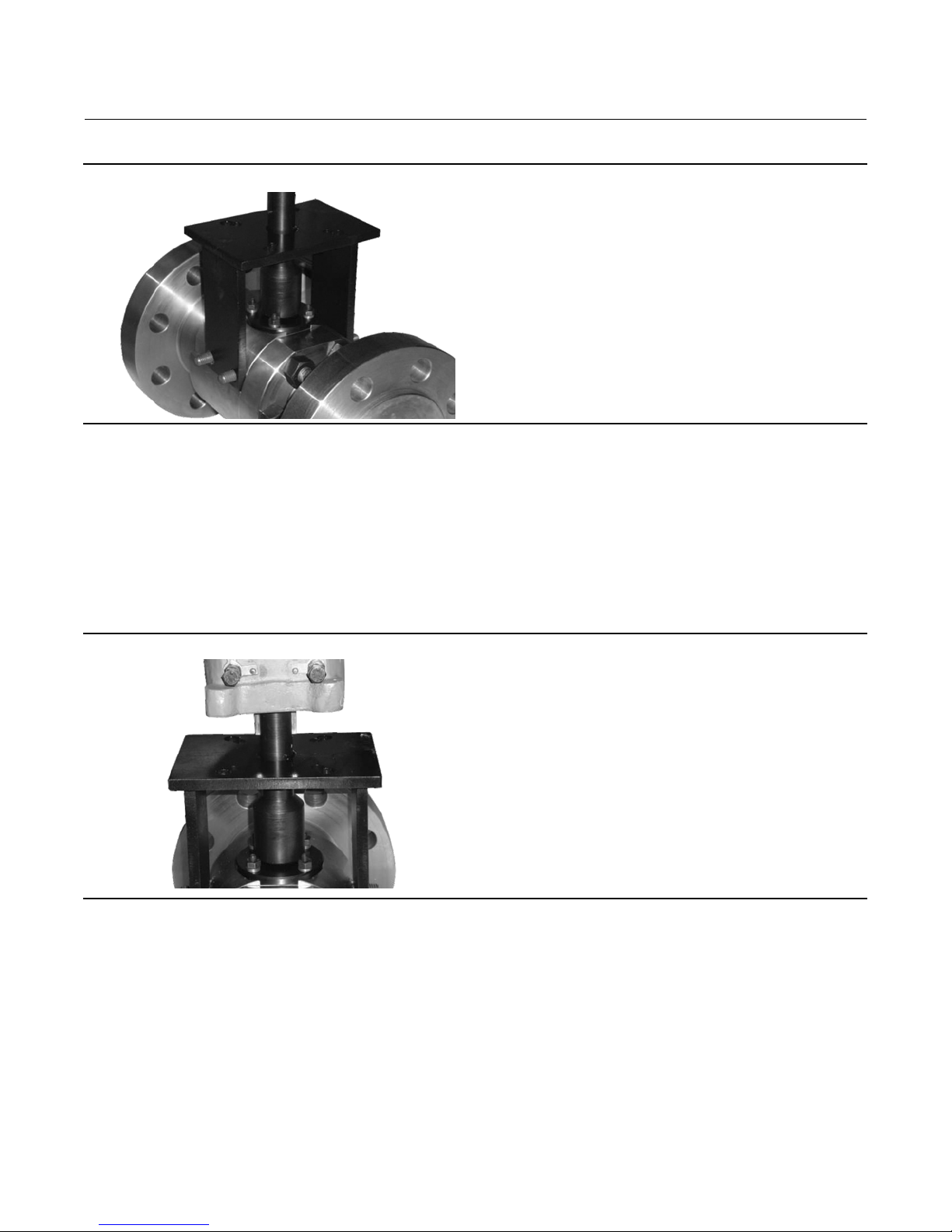

3. Place the actuator on top of the mounting bracket and stem adaptor, in the closed position. Make sure the actuator
is properly aligned with the stem adaptor. If not, loosen the mounting bracket to assure proper alignment and
retighten the mounting bracket. Use copper-based anti seize lubricant on the actuator studs and nuts. Ensure the
markings on the studs and nuts are facing out. Ensure the mounting can allow or can accommodate expansion of
the stem or adaptor at high temperature. Reference table 5.
4. Torque the actuator and mounting bracket studs to the applicable torque (tables 3 or 4 as per size) after everything
is aligned properly.
5. Install the actuator hand wheel, if present, with key and retention plate. Install the indicator plate on top of the
actuator.
Figure 10. Place the Actuator on Top of the Mounting Bracket

Instruction Manual
D103803X012
Z500 Valve
February 2014
15

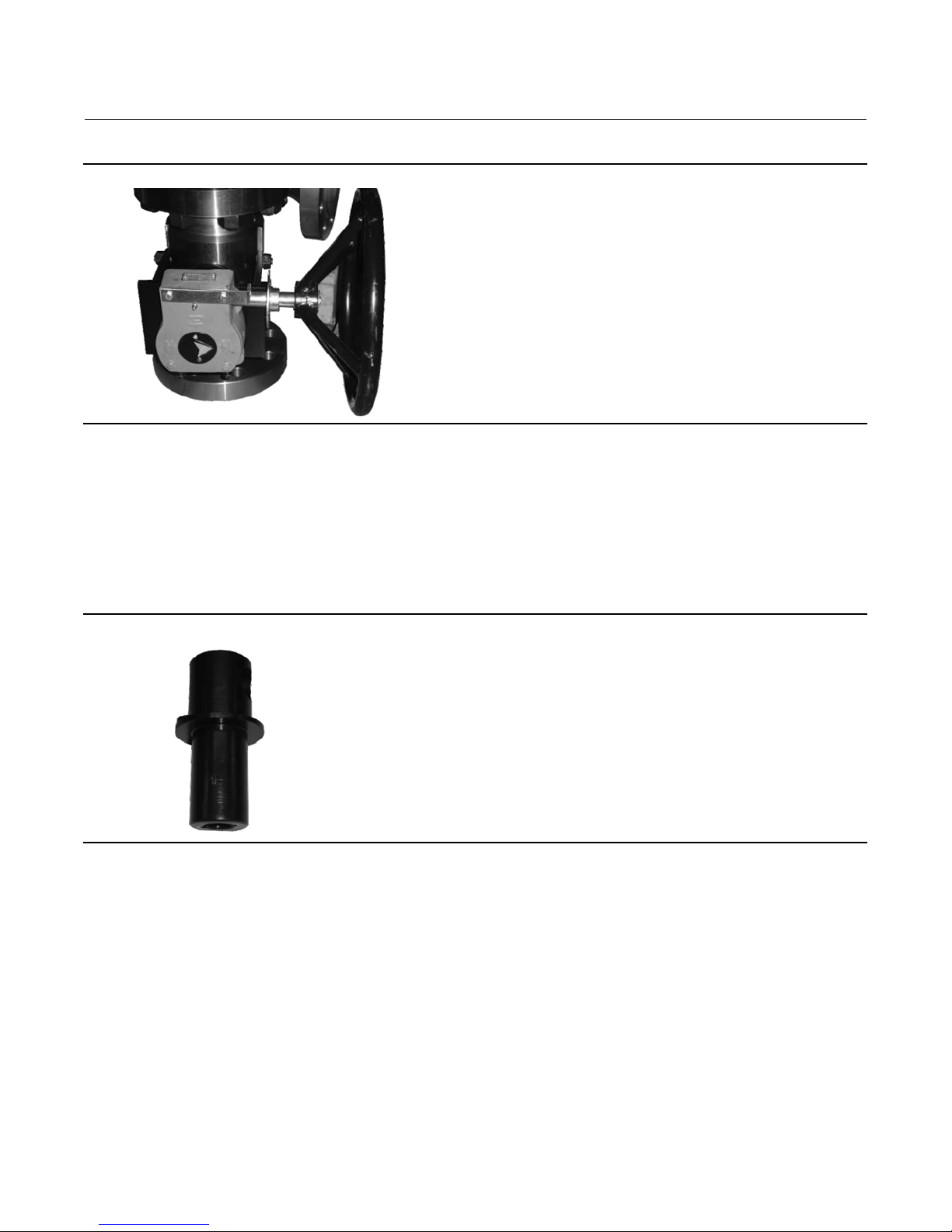

Figure 11. Install the Handwheel
Hand Lever
6. Position the mounting bracket onto the body. Use copper-based anti-seize lubricant on the bracket studs and nuts.
Make sure the markings on the studs and nuts are facing out. Leave the nuts finger tight.
7. Insert the bracket bushing into the allotted slot of the mounting bracket.
8. Mount the stem adaptor on top of the stem with the two keys. Make sure it fits onto the stem easily without
hammering. Make sure the mark is facing the lapped side of the ball/end adaptor.
Figure 12. Stem Adaptor
9. Place the lock plate on top of the mounting bracket. Note the orientation of the open “O” and closed “C”
markings.

Instruction Manual
D103803X012
Z500 Valve
February 2014
16
Figure 13. Lock Plate
10. Thread on the socket head cap screws, using copper-based anti-seize lubricant, from the underside of the
mounting bracket.
11. Torque the mounting bracket and stop plate bolting to the applicable torque (tables 3 or 4) after everything is
aligned properly.
Figure 14. Handlever Assembly
12. Insert the lever through the hole on the stem adaptor. Thread in the set screw on top of the stem adaptor to hold
the lever in place.
Table 4. Packing Flange Bolt Torque Values
BOLT SIZE RECOMMENDED TORQUE
mm Inch lbf•ft lbf•in N•m
61/4 450 6
85/16 675 8
10 3/8 8100 11
11 7/16 15 180 20
13 1/2 21 250 28
16 5/8 38 450 50
19 3/4 58 700 79
22 7/8 100 1200 135
25 1150 1800 203

Instruction Manual
D103803X012
Z500 Valve
February 2014
17
Table 5. Assembly Stand Off
NOMINAL BALL SIZE(1) STANDOFF MINIMUM STANDOFF MAXIMUM
mm Inch mm Inch mm Inch
13 1/2 0.69 0.027 0.89 0.035
19 3/4 0.64 0.025 1.02 0.040
25 10.71 0.028 1.14 0.045
38 1-1/2 0.89 0.035 1.27 0.050
51 20.81 0.032 1.55 0.061
64 2-1/2 0.98 0.039 1.83 0.072
76 31.02 0.040 1.27 0.050
102 40.91 0.036 1.75 0.069
127 50.97 0.038 1.88 0.074
152 60.94 0.037 1.65 0.065
1. Contact your Emerson Process Management sales office for additional sizes.
Parts Ordering
A serial number is assigned to each valve and stamped on the nameplate. Always refer to the valve serial number when
corresponding with your Emerson Process Management sales office regarding spare parts or technical information.
WARNING
Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Process Management should
not, under any circumstances, be used in any Fisher valve, because they will void your warranty, might adversely affect the
performance of the valve, and could give rise to personal injury and property damage.
Parts List
Note
Contact your Emerson Process Management sales office for part number
information.
Key Description
1 If you need a valve body as a replacement part, order by valve
size, serial number, and desired valve body material. Contact your
Emerson Process Management sales office for assistance.
2 Mounting Bolts
3 Mounting Nuts
4 Belleville Spring
5 Upstream Seat / Guide
6Ball
Key Description
7ValveBodyGasket
8 End Adaptor
9BodyBolts
10 Body Nuts
11 Stem
12 Stem Key
13 Mounting Bracket
14 Support Bushing
15 Stem Adaptor
16 Handle Lever
17 Lever Cap Screw
18 Lock Plate
19 Plate Cap Screw
20 Packing Nuts
21 Packing Spring
22 Packing Bolts
23 Packing Plate
24* Stem Packing
Seat Holder for Bidirectional Shutoff (not shown)
*Recommended spare parts

Instruction Manual
D103803X012
Z500 Valve
February 2014
18

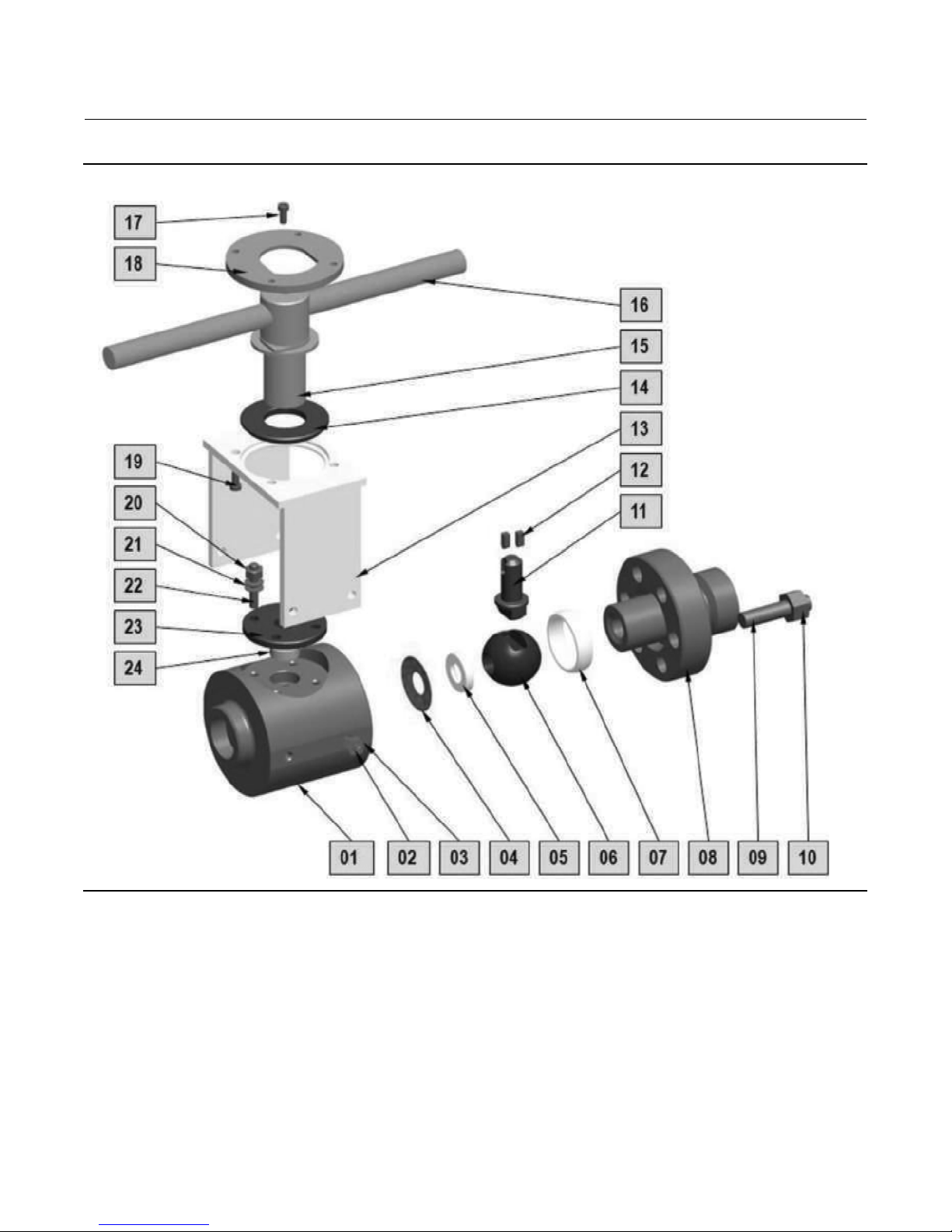

Figure 15. Fisher Z500 Valve Assembly

Instruction Manual
D103803X012
Z500 Valve
February 2014
19

Instruction Manual
D103803X012
Z500 Valve
February 2014
20
Emerson Process Management
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Chatham, Kent ME4 4QZ UK
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they arenot
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
E2015 Fisher Controls International LLC. All rights reserved.
Fisher is a mark owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co. Emerson Process Management,
Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
