FiT FIT STANDARD CHARGER 36V User manual

INSTRUCTION MANUAL
Biketec GmbH
Luzernstrasse 84
CH-4950Huttwil
T [phone]
[e-mail]
fit-ebike.com
FIT STANDARD CHARGER 36V
FIT FAST CHARGER 36V
NETWORKED
CUSTOMISED
INTELLIGENT
500951 | 500074

INSTRUCTION MANUAL FIT CHARGER 36 V
TABLE OF CONTENTS
1 PREFACE 3
2 ABOUT THESE OPERATING INSTRUCTIONS 4
2.1 MANUFACTURER................................................. 4
2.2 LANGUAGE..................................................... 4
2.3 DECLARATIONOFCONFORMITY ........................................ 4
2.4 ONINFORMATION ................................................ 4
2.5 WARNINGS IN THESE OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 SAFETY INSTRUCTIONS 5
3.1 GENERALINFORMATION............................................. 5
3.2 CHARGER ..................................................... 5
3.3 RECHARGEABLEBATTERY............................................ 5
4 PRODUCT AND TECHNICAL SPECIFICATIONS 7
4.1 FIT STANDARD CHARGER 36V / FIT FAST CHARGER 36V . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.2 PROPERUSE ................................................... 8
4.3 IMPROPERUSE.................................................. 8
4.4 TECHNICALDATA................................................. 8
4.4.1 FIT STANDARD CHARGER 36V / FIT FAST CHARGER 36V . . . . . . . . . . . . . . . . . . . . . . 8
5 OPERATION 9
5.1 INSTRUCTIONS FOR CHARGER AND BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.2 CHARGINGOPTIONS ............................................... 9
5.3 INITIALOPERATION................................................ 9
5.4 CHARGING THE BATTERY WHEN FITTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.5 CHARGING THE BATTERY WHEN REMOVED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.6 COMPLETIONOFCHARGING .......................................... 9
5.7 DISPLAYANDSETTINGS............................................. 10
5.7.1 CHARGEINDICATOR........................................... 10
6 CLEANING AND SERVICING 11
6.1 CLEANINGTHECHARGER ............................................ 11
7 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 12
7.1 TROUBLESHOOTING AND FAULT CLEARANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7.2 BATTERYERROR ................................................. 12
7.3 REPAIR....................................................... 13
7.3.1 ORIGINALPART ............................................. 13
7.3.2 REPLACINGTHELIGHTS ........................................ 13
7.3.3 ADJUSTINGTHEHEADLIGHT...................................... 13
8 RECYCLING AND DISPOSAL 14
8.1 DISPOSAL ..................................................... 14
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 2

INSTRUCTION MANUAL FIT CHARGER 36 V
1 PREFACE
Dear FIT customer,
The FIT system offers many useful functions and options and we are pleased that you have decided to choose our
system.
Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick
start.
We hope you enjoy discovering the FIT’s functions and have a fun ride every time you use it.
Thank you for placing your trust in FIT.
Your FIT Team
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 3

INSTRUCTION MANUAL FIT CHARGER 36 V
2 ABOUT THESE OPERATING INSTRUCTIONS
2.1 MANUFACTURER
Biketec GmbH
Luzernstrasse 84
CH-4950 Huttwil
fit-ebike.com/en-en/
2.2 LANGUAGE
The original operating instructions are written in German. A translation is invalid without the original operating in-
structions.
2.3 DECLARATION OF CONFORMITY
Biketec GmbH hereby declares that the products described in these operating instructions comply with EU directives.
The complete EU Declaration of Conformity is available online at: fit-ebike.com/en-en/service/declaration/
2.4 ON INFORMATION
Different markings are used in the operating instructions to make them easier to read.
2.5 WARNINGS IN THESE OPERATING INSTRUCTIONS
Warnings indicate hazardous situations and actions. You will find the following warnings in the operating instructions:
DANGER
May lead to serious or even fatal injuries if ignored. Medium-risk hazard.
CAUTION
May lead to minor or moderate injuries if ignored. Low-risk hazard.
NOTICE
May lead to material damage if ignored.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 4

INSTRUCTION MANUAL FIT CHARGER 36 V
3 SAFETY INSTRUCTIONS
3.1 GENERAL INFORMATION
Please read all safety instructions carefully. Failure to comply with the warnings or to take residual risks into ac-
count may result in electric shock, fire and/or serious injury.
Keep the operating instructions in a safe place and have them readily available to consult. Pass these instructions
on if you provide your e-bike for someone else’s use.
When used in these operating instructions, the word “battery” refers to all original FIT e-bike batteries.
3.2 CHARGER
Do not expose the charger to rain or damp. If water penetrates into a charger, there is a risk of electric shock.
Charge FIT Li-ion batteries approved for e-bikes with the FIT charger only. The battery voltage must match the
charger’s battery charge voltage; there is a risk of fire and explosion if it does not. Keep the charger clean. Dirt
can pose an electric shock hazard.
Check charger, cable and connector before use. Do not use the charger if you spot any damage. Do not open up the
charger. Damaged chargers, cables and plug connectors increase the risk of electric shock.
Do not use the charger on a highly flammable surface (e.g. paper, textiles, etc.) or in flammable surroundings. There
is a risk of fire due to the charger heating up during charging.
Take care if you touch the charger during charging. Wear protective gloves. The charger can become extremely hot,
particularly at high ambient temperatures.
The e-bike battery must not be left unattended while it is charging.
Supervise children during use, cleaning and maintenance. You must ensure that children do not play with the charger.
Children and persons who are not able to use the charger safely due to their limited physical, sensory, or mental capa-
bilities, or lack of experience and/or knowledge must not use it unsupervised or without instruction by a responsible
person. If not, there is a risk of incorrect use and injury.
3.3 RECHARGEABLE BATTERY
Remove the battery from the e-bike before you start working on the e-bike (e.g. inspection, repair, fitting, mainte-
nance, work on the chain), transport it by car or plane or if you are not going to use it for extended period of time.
There is a risk of injury if the e-bike system is activated unintentionally.
Do not open up the battery as you risk causing a short circuit.
Protect the battery from heat (e.g. including continuous direct sunlight), fire and being submerged in water. Do not
store or operate the battery in close proximity to hot or flammable objects as this pose a risk of explosion.
Keep the unused battery away from paper clips, coins, keys, nails, screws or other metal objects which could cause
an electrical arc between the contacts. A short circuit between the battery contacts can cause fire or burns.
Avoid any physical loads on the battery. They may inflict damage to the battery cells and cause flammable substances
to leak out.
Do not put the charger and battery down next to flammable materials. Only charge batteries when they are dry and
in a fireproof place. There is a risk of fire due to heat accumulating during charging.
The e-bike battery must not be left unattended while it is charging.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 5

INSTRUCTION MANUAL FIT CHARGER 36 V
If the battery is used incorrectly, liquid may leak from it. Avoid coming into contact with the liquid. Rinse off with
water in the event of accidental contact. If the liquid gets into eyes, seek medical attention. Leaked liquid can cause
skin irritation and burns.
Vapours may be emitted if the battery is damaged or used improperly Ventilate with fresh air and consult a doctor if
you suffer any pain or discomfort. The vapours can irritate the airways.
Charge the battery with original FIT chargers only. Risk of fire cannot be ruled out if non-original FIT chargers are used.
Use the battery in e-bikes with the FIT system only. This is the only way that the battery will be protected from dan-
gerous overloading.
Only use original FIT rechargeable batteries which the manufacturer has approved for your e-bike. Using other bat-
teries can result in injuries and risk of fire. FIT accepts no liability and offers no warranty if other batteries are used.
Keep the battery away from children.
Our e-bike rechargeable batteries are lithium-ion batteries which are developed and manufactured to the latest tech-
nical standards. Lithium-ion batteries have a high energy content when charged. In the event of a defect, possibly not
visible on the outside, lithium-ion batteries may catch fire in very rare instances and under unfavourable conditions.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 6

INSTRUCTION MANUAL FIT CHARGER 36 V
4 PRODUCT AND TECHNICAL SPECIFICATIONS

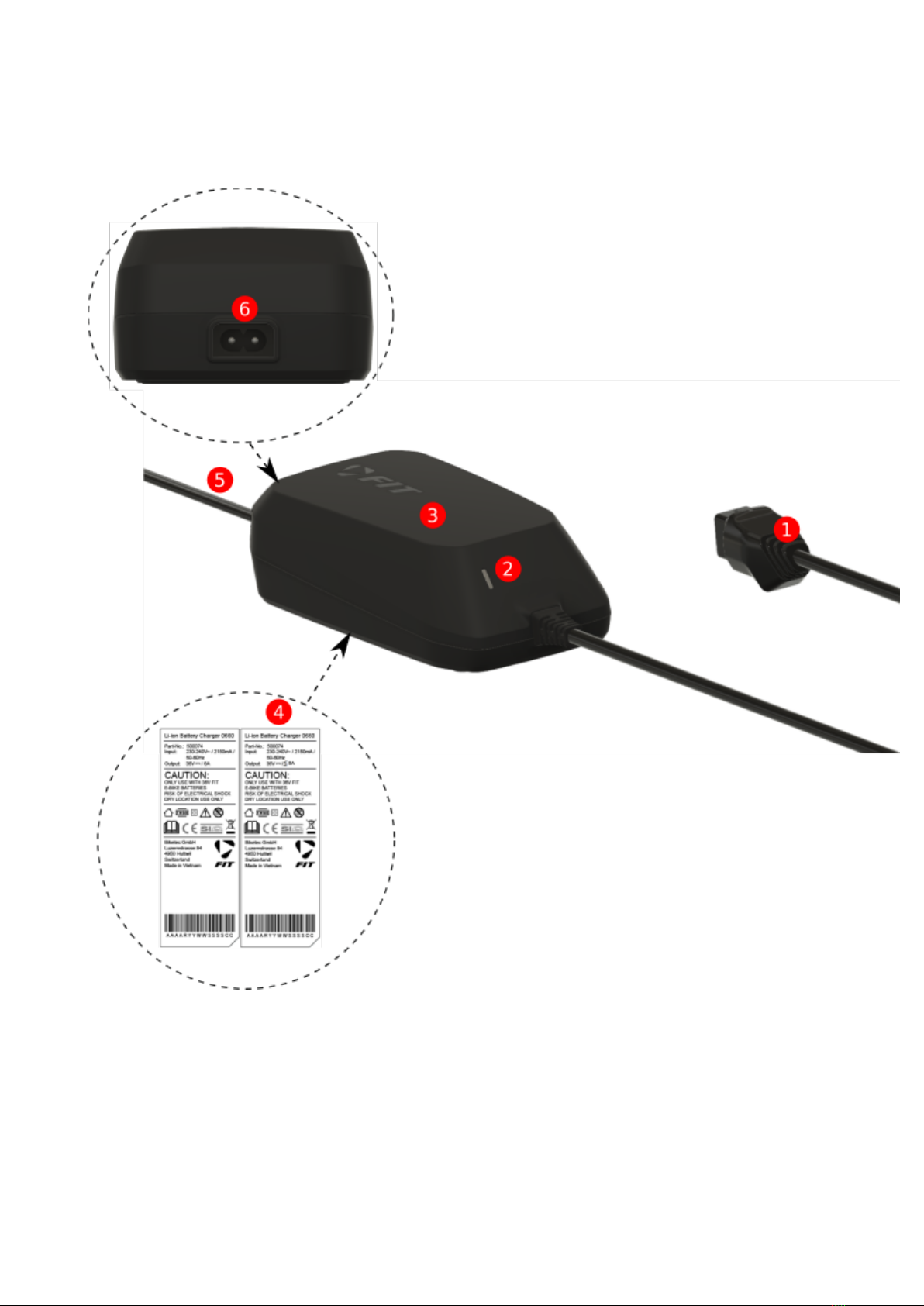

4.1 FIT STANDARD CHARGER 36V / FIT FAST CHARGER 36V
1. Charger plug
2. Charge indicator
3. Charger
4. Type label
5. Mains cable device plug
6. Device plug
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 7

INSTRUCTION MANUAL FIT CHARGER 36 V
4.2 PROPER USE
All check lists and instructions for actions in these operating instructions met. The charger is intended for charging
FIT batteries approved for its use only and must not be used for other purposes.
4.3 IMPROPER USE
Improper use refers to use which is not described under proper use or goes beyond proper use.
4.4 TECHNICAL DATA
4.4.1 FIT STANDARD CHARGER 36V / FIT FAST CHARGER 36V
Charger FIT Standard Charger 36V FIT Fast Charger 36V
FIT Standard Charger 36V with upgrade
Product code 500951 500074
500951 & Upgrade 501342
Nominal voltage V~ 207 to 264 207 to 264
Frequency Hz 47 to 63 47 to 63
Battery charge voltage V= 20 to 42 20 to 42
Charging current (max.) A 4 6
Operating temperature °C 0 to +40 0 to +40
Storage temperature °C -20 to +70 -20 to +70
Protection class IP40 IP40
Weight about kg 0,3 0,3
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 8

INSTRUCTION MANUAL FIT CHARGER 36 V
5 OPERATION
5.1 INSTRUCTIONS FOR CHARGER AND BATTERY
The nameplate on the charger points to warnings and other safety information to bear in mind when handling the
battery charger.
Only use the charger included in the scope of delivery of your e-bike. This is the only charger suited to the Li-ion
battery used in your e-bike.
Fully charge the battery with the charger before you first use it to ensure full power from the battery.
Do not connect the charger to the socket immediately after a sudden temperature change from cold to warm.
There is a possibility of condensation forming on the contacts and then causing a short circuit. Wait until both
charger and battery reach room temperature before connecting the charger or battery.
The battery can be charged directly or in the e-bike without shortening its service life. Interrupting the charging
process does not damage the battery.
The battery is fitted with a temperature monitoring system, which only allows charging within the stipulated
temperature range.
5.2 CHARGING OPTIONS
The battery can be charged while inserted in the e-bike or after it has been removed. Look in the e-bike manufacturer’s
original operating instructions to find where the e-bike charging socket is. Connect the charger to the e-bike charging
socket (or directly to the battery) to charge. The charge indicator will automatically appear on the e-bike display screen
if the battery is fitted into the e-bike. The display backlight will go out after a certain period of time. However, you
can press the On-Off button to switch it back on again at any time.
5.3 INITIAL OPERATION
CAUTION
Check the mains voltage is correct. The voltage must match the voltage indicated on the charger
nameplate.
Insert the plug on the enclosed mains cable into the socket on the charger. Connect the mains cable to the mains.
Only charge the battery in compliance with all safety instructions. If this is not possible when the battery is installed,
remove it from the e-bike and charge it somewhere suitable. Follow the operating instructions for the battery used.
5.4 CHARGING THE BATTERY WHEN FITTED
Connect the charger to the e-bike charging socket to charge. The battery level indicator will automatically appear on
the display. The display backlight will go out after a certain period of time. However, you can press the On-Off button
to switch it back on again any time.
5.5 CHARGING THE BATTERY WHEN REMOVED
Before removing the battery, ensure that you have configured the required charge mode. You cannot change the
charge mode when charging a battery that has been removed. Connect the charger to the battery charging socket to
charge.
5.6 COMPLETION OF CHARGING
After charging is complete, disconnect the charger from the mains and the battery from the charger.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 9

INSTRUCTION MANUAL FIT CHARGER 36 V
5.7 DISPLAY AND SETTINGS
5.7.1 CHARGE INDICATOR
Status FIT Standard Charger 36V FIT Fast Charger 36V
FIT Standard Charger 36V with upgrade
Standby mode Green flashing rapidly (2x a second) Green flashing rapidly (2x a second)
Charging Lit orange Lit red
Charging complete Lit green Lit green
Fault Red flashing (1x a second) Red flashing (1x a second)
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 10

INSTRUCTION MANUAL FIT CHARGER 36 V
6 CLEANING AND SERVICING
6.1 CLEANING THE CHARGER
CAUTION
Fire and short circuit caused by water ingress
The charger is not protected against water. Penetration by water can cause a short circuit.
Never clean the charger with a pressure washer, water jet or compressed air.
Keep contacts dry and clean.
Never immerse the charger in water.
Never use cleaning agents.
Disconnect charger from the battery and power supply before cleaning.
NOTICE
Never clean the charger with solvents, such as oil, thinners, alcohol or corrosion protection.
Clean the charger’s electrical connections with a dry cloth or paintbrush only.
Wipe off the decorative sides with a damp cloth.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 11

INSTRUCTION MANUAL FIT CHARGER 36 V
7 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR
7.1 TROUBLESHOOTING AND FAULT CLEARANCE
7.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP
If the display and/or the drive system do not start up, proceed as follows:
1. Check whether the battery is inserted correctly. If it is not, insert the battery correctly.
2. Start the drive system.
3. If the drive system won’t start, remove the battery.
4. Clean all the contacts with a soft cloth.
5. Insert the battery.
6. Start the drive system.
7. If the drive system won’t start, remove the battery.
8. Fully charge the battery.
9. Insert the battery.
10. Start the drive system.
11. If the drive system won’t start, press the on-off button (operating element) for at least 8 seconds.
12. If the drive system does not start after about 6 seconds, press the on-off button (operating element) for at least
2 seconds.
13. Contact your specialist dealer if the drive system does not start.
7.2 BATTERY ERROR
Symptom Cause Remedy
The battery discharges very
quickly.
The battery may be at the end of
its useful life.
Replace old battery with new one.
The battery cannot be
recharged.
Is the charger mains plug firmly
connected to the socket?
1. Disconnect the charger mains plug.
2. Insert the mains plug.
3. Start charging.
Is the charger plug firmly
connected to battery or the
charging socket on the e-bike?
4. If the battery still won’t recharge,
disconnect the charger plug.
5. Insert charger plug.
6. Start charging.
Is the connection terminal for the
charger, charger adapter or
battery dirty?
7. If you are still unable to recharge the
battery, wipe the connection terminals
with a dry cloth to clean them.
8. Start charging.
9. If the battery still won’t recharge, contact
your specialist dealer.
The battery does not start
charging when the charger is
connected.
The battery may be at the end of
its useful life.
Replace old battery with new one.
The battery and charger
become hot.
The battery or charger
temperature may have exceeded
the operating temperature range.
1. Interrupt charging process (disconnect
charger from mains and battery).
2. Wait a moment.
3. Start charging.
4. If the battery is too hot to touch, there
might be a problem with the battery.
Contact your specialist dealer.
The charger is hot. If the charger is used continuously
to charge batteries, it may become
hot.
1. Wait a moment.
2. Start charging.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 12

INSTRUCTION MANUAL FIT CHARGER 36 V
Symptom Cause Remedy
The LED on the charger does
not light up.
Is the charger plug firmly
connected to battery?
1. Check the connection for any
contaminants.
2. Insert charger plug.
3. Contact your specialist dealer if there is no
change.
Is the battery fully charged? 4. Disconnect the charger mains plug if there
is no change.
5. Insert the mains plug.
6. Start charging.
7. Contact your specialist dealer if the LED on
the charger still doesn’t light up.
The battery cannot be
removed.
Contact your specialist dealer.
The battery cannot be
inserted.
Contact your specialist dealer.
Fluid is leaking from the
battery.
Observe all the warnings in the section
on Safety.
There is an unusual smell. 1. Remove the battery from the e-bike
immediately.
2. Contact the fire service.
3. Observe all the warnings in the section
on Safety.
Fumes are emitted from the
battery.
1. Remove the battery from the e-bike
immediately.
2. Contact the fire service.
3. Observe all the warnings in the section
on Safety.
7.3 REPAIR
Special expertise and tools are required for many repairs. That is why only a specialist dealer may perform repairs.
7.3.1 ORIGINAL PART
The individual e-bike parts have been carefully selected and matched to one other. Only original parts must be used
for maintenance and repair. Observe the operating instructions for the new components.
7.3.2 REPLACING THE LIGHTS
Replace components with ones in the right power class.
7.3.3 ADJUSTING THE HEADLIGHT
The headlight must be positioned so that its beam hits the road surface 10 m in front of the e-bike.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 13

INSTRUCTION MANUAL FIT CHARGER 36 V
8 RECYCLING AND DISPOSAL
8.1 DISPOSAL
Mechanical and electrical devices, accessories and packaging should be taken for recycling in an environ-
mentally responsible manner. Do not dispose of them in the household waste!
For EU countries only: According to the European Directive 2012/19/EU on waste electrical and electronic
equipment and its implementation in national law, chargers that can no longer be used must be collected
separately and recycled in an environmentally responsible manner.
FIT_Manual_Charger_36V_V1_en | Version 01 | 04.04.2022 14
