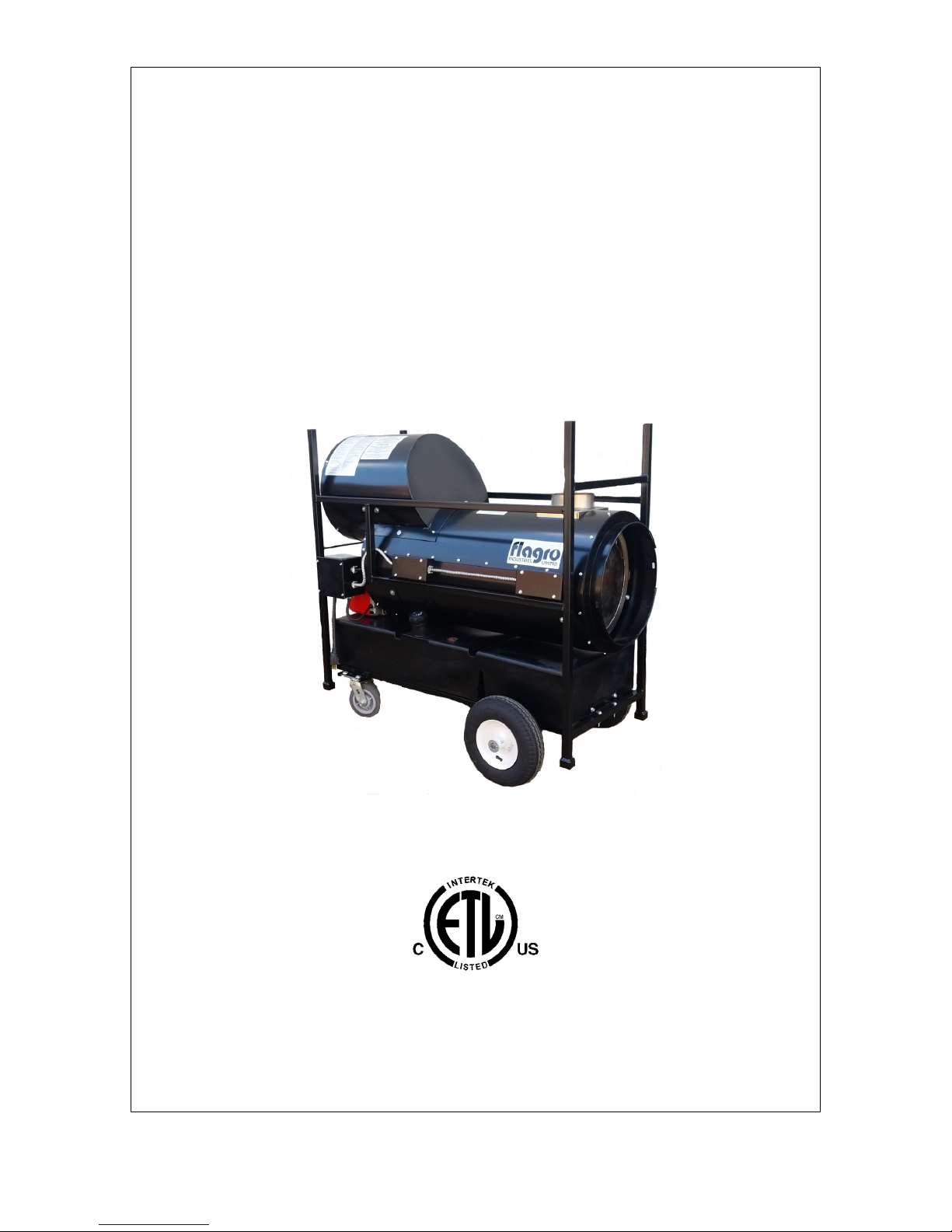

Flagro FVO-200RC Instruction Manual

- 1 -
OPERATING INSTRUCTIONS MANUAL
(Please retain for future reference)
For
FVO-200RC INDIRECT FIRED SPACE HEATERS
CERTIFIED FOR USE IN CANADA AND U.S.A.
As per CSA B140.8 Portable Oil Fired Heaters / CSA B140.02003 Oil Burning Equipment
UL733 Oil fired heaters
Construction Heaters Unattended Type.
Issue date: July 1, 2017
2003325
FLAGRO INDUSTRIES LIMITED
ST. CATHARINES, ONTARIO
CANADA

- 2 -
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS
PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS
BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF
FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOXIDE
POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE
INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN
INSTRUCTIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.
WARNING:
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR
CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS
RECOMMENDED BY THE INSTRUCTIONS. NEVER USE THE HEATER IN
SPACES WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE
COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT
THINNER, DUST PARTICLES OR UNKNOWN CHEMICALS.
WARNING:
NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING:
INTENDED USE IS PRIMARILY THE TEMPORARY HEATING OF BUILDINGS
UNDER CONSTRUCTION, ALTERATION, REPAIR OR EMERGENCIES
ONLY.

- 3 -
This heater is designed and approved for use as a
construction heater under CSA B140.8 Portable Oil
Fired Heaters / CSA B140.02003 Oil Burning Equipment
& UL733 Oil Fired heaters.
We cannot anticipate every use which may be made
of our heaters. CHECK WITH YOU LOCAL FIRE
SAFETY AUTHORITY IF YOU HAVE QUESTIONS
ABOUT APPLICATIONS.
Other standards govern the use of fuel gases and heat
producing products in specific applications. Your local
authority can advise you about these.
SPECIFICATIONS
Model …………………………………………………….…. FVO-200RC
Input ………………………………………………... BTUH Range
185,000 Btu
Fuel …………………………………………………………. No.1, No. 2,
diesel or
kerosene
Fuel Pressure …………………………………………….... 180 psi
Nozzle ………………………………………………………. 1.10 x 70A
Electrical …………………………………………………… 115V 15 AMP
Ignition ………………………………………………………. Direct Spark
Ignition
…….……………………………………………...…. Thermostat
Control
Air Circulation ………………………………………………. 2600 cfm
Fuel Consumption ………………………………………...... 1.30 Gal/hr
Approved …………………………………………………...... cETLus listed

- 4 -
INSTALLATION:
The installation of this heater for use with No.1, No.2, Diesel or Kerosene and
shall conform with local codes or, in the absence of codes, with the National Fuel
Gas Code ANSI Z223.1/NFPA 54. For recommended installation practices refer
to CSA Standard B139.
CLEARANCE TO COMBUSTIBLES:
TOP FRONT SIDES REAR FLUE PIPE
3 ft 10 ft 1 ft 2 ft 3 ft
FUEL: This heater will operate with No.1, No.2, Diesel or Kerosene.
Note: No.1 Fuel Oil or Kerosene must be used for
temperatures less than –10º C (8º F).
ELECTRICAL: WARNING
Electrical Grounding Instructions
This appliance is equipped with a three-prong (grounding)
plug for your protection against shock hazard and should be
plugged directly into a properly grounded three-prong
receptacle.
115v supply must be available. Please note that the heater
requires 15 amps for proper operation. Ensure appropriate
gauge extension cord is used.
• 12/3 AWG at 50 Feet
• 10/3 AWG at 100 Feet

- 5 -
POWER SUPPLY INDICATOR LIGHT:
The power supply indicator light will help detect any faulty power supplied to the
heater such as; grounding issues, reverse polarity or missing/poor connections.
Warning Light Indications
Green Light ……………… Meets Power Requirements
Solid Red Light………….. Reverse Polarity
Solid Red & Green Light… Ground Issue
ATTENTION: IF SOLID RED & GREEN IS INDICATED, MAKE CORRECTIONS
TO POWER SUPPLY BEFORE TURNING HEATER ON. FAILURE TO DO SO
WILL VOID ANY WARRANTY.
FLUE PIPE: Flue pipe connection must terminate with a vertical run at
least 2ft long. Horizontal runs should have a rise ratio of 1 in
10 away from the heater. The chimney should have a 0.2”
W.C. draft to ensure safe operation of the unit.
The vent outlet on the heater is 6” diameter. Certified venting
must be used at all times. Vent cap should be installed in
situations where downdrafts occur. All venting must
correspond with the CSA B149 standard or in its absence,
local codes.
FV SERIES CONSTRUCTION HEATER – VENTING
REQUIREMENTS

- 6 -
HORIZONTAL FLUE RUN - RISE RATIO 1:10
VERTICAL FLUE RUN
D
A
FLUE OUTLET OF HEATER
FLUE OUTLET OF HEATER
C
B
B
EXTERIOR WALL
1. VERTICAL FLUE TERMINATIONS
2. HORIZONTAL FLUE TERMINATIONS
A - VENT TERMINATION MUST BE A MINIMUM OF 2FT HIGHER THAN ANY POINT
WITHIN 10FT.
B - MAXIMUM HORIZONTAL RUN IS 30FT.
NOTE: 90deg ELBOW = 10ft HORIZONTAL VENT ALLOWANCE
45deg ELBOW = 5ft HORIZONTAL VENT ALLOWANCE
C - VENT TERMINATION IN HORIZONTAL POSITION MUST BE MINIMUM 4ft FROM ANY
COMBUSTABLE SURFACE
D - EXTERIOR VERTICAL VENT TERMINATION MUST BE A MINIMUM OF 2ft.
NOTE: ALL VENT TERMINATIONS MUST HAVE A RAIN CAP INSTALLED AS PER
LOCAL CODE REQUIREMENTS.
.

- 7 -
OUTLET DUCTING:
Hitex heater duct with a minimum temperature handling of
300 deg F including wire reinforcement to prevent collapsing.
Heater is designed for use with 1 x 12” (FV-HD12) or 1 x 16”
(FV-HDG16) diameter ducting equipped with pin lock or cuff
& buckle provided on collar of ducting. Ducting should be
inspected periodically for tearing and/or wear marks.
Ducting should be stored in a dry area when not in use.
INLET DUCTING:
Inlet ducting can be used on the return air inlet of heater.
The heater is designed for 12” inlet diameter ducting with pin
lock or cuff and buckle system.
MAINTENANCE:
1. Every construction heater should be inspected before each use, and at
least annually by a qualified service person. Incorrect maintenance my
result in improper operation of the heater and serious injury could
occur.
2. The hose assemblies shall be visually inspected prior to each use of the
heater. If it is evident there is excessive abrasion or wear, or the hose is cut, it
must be replaced prior to the heater being put into operation. The
replacement hose assembly shall be that specified by the manufacturer.
3. The flow of combustion and ventilation air must not be obstructed. Be sure to
check the fan assembly and ensure that the motor and blade are operating
properly.
4. Compressed air should be used to keep components free of dust and dirt
build up. Note: Do not use the compressed air inside any piping or regulator
components.
5. Change fuel filter insert (Part# FVO-418) once per month. Change fuel filter
cartridge (Part# FVO-419) once every 6 months.
6. Change oil nozzle (Part# FV-235B) once per year.
7. Fan Limit Switch (Part# FV-407A) should be replaced if the fan motor does
not shut off after the heat exchanger has cooled down.
8. The High Limit Switch (Part# FV-406) should be checked each season. This
limit switch will ensure the burner shuts down if the temperature exceeds 250º
F at the outlet.
9. Fuel tank should be drained on a regular basis by removing drain plug.
10. CAUTION – Do not have any source of ignition near the heater when
draining tank.
NOTE: No.1 fuel oil or kerosene is recommended for temperatures below

- 8 -
-10º C / 8º F.
11.Heat Exchanger should be cleaned if smokey conditions continue even after
the air adjustments on the burner are made.
START UP INSTRUCTIONS:
1. Position heater properly on a level surface.
2. Be sure the toggle switch in is the “OFF” position.
3. Ensure burner “air gate” is properly set at 3.
4. Ensure electrical cord is grounded and plugged into a 120V 15AMP
outlet. Verify cord size (12/3AWG at 50ft & 10/3AWG at 100ft)
5. The power indicator light on the control box will engage. If the green
light illuminates, you have proper power supply. If not, refer to sticker
on heater to verify warning problem. Correct power supply problem
before operating heater.
6. Move toggle switch to “MANUAL” position for manual control.
7. Move toggle switch to “THERMOSTAT” position for thermostat control.
Thermostat must be plugged into heater first.
Please Note:
1. If using Thermostat on unit, unit must be started in Thermostat position.
2 When changing between manual and thermostat operation, the heater
must be left in the “OFF” position for 30 seconds to prevent the burner
from locking out.
3. When using a generator for electrical supply, make sure the generator
is properly grounded and generator is at a 60Hz frequency.
4. In the event that a Generator is being used and the generator runs out of
fuel, make sure the heater switch is in the “OFF” position before restarting
generator, failure to do so may damage heater.

- 9 -
TO SHUT DOWN:
1. Move toggle switch to “OFF” position. Do not disconnect power supply
until the heat exchanger cools down
NOTE: Fan will continue to operate after the burner shuts down. Once the
unit cools down, the fan will stop.
IF HEATER FAILS TO START:
1. Press manual reset button at rear of burner.
2. Check fuel level. There must be 2-4 gallons of fuel in the tank for the
heater to start properly.
3. Make sure there are no air locks in fuel lines or filter.
4. Ensure proper power supply and extension cord is being used.
5. Check for dirty fuel filter or blocked fuel supply line.
6. Check burner nozzle assembly.
NOTE: IF THE BURNER HAS BEEN RESET SEVERAL TIMES THERE
MAY BE AN ACCUMULATION OF OIL IN THE CHAMBER! DO NOT
CONTINUE TO TRY AND START THE HEATER!
DRAIN OIL FROM HEAT EXCHANGER USING DRAIN HOLE AT FRONT
OF HEAT EXCHANGER FOR 15-20 MINUTES BEFORE ATTEMPTING TO
RELIGHT. LET REMAINING EXCESS OIL BURN OFF BEFORE
CHECKING COMBUSTION OF UNIT.

- 10 -
SAFE OPERATION PRECAUTIONS:
1. Do not fill fuel tank while heater is operation.
2. Do not attempt to start heater if excess oil remains in the heat
exchanger.
3. Use switch to shut down the heater. Do not try to shut down the heater
by unplugging the electrical cord.
4. Do not plug anything other than the thermostat into the “Thermostat”
plug.
5. Do not use any fuel other that those listed on rating plate.
6. Follow electrical requirements shown on rating plate and/or Electrical
requirements section of this manual.
7. Before removing any guards or performing any maintenance, be sure
that the main power supply is disconnected.
COMBUSTION AIR ADJUSTMENTS:
NOTE: Proper combustion air adjustment must be achieved using a
certified combustion analyzer and smoke tester to ensure complete
combustion.
The air adjustment should be made to achieve 10% CO
2
and No. 1 or “trace”
smoke. (Bacharach Scale)

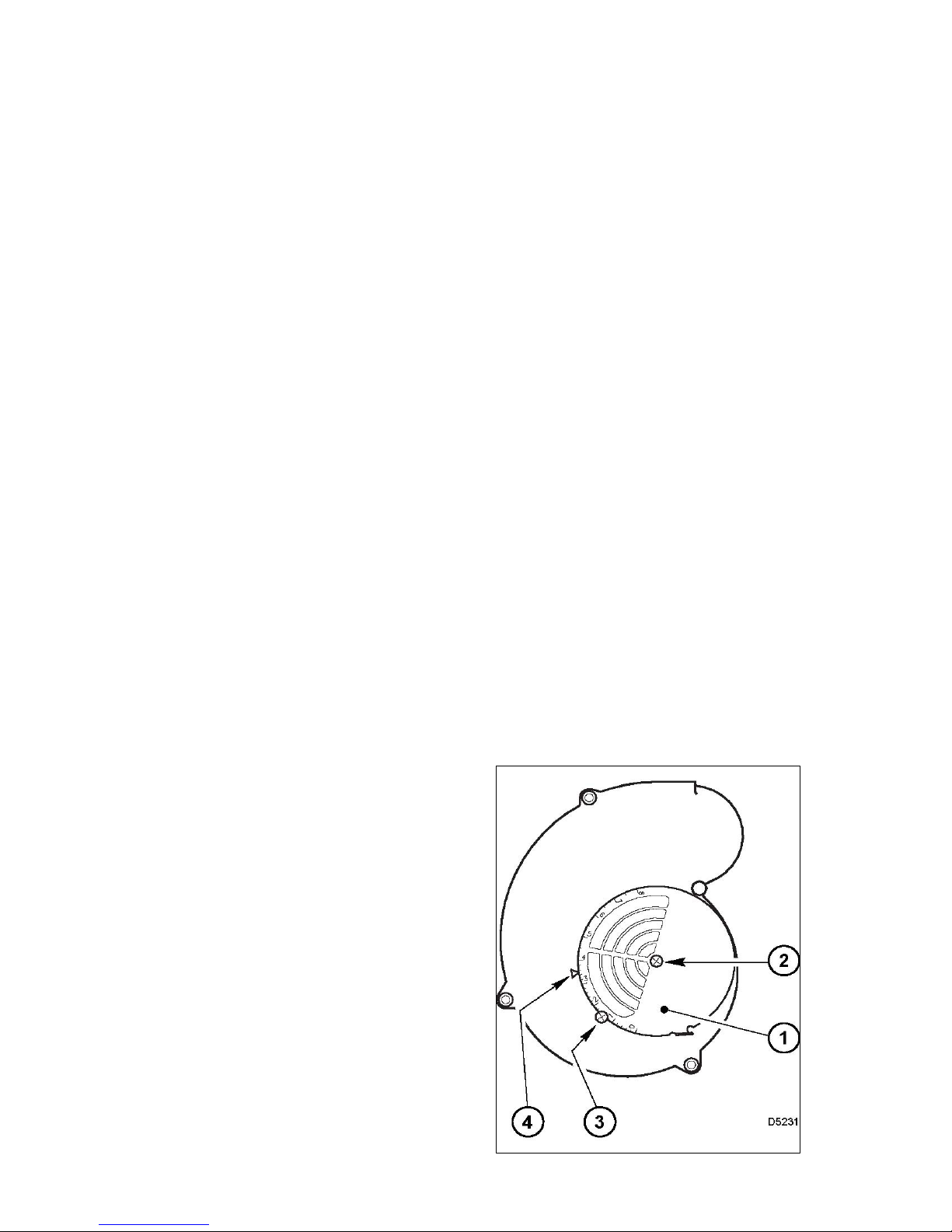

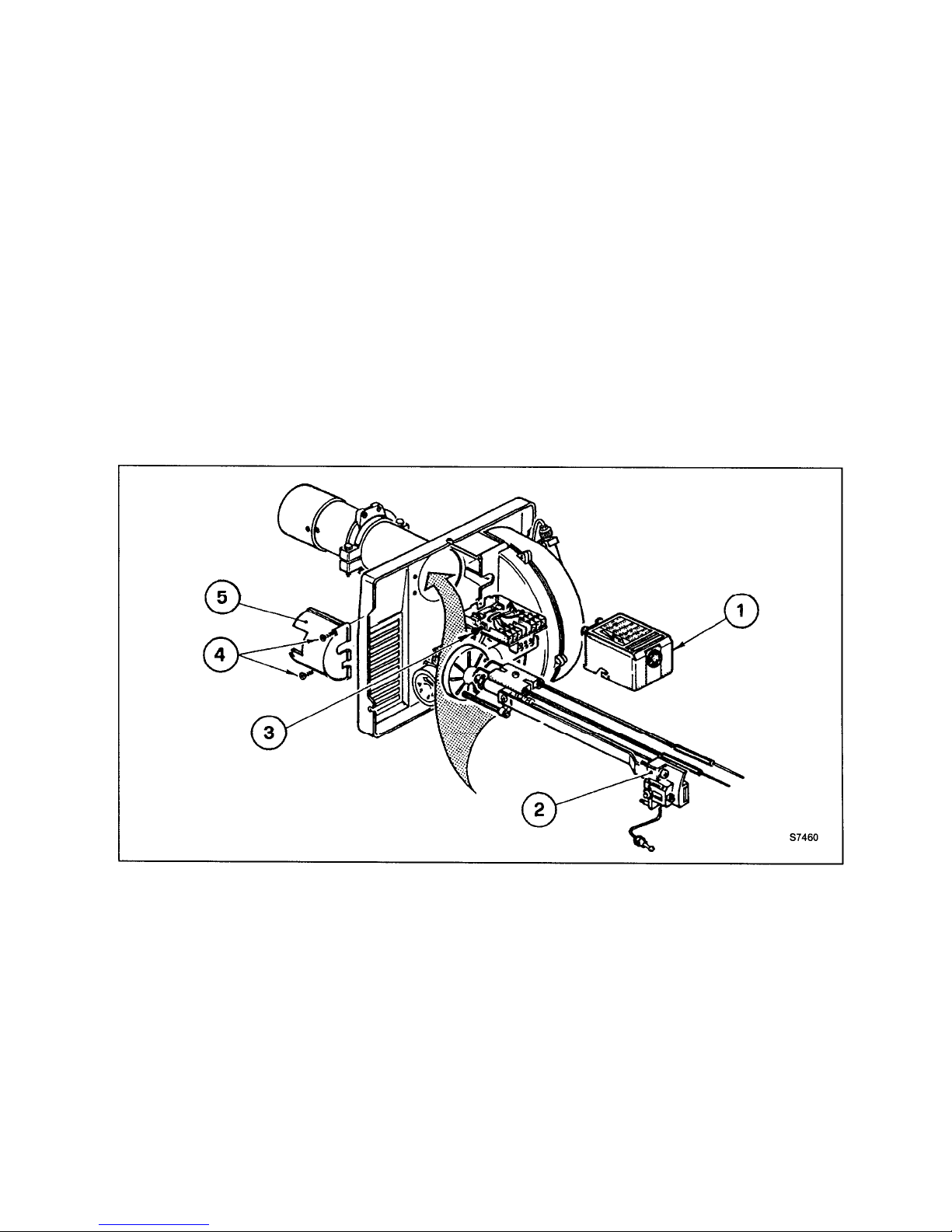

SETTING THE AIR
ADJUSTMENT PLATE
A) Regulation of the combustion air
flow is made by adjustment of the
manual AIR ADJUSTMENT PLATE (1)
after loosening the FIXING SCREWS
(2 & 3). The initial setting of the air
adjustment plate should be made
according to Column 5 in the Burner
Set-up Chart.
B) The proper number on the manual
AIR ADJUSTMENT PLATE (1) should
line up with the SETTING INDICATOR

- 11 -
(4) on the fan housing cover. Once set, the air adjustment plate should be
secured in place by tightening SCREWS 2 and 3.
C) The final position of the air adjustment plate will vary on each installation.
Use instruments to establish the proper settings for maximum CO
2
and a
smoke reading of zero.
NOTE: Variations in flue gas, smoke, CO
2
and temperature readings may be
experienced when the burner cover is put in place. Therefore, the burner
cover must be in place when making the final combustion instrument readings,
to ensure proper test results.
BURNER SET-UP CHART
1 2 3 4 5
ACTUAL
FIRING RATE
± 5%
NOZZLE
SIZE PUMP PRESSURE TURBULATOR
SETTING
AIR
DAMPER
SETTING
GPH GPH PSI BAR
1.30 1.10 x 70°A 180 12.41 3 3.5
* Note – Air damper setting is typically set at 3.5 for operation in colder
temperatures. A combustion analyzer should always be used when setting
the burner.

- 12 -
TEMPERATURE FEELER GAUGE ADJUSTMENT
(ATTACHED TO FAN SWITCH)
The temperature feeler gauge is required to be always touching the heater
exchanger.
The temperature feeler gauge controls the air flow over the fan switch, which
eliminates any unnecessary fan cycling. The temperature feeler gauge can be
adjusted for different outside temperatures, by rotating the location of the
temperature feeler gauge holes. This will provide maximum performance of the
unit in different applications.
If supply air is warm (-5º C, indoor application):
Turn the temperature feeler gauge so that the holes are parallel with the heat
exchanger. This will help the fan switch to remain cool and not overheat. See
following:
If supply air is cold (under -5ºC):
Turn the temperature feeler gauge so that the holes are closed off as the air goes
over the heat exchanger. This will reduce fan cycling and the unit from shutting
down. See following:
In extreme cold conditions, cover the holes on the temperature feeler gauge
using foil tape or replace feller gauge with part# FV-433B Solid feeler gauge.
Ensure that the temperature feeler gauge is readjusted for warmer weather
conditions. Failure to do so may result in burning out fan switches- not covered
under warranty.

- 13 -
WARNING: DO NOT activate burner until proper oil line connections have
been made, or failure of the pump shaft seal may occur.

- 14 -

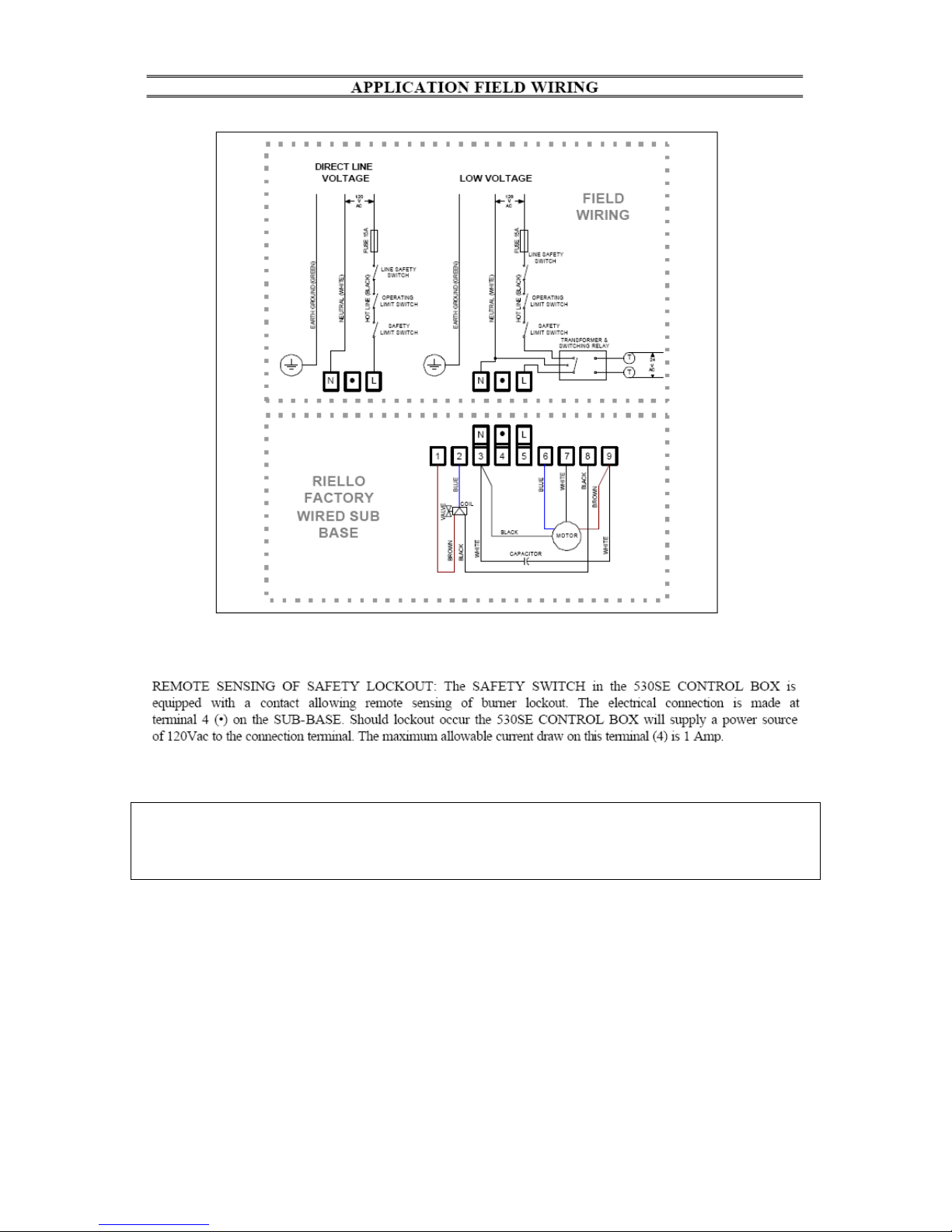

WARNING: If a neutral or ground lead is attached to this terminal, the
CONTROL BOX on the burner will be damaged should lockout
occur.

- 15 -
INSERTION / REMOVAL OF DRAWER ASSEMBLY
A) To remove drawer assembly, loosen SCREW (3), then unplug CONTROL
BOX (1) by carefully pulling it back and then up.
B) Remove the AIR TUBE COVER PLATE (5) by loosening the two retaining
SCREWS (4).
C) Loosen SCREW (2), and then slide the complete drawer assembly out of the
combustion head as shown.
D) To insert drawer assembly, reverse the procedure in items A to C above, and
then attach fuel line to the pump.

- 16 -
NOZZLE PLACEMENT
A) Remove the NOZZLE ADAPTER (2) from the DRAWER ASSEMBLY by
loosening the SCREW (1).
B) Insert the proper NOZZLE into the NOZZLE ADAPTER and tighten securely
(Do not over tighten).
C) Replace adapter, with nozzle installed, into drawer assembly and secure with
screw (1).
ELECTRODE SETTING

- 17 -
TURBULATOR SETTING
A) Loosen NUT (1), then turn SCREW (2) until the INDEX MARKER (3) is aligned
with the correct index number as per the Burner Set-up chart, on page 12.
B) Retighten the RETAINING NUT (1)
NOTE: Zero and five are scale indicators only. From left to right, the first line is
5 and the last line 0.
OIL LINE CONNECTIONS
Note: Pump pressure must be set at time of burner start-up. A pressure gauge is
attached to the PRESSURE PORT (8) for pressure readings. Two PIPE
CONNECTORS (5) are supplied with the burner for connection to either a single or a
two-pipe system. Also supplied are two ADAPTORS (3), two female 1/4” NPT, to adapt
oil lines to burner pipe connectors. All pump port threads are British Parallel Thread
design. Direct connection of NPT threads to the pump will damage the pump body.
Riello manometers and vacuum gauges do not require any adaptors, and can be safely
connected to the pump ports. An NPT (metric) adapter must be used when connecting
other gauge models.

FAN SWITCH
TITLE: DWG. NO.
REMOTE
THERMOSTAT
FAN MOTOR
FV-200 - WIRING SCHEMATIC FV-200 WS 2011
FV-200 SERIES - WIRING SCHEMATIC 2011
FLAGRO INDUSTRIES LIMITED
SWITCH
BURNER
REAR HIGH
LIMIT SWITCH
FRONT HIGH
LIMIT SWITCH
L1
N
G
G
XRED
LIGHT
POWER INDICATOR
115 VAC
T1
T4
T3
G
G

PARTS LIST FOR FVO-200RC
Part Number Part Description
FV-201 1/2 HP Fan Motor
FV-202RC 14" BC Impeller
FV-202RCA 14" BC Impeller Venturi
FV-203A 12" Wheel FLAT FREE
FV-204 12" Power Cord c/w Plug End
FV-205 SS Heat Exchanger
40-113-D3.5GALV 1/2" X 3.5" Galvanized Nipple
40-108-8GALV 1/2" Galvanized Cap
FVO-2FRC Heater Frame
FV-2P01RC Top Body Panel
FV-2P02 Bottom Body Panel
FV-2P04RC Rear Burner Mount Panel
FV-2P05RC Motor Mount Bracket
FV-208RC Recirculating Hood
FV-208IFP Canopy Inner Faceplate
FV-208IR Canopy inlet Ring
FV-2P08RC Control Box
FV-2P09RC Control Box Lid
FV-406 High Limit Switch (Outet) 250F
FV-407A Fan Limit Switch (Adjustable)
FV-407G Fan Limit Silicone Gasket
FV-207 Lockable Caster Wheel
FV-208RC Recirculating Fan Motor Canopy
FV-409 Toggle Switch (on control box)
FV-411 Red Light (on control box)
FV-414B Thermostat Plug (on box control)
FV-415A Male Connector for FV-THB
FVO-215 Riello F5 Burner (Oil)
FVO-216A 23 US Gallon Oil Tank
FVO-216G Fuel Gauge
FVO-417 Oil Tank Cap
121-B Oil Tank Drain Plug

FVO-418 Fuel Filter (Complete)
FVO-419 Fuel Filter (insert Only)
FVO-220 Clear Fuel Line 6" (Tank to Filter)
FVO-221 Clear Fuel Line 7.5" (Filter to Burner)
FVO-222 Clear Fuel Return Line (Burner to Tank)
48-6B Brass Fitting (Tank to inlet Fuel Line)
48-6C Brass Fitting (Inlet Side of Filter)
2103-C-CGA 3/8" Shut Off Valve
122-C 3/8" Brass Hex Nipple
50-6C 3/8" FP X 3/8" MP Brass Elbow
49-6C 3/8" MP X 3/8" F.FL Brass Elbow
FV-461 Inlet/Outlet Burner Pump Fitting
FVO-223 7" Copper Pick Up Tube c/w Adapter
FV-231 Burner Gasket
FV-433 Feeler Gauge
FV-234CB12 Front Face Plate (1 x 12")
FV-234CB16 Front Face Plate (1 x 16")
FV-235B Oil Burner Nozzle (1.10 x 70A)
FV-437 High Limit (Rear) 150F
FV-240 Wheel Axle
FV-446 Sight Glass c/w Fiber Gasket
FV-447 Sight Glass Washer
FV-450SI Power Indicator Light
ACCESSORIES
FV-HD12 12" x 12FT HiTex Vinyl Ducting
FV-HD12X25 12" x 25FT HiTex Vinyl Ducting
FV-HDG16 16" x 25FT HiTex Vinyl Ducting
FV-THB Thermostat c/w 25 FT Cord
FV-THB (15M) Thermostat c/w 50 FT Cord
FV-VK 6" x 3FT C-Vent c/w Rain Cap
