Unpacking and assembly
Contents of the box
The assembly of your Flebi Swan 24" is very
easy and fast!
Flebi Swan 24" is powered by a 36V / 250W
motor and has a top speed of 25 km/h.
-Take your Swan 24" out of the box
-Remove the guards
-Unfold the bike
-Insert the handlebar assembly
-Fit the seat post to the frame
Check the contents of the box:
-Flebi Swan 24" bike with battery integrated in
the frame
-Battery charger
1Video: https://youtu.be/_jXV-JIlNy4

Unpacking and assembly
Introduction of the handlebar
assembly
To install the handlebar and telescopic
seatpost assembly that allows you to
adjust the height, you must insert it into
the stem before placing it in its natural
position, following the guides that you
will find.
Check that the cables go down cleanly
and remember to tighten the locking key
firmly.
2Video: https://youtu.be/i_O8EZp8d0M

Unpacking and assembly
Packed in original box
If you need to repack your bike in its
original box to send it to Flebi service,
we recommend that you follow the
steps below:
- Cover the parts with protection
- Remove the seat post
- Remove the handlebar assembly
- Fold the bike
- Put it in the box
- Place the cork fixing the front wheel
- Place the pedal on a guard
- Place the front folding lever inwards
- Insert the rest of the accessories and
seal the box.
3Video: https://youtu.be/_jXV-JIlNy4

Start-up
Handlebar adjustment
You can adjust the height of the
handlebars to suit your height. To do
this, open the telescopic lock and place
the seat post in the desired position,
taking care not to exceed the safety
mark. Then tighten the lock firmly so
that it does not move.
You can also use this same adjustment
to correct slight deviations in the
direction of the bike. Open the lock, turn
the handlebars to the left or right to find
the correct alignment, and retighten the
lock.
4Video: https://youtu.be/_jXV-JIlNy4

Start-up
Saddle adjustment
You can also adjust the saddle height to
suit your height. To adjust the hardness
you must tighten the thread according
to your taste. Make sure it is not too
loose or the seat post will move.
To change the angle of the saddle, you
can use a number 13 spanner to set the
saddle angle. Remember to tighten it
well.
5Video: https://youtu.be/_jXV-JIlNy4

Start-up
Brake adjustment
CAUTION: The brakes on all Flebi bikes are fully
adjusted at the factory and no adjustment is
necessary unless they become loose with use.
If you need to adjust the brake calipers on your
Flebi Swan 24", you have two types of
adjustment: for brake force and alignment.
To adjust the force, the pad on the outer face is
adjusted by cable tension. For the inner side,
you have to access from the opposite side to
bring the pad closer.
Ideally, this should be done a little at a time, to
test if it brakes cleanly.
6Video: https://youtu.be/11USSkCEYho

Start-up

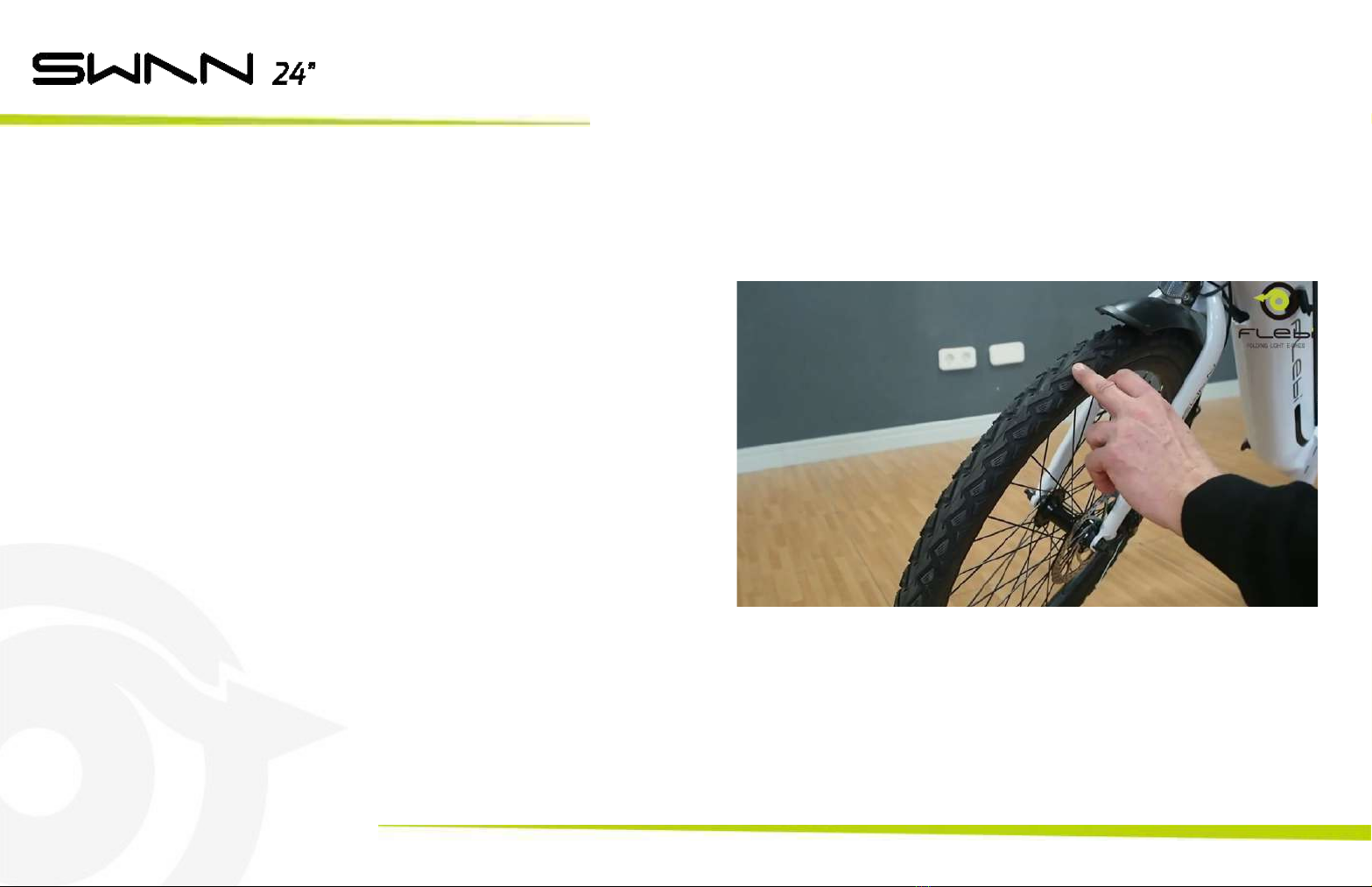

Tyre inflation
To check the amount of air in the tyres,
remember that the Swan 24" carries
between 2.5 and 4.8 bar of pressure, so
it is advisable to use an inflator with a
pressure gauge.
The pressure will vary depending on the
terrain you are riding on.
7Video: https://youtu.be/KiF1wsHKZIc

Electrical operation
Recharging the battery
The battery of Swan 24" is inside the
frame but can be removed from the
frame for convenient charging.
The charging point is located on the left
side of the frame, under a rubber cover
that must be removed to access the
connector.
The LED light on the charger will turn
red indicating that it is charging, until it is
fully charged (about 4 hours), when it
will turn green, indicating that you can
disconnect.
8Video: https://youtu.be/JQFv-0pWaec

Electrical operation

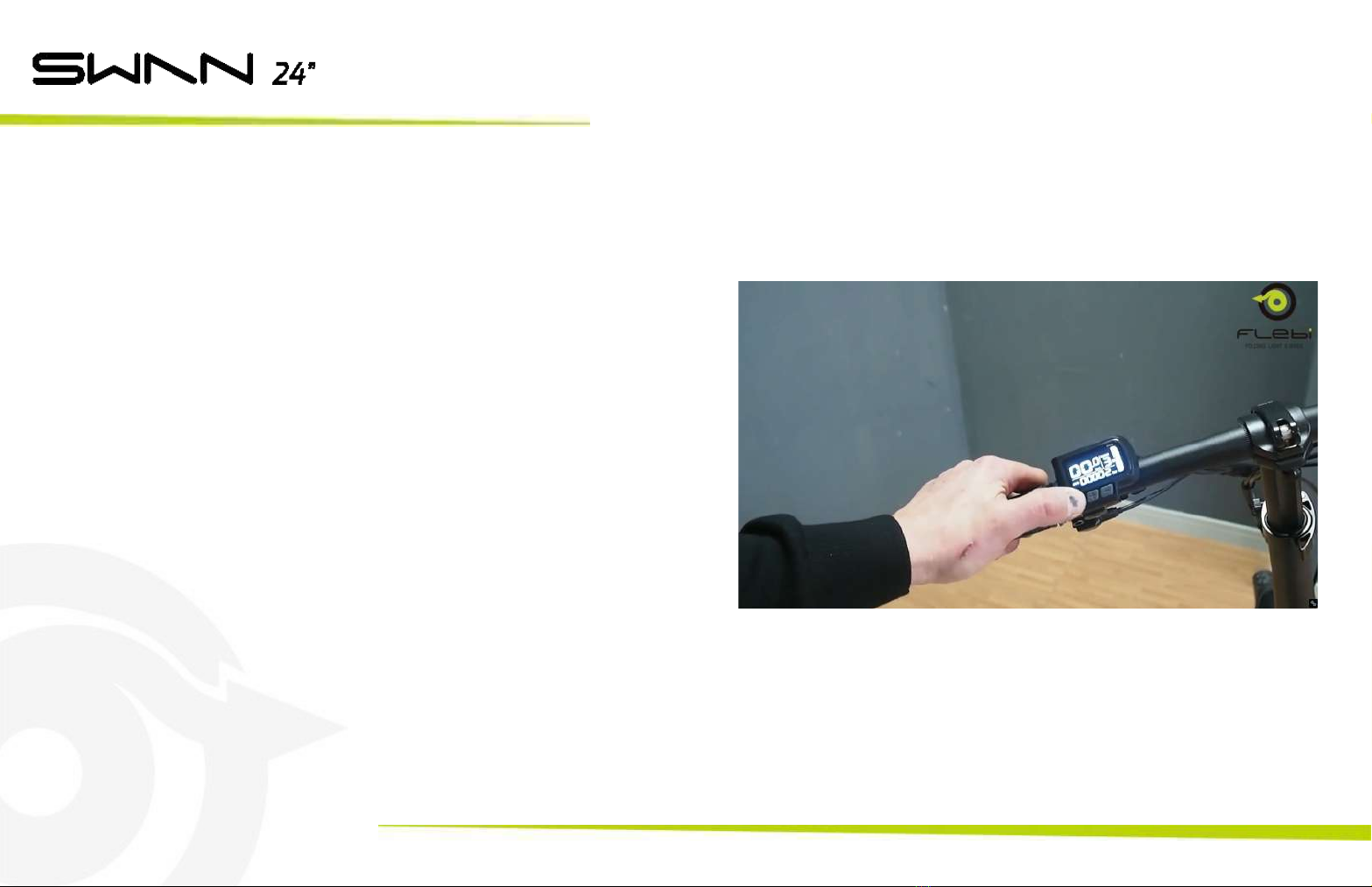

Operation of the EN067
display
The EN067 display is operated by pressing the
power button on the bottom left of the display.
Right next to it are the + and - buttons to increase
or decrease the assistance level. When switched on,
the display shows the km/h, the assistance levels
and the remaining battery.
At level 0 you will not enjoy any pedal assistance
and at level 5 the assistance will be the highest.
To activate the electric assistance, all you have to do
is pedal and the motor will assist you with the
selected level of assistance (use the +/- buttons to
move between them).
9
Video: https://youtu.be/sgSIRXfkIzU

Folded & unfolded

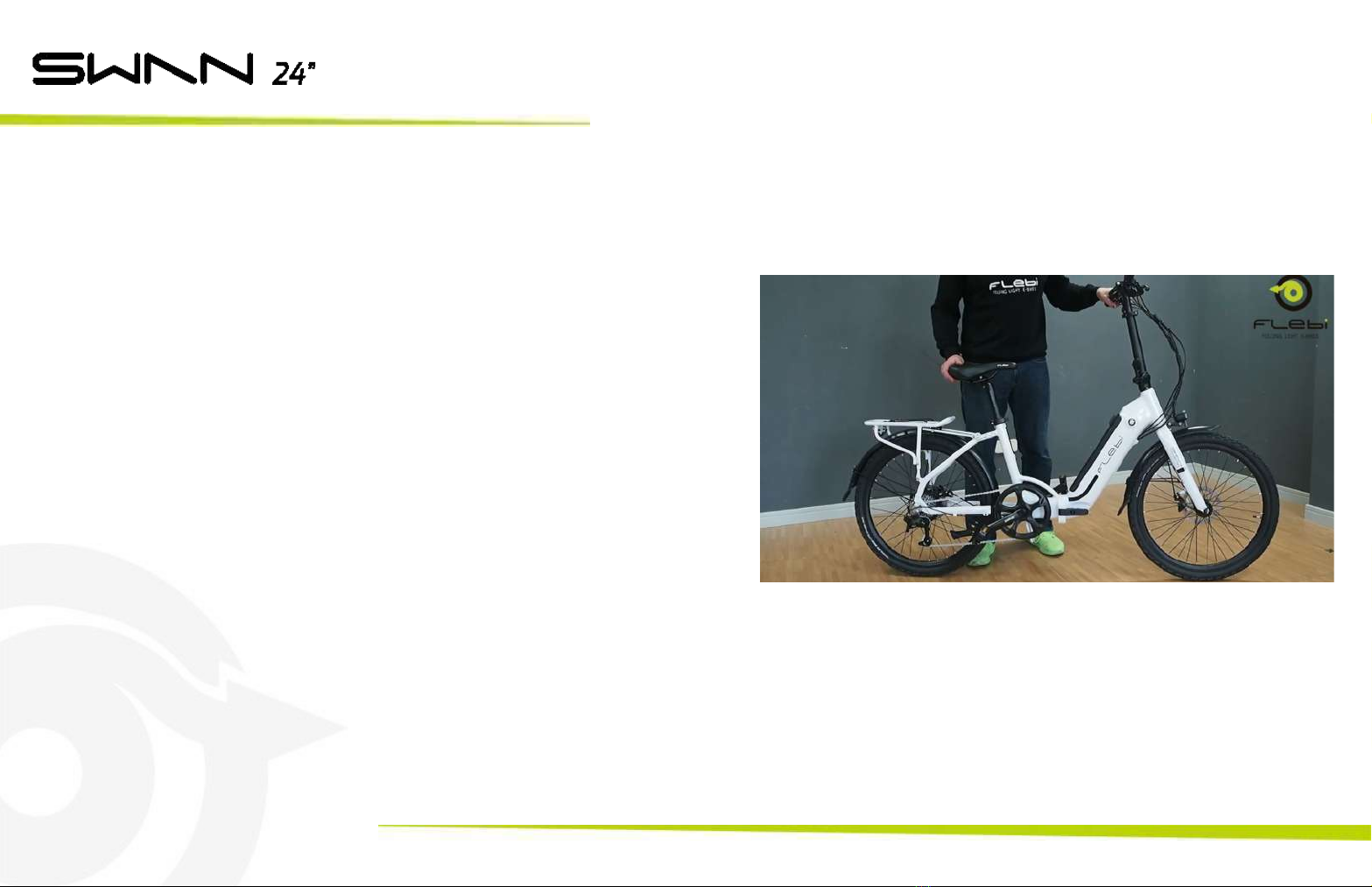

Unfolding the ebike
The steps to unfold your Flebi Swan 24"
are very simple:
- Lift the bike and unfold the frame,
tighten the central lock and place
the lock.
- Unfold the pedals
- Lift the stem off the handlebars,
close the folding lever and insert
the safety catch
10
Video: https://youtu.be/i_O8EZp8d0M

Folded & unfolded

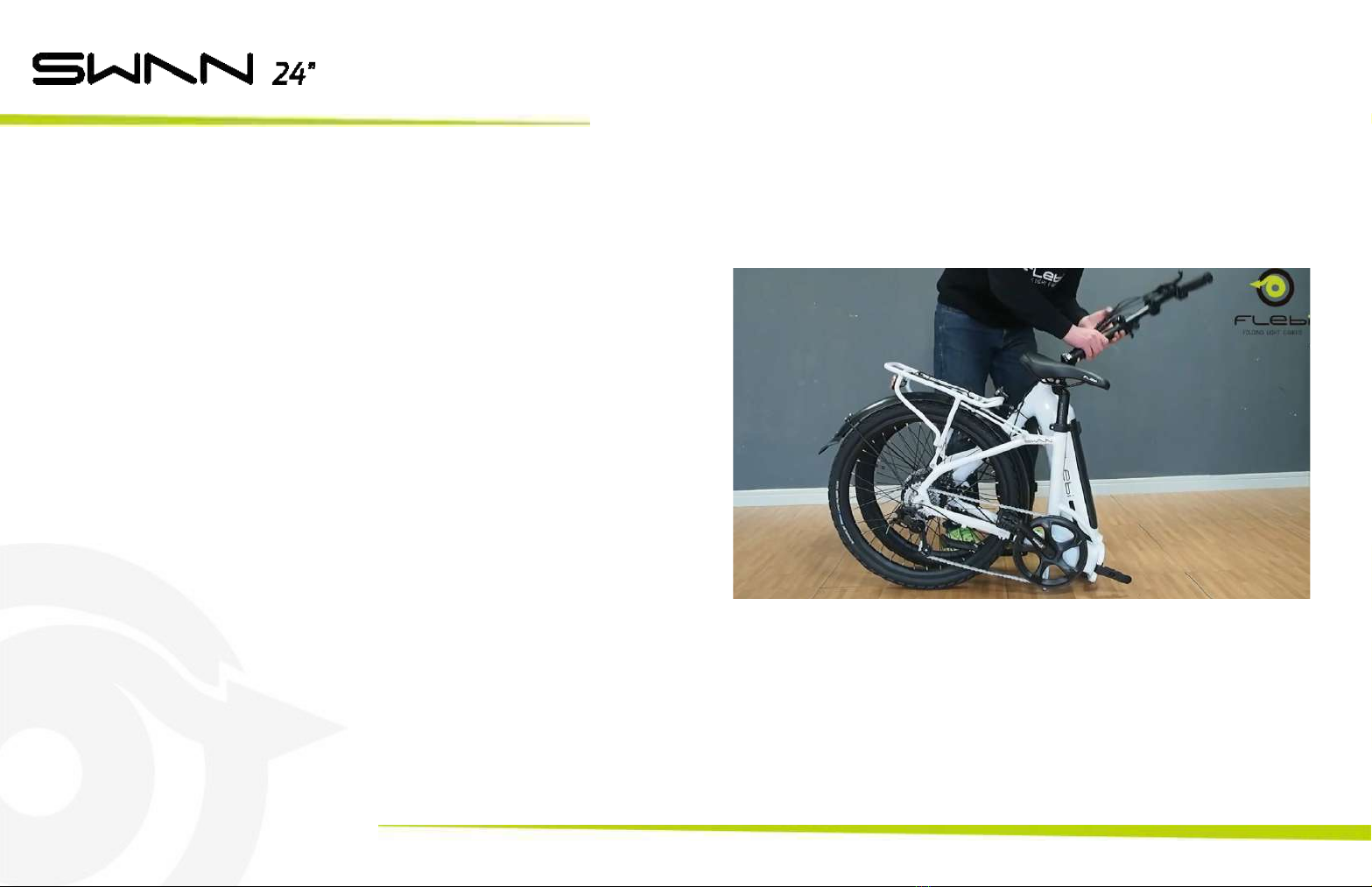

Folding the ebike
The steps to fold your Flebi Swan 24"
are very simple:
- Lower the handlebars
- Release the central locking
mechanism of the frame
- Fold the pedals
- Open the frame and bring it to the
folded position
- The bike rests on the lower stand
11
Video: https://youtu.be/i_O8EZp8d0M

Folded & unfolded

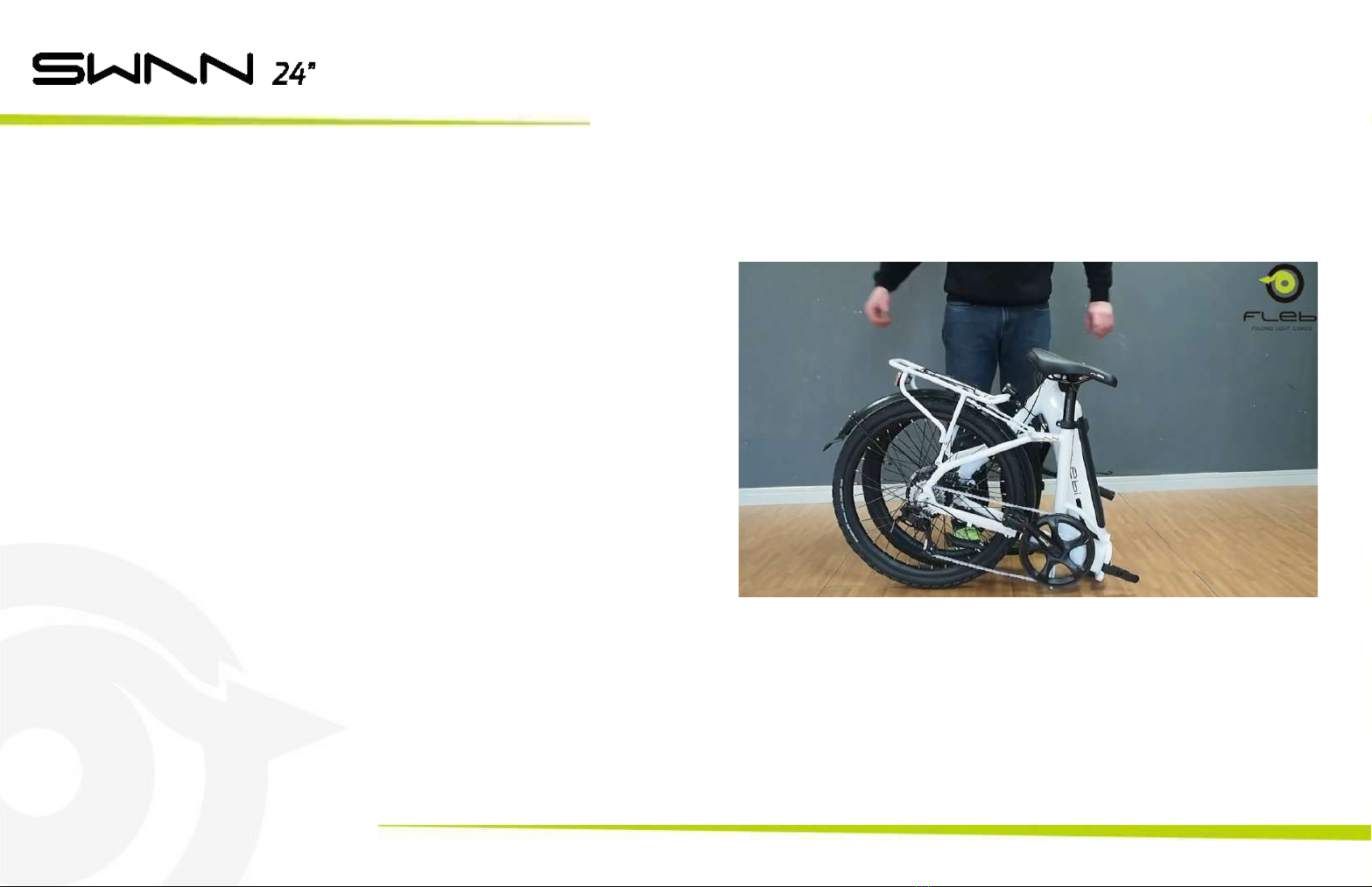

Opening and closing the frame
To open or close the frame, you only
have to remove the lock in the central
part in case of opening and put it on in
case of closing.
12
Video: https://youtu.be/i_O8EZp8d0M

Folded & unfolded
Folding and unfolding the
pedals
Install the pedals of your Flebi Swan 24"
very easily with this tutorial.
To fold or unfold each pedal you must
press the knob outwards and, at the
same time, fold the pedal inwards
(folded) or outwards (unfolded) until you
feel the lock.
13
Video: https://youtu.be/IsalYDifBJE

Folded & unfolded
Handlebar folding mechanism
First of all, make sure that the cables are
not tangled or too tight due to the set
handlebar height.
You can adjust the height and inclination
of the handlebars. The bike has an
indicator on the inside of the handlebars
to show the maximum height. In
addition, you can tilt the handlebars and
grips for your comfort.
14
Video: https://youtu.be/27OIr0BbbJw
