FlexiForce force60BS Maintenance and service guide

FF-MANUAL force60BS/1
manual
industrial sectional door
operator.
INSTALLATION / MAINTENANCE
© All rights reserved. FlexiForce®, 2011
force60BS
Multilanguage
www.flexiforce.com
force60BS.indd 1 11-01-11 11:09
GB
FR
IT
ES

FF-MANUAL force60BS/1
manual
industrial sectional door
operator.
INSTALLATION / MAINTENANCE
© All rights reserved. FlexiForce®, 2011
force60BS
GB
www.flexiforce.com
force60BS.indd 1 11-01-11 11:09

FF-MANUAL force60BS/2
manual
ATTENTION! GENERAL WARNINGS!
To install, use and maintain this operator safely, a number of precautions
must be taken. For the safety of all concerned pay heed to the warnings and
instructions given below! If in doubt, contact your supplier.
99This manual has been written for use by experienced fitters and as such is not suitable for d.i.y. purposes or for
use by trainee fitters.
99This manual describes the installation of the electrical operator. Be sure to supplement this manual if needed
with instructions for any additional components not described in this manual.
99Before starting, read this manual carefully!
99Certain components may be sharp or have jagged edges. As such you are advised to wear safety gloves.
99All the components which have been supplied are designed for use with this specific electrical operator.
Replacement or adding additional components may have an adverse effect on the safety of, and the guarantee
on, the electrical operator. Also the CE-approval which has been granted to this electrical operator will be
cancelled when components are changed or installation is not done according to this manual! Installer is
responsible for this.
99During tensioning, springs can exert large forces. Work carefully. Use the proper equipment. Ensure that you
are standing in a steady position.
99Ensure that there is sufficient light during installation. Remove obstacles and dirt. Make sure that there is no
one else present other than the fitters. Other people (children!) may get in the way or endanger themselves
during the installation.
WARRANTY, TERMS & CONDITIONS
The general terms and conditions of delivery and payment issued by the Metaalunie and designated as
METAALUNIE CONDITIONS are fully applicable to all our quotations, contracts and their implementation. We
expressly reject all other terms and conditions. On request we will send you a copy of these terms and conditions
free of charge. A copy may also be downloaded from our website www.flexiforce.nl.
CONTACT
FlexiForce Group B.V., P.O. Box 37, 3770 AA Barneveld, The Netherlands
Tel. [phone], info@flexiforce.nl
GB
www.flexiforce.com
force60BS.indd 2 11-01-11 11:09

FF-MANUAL force60BS/3
FF
manualGB
CONTENT OF PACKAGING
4x
4x
1x1x
1x
1x
1x
1x 2x
1x
1x
TOOLS REQUIRED FOR CORRECT AND RAPID ASSEMBLY
Bit 4.0 mm
Bit 4.5 mm
Bit 6.5 mm
(-)
(+)
8 mm
13 mm
13 mm
www.flexiforce.com
force60BS.indd 3 11-01-11 11:09

FF-MANUAL force60BS/4
Fig. 1 Fig. 2
Fig. 4
Fig. 5
Fig. 3
Fig. 2
min. 130
1
2
4
6.35 (1/4")
6.35
(1/4")
9.5
(3/8")
3
manual

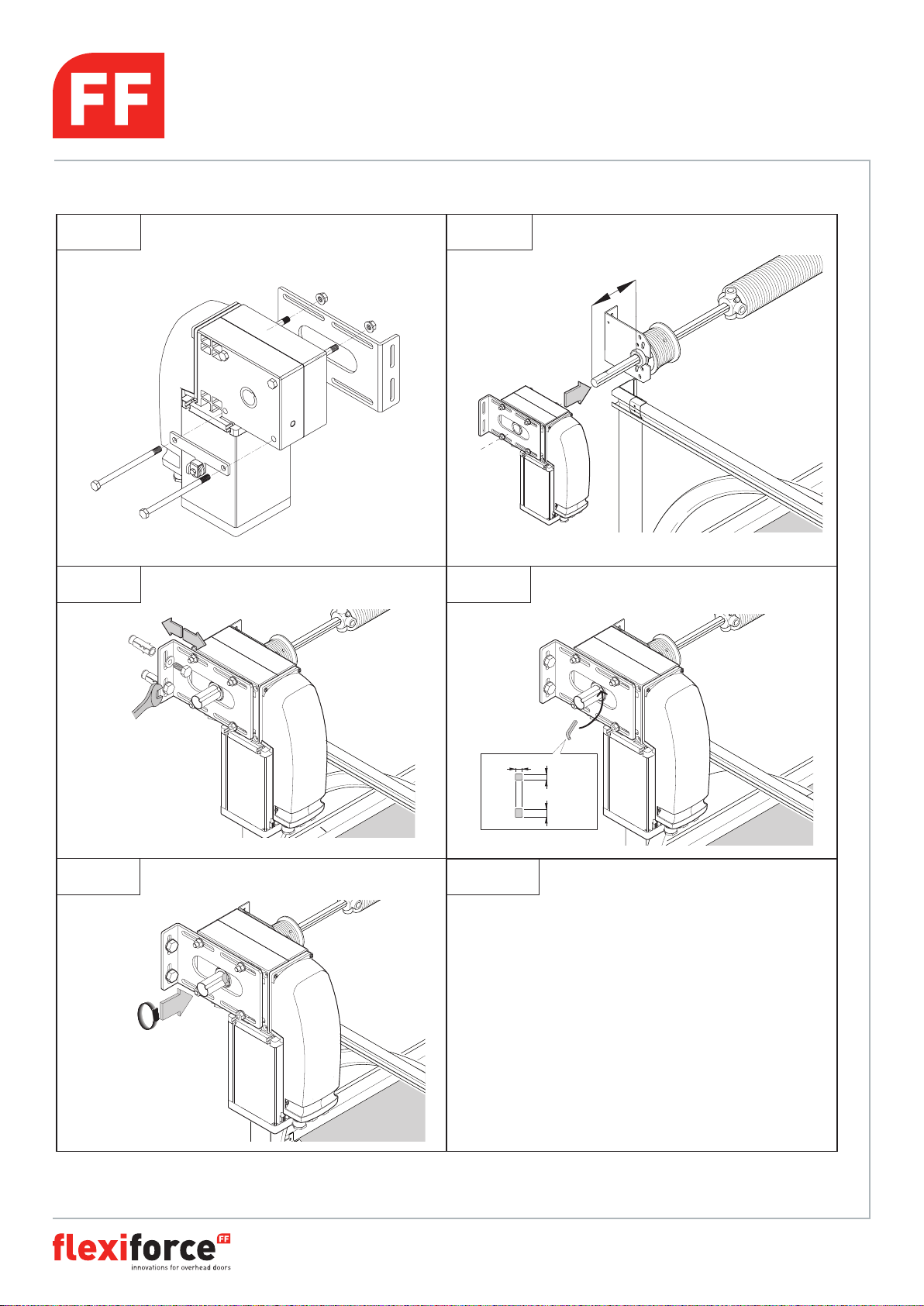

ASSEMBLY OPERATOR
Remarks:
www.flexiforce.com
force60BS.indd 4 11-01-11 11:09

HOLD TO
UNLOCK
2
Fig. 6 Fig. 7
Fig. 9
Fig. 8
VIA MONS. BANFI,3
21042 CARONNO P.LLA (VA)
ITALY
TEL.[phone] FAX.[phone]
DITEC S.p.A.
DOOR TYPE
YEAR OF MANUFACTURE
VOLTAGE SUPPL
Y
SERIAL NUMBER
Made in Italy
00000
00000000000
0000
000V
VIA MONS. BANFI,3
21042 CARONNO P.LLA (VA)
ITALY
TEL.[phone] FAX.[phone]
DITEC S.p.A.
DOOR TYPE
YEAR OF MANUFACTURE
VOLTAGE SUPPL
Y
SERIAL NUMBER
Made in Italy
00000
00000000000
0000
000V
UNLOCK
1
Fig. 10
FF
FF
B
B
C
C
A
A
A
C
manual
FF-MANUAL force60BS/5
ASSEMBLY RELEASE
LIMIT SWITCH ADJUSTMENT
www.flexiforce.com
force60BS.indd 5 11-01-11 11:09

FF
manual
FF-MANUAL force60BS/6
WIRING
V
W
U
A
C
M
1 ~
-
~
~
+
B
0
1
12 11
L N
W
2
10 m (4x1,5 mm²)
1,5 m (3x1,5 mm²)
230 V~
50 Hz
Opening limit switch
Additional switch
Black
Brown
Grey
Brake
com
Yellow/Green
Closing limit switch
12
11
12B
11B
Note: With the provided push button the control
panel isn’t necessary.
www.flexiforce.com
force60BS.indd 6 11-01-11 11:09

manual
FF-MANUAL force60BS/7
DIMENSIONS
Travel control system Mechanical rotary limit switch
Control type HOLD-TO-RUN only
Duty class 4-heavy
Duty cycles S2=30 min / S3=50%
Power supply 230V~/50Hz
Insulation class class 1
Input 3A
Torque 60Nm
Drive shaft RPM 22 RPM
Release system By cable
Operating temperature -20˚C/ +55˚C / (-35˚C/ +55˚C with NIO enabled)
Protection class IP 54
MAIN FEATURES
www.flexiforce.com
force60BS.indd 7 11-01-11 11:09

Power is not all that is needed
to operate your doors…..
Operators for overhead doors can be bought from anyone at any quality and any
price. However, we believe that the key in being successful in selling operators with
your doors, is in the ultimate combination of a good product, a good price, from
local warehouses, with very good after sales back up. If you add to this combination
the “one-stop-shop: operators + hardware”, you will agree with us that FlexiForce
offers you the best solution for your operator business. Challenge us for becoming
your supplier!
I: www.flexiforce.com E: info@flexiforce.nl
force60BS.indd 8 11-01-11 11:09

FF-MANUAL force60BS/1
manual
Opérateur pour des portes
sectionaux industrielles.
POSE/ENTRETIEN
© Tous droits reservés. FlexiForce®, 2011
force60BS
FR
www.flexiforce.com

FF-MANUAL force60BS/2
manual
ATTENTION ! AVERTISSEMENTS GENERAUX !
Plusieurs mesures de précaution doivent être prises pour assurer un
montage, une utilisation et une maintenance en toute sécurité de cet
automatisme de porte. Pour la sécurité de tous, tenez compte des indications
et avertissements suivants ! En cas de doute, n’hésitez pas à prendre contact
avec votre fournisseur.
99Ce manuel est destiné à des professionnels expérimentés et ne convient dès lors pas aux “bricoleurs” ou aux
apprentis monteurs.
99Ce manuel porte uniquement sur le montage de l’opérateur électrique. Veillez à le compléter par les
instructions relatives aux autres composants qui ne sont pas décrits dans ce manuel.
99Lisez ce manuel attentivement avant de procéder au montage.
99Certains composants peuvent être pointus ou coupants. Veillez donc à porter des gants de sécurité.
99Tous les éléments livrés sont calculés pour cet automatisme spécifique. Le remplacement ou l’ajout
d’autres éléments peut avoir des conséquences négatives sur la sécurité et sur la garantie du moteur. Dès
lors, l’approbation CE qui a été octroyée à ce moteur sera annulée si des composants sont modifiés ou si
l’installation n’est pas réalisée conformément à ce manuel ! L’installateur en porte la responsabilité.
99Veillez à éclairer suffisamment le lieu du montage. Eliminez tous les obstacles éventuels ainsi que la saleté.
Veillez à ce qu’aucune autre personne que les monteurs ne soit présente. Les personnes non autorisées (les
enfants !) peuvent être dans le chemin ou risquent de se blesser durant le montage.
GARANTIE ET CONDITIONS
Toutes nos offres et conventions ainsi que leur exécution sont entièrement régies par nos conditions générales de
livraison et de paiement publiées par Metaalunie et désignées sous le terme CONDITIONS METAALUNIE. Toutes les
autres conditions sont explicitement rejetées. Nous pouvons vous envoyer une copie de ces conditions sur simple
demande de votre part. Contactez-nous. Il est également possible de les télécharger depuis notre site web www.
flexiforce.com
CONTACT
FlexiForce Group B.V., P.O. Box 37, 3770 AA Barneveld, The Netherlands
Tel. [phone], info@flexiforce.nl
FR
www.flexiforce.com

FF-MANUAL force60BS/3
FF
manualFR
CONTIENT D’EMBALLAGE
4x
4x
1x1x
1x
1x
1x
1x 2x
1x
1x
OUTILS NECESSAIRE POUR UNE POSE CORRECTE ET RAPIDE
Tournevis 4.0 mm
Tournevis 4.5 mm
Tournevis 6.5 mm
(-)
(+)
8 mm
13 mm
13 mm
www.flexiforce.com

FF-MANUAL force60BS/4
Fig. 1 Fig. 2
Fig. 4
Fig. 5
Fig. 3
Fig. 2
min. 130
1
2
4
6.35 (1/4")
6.35
(1/4")
9.5
(3/8")
3
manual
ASSEMBLAGE DU MOTEUR
Notes:
www.flexiforce.com

HOLD TO
UNLOCK
2
Fig. 6 Fig. 7
Fig. 9
Fig. 8
VIA MONS. BANFI,3
21042 CARONNO P.LLA (VA)
ITALY
TEL.[phone] FAX.[phone]
DITEC S.p.A.
DOOR TYPE
YEAR OF MANUFACTURE
VOLTAGE SUPPL
Y
SERIAL NUMBER
Made in Italy
00000
00000000000
0000
000V
VIA MONS. BANFI,3
21042 CARONNO P.LLA (VA)
ITALY
TEL.[phone] FAX.[phone]
DITEC S.p.A.
DOOR TYPE
YEAR OF MANUFACTURE
VOLTAGE SUPPL
Y
SERIAL NUMBER
Made in Italy
00000
00000000000
0000
000V
UNLOCK
1
Fig. 10
FF
FF
B
B
C
C
A
A
A
C
manual
FF-MANUAL force60BS/5
ASSEMBLY RELEASE
AJUSTER LES FINS DE COURSE
www.flexiforce.com

FF
manual
FF-MANUAL force60BS/6
CÂBLAGE
V
W
U
A
C
M
1 ~
-
~
~
+
B
0
1
12 11
L N
W
2
10 m (4x1,5 mm²)
1,5 m (3x1,5 mm²)
230 V~
50 Hz
Opening limit switch
Additional switch
Black
Brown
Grey
Brake
com
Yellow/Green
Closing limit switch
12
11
12B
11B
Note: With the provided push button the control
panel isn’t necessary.
www.flexiforce.com

manual
FF-MANUAL force60BS/7
DIMENSIONS
Fin de course Mecanique
Système de control contact maintenue
Classe d’utilisation 4, lourd
Temps d’utilisation S2=30 min / S3=50%
Alimentation 230V~/50Hz
Classe d’isolation Class 1
Input 3A
Puissance 60Nm
Vitesse 22 RPM
Système de déverouillage Cable
Temperature d’operation -20˚C/ +55˚C / (-35˚C/ +55˚C with NIO enabled)
Classe de protection IP 54
CARACTERISTIQUES
www.flexiforce.com

La puissance ne suffit par
pour actionner vos portes…..
Des opérateurs pour portes sectionnelles, l’on en trouve partout, de toutes les
qualités et de tous les prix. Nous pensons toutefois que la clé de la réussite dans la
vente d’opérateurs avec vos portes est de combiner un bon produit avec un bon prix
et des entrepôts locaux et un bon support après-ventes. Si vous ajoutez à cette
combinaison le “point de vente multiservices : opérateurs + matériel”, vous serez
d’accord avec nous pour dire que FlexiForce vous offre la meilleure solution pour
vos opérateurs. Mettez-nous au défi de devenir votre fournisseur !
I: www.flexiforce.com E: info@flexiforce.nl

FF-MANUAL force60BS/1
Motoriduttore per portoni
sezionali industriali.
INSTALLAZIONE/MANUTENZIONE
© All rights reserved. FlexiForce®, 2009
force60BS
IT
www.flexiforce.it

FF-MANUAL force60BS/2
ATTENTIONE! AVVERTENZE GENERALI!
Per installare, usare e conservare questo sistema delle porte devono essere
seguite alcune precauzioni. Per la sicurezza prestare attenzione alle istruzioni
sottoriportate! In caso di dubbi, contattare il proprio fonitore.
99Questo manuale è destinato a montatori esperti e non è adatto ad usi fai da te o ad utilizzo da parte di
apprendisti montatori.
99Questo manuale descrive il montaggio dei componenti della meccanica, delle sezioni della porta (pannelli) e si
riferisce all’installazione dell’operatore elettrico. Assicurarsi di supportare questo manuale, se necessario, con
le istruzioni per qualsiasi componente aggiuntivo che non sia descritto in questo manuale
99Prima di iniziare, leggere questo manuale attentamente!
99Certi componenti possono essere taglienti o avere gli orli seghettati. Perciò si consiglia di indossare i guanti
protettivi.
99Tutti i componenti che sono stati forniti sono progettati per l’utilizzo specifico della porta sezionale. La
sostituzione o l’aggiunta di ulteriori componenti può avere effetti sfavorevoli sulla sicurezza e sulla garanzia
della porta. L’approvazione CE che è stata garantita a questa porta viene annullata quando i componenti
vengono cambiati e il montaggio non è conforme a questo manuale! Il montatore ne è responsabile.
99Assicurarsi che ci sia sufficiente illuminazione durante il montaggio. Rimuovere gli ostacoli e la polvere.
Assicurarsi che non ci sia nessun altro presente a parte i restanti montatori. Le altre persone (bambini!)
potrebbero intralciare i lavori o esporsi al pericolo durante le operazioni di montaggio
GARANZIA, CONDIZIONI E TERMINI
I termini e le condizioni generali di consegna e di pagamento stabilite dalla Metaalunie e definite come CONDIZIONI
METAALUNIE sono applicabili in pieno a tutti i preventivi, contratti e alle loro implementazioni. Rifiutiamo
espressamente altri termini e condizioni. Su richiesta vi possiamo spedire gratuitamente una copia di questi termini
e condizioni. Una copia è anche scaricabile dal nostro sito internet www.flexiforce.com..
CONTATTO
FlexiForce Italia Srl.
Via dei Tigli CNM
25020 Alfianello
Italia
T: [phone]
F: [phone]
E: info@flexiforce.it
I : www.flexiforce.it
IT
www.flexiforce.it

FF-MANUAL force60BS/3
FF
IT
CONTENUTO DELL’IMBALLO
4x
4x
1x1x
1x
1x
1x
1x 2x
1x
1x
ATTREZZATURE PER UN CORRETTO E RAPIDO MONTAGGIO
Bit 4.0 mm
Bit 4.5 mm
Bit 6.5 mm
(-)
(+)
8 mm
13 mm
13 mm
www.flexiforce.it
