Assa Abloy NORTON RIXSON 6332 User manual

80-9363-0009-020 Rev 8 12/23
6300 Series Full Feature Low Energy Operator
Models 6332 (Push Side)
Installation Instructions
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
Pour la version francaise voir NortonRixson.com.
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm. For more information go to:
www.P65warnings.ca.gov.
WARNING

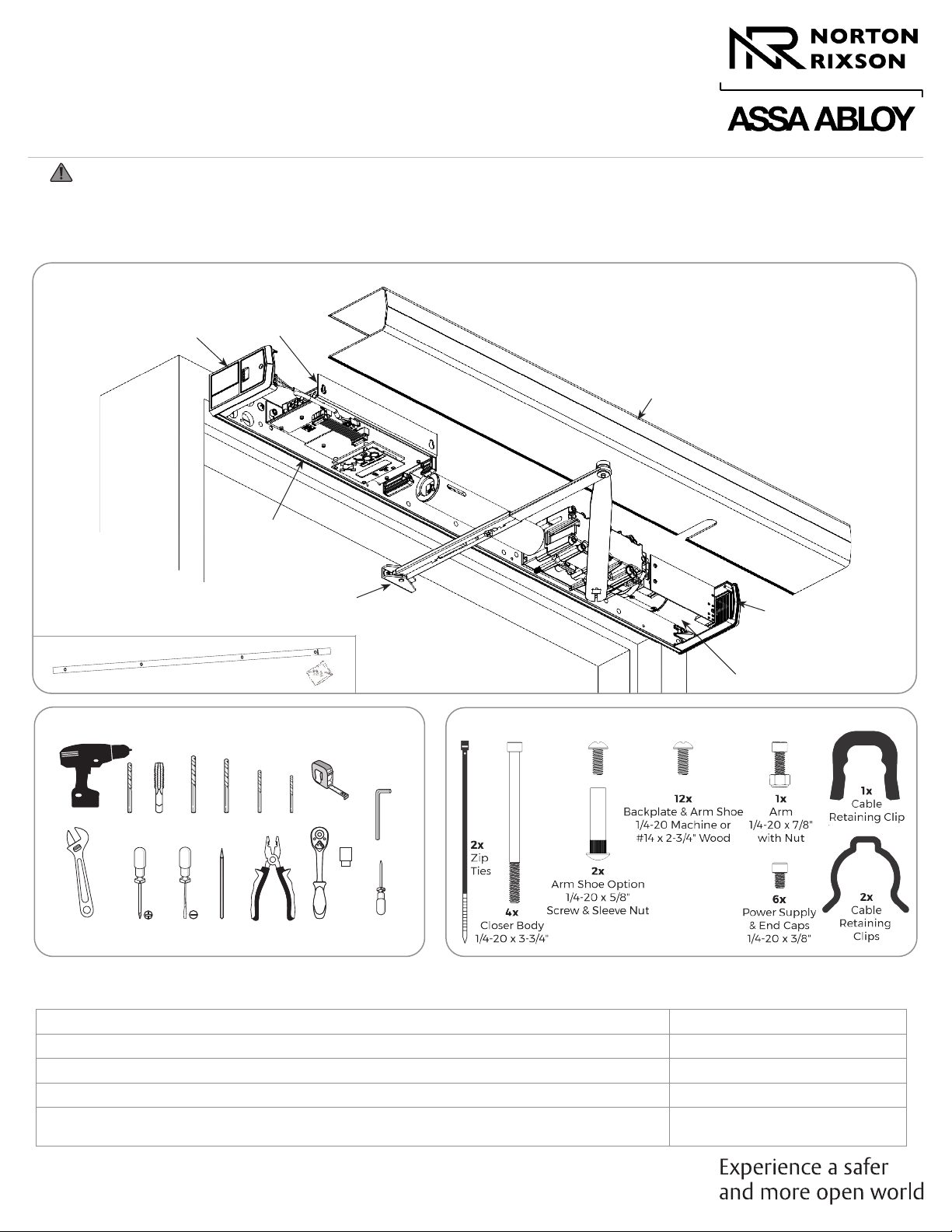

Tools Needed Supplied Fasteners
6332 Push Side 110° to 135° opening
3/16"1/4-20
#7
#2 and #3
10" or 12"
3/16"
1/2"
3/4"
Deep
Well
9/32"3/8"
Punch
3/32"
Cover (6300COV)
End Cap Kit
(6300END)
Power Supply
(6300CM)
Push Arm Pkg
(6330-1)
End Cap Kit
(6300END)
Backplate
Closer Body
(6300LAP)
Dress Plate (6300DPL)
The table below provides a list of documents associated with this product. These documents are available for download
from www.nortonrixson.com. If additional information or assistance is needed, contact Technical Product Support.
Document Title Document Number
6300 Series Quick Start Guide 80-9363-0014-020
6300 Series Operator Programming Guide 80-9363-0015-020
6300 Series Operator, 6331 Push Side Installation Instructions 80-9363-0007-020
6332 Push Side Template, 36-48” Door Width, 90-250 lb. Door Weight, 110° Min Open Angle w/
Reveal of 6-3/4” Max, 130° Max Open Angle w/ Reveal of 1/8” Min 80-7363-0004-020
Approved 2024-02-13

80-9363-0009-020 Rev 8 12/23
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
2
6332 Series (PUSH Side) Power Operator
Technical Data
Input power: 120VAC, 60Hz 3.0A NOTES:
yPermanent wiring is to be employed as
required by local codes.
yActivation devices: push plates, access control,
mats, touchless wall switches, etc.
yMaximum wire size is:
‒12AWG at terminals LINE and NEUTRAL
(120VAC; 60Hz) on Power Input Terminal
‒14AWG at all other terminals
Power supply: 24 V DC, max. 6.5 Amp. ; 1.3A Available for Acc.
Door width: 36 - 48" (91-122 cm)
Door weight: 90-250 lb. (41-113 kg)
Push min angle: 110° with reveal of 6-3/4" max
Push max angle: 130° with reveal of 1/8" min
Pull max angle: 180°
Hold open time: 5-30 seconds (A.D.A. 5 seconds min.)
Indefinite for Hold Open Input or Endcap 3 Position Switch
WARNING: To reduce risk of injury to person, use this operator only with Pedestrian Swing doors. FOR INDOOR USE ONLY
Product Safety Warnings
Certifications and Standards
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Install only on a properly operating and balanced door.
A door that is operating improperly could cause severe
injury. Have qualified service personnel make repairs
to any hardware before installing the operator.
3. Remove, or make inoperative, all locks (unless
mechanically and/or electrically interlocked to the
power unit) that are connected to the door before
installing the operator.
4. Do not connect the door operator to the source power
until instructed to do so.
5. Never let children operate or play with door controls.
Keep remote control (when provided) away from
children.
yETL Certified: Operator conforms to ANSI/UL standard 325 for automatic closing doors and UL10C Positive
Pressure Fire Test for Door Assemblies.
yANSI A156.19: These products are designed to conform to this specification “for power assist and low energy power
operated doors.” These products are designed to exceed all the requirements for “Low Energy Power Operated
Door”.
yAmericans with Disabilities Act (A.D.A.): These door operators can be installed and adjusted to conform with
A.D.A. regulations.
yANSI A117.1: These door controls permit door assemblies to conform to the requirements of this specification “for
buildings and facilities - providing accessibility and usability for physically handicap people”.
6. Personnel should keep away from a moving door in
motion.
7. Test door’s safety features at least once a month.
After adjusting either force or limit of travel, retest
door operator’s safety features. Failure to adjust
operator properly may cause severe injury or death.
8. KEEP DOOR PROPERLY OPERATING. See Door
Manufacturer’s Owner’s Manual. An improperly
operating door could cause severe injury or death.
Have a trained door systems technician make
repairs.
9. SAVE THESE INSTRUCTIONS.
Contents
Certifications and Standards...............................................................2
Technical Data .............................................................................2
Product Safety Warnings ..................................................................2
Before You Begin ..........................................................................3
Installation ................................................................................3
Template ..................................................................................8
Approved 2024-02-13

80-9363-0009-020 Rev 8 12/23
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
3
6332 Series (PUSH Side) Power Operator
Before You Begin
yThickness recommended for reinforcements
in hollow metal doors and frames is charted.
yThis template information based upon use of
5" maximum width butt hinges.
yMaximum frame reveal is 1/8" up to 6-3/4"
maximum for 6332 units.
yBefore beginning the installation, verify that
the door frame is properly reinforced and is
well anchored in the wall.
yConcealed electrical conduit and concealed
switch or sensor wires should be pulled to
the frame before proceeding.
Fasteners for Frame:
y1/4-20 Machine screws for hollow metal and
aluminum.
yNo. 14 x 2-3/4" (70mm) long sheet metal
screws for wood.
1/8"
(3)
Door
Frame
Hollow Metal Door Frame Reinforcing
Frame Material
Reinforcing
Recommended Min. Required
12 Ga.
.1046
(2.66)
12 Ga.
.1046
(2.66)
18 Ga.
.0478
(1.21)
14 Ga.
.0747
(1.90)
10 Ga.
.1343
(3.41)
12 Ga.
.1046
(2.66)
16 Ga.
.0598
(1.52)
10 Ga.
.1343
(3.41)
12 Ga.
.1046
(2.66)
18 Ga.
.0478
(1.21)
8 Ga.
.1644
(4.18)
10 Ga.
.1343
(3.41)
Installation
A. Mount backplate.
Template
Figure 1
Figure 2 Right Hand Shown
Pull Side
Push Side Right Hand
PUSH
Left Hand
PUSH
Remaining 8 Holes
2nd
Hole
Remaining 8 Holes
2nd
Hole
1. Determine right hand or left hand installation. (Figure 1)
2. Measure and mark first mounting hole according to template.
(Figure 2)
3. Attach backplate to frame with screw. Do not fully tighten screw
at this time.
For Metal Frames:
Use #7 drill and 1/4-20 tap for 1/4-20 machine screws.
For Wood Frames:
Use 3/16" drill and supplied screws for self drilling, self tapping
screws.
4. Ensure backplate is level and aligned with door frame. (Figure 3)
5. Using backplate as guide, mark and drill second hole. (Figure 3)
6. Insert second screw and tighten both screws.
7. Using backplate as a guide, drill and tap remaining eight (8) holes
in frame. (Figure 3)
8. Secure with eight (8) screws and tighten.
Figure 3 Right Hand ShownLeft Hand Shown
Approved 2024-02-13

80-9363-0009-020 Rev 8 12/23
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
4
6332 Series (PUSH Side) Power Operator
B. Mount arm tube with shoe.
1. Measure and mark first arm
mounting hole using template.
(Figure 4)
2. Drill holes.
a. For reinforced doors, drill and tap
holes with #7 drill and1/4-20 tap.
b. For wood doors or self-drilling
screws, use 3/32" drill.
c. For sleeve nuts and bolts, see
illustration. (Figure 5)
3. Mark and drill second hole using arm
tube shoe as template.
4. With longer side of arm shoe toward
hinge, secure arm tube to door.
(Figure 6)
Template
Long Side
of Shoe
Figure 4
Figure 5
Figure 6
Sleeve
Nuts and
Bolts
Hollow
Metal
9/32" (7mm)
thru; 3/8"
(9.5mm) door
face opposite to
closer
Aluminum
or Wood
3/8" (9.5mm)
through
OR
Installation (cont.)
Approved 2024-02-13

80-9363-0009-020 Rev 8 12/23
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
5
6332 Series (PUSH Side) Power Operator
D. Install closer body assembly.
1. Using four (4) screws, install closer
body to backplate. (Figure 8)
NOTES:
‒Screws must be tightened in a
cross pattern until all four (4)
screws are tight. (Figure 8)
‒Closer body is in proper orientation
for PUSH SIDE application when
tube is NEAR backplate. (Figure 8)
2. Using three (3) supplied cable
management clips, secure cables
along closer body. (Figure 9)
1
4
2
3
Figure 7
Tube NEAR
backplate
C. Install end caps.
1. Install two (2) screws on each end
of backplate leaving about 3/16"
gap between head of screw and
backplate. (Figure 7)
2. Slide end caps behind screw heads
and tighten screws. (Figure 7)
NOTE: End cap with 3-position
switch is always located on conduit
side of backplate.
NOTE: To retrofit closer assembly to an
existing operator, screws and fan inside
of end cap must be removed.
Switch End Cap
End Cap
Screws
Conduit
Hole
Figure 8
Figure 9
Installation (cont.)
Approved 2024-02-13

80-9363-0009-020 Rev 8 12/23
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
6
6332 Series (PUSH Side) Power Operator
F. Install main arm.
1. Using hex wrench, secure main arm
to bottom pinion with screw and
nut. (Figure 12)
2. Slide main arm rod into tube arm.
(Figure 12)
NOTE: If necessary, open door for rod
to slide into tube.
3. With door fully closed, rotate
main arm toward latch edge of
door until arm tube is at 90° angle
(perpendicular) to door. (Figure 13)
4. Use arm screw provided with main
arm to secure rod to tube. (Figure 13)
90°
Figure 10
Figure 110
Arm
Screw
Tube
Arm
Main
Arm Rod
1. Insert two (2) screws. Leave 3/16"
gap between head of screw and
backplate. (Figure 10)
2. Slide power supply key holes over
screws allowing narrow slots of key
holes to rest on screws. (Figure 10)
NOTE: Narrow slots of key holes
arealways at top and control board
is always at bottom for proper
installation. (Figure 10)
3. Tighten screws.
4. Plug motor and ribbon cables from
closer body into power supply.
(Figure 11)
NOTES:
yUse slot in power supply to feed
connectors to board. (Figure 11)
yUse provided zip ties to manage
any excess cable between closer
and power supply so that cover
can be attached without damag-
ing cables. (Figure 11)
5. Connect 3 Position switch on end
cap to power supply. (Figure 11)
E. Install power supply assembly. Key Hole
3/16"
Gap
Cable Slot
Motor Cable
Connection
Ribbon Cable
Connection
Figure 12 View: Looking up from floor
Figure 13 View: Looking up from floor
Control Board
Zip Tie
3 Position Switch
Cable Connection
Installation (cont.)
Approved 2024-02-13

80-9363-0009-020 Rev 8 12/23
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
7
6332 Series (PUSH Side) Power Operator
G. Adjust closing force.
NOTE: The amount of effort to manually
open or close a door is called closing force.
1. Using 1/2" socket wrench with 3/4" deep
well socket, turn nut in end of closer body
tube to desired force. (Figure 14)
NOTE: Window in closer tube shows
spring.(Figure 15)
NOTE: If additional closing force is only
required in latching region, see Latch Boost
and Lock Release features in separate
programming manual 80-9363-0015-020.
NOTE: Attach cover after initial programming has
been done. See separate programming manual
80-9363-0015-020.
1. Align cut-outs in cover to pinion shafts.
(Figure 16)
2. Slide cover onto unit using end caps as guides.
3. Snap cover securely to back plate.
4. Attach a label plate to each end cap by
snapping into place by hand with gentle
pressure. (Figure 16)
WARNING: Make sure no wiring is
loose or can be caught by cover
when it is snapped into place.
Installing the Dress Plate
1. Align the 6300DPL dress plate so it covers the
exposed surface of the closer’s backplate.
‒The slots in the dress plate should line up with
the screw holes in the backplate.
‒The bottom of the dress plate should be flush
with the bottom of the backplate.
‒The perforation on the plate should be located
on the side opposite the hinge.
‒For 36" (91cm) doors, the dress plate can be
shortened by bending the dress plate at the
point of the perforation repeatedly until the
end piece snaps off. (Figure 18)
2. Use four (4) 8-32 X 5/16” machine screws to
secure the dress plate to the backplate where
indicated. (Figure 17)
H. Attach cover, end cap label plates, and optional dress plate.
Spring Window
Figure 14
Figure 15
Figure 16
The 6332 PUSH SIDE Low Energy Operator has now been installed.
Continue with separate Programming Manual 80-9363-0015-020 to set up and adjust operator.
Installation (cont.)
Figure 17
(4x) 8-32 X 5/16"
Machine Screws
Dress Plate
Perforation
Figure 18
Approved 2024-02-13

80-9363-0009-020 Rev 8 12/23
Norton Rixson is a brand associated with ASSA ABLOY Accessories and Door Controls Group, Inc., an ASSA ABLOY Group company.
Copyright © 2019-2021, 2023, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
Technical Product Support:
Monroe, NC 28112 USA
Phone: [phone] ext: 2
[e-mail]
NortonRixson.com
This page intentionally left blank.
Approved 2024-02-13
