FLIGHT LINE B-24 LIBERATOR User manual

EN
1~11
中12~22
WINGSPAN:2000MM(78.7in.)
LENGTH:1230MM(48.4in.)
WEIGHT:2190G (W/O BATTERY)
U S E R M A N UA L
B-24 LIBERATOR

1B-24 LIBERATOR
Iten No.:
The famed B-24 Liberator is one of the most recognizable WWII aircraft of all time. Serving in every theater of
that global conflict, the B-24 fought to bring its brave crews home through unimaginable danger. With humility and
reverence, FlightLineRC and Motion RC are proud to introduce the world’s first foam electric PNP B-24 Liberator, in
remembrance of the crews who gave the ultimate sacrifice and those who carry on its memory.
The FlightLineRC B-24 is approximately 1/10 scale, with a 2000mm wingspan and 1230mm length. Constructed
from EPO foam and reinforced with integrated aluminum, carbon, and plastic structures, the B-24 delivers the
ultimate all around experience for pilots seeking the ultimate foam PNP bomber replica. A magnetic nose section
allows owners to swap between two B-24 variants, the -D (”Greenhouse” nose), and the -J (”Emerson turret” nose).
The Upper Turret on both variants and the Nose Turret on the -J variant can be panned with an optional servo.
Steerable tillers are pre-installed, including special provisions to fit FPV cameras inside.
The FlightLineRC B-24 uses four 3530-860KV brushless outrunner motors and four 30A ESCs. A quick
disconnect ribbon wire harness consolidates wiring into a central circuit board in the fuselage. The recommended
pair of 4s 14.8V 2800-4000mAh lipo batteries 2pcs can power the aircraft in excess of 110kph/70mph, for 4-10
minutes based on a pilot’s throttle management. The outboard motor pair and inboard motor pair are run from
separate flight batteries, allowing for powered landings in the event of one battery failing. A 70mm tall nose wheel
and 85mm tail main wheels provide stable operation grass runways, and optional suspension struts are available.
Assembly is comprised of only 12 screws and gluing on external details such as antennas.
1.This is not a toy! Operater should have a certain experience, beginners should operate under the guidance of
professional players.
2.Before install, please read through the instructions carefully and operate strictly under instructions.
3.Cause of wrong operation,Freewing and its vendors will not be held responsible for any losses.
4.Model planes’ players must be on the age of 14 years old.
5.This plane used the EPO material with surface spray paint, don’ t use chemical to clean, otherwise it will damage.
6.You should be careful to avoid flying in areas such as public places,high-voltage-intensive areas,near the highway,
near the airport or any other place where laws and regulation clearly prohibit.
7.You cannot fly in bad weather conditions such as thunderstorms,snows....
8.Model plane’s battery, don’t allowed to put in everywhere. Storage must ensure that there is no inflammable
and explosive materials in the round of 2M range.
9.Damaged or scrap battery should be properly recycled, it can’t discard to avoid spontaneous combustion
and fire.
10.In flying field, the waste after flying should be properly handled,it can’t be abandoned or burned.
11.In any case, you must ensure that the throttle is in the low position and transmitter switch on, then it can connect
the lipo-battery in aircraft.
12.Do not try to take planes by hand when flying or slow landing process. You must wait for landing stop, then carry it.
Catalog
Pushrod instructions
Control board connection diagram
Battery Size
Center of Gravity
Servo Direction
Motor Specification

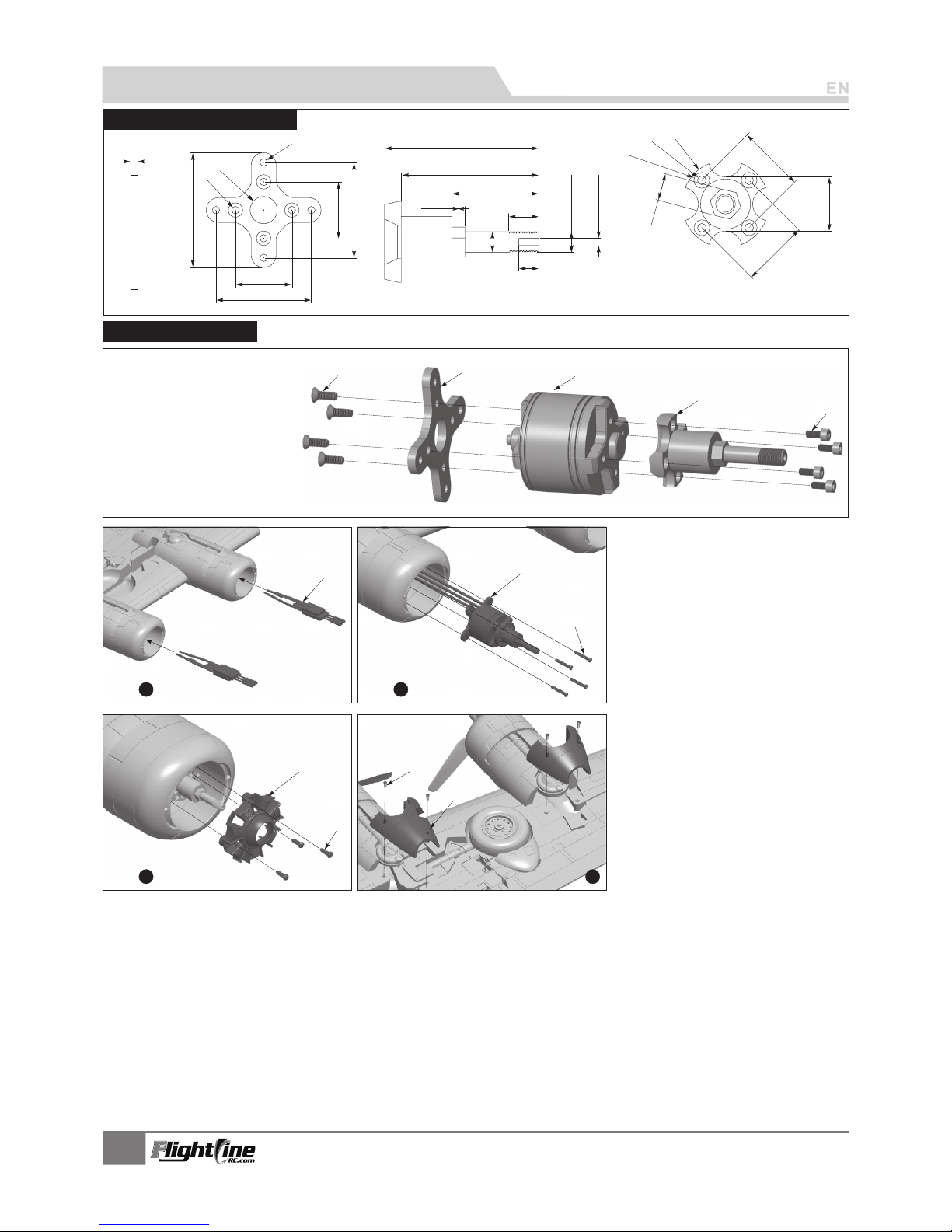

X-Mount & Motor shaft
Install power system
Control Direction Test

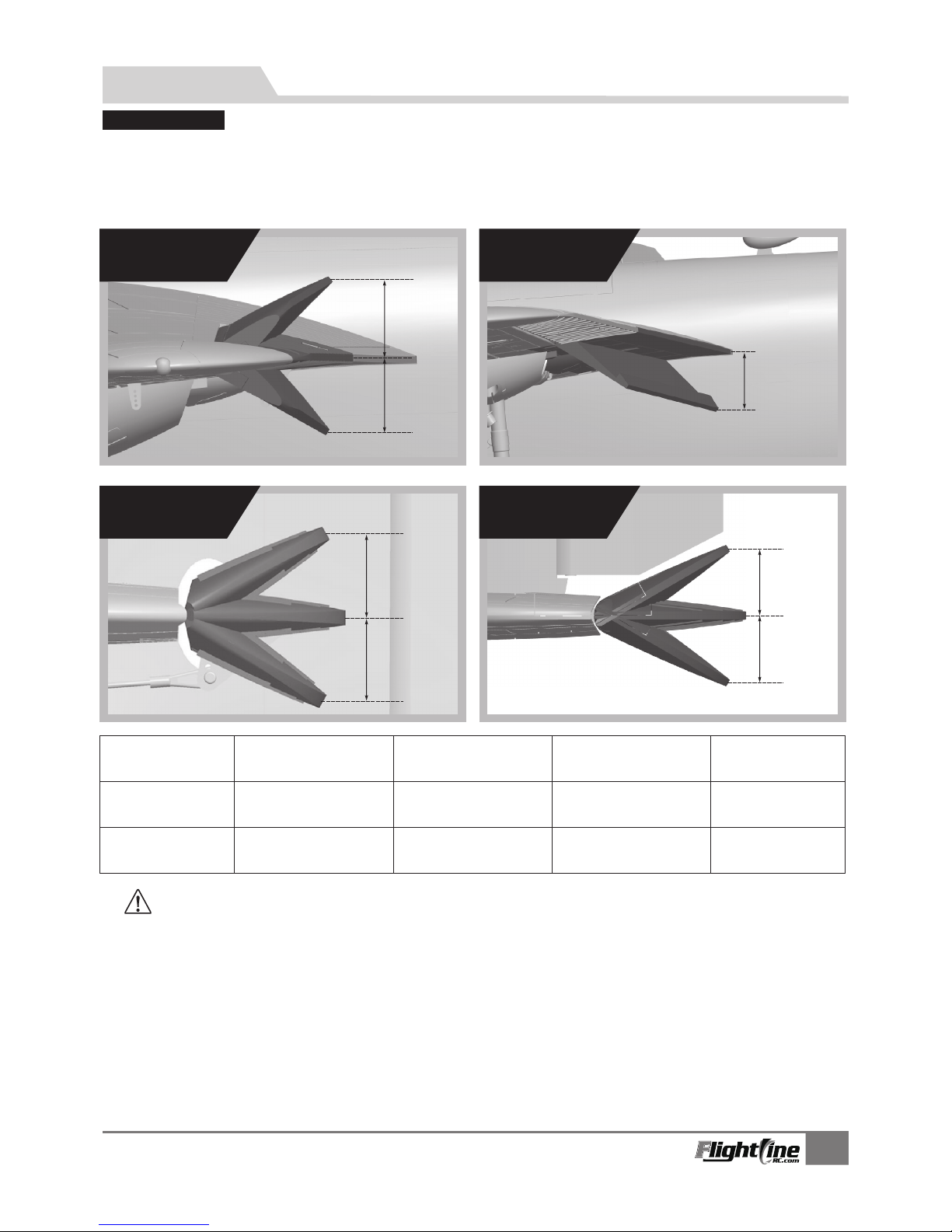

Dual Rates and Flight Attention
5
6
7
7
8
8
9
9
10
11
Introduction
Basic Product Information
Package List
PNP Assembly Instructions
Wire Pull-Through Tool Instruction
Install Horizontal Stabilizer/Vertical Stabilizer
Install the Propellers
Install Main Wing
Install Magnetic nose cone
Install Scale Accessories
1
2
2
3
3
3
4
4
5

Product basic information
1230mm(48.4in.)
Wing loading 100g/dm²：
Wing ：35dm² area
Motor: 3530-860KV
brushless outrunner motor (4pcs)
r-Blade P opeller : 3 9.5x7
(4Piecs Standard/Reverse)
ESC : 30A（4pcs）
Servo : 9g digital metal gear servo (9pcs)
Flight speed 110KPH/70MPH：
Empty Weight : 2910g(without battery)
5400gPull:
Material：EPO
Aileron: Yes
Flaps: Yes
Elevator: Yes
Rudder: Yes
Landing gear: Retractable, Suspension
Scale Pilot figure
Battery: 4S 2800-4000mAh (2pcs)
2000mm(78.7in.)
2
B-24 LIBERATOR
Iten No.:
Package list
No. Name No. Name
1
2
3
4
5
6
7
8
9
10
11
12
Glue & Non-slip mat
Carbon tube & Screw
Manual & Decals
PNP ARF Plus Airframe PNP ARF Plus Airframe
Fuselage
Main wing
Horizontal tail
Vertical tail
Pre-installed all
electronic parts
Pre-installed all
electronic parts
Pre-installed all
electronic parts
Pre-installed all
electronic parts
Pre-installed
servo
Pre-installed
servo
Pre-installed
servo
Pre-installed
servo
No electronic
equipment
No electronic
equipment
No electronic
equipment
No electronic
equipment
Propeller & Spinner
Nose Turret & Nose
Scale Accessories
ESC wire
Linkage Set

4
Step
2
Step
E
F
A-
B-
C-
D-
E-
F-
Rudder
Elevator
Servo cable
Elevator wire channel
Screw (PA3x8 4pcs)
Screw (PA3x8 4pcs)
As shown in the photo below:
1.Fix the propeller on the motor.。
2.As the photo show, install the left/right propeller.
A-
B-
C-
D-
E-
F-
G-
Screw (PM2.5x6 4pcs)
Spinner
Screw nut
Washer
Propeller fixing bolt A
Scale propelle
Propeller fixing bolt B
3B-24 LIBERATOR
Iten No.:
1
Step
As shown in the photo below:
1.Insert the left/right rudder servo cable into the trough of the
horizontal tail, and pull the cables from the gap of horizontal tail.
2.Secure the left/right vertical stabilizer to the horizontal tail
with 4pcs PA3x8 screws.
3.As the photo shows, bundle the rudder/elevator cables and use the
Wire Pull-Through Tool to carry cables to the battery compartment.
4.Finally, install the horizontal tail on the fuselage
and secure it with 4pcs PA3x8 screws. A
B
C
D
Traction steel wire
Battery compartment
3
Step
Elevator/Rudder servo cable
A
B
C
D
E
F
G
1
Step
2
Step
To minimize servo connections, the Elevator and Rudder servos’ wires each reach from the servo itself directly to
the receiver. A rigid steel wire hook is included in the box to allow you to pull the servo wires through the model’s
internal fuselage.
PNP lnstallation Instructions
Wire Pull-Through Tool Instructions
Install Horizontal Stabilizer/Vertical Stabilizer
Install the Propeller

4
B-24 LIBERATOR
Iten No.:
2
Step
3
Step
1
Step
Carbon tube A
(Ø10x500mm)
C Barbon tube
(Ø8x360mm)
3
3
1
6
5
1.Insert carbon tube A and B into the fuselage.
2.Pull the ESC wire and Ribbon wire through the hole.
3.Insert the left/right main wing on the fuselage.
4.Use 4pcs PWM4x8 screws to secure the main wing.
Screw
(PWM4x8 4pcs)
Main wing wire hole
A
B
C
C1 C2
B1
(PNP includes two optional forward nose sections for the B-24-D (”Greenhouse”) and B-24-J (”Emerson Turret”)
A-
B-
C-
Greenhouse for -D Variant
Antennas
Gun Barrels
I
Magnet
A
B
C
D
E
F
G
H
PNP lnstallation Instructions
InstallMain Wing
ESC wire & Ribbon wire
Magnet
Install Nose Section -J
A-
B-
C-
D-
E-
F -
G-
H-
I -
Nose Turret A
Nose Turret B
Nose Turret Base
B-24-J
Variant Foam Nose
Washer
Tiller
Screw (PA2.3x8)
Lower Windshield
Gun Barrels
Install Nose Section -D
Throttle
Throttle
Aileron
Flap
Landing gear

5B-24 LIBERATOR
Iten No.:
A-
B-
C-
D-
E-
F-
G-
H -
rretUpper Tu
Upper Turret Base
Washer
Tiller
Screw (PA2.3x8)
Antenna
Exhaust Pipe
Gun Barrels
F
2
Step
1
Step
A
B
C
DE
Nose gear steering pushrod length
Pushrod diameter Ø1.2mm
45mm
(1-3/4")
33mm
(1-5/16")
1
2
3
1
2
3
41.5mm
(1-5/8")
1
2
3
41.5mm
(1-5/8")
1
2
3
53mm
(2-1/16")
3
Step 4
Step 5
Step 6 Step
PNP Assembly Instructions

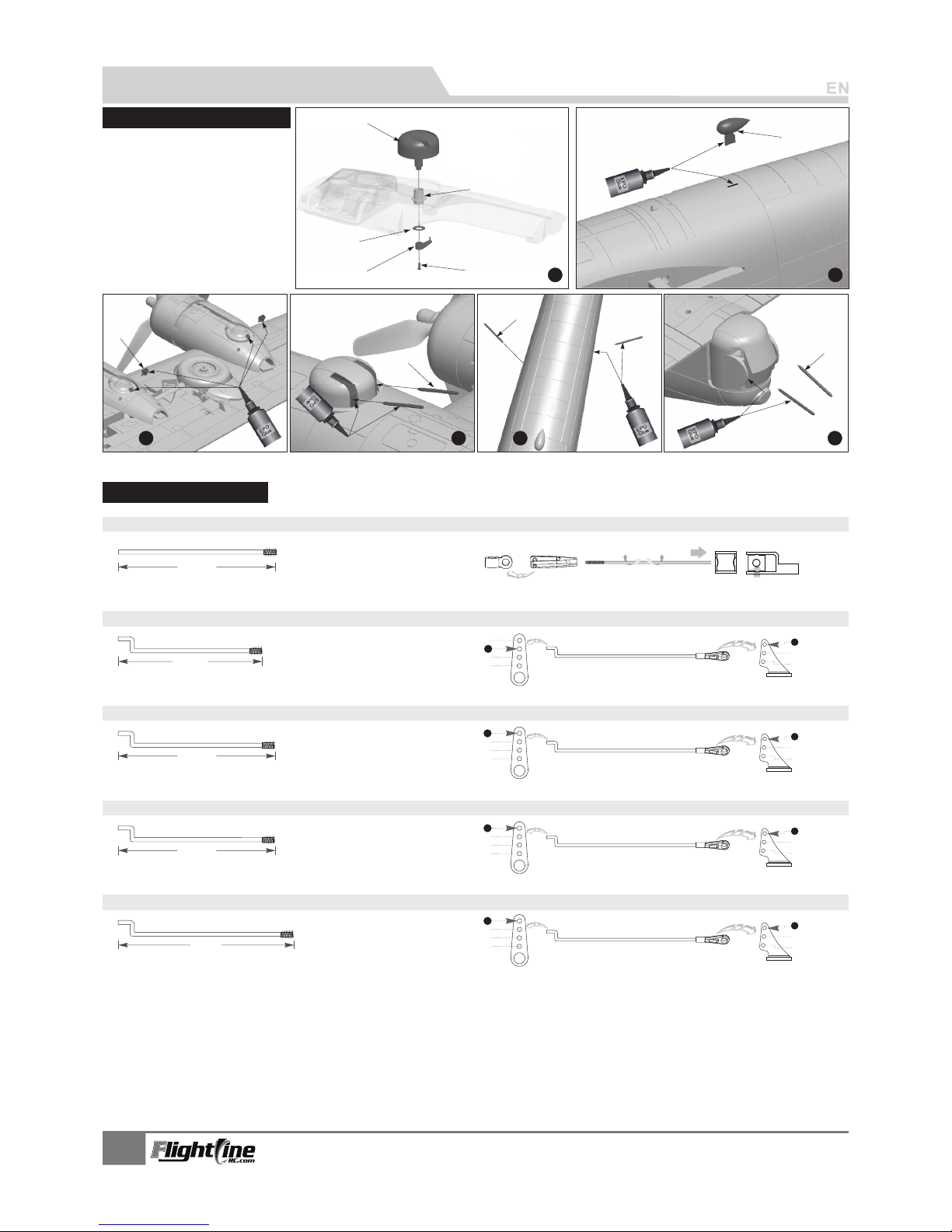

Install Scale Accessories
Pushrod Length Setup
Nose gear steering pushrod mounting hole
Flap pushrod length Flap pushrod mounting hole
Aileron pushrod mounting hole
Aileron pushrod length
Elevator pushrod length Elevator pushrod mounting hole
Rudder pushrod length Rudder pushrod mounting hole
Pushrod diameter Ø1.2mm
Pushrod diameter Ø1.2mm
Pushrod diameter Ø1.2mm
Pushrod diameter Ø1.2mm
G
H
H1
H2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
2

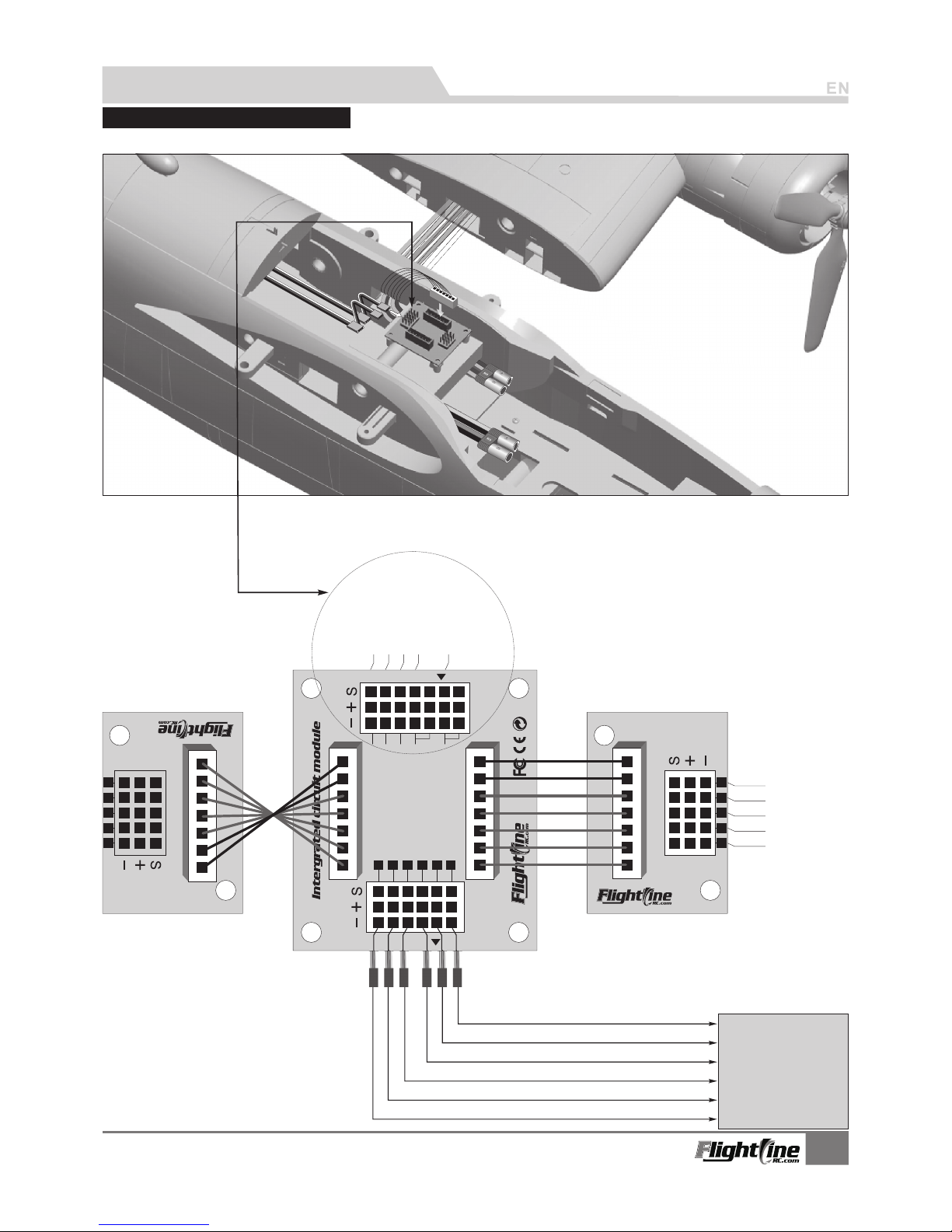

Control board connection diagram
The B-24 uses a convenient flexible ribbon wire harness to consolidate wiring. Connect according to the photo.
6
B-24 LIBERATOR
Iten No.:
Nose Landing gear door servo
Nose Landing gear retract
Nose steering servo
Rudder servo
Elevator servo
B-24 Liberator
Servo lnput
Receiver
5
4
3
2
1
6
FLAP
GEAR
R U D
T H R
E L E
A I L
GEAR
GEAR DOOR
Nose Steering
R U D
E L E
Throttle
Throttle
Aileron
Flap
Landing gear
3
3
1
6
5
3
1
6
5
3
Receiver
PNP Assembly Instructions
Main wing control board(Right) Main wing control board(Left)
Connect to the Aileron channel in the receiver
Connect to the Elevator channel in the receiver
Connect to the Throttle channel in the receiver
Connect to the Rudder channel in the receiver
Connect to the landing Gear channel in the receiver
Connect to the Flap channel in the receiver

Pull the latch back
and open the cockpit.
Before connecting the battery and receiver for the first time,
please remove the propellers, position the model on a stand
above the ground. and switch on the transmitter power and
make sure the throttle stick is in the lowest position.
After you have programmed your radio transmitter, reinstall the propellers and carefully verify their correct rotation. With the aircraft
level, the uppermost tip of all the propellers rotate inward, toward the fuselage. The stock PNPconfiguration assigns the inboard
motors to one flight battery, and the outboard motors to the second flight battery. If one battery fails, the model can be landed
immediately on the remaining two engines flown at full power. Before all flights, clear the propeller area to avoid personal injury.
We recommend the following LiPo battery:
4S 14.8V 2800mAh ~ 4S 14.8V 4000mAh (2pcs)
>
Discharge rate of C 35C
Use rubberized non-slip tape
or hook-and-loop tape
Battery cabin size:
L=160 W=98 H=68(mm)
7B-24 LIBERATOR
Iten No.:
Cockpit
Battery A
Battery B
Velcro
Battery tray
PNP Assembly Instructions
Battery Size
76mm
(3")
Center of Gravity
- Depending on the capacity and weight of your choosen
flight batteries, move the battery forward or backward
to adjust the Center of Gravity.
Correct Center of Gravity ( CG”) is critical for enabling safe aircraft stability and responsive control. Please refer to the”
following CG diagram to adjust your aircraft’s Center of Gravity. This CG has been flight tested 200+ times for your safety.
- If you cannot obtain the recommended CG by
moving the battery to a suitable location, you can
also install a counterweight to achieve correct CG.
However, with the recommended battery size, a
counterweight is not required. We recommend
flying without unnecessary counterweight.
”

2
4
3
5
6
7
8
9
1
8
B-24 LIBERATOR
Iten No.:
If you need to purchase another brand’s servo, please
refer to the following list to choose a suitable servo.
Position
前轮转向
Aileron(L)
Aileron(R)
Flap(L)
Flap(R)
Elevator(L)
Elevator(R)
Rudder(L)
Rudder(R)
No. Pos./Rev. Cable length
1
2
3
4
5
6
7
8
9
Positive
Positive
Positive
Positive
Positive
Positive
Positive
Positive
Positive
400mm
750mm
750mm
250mm
250mm
850mm
850mm
950mm
950mm
Servo regulation
9g Digital-MG
9g Digital-MG
9g Digital-MG
9g Digital-MG
9g Digital-MG
9g Digital-MG
9g Digital-MG
9g Digital-MG
9g Digital-MG
4-Ø3,2
41.5
41.5
51.5
51.5
11
7.9
M6
M2.5
4
Ø35
33
38
53
79
9.0
26
Ø6
3530-860KV
Units:mm
860RPM/V 14.8 1350 106
3-Blade 9.5x7
30A
Pre-Installed Component Overview
Servo Direction
Nose gear
steering servo
Motor Specification

9B-24 LIBERATOR
Iten No.:
1
Step 2 Step
3
Step 4 Step
As the left diagram,install ESC
and Motor
AB
C
D
E
F
G
A-
B-
C-
D-
E-
F-
G-
ESC
Motor
Screw (PA3x15 16pcs)
Engine cowl
Screw (PA2.3x6 12pcs)
Engine Pod cover
Screw (PA2.3x6 8pcs)
3.0
Ø12.0
Ø3.2
Ø3.2
51.5
41.5
25.0
41.5 25.0
46
41
26
9.0
4
Ø6
6
M6 External thread
M2.5 Internal thread
20
20
16
7.9
Ø4.7
Ø2.6
Ø26
Units:mm
A-
B-
C-
D-
E-
Screw (PM3x6)
Motor Mount
3530-860KV out-runner motor
Prop shaft adapter
Cup head screws (M2.5x6)
ABC
D
E
X-fixed base & Motor shaft
Pre-Installed Component Overview
Install power system

10
B-24 LIBERATOR
Iten No.:
Control Setup Instructions
Control Direction Test
After installed the plane, before flying, we need a fully charged battery and connect to the ESC,then use radio to test
and check that every control surface work properly.
Aileron
Elevator
Rudder
Flaps
Stick Left Stick Right
Stick down Stick Up
Stick Left Stick Right
Flas down

H1
H1
H2
H1
H2
H1
H2
Low Rate
High Rate
IMPORTANT：
Throttle Calibration
Before your first flight, without the propellers attached, calibrate your ESC pairs and verify that all four motors are
synchronized. Install the propellers and taxi test the model to check for synchronous thrust.
Flap Mixing and Tips
1 - A Flap-to-Elevator Mix is required to maintain level flight when the flaps are deployed. With 13mm of flaps(Low Rate),
mix 1.5mm of Down Elevator. With 29mm of flaps (High Rate), mix 3mm to Down Elevator.
2 - When flaps are deployed, do not advance the throttle very quickly. The B-24 is intended to be flown as a scale bomber,
with moderate throttle advance. Add rudder input to flatten turns for more scale appearance.
Elevator Neutral Position
1. Before your first flight, mechanically set the Elevator's Neutral Position to 1.5mm Up.
11 B-24 LIBERATOR
Iten No.:
Control Setup Instructions
Dual Rates
According to our testing experience, use the following parameters to set Aileron/Elevator Rate.
Program your preferred Exponential % in your radio transmitter. We recommend using High Rate for the
first flight, and switching to Low Rate if you desire a lower sensitivity. On successive flights, adjust the
Rates and Expo to suit your preference.
Aileron Flaps
Elevator Rudder
H1/H2 20mm/20mm
D/R Rate：85%
H1/H2 22mm/22mm
D/R Rate：100%
H1/H2 18mm/18mm
D/R Rate：75%
H1/H2 23mm/23mm
D/R Rate：100%
Aileron(measured closest
to the fuselage)
Elevator(measured closest
to the fuselage)
H1/H2 15mm/15mm
D/R Rate：80%
H1/H2 19mm/19mm
D/R Rate：100%
Rudder(Measured
from the bottom)
H1 13mm
H1 29mm
Flaps

当您按前面的步骤组装好飞机后，在飞行前，我们需要用一块充饱电的电池，连接到电调。用遥控
器测试每个舵面的工作情况，检查是否正常！
副 翼
副翼摇杆
向左运动
副翼摇杆
向右运动
升降舵
升降摇杆
向下运动
升降摇杆
向上运动
方向舵
方向摇杆
向右运动
方向摇杆
向左运动
襟 翼
襟翼放下
舵面测试
中文版中文版
PNP 组装说明
21 B-24 LIBERATOR
Iten No.:

根据我们的测试经验，我们认为，按以下参数来设置大小舵量，将有助于飞行。小舵量
飞机的操纵会笨拙些，大舵量飞机的操纵会灵敏些，我们建议初次飞行使用大舵量起飞，然
后视操纵习惯选用小舵量或者大舵量飞行。
襟 翼
H1
方向舵
H1
H2
副 翼
H1
H2
升降舵
H1
H2
小舵量
大舵量
副翼(内侧)
H1/H2 20mm/20mm
舵量比率：85%
H1/H2 22mm/22mm
舵量比率：100%
升降舵(内侧)
H1/H2 18mm/18mm
舵量比率：75%
H1/H2 23mm/23mm
舵量比率：100%
方向舵(下端)
H1/H2 15mm/15mm
舵量比率：80%
H1/H2 19mm/19mm
舵量比率：100%
襟翼
H1 13mm
H1 29mm
特别注意事项：
前检测：飞行
第一次飞行此产品或者更换遥控器后，必须校准油门，这样才能保持4套动力产生的拉力一致，具体校正方法见
电调说明书。
飞行前设定：
1. 降落开襟翼飞机抬头比较明显，需要混控点降舵才能很好降落，小舵量襟翼需要1.5mm降舵，大舵量襟翼需
要3mm降舵
2. 升降舵调平飞机飞行会有比较明显的低头现象，这样需要1.5-2mm升舵飞机就能够很好的平飞；
3. 放下襟翼飞行时，我们需要较柔和的增加油门，不能瞬间加大油门量，否则会出现飞机突然向下飞行，容易
造成飞机坠毁事故.
大、小舵参数
中文版中文版
PNP 组装说明
22
B-24 LIBERATOR
Iten No.:

Add.:FeiYi Building,face to Labor Bureau, Fumin Middle Road, Dalang Town,
Dongguan City，Guangdong Province, China
HK Freewing Model International Limited
东莞市飞翼电子科 技有限公司
香港飞翼模型国际有限公司
地址: 广 东 省东莞市 大 朗镇富民 中 路402-408号飞翼 楼四楼
Web: http://www.sz-freewing.com
Email:[e-mail]
Tel: [phone] Fax:[phone]
Web: http://www.sz-freewing.com
Email:[e-mail]
Tel: [phone] Fax:[phone]
Dongguan Freewing Electronic Technology Ltd
R
