Fluidmaster PerforMAX 400AH User manual

QUICK Install Guide
*See back page for important legal information.
INSTALL WITH CONFIDENCE
PerforMAX®
400AH FILL VALVE

3
GETTING STARTED
PARTS OVERVIEW
TOOLS NEEDED
Towel Bucket Sponge
Pliers
Locknut
Refill Clip
Refill Tube
Refill Tube Clamp
Refill Tube Clamp
Shank Washer
Tank Water Level
Adjustment Screw
Bowl Water Level
Adjustment Roller Clamp
Bowl Water Level
Adjustment Roller Clamp
Tank Water Level
Adjustment Screw

4
A: TURN OFF WATER
B: DRAIN WATER
Flush toilet to drain most of the water from the tank.
C: USE SPONGE OR TOWEL TO SOAK UP
EXCESS WATER IN TANK
FLUSH
STEP 1: PREPARE TANK
Towel
Sponge
5
LEFT
LEFT
A: REMOVE CONNECTOR
Remove water supply
connector from bottom of fill
valve by twisting connector
nut to the left (clockwise).
B: REMOVE OLD LOCKNUT
Below tank, twist locknut
to the left (clockwise) to
remove from fill valve.
C: REMOVE OLD FILL VALVE
Drain any excess water
into bucket by removing fill
valve from tank.
(Pull fill valve up)

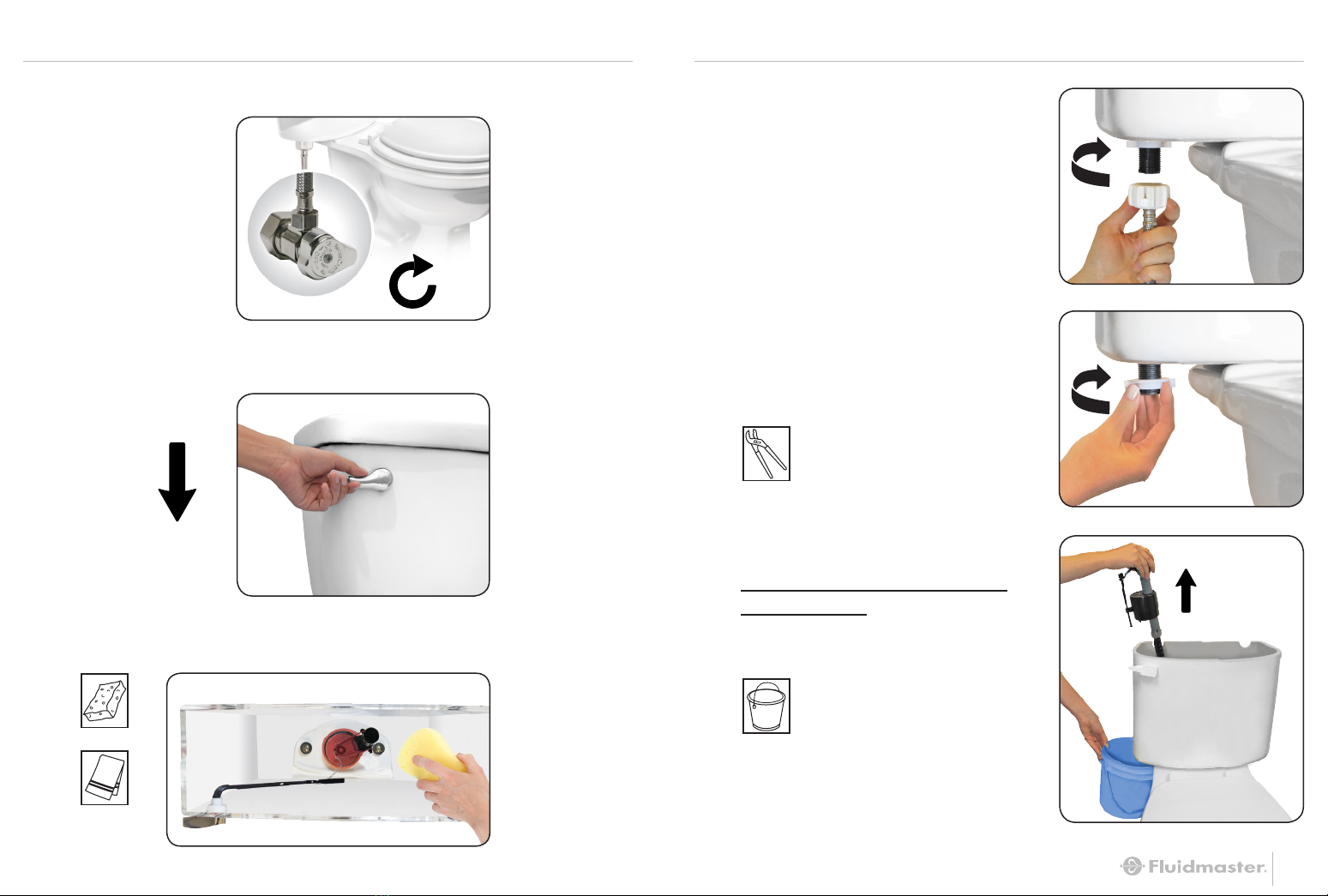

STEP 2: REMOVE OLD FILL VALVE
Bucket
(Optional)
Pliers
(Optional)
TURN
CLOCKWISE

6 7
STEP 3: ADJUST HEIGHT OF NEW FILL VALVE
FOR STANDARD FLUSH VALVES
HOLD
TWIST
LEFT
3"
TOP OF FILL VALVE CAP
TOP OF OVERFLOW PIPE
Overflow Pipe
Overflow Pipe
3"
Fill Valve Cap
TOP OF FILL VALVE CAP
TOP OF OVERFLOW PIPE
FOR CANISTER FLUSH VALVES
A: TWIST FILL VALVE TO ADJUST HEIGHT
Top of fill valve cap should measure roughly 3"
above top of overflow pipe.

8 9

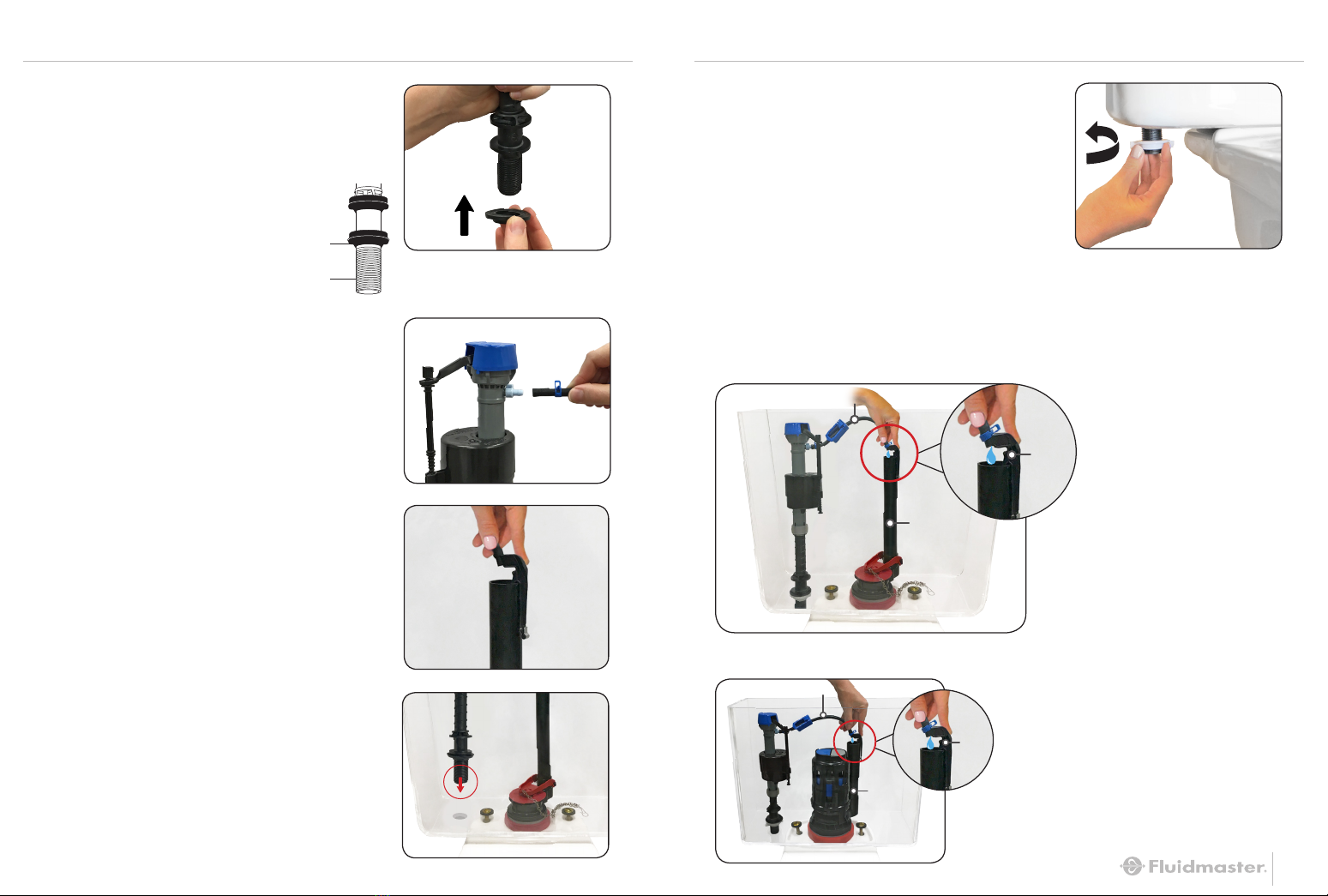

STEP 4: INSTALL NEW FILL VALVE
A: INSTALL SHANK WASHER
Pull up to top of shank.
* Place shank washer
onto threaded shank of
fill valve. WIDE SIDE UP.
C: ATTACH REFILL CLIP
TO OVERFLOW PIPE
E: INSTALL LOCKNUT
Screw locknut to the
right (counterclockwise)
onto fill valve shank
(below tank). RIGHT
B: PUSH REFILL TUBE ONTO
REFILL PORT FIRST
Squeeze tube clamp arms and
move it towards refill port.
D: INSERT FILL VALVE
Position refill tube to face
overflow pipe.
F: ATTACH REFILL TUBE TO REFILL CLIP
Squeeze tube clamp arms and move it towards refill clip.
Note: If refill tube is too long, cut tube.
Standard Flush Valves
Canister Flush Valves
Refill
Clip
Overflow
Pipe
Refill Tube
Refill
Clip
Refill Tube
Overflow
Pipe
Shank Washer
Threaded Shank

10 11
FOR CANISTER FLUSH VALVES
A: ATTACH WATER
SUPPLY CONNECTOR
TO FILL VALVE
Twist to the right
(counterclockwise)
RIGHT
C: WATER LEVEL
After the tank stops filling, water level should fill the tank to
roughly ½ inch below top of overflow pipe to ensure a
proper flush.
See diagrams on next page.
STEP 5: FINISHING STEPS
FOR STANDARD FLUSH VALVES
TURN
COUNTER-
CLOCKWISE
See page 12 to fine-tune
TANK Water Level
1/2"
Overflow Pipe
Top of
Overflow Tube
Water Level
1/2"
Overflow
Pipe
Top of
Overflow Pipe
Water Level
TOP DOWN VIEW
B: TURN ON WATER
Check for leaks.
(See Troubleshooting for
leak solutions)

12 13

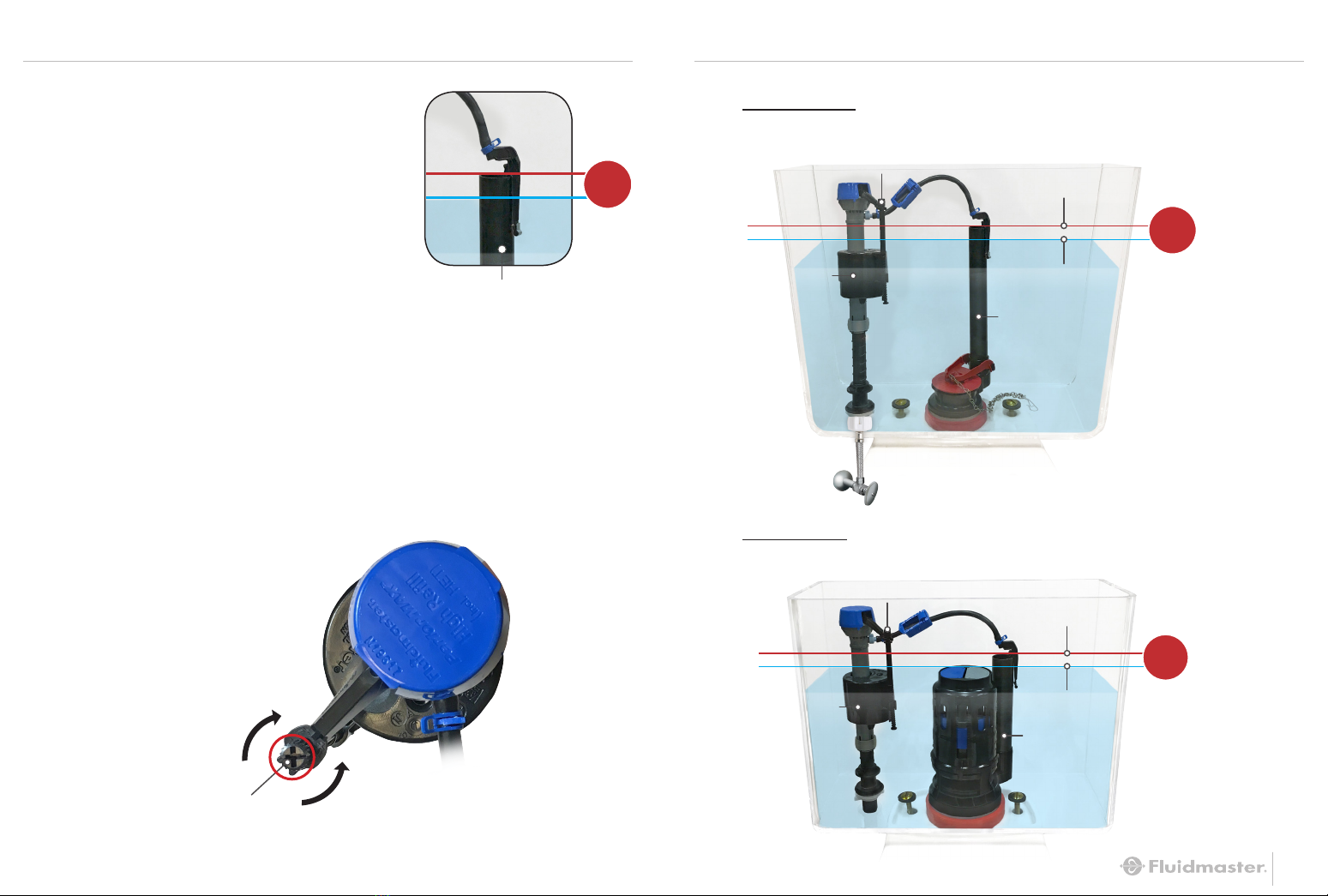

STEP 6: FINE-TUNE TANK WATER LEVEL
A: FLUSH THE TOILET TO CHECK
THE TANK WATER LEVEL
After the water stops filling the tank,
the water level should be roughly ½
inch below the top of overflow pipe to
ensure a proper flush.
B: WATER LEVEL IS TOO LOW
Turn the tank water level adjustment screw
clockwise to raise the float. Flush to reset
water level.
WATER LEVEL IS TOO HIGH
Turn the water level adjustment screw
counterclockwise to lower the float. Flush
to reset water level.
1/2"
Overflow Pipe
FOR CANISTER FLUSH VALVES
FOR STANDARD FLUSH VALVES
1/2"
Overflow Pipe
Top of
Overflow Pipe
Water Level
Tank Water Level
Adjustment Screw
Float
1/2"
Overflow
Pipe
Top of
Overflow Pipe
Tank Water Level
Adjustment Screw
Water Level
Float
MORE
WATER
+
LESS
WATER
–
Tank Water Level
Adjustment Screw

14 15

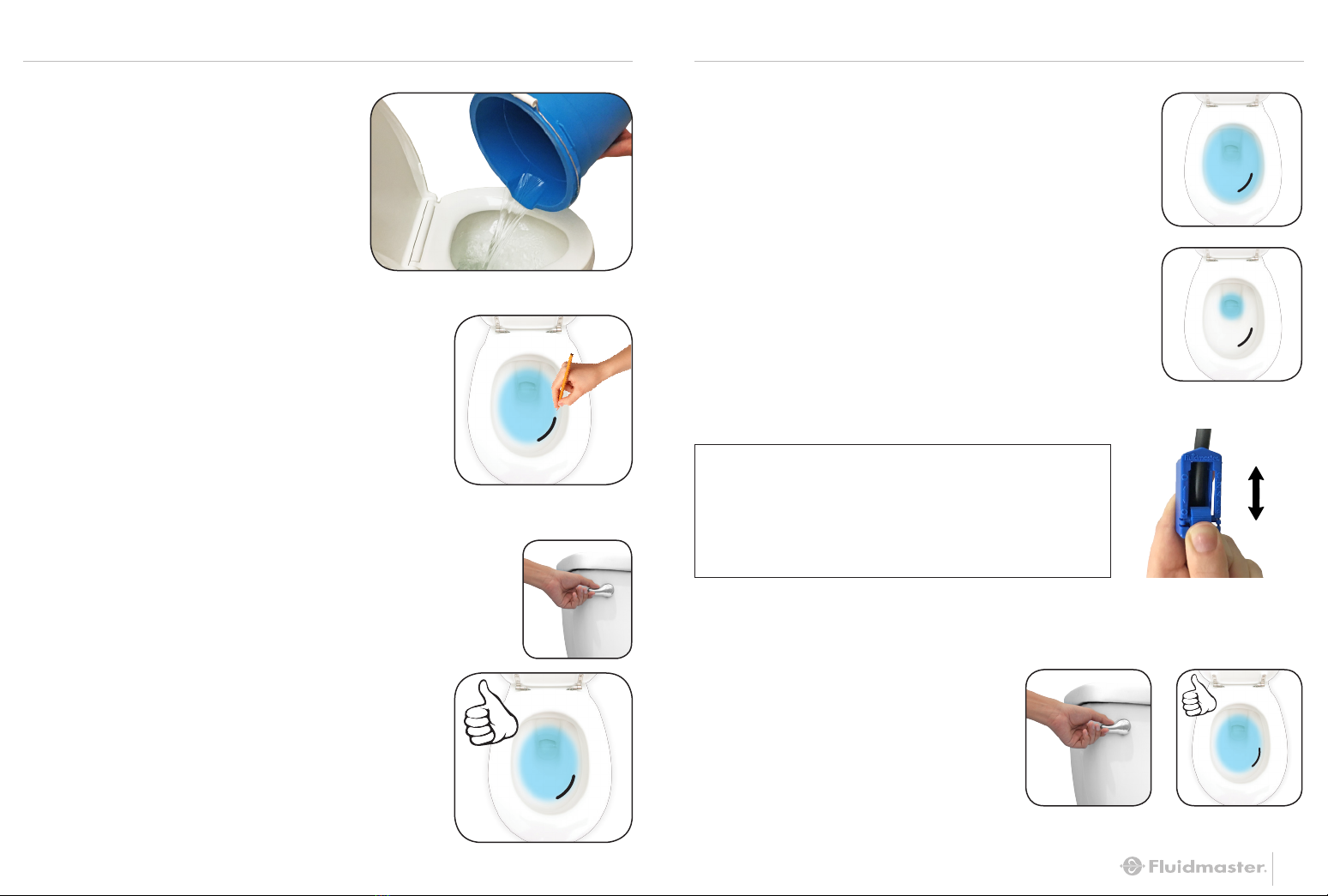

STEP 7: FINE-TUNE BOWL WATER LEVEL
A: FILL BOWL WITH A
GALLON OF WATER
Wait 1 minute until the bowl
water level recedes down and
stops.
E: FLUSH TOILET, CHECK
BOWL WATER LEVEL
Repeat Steps 7D and 7E until
water level in bowl matches
the line when the fill valve
shuts off.
B: MARK THE WATER LEVEL
IN THE BOWL
With a pencil, draw a line at the
top of the water level in bowl.
C: FLUSH TOILET TO CHECK
BOWL WATER LEVEL
If the water level matches the line
you’ve made in the bowl when the
fill valve stops filling the tank, the
water level is correct, proceed to
Step 8.
D: ADJUST THE BOWL WATER LEVEL
NOTE: “0” on roller clamp equals no refill to bowl.
TOO HIGH
TOO LOW
If the water level matches the line in
the bowl and the fill valve is STILL
FILLING, then the bowl water level is
TOO HIGH, proceed to Step 7D.
If the valve shuts off and the water
level does NOT match the line in the
bowl, the water level is TOO LOW,
proceed to Step 7D.
TOO HIGH =
TOO LOW =
Turn roller clamp with thumb
to the next LOWER number.
Turn roller clamp with thumb
to next HIGHER number.
0
8

16 17
STEP 8: FLUSH THE TOILET
Still not working exactly right?
See the next page for Troubleshooting.
YOU DID IT!
We knew you could!
Share your success story
with friends and family!
#FixedMyToilet
#Fluidmaster
A: FLUSH THE TOILET
If you’re satisfied with the flush, YOU’RE DONE!

18 19
TROUBLESHOOTING
TURN
COUNTER-
CLOCKWISE
See Our Troubleshooting
HOW-TO VIDEO
http://bit.ly/2yAdZn7
VIDEO

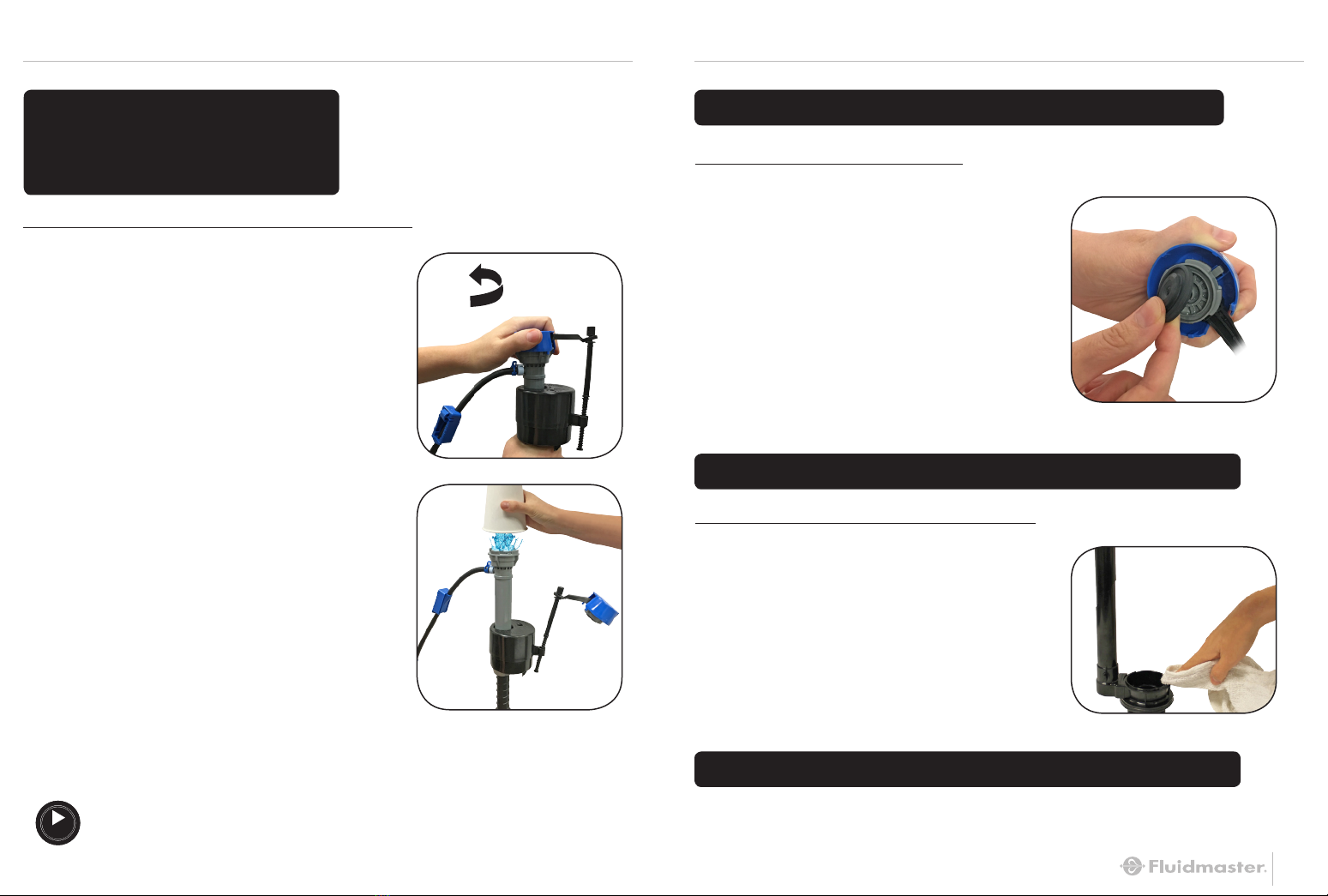

IF THE FILL VALVE:
• DOES NOT TURN ON
• WON’T TURN OFF
• WON’T REFILL TANK
REMOVE CAP AND CHECK FOR DEBRIS
A: Turn off water supply.
B: Flush toilet.
C: With right hand push float up, grip and
hold shaft under float.
D: With left hand twist cap and lever arm
counterclockwise to unlock cap. Let
cap hang on float cup.
E: Hold empty cup upside down over
uncapped valve to prevent splashing.
F: Turn water supply on and off a few
times.
G: Turn water supply off.
H: Replace valve cap.
• Place cap assembly on top of gray
valve body by aligning cap arm and
adjustment rod next to refill tube.
• Press down on top cap while rotating
top & arm clockwise to locked position.
IF THE FLOAT DOES NOT DROP WHEN FLUSHED
IF THE FILL VALVE TURNS ON AND OFF BY ITSELF
IF WATER SUPPLY CONNECTOR IS LEAKING
REPLACE FILL VALVE SEAL
CLEAN FLAPPER AND DRAIN SEAT
A: Remove cap (see page 18).
B: Replace seal with a genuine
Fluidmaster 242 Seal.
C: Replace valve cap.
A: The tank is losing water, clean the
flapper and drain seat for a better
seal.
B: Replace flapper.
C: If leak continues after replacing
flapper, replace flush valve (507AK,
or 540AKR) or repair flush valve seat
(555C).
A: Replace water supply line.
• Place cap assembly on top of gray
valve body by aligning cap arm and
adjustment rod next to refill tube.
• Press down on top cap while
rotating top & arm clockwise to
locked position.
