Fluke FLK-TI-SBC3B User manual

FLK-TI-SBC3B
Charging Base/Power Supply with Adapters
Instruction Sheet

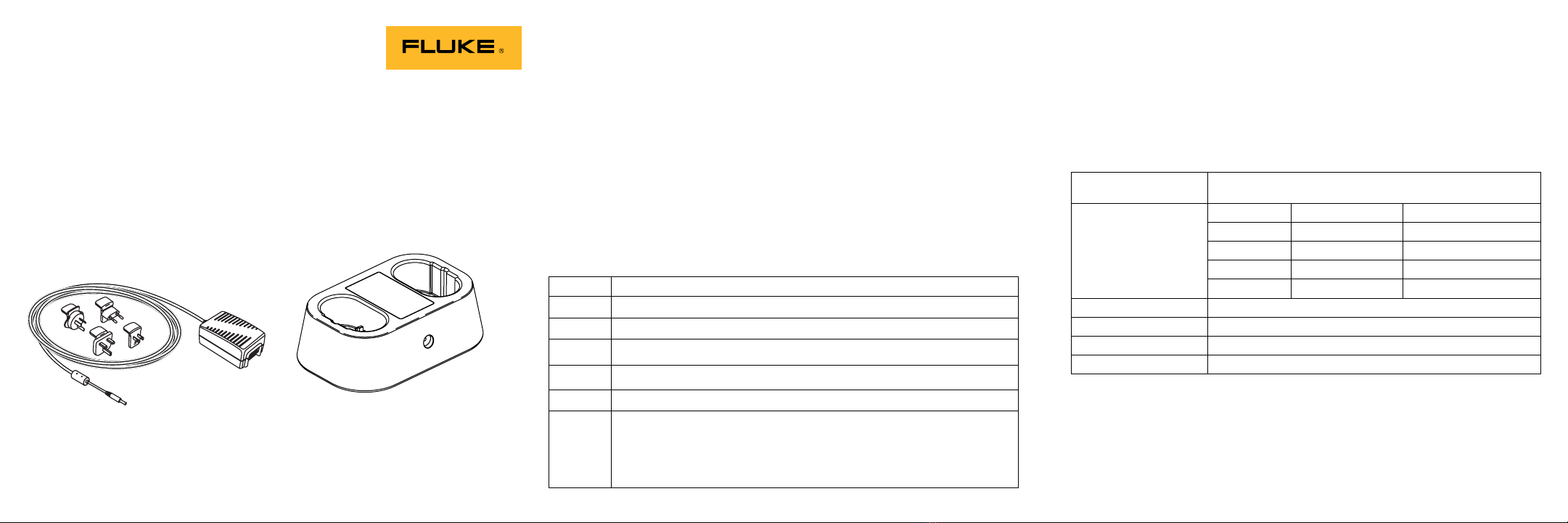

The Fluke FLK-TI-SBC3B Charging Base/Power Supply with Adapters charges the Fluke
FLK-TI-SBP3B Smart Battery Pack for Thermal Imagers. The FLK-TI-SBC3B consists of a
charging base, power supply, and power outlet adapters.
PN 4352179 May 2013
© 2013 Fluke Corporation. All rights reserved.
All product names are trademarks of their respective companies. Specications are subject to change without notice.
Safety Information
Use the FLK-TI-SBC3B only as specied in this instruction sheet or other Fluke
product-specic manual. See Table 1 for a list of symbols used on the FLK-TI-SBC3B.
A Warning identies hazardous conditions and procedures that are dangerous to the user.
A Caution identies conditions and procedures that may cause damage to the Product or
the equipment under test.
WWarning
To avoid injury:
●Do not disassemble or short circuit the battery pack.
●Do not expose the battery pack to temperatures above 50 °C (122 °F).
●Do not incinerate or mutilate the battery pack.
●Use only ac adapters approved by Fluke for the product to charge the battery or
power the product.
Table 1. Symbols
Symbol Description
PConforms to requirements of European Union and European Free Trade Association.
"Imager connected to battery charger.
;Conforms to relevant Australian standards.
)Conforms to relevant Canadian and US standards
WImportant information. See manual.
~ This product complies with the WEEE Directive (2002/96/EC) marking requirements.
The afxed label indicates that you must not discard this electrical/electronic product in
domestic household waste. Product Category: With reference to the equipment types
in the WEEE Directive Annex I, this product is classed as category 9 “Monitoring and
Control Instrumentation” product. Do not dispose of this product as unsorted municipal
waste. Go to Fluke’s website for recycling information.
Charging the Battery
Before using the battery pack for the rst time, charge the battery in the two-bay charging
base for at least two and one-half hours. For complete charging instructions, see the
Thermal Imagers User Manual.
Specications
See Table 2 for the specications.
Table 2. Specications
Battery Charging 10-15 Vdc 2 A or charge battery pack in Imager with included ac
adapter rated: 100-240 Vac 50/60 Hz, 15 V 2 A.
Charging / Power LED
Status Charging LED Power LED
off no battery detected no dc power input
solid green charged dc power present
blinking green charging na
blinking red fault na
Dimensions 159.5 mm x 68.9 mm x 51.3 mm (6.28 in x 2.71 in x 2.02 in)
Operating Temperature -10 °C to 70 °C (-14 °F to 158 °F)
Storage Temperature -20 °C to 80 °C (-4 °F to 176 °F) without batteries
Humidity Range 10 % to 95 % non-condensing

How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
• USA: 1-800-760-4523
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: [phone]
• Japan: [phone]
• Singapore: [phone]
• Anywhere in the world: [phone]
Or, visit Fluke’s website at www.uke.com.
To register your product, visit http://register.uke.com.
To view, print, or download the latest manual supplement, visit
http://us.uke.com/usen/support/manuals.
LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and workmanship for one year
from the date of purchase. This warranty does not cover fuses, disposable batteries, or
damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions
of operation or handling. Resellers are not authorized to extend any other warranty on
Fluke’s behalf. To obtain service during the warranty period, contact your nearest Fluke
authorized service center to obtain return authorization information, then send the product
to that Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS
FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE
IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states
or countries do not allow the exclusion or limitation of an implied warranty or of incidental
or consequential damages, this limitation of liability may not apply to you.
