Fluke 1587 User manual

Technical Data
The Fluke 1587 and 1577 Insulation
Multimeters combine a digital
insulation tester with a full-featured,
true-rms digital multimeter in a
single compact, handheld unit,
which provides maximum versatility
for both troubleshooting and
preventative maintenance.
Like other tools that you have
come to expect from Fluke, the
1587 and 1577 are rugged, reliable,
and easy to use.
Whether you work on motors,
generators, cables, or switch-gear,
the Fluke 1587/1577 Insulation
Multimeters are ideally suited to
help you with your tasks.
•Large display with backlight
•Insulation test (1587: 0.01 MΩto 2 GΩ)
(1577: 0.1 MΩto 600 MΩ)
•Insulation test voltages (1587: 50 V, 100 V, 250 V,
500 V, 1000 V),(1577: 500 V, 1000 V) for many
applications
•Live circuit detection prevents insulation test if volt-
age > 30 V is detected for added user protection
•Auto-discharge of capacitive voltage for added user
protection
•AC/DC voltage, DC milliVolts, AC/DC milliamps,
Resistance (Ω), Continuity
•Filter for motor drive measurements (1587 only)
•Capacitance, diode test, temperature, Min/Max,
frequency (Hz) (1587 only)
•Auto power off to save battery power
•CAT III 1000 V, CAT IV 600 V measurement category
•Included accessories: Remote probe, test leads
and probes, alligator clips, (K-type thermocouple,
1587 only)
•Accepts optional Fluke TPAK™magnetic hanging
system to free your hands for other work
•Rugged, utility hard case allows you to bring
everything you need for the job
•3-year warranty
1587/1577
Insulation Multimeters
Two powerful tools in one.

2 Fluke Corporation 1587/1577 Insulation Multimeters
AC voltage measurement
1587 accuracy
Range Resolution 50 Hz to 60 Hz 60 Hz to 5000 Hz
600.0 mV 0.1 mV + (1 % + 3) + (2 % + 3)
6.000 V 0.001 V + (1 % + 3) + (2 % + 3)
60.00 V 0.01 V + (1 % + 3) + (2 % + 3)
600.0 V 0.1 V + (1 % + 3) + (2 % + 3)1
1000 V 1 V + (2 % + 3) + (2 % + 3)1
11 kHz bandwidth
1587 lowpass filter Voltage
Range Resolution 50 Hz to 60 Hz 60 Hz to 400 Hz
600.0 mV 0.1 mV + (1 % + 3) + (2 % + 3)
6.000 V 0.001 V + (1 % + 3) + (2 % + 3)
60.00 V 0.01 V + (1 % + 3) + (2 % + 3)
600.0 V 0.1 V + (1 % + 3) + (2 % + 3)
1000 V 1 V + (2 % + 3) + (2 % + 3)
1577 accuracy
Range Resolution 50 Hz to 60 Hz
600.0 mV 0.1 mV + (2 % + 3)
6.000 V 0.001 V + (2 % + 3)
60.00 V 0.01 V + (2 % + 3)
600.0 V 0.1 V + (2 % + 3)
1000 V 1 V + (2 % + 3)
AC conversion: Inputs are ac-coupled and calibrated to the rms value of sine wave input. Conversions are
true-rms responding and specified from 5 % to 100 % of range. Input signal crest factor can be up to 3 at
full scale up to 500 V, decreasing linearly to crest factor < = 1.5 at 1000 V. For non-sinusoidal waveforms
add ±(2 % reading + 2 % FS) typical, for a crest factor up to 3.
Input impedance: 10 MΩ(nominal), < 100 pF, ac-coupled
Common mode rejection ratio (1 kΩunbalanced): > 60 dB at dc, 50 or 60 Hz
Overload protection: 1000 V rms or dc, 107V Hz Max
DC voltage measurement
Range Resolution Accuracy 15871Accuracy 15771
6.000 V dc 0.001 V 0.09 % + 2 0.2 % + 2
60.00 V dc 0.01 V 0.09 % + 2 0.2 % + 2
600.0 V dc 0.1 V 0.09 % + 2 0.2 % + 2
1000 V dc 1 V 0.09 % + 2 0.2 % + 2
1Accuracies apply to ± 100 % of range
Input impedance: 10 MΩ(nominal), < 100 pF
Normal mode rejection ratio: > 60 dB @ 50 Hz or 60 Hz
Common rode rejection ratio: > 120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)
Overload protection: 1000 V rms or dc
DC millivolts measurement
Range Resolution Accuracy 1587Accuracy 1577
600.0 mV dc 0.1 mV 0.1 % + 1 0.2 % + 1
1587/1577 Specifications

1587/1577 Insulation Multimeters Fluke Corporation 3
DC and ac current measurement
Accuracy 1587 Accuracy 1577 Burden Voltage
Range Resolution ± (% of Rdg+Digits) ± (% of Rdg+Digits) (Typical)
AC 400 mA 0.1 mA ± (1.5 % + 2)1± (2 % + 2)12 mV/mA
45 to 1000 Hz 60 mA 0.01 mA ± (1.5 % + 2)1± (2 % + 2)1
DC 400 mA 0.1 mA ± (0.2 % + 2) ± (1.0 % + 2) 2 mV/mA
60 mA 0.01 mA ± (0.2 % + 2) ± (1.0 % + 2)
11 kHz bandwidth
Overload: 600 mA for 2 minutes maximum
Overload protection: 440 mA, 1000 V, FAST fuse
AC conversion: Inputs are ac-coupled and calibrated to the rms value of sine wave input. Conversions are
true-rms responding and specified from 5 % to 100 % of range. Input signal crest factor can be up to 3 at full
scale up to 300 mA, decreasing linearly to crest factor < = 1.5 at 600 mA. For non-sinusoidal waveforms add
+ (2 % reading + 2 % FS) typical, for a crest factor up to 3.
Ohms measurement
Accuracy 15871Accuracy 15771
Range Resolution ±(% of Rdg+Digits) ± (% of Rdg+Digits)
600.0 Ω0.1 Ω
6.000 kΩ0.001 kΩ
60.00 kΩ0.01 kΩ0.9 % + 2 1.2 % + 2
600.0 kΩ0.1 kΩ
6.000 MΩ0.001 MΩ
50.0 MΩ0.01 MΩ1.5 % + 3 2.0 % + 3
1Accuracies apply from 0 to 100 % of range
Overload protection: 1000 V rms or dc
Open circuit test voltage: < 8.0 V dc
Short circuit current: < 1.1 mA
Diode test (1587 Only)
Diode test indication: Display voltage drop: 0.6 V at 1.0 mA nominal test current
Accuracy: + (2 % + 1)
Continuity test
Continuity indication: Continuous audible tone for test resistance below 25 Ωand off above 100 Ω.
Maximum reading; 1000 Ω
Open circuit voltage: < 8.0 V
Short circuit current: 1.0 mA typical
Overload protection: 1000 V rms
Response time: > 1 m sec
Frequency measurement (1587 only)
Accuracy
Range Resolution ± (% of Rdg+Digits)
99.99 Hz 0.01 Hz ± (0.1 % + 1)
999.9 Hz 0.1 Hz ± (0.1 % + 1)
9.999 kHz 0.001 kHz ± (0.1 % + 1)
99.99 kHz 0.01 kHz ±(0.1 % + 1)

4 Fluke Corporation 1587/1577 Insulation Multimeters
1587/1577 Specifications cont.
Frequency counter sensitivity
V ac Sensitivity (RMS Sinewave)1DC Trigger Levels
Input Range 5 Hz to 20 kHz 20 kHz to 100 kHz to 20 kHz2
600.0 mV ac 150.0 mV 150.0 mV N/A
6.0 V 0.3 V 0.7 V -400.0 mV and 2.5 V
60.0 V 3.0 V 10.0 V 1.5 V and 4.0 V
600.0 V 35.0 V 100.0 V 15.0 V and 40.0 V
1000.0 V 200.0 V 700.0 V 15.0 V and 40.0 V
1Maximum input for specified accuracy = 10x range (1000 V max). Noise at low frequencies and amplitudes may affect accuracy.
2Usable to 100 kHz with full scale input.
Capacitance (1587 only)
Range Resolution ± (% of Rdg+Digits)
1000 nF 1 nF
10.00 µF 0.01 µF ± (1.2 % + 2)
100.0 µF 0.1 µF
9999 µF 1 µF ± (1.2 % +/- 90 counts)
Temperature measurement (1587 only)
Range Resolution Accuracy1
-40 °C to 537 °C 0.1 °C 1 % + 10 counts
-40 °F to 998 °F 0.1 °F 1 % + 18 counts
1Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument
Insulation specifications
Measurement range: 1587: 0.01 MΩto 2 GΩ, 1577: 0.1 MΩto 600 MΩ
Test voltages: 50, 100, 250, 500, 1000 V model 1587, 500 and 1000 V model 1577
Test voltage accuracy: + 20 %, - 0 %
Short-circuit test current: 1 mA nominal
Auto discharge: Discharge time < 0.5 second for C = 1 µF or less
Live circuit detection: Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load: Operable with up to 1 µF load

1587/1577 Insulation Multimeters Fluke Corporation 5
Model 1587
Output Voltage Display Range Resolution Test Current Resistance Accuracy
50 V 0.01 to 6.00 MΩ0.01 MΩ1 mA @ 50 kΩ3 % + 5 counts
(0 % to + 20 %) 6.0 to 50.0 MΩ0.1 MΩ
100 V 0.01 to 6.00 MΩ0.01 MΩ
(0 % to + 20 %) 6.0 to 60.0 MΩ0.1 MΩ1 mA @ 100 kΩ3 % + 5 counts
60 to 100 MΩ1 MΩ
250 V 0.1 to 60.0 MΩ0.1 MΩ1 mA @ 250 kΩ1.5 % + 5 counts
(0 % to + 20 %) 60 to 250 MΩ1 MΩ
500 V 0.1 to 60.0 MΩ0.1 MΩ1 mA @ 500 kΩ1.5 % + 5 counts
(0 % to + 20 %) 60 to 500 MΩ1 MΩ
1000 V 0.1 to 60.0 MΩ0.1 MΩ1.5 % + 5 counts
(0 % to + 20 %) 60 to 600 MΩ1 MΩ1 mA @ 1 MΩ
0.6 to 2.0 GΩ100 MΩ10 % + 3 counts
Model 1577
Output Voltage Display Range Resolution Test Current Resistance Accuracy
500 V 0.1 to 60.0 MΩ0.1 MΩ1 mA @ 500 kΩ2.0 % + 5 counts
(0 % to + 20 %) 60 to 500 MΩ1 MΩ
1000 V 0.1 to 60.0 MΩ0.1 MΩ1 mA @ 1 MΩ2.0 % + 5 counts
(0 % to + 20 %) 60 to 600 MΩ1 MΩ
Maximum voltage applied to any terminal: 1000 V ac rms
or dc
Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Operating temperature: -20 °C to 55 °C (-4 °F to 131 °F)
Temperature coefficient: 0.05 x (specified accuracy) per °C
for temperatures < 18 °C or > 28 °C (< 64 °F or > 82 °F)
Relative humidity, non-condensing: < °C
0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F)
0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F)
0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)
Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F,
Class 2 instrument
Shock: 1 meter drop per IEC 61010-1 2nd Edition (1 meter
drop test, six sides, oak floor)
Electromagnetic compatibility:In an RF field of 3 V/M,
accuracy = specified accuracy except in temperature: specified
accuracy ± 5 °C (9 °F). (EN 61326-1:1997)
Safety: Complies with ANSI/ISA 82.02.01 (61010-1) 2004,
CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd
Edition for measurement CAT III 1000 V and CAT IV 600 V
Certifications: CSA per standard CSA/CAN C22.2
No. 61010.1-04; TUV per standard EN 61010 Part 1-1002
Batteries: Four AA batteries (NEDA 15A or IEC LR6)
Battery life: Meter use 1000 hours; Insulation test use: Meter
can perform at least 1000 insulation tests with fresh alkaline
batteries at room temperature. These are standard tests of
1000 V into 1 MΩwith a duty cycle of 5 seconds on and 25
seconds off
Size: 5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in
W x 8.00 in L)
Weight: 550 g (1.2 lb)
IP rating: IP40
Altitude (operating): 2000 m CAT III 1000 V, CAT IV 600 V;
3000 m CAT II 1000 V, CAT III 600 V
Storage: 12,000 m
Over-range capability: 1
10 % of range except for
capacitance which is 1 %
Compliance to EN 61557: IEC61557-1, IEC61557-2
1587/1577 General Specifications

For additional accessories for these products,
see the Top 10 Accessories for Insulation
Multimeters at www.MyFlukeStore.com or
ask for Fluke literature code 2427793.
6 Fluke Corporation 1587/1577 Insulation Multimeters
Fluke Corporation
PO Box 9090, Everett, WA USA 98206
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In North America [phone]
or [phone] or
Fax [phone]
Web access: www.MyFlukeStore.com
Distributed by:
Optimum Energy Products Ltd
©2002 Fluke Corporation. All rights reserved.
Printed in U.S.A. 4/2005 2434792 D-US-N Rev B
Fluke. Keeping your world
up and running.

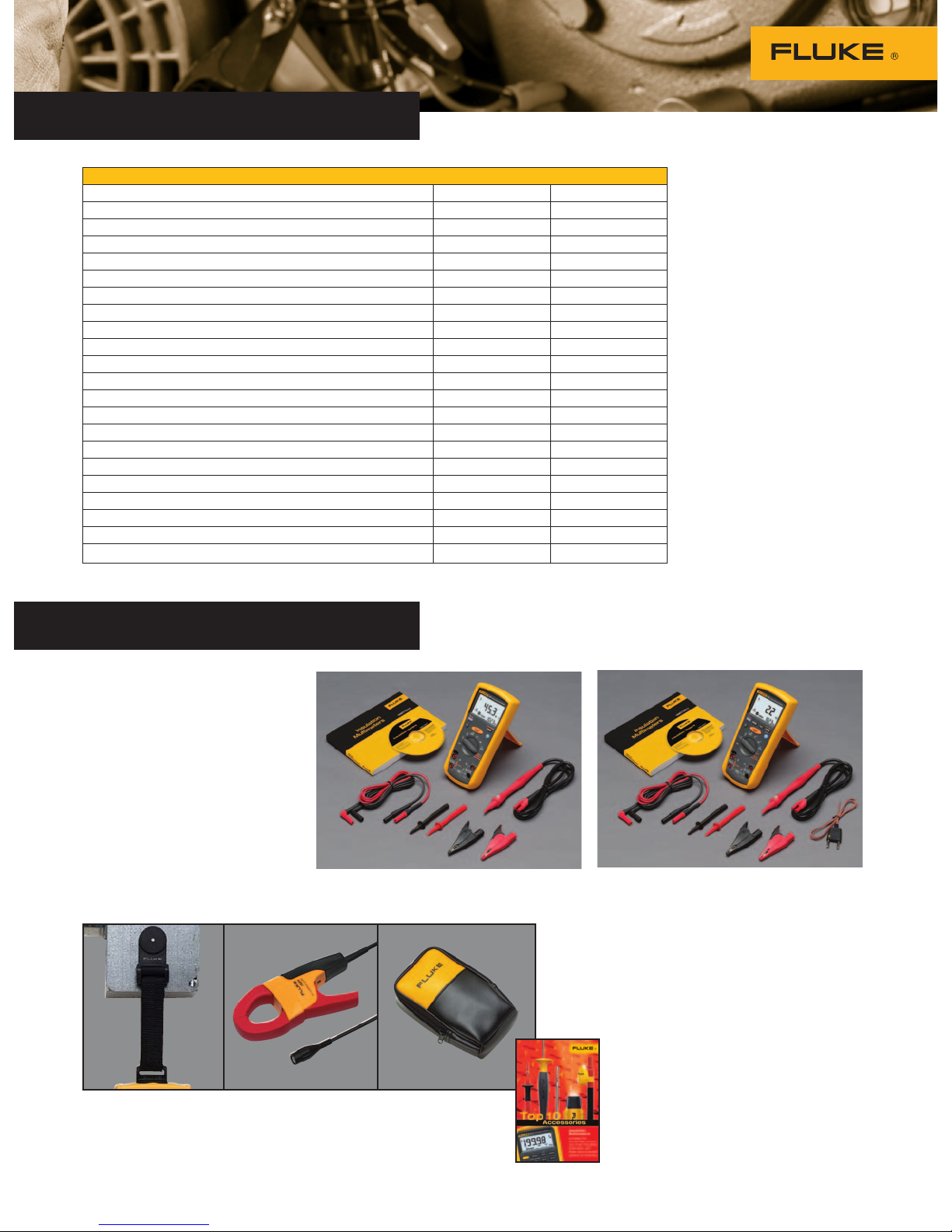

Comparison Chart
1587 1577
Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V •
Insulation test voltages 500 V, 1000 V •
Insulation test: 0.01 MΩto 2.0 GΩ•
Insulation test: 0.1 MΩto 600 MΩ•
Auto-discharge of capacitive voltage ••
Insulation test smoothing reading •
Frequency •
Capacitance •
Diode test •
Temperature •
Min/Max •
Low pass filter (for work on VSDs) •
AC/DC Voltage ••
DC Millivolts ••
AC/DC milliAmps ••
Resistance (0.1 Ωto 50 MΩ) ••
Continuity ••
Three-year warranty ••
Remote probe, test leads, alligator clips ••
K-type thermocouple •
Rugged, utility hard case ••
Auto power off • •
Ordering Information
Fluke-1577 Insulation
Multimeter
Fluke-1587 Insulation
Multimeter
Included
Remote probe, test leads,
alligator clips, K-type thermo-
couple (1587 only), hard case,
user documentation
Optional accessories
TPAK Magnetic Tool Hanger
i400s Clamp with Adapter
C25 Soft Case
1577 1587
TPAK i400s C25
