Fluke 805 User manual

May 2012, Rev.1, 9/12
© 2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
805
Vibration Meter
Users Manual

LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is
one year and begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to
the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product
which, in Fluke's opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation
or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has
been properly recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to
extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke
authorized sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to invoice Buyer for importation costs of
repair/replacement parts when product purchased in one country is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement of a defective
product which is returned to a Fluke authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information, then send the
product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB Destination). Fluke assumes no risk
for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke
determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal condition of operation or handling,
including overvoltage failures caused by use outside the product’s specified rating, or normal wear and tear of mechanical components,
Fluke will provide an estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be
returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping
Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR
LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or
consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is
held invalid or unenforceable by a court or other decision-maker of competent jurisdiction, such holding will not affect the validity or
enforceability of any other provision.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
11/99
To register your product online, visit register.fluke.com

i
Table of Contents
Title Page
Introduction.................................................................................................................... 1
How to Contact Fluke .................................................................................................... 1
Safety Information.......................................................................................................... 2
Symbols......................................................................................................................... 3
Accessories ................................................................................................................... 3
Specifications ................................................................................................................ 3
Before You Start ............................................................................................................ 5
Unpack and Inspect .................................................................................................. 5
Storage ..................................................................................................................... 5
Battery ...................................................................................................................... 5
Controls and Connections......................................................................................... 6
Measurement Status LEDs ....................................................................................... 7
Power On.................................................................................................................. 8
Power Off.................................................................................................................. 8
How to Operate.............................................................................................................. 9
Navigation................................................................................................................. 9
Meter Configuration .................................................................................................. 9

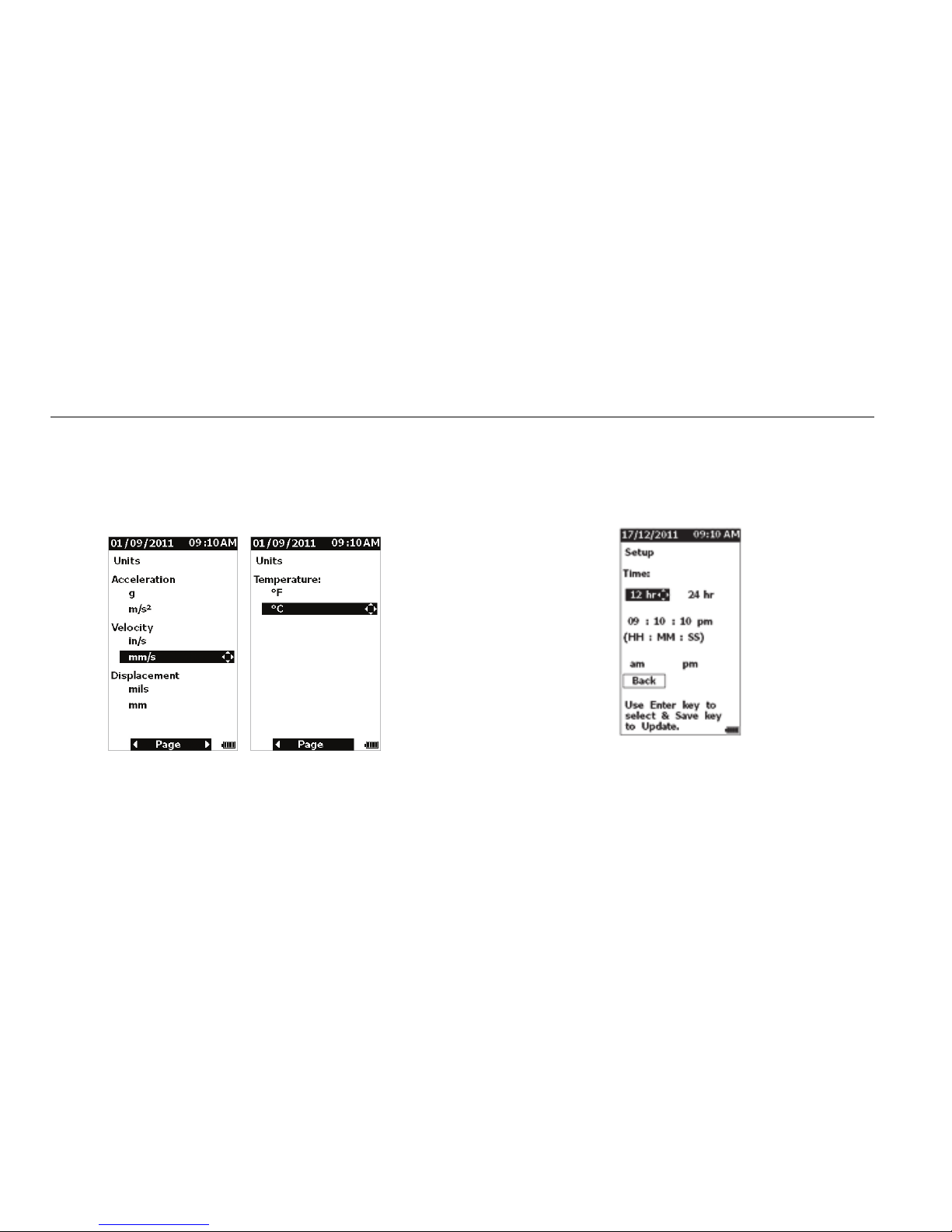

Units..................................................................................................................... 9
Time ..................................................................................................................... 10
Date ..................................................................................................................... 10

805
Users Manual
ii
Backlight Timeout................................................................................................. 11
Language ............................................................................................................. 12
Device Info ........................................................................................................... 12
Battery Selection .................................................................................................. 13
Emissivity Selection.............................................................................................. 13
Power Saving............................................................................................................ 14
Flashlight................................................................................................................... 14
Accessory Connectors .............................................................................................. 14
External Sensor.................................................................................................... 14
Audio .................................................................................................................... 16
USB...................................................................................................................... 17
About Measurements..................................................................................................... 18
Crest Factor+ (High Frequency Measurement)......................................................... 19
Quick Measurement .................................................................................................. 19
Overall Vibration (Low Frequency) Measurement with Severity Scale...................... 20
Machine Category ................................................................................................ 21
Create New Setup ................................................................................................ 23
Add to Setup ........................................................................................................ 24
How to Save a Measurement.................................................................................... 26
Auto Save............................................................................................................. 26
Save to Existing Setup ......................................................................................... 26
Save to Current Setup.......................................................................................... 27
Save to New Setup............................................................................................... 27
How to Recall a Setup for Measurements................................................................. 29
Access to Memory ......................................................................................................... 30
View All Data............................................................................................................. 31
View Setups .............................................................................................................. 32
Edit Setups................................................................................................................ 32
Clear All Data............................................................................................................ 34
Interpret Results ............................................................................................................ 34
Severity Scale ........................................................................................................... 34
ISO 10816 Standards................................................................................................ 35
Trending.................................................................................................................... 36
ISO 10816-1......................................................................................................... 36

Vibration Meter
Contents (continued)
iii
ISO 10816-3......................................................................................................... 36
ISO 10816-7......................................................................................................... 37
Export Data.................................................................................................................... 37
General Maintenance .................................................................................................... 40
Care .......................................................................................................................... 40
How to Clean ............................................................................................................ 40
Battery Replacement ................................................................................................ 40
Firmware Upgrades ....................................................................................................... 41
How to Troubleshoot...................................................................................................... 42

805
Users Manual
iv

v
List of Tables
Table Title Page
1. Symbols ................................................................................................................................ 3
2. Accessories .......................................................................................................................... 3
3. Keypad and Connectors ....................................................................................................... 6
4. LED Status............................................................................................................................ 7
5. Crest Factor Plus .................................................................................................................. 19
6. Severity Scale....................................................................................................................... 35
7. Vibration Severity - ISO 10816-1 .......................................................................................... 35
8. Troubleshooting .................................................................................................................... 42

805
Users Manual
vi

vii
List of Figures
Figure Title Page
1. 805 Vibration Meter .............................................................................................................. 6
2. Flashlight .............................................................................................................................. 14
3. External Sensor Connection ................................................................................................. 15
4. Audio Connection ................................................................................................................. 16
5. Meter to PC Connection........................................................................................................ 17
6. Measurement Display ........................................................................................................... 18
7. Import Database ................................................................................................................... 38
8. Open CSV Format File.......................................................................................................... 38
9. Plot Options .......................................................................................................................... 39
10. Data Plot Graph .................................................................................................................... 39
11. Battery Replacement ............................................................................................................ 41

805
Users Manual
viii

1
Introduction
The 805 Vibration Meter (the Meter or Product) is a
screening tool for bearings and overall vibration
measurements on machines. The Meter includes these
features:
•Overall vibration measurement
•Bearing health measurement with Crest Factor+
•On-screen severity scales
•Acceleration, Velocity, and Displacement units of
measure
•Temperature measurement with spot IR sensor
•Test results export to MS Excel template
•Belt Holster
•IP54
•Language support for Chinese (Simplified), Danish,
Dutch, English, Finnish, French, German, Italian,
Japanese, Norwegian, Portuguese (Brazilian), Russian
Spanish, Swedish, and Turkish
•Audio output
•Flashlight
•Stores up to 3,500 records
•USB support
•Storage/shipping case
•External accelerometer support
How to Contact Fluke
To contact Fluke, call one of the following telephone
numbers:
•Technical Support USA: 1-800-44-FLUKE
(1-800-443-5853)
•Calibration/Repair USA: 1-888-99-FLUKE
(1-888-993-5853)
•Canada: 1-800-36-FLUKE (1-800-363-5853)
•Europe: [phone]
•Japan: [phone]
•Singapore: [phone]
•Anywhere in the world: [phone]
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement,
visit http://us.fluke.com/usen/support/manuals.

805
Users Manual
2
Safety Information
A Warning identifies the conditions and procedures that
are dangerous to the user. A Caution identifies the
conditions and procedures that can cause damage to the
Product or the equipment under test.
XW Warning
To prevent possible electrical shock, fire, or
personal injury:
•Carefully read all instructions.
•Do not touch hazardous voltages with the
Product. These voltages could cause injury
or death.
•Use the Product only as specified, or the
protection supplied by the product can be
compromised.
•Examine the case before you use the
Product. Look for cracks or missing
plastic.
•Make sure the battery is securely in
position before operation.
•Do not use the Product around explosive
gas, vapor, or in damp or wet
environments.
•Comply with local and national safety
codes. Use personal protective equipment
(approved rubber gloves, face protection,
and flame-resistant clothes) to prevent
shock and arc blast injury where
hazardous live conductors are exposed.
To prevent personal injury from the infrared
thermometer:
•See emissivity information for actual
temperatures. Reflective objects result in
lower than actual temperature
measurements. These objects pose a burn
hazard.
•Do not keep the product in operation and
unattended at high temperatures.
To prevent personal injury when near rotating
equipment:
•Use caution around rotating equipment.
•Keep cords and straps contained.

Vibration Meter
Symbols
3
Symbols
Table 1 is a list of symbols on the Meter and in this
manual.
Table 1. Symbols
Symbol Description
WImportant information. See manual.
XHazardous voltage.
PConforms to requirements of European Union
and European Free Trade Association.
Conforms to relevant Australian standards.
~
This product complies with the WEEE Directive
(2002/96/EC) marking requirements. The affixed
label indicates that you must not discard this
electrical/electronic product in domestic
household waste. Product Category: With
reference to the equipment types in the WEEE
Directive Annex I, this product is classed as
category 9 "Monitoring and Control
Instrumentation” product. Do not dispose of this
product as unsorted municipal waste. Go to
Fluke’s website for recycling information.
MBattery or battery compartment.
Low battery when shown on display.
ÃConforms to relevant South Korean EMC
standards.
Accessories
Table 2 is a list of the accessories available for the Meter.
Table 2. Accessories
Description PN
Belt Holster 4106625
Storage/Shipping Case 4094432
Battery Door 4059351
USB Cable 3563901
Specifications
Sensor
Sensitivity (typical) ..............................100 mV / g ±10 %
Measurement Range .......................... 0.01 g to 50 g
Frequency Range ...............................10 Hz to 1,000 Hz
and 4,000 Hz to 20,000 Hz
Resolution ........................................... 0.01 g
Accuracy (typical)................................ At 100 Hz: ±5 % of measured value
Amplitude Units
Acceleration ................................ g, m/sec2
Velocity ....................................... in/sec, mm/sec
Displacement .............................. mils, μm
Infrared Thermometer
Temperature Measurement
Range ................................................. -20 °C to 200 °C (-4 °F to 392 °F)

805
Users Manual
4
Accuracy (typical)
-20 °C to 120 °C
(-4 °F to 248 °F) .......................... ±2 °C (4 °F)
120 °C to 160 °C
(248 °F to 320 °F) ....................... ±3 °C (6 °F)
160 °C to 200 °C
(320 °F to 392 °F) ....................... ±4 °C (7 °F)
Note
The specified accuracy is applicable only when the Meter is in
thermal equilibrium with its environment. Accuracy is not
specified when the target temperature is more than 20
° C
(36
° F) below the temperature of the Meter.
Focal length ........................................ Fixed, at ~3.8 cm (1.5 in)
External Sensor
Frequency Range ............................... 10 Hz to 1,000 Hz
Bias Voltage (to supply power) ........... 20 V DC to 22 V DC
Bias Current (to supply power) ........... 5 mA
Note
Fluke supports, but does not provide, external sensors.
Vibration Meter
Low Frequency Range
(overall measurement)........................ 10 Hz to 1,000 Hz
High Frequency Range
(CF+ measurement)............................ 4,000 Hz to 20,000 Hz
Vibration Limit .................................... 50 g peak (100 g peak-peak)
Battery Type ....................................... AA (2) 1.5 V lithium
recommended type: Energizer L91
Ultimate Lithium
Battery Life.......................................... 250 measurements
A/D Converter ..................................... 16-bit
Sampling Rate
Low Frequency ........................... 20,000 Hz
High Frequency........................... 80,000 Hz
Signal to Noise Ratio ..........................80 dB
Real Time Clock Backup..................... Coin Battery
Size (L x W x H) ..................................24.1 cm x 7.1 cm x 5.8 cm
(9.5 in x 2.8 in x 2.3 in)
Weight................................................. 0.40 kg (0.89 lb)
Connectors.......................................... USB Mini-B 7-pin, Stereo Audio
Output Jack (3.5 mm Audio Plug),
External Sensor Jack (SMB
connector)
Firmware
External Interfaces ..............................USB 2.0 (full speed)
communication
Data Capacity .....................................Database on internal flash memory
Upgrade .............................................. through USB
Memory ...............................................Up to 3,500 measurements
Environmental
Operating Temperature....................... -20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature..........................-30 °C to 80 °C (-22 °F to 176 °F)
Operating Humidity .............................10 % to 95 % RH (non-condensing)
Operating/Storage Altitude..................Sea Level to 3,048 meters
(10,000 feet)
IP Rating .............................................IP54
Vibration Limit ..................................... 500 g peak
Drop Test ............................................1 meter
Radiated Emission
Electrostatic Discharge: Burst............. Standard EN 61000-4-2

Vibration Meter
Before You Start
5
Electromagnetic Interference.............. Standard EN 61000-4-3
RE............................................... Standard CISPR 11, Class A
EMI, RFI, EMC, RF..................... EN 61326-1:2006,
EN 61326-2-2:2006
Class A Equipment (Industrial
Broadcasting & Communication
Equipment) [1]
[1] This product meets requirements for industrial (Class A) electromagnetic wave
equipment and the seller or user should take notice of it. This equipment is
intended for use in business environments and is not to be used in homes.
Before You Start
This section helps you to know the Meter parts, controls,
connections, and status LEDs.
Unpack and Inspect
Carefully unpack and inspect the:
•805 Vibration Meter
•Storage case
•USB Cable
•Quick Reference Guide
•CD (includes MS Excel template and documentation)
•Belt Holster
•AA (4) Lithium non-rechargeable batteries
Storage
When not in use, always keep the Meter in the supplied
storage case. The custom interior of the case supplies
protection for the Meter, documentation, and accessories.
Battery
Before you use the Meter for the first time, install the two
AA lithium non-rechargeable batteries (included). See
Battery Replacement on page 40 for more information.
The Meter also operates on two AA alkaline (3 v) batteries.
Due to short battery life, alkaline batteries are not
recommended.
Note
Set the battery type in the Device Settings menu.
See page 13.
The Meter does not include a rechargeable function. You
must externally charge the batteries.
shows on the display when battery power is low.
Replace the batteries before you continue to use the
Meter.

805
Users Manual
6
Controls and Connections
Figure 1 shows the location of the controls and
connections for the Meter. Table 3 is a key.
SETUP
MEMORY
SAVE
MEASURE
ENTER
VIBRATION
TESTER
805
1
2
3
4
5
7
8
9
10
11
12
15
18
17
14
13
6
16
gqi01.eps
Figure 1. 805 Vibration Meter
Table 3. Keypad and Connectors
Item Control
LCD
Power on/off
Measure
Navigation
Enter
Save
Setup
Connector cover
Status LED
Memory
Flashlight on/off
Backlight on/off
USB port
External sensor port
Audio port
Vibration sensor
IR temperature sensor
Flashlight

Vibration Meter
Before You Start
7
Measurement Status LEDs
The Meter has a status light for visual feedback about the
measurement. Green and red LEDs show the
measurement status and that a good measurement has
been taken. Table 4 is a list of the status as the LED
changes color.
Table 4. LED Status
90˚
SETUP
MEMORY
SAVE
MEASURE
ENTER
BEARING
TESTER
805
SETUP
MEMORY
SAVE
MEASURE
ENTER
BEARING
TESTER
805
SETUP
MEMORY
SAVE
MEASURE
ENTER
BEARING
TESTER
805
SETUP
MEMORY
SAVE
MEASURE
ENTER
BEARING
TESTER
805
gqi07.eps
Status Description
Green Off Push . Meter is ready for data
measurement.
Green On
Push the sensor tip onto the test surface,
on solid metal, as close as possible to the
bearing. Apply the compression force until
green LED is off.
Green Off Data measurement is complete.
Red On Error, insufficient force or time duration, no
data measurement.

805
Users Manual
8
Power On
Push to turn on the Meter. See Table 3 for the control
location.
Note
Before you use the Meter for the first time, install
the new batteries (see Battery Replacement on
page 40).
When the Meter is turned on, the default Measurement
screen shows on the Meter.
Power Off
A soft shutdown is the preferred method to turn off the
Meter:
1. Push .
2. At the prompt, select Yes.
3. Or, select No to continue with operation.
If the Meter locks up or becomes inoperable, a hard
shutdown can be used to turn off the Meter:
Note
Use a hard shutdown only as a last recourse as it
can cause data loss. After a hard shutdown, start
the Meter and verify the data in Memory.
1. Push and hold for more than 2 seconds.
2. Push to restart the Meter.
If Meter does not restart or the problem persists,
contact Fluke.

Vibration Meter
How to Operate
9
How to Operate
This section is about the operation of the Meter. It includes
measurement tips and step-by-step instructions.
Navigation
For general operation:
moves the cursor through the menu options
and edits the options
opens next menu or sets the selection
updates the Meter with a new selection
setting
recalls the previous menu
Each menu has navigation hints for its content at the
bottom of the screen.
Meter Configuration
The Setup menu is how you change the configuration of
the Meter.
To open:
1. Push to view the Setup screen.
2. Push and to highlight Device Settings from
the menu. This opens a list of all available options.
3. Push to open the menu.
4. Push and to highlight an option.
5. Push to open the menu.
Units
The units of measure are adjustable for different
standards.
To set:
1. Go to Device Settings.
2. Push and to highlight Units.
3. Push to open menu for units. The current
setting is highlighted.
4. Push and to highlight the unit to change.
5. Push to open menu with options for that
unit. The current setting is highlighted.

805
Users Manual
10
6. Push to update the Meter and exit the
menu.
7. Push and to move to the next page for more
options.
gqi11.eps
Time
To set the time format:
1. Push and to highlight the format as 12 hr or
24 hr.
2. Push to set the option.
To set the time:
1. Push and to highlight hour, minute, or second.
2. Push to enable the edit.
3. Push and to make a change.
4. Push to set the option.
5. Push and to highlight am or pm.
6. Push to set the option.
7. Push to update the Meter and exit the
menu.
Date
To change the date format:
1. Push and to highlight the option for
MM/DD/YY or DD/MM/YY.
2. Push to set the option.
