i410/i1010
AC/DC Current Clamp
Instructions
Go to www.fluke.com to register your Product and find more information.
Safety
A Warning identifies conditions and procedures that are dangerous to the user.
A Caution identifies conditions and procedures that can cause damage to the
Product or the equipment under test.
XW Warning
To prevent possible electrical shock, fire, or personal injury:
• Carefully read all instructions.
• Read all safety information before you use the Product.
• Do not alter the Product and use only as specified, or the
protection supplied by the Product can be compromised.
• Do not use the Product around explosive gas, vapor, or in damp
or wet environments.
• Do not use the Product if it operates incorrectly.
• Use Product-approved measurement category (CAT), voltage,
and amperage rated accessories (probes, test leads, and
adapters) for all measurements.
• Do not exceed the Measurement Category (CAT) rating of the
lowest rated individual component of a Product, probe, or
accessory.
• Comply with local and national safety codes. Use personal
protective equipment (approved rubber gloves, face protection,
and flame-resistant clothes) to prevent shock and arc blast injury
where hazardous live conductors are exposed.
• Before each use, examine the Product. Look for cracks or
missing pieces of the clamp housing or output cable insulation.
Also look for loose or weakened components. Carefully examine
the insulation around the jaws.
• Do not use test leads if they are damaged. Examine the test leads
for damaged insulation and measure a known voltage.
• Do not touch voltages >30 V ac rms, 42 V ac peak, or 60 V dc.
• Do not apply more than the rated voltage, between the terminals
or between each terminal and earth ground.

• Do not use a current measurement as an indication that a circuit is
safe to touch. A voltage measurement is necessary to know if a circuit
is hazardous.
• Limit operation to the specified measurement category, voltage, or
amperage ratings.
• The battery door must be closed and locked before you operate the
Product.
• Remove all probes, test leads, and accessories before the battery door
is opened.
• Hold the Product behind the tactile barrier.
• Remove the input signals before you clean the Product.
• Repair the Product before use if the battery leaks. Battery leakage may
create a shock hazard or damage the Product.
• Use only specified replacement parts.
• Have an approved technician repair the Product.
• Remove the batteries if the Product is not used for an extended period
of time, or if stored in temperatures above 50 °C. If the batteries are not
removed, battery leakage may result.
• Batteries contain hazardous chemicals that can cause burns or
explode. If exposure to chemicals occurs, clean with water and get
medical aid.
• Do not put battery cells and battery packs near heat or fire. Do not put
in sunlight.
Symbols
Symbol Description
XWARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
WWARNING. RISK OF DANGER.
Consult user documentation.
AC (Alternating Current)
DC (Direct Current)
TDouble Insulated
Earth
,Application around and removal from uninsulated hazardous live
conductors is permitted.
Conforms to European Union directives.
)Certified by CSA Group to North American safety standards.
Conforms to relevant Australian Safety and EMC standards.
Measurement Category III is applicable to test and measuring
circuits connected to the distribution part of the building’s low-
voltage MAINS installation.
~
This product complies with the WEEE Directive marking
requirements. The affixed label indicates that you must not discard
this electrical/electronic product in domestic household waste.
Product Category: With reference to the equipment types in the
WEEE Directive Annex I, this product is classed as category 9
"Monitoring and Control Instrumentation" product. Do not dispose
of this product as unsorted municipal waste.
P

Features and Connections
See Table 1 for a list of features and connections.
DC Current Measurement
See Table 2 for instructions on how to make a dc current measurement.
Note
Maximum 400 A dc rms (i410) or 1000 A dc rms (i1010).

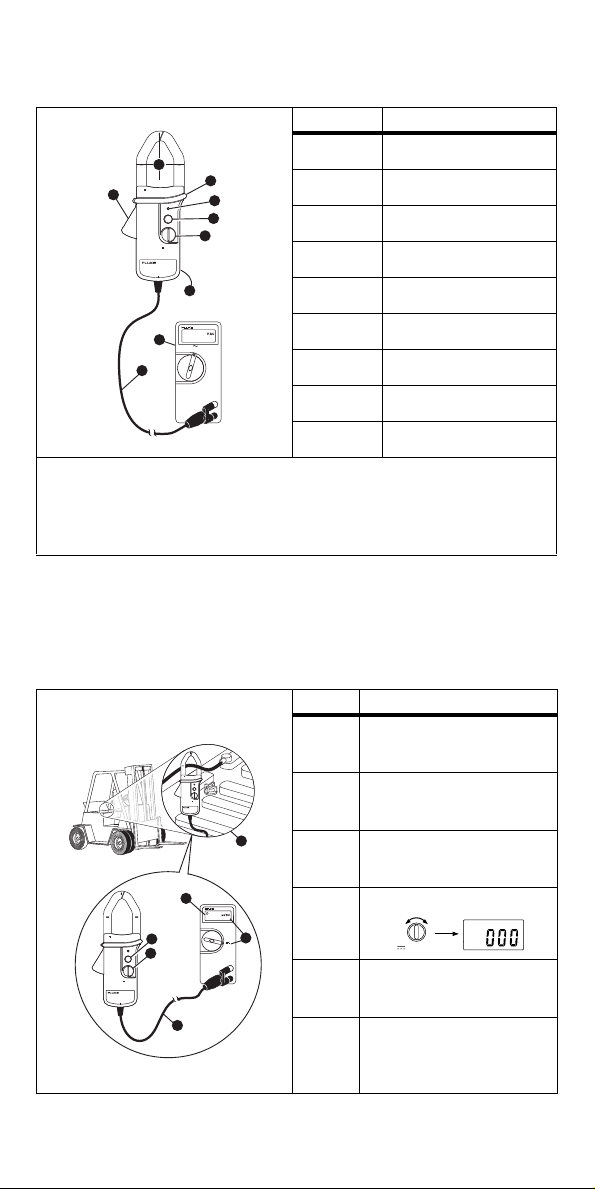

Table 1. Features and Connections
Item Description
Jaw Lever
Jaw Centering Marks
ON Indicator
ON/OFF Switch
Zero Adjust

Battery Access

Output Cable

Tactile Barrier

Voltmeter[1]
[1] Minimum voltmeter requirements:
• Accepts safety-shrouded banana plugs
• Can display 1 mV (0.1 mV preferred)
• Accuracy ≥0.75 %
• Input impedance 1 MΩ, ≤100 pF
Table 2. DC Current Measurement
Step Description
Connect to voltmeter.
Select mV dc.
Set to ON.

Adjust ZERO (jaws empty).
Clamp and center around the
conductor.

Read voltmeter
(1 mV = 1 A).
CLAMPMETER
i410
ZEROA
600V
CAT 600V
600A
CLAMPMETER
i410
ZEROA
CAT 600V
600A
600V
mV
76
TRUERMS MULTIMETER
1
2
3
4
6
5
ZEROA
CLAMP METER
i410
ZERO A
CAT
600V
600A
600V
V
76 TRUERMS MULTIMETER
1
2
8
3
4
5
6
7
9

AC Current Measurement
See Table 3 or instructions on how to make an ac current measurement.
Note
Maximum 400 A ac rms (i410) or 600 A ac rms (i1010).
Battery Test
To test the battery, see Table 4.
Table 3. AC Current Measurement
Step Description
Connect to voltmeter.

Select mV ac or V ac, but
resolution may be limited to
1 A).
Set to ON.
Clamp and center around
the conductor.
Read voltmeter
(1 mV = 1 A).
Table 4. Battery Test
Step Instruction
Set OFF.
Select V dc.

≤7.0 Vdc = replace
battery.
(Voltmeter input
impedance ≥1 MΩ )
0
1
3
2
4567
8
9
10
Speed
CLAMPMETER
i410
ZERO
A
600V
CAT
600V
600A
CLAMPMETER
i410
ZEROA
600V
CAT
600V
600A
V
76 TRUERMS MULTIMETER
5
2
1
3
4
CLAMP METER
i410
ZERO A
CAT
600V
600A
600V
V
76 TRUERMS MULTIMETER
1
2
3

Battery Replacement
For specified battery life, use an alkaline battery. To replace the battery, see Figure 1.
Figure 1. Battery Replacement
If the Current Clamp Does Not Work
Storage
During long periods of non-use (>60 days), remove and store the battery separately.
Cleaning
Periodically wipe the case with a damp cloth and mild detergent. Do not use
abrasives or solvents.
Service and Parts
The Current Clamp should be serviced only by a qualified service technician. For
service information, contact your nearest Fluke dealer or service center.
Safety Specifications
Maximum voltage between any Terminal
and Earth Ground....................600 V
Temperature
Operating ..............................-10 °C to 50 °C
Storage .................................-20 °C to 60 °C
Relative Humidity ....................0 % to 90 % (10 °C to 30 °C)
0 % to 75 % (30 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
Operating Altitude ...................2000 m
Storage Altitude ......................12 000 m
Battery Type ............................9 V (alkaline) IEC 6LR61
Battery Life ..............................60 hr typical (continuous with alkaline)
Current x Hz Product ............... ≤240 000
Output Signal...........................1 mV/amp dc or ac
Maximum Conductor
Diameter...................................1 ea: 30 mm
2 ea: 25 mm
Check Correction
Battery = OK? See Battery Test
Voltmeter connections? Red to + or Black to COM
Voltmeter function/range? mV dc/mV ac (or V ac)
1
2
3

Load Impedance........................ ≥1 MΩ ≤100 pF
Specified Current Range
i410.......................................1 A to 400 A ac rms/1 A to 400 A dc
i1010.....................................1 A to 600 A ac rms/1 A to 1000 A dc
Note
With a true-rms voltmeter, the minimum ac current is limited to the
low end of the specified mV ac range.
Usable Current Range
i410.......................................0.5 A to 400 A
i1010.....................................0.5 A to 1000 A dc
DC Accuracy (zero adjusted, conductor centered)
i410.......................................3.5 % + 0.5 A (0 A to 400 A)
i1010.....................................2.0 % + 0.5 A (0 A to 1000 A)
AC Accuracy
i410.......................................3.5 % + 0.5 A, 45 Hz to 400 Hz
Crest Factor ≤3 (0 A to 400 A)
i1010.....................................2.0 % + 0.5 A, 45 Hz to 400 Hz
Crest Factor ≤3 (0 A to 600 A)
Bandwidth
i410.......................................3 kHz
i1010.....................................10 kHz
Temperature
Coefficient................................... ±(0.05 x accuracy per 0 °C to 18 °C,
28 °C to 50 °C)
Size ...........................................209 mm x 78 mm x 48 mm
Weight ......................................0.5 kg
Safety .......................................IEC 61010-1, Pollution Degree 2
IEC 61010-2-032: CAT III 600 V
Electromagnetic Compatibility (EMC)
International..........................IEC 61326-1: Portable, Electromagnetic
Environment, IEC 61326-2-2
CISPR 11: Group 1, Class A,
Group 1: Equipment has intentionally generated and/or uses conductively-
coupled radio frequency energy that is necessary for the internal function of the
equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic
and those directly connected to a low-voltage power supply network that
supplies buildings used for domestic purposes. There may be potential
difficulties in ensuring electromagnetic compatibility in other environments due
to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and
may not provide adequate protection to radio reception in such environments.
Korea (KCC) .........................Class A equipment (Industrial Broadcast &
Communications Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave
equipment and the seller or user should take notice of it. This equipment is
intended for use in business environments and not to be used in homes.
USA (FCC) ...........................47 CFR 15 subpart B. This product is considered an
exempt device per clause 15.103.

LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and workmanship for one year
from the date of purchase. This warranty does not cover fuses, disposable batteries,
or damage from accident, neglect, misuse, alteration, contamination, or abnormal
conditions of operation or handling. Resellers are not authorized to extend any other
warranty on Fluke’s behalf. To obtain service during the warranty period, contact
your nearest Fluke authorized service center to obtain return authorization
information, then send the product to that Service Center with a description of the
problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH
AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED.
FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR
THEORY. Since some states or countries do not allow the exclusion or limitation of
an implied warranty or of incidental or consequential damages, this limitation of
liability may not apply to you.
11/99
