Fluke 572 User manual

572
Precision Infrared Thermometer
Users Manual
March 2005
© 2005 Fluke Corporation. All rights reserved.
All product names are trademarks of their respective companies.

2
572
LIMITED WARRANTY AND LIMITATION
OF LIABILITY
This Fluke product will be free from defects in
material and workmanship for one year from the
date of purchase. This warranty does not cover
fuses, disposable batteries, or damage from
accident, neglect, misuse, alteration, contami-
nation, or abnormal conditions of operation or
handling. Resellers are not authorized to extend
any other warranty on Fluke’s behalf. To obtain
service during the warranty period, contact your
nearest Fluke authorized service center to obtain
return authorization information, then send the
product to that Service Center with a description
of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO
OTHER WARRANTIES, SUCH AS FITNESS FOR
A PARTICULAR PURPOSE, ARE EXPRESSED
OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL OR CONSE-
QUENTIAL DAMAGES OR LOSSES, ARISING
FROM ANY CAUSE OR THEORY. Since some
states or countries do not allow the exclusion or
limitation of an implied warranty or of incidental
or consequential damages, this limitation of liabi-
lity may not apply to you.

3
572
Warning
A Warning identifies conditions and actions that pose ha-
zards to the user. To avoid electrical shock or personal injury,
follow these guidelines:
• Do not point laser directly at eye or indirectly off
reflective surfaces.
• Before using the thermometer inspect the case. Do not
use the thermometer if it appears damaged. Look
for cracks or missing plastic.
• Replace the batteries as soon as the battery indicator
two or less segments.
• Do not use the thermometer if it operates abnormally.
Protection may be impaired. When in doubt, have the
thermometer serviced.
• Do not operate the thermometer around explosive gas,
vapor, or dust.
• Do not connect the optional external probe to live
electrical circuits.
• To avoid a burn hazard, remember that highly reflective
objects will result in lower than actual temperature
measurements.
• Do not use in a manner not specified by this manual or the
protection supplied by the equipment may be impaired.
Caution
To avoid damaging the thermometer or the equipment under
test protect them from the following:
• EMF (electro-magnetic fields) from arc welders,
induction heaters, etc.
• Static electricity
• Thermal shock (caused by large or abrupt
ambient temperature changes- allow 30 minutes
for thermometer to stabilize before use).
• Do not leave the thermometer on or near
objects of high temperature.
Safety Information

4
572
Table of Contents
Introduction .................................................. 5
Symbols and Safety Markings ..................... 7
Laser Warning and Serial Number Labels .... 8
Delivery Content ........................................... 9
Functions and Display .................................. 10
Batteries and Measurement ......................... 11
Field of View and Emissivity ......................... 12
Spot Size ...................................................... 13
Emissivity ...................................................... 14
Mode and Setup Alarm ................................ 15
Graphic Display and DIP Settings ................ 16
DIP Switch Factory Settings ........................ 17
Troubleshooting ............................................ 18
Maintenance ................................................. 19
Emissivity Table (Selected Values) ................ 20
CE Conformity .............................................. 21
Specifications ............................................... 22
Factory defaults ............................................ 22

5
572
The Fluke Model 572 Infrared Thermometer (the
thermometer) is for non-contact temperature
measurement. This thermometer determines
an object‘s surface temperature by measuring
the amount of infrared energy radiated by the
object‘s surface.
Contacting Fluke
To contact Fluke, call one of the following
telephone numbers:
USA: 1-888-44-FLUKE (1-888-443-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: [phone]
Japan: [phone]
Singapore: [phone]
Anywhere in the world: [phone]
For USA Service: 1-888-99-FLUKE (1-888-993-5853)
Or, visit Fluke's Web site at www.fluke.com.
To register your product, visit register.fluke.com.
Introduction

6
572

7
572

Symbol Explanation

Risk of danger. Important information. See
Manual.
Risk of danger. Important information. See
Manual.
Risk of danger. Important information. See

Hazardous voltage. Precedes warning

Warning. Laser.

Conforms to requirements of European Union
and European Free Trade Association (EFTA)
Conforms to requirements of European Union
and European Free Trade Association (EFTA)
Conforms to requirements of European Union
°
C
Celsius
°
F
Fahrenheit
Battery
Symbols and Safety Markings



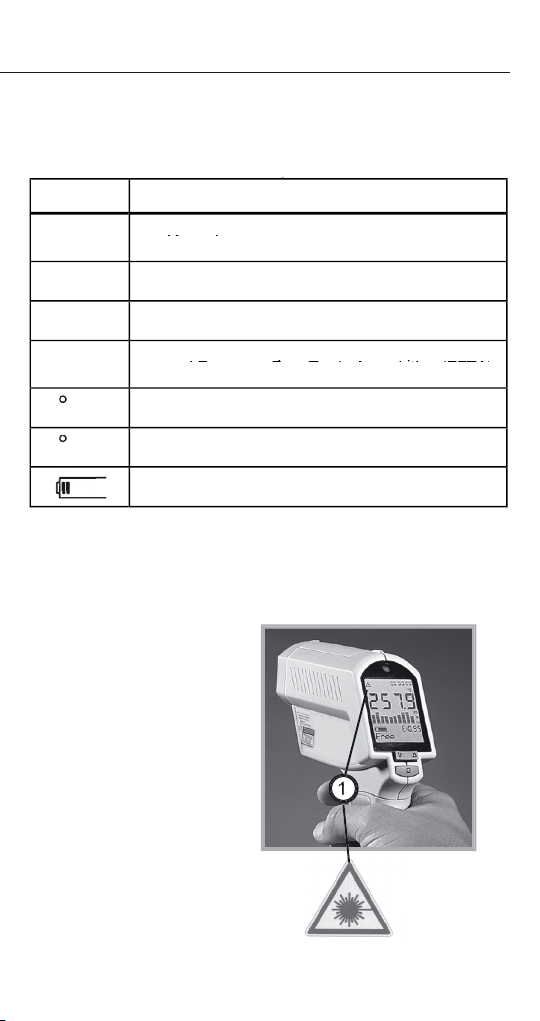

The laser sight simplifies
sighting of the measure-
ment object. It shows the
spot size that includes the
measured target.
A
laser symbol (1)
appears when the laser is
on.
The laser automatically
turns of
f
if you release the
trigger.
LASER
ON/OFF
laser ON
symbol
1
1
1
1
1

8
572
Laser Warning and Serial Number Labels

9
572
• The unit
• Getting Started
• Two AA batteries
• Manual on CD
Delivery Content

10
572
Functions and Display

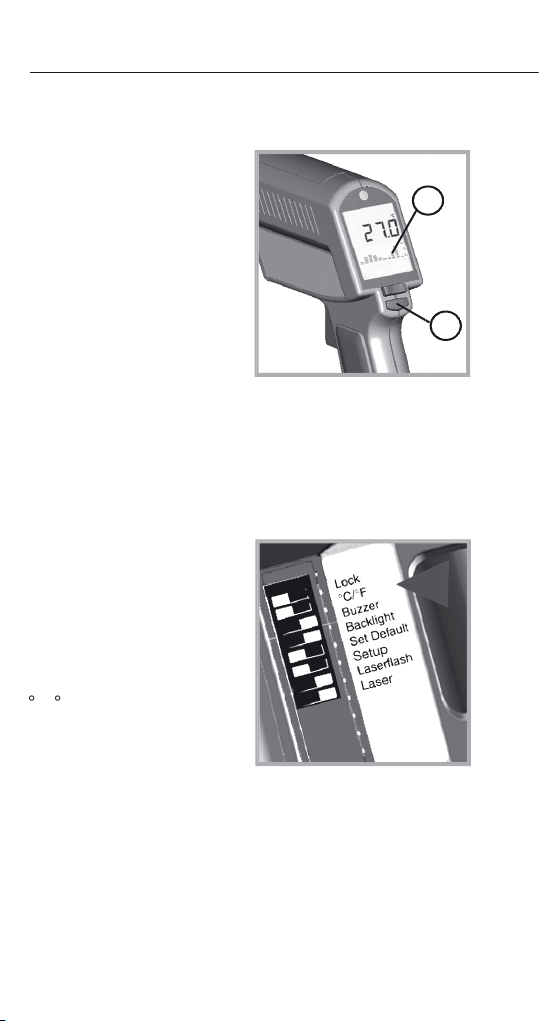

Function keys and dis-
play:
(A) Visual and audible
Hi-Alarm
(B) Display
(C) Up and Down keys
(D) Enter
(E) Switches for adjust-
ments (inside the
unit’
s
handle)
(F) Trigger
(G) Tripod mount
(underside of unit)
FUNCTIONS
USER INTERFACE
Displayed functions:
(1) Laser condition /
Lock symbol
(2) Main temperature
display
(3) Graphic display
(4) Emissivity value
(5) Status bar
(6) Battery life indicator
DISPLAY
1
2
3
4
5
6
A
A
B
C
D
D
E
F
G

11
572
Batteries and Measurement
To open the battery
compartment, press
gently on the top part of
the handle
to release
the catch and pivot the
grip as shown in the
figure. Orient the batteries
(two alkaline R6 (AA,
UM3)) positive side up as
shown on the housing.
To take a temperature
measurement, hold the
unit as shown. Aim at the
target. Pull the trigger (F).
The temperature of the
object being measured
is shown on the display
(B).
The temperature will
be displayed for seven
seconds after trigger is
released.
MEASUREMENT
QUICK START
MEASUREMENT
MEASUREMENTMEASUREMENTMEASUREMENT

12
572

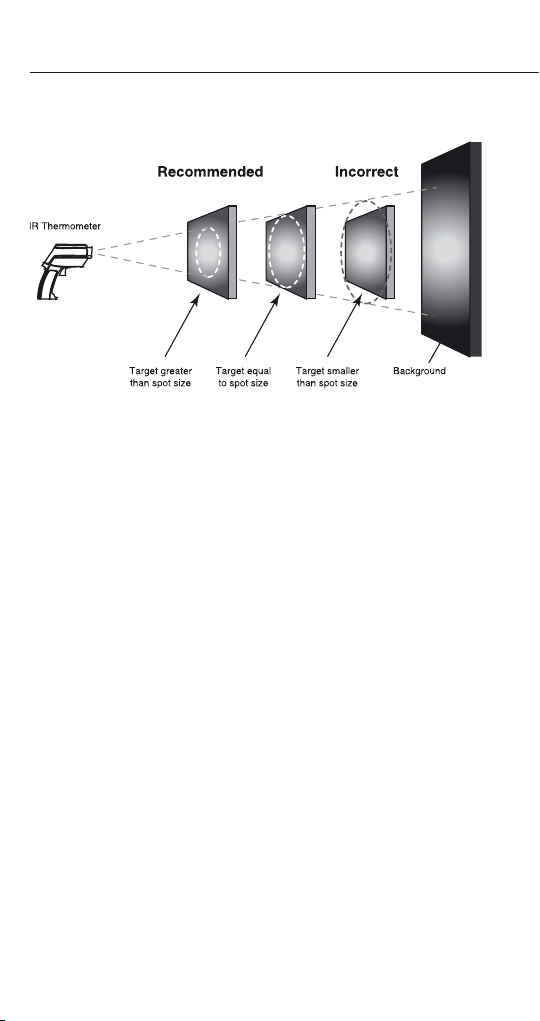

Make sure that the target is larger than the unit’s
spot size. The smaller the target, the closer you
should be to it.
Field of View and Emissivity

13
572

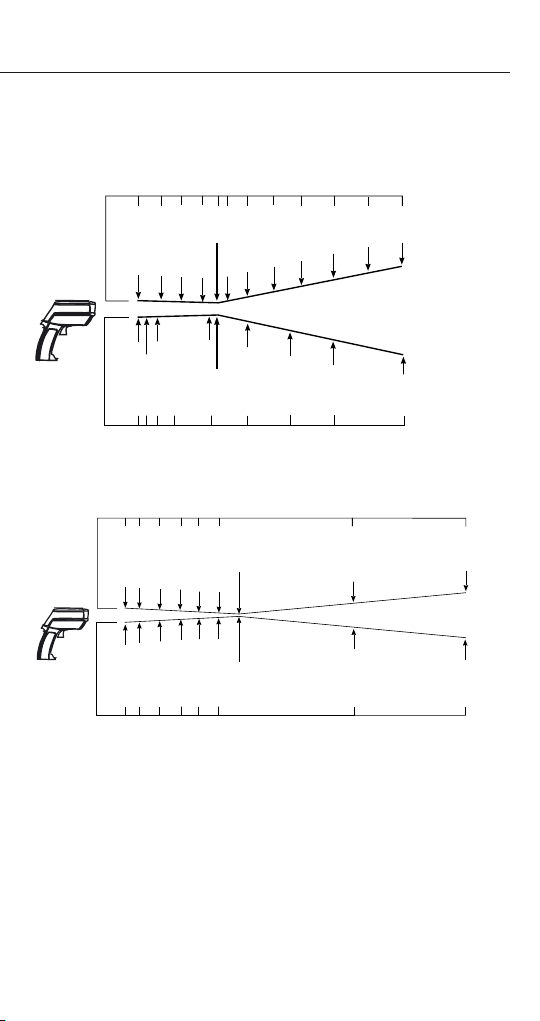

STANDARD MODEL
Optical Chart
3000 120
1.0
0
0
24
SPOT DIA. (IN)
SPOT DIA. (mm)
DISTANCE: SENSOR TO OBJECT (mm)
DISTANCE: SENSOR TO OBJECT (IN)
FOCUS POINT D:S = 60:1 FAR FIELD D:S = 35:1
0.76 IN @ 46 IN
19 mm @ 1150 mm
1500
2500 100
60
1.2
2.3
2.9
29.0
58.0
72.0
2000
44.0
1000
500
250
100
24
23
30
0.9 0.81 0.82
1.51 1.85
2.5
19.8
108
84
72
48
20 36
46
0.87
CLOSE FOCUS MODEL
Optical Chart
500
20
1
0
0
0.93
25 23
SPOT DIA. (IN)
SPOT DIA. (mm)
DISTANCE: SENSOR TO OBJECT (mm)
DISTANCE: SENSOR TO OBJECT (IN)
FOCUS POINT D:S = 50:1 FAR FIELD D:S = 12:1
0.24 IN @ 11.8 IN
6 mm @ 300 mm
Close Focus
6
0.62
15,5
150
2
0.9
22
50
4
0.75
18,7
100
7.9 9.8
200 250
0.49 0.37
12,3 9,2
40
1000
2.81
70
The measured spot size depends on the dis-
tance between the object you are measuring and
the infrared thermometer.
The relationship between distance and spot size
is 60:1(Standard Focus) or 50:1 (Close Focus) at
the focus point. The D:S in the far field (>33ft/
10m) is 35:1 (Standard) or 12:1 (Close Focus).
Spot Size

14
572
Emissivity
Reflected energy
Emitted energy
Transmitted energy
EMISSIVITY
Target
4
C
The amount of infrared
energy radiated by an
object depends on its
emissivity and its
temperature.
The emissivity depends
on the material and its
surface characteristics.
For more accurate
readings, adjust the
emissivity value for the
type of material being
measured
.
The “Setup” DIP switch
(located inside the unit’
s
handle) must be in the
“ON” position to adjust the
emissivity.
When the trigger is pulled,
the display will show an
emissivity value (4). To
set it to another value,
use the up and down keys
(C).
See the Emissivity
T
able for
Table forT
approximate material
emissivities.
ADJUST EMISSIVITY

15
572
Mode and Setup Alarm

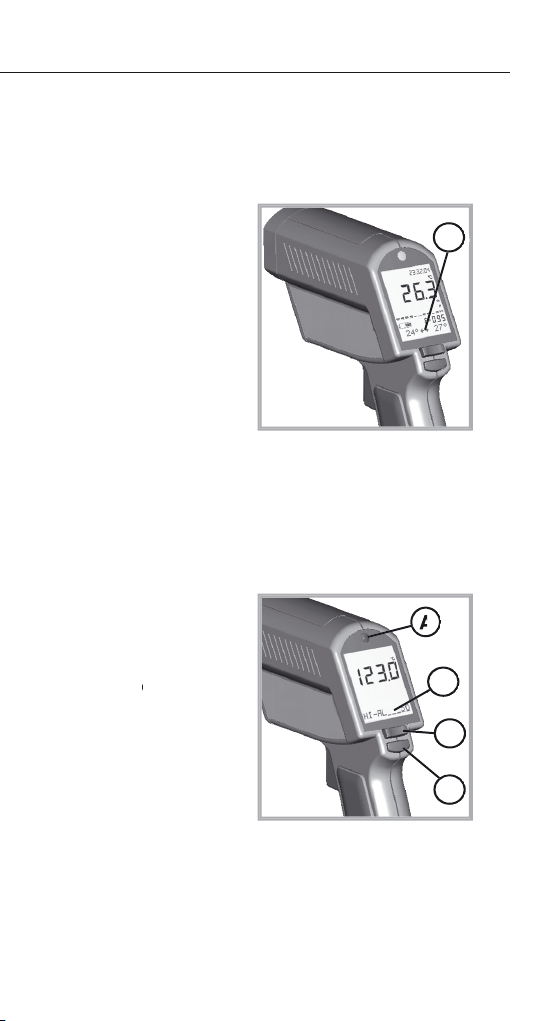

The minimum and
maximum temperature
values during a
measurement session are
shown in the status bar at
the bottom of the display
(5), except when adjusting
the high alarm.
MODE
MIN-MAX VALUES
The high alarm feature
(HiAl) generates a visual
(A) and audible alarm if
the temperature is above
the setpoint.
T
o
ToT
set the
alarm value (which is in
the status bar (5), move
the “Setup” DIP switch
inside the unit’s handle to
ON. Press ENTER (D)
once, and use the up and
down keys (C) to adjust
the value.
SETUP
HIGH ALARM
5
5
A
A
C
D

16
572
Graphic Display and DIP Settings
D
3
Backlight: Backlight ON or OFF.
Set Default:
Activates the factory defaults.
Setup: Setup HiAlarm and Emissivity adjustment
activated.
Laserflash: The laser flashes when the alarm values
are surpassed.
Laser: activated (ON), not activated (OFF).
The graphic display (3)
shows the temperature as
a
moving bar graph. The
last ten measurements
are shown.
The minimum and
maximum temperature
scale of the graph is set
automatically by the unit
(Auto Range Feature).
Recall previous display
by pushing ENTER (D).
Change the settings in the
unit by using the DIP
switches located in the
battery compartment (see
BATTERIES section).
Lock:
T
rigger locked (ON)
or unlocked (OFF).
°
C/
°
F:
changes between
°C and °F.
Buzzer:Audible alarm ON
or OFF.
SETTINGS
SETTINGS

17
572
DIP Switch Factory Settings
Factory settings
Lock OFF
°C/°F °C
Buzzer ON
Backlight OFF
Set Default OFF
Setup ON
Laserflash ON
Laser ON
The Factory DIP switch settings can be changed
according to your needs. For information on
accessing the DIP switches, see the BATTERIES
section in this manual. For information on the
DIP
switch functions, see SETTINGS on the
previous page.

18
572
Troubleshooting
Code Problem Action
-O- Target temp. is over Select target
-U- or under range within unit’s specs
EEPROM-Err EEPROM error Contact factory
CalAreaErr Calibration errors Contact factory
ProbCalErr
Battery icon Battery is low Replace batteries
flashes or
LowBatt on
Status line
Blank display Battery is dead Replace batteries
Laser won’t
Low or dead battery Replace batteries
work
Ambient above 45
°
C Operate unit in 45°C
(113°F) (113°F) ambient or
below

19
572
Maintenance
Lens Cleaning:
Blow off loose particles
using clean compressed
air. Brush remaining de-
bris away with a camel’s
hair brush.
Wipe the surface with a
moist cotton swab. The
swab may be moistened
with water or a water
based glass cleaner.
NOTE: DO NOT
use sol-
vents to clean the
plastic lens.
Cleaning the Housing:
To clean the exterior
housing, use soap and
water or a mild commer-
cial cleaner. Wipe with a
damp sponge or soft rag.

20
572
Emissivity Table (Selected Values)
Aluminum* 0.30
Asbesto 0.95
Asphalt 0.95
Basalt 0.70
Brass* 0.50
Brick 0.90
Carbon 0.85
Ceramic 0.95
Concrete 0.95
Copper* 0.95
Dirt 0.94
Frozen food, 0.90
Hot food 0.93
Glass (plate) 0.85
Ice 0.98
Iron* 0.70
Lead* 0.50
Limestone 0.98
Oil 0.94
Paint
0.93
Paper
0.95
Plastic**
0.95
Rubber 0.95
Sand
0.90
Skin 0.98
Snow
0.90
Steel* 0.80
T
extiles
Textiles T
0.94
Water 0.93
Wood*** 0.94
*
oxidized
** opaque, over 20 mils
*** natural
