Flymo Lawnrake LC3400 User manual

IMPORTANT INFORMATION
Read before use
& retain for future reference
For all customer enquiries or for replacement parts, contact:-
01325 300303
www.flymo.com
www.mcculloch.info
customer[email protected]
Lawnrake
Original Instructions

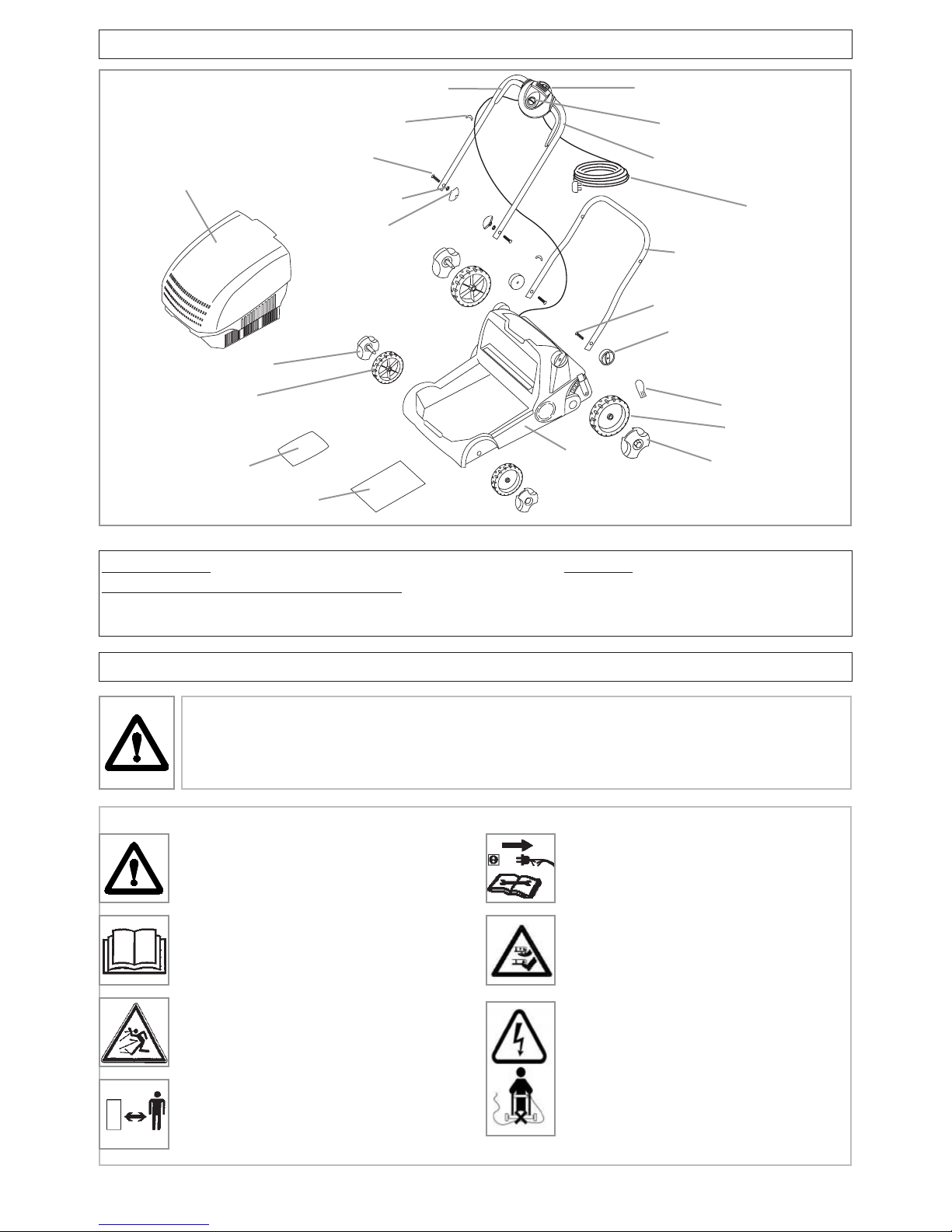

Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new product.
IF ANY PARTS ARE MISSING CONTACT:-
Husqvarna UK Ltd. Customer Service Department direct
Telephone : [phone] Fax : [phone]
Safety
If not used properly this product can be dangerous! This product can cause serious injury to the
operator and others, the warnings and safety instructions must be followed to ensure reasonable
safety and efficiency in using this product. The operator is responsible for following the warning and
safety instructions in this manual and on the product. Never use the product unless the grassbox or
guards provided by the manufacturer are in the correct position.
Explanation of Symbols your product
Warning
Read the user instructions carefully to
make sure you understand all the controls
and what they do.
Always keep the product on the ground
when using. Tilting or lifting the product
may cause stones to be thrown out.
Keep bystanders away. Do not use whilst
people especially children or pets are in
the raking area.
Switch off! Remove plug from mains
before adjusting, cleaning or if cable is
entangled or damaged. Keep the cable
away from the tines.
Beware of sharp tines. Tines continue to
rotate after motor is switched off.
Keep the cable supply away from the
cutting means
electric
cable with
moulded
on plug
upper handle
wing knob x 2
lower handle
wing knob x 2
cable
clip x 2
bolt x 2 (M6)
instruction
manual
pack of tines
upper handle
lower handle
start/stop lever switchbox
deck
lock off
button
collection box washer
x 2 (M6)
bolt x 2
(M8)
height adjustment
handle
rear wheel x 2
rear wheel hub cap
x 2
front wheel x 2
front wheel hub cap
x 2

General
1. This product is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
the use of the product by a person responsible for their
safety. Children should be supervised to ensure that they
do not play with the product. Local regulations may restrict
the age of the operator.
2. Only use the product in the manner and for the
functions described in these instructions.
3. Never operate the product when you are tired, ill or
under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or
hazards occurring to other people or their property.
Electrical
1. The British Standards Institute recommend the use
of a Residual Current Device (R.C.D.) with a tripping
current of not more than 30mA. Even with a R.C.D.
installed 100% safety cannot be guaranteed and
safe working practice must be followed at all times.
Check your R.C.D. every time you use it.
2. Before use, examine cable for damage, replace it if
there are signs of damage or ageing.
3. Do not use the product if the electric cables are
damaged or worn
4. Immediately disconnect from the mains electricity
supply if the cable is cut, or the insulation is damaged.
Do not touch the electric cable until the electrical supply
has been disconnected. Do not repair a cut or
damaged cable. Replace it with a new one.
5. Your cable must be uncoiled or unwound, coiled or wound
cables can overheat and reduce the efficiency of your mower.
6. Keep cable away from the product, always work away from
the power point, operating up and down, never in circles.
7. Do not pull cable around sharp objects.
8. Always switch off at the mains before disconnecting
any plug, cable connector or extension cable.
9. Switch off, remove plug from mains and examine electric
supply cable for damage or ageing before winding cable
for storage. Do not repair a damaged cable, replace it
with a new one. Use only our replacement cable.
10.Always wind cable carefully, avoiding kinking.
11.Never carry the product by the cable.
12.Never pull on the cable to disconnect any of the plugs.
13.Use only on AC mains supply voltage shown on the
product rating label.
14.Our products are double insulated to EN60335.
Under no circumstance should an earth be con-
nected to any part of the product.
Preparation
1. While using your product always wear substantial
footwear and long trousers.
2. Make sure the lawn is clear of sticks, stones, bones,
wire and debris; they could be thrown by the tines.
3. Before using the machine and after any impact, check
for signs of wear or damage and repair as necessary.
4. Replace worn or damaged tines.
Use
1. Use the product only in daylight or good artificial light.
2. Avoid operating your product in wet grass, where feasible.
3. Take care in wet grass, you may lose your footing.
4. On slopes, be extra careful of your footing and wear
non-slip footwear.
5. Use across the face of slopes, never up and down.
6. Exercise extreme caution when changing direction
on slopes. Walk never run.
7. Operating on banks and slopes can be dangerous.
Do not operate on banks or steep slopes.
8. Do not walk backwards when operating, you could trip.
9. Use exreme caution when pulling the product towards you.
10.Switch off before pushing the product over surfaces
other than grass.
11.Never operate the product with damaged guards or
without guards in place.
12.Keep hands and feet away from the cutting means at all
times and especially when switching on the motor.
13.Do not tilt the product when the motor is running,
except when starting and stopping. In this case, do
not tilt more than absolutely necessary and lift only
the part which is away from the operator. Always
ensure that both hands are in the operating position
before returning the appliance to the ground.
14.Never pick up or carry the product when it is
operating or still connected to the mains supply.
15.Do not put hands or feet near or under rotating parts.
Keep clear of the the discharge opening at all times.
16.Remove the plug from the mains :
- before leaving the product unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- if you hit an object. Do not use until you are sure that
the entire product is in a safe operating condition.;
- if the product starts to vibrate abnormally. Check
immediately. Excessive vibration can cause injury.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the
product is in safe working condition.
2. Check the collection box frequently for wear or
deterioration.
3. Replace worn or damaged parts for safety.
4. Only use the replacement parts specified for this product.
5. Be careful during adjustment of the product to pre-
vent entrapment of the fingers between moving and
fixed parts of the machine.
CABLES - IMPORTANT
•Use only 1.00mm2 size cable up to 40 metres length maximum.
Maximum rating :
1.00mm2 size cable, 10 amps 250 volts AC.
•YOUR PRODUCT IS SUPPLIED WITH CABLE
WIRED DIRECTLY INTO THE PRODUCT.
1.Flymo Mains Cables and Extension Cables are avail-
able from your local Husqvarna Outdoor Products Ap-
proved Service Centre.
2.Do not wire an extension cable directly to your product
yourself. Please contact your local Husqvarna Outdoor
Products Approved Service Centre for further information
on the connectors and kits available.
3.Only use extension cables specifically designed for
outdoor use.
CONNECTORS - IMPORTANT
•Flymo connectors are suitable for use with 2 core cable
only. Under no circumstances should these connectors
be used for earthed products.
•All Flymo connectors and cables are of splashproof con-
struction. They are not waterproof and must not be left
outside permanently nor should they be submerged or im-
mersed in water. Do not let cable lay or trail through pools
of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT - IMPORTANT
• If the plug supplied is cut off it should be destroyed.
There is an electric shock hazard if a cut off plug is
inserted into a 13 amp socket.
1.No earth required. Flymo products are double insulated
to EN60335 and under no circumstances should an
earth be connected to any part of the product.
2.Ensure the mains voltage suits your product
3.IMPORTANT!
The wires in the mains lead are coloured in accor-
dance with the following code:
BLUE - NEUTRAL BROWN - LIVE
The wire which is coloured BLUE must be connected
to the Terminal which is marked with the letter 'N' or
coloured BLACK. The wire which is coloured BROWN
must be connected to the Terminal which is marked
with the letter 'L' or coloured RED.
4.It is important that the outer sheath is clamped cor-
rectly into the 3-pin plug.
5.If in doubt consult your local Service Repairer or quali-
fied electrician before the machine is used.
6.A 13 Amp fuse must be fitted to the Mains Plug.
7.The normal plug fuse and household fuse only protect
the electrical equipment and are not a safeguard
against electrocution.
If your product is hard wired i.e. non-detachable mains elec-
tric cable, a conversion kit and extension cable is available
from all Husqvarna Outdoor Products Approved Service
Centres which can be found in your local Yellow Pages.

Wheel Assembly (A)
1. Insert the wheel bolt into the threaded hole.
2. Fully tighten the bolts using a screwdriver.
Assembly of Lower Handles to Deck
1. Place the hole in the lower handle over the end of
the bolt (B)
2. Place the wing knob onto the end of the bolt and
firmly tighten. (B)
3. Repeat on the other side.
Assembly of Upper Handles to Lower Handles.
1. Ensure the upper handle is located correctly with
the lock-off button on the switchbox uppermost.
2. Ensure the upper handle and the lower handle are
aligned correctly.(C)
3. Fit the bolts, washers and wing knobs.(C)
4. Fit the cable to the handles with the clips provided.
Make sure the cable is not trapped between the
upper and lower handles.
Height Adjust Handle Assembly
1. Insert the height adjust arm into the slot at the
base of the height adjust handle (D)
2. Firmly push the handle on to the arm.
3. The handle will automatically lock on to the arm.
Assembly Instructions
B
C
A
Height Adjustment
1
2
3
4
5
6
E
Adjusting the raking height
1. Lift the lever out of location and rotate to the
desired position. (E)
Heights of raking:-
1, 2, 3 - low
The low settings should be used to collect material from the
base of the lawn. This setting is ideal for removing moss
and thatch. After removing the thick patches of moss and
thatch the lawn may look bare in some patches. These
patches in the lawn will start to recover now that the moss
and thatch has been removed.
4, 5 - medium
The medium settings should be used for light raking. This
setting is ideal for lifting flattened grass prior to mowing and
for collecting grass cuttings after mowing. It can also be
used for light raking of moss and thatch.
6 - high
The high setting should be used for clearing the lawn.
This setting is ideal for collecting light debris such as
fallen leaves, twigs and grass cuttings without damaging
the lawn.
D

How to Use
Raking your Lawn
Raking the lawn helps aerate the soil, prevent diseases, it also
improves surface drainage and promotes a healthier thicker
lawn.
Moss
There are several types of mosses, which can cause
problems to your lawn. Moss as well as being detrimental
to the appearance of your lawn, will smother grass, make
the lawn spongy, make it difficult to mow, hold water and
encourage disease. Moss spores are released during
spring and autumn.
Thatch
Thatch is decaying organic matter that builds up on the
base of the lawn. Like moss thatch is detrimental to the
appearance of your lawn and can cause bad surface
drainage, encourage weeds, prevent air circulation and
encourage disease.
1
2
L
How to Use
• Do not use in wet or damp conditions. Raking in wet
conditions can damage the lawn.
• Do not force the lawnrake through long grass it should be
used on grass no longer than 75mm in length. If the grass is
long, mow the lawn prior to using the Lawn Rake. The Lawn
Rake can collect your grass clippings while raking.
• Clear the lawn of any loose debris or stones that may
damage the lawnrake.
• On your first use choose a medium height to start with, and
then adjust the height setting to suit your lawn and use.
• Start the lawnrake at the edge of the lawn, close to the
power point, and work away from the power point. Once
you have raked the lawn in one direction rake again at right
angles to the previous direction. (L)
• For total control of moss, use moss killer in early spring a
couple of weeks prior to using the lawnrake
• To gently remove particularly heavy areas of moss and
thatch you may have to rake over the area several times.
• For best results use your lawnrake regularly particularly at
the beginning of the season to encourage good growth and
at the end of the season to prepare the lawn for winter. The
lawn should be raked in autumn leaving some time for the
lawn to thicken and recover before winter.
• To maintain the quality of your lawnrake it is recommended
that you clean it after use. Refer to the section - Caring for
your Product
F G
K
Starting and Stopping
To Start your Product
1. Form loop in mains cable and push the loop through
the slot. (F)
2. To secure, position loop over the hook and pull the
cable back through the slot (G).
3. Connect plug to mains and switch on.
4. Tilt the handle downwards to slightly raise the front of
the product and to reduce the risk of lawn damage
whilst starting.
The switchbox is provided with a lock-off button (H1)
to prevent accidental starting.
5. Press and hold the lock-off button (H) on the switch-
box, then squeeze one of the Start/Stop levers to-
wards the upper handle (J).
6. Continue to squeeze the start/stop lever towards the
upper handle and release the lock-off button (K).
7. Lower the product to its proper operating position and
commence raking.
• NOTE - There are two start/stop levers fitted. Ei-
ther one can be used for starting the product.
• IMPORTANT - Do not use the start/stop levers in-
termittently
To Stop your Product
1. Release the pressure on the Start/Stop lever.
H J
1

Collection Box
Collection Box Full (M)
1. As the collection box fills up, grass will be clearly
visible through the window in the lid (M).
2. When the window is full it is time to empty the
collection box.
Emptying the Collection Box
1. Lift the collection box at the front and the rear handles (N)
2. Tilt the collection box upside down to release the
collection box flap (P)
3. Empty into your compost or garden waste bin.
4. Ensure collection box flap is fitted correctly before
refitting the collection box
N
P
M
Removing and Fitting the Tines
Removing and Fitting the Tines
1. Ensure plug is removed from power supply
2. Turn the lawn rake upside down to access the tines
3. Remove the screw from the central disc on the set of
tines you wish to replace (Q)
4. Rotate the central disc to unlock the tines (R)
5. Remove the existing tine and replace with
a new one (S)
6. There are 2 types of tine; a left and a right. When re-
placing a worn tine of one type you should replace it
with a new tine of the same type.
7. Fitting is reversal of removal.
QR
S
Caring for your Product
Cleaning (T)
• USE GLOVES
• IMPORTANT
It is very important that you keep your product clean.
Grass clippings left in any of the air intakes or under
the deck could become a potential fire hazard.
1. Remove grass from under the deck with a brush.
2. Using a soft brush - remove grass clippings from all
air intakes, the collection box and the vision window
3. Wipe over the surface of your product with a dry cloth.
• IMPORTANT
Never use water for cleaning your product. Do not
clean with chemicals, including petrol, or solvents -
some can destroy critical plastic parts.
At the End of the cutting Season
1. Replace tines, bolts, nuts or screws, if necessary.
2. Clean your product thoroughly.
3. Make sure that the electric cable is coiled properly.
Storing your product: Store in a dry place where your
product is protected from damage
T

Service Recommendations
1. We strongly recommend that your product is serviced at
least every twelve months, more often in a professional
application.
2. Always use genuine Spare Parts.
3. Prepacked spares are available from most Husqvarna
UK Ltd. stockists and www.flymo.com.
4. Your product is uniquely identified by a silver and black
product rating label
5. If you have a problem with your machine contact your
local Approved Service Centre ensuring you have full
details of your product as described on the product
rating label.
6. Should it be necessary for work to be carried out by your
Service Centre, it is important to take your complete
machine including cable and any extension cables used.
A network of specialist dealers can be found in your local
Yellow Pages.
To obtain service on your product simply telephone or visit
your local Service Centre.
Should you require service under the terms of our guarantee
the Service Centre will require proof of purchase.
All of the centres listed stock genuine Spare Parts.
NOTE: Our Service Repairers act on their own behalf and
are not empowered to commit or legally bind Husqvarna
UK Ltd. in any manner whatsoever.
If any part is found to be defective due to faulty manufacture
within the guarantee period, Husqvarna UK Ltd., through its
Authorised Service Repairers will effect the repair or replacement
to the customer free of charge providing:
(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty
adjustment by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired, taken apart
or tampered with by any person not authorised by Husq-
varna UK Ltd..
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used commercially.
* This guarantee is additional to, and in no way diminishes the
customers statutory rights.
Failures due to the following are not covered, therefore it is impor-
tant that you read the instructions contained in this Operator's
Manual and understand how to operate and maintain your machine:
Failures not covered by guarantee
* Replacing worn or damaged tines
* Failures as a result of not reporting an initial fault.
* Failures as a result of sudden impact.
* Failures as a result of not using the product in accordance
with the instructions and recommendations contained in this
Operator's Manual.
* Machines used for hire are not covered by this guarantee.
* The following items listed are considered as wearing parts
and their life is dependent on regular maintenance and are,
therefore not normally subject to a valid warranty claim:
Tines, Electric Mains cable.
*Caution!
Husqvarna UK Ltd. does not accept liability under the
warranty for defects caused in whole or part, directly or
indirectly by the fitting of replacement parts or additional
parts that are not either manufactured or approved by
Husqvarna UK Ltd., or by the machine having been modified
in any way.
Guarantee & Guarantee Policy
Environmental Information
• Awareness of the environment must be considered when
disposing of ʻend-of-lifeʼ product.
• If necessary, contact your local authority for disposal
information.
The symbol on the product or on its packaging
indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local council office, your
household waste disposal service or the shop where you
purchased the product.
Fault Finding Hints
Fails to Operate
1. Is the correct Starting procedure being followed? See
ʻTo Start your Lawnrakeʼ
2. Is the Power Turned On?
3. Check the fuse in the plug, if blown replace.
4. Fuse continues to blow?
Immediately disconnect from the mains electricity
supply and consult your local approved Service
Centre.
Poor Collection
1. Disconnect from the mains electricity supply.
2. Clean the outside of the air intakes, the discharge chute
and the underside of the deck.
3. Try a different height of rake. See ʻHeight Adjustmentʼ.
4. Check condition of the Tines and replace if necessary.
See ʻRemoving and Fitting the Tinesʼ.
5. If poor collection persists.
Immediately disconnect from the mains electricity
supply and consult your local approved Service
Centre.
Excessive Vibration
1. Disconnect from the mains electricity supply.
2. Check that the tines are functioning correctly.
3. Replace tines if necessary
4. If vibration persists?
Immediately disconnect from the mains electricity
supply and consult your local approved Service
Centre.
Lawnrake becomes heavy to push
1. Disconnect from the mains electricity supply.
2. In long grass or uneven ground, the height of cut should
be raised to a higher position. See Cutting Height
Adjustment.
3. Check that the wheels can rotate freely.
4. If problem persists?
Immediately disconnect from the mains electricity
supply and consult your local approved Service
Centre.

1150904-26
Husqvarna UK Ltd.
Aycliffe Industrial Park
NEWTON AYCLIFFE
Co.Durham DL5 6UP
ENGLAND
Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.
EC Declaration of Conformity
Husqvarna UK Ltd., Aycliffe Industrial Park
Newton Aycliffe, Co. Durham, DL5 6UP, England
Declare under our sole responsibility that the product(s);
Category............................Electric Scarifier
Type(s) ............................LC3400
Identification of Series.......See Product Rating Label
Year of Construction..........See Product Rating Label
Conforms to the essential requirements & provisions of the following EC Directives:
98/37/EC (until 31.12.09), 2006/42/EC (from 01.01.10), 2004/108/EC, 2000/14/EC
based on the following EU harmonized standards applied:
IEC60335-1, IEC60335-2-92, EN13684, EN50366, EN55014-1, EN61000-3-2,
EN61000-3-3
The maximum A weighted sound pressure level LpA at the operatorʼs position, recorded on
a sample of the above product(s) corresponds to the Level given in the table.
The maximum hand / arm vibration weighted value measured according to EN ISO 5349 on
a sample of the above product(s) corresponds to the Value given in the table.
2000/14/EC: The Measured Sound Power LWA & Guaranteed Sound Power LWA values are
according to the tabulated figures.
Conformity Assessment Procedure............... Annex VI
Notified Body................................................. Intertek, Cleeve Road
Leatherhead, Surrey
KT22 7SB, England
Newton Aycliffe 17/10/2007
M.Bowden
Research & Development Director
Husqvarna UK Ltd.
Type
Width of Cut (cm)
Speed of Rotation of Cutting Device (rpm)
Power (W)
Measured Sound Power LWA (dB(A))
Guaranteed Sound Power LWA (dB(A))
Level (dB(A))
Value (m/s2)
Weight (Kg)
LC3400
34
3,500
750
93.47
95
78.4
1,87
9.9
