Foamit TU-30N User manual

30 Gallon Transfer Unit
TU-30N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code for
operation manual
Operation Manual

V20230814 •Page 2 of 8Model: TU-30N

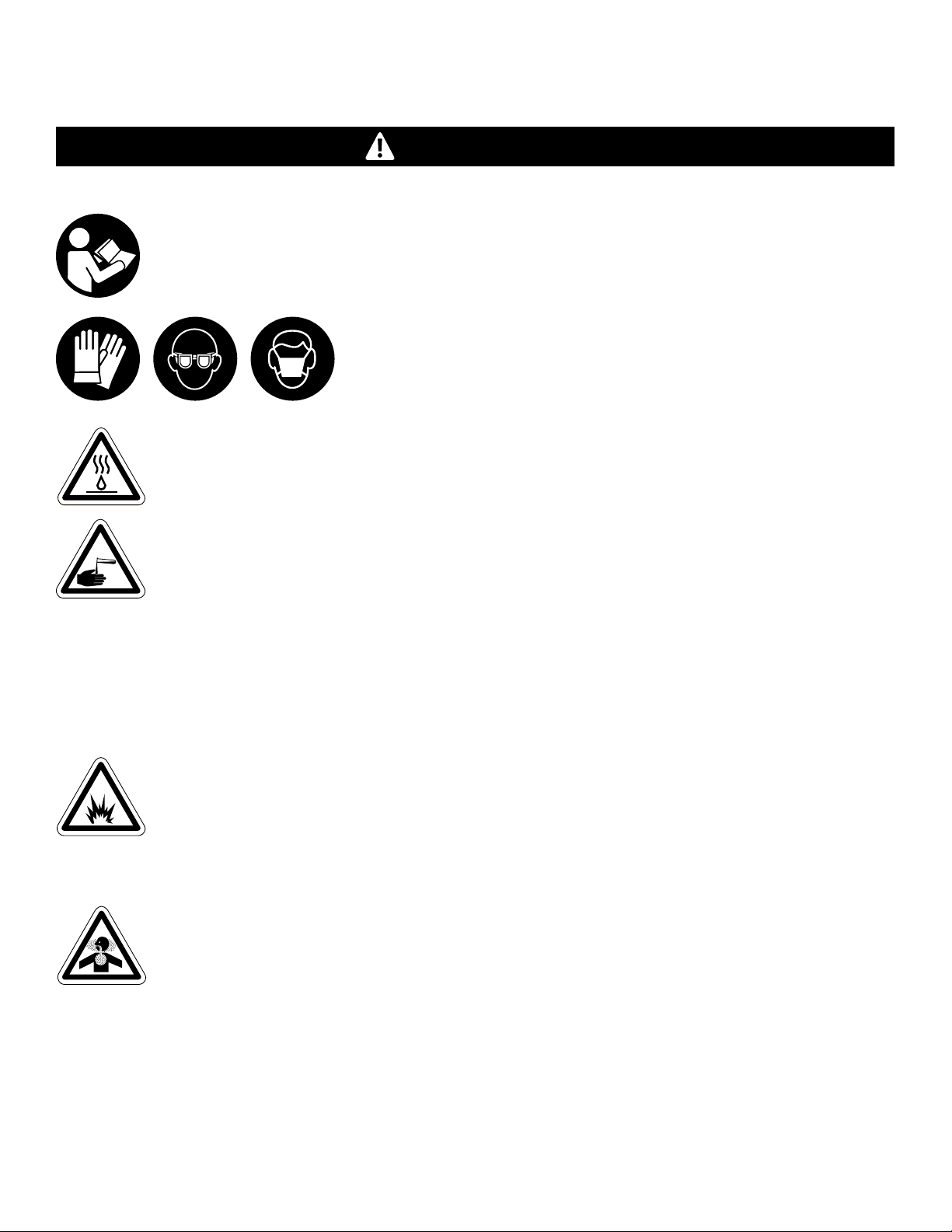

PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper
use in accordance with the instructions.
Using or servicing the unit without appropriate personal protective
equipment (PPE) may result in serious injury such as burns, rashes, eye,
throat or lung damage and death. Always wear PPE as indicated in the
Safety Data Sheet (SDS) when using or servicing the unit. Protect eyes, skin,
and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the SDS associated with the chemical solution before
using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death.
Always depressurize and clean the unit after each use. Release any remaining air pressure by opening
the discharge ball valve. Never leave the unit unattended while pressurized.
Using the unit with fluid temperatures above 100°F (37.8°C) may result in scalding, burns, serious injury
or death. DO NOT use a solution with a temperature above 100°F (37.8°C).
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Using incoming air pressure exceeding 100 psi (6.9 bar) may result in pressure buildup, explosion,
serious injury or death. DO NOT exceed 100 psi (6.9 bar) incoming air pressure when operating
the unit.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to
an alkaline.
WARNING
Safety

Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate improperly. Do not
use unauthorized parts when servicing the unit.
Use of an air lubricator before the unit may result in diminished performance and damage to the unit. Do not use an
air lubricator before the unit.
Moisture in the air lines will damage the pump and diminish the pump life. The air must be filtered, clean, dry and
free of moisture. If needed, install an air dryer before the unit.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations
V20230814 •Page 3 of 8Model: TU-30N
NOTICE

V20230814 •Page 4 of 8Model: TU-30N
Product Overview
Requirements
Compressed air requirements 20-80 psi (1.4-5.5 bar) with 2 CFM (56.6 l/min)
Liquid temperature range 40-100˚F (4.4-37.8˚C)
Chemical compatibility
Chemical products used with this equipment must be formulated for this
type of application and compatible with unit materials and pump seals.
For more information on chemical compatibility, consult the manufacturer
or SDS for your product or contact our customer service department.
Power type Compressed air
Chemical pickup type Draws from pre-mixed or concentrated solution
Number of products unit can draw from One product
Suction line diameter ⁄ in. (12.7 mm) inside diameter
Capacity 30 gallons (113.6 liters)
Discharge line length/diameter 15 ft. (4.6 m) hose, with ⁄ in. (12.7 mm) inside diameter
Discharge wand/tip type
10 in. (25.4 cm) stainless steel wand with zero tip and ball valve
27 in. (68.7) stainless steel curved wand with zero tip and ball valves
Polypropylene fill gun with ⁄ in. hose barb and Hastelloy spring
Flow rate* 3.5 gal/min (13.2 l/min)
Pump seals Santoprene, Viton, or Kalrez
Wheel type Two 10 inch (25.4 cm) non-marking wheels, two 5 inch (12.7 cm) casters,
one with lock
Specifications
*Flow rates given are based on chemical with viscosity of water and factory air pressure settings.

V20230814 •Page 5 of 8Model: TU-30N
Product Components
Get to know the transfer unit components that you will need to use, adjust or assemble.
Back plate assembly • Inside view
1. In-line strainer
2. Quick-change pump
3. Air regulator
4. Air pressure gauge
5. Back plate thumb nuts
6. Suction line valve
1
2 3
5
6
4

V20230814 •Page 6 of 8Model: TU-30N
Tank Assembly
7. Solution tank
8. Hinged lid
9. Drain plug
10. Discharge wand
11. Discharge ball valve
12. Discharge hose
13. Air inlet valve
14. Air fitting
15. Suction line valve
16. Poly fill gun
17. Curved wand
Front view Back view
12
8
11
15
9
7
10
13
14
Additional wand options
16 17

V20230814 •Page 7 of 8Model: TU-30N
Using your unit
Operating Instructions
1. Verify drain plug is securely closed.
2. Following all instructions from chemical manufacturer,
fill tank with pre-mixed or concentrated solution.
3. Verify suction line valve at base of the suction line is
open, allowing fluid into the suction line.
4. With the air inlet valve and discharge ball valve in the
closed position, plug an air line into the air fitting.
5. Open air inlet valve to allow air flow.
NOTE: Transfer instructions will depend on configuration.
6. Polypropylene Fill Gun:
a. Pull trigger handle on poly fill gun to begin
transfer. Release trigger handle to stop.
7. Stainless Wand:
b. Slowly open the discharge ball valve to begin.
c. Close discharge ball valve to stop.
8. Curved Wand:
d. Open top discharge ball valve and position wand.
e. Slowly open bottom discharge ball valve to begin.
f. Slowly close bottom discharge ball valve to stop.
g. Close top discharge ball valve and remove wand.
NOTE: Use caution when removing wand, there may be
remaining solution inside that could spill.
9. Close the air inlet valve to stop air flow.
After Use Instructions
NOTE: For proper handling and disposal procedures refer
to chemical SDS.
10. Solution should be removed from unit after each use.
This can be done in two ways:
a. Unthread drain plug from front of tank and drain
solution into an approved location.
b. Place discharge wand into approved container to
transfer remaining solution. Activate unit until all
solution has been flushed from the system.
11. After solution has been removed, disconnect air line.
12. Open discharge ball valve or pull trigger handle to
relieve remaining pressure.
13. Close ball valve or release trigger handle after all
pressure has been relieved. Store unit with discharge
ball valve and air inlet valve closed.
14. Before using unit with another chemistry, thoroughly
flush with water.
2
3
4
5
A
B
D
F
C
G
E
8
8
6
7

V20230814 •Page 8 of 8Model: TU-30N
Performing any maintenance with the unit pressurized, and connected to the air supply may result in serious injury or
death. Always ensure that the unit has been depressurized, and disconnected from the air supply before conducting
any maintenance. Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate
improperly. Do not use unauthorized parts when servicing the unit.
To keep your unit operating properly, periodically perform the following maintenance procedures:
• Inspect the pump for wear and leaks.
• Inspect all hoses for leaks or excessive wear.
Make sure all hose clamps are in good condition and
properly secured.
• Replace the filter located within the air regulator as
needed. Clean by unthreading the air regulator bowl
from the air regulator.
To service your unit, refer to the service manual which includes:
• Troubleshooting procedures.
• Detailed parts breakdowns and illustrations.
• Part numbers of serviceable components and assemblies.
• Check the suction line and strainer for debris.
Clean as needed.
• Drain your air compressor tank on a regular basis
to help extend pump life. An air source with a high
moisture content will accelerate pump wear.
Note: If your air source has a high moisture content,
install a water separator to the air fitting on the backplate.
WARNING
Maintenance
Maintaining Your Unit
Servicing Your Unit
Scan this code for
service manual

30 Gallon Transfer Unit
TU-30N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code for
operation manual
Service Manual

PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper
use in accordance with the instructions.
Using or servicing the unit without appropriate personal protective
equipment (PPE) may result in serious injury such as burns, rashes, eye,
throat or lung damage and death. Always wear PPE as indicated in the
Safety Data Sheet (SDS) when using or servicing the unit. Protect eyes, skin,
and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the SDS associated with the chemical solution before
using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death.
Always depressurize and clean the unit after each use. Release any remaining air pressure by opening
the discharge ball valve. Never leave the unit unattended while pressurized.
Using the unit with fluid temperatures above 100°F (37.8°C) may result in scalding, burns, serious injury
or death. DO NOT use a solution with a temperature above 100°F (37.8°C).
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Using incoming air pressure exceeding 100 psi (6.9 bar) may result in pressure buildup, explosion,
serious injury or death. DO NOT exceed 100 psi (6.9 bar) incoming air pressure when operating
the unit.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to
an alkaline.
V20230814 • Page 2 of 12Model: TU-30N
WARNING
Safety

Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate improperly. Do not
use unauthorized parts when servicing the unit.
Use of an air lubricator before the unit may result in diminished performance and damage to the unit. Do not use an
air lubricator before the unit.
Moisture in the air lines will damage the pump and diminish the pump life. The air must be filtered, clean, dry and
free of moisture. If needed, install an air dryer before the unit.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations.
Performing any maintenance with the unit pressurized and connected to the air supply may result in serious injury or
death. Always ensure that the unit has been depressurized and disconnected from the air supply before conducting
any maintenance. Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate
improperly. Do not use unauthorized parts when servicing the unit.
Most repairs on the unit can be performed with the following tools:
• Crescent wrench (2x)
• / in. (11 mm) open-ended wrench
• Flat head screwdriver
• Thread seal tape
• #2 Phillips head screwdriver
• #3 Phillips head screwdriver
• Hose cutters
• Knife
To keep your unit operating properly, periodically perform the following maintenance procedures:
• Inspect the pump for wear and leaks.
• Inspect all hoses for leaks or excessive wear.
Make sure all hose clamps are in good condition
and properly secured.
• Replace the filter located within the air regulator as
needed. Clean by unthreading the air regulator bowl
from the air regulator.
• Check the suction line and strainer for debris.
Clean as needed.
• Drain your air compressor tank on a regular basis
to help extend pump life. An air source with a high
moisture content will accelerate pump wear.
Note: If your air source has a high moisture content,
install a water separator to the air fitting on the backplate.
See Page 8for more details. (Back plate assembly)
V20230814 • Page 3 of 12Model: TU-30N
NOTICE
WARNING
Service Guide
Maintaining Your Unit
Servicing Your Unit

V20230814 • Page 4 of 12Model: TU-30N
If your unit is not operating properly, try using these troubleshooting tips:
Troubleshooting Your Unit
Issue Solution
Air regulator bowl or air filter
has debris such as water, oil,
or rust particles
• Clean by unthreading the air regulator bowl from the air regulator.
Pump is cycling faster than
normal
• Verify product is getting to the pump with these steps:
1. Make sure the tank has chemical solution in it.
2. Ensure the suction line valve is open completely.
3. Inspect suction line and strainer for debris or damage.
• If these steps are confirmed, the pump may need to be replaced.
Pump is cycling slower than
normal
• Verify there is no obstruction on the outlet side of system with these steps:
1. Inspect discharge hose assembly for build up.
2. Verify unit is supplied with proper air supply.
• If these steps are confirmed, the pump may need to be replaced.
Air passes through the pump
without cycling
• The pump needs to be replaced.
The unit operates at a
reduced pressure
• Check suction line and strainer for debris or damage. Clean or replace as needed.
To prevent damage to the unit, the strainer must always be used.
• Check the air compressor supplying the unit. If the pressure is less than 40 psi
(2.8 bar), turn o the unit until the compressor can catch up.
• If the air supply is 50 psi (3.4 bar) or above, check the air gauge, which should
read near 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar),
adjust the pressure by turning the knob on the top of the air regulator.

V20230814 • Page 5 of 12Model: TU-30N
Item number Description
5TNK-30N 30 gallon natural tank
6CST5SS Swivel caster - stainless - 5 in.
clearance - 4 in. wheel
7DPA Drain plug assembly for portable
units - includes gasket
8CST5SS-L Swivel caster - stainless - 5 in.
clearance - 4 in. wheel - with lock
Tank Assembly
TNKA-30N-TU-BK:
30 gallon natural tank assembly for transfer units - black*
lid - includes drain plug, wheels, suction valve, and
backplate thumb nuts
LDA-7BK:
Lid assembly - includes 7 in. black* lid, lid flange, hinge pin,
and mounting screws
Front view
* Additional colors available, see datasheet for options.
Item number Description
1LD-PIN Hinge pin for 7 in. lid and flange
2LD-7BK-LID 7 in. cap - polyethylene - black*
3S812-FH #8 x ½ in. screw - stainless - flat
head Phillips
4LD-7BK-FLNG 7 in. lid flange - polyethylene -
black*
3
1
8
6
2
4
5
LDA-7BK
7

V20230814 • Page 6 of 12Model: TU-30N
3
1
11
2
54
VLVA - PVCV3 4 -TU
WHLA-AXL1812
6897 10
BPTNA
TNKA-30N-TU-BK:
30 gallon natural tank assembly for transfer units - black*
lid - includes drain plug, wheels, suction valve, and
backplate thumb nuts
BPTNA:
Back plate thumb nut assembly - includes bolt, thumb nut,
and tether
Back view
VLVA -PVCV 34 -TU:
Suction valve assembly for transfer units - includes valve,
bushing, and elbow
Item number Description
3PVCV34FM PVC valve ¾ in. FPT x ¾ in. MPT
4HHPB3412 Hex head poly bushing ¾ MPT x ⁄ FPT
5HBSSEL1212 Stainless hose barb ⁄ MPT x ⁄ barb
elbow
WHLA-AXL1812:
10 in. wheel assembly - includes 18.5 in. axle, axle plate,
bolts, washers, and cotter pins
Item number Description
6COT Cotter pin - stainless - ⅛ in. x 1 in.
7PLSS-AXL Axle plate - stainless - 2.5 in. x 1 in.
- 2 holes
8AXL1812 Axle - stainless - 0.625 dia. x 18.5 in.
9B142012-VS ¼-20 x ½ in. bolt - stainless - truss head
Phillips - Vibra-Seal
10 W10 Wheel - non-marking - 10 in.
11 FW58 Flat washer for ⅝ in. pipe - stainless -
0.687 id x 1.5 od x 0.07 thk
Item number Description
1BST1420118-VS ⁄-20 x 1 ⁄ in. set bolt - stainless -
Vibra-Seal
2TN1420 ¼-20 thumb nut - brass insert -
assembled with tether

V20230814 • Page 7 of 12Model: TU-30N
Item number Description
1AP56
Pump with Santoprene seals -
includes hose barbs, air fitting,
and exhaust barb
BP56K
Pump with Kalrez seals - includes
hose barbs, air fitting, and
exhaust barb
CP56V
Pump with Viton seals - includes
hose barbs, air fitting, and
exhaust barb
2R25
Air regulator - two ¼ in. FPT
ports - two ⅛ in. FPT ports -
includes filter and bowl
3AG100 Air gauge - ⅛ in. NPT - 100 PSI
dry model
4H14 BL- F ¼ in. blue hose - hybrid TPE -
available per ft.
5FW12NPT
Flat washer for ½ in. NPT -
stainless - .88 id x 1.5 od x 0.05
thk
6SC1212 SS coupler ⁄ in. x ⁄ in.
7STR12-IL In-line strainer - ⁄ barb - EPDM
gasket - 20 mesh SS - black bowl
8H12CL-CB ⁄ in. id clear braid hose - PVC -
available per ft.
9HBSS1212 Stainless hose barb ⁄ MPT x ⁄
barb
Back Plate Assembly
PA-TU12:
Plate assembly for transfer units with ⁄ in. hose -
Santoprene pump
Additional plate assembly pump options:
PA-TU12K: Kalrez pump
PA-TU12V: Viton pump
Inside view
1
7 8 9
2
3
4
5
6

V20230814 • Page 8 of 12Model: TU-30N
Not included
with assembly
Back view
3
2
4
6
5
7
11
1
8
9
Item number Description
1SEL14M Stainless elbow ⁄ in. MPT x ⁄ in. MPT
2SSSFN12 Serrated flange nut - stainless - ½ in.
3SSA14BKH Bulkhead adapter - stainless - ¼ NPT x
¼ NPSM
4AP14 Air fitting ¼ MPT x plug - nickel-plated
brass
5BVB14 Air inlet valve - ⁄ in. FPT x ⁄ in. FPT
6FW12NPT Flat washer for ½ in. NPT - stainless -
.88 id x 1.5 od x 0.05 thk
7HBSS1212 Stainless hose barb ½ MPT x ⁄ barb
Back Plate Assembly
PA-TU12:
Plate assembly for transfer units with ⁄ in. hose -
Santoprene pump
Additional plate assembly pump options:
PA-TU12K: Kalrez pump
PA-TU12V: Viton pump
Item number Description
8SN1414 Stainless hex nipple ¼ MPT x ¼ MPT
9SSU14 Stainless steel union - ¼ in. FPT
10 WS-20CFM Water separator - 20 CFM - ¼ in. FPT
ports
11 AP14 Air fitting ¼ MPT x plug - nickel-plated
brass
Optional Components
WSA-20CFM:
Water separator assembly - 20 CFM - ¼ in. FPT ports -
includes air plug and union fittings
*Optional assembly sold separately
WSA-20CFM*
10

V20230814 • Page 9 of 12Model: TU-30N
Not included
with assembly
Item number Description
1HBB14P ¼ in. hose barb - brass - for G57/P56
air fitting with o-ring
2EC14 Oetiker clamp for ¼ in. hose
3H14 BL- F ¼ in. blue hose - hybrid TPE -
available per ft.
4HBSSEL1814 Stainless hose barb ⅛ MPT x ¼
barb elbow
5R25
Air regulator - two ¼ in. FPT ports -
two ⅛ in. FPT ports - includes filter
and bowl
6AG100 Air gauge - ⅛ in. NPT - 100 PSI dry
model
7SSA14BKH Bulkhead adapter - stainless - ¼ NPT
x ¼ NPSM
8SSSFN12 Serrated flange nut - stainless - ½ in.
9AP14 Air fitting ¼ MPT x plug - nickel-
plated brass
Back Plate Sub-assemblies
RGA-R25-SP:
Air regulator assembly for spray and transfer units - includes
air gauge, hose barb elbow, clamps, and bulkhead fittings
1
2
3
4
5 6 7 8
9
RGA-R25-SP

Item number Description
1 A HB5638 Hose barb for P56 pump - EPDM
o-ring
BHB5638K Hose barb for P56K pump - Kalrez
o-ring
CHB5638V Hose barb for P56V pump - Viton
o-ring
2STR12-IL In-line strainer - ⁄ barb - EPDM
gasket - 20 mesh SS
3SSC12 Stainless screw band clamp for
⁄ in. hose
4H12CL-CB ⁄ in. id clear braid hose - PVC -
available per ft.
5HBSSEL1212 Stainless hose barb ⁄ MPT x ⁄
barb elbow
6HHPB3412 Hex head poly bushing ¾ MPT
x ⁄ FPT
7PVCV34FM PVC valve ¾ in. FPT x ¾ in. MPT
V20230814 • Page 10 of 12Model: TU-30N
Suction Assembly
SCTNA-TU:
Suction assembly for transfer units - includes suction
valve, hose, in-line strainer, and pump hose barb - for
Santoprene pump
Additional suction assembly options:
SCTNA-TUK: Transfer units with Kalrez pump
SCTNA-TUV: Transfer units with Viton pump
6
2
SCTNA-TU
1
3
7 5
4

V20230814 • Page 11 of 12Model: TU-30N
Hose Assembly
HA12CL-15-CB:
Hose assembly - 15 ft. of ⁄ in. clearbraid hose - includes
ferruled hose barb
Item number Description
1HBSS1212 Stainless hose barb ½ MPT x ⁄ barb
2SSC12 Stainless screw band clamp for ⁄ in. hose
3H12CL-CB ⁄ in. id clear braid hose - PVC - available
per ft.
Item number Description
4AKSS12 Stainless anti-kink spring for ⁄ in. hose
AKSS12:
Stainless anti-kink spring for ⁄ in. hose
HA12CL-15-CB
1
4
3
AKSS12
2

V20230814 • Page 12 of 12Model: TU-30N
PFGA-WH:
White polypropylene fill gun assembly for ⁄ in. hose -
includes fill gun, barb, and screw band clamp
Item number Description
5PFG12HB White fill gun - polypropylene - ⁄ in. hose
barb - Hastelloy spring - Viton seals
6SSC12 Stainless screw band clamp for ⁄ in. hose
9
8
Wand Assembly Options
SSWA1210:
Stainless wand assembly for transfer units with ⁄ in. hose -
10 in. wand - includes ball valve, barb, and screw band clamp
Item number Description
1W1210 ⁄ in. NPT wand - polished stainless -
10 in. long - threaded one end only
2BVSS12 ½ in. stainless ball valve - welded nut
3HBSS1212 Stainless hose barb ½ MPT x ⁄ barb
4SSC12 Stainless screw band clamp for ⁄ in. hose
CSSWA1227:
Curved stainless wand assembly for ⁄ in. hose - 27 in. wand -
includes coupling, ball valve, barb, and screw band clamp
Item number Description
7CSSW27 ⁄ in. od 180 degree curved wand -
polished stainless - 27 in. long
8CP1234CF Coupling - ⁄ in. NPT x ⁄ in. od
compression fitting - stainless
9BVSS12 ½ in. stainless ball valve - welded nut
10 HBSS1212 Stainless hose barb ½ MPT x ⁄ barb
11 SSC12 Stainless screw band clamp for ⁄ in. hose
2 31 4

65
11
10
