Foamit TU-25N User manual

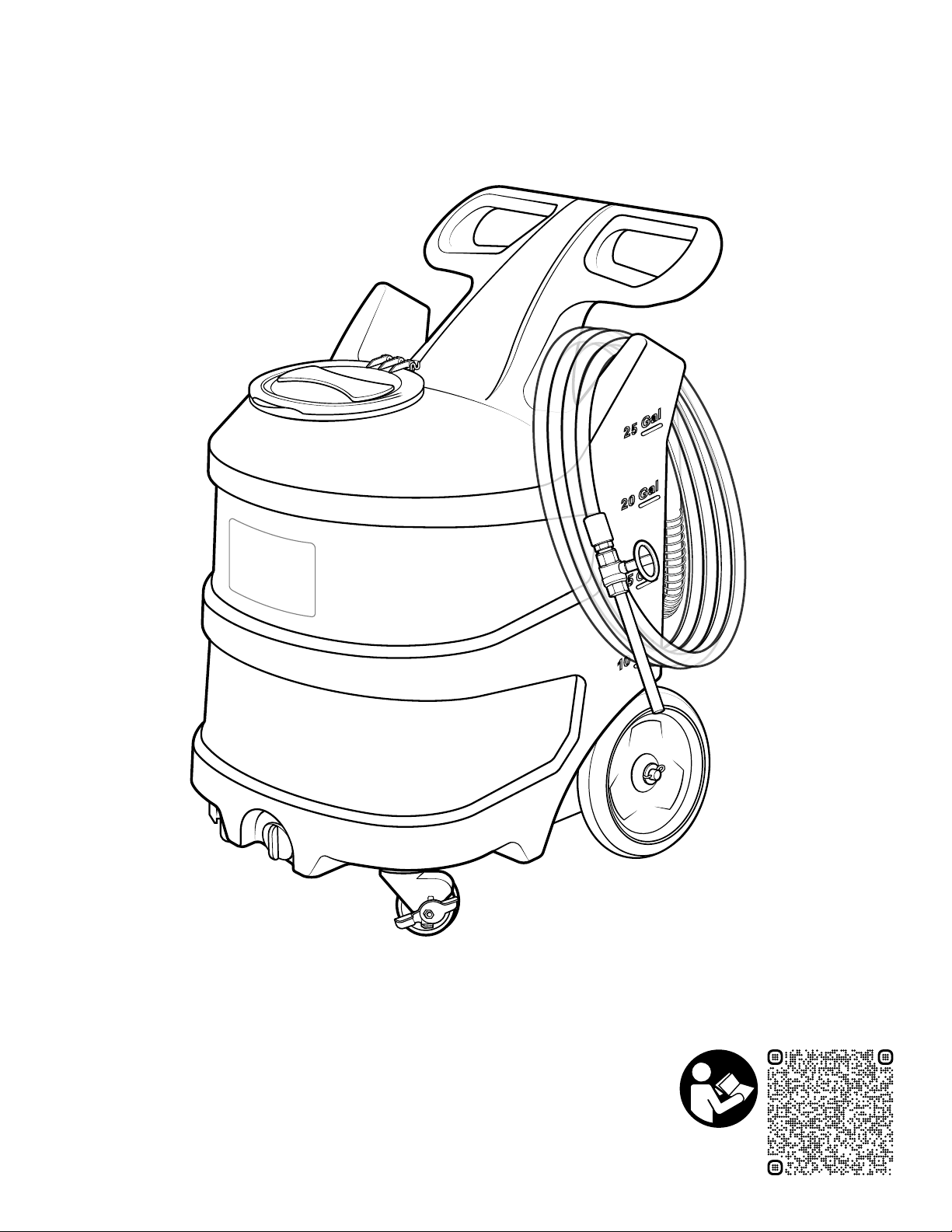

25 Gallon Transfer Unit
TU-25N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code for
operation manual
Operation Manual

V20230814 • Page 2 of 8Model: TU-25N
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper
use in accordance with the instructions.
Using or servicing the unit without appropriate personal protective
equipment (PPE) may result in serious injury such as burns, rashes, eye,
throat or lung damage and death. Always wear PPE as indicated in the
Safety Data Sheet (SDS) when using or servicing the unit. Protect eyes, skin,
and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the SDS associated with the chemical solution before
using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death.
Always depressurize and clean the unit after each use. Release any remaining air pressure by opening
the discharge ball valve. Never leave the unit unattended while pressurized.
Using the unit with fluid temperatures above 100°F (37.77°C) may result in scalding, burns, serious
injury or death. DO NOT use a solution with a temperature above 100°F (37.77°C).
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Using incoming air pressure exceeding 100 psi (6.9 bar) may result in pressure buildup, explosion,
serious injury or death. DO NOT exceed 100 psi (6.9 bar) incoming air pressure when operating
the unit.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to
an alkaline.
WARNING
Safety

Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate improperly. Do not
use unauthorized parts when servicing the unit.
Use of an air lubricator before the unit may result in diminished performance and damage to the unit. Do not use an
air lubricator before the unit.
Moisture in the air lines will damage the pump and diminish the pump life. The air must be filtered, clean, dry and
free of moisture. If needed, install an air dryer before the unit.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations
V20230814 • Page 3 of 8Model: TU-25N
NOTICE

V20230814 • Page 4 of 8Model: TU-25N
Product Overview
Requirements
Compressed air requirements 20-80 psi (1.4-5.5 bar) with 2 CFM (56.6 l/min)
Liquid temperature range 40-100˚F (4.4-37˚C)
Chemical compatibility
Chemical products used with this equipment must be formulated for this
type of application and compatible with unit materials and pump seals.
For more information on chemical compatibility, consult the manufacturer
or SDS for your product or contact our customer service department.
Power type Compressed air
Chemical pickup type Draws from pre-mixed or concentrated solution
Number of products unit can draw from One product
Suction line diameter ⁄ in. (12.7 mm) inside diameter
Capacity 25 gallons (94.6 liters)
Discharge line length/diameter 15 ft. (4.6 m) hose, with ⁄ in. (12.7 mm) inside diameter
Discharge wand/tip type
10 in. (25.4 cm) stainless steel wand with zero tip and ball valve
27 in. (68.7) stainless steel curved wand with zero tip and ball valves
Polypropylene fill gun with ⁄ in. hose barb and Hastelloy spring
Flow rate* 3.5 gal/min (13.2 l/min)
Pump seals Santoprene, Viton, or Kalrez
Wheel type Two 10 inch (25.4 cm) non-marking wheels, two 3 inch (7.6 cm) casters,
one with lock
Specifications
*Flow rates given are based on chemical with viscosity of water and factory air pressure settings.

V20230814 • Page 5 of 8Model: TU-25N
Product Components
Get to know the transfer unit components that you will need to use, adjust or assemble.
Back plate assembly • Inside view
1. In-line strainer
2. Quick-change pump
3. Air regulator
4. Air pressure gauge
5. Back plate thumb nuts
6. Suction line valve
1
2 3
5
6
4

V20230814 • Page 6 of 8Model: TU-25N

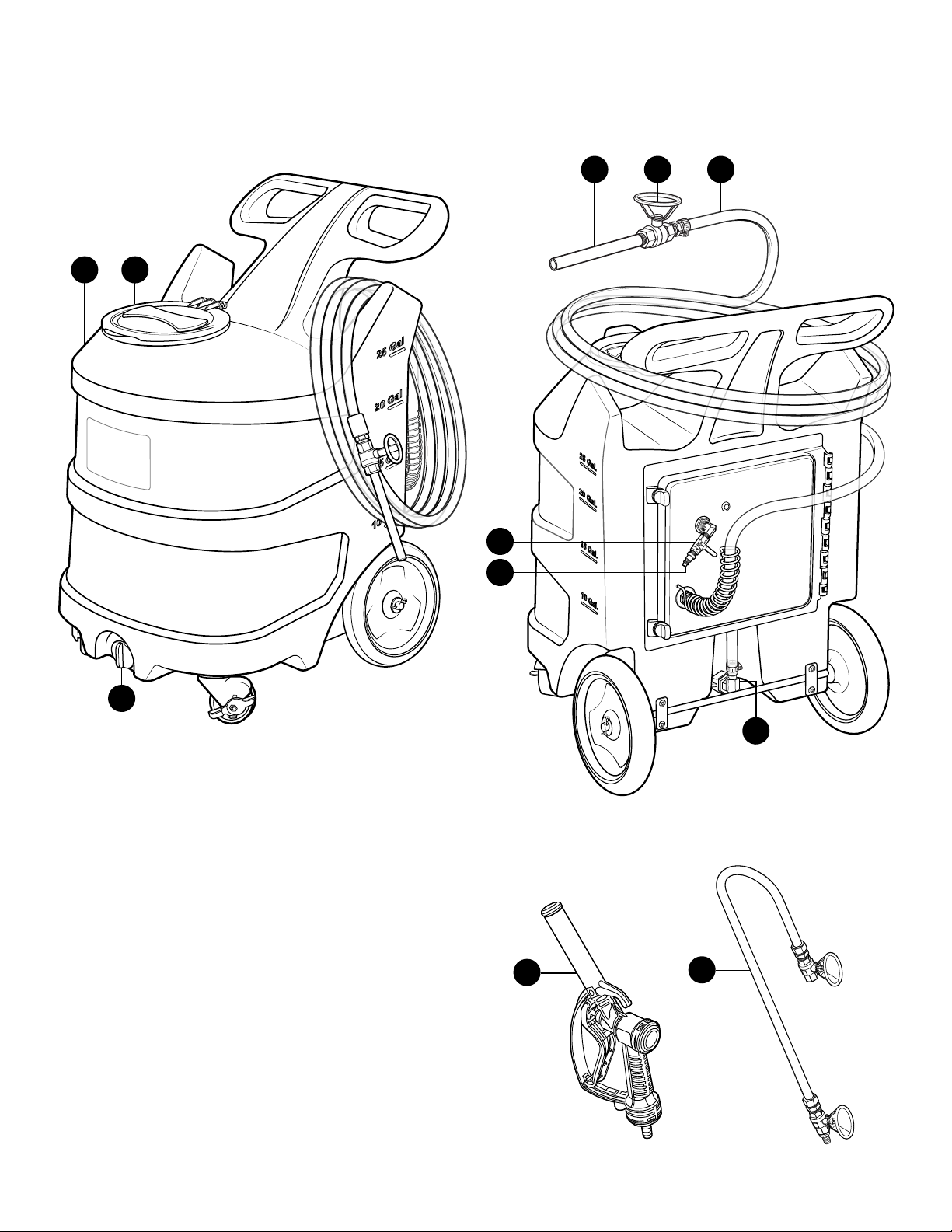

Tank Assembly
7. Solution tank
8. Hinged lid
9. Drain plug
10. Discharge wand
11. Discharge ball valve
12. Discharge hose
13. Air inlet valve
14. Air fitting
15. Suction line valve
16. Poly fill gun
17. Curved wand
Front view Back view
Additional wand options
16 17
12
8
11
15
9
7
10
13
14

V20230814 • Page 7 of 8Model: TU-25N
Using your unit
Operating Instructions
1. Verify drain plug is securely closed.
2. Following all instructions from chemical manufacturer,
fill tank with pre-mixed or concentrated solution.
3. Verify suction line valve at base of the suction line is
open, allowing fluid into the suction line.
4. With the air inlet valve and discharge ball valve in the
closed position, plug an air line into the air fitting.
5. Open air inlet valve to allow air flow.
NOTE: Transfer instructions will depend on configuration.
6. Polypropylene Fill Gun:
a. Pull trigger handle on poly fill gun to begin
transfer. Release trigger handle to stop.
7. Stainless Wand:
b. Slowly open the discharge ball valve to begin.
c. Close discharge ball valve to stop.
8. Curved Wand:
d. Open top discharge ball valve and position wand.
e. Slowly open bottom discharge ball valve to begin.
f. Slowly close bottom discharge ball valve to stop.
g. Close top discharge ball valve and remove wand.
NOTE: Use caution when removing wand, there may be
remaining solution inside that could spill.
9. Close the air inlet valve to stop air flow.
After Use Instructions
NOTE: For proper handling and disposal procedures refer
to chemical SDS.
10. Solution should be removed from unit after each use.
This can be done in two ways:
a. Unthread drain plug from front of tank and drain
solution into an approved location.
b. Place discharge wand into approved container to
transfer remaining solution. Activate unit until all
solution has been flushed from the system.
11. After solution has been removed, disconnect air line.
12. Open discharge ball valve or pull trigger handle to
relieve remaining pressure.
13. Close ball valve or release trigger handle after all
pressure has been relieved. Store unit with discharge
ball valve and air inlet valve closed.
14. Before using unit with another chemistry, thoroughly
flush with water.
2
3
4
5
A
B
D
F
C
G
E
8
8
6
7

V20230814 • Page 8 of 8Model: TU-25N
Performing any maintenance with the unit pressurized, and connected to the air supply may result in serious injury or
death. Always ensure that the unit has been depressurized, and disconnected from the air supply before conducting
any maintenance. Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate
improperly. Do not use unauthorized parts when servicing the unit.
To keep your unit operating properly, periodically perform the following maintenance procedures:
• Inspect the pump for wear and leaks.
• Inspect all hoses for leaks or excessive wear.
Make sure all hose clamps are in good condition and
properly secured.
• Replace the filter located within the air regulator as
needed. Clean by unthreading the air regulator bowl
from the air regulator.
To service your unit, refer to the service manual which includes:
• Troubleshooting procedures.
• Detailed parts breakdowns and illustrations.
• Part numbers of serviceable components and assemblies.
• Check the suction line and strainer for debris.
Clean as needed.
• Drain your air compressor tank on a regular basis
to help extend pump life. An air source with a high
moisture content will accelerate pump wear.
Note: If your air source has a high moisture content,
install a water separator to the air fitting on the backplate.
WARNING
Maintenance
Maintaining Your Unit
Servicing Your Unit
Scan this code for
service manual

25 Gallon Transfer Unit
TU-25N
