Foamit SP-BP-10N User manual

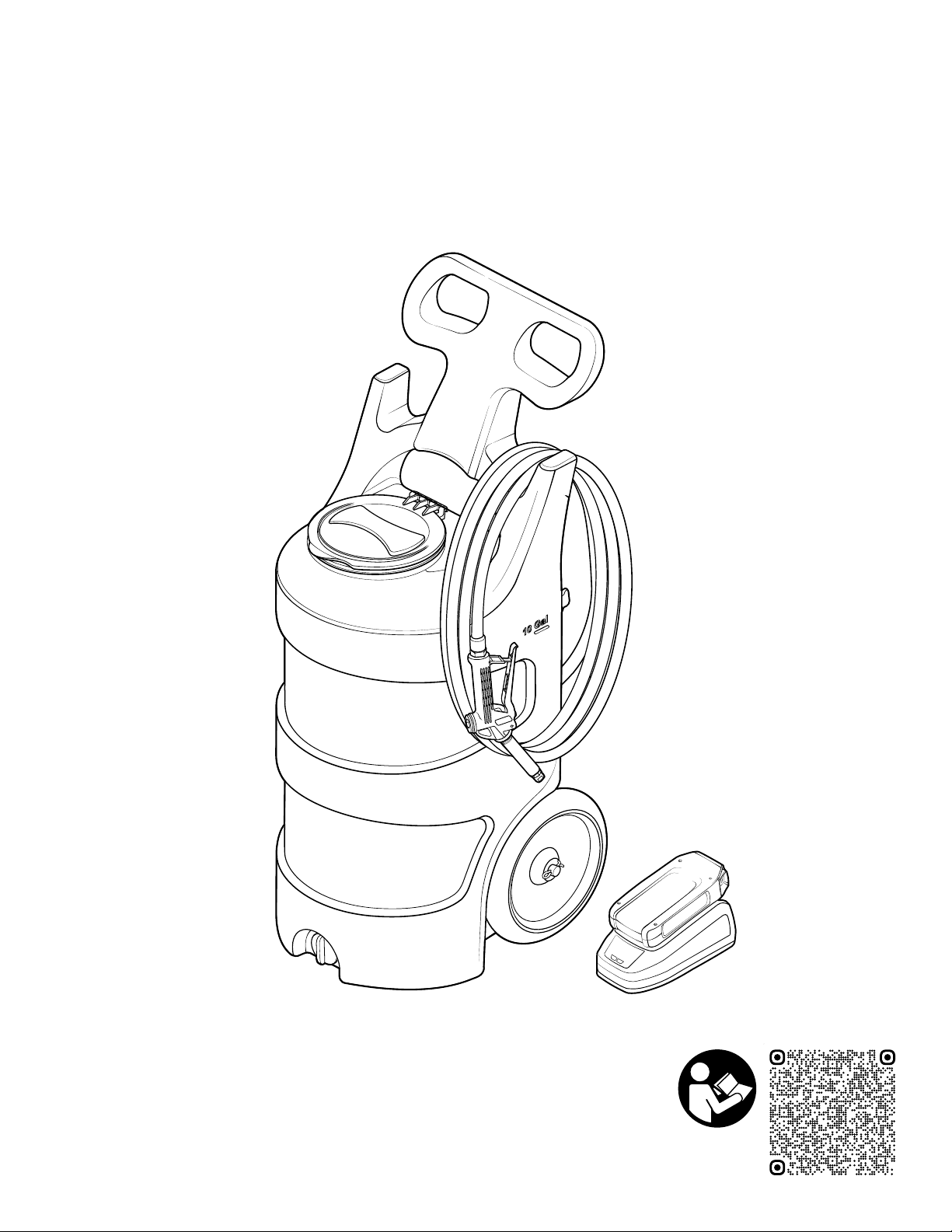

10 Gallon Battery Powered
Portable Spray Unit
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code for
operation manual
SP-BP-10N
Operation Manual

V20231110 • Page 2 of 8Model: SP-BP-10N
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper
use in accordance with the instructions.
Using or servicing the unit without appropriate personal protective
equipment (PPE) may result in serious injury such as burns, rashes, eye,
throat or lung damage and death. Always wear PPE as indicated in the
Safety Data Sheet (SDS) when using or servicing the unit. Protect eyes, skin,
and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the SDS associated with the chemical solution before
using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death.
Always depressurize and clean the unit after each use. Never leave the unit unattended while
pressurized.
Using the unit with fluid temperatures above 100°F (37.8°C) may result in scalding, burns, serious injury
or death. DO NOT use a solution with a temperature above 100°F (37.8°C).
Some components may be hot during and after use. Use caution when servicing or handling the
equipment.
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to
an alkaline.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Keep battery box lid closed and latched at all times unless accessing battery. Do not use with lid
open or damaged. Do not expose unit to liquids, cleaning solutions, or rain. The battery pack is not
waterproof. Do not submerge in liquid. If battery pack gets wet, allow to dry before further use.
Using the unit with unapproved devices may result in a risk of fire, shock or personal injury. Only use
with 24V Equip Series compatible equipment.
When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To
prevent premature battery failure, do not store battery in a depleted state for long periods of time.
WARNING
Safety

V20231110 • Page 3 of 8Model: SP-BP-10N
Safety
WARNING
• Failure to follow first aid instructions may result in
death or serious personal injury.
• If battery liquid comes in contact with skin, wash
immediately with soap and water, then neutralize with
lemon juice or vinegar.
• If battery liquid gets in your eyes, flush with clean
water for a minimum of 10 minutes, then seek
immediate medical attention.
• If battery liquid is swallowed, seek immediate medical
attention.
State of California Proposition 65 Warning:
• The battery can expose you to chemicals, including cobalt, lithium, manganese, nickel, oxide, and carbon black,
which are known to the State of California to cause cancer and reproductive harm. For additional information, go
to www.P65Warnings.ca.gov.
First Aid Instructions:
Refer to the separate manuals supplied with the battery and charger for additional safety precautions and
instructions.
Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate improperly. Do not
use unauthorized parts when servicing the unit.
Protect the Environment
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations
NOTICE

V20231110 • Page 4 of 8Model: SP-BP-10N
Product Overview
Requirements
Liquid temperature range 40-100˚F (4.4-37.8˚C)
Electical requirements 100-240 VAC at 60 Hz, 3 amp max (GFCI protected outlet) for battery
charger only
Operating voltage 24 VDC
Chemical compatibility
Chemical products used with this equipment must be formulated for this
type of application and compatible with unit materials and pump seals.
For more information on chemical compatibility, consult the manufacturer
or SDS for your product or contact our customer service department.
Power type Lithium-ion battery
Battery charge time 1 hour 10 minutes
Battery run time Up to 4 hours of continuous use
Chemical pickup type Draws from pre-mixed solution
Number of products unit can draw from One product
Suction line diameter ⅜ in. (9.5 mm) inside diameter
Capacity 10 gallons (37.9 liters)
Discharge line length/diameter 12 ft. (3.7 m) hose, with ⁄ in. (9.5 mm) inside diameter
Discharge wand/tip type Polypropylene spray gun with 80° fan tip
Output distance 2-6 ft. (0.3-1.8 m)
Output volume 0.8-0.9 gal/min (3-3.4 l/min)
Flow rate* 0.8-0.9 gal/min (3-3.4 l/min)
Pump seals Santoprene diaphragm, Viton check seals
Wheel type Two 10 inch (25.4 cm) non-marking wheels.
Specifications
*Flow rates given are based on chemical with viscosity of water.

V20231110 • Page 5 of 8Model: SP-BP-10N
Product Components
Get to know the SP-BP-10N components that you will need to use, adjust or assemble.

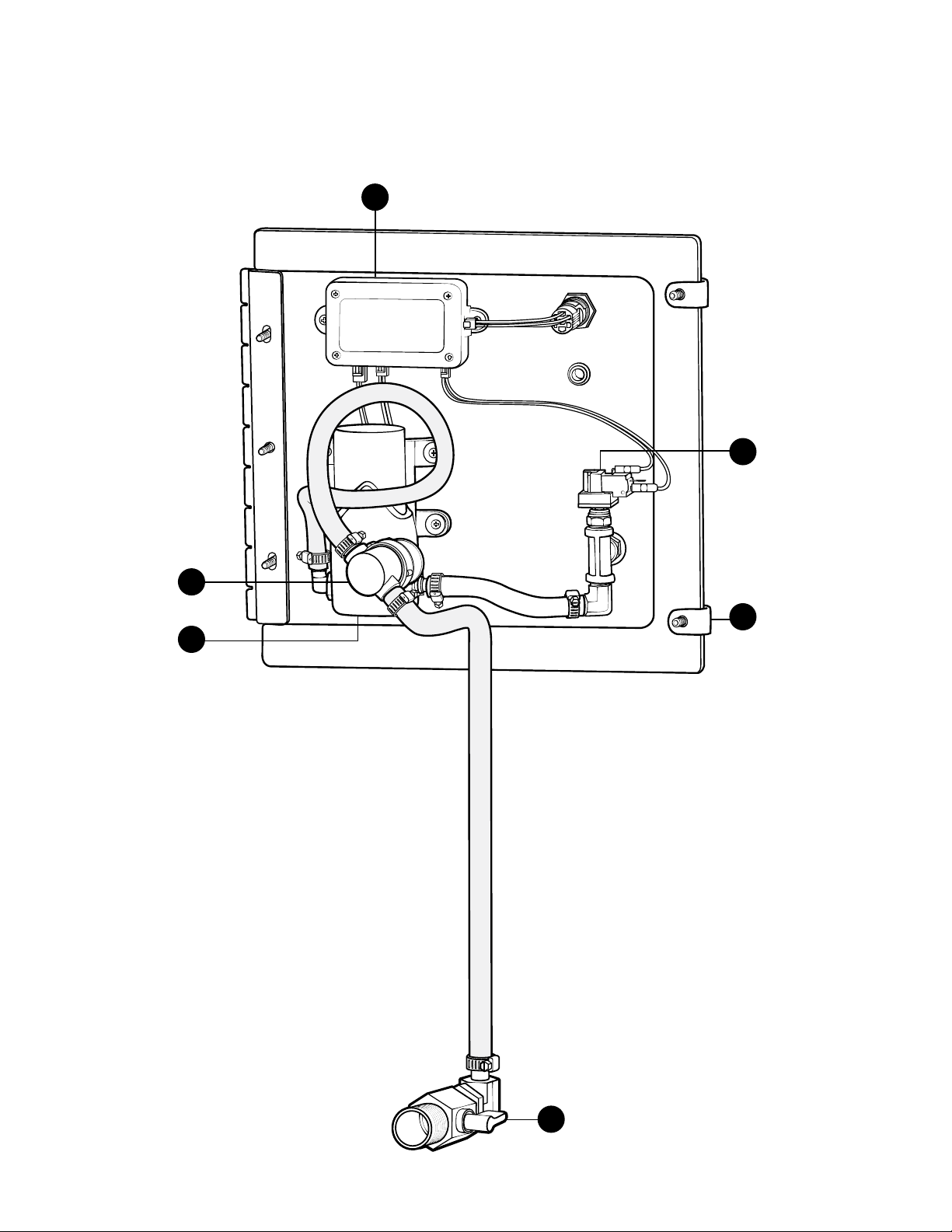

Back plate assembly • Inside view
1. In-line strainer
2. Electric fluid pump
3. Relay controller
4. Pressure switch
5. Back plate thumb nuts
6. Suction line valve
1
3
4
5
6
2

V20231110 • Page 6 of 8Model: SP-BP-10N
Tank Assembly
7. Hinged lid
8. Solution tank
9. Drain plug
10. Discharge wand
11. Poly spray gun
12. Discharge hose
13. Power button
14. Battery
15. Battery box
16. Suction line valve
Front view Back view
11
7
12
13
16
9
8
14
15
10

V20231110 • Page 7 of 8Model: SP-BP-10N
Using your unit
Operating Instructions
1. Remove battery and charger from packaging. Ensure
battery is fully charged. Refer to charge level indicatior
table in battery manual for more information.
2. Once fully charged, insert battery into the receiver until
properly secure. Close lid and secure the latch.
NOTE: Keep battery box lid closed and latched unless
accessing battery. Do not operate unit with lid
open or damaged.
3. Verify drain plug is securely closed.
4. Following all instructions from chemical manufacturer,
fill the solution tank with pre-mixed solution.
5. Verify suction line valve at the base of the suction
line is open, allowing fluid into the suction line.
6. Press the power button to turn on the unit.
7. Slowly squeeze trigger handle to begin spraying.
Release trigger handle to stop.
After Use Instructions
NOTE: For proper handling and disposal procedures
refer to chemical SDS.
8. Solution should be removed from unit after each use.
This can be done in two ways:
a. Unthread drain plug from front of tank and drain
solution into an approved location.
b. Place discharge wand into approved container.
Activate unit until all solution has been flushed from
the system.
9. Press power button to turn o unit. Squeeze trigger
handle to relieve remaining pressure.
10. Before using unit with another chemistry, thoroughly
flush with water.
4
7
5
62

V20231110 • Page 8 of 8Model: SP-BP-10N
Performing any maintenance with the unit pressurized, may result in serious injury or death. Always ensure that the
unit has been depressurized, before conducting any maintenance. Servicing or modifying unit with parts not listed in
this manual may cause the unit to operate improperly. Do not use unauthorized parts when servicing the unit.
To keep your unit operating properly, periodically perform the following maintenance procedures:
• Inspect the pump for wear and leaks.
• Inspect all hoses for leaks or excessive wear. Verify all hose clamps are in good condition and properly secured.
• Check the suction line and strainer for debris. Clean as needed.
• Store battery in a half-charged state and maintain battery every 3-6 months.
To service your unit, refer to the service manual which includes:
• Troubleshooting procedures.
• Detailed parts breakdowns and illustrations.
• Part numbers of serviceable components and assemblies.
WARNING
Maintenance
Maintaining Your Unit
Servicing Your Unit
Scan this code for
service manual

10 Gallon Battery Powered
Portable Spray Unit
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions) Scan this code for
service manual
SP-BP-10N
Service Manual

V20231025 • Page 2 of 13Model: SP-BP-10N
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use or the chemical solution. Anyone handling, operating or using the unit must read and
understand the instructions in the manual. The buyer assumes all responsibility for safety and proper
use in accordance with the instructions.
Using or servicing the unit without appropriate personal protective
equipment (PPE) may result in serious injury such as burns, rashes, eye,
throat or lung damage and death. Always wear PPE as indicated in the
Safety Data Sheet (SDS) when using or servicing the unit. Protect eyes, skin,
and lungs against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read and follow all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the SDS associated with the chemical solution before
using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death.
Always depressurize and clean the unit after each use. Never leave the unit unattended while
pressurized.
Using the unit with fluid temperatures above 100°F (37.8°C) may result in scalding, burns, serious injury
or death. DO NOT use a solution with a temperature above 100°F (37.8°C).
Some components may be hot during and after use. Use caution when servicing or handling the
equipment.
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or death.
Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to
an alkaline.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Keep battery box lid closed and latched at all times unless accessing battery. Do not use with lid
open or damaged. Do not expose unit to liquids, cleaning solutions, or rain. The battery pack is not
waterproof. Do not submerge in liquid. If battery pack gets wet, allow to dry before further use.
Using the unit with unapproved devices may result in a risk of fire, shock or personal injury. Only use
with 24V Equip Series compatible equipment.
When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To
prevent premature battery failure, do not store battery in a depleted state for long periods of time.
WARNING
Safety

V20231025 • Page 3 of 13Model: SP-BP-10N
Refer to the separate manuals supplied with the battery and charger for additional safety precautions and
instructions.
Servicing or modifying this unit with parts not listed in this manual may cause the unit to operate improperly. Do not
use unauthorized parts when servicing the unit.
Protect the Environment
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations
NOTICE
WARNING
Safety
• Failure to follow first aid instructions may result in
death or serious personal injury.
• If battery liquid comes in contact with skin, wash
immediately with soap and water, then neutralize with
lemon juice or vinegar.
• If battery liquid gets in your eyes, flush with clean
water for a minimum of 10 minutes, then seek
immediate medical attention.
• If battery liquid is swallowed, seek immediate medical
attention.
State of California Proposition 65 Warning:
• The battery can expose you to chemicals, including cobalt, lithium, manganese, nickel, oxide, and carbon black,
which are known to the State of California to cause cancer and reproductive harm. For additional information, go
to www.P65Warnings.ca.gov.
First Aid Instructions:

V20231025 • Page 4 of 13Model: SP-BP-10N
Performing any maintenance with the unit pressurized may result in serious injury or death. Always ensure the unit
has been depressurized before conducting any maintenance. Servicing or modifying this unit with parts not listed in
this manual may cause the unit to operate improperly. Do not use unauthorized parts when servicing the unit.
To keep your unit operating properly, periodically perform the following maintenance procedures:
• Inspect the pump for wear and leaks.
• Inspect all hoses for leaks or excessive wear. Verify all hose clamps are in good condition and properly secured.
• Check the suction line and strainer for debris. Clean as needed..
• Store battery in a half-charged state and maintain battery every 3-6 months.
Maintaining Your Unit
WARNING
Service Guide
Most repairs on the unit can be performed with the following tools:
• Crescent wrench (2x)
• ⁄ in. (7 mm) hex bit
• Flat head screwdriver
• Thread seal tape
• #2 Phillips head screwdriver
• #3 Phillips head screwdriver
• Hose cutters
• Knife
Servicing Your Unit

If your unit is not operating properly, try using these troubleshooting tips:
Troubleshooting Your Unit
Issue Solution
Pump is cycling improperly • Verify pump did not fail from chemical attack, or electrical malfunction.
• Ensure proper chemical and concentration are being used.
• Verify product is getting to the pump with these steps:
1. Make sure the tank has chemical solution in it.
2. Ensure the suction line valve is open completely.
3. Inspect suction line and strainer for debris or damage.
• If these steps are confirmed, the pump may need to be replaced.
The unit operates at a
reduced pressure
• Inspect suction line and strainer for debris or damage. Clean or replace as
needed. To prevent damage to the unit, the strainer must always be used.
• Inspect discharge hose assembly for build up.
Battery will not completely
charge
• Place a secondary battery on the charger. If the secondary battery charges as
expected, it indicates that the initial battery is faulty and should be replaced.
• If the problem continues to occur, the charger is bad. Replace battery charger.
Battery discharges too quickly • Battery has reached life expectancy. Replace battery.
Power button LED slow flashing • Dead battery, charge batttery.
Power button LED fast flashing • Compressor startup failure. Reset with a power cycle.
• A faulty pump or compressor may need to be replaced.
Battery/charger fault light is
flashing
• Refer to the separate manuals supplied with the battery and charger for more
information regarding indicator and fault lights.
V20231025 • Page 5 of 13Model: SP-BP-10N

V20231025 • Page 6 of 13Model: SP-BP-10N
Item number Description
5TNK-10N 10 gallon natural tank
6DPA Drain plug assembly for portable
units - includes gasket
Tank Assembly

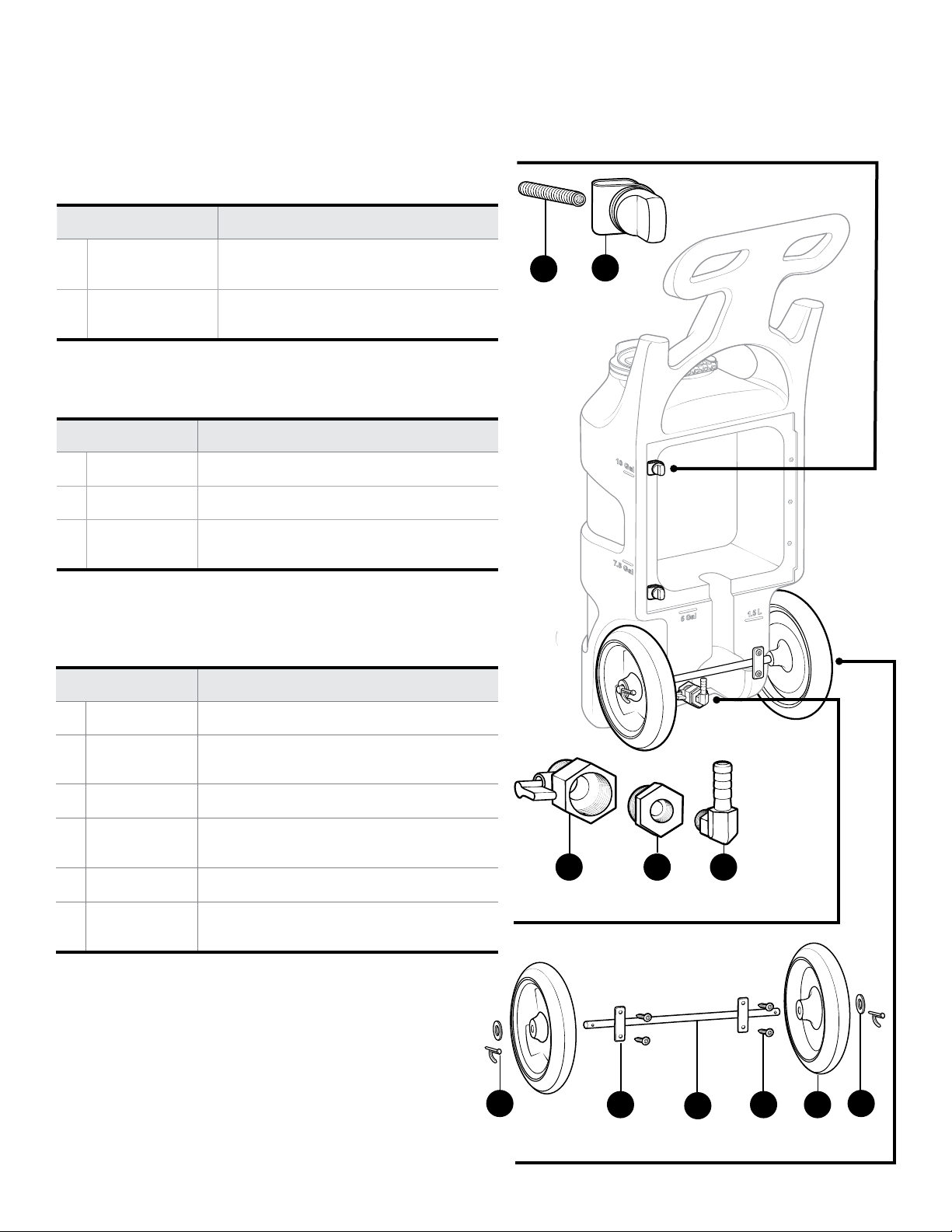

TNKA-10N-BK:
10 gallon natural tank assembly - black* lid - includes drain
plug, wheels, suction valve, and backplate thumb nuts
LDA-7BK:
Lid assembly - includes 7 in. black* lid, lid flange, hinge pin,
and mounting screws
Front view
* Additional colors available, see datasheet for options.
Item number Description
1LD-PIN Hinge pin for 7 in. lid and flange
2LD-7BK-LID 7 in. cap - polyethylene - black*
3S812-FH #8 x ½ in. screw - stainless - flat
head Phillips
4LD-7BK-FLNG 7 in. lid flange - polyethylene -
black*
3
1
2
4
5
LDA-7BK
6

V20231025 • Page 7 of 13Model: SP-BP-10N
TNKA-10N-BK:
10 gallon natural tank assembly - black* lid - includes drain
plug, wheels, suction valve, and backplate thumb nuts
BPTNA:
Back plate thumb nut assembly - includes bolt, thumb nut,
and tether
Back view
Item number Description
1BST1420118-VS ¼-20 x 1 ⁄ in. set bolt - stainless -
Vibra-Seal
2TN1420 ¼-20 thumb nut - brass insert -
assembled with tether
VLVA- PVCV34:
Suction valve assembly - includes valve, bushing, and elbow
Item number Description
3PVCV34FM PVC valve ¾ in. FPT x ¾ in. MPT
4HHPB3414 Hex head poly bushing ¾ MPT x ¼ FPT
5HBSSEL1438 Stainless hose barb ¼ MPT x ⅜ barb
elbow
WHLA-AXL14:
10 in. wheel assembly - includes 14 in. axle, axle plate, bolts,
washers, and cotter pins
Item number Description
6COT Cotter pin - stainless - ⅛ in. x 1 in.
7PLSS-AXL Axle plate - stainless - 2.5 in. x 1 in.
- 2 holes
8AXL14 Axle - stainless - 0.625 dia. x 14.5 in.
9B142012-VS ¼-20 x ½ in. bolt - stainless - truss head
Phillips - Vibra-Seal
10 W10 Wheel - non-marking - 10 in.
11 FW58 Flat washer for ⅝ in. pipe - stainless -
0.687 id x 1.5 od x 0.07 thk
3
1
11
2
54
VLVA- PVCV34
WHLA-AXL14
6897 10
BPTNA

V20231025 • Page 8 of 13Model: SP-BP-10N
Item number Description
1LV RC -24V- M C Low voltage relay controller -
24 volt - with motor controller
2PBSA-24V
Push button switch assembly -
includes 24V LED locking switch
and wire harness
3PS14QFV-55 Pressure switch - ⁄ quick fit -
55 PSI - Viton membrane
4QF14P Quick fit - ⁄ MPT x ⁄ od tube -
polypropylene
5SST14 Stainless tee ⁄ FPT
6HBSSEL1438 Stainless hose barb ⁄ MPT x
⁄ barb elbow
7H38BK-HT ⁄ in. black hose - high temp
EPDM rubber - available per ft.
8EP24VDC-1
24 VDC, 1 GPM open flow, 40
PSI max electric fluid pump,
Viton seals, Santo diaphragm
9STR38-IL
In-line strainer - ⅜ barb - EPDM
gasket - 20 mesh SS - black
bowl
10 H3 8B L- F ⅜ in. blue hose - hybrid TPE -
available per ft.

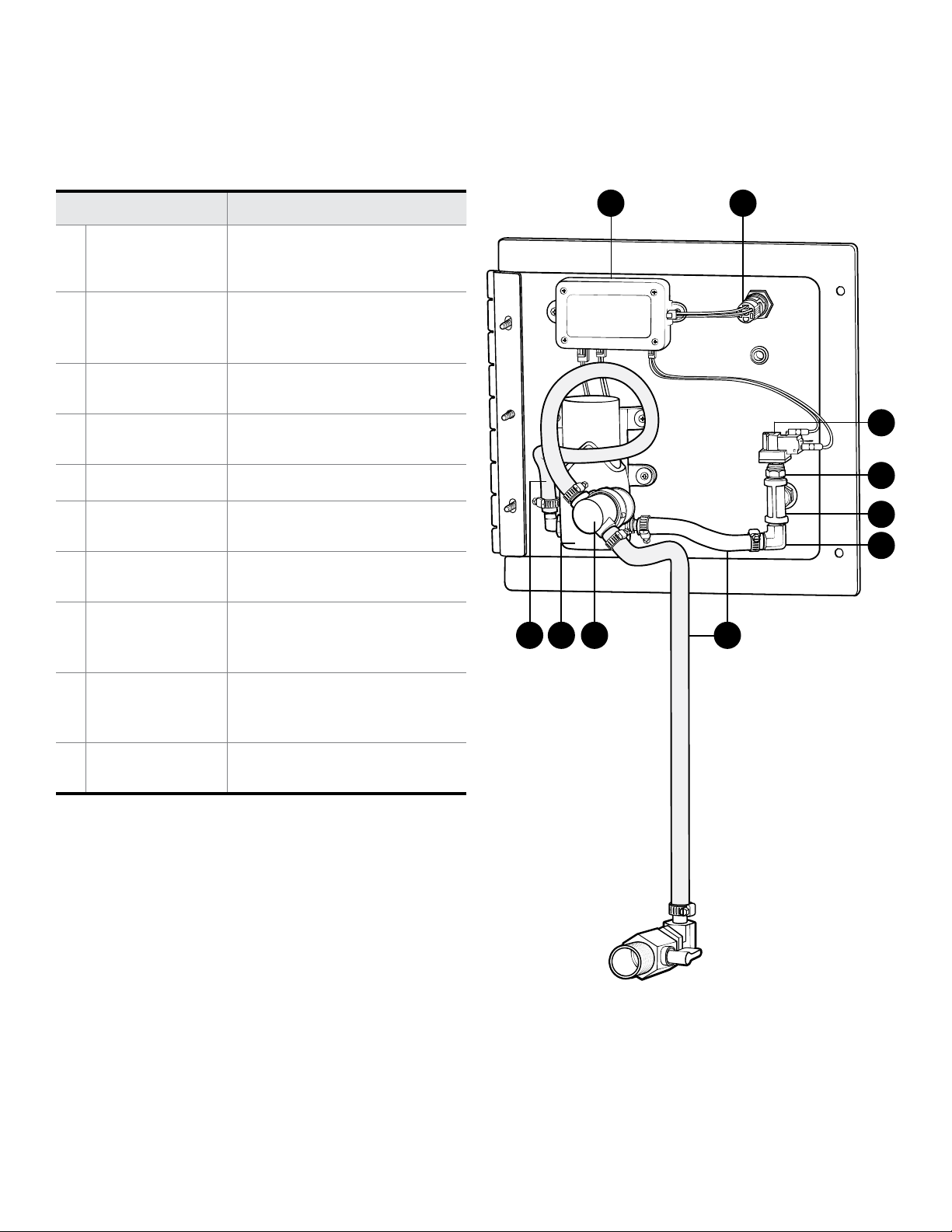

Back Plate Assembly
PA-SP38-BP:
Plate assembly for portable spray battery unit - 24V
battery and air compressor - ⁄ in. discharge hose barb
Inside view
1
7
2
1098
3
5
6
4

V20231025 • Page 9 of 13Model: SP-BP-10N
Back view
NOTE: Refer to battery and charger user manuals for more information.
Item number Description
7BLI-24V-4AH Lithium ion battery - 24V 4Ah
8BLI-24V-CHRGR Lithium ion battery charger -
24V - includes NA power cord
Battery and Charger*
*not included with backplate assembly
Item number Description
1PBSA-24V
Push button switch assembly -
includes 24V LED locking switch
and wire harness
2SSSFN12 Serrated flange nut - stainless -
½ in.
3SSA14BKH Bulkhead adapter - stainless -
¼ NPT x ¼ NPSM
4HBSS1438 Stainless hose barb ½ MPT x ½
barb
5BLI-24V-BB Battery box - includes box, lid,
latch, pins, and gaskets
6 BLI-24V-RCVR Battery receiver interface plate for
BLI-24V system
Back Plate Assembly
PA-SP38-BP:
Plate assembly for portable spray battery unit - 24V
battery and air compressor - ⁄ in. discharge hose barb
2
4 5 6
3
1
*not included with backplate assembly
7
8

V20231025 • Page 10 of 13Model: SP-BP-10N
Item number Description
1PSH-BP Pressure switch harness for 24V
battery power
2PS14QFV-55 Pressure switch - ⁄ quick fit -
55 PSI - Viton membrane
3QF14P Quick fit - ⁄ MPT x ⁄ od tube -
polypropylene
Back Plate Sub-assemblies
PSHA-BP:
Pressure switch harness assembly - includes pressure
switch, harness for 24V battery power, and quick fitting
PSHA-BP
2
3
1

Item number Description
1H38BK-HT ⁄ in. black hose - high temp EPDM
rubber - available per ft.
2STR38-IL In-line strainer - ⅜ barb - EPDM
gasket - 20 mesh SS - black bowl
3SSC38 Stainless screw band clamp for
⅜ in. hose
4HBSSEL1438 Stainless hose barb ¼ MPT x ⅜
barb elbow
5HHPB3414 Hex head poly bushing ¾ MPT
x ¼ FPT
6PVCV34FM PVC valve ¾ in. FPT x ¾ in. MPT
V20231025 • Page 11 of 13Model: SP-BP-10N
Suction Assembly
SCTNA-PF-BP:
Suction assembly for battery equipped units - includes
suction valve, hose, and in-line strainer
5
2
SCTNA-PF-BP
1
3
6 4

V20231025 • Page 12 of 13Model: SP-BP-10N

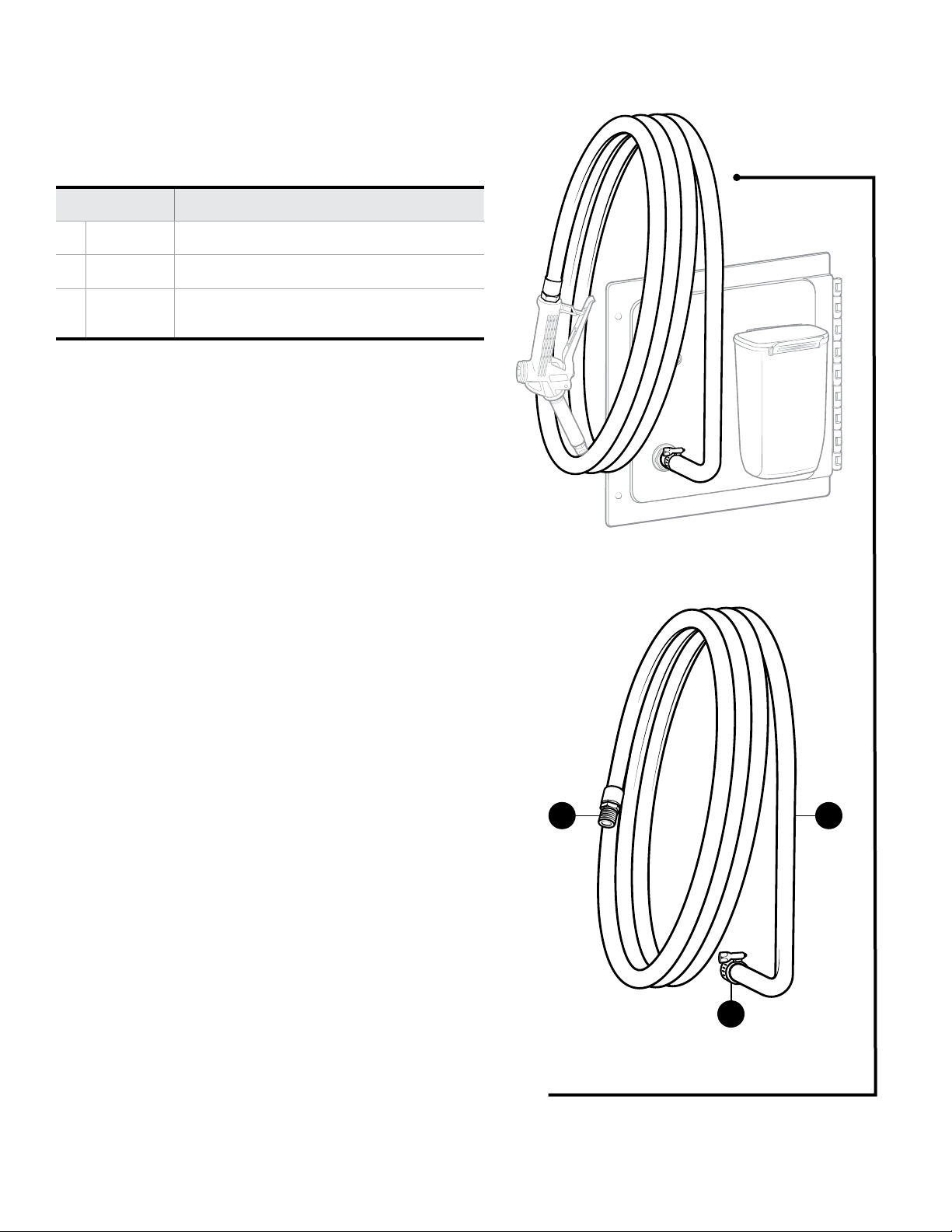

Hose Assembly
HA38BL-12:
Hose assembly - 12 ft. of ⁄ in. blue* hose - includes ferruled
hose barb
Item number Description
1HBSS1238 Stainless hose barb ½ MPT x ½ barb
2SSC38 Stainless screw band clamp for ⁄ in. hose
H3 8B L- F ⁄ in. blue* hose - hybrid TPE - available
per ft.
* Additional colors available, see datasheet for options.
HA38BL-12
1 3
2
