Follett Horizon Elite HCD710APS User manual

Horizon Elite™Ice Machine Models with RIDE™Technology
Installation Instructions for Cornelius PR150
Order parts online
www.follettice.com
HCD710APS, HCC1010APS, HCC1410APS, HCC1010WPS, HCC1410WPS,
(See model number congurator on page 2 for details.)
self-contained
01113265R05
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com

2self-contained Cornelius • RIDE Technology
ConfigurationApplication
S RIDE™
(RIDE remote
ice delivery
equipment)
T Top-mount
425 up to
425 lbs
(193 kg)
710 up to
675 lbs
(306 kg)
1010 up to
1061 lbs
(482 kg)
1410 up to
1466 lbs
(665 kg)
1810 up to
1790 lbs
(812 kg)
2110 up to
2039 lbs
(925 kg)
V Vision™
H Harmony™
B Ice storage bin
J Drop-in
M Ice Manager™
diverter valve
system
P Cornelius Profile
PR150
CondenserSeriesVoltageIcemaker
C 208-230/60/1 (icemaking head)
Self-contained only.
D 115/60/1 (icemaking head)
Self-contained and remote. If remote
unit, high side is 208-230/60/1.
E 230/50/1 (icemaking head)
Self-contained only.
F 115/60/1 (icemaking head)
Remote only. High side is
208-230/60/3.
MC Maestro™
Chewblet®
(425 Series)
HC Horizon
Chewblet
(710, 1010, 1410,
1810, 2110
Series)
HM Horizon
Micro Chewblet™
HC 1810D SVA
A Air-cooled, self-contained
W Water-cooled, self-contained
R Air-cooled, remote condensing unit
N Air-cooled, no condensing unit for
connection to parallel rack system
Chewblet®Ice Machine Model Number Configurations

3
Cornelius • RIDE Technology self-contained
Front cover
8
Internal connection
7
Ice transport tube
5
External connection
6
Docking assembly
4
Dispenser preparation
3
Site preparation
2
Unpack
1
Read and complete the following 8 installation steps

4self-contained Cornelius • RIDE Technology
Carefully unpack and inspect the contents of your Follett ice machine. 1
Unpack
7/16"
7/16"
➊➋➌
➍➎
➏➐
DO NOT TILT ICE MACHINE
TO ACCESS BOLTS!
COMPRESSOR DAMAGE
WILL RESULT
Unpack ice machine
1. 1

5
Cornelius • RIDE Technology self-contained
➋
➌
➊
NEMA
6-15
H_C1010A/W
H_C1410A/W
NEMA
6-20
NEMA
5-15
HCD710A
➍
1'
1/4" per foot
(6,4 mm per 0,3 m)
2 ft. x 1" OD
silicone tubing
and ttings
provided
➍
3/8"
chassis drain
must be used
Prepare the installation site. 2
Site preparation
2.1
Provide drainage, water supply and electrical power to within 6 feet (2m) of ice
machine in accordance with local and national codes. Outdoor installation is
not recommended and will void warranty.
Electrical ➊
• H_C1010/1410(A/W)JS 208-230/60/1-15A • HCD710APS 115/60/1-15A
Potable water supply ➋ (3/8" push-in connection, 3/8" OD tubing required)
• 10-70 psi (69-483kpa)
• 45 to 90 F (7 to 32 C)
• Follett recommends the use of an in-line water ltration system (item# 00130286)
• This equipment is to be installed with adequate backow protection to comply with applicable
federal, state, and local codes
Condenser water supply for water-cooled systems ➌ (1/4" FPT inlet, 1/4" FPT outlet)
• 10 psi min.; 150 psi max. (69kpa min.; 1034kpa max.)
• 45 to 90 F (7 to 32 C)
• 1.5 gallons per minute (5.68 liters per minute)
Drains: ➌ 3/4" Barb for silicone drain, 3/8" push-to-connect for chassis drain
• Minimum 8"radius on silicone drain line. Drain line from the ice machine must have at least
1/4" per foot pitch (6,4 mm/0,3 m).
Installation site requirements
2.1

6self-contained Cornelius • RIDE Technology
➊
➋
➊
➋
Prepare the dispenser. 3
Dispenser preparation
➊
➋
➋➊
• Remove retaining clips ➊and deector nuts
➋
3.3
• Remove ice entry cover plate ➊
• Remove bin thermostat capillary tube from
bracket ➋
3.1
• Coil capillary tube and secure away from bin
ll opening ➊
3.2
• Remove capillary tube bracket ➊and
deector (Fig. 4.2) from inside ice storage
hopper ➋
3.4

7
Cornelius • RIDE Technology self-contained
➊
➊
➋
• Thoroughly clean outer wall of dispenser in
area indicated ➊
• Peel backing from adhesive and mount bin
thermostat box to dispenser wall ➋
Note: Once adhesive on thermostat box
contacts dispenser cabinet it can not
be re-positioned.
3.7
➊
➋
• Insert end of ice transport tube (with retaining
holes) through hole in center of cover plate
assembly ➊
• Secure ice transport tube (holes) to retaining
tabs on bracket ➋
3.6
➊
➋➌
• Mount cover plate/transport tube assembly
on outside of dispenser using screws, at
washers ➊, lock washers ➋and nuts
provided ❸
3.5
• Insert bin thermostat capillary tube through
hole in gasket as indicated ➊
3.8

8self-contained Cornelius • RIDE Technology
➊
➊
➋
• Route thermostat capillary tube through
mounting bracket grommets as shown ➊
3.9
• Insulate entire length of ice transport tube
➊ and route to icemaker in accordance with
directions in Horizon installation instructions
• Route bin signal wire to icemaker ➋
3.10

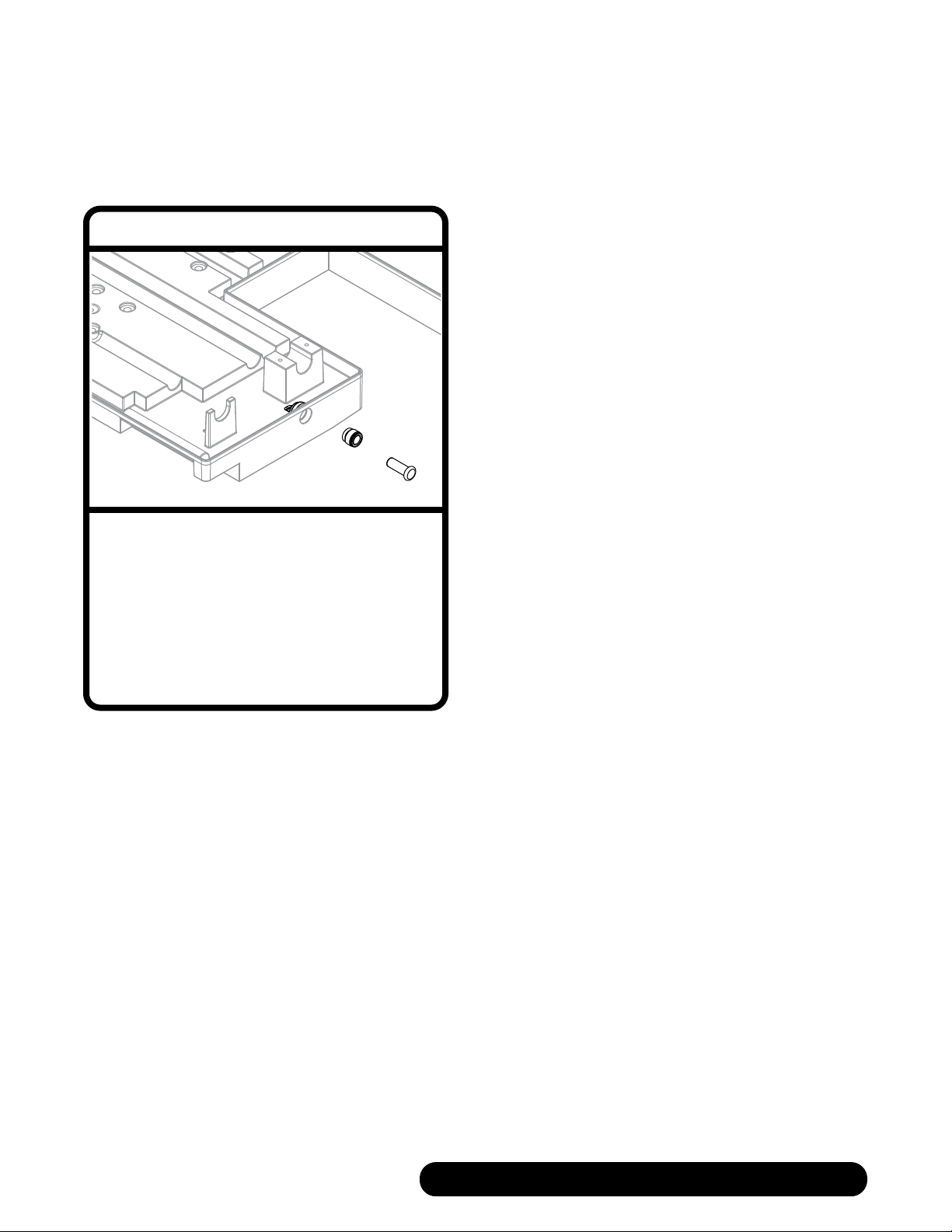

Prior to installing the docking assembly,
ensure that the drain tting is oriented (right
or left) correctly for your installation. An
optional straight drain tting is also supplied.
You may need to remove the back panel of
the docking assembly in order to re-orient or
change the drain tting. Replace back panel
prior to mounting the docking assembly.
BEFORE PROCEEDING

9
Cornelius • RIDE Technology self-contained
Install the docking assembly.
Docking assembly 4
DOCKING STATION
• Position and screw docking assembly to the bottom of counter inside of access panel/door ➊
1010/1410: 2.25" (57 mm) from the front edge of asembly
710: 3.25" (82.55 mm) from the front edge of the cross brace
• The mounting surface for the docking assembly must be solid.
Do not mount directly onto runners or channels.
• There must be no lip or edge that would hinder the ice machine from sliding in or out of the
docking station ➋
INTAKE AND EXHAUST GRILLE PLACEMENT: Air-cooled models only
• Position the intake grille cut out in the access panel/door
Note: Ice machine must be aligned with cut out and inside of access panel to provide a tight
seal and prevent recirculation of hot exhaust air.
• Left edge of cutout from the left side of the ice machine ➌
1010/1410: 2.25" (57 mm)
710: 2" (51 mm)
• Bottom edge of cutout should be 2" (51 mm) from the bottom of the ice machine ➍
• Position supplied exhaust grille at least 18" (458mm) away from intake grille ➎.
Where possible, install exhaust grille to the rear or side of the base cabinet.
• If not using supplied grille, air circulation requirements below must be met:
1010/1410: 250 sq. in (1613 sq cm) intake/exhaust air
710: 160 sq. in (1032 sq cm) intake/exhaust air
Undercounter installation requirements Horizon 1010 & 1410 series
4.1
WARNING
• Docking station must be secured in accordance with these instructions to ensure ice machine
stability.
• Ventilation openings in the docking station should be clear of obstruction
Wall bracket accessory Machine stand accessory
• Mount docking assembly to wall bracket
accessory
• Mount docking assembly to machine
stand accessory

10 self-contained Cornelius • RIDE Technology
Top View
Access panel/
door on counter
➊B
➍
➌A
2"
(51 mm)
Front View
bottom of ice machine
side of ice machine
3D Counter View
18" min.
(458mm)
➎
➋
No Lip
A
1010/1410: 2.25" (57 mm)
710: 2" (51 mm)
B
1010/1410: 2" (51 mm)
710: 3.25" (82.55 mm)
C
1010/1410: 23.5" (597 mm)
710: 22.25" (565 mm)
D
1010/1410: 24" (610 mm)
710: 18" (457 mm)
C
D
E
F
E
1010/1410: 31" (787 mm)
710: 24" (609 mm)
F
1010/1410: 15" (381 mm)
710: 14" (355 mm)
Undercounter installation detail
CAUTION
• Keep ventilation openings in the appliance enclosure clear of obstruction. Failure to do so could result in damage to equipment.
• To ensure proper ventilation (if not using supplied grille) carefully review air circulation specications on previous page (4.1)

11
Cornelius • RIDE Technology self-contained
Ice transport tube
Install the ice transport tube. 5
➎
1/4"
1'
➊
➋
➌
➍
➏
➐
Hot Water
160 F (71 C)
Ice transport tube tips
• Insulate entire length of ice transport tube ➊
• Secure ice transport tube ➋as needed to prevent dips and traps from forming.
For long tube runs see guide on page 16.
• Pitch tube at least 1/4" per foot (6,4mm/.3m) ➌
• Ice transport tube must drain towards ice machine
Ice transport tube to Ice machine
• Be sure tube ends are square ➍
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎
before making connection to ease assembly
• Push ice transport tube onto ice machine nipple ➏
• Install hose clamp ➐
Ice transport tube installation.
5.1

12 self-contained Cornelius • RIDE Technology
Ground
❹
➋
➊
16"
(61 cm)
➌
➎
➏
➐
• Mount the electrical box to the side of the dispenser ➊to establish a ground connection.
Note: If a 4 x 4 box is mounted to a non-grounded surface, connect ground wire at an
appropriate ground.
• Connect the bin signal cord to the plug on the electrical box. ➋
• Insert 16" (61 cm) of the long bin signal cable ➌into the hole in the back of the docking station
➍and secure in place with strain relief provided.
• After sliding the ice machine module into the docking station, disconnect one wire from shuttle
switch and replace with wire from adapter plug. ➎
• Connect wire removed from shuttle switch to male connector on adapter plug wire. ➏
• Complete normal installation procedure for the ice machine using the installation manual that
shipped with the ice machine.
• Connect adapter plug into bin signal plug. ➐
2.1 Bin Signal Installation
6.1
Bin signal
Install the bin signal. 6

13
Cornelius • RIDE Technology self-contained
Connect utilities to docking assembly. 7
External connections
➏
➌
➋
➐
➑
3/4" barb x 3/4" FPT
1" Stand pipe/Drain
2 ft. x 1" OD
silicone tubing
Minimum 8"
radius
3/4" MPT x 1" slip
➍
➎
➊
3/4" barb x 3/4" FPT
1" Stand pipe/Drain
2 ft. x 1" OD
silicone tubing
Minimum 8"
radius
➍
3/4" MPT x 1" slip
➎
➌
➋
➊
➏
Air-cooled ice machines only Water-cooled ice machines only
7. 1 7. 2
• Rough-in ice machine potable water
supply ➊. 3/8" push-in connection will be
made at included shut-off valve then at
back of docking station into solenoid.
• Remove access panel if necessary ➋.
• Connect the silicone tubing to the ice
machine 3/4" drain barb ➌.
• Assemble the 3/4" barb x 3/4" FPT to the
3/4" MPT x 1" slip. Connect the other end
of the silicone tubing to the 3/4" barb ➍.
• Connect the 1" slip tting to the 1" stand
pipe/drain ➎.
Note: Minimum 8" radius on silicone
drain line. Drain line from the ice machine
must have at least 1/4" per foot pitch
(6,4mm/0,3m).
• Apply Petrol-gel to barbed drain tting ➏
• Replace access panel.
• Rough-in ice machine potable water
supply ➊. 3/8" push-in connection will be
made at included shut-off valve then at
back of docking station into solenoid.
• Remove access panel if necessary ➋.
• Connect the silicone tubing to the ice
machine 3/4" drain barb ➌.
• Assemble the 3/4" barb x 3/4" FPT to the
3/4" MPT x 1" slip. Connect the other end
of the silicone tubing to the 3/4" barb ➍.
• Connect the 1" slip tting to the 1" stand
pipe/drain ➎.
Note: Minimum 8" radius on silicone
drain line. Drain line from the ice machine
must have at least 1/4" per foot pitch
(6,4mm/0,3 m).
• Connect cooling water supply ➏and
return ➐
• Apply Petrol-gel to barbed drain tting ➑
• Replace access panel.

14 self-contained Cornelius • RIDE Technology
• Plug must be removed from John Guest
tting.
• Route 3/8" drain tubing through knockout
in back of docking station and insert fully
into John Guest tting connection at the
rear of the machine chassis. Route other
end of 3/8" drain tubing to drain.
• Drain must slope 1/4" inch per foot (6 mm
per 30,4 cm).
Chassis drain plumbing - required

15
Cornelius • RIDE Technology self-contained
Connect docking assembly to ice machine. 8
Internal connections
Air-cooled ice machines – follow steps 8.1 through 8.5.
CAUTION
• Plug must be accessible after nal installation.
If water solenoid is already mounted to
evaporator:
• Insert potable water line into shut-off valve.
If this is an undercounter installation:
• Mount water solenoid atop evaporator and
locate the shut-off valve inside the machine.
Insert potable water line into shut-off valve.
If water solenoid is not mounted and
machine will not be installed under-
counter:
• Mount water solenoid to inside rear (upper
right corner) of docking assembly using one
screw.
• Insert potable water line into shut-off valve -
locate the shut-off valve outside the machine.
• Insert outgoing line from shut-off valve into
push-in connection of water solenoid.
• Remove twist tie
• Carefully pass cord through opening and
plug into wall outlet
• For H_E units, install a suitable plug
Power cord
8.3
➊
➋
• Slide ice machine into docking assembly
ensuring that drain tube is fully seated on
barbed drain tting ➊
• Insert ice transport tube all the way into
coupling and tighten nut rmly ➋
Ice transport tube
8.1
Water solenoid, shut-off valve,
and potable water line options
8.2
• Position plate into opening and secure
with supplied screw
Power cord
8.4

16 self-contained Cornelius • RIDE Technology
Water-cooled ice machines – follow steps 8.6 through 8.12.
CLEANER FULL DRAIN CLOG HIGH PRES HIGH AMPS
SERVICE MAINT/CLEAN LOW WATER TIME DELAY SLEEP CYCLE MAKING ICE LOW BIN POWER ON
CLEAN
TDS
HIGH
LOW
• Set the TDS switch on the electrical box:
HIGH: for extended service life
LOW: for low-scale water
TDS switch
8.5
In Out
• Install ice machine cooling water lines to
docking assembly
Cooling lines
8.6
➊
➋
• Slide ice machine into docking assembly
ensuring that drain tube is fully seated on
barbed drain tting ➊
• Insert ice transport tube into coupling and
tighten nut rmly ➋
Ice transport tube
8.7
If water solenoid is already mounted to
evaporator:
• Insert potable water line into shut-off valve.
If this is an undercounter installation:
• Mount water solenoid atop evaporator and
locate the shut-off valve inside the machine.
Insert potable water line into shut-off valve.
If water solenoid is not mounted and
machine will not be installed under-
counter:
• Mount water solenoid to inside rear (upper
right corner) of docking assembly using one
screw.
• Insert potable water line into shut-off valve -
locate the shut-off valve outside the machine.
• Insert outgoing line from shut-off valve into
push-in connection of water solenoid.
Water solenoid, shut-off valve,
and potable water line options
8.8

17
Cornelius • RIDE Technology self-contained
NOTICE
Ice machine MUST be sanitized prior to operation!
Consult Operation and Service Manual provided with ice machine for sanitizing instructions.
• Position plate into opening and secure
with supplied screw
Power cord
8.11
• Remove twist tie
• Carefully pass cord through opening and
plug into wall outlet
• For H_E units, install a suitable plug
Power cord
8.10
➊
➋
• Connect cooling water lines to ice
machine ➊
• Water valve is set at the factory. DO NOT
remove seal or adjust water valve ➋
Cooling lines and power
8.9
CLEANER FULL DRAIN CLOG HIGH PRES HIGH AMPS
SERVICE MAINT/CLEAN LOW WATER TIME DELAY SLEEP CYCLE MAKING ICE LOW BIN POWER ON
CLEAN
TDS
HIGH
LOW
• Set the TDS switch on the electrical box:
HIGH: for extended service life
LOW: for low-scale water
TDS switch
8.12

18 self-contained Cornelius • RIDE Technology
Front cover
Install front cover to ice machine. 9
➋
➌
➊
CAUTION
• Keep ventilation openings in the appliance enclosure
clear of obstruction.
• To ensure proper ventilation (if not using supplied grille)
carefully review air circulation specications in section
4.1
• Remove and discard plastic grille ➊
• Apply supplied gasket material around
entire opening on skin to prevent air
recirculation ➋
• Attach supplied metal grille to opening in
counter door (see section 4.1) ➌
Front cover installation –
air-cooled undercounter only
➋
➊
➌
• Slide ice machine cover over machine
ensuring that tabs on back of cover
slip under louvers on back of docking
assembly ➊
• Insert and tighten two screws through
cover and into docking assembly ➋
• For air-cooled machines only, install
plastic grill ➌
Install front cover

19
Cornelius • RIDE Technology self-contained
➊
➋1/4"
1'
max. 2 ft (.6m)
• Pitch ice transport tube to allow melt water to drain towards ice machine ➊
• Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps ➋
Long tube run recommendations

01113265R05
©Follett Products LLC 2/22
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
