Horizon Elite™Ice Machine Models with RIDE™Technology
Installation Instructions for Drop-In
HCC/HCD710AJS, HCC1010AJS, HCC1410AJS, HCC1010WJS, HCC1410WJS,
HMC1010AJS, HMC1410AJS, HMC1010WJS, HMC1410WJS,
HCE1010AJS, HCE1410AJS, HCE1010WJS, HCE1410WJS
HME1010AJS, HME1410AJS, HME1010WJS, HME1410WJS
(See model number congurator on page 2 for details.)
self-contained
01113281R02
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com

2self-contained DROP-IN • RIDE Technology
CAUTION!
• This appliance should be connected by a qualied person in accordance with applicable codes.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
• Connect to potable water supply only.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory,
or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children should be
supervised to ensure that they do not play with the appliance.
• This appliance is intended to be used for household and similar applications such as staff kitchen areas
in shops, offices and other working environments; farm houses and by clients in hotels, motels and
other residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
• WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the
instructions.
ConfigurationApplication
S RIDE™
(RIDE remote
ice delivery
equipment)
T Top-mount
425 up to
425 lbs
(193 kg)
710 up to
675 lbs
(306 kg)
1010 up to
1061 lbs
(482 kg)
1410 up to
1466 lbs
(665 kg)
1810 up to
1790 lbs
(812 kg)
2110 up to
2039 lbs
(925 kg)
V Vision™
H Harmony™
B Ice storage bin
J Drop-in
M Ice Manager
diverter valve
system
P Cornelius Profile
PR150
CondenserSeriesVoltageIcemaker
C 208-230/60/1 (icemaking head)
Self-contained only.
D 115/60/1 (icemaking head)
Self-contained and remote. If remote
unit, high side is 208-230/60/1.
E 230/50/1 (icemaking head)
Self-contained only.
F 115/60/1 (icemaking head)
Remote only. High side is
208-230/60/3.
MC Maestro™
Chewblet®
(425 Series)
HC Horizon
Chewblet
(710, 1010,
1410, 1810,
2110 Series)
HM Horizon
Micro Chewblet
HC 1810D SVA
A Air-cooled, self-contained
W Water-cooled, self-contained
R Air-cooled, remote condensing unit
N Air-cooled, no condensing unit for
connection to parallel rack system
Chewblet®Ice Machine Model Number Configurations

3
DROP-IN • RIDE Technology self-contained
Front cover
8
Internal connection
7
Ice transport tube
5
External connection
6
Louvered docking assembly
4
Dispenser preparation
3
Site preparation
2
Unpack
1
Read and complete the following 8 installation steps

4self-contained DROP-IN • RIDE Technology

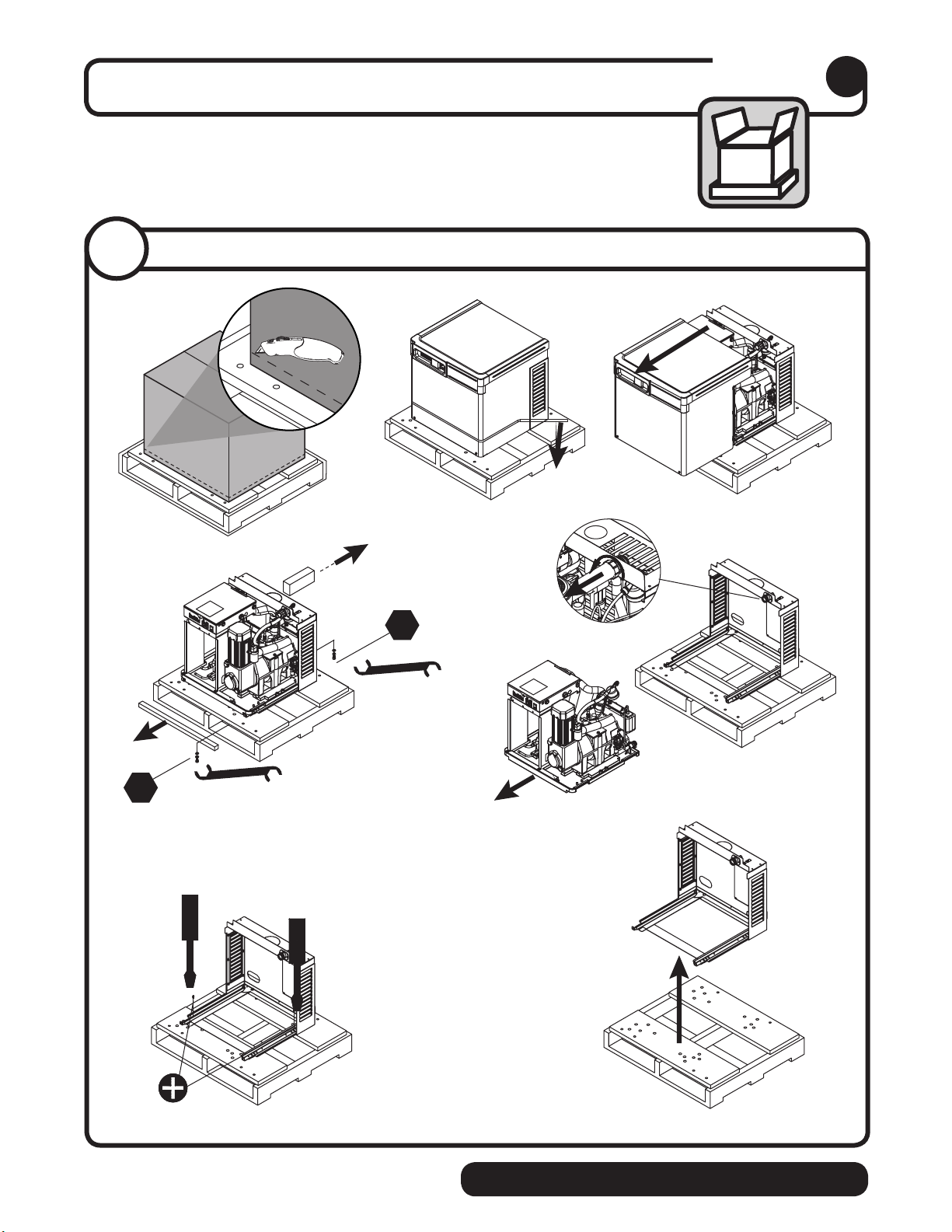

Carefully unpack and inspect the contents of your Follett ice machine. 1
Unpack
7/16"
7/16"
➊➋➌
➍➎
➏➐
DO NOT TILT ICE MACHINE
TO ACCESS BOLTS!
COMPRESSOR DAMAGE
WILL RESULT
Unpack ice machine
1. 1

5
DROP-IN • RIDE Technology self-contained
➋
➌
➊
NEMA
6-15
H_C1010A/W
H_C1410A/W
NEMA
6-20
H_E1010A/W ‡
requires 15 amp circuit
1.50 mm2wire
H_E1410A/W ‡
requires 20 amp circuit
4.00 mm2wire
1'
➍
1/4" per foot
(6,4 mm per 0,3 m)
2 ft. x 1" OD
silicone tubing
and ttings
provided
H_D710A
NEMA
5-15
Prepare the installation site. 2
Site preparation
2.1
Provide drainage, water supply and electrical power to within 6 feet (2m) of ice
machine in accordance with local and national codes. Outdoor installation is
not recommended and will void warranty.
Electrical ➊
• H_C1010/1410(A/W)JS 208-230/60 • H_D710AJS 115/60
• H_E1010/1410(A/W)JS 230/50‡Requires dedicated 15A circuit.
(H_E1010A/W requires 15A dedicated circuit 1.50 mm2wire, H_E1410A/W requires 20A dedicated circuit 4.00 mm2wire)
‡ Plug must be provided by end user & must conform to standard EN 60 335-2-24 of the end destination.
Potable water supply ➋ (3/8" push-in internal connection, 3/8" OD tubing required)
• 10-70 psi (69-483kpa)
• 45 to 90 F (7 to 32 C)
• Follett recommends the use of an in-line water ltration system (item# 00130286)
• This equipment is to be installed with adequate backow protection to comply with applicable
federal, state, and local codes
Condenser water supply for water-cooled systems ➌ (1/4" FPT inlet, 1/4" FPT outlet)
• 10 psi min.; 150 psi max. (69kpa min.; 1034kpa max.)
• 45 to 90 F (7 to 32 C)
• 1.5 gallons per minute (5.68 liters per minute)
Drain ➌ (3/4” Barb)
• Minimum 8” radius on silicone drain line. Drain line from the ice machine must have at least
1/4" per foot pitch (6,4mm/0,3m).
Installation site requirements
2.1

6self-contained DROP-IN • RIDE Technology
12"
(304,8mm)
min.
4"
(101,6mm)
➌
➍
➓
➑
➋
➏
➎
➊
➐
➐
➒
Hot Water
160 F (71 C)
Prepare the dispenser. 3
Dispenser preparation
• Determine best route for ice transport tube run. Note: 12" (304,8mm) clearance is required.
• Drill 1 3/4" (44,5mm) hole through either side of dispenser ➊
• Install gasket ➋onto bulkhead tting ➌
• Attach bulkhead tting with at up ➍and tighten bulkhead nut ➎
• Position and secure nut locking plate ➏with supplied screws
• Verify installation of O-ring on stainless steel ice transport tube coupling ➐
• Insert stainless steel ice transport tube coupling ➐into bulkhead tting and secure with coupling
cap ➑
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➒
before making connection to ease assembly
• Attach ice transport tube to coupling with supplied hose clamp ➓
2.1 Dispenser preparation
3.1

7
DROP-IN • RIDE Technology self-contained
Install the louvered docking assembly.
Louvered docking assembly 4
DOCKING STATION
(See detail drawing on page 8)
• Position and screw louvered docking assembly to the bottom of counter inside of access panel/
door 2" (51 mm) from the front edge of the cross brace ➊
• The mounting surface for the louvered docking assembly must be solid.
Do not mount directly onto runners or channels.
• There must be no lip or edge that would hinder the ice machine from sliding in or out of the
louvered docking station ➋

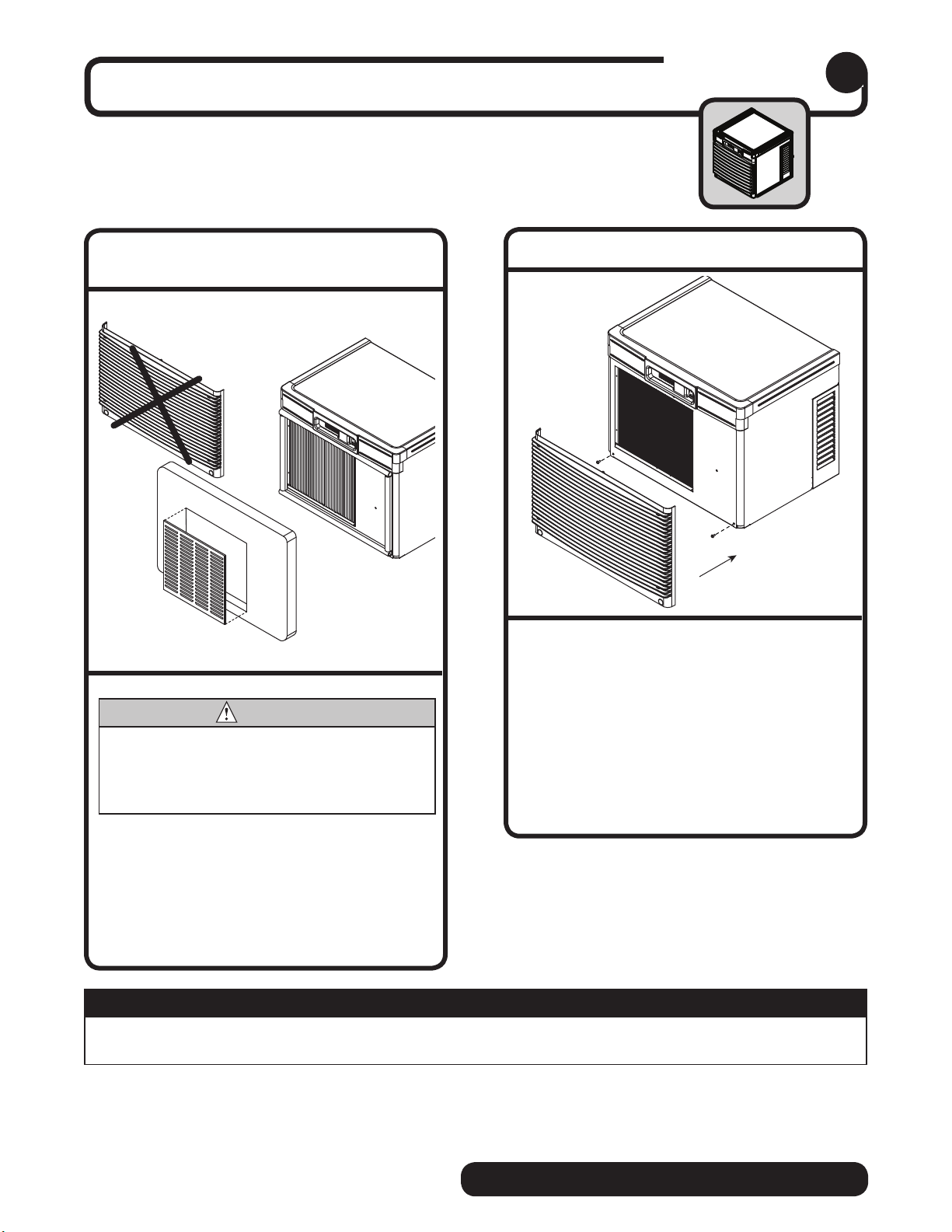

INTAKE AND EXHAUST GRILLE PLACEMENT: Air-cooled models only
(See detail drawing on page 9)
• Position the intake grille cut out in the access panel/door
Note: Ice machine must be aligned with cut out and inside of access panel to provide a tight
seal and prevent recirculation of hot exhaust air.
• Left edge of cutout should be 2.25" (57 mm) from the left side of the ice machine ➌
• Bottom edge of cutout should be 2" (51 mm) from the bottom of the ice machine ➍
• Position supplied exhaust grille at least 18" (458mm) away from intake grille ➎.
Where possible, install exhaust grille to the rear or side of the base cabinet.
• If not using supplied grille, air circulation requirements below must be met:
250 sq. in (1613 sq cm) intake air, 250 sq. in (1613 sq. cm) exhaust air
Undercounter installation requirements
4.1
Wall bracket accessory Machine stand accessory
• Mount louvered docking assembly to wall
bracket accessory
• Mount louvered docking assembly to
machine stand accessory
Prior to installing the louvered docking assembly, ensure that the
drain tting is oriented (right or left) correctly for your installation.
An optional straight drain tting is also supplied. You may need to
remove the back panel of the docking assembly in order to re-orient
or change the drain tting. Replace back panel prior to mounting the
docking assembly.
BEFORE PROCEEDING

8self-contained DROP-IN • RIDE Technology
Top View
Access panel/
door on counter
➊2" (51 mm)
➍
➌2.25"
(57 mm)
2"
(51 mm)
Front View
24" x 15" cutout (610 mm x 381 mm)
bottom of ice machine
side of ice machine
3D Counter View
18" min.
(458mm)
➎15"
(381 mm)
24" min.
(610 mm)
23.5" min.
(597 mm)
31" min.
(787 mm)
31.25" min. (794 mm)
➋
No Lip
Undercounter installation detail
CAUTION
• Keep ventilation openings in the appliance enclosure clear of obstruction.
• To ensure proper ventilation (if not using supplied grille) carefully review air
circulation specications on facing page (4.1)

9
DROP-IN • RIDE Technology self-contained

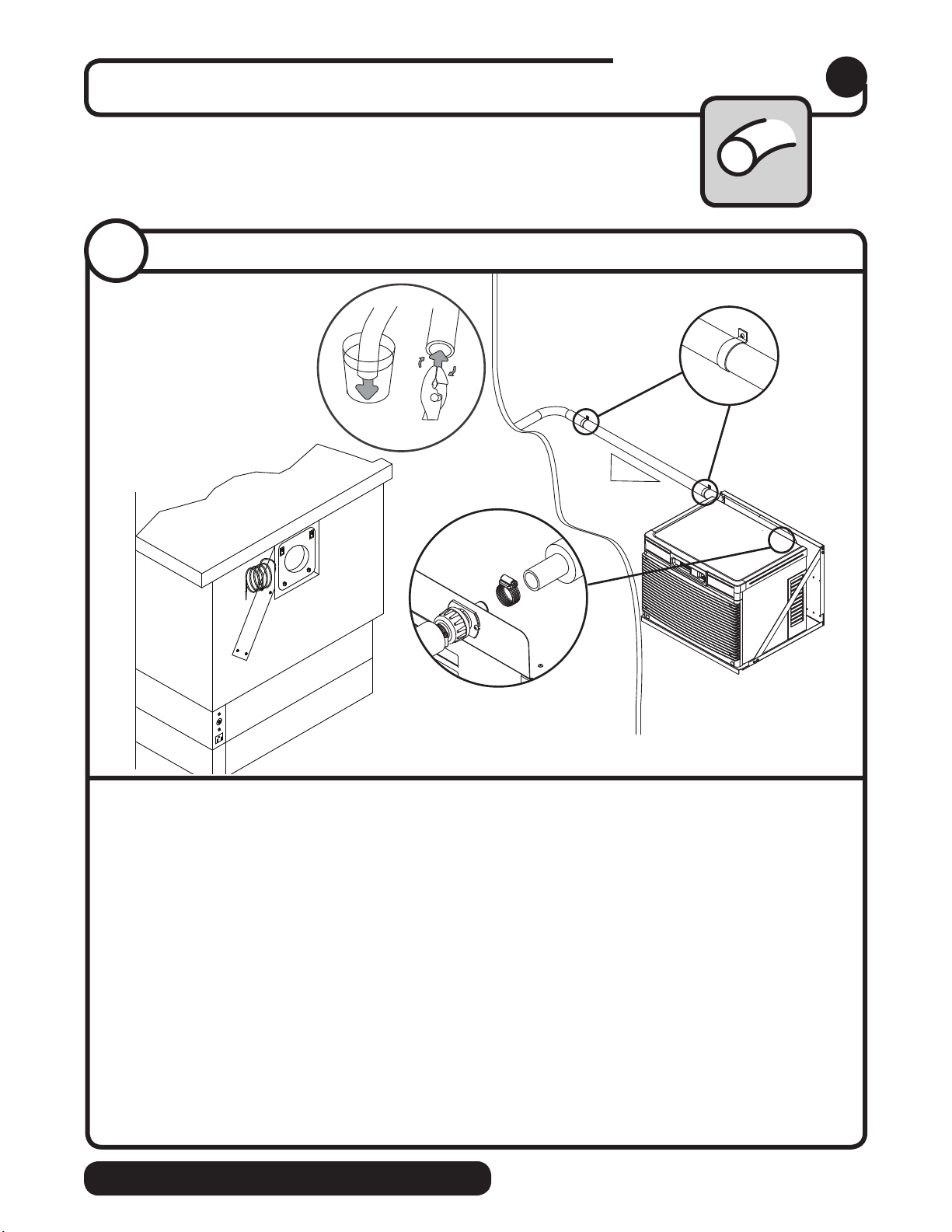

Ice transport tube
Install the ice transport tube. 5
➎
1/4"
1'
➊
➋
➌
➍
➏
➐
Hot Water
160 F (71 C)
Ice transport tube tips
• Insulate entire length of ice transport tube ➊
• Secure ice transport tube ➋as needed to prevent dips and traps from forming.

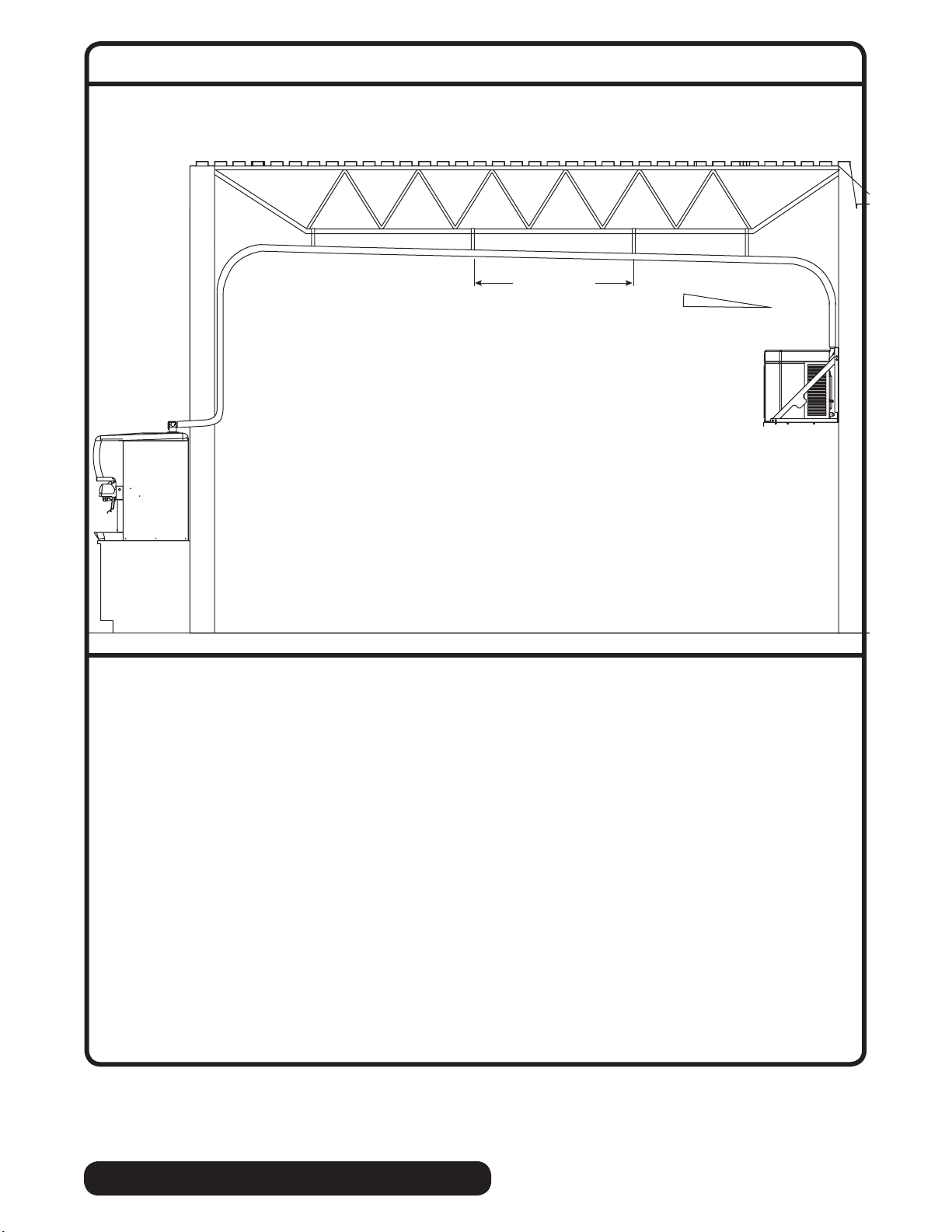

For long tube runs see guide on page 16.
• Pitch tube at least 1/4" per foot (6,4mm/.3m) ➌
• Ice transport tube must drain towards ice machine
Ice transport tube to Ice machine
• Be sure tube ends are square ➍
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎
before making connection to ease assembly
• Push ice transport tube onto ice machine nipple ➏
• Install hose clamp ➐
Ice transport tube installation.
5.1

10 self-contained DROP-IN • RIDE Technology

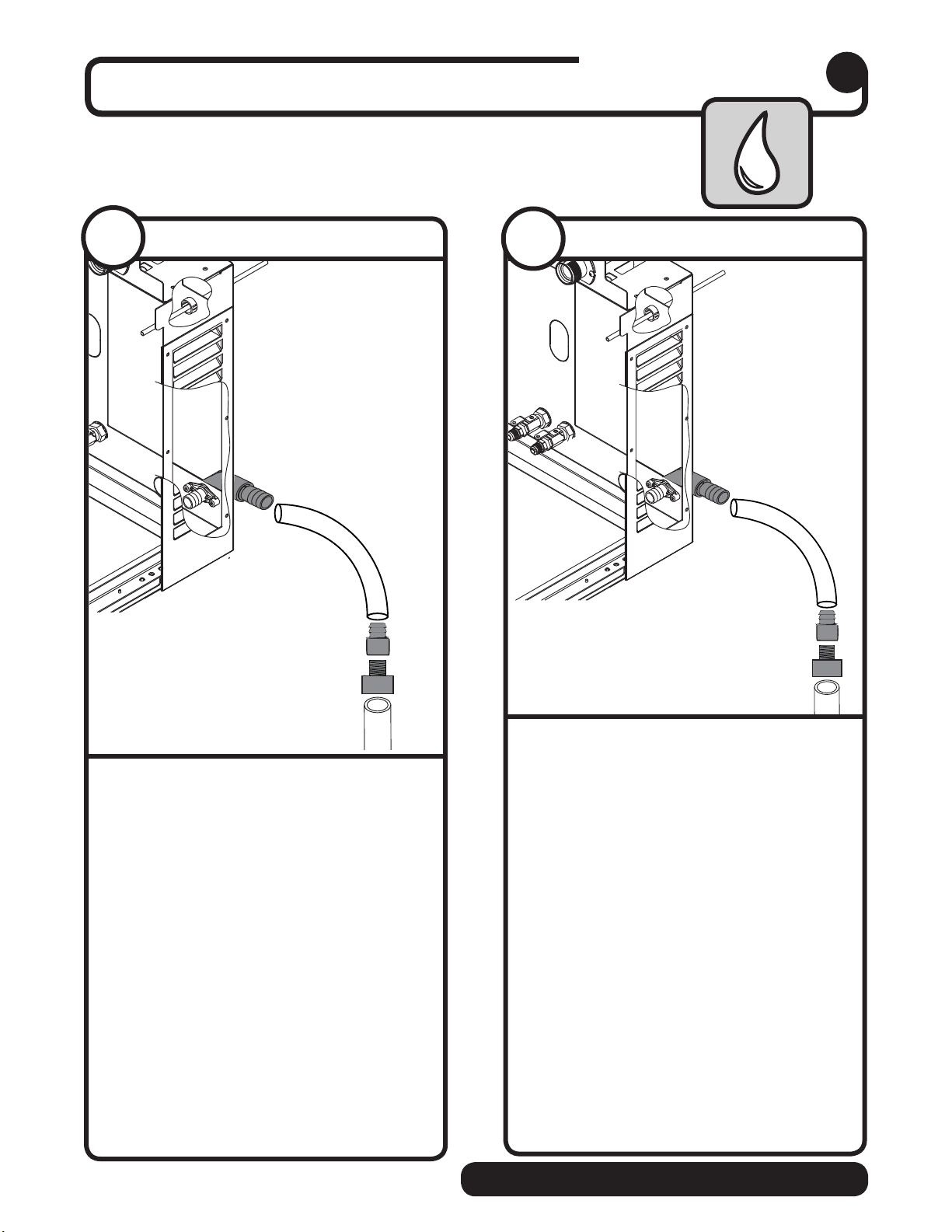

Connect utilities to louvered docking assembly. 6
External connections
➊
➏
➌
➋
➐
➑
3/4" barb x 3/4" FPT
1" Stand pipe/Drain
2 ft. x 1" OD
silicone tubing
Minimum 8"
radius
3/4" MPT x 1" slip
➍
➎
➌
➋
➊
➏
3/4" barb x 3/4" FPT
1" Stand pipe/Drain
2 ft. x 1" OD
silicone tubing
Minimum 8"
radius
➍
3/4" MPT x 1" slip
➎
Air-cooled ice machines only Water-cooled ice machines only
6.1 6.2
• Rough-in ice machine potable water
supply ➊.
3/8" push-in connection will be made at
shut-off valve inside machine
• Remove access panel if necessary ➋.
• Connect the silicone tubing to the ice
machine 3/4" drain barb ➌.
• Assemble the 3/4" barb x 3/4" FPT to the
3/4" MPT x 1" slip. Connect the other end
of the silicone tubing to the 3/4" barb ➍.
• Connect the 1" slip tting to the 1" stand
pipe/drain ➎.
Note: Minimum 8" radius on silicone
drain line. Drain line from the ice machine
must have at least 1/4" per foot pitch
(6,4mm/0,3m).
• Apply Petrol-gel to barbed drain tting ➏
• Replace access panel.
• Rough-in ice machine potable water
supply ➊.
3/8" push-in connection will be made at
shut-off valve inside machine
• Remove access panel if necessary ➋.
• Connect the silicone tubing to the ice
machine 3/4" drain barb ➌.
• Assemble the 3/4" barb x 3/4" FPT to the
3/4" MPT x 1" slip. Connect the other end
of the silicone tubing to the 3/4" barb ➍.
• Connect the 1" slip tting to the 1" stand
pipe/drain ➎.
Note: Minimum 8" radius on silicone
drain line. Drain line from the ice machine
must have at least 1/4" per foot pitch
(6,4mm/0,3m).
• Connect cooling water supply ➏and
return ➐
• Apply Petrol-gel to barbed drain tting ➑
• Replace access panel.

11
DROP-IN • RIDE Technology self-contained

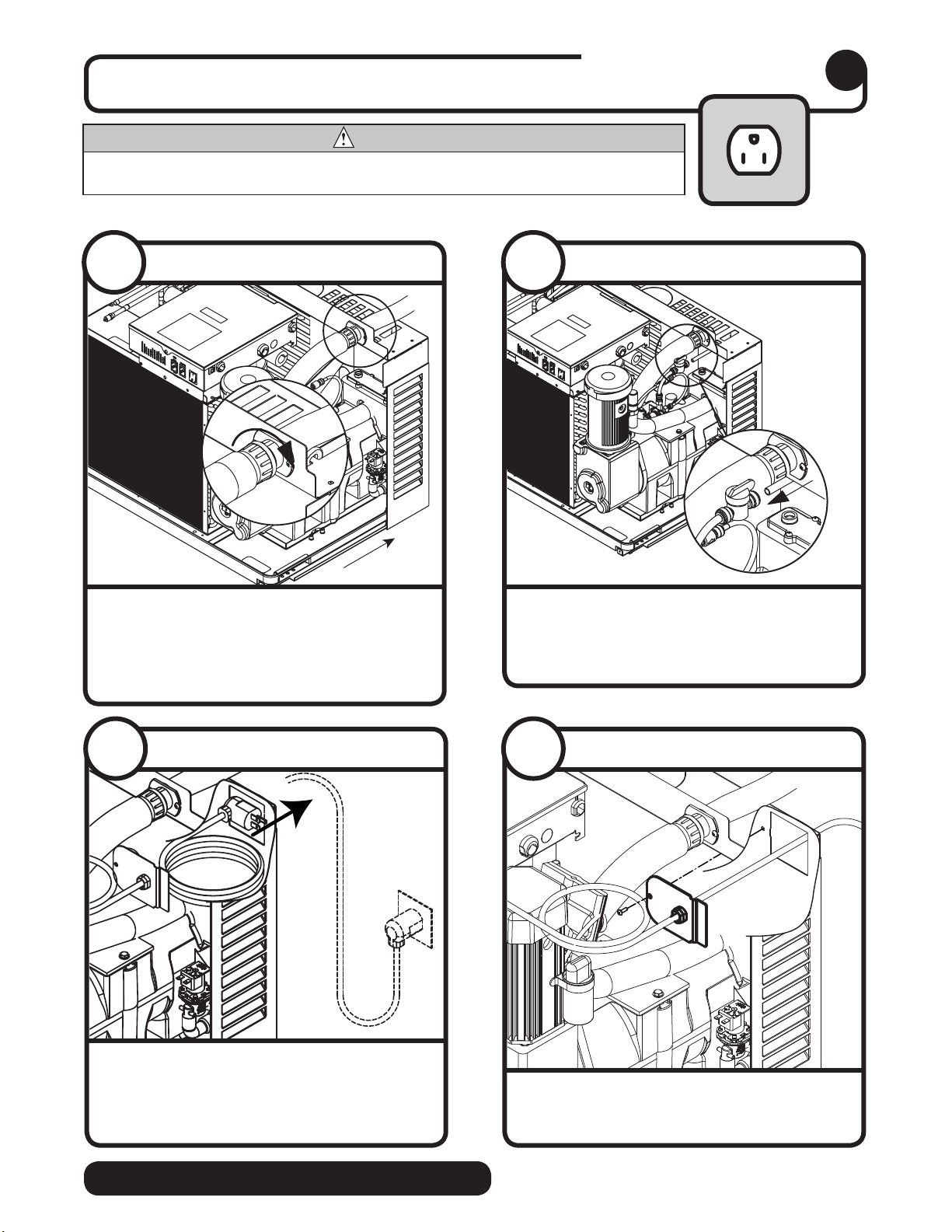

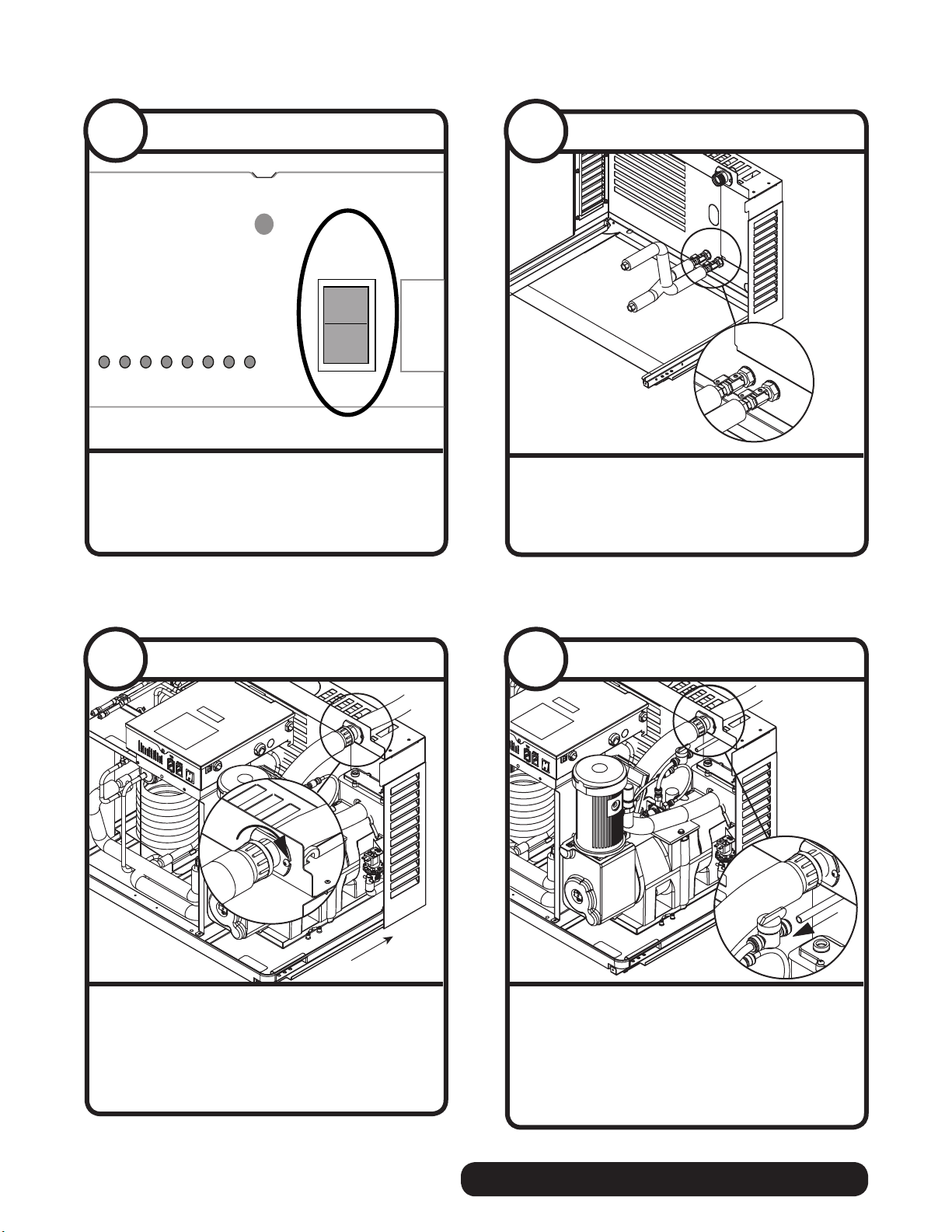

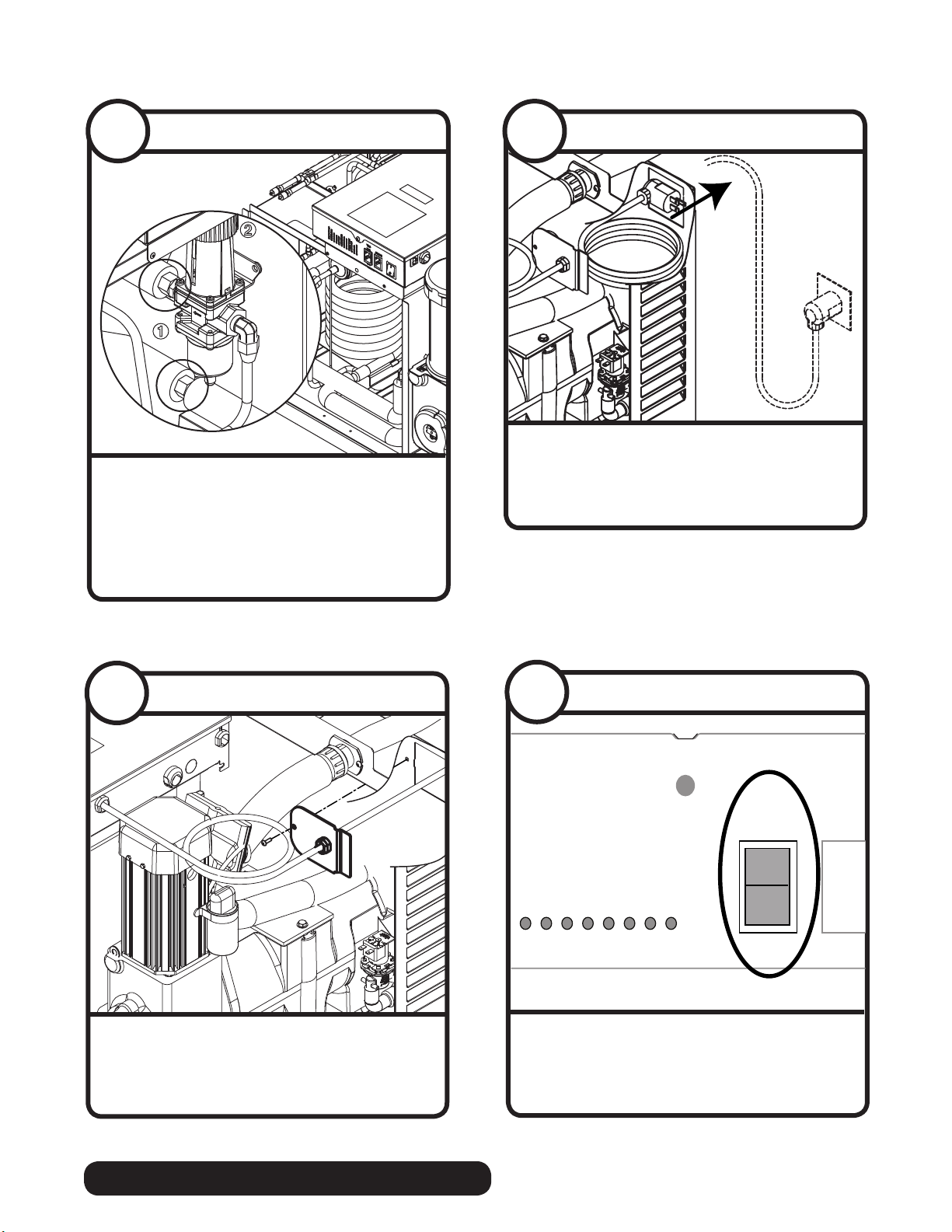

Connect louvered docking assembly to ice machine. 7
Internal connections
• Remove twist tie
• Carefully pass cord thru opening and plug
into wall outlet
• For H_E units, install a suitable plug
Power cord
7. 3
➊
➋
• Slide ice machine into louvered docking
assembly ensuring that drain tube is fully
seated on barbed drain tting ➊
• Insert ice transport tube all the way into
coupling and tighten nut rmly ➋
Ice transport tube
7. 1
➊
• Insert potable water line into valve ➊
Potable water and drain lines
7. 2
Air-cooled ice machines – follow steps 7.1 through 7.5.
• Position plate into opening and secure
with supplied screw
Power cord
7. 4
CAUTION
• Plug must be accessible after nal installation.
• H_E1410A/W 230/50/1) requires a 20 amp circuit (4.00 mm2wire)

12 self-contained DROP-IN • RIDE Technology
➊
• Insert potable water line into valve ➊
Potable water and drain lines
7. 8
In Out
• Install ice machine cooling water lines to
louvered docking assembly
Cooling lines
7. 6
➊
➋
• Slide ice machine into louvered docking
assembly ensuring that drain tube is fully
seated on barbed drain tting ➊
• Insert ice transport tube into coupling and
tighten nut rmly ➋
Ice transport tube
7. 7
Water-cooled ice machines – follow steps 7.6 through 7.12.
CLEANER FULL DRAIN CLOG HIGH PRES HIGH AMPS
SERVICE MAINT/CLEAN LOW WATER TIME DELAY SLEEP CYCLE MAKING ICE LOW BIN POWER ON
CLEAN
TDS
HIGH
LOW
• Set the TDS switch on the electrical box:
HIGH: for extended service life
LOW: for low-scale water
TDS switch
7. 5

13
DROP-IN • RIDE Technology self-contained
➊
➋
• Connect cooling water lines to ice
machine (Water "Out" connects to water
regulator.) ➊
• Water valve is set at the factory. DO NOT
remove seal or adjust water valve ➋
Cooling lines and power
7. 9
• Position plate into opening and secure
with supplied screw
Power cord
7. 11
• Remove twist tie
• Carefully pass cord thru opening and plug
into wall outlet
• For H_E units, install a suitable plug
Power cord
7. 1 0
CLEANER FULL DRAIN CLOG HIGH PRES HIGH AMPS
SERVICE MAINT/CLEAN LOW WATER TIME DELAY SLEEP CYCLE MAKING ICE LOW BIN POWER ON
CLEAN
TDS
HIGH
LOW
• Set the TDS switch on the electrical box:
HIGH: for extended service life
LOW: for low-scale water
TDS switch
7. 1 2

14 self-contained DROP-IN • RIDE Technology
Front cover
Install front cover to ice machine. 8
NOTICE
Ice machine MUST be sanitized prior to operation!
Consult Operation and Service Manual provided with ice machine for sanitizing instructions.
➋
➊
➌
• Slide ice machine cover over machine
ensuring that tabs on back of cover
slip under louvers on back of louvered
docking assembly ➊
• Insert and tighten two screws through
cover and into louvered docking assembly
➋
• For air-cooled machines only, install
plastic grill ➌
Install front cover
➋
➌
➊
CAUTION
• Keep ventilation openings in the appliance enclosure
clear of obstruction.
• To ensure proper ventilation (if not using supplied grille)
carefully review air circulation specications in section
4.1
• Remove and discard plastic grille ➊
• Apply supplied gasket material around
entire opening on skin to prevent air
recirculation ➋
• Attach supplied metal grille to opening in
counter door (see section 4.1) ➌
Front cover installation –
air-cooled undercounter only

15
DROP-IN • RIDE Technology self-contained
➊
➋1/4"
1'
max. 2 ft (.6m)
• Pitch ice transport tube to allow melt water to drain towards ice machine ➊
• Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps ➋
Long tube run recommendations

01113281R02
©Follett LLC 4/18
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
