Follett EU155N Series Setup guide

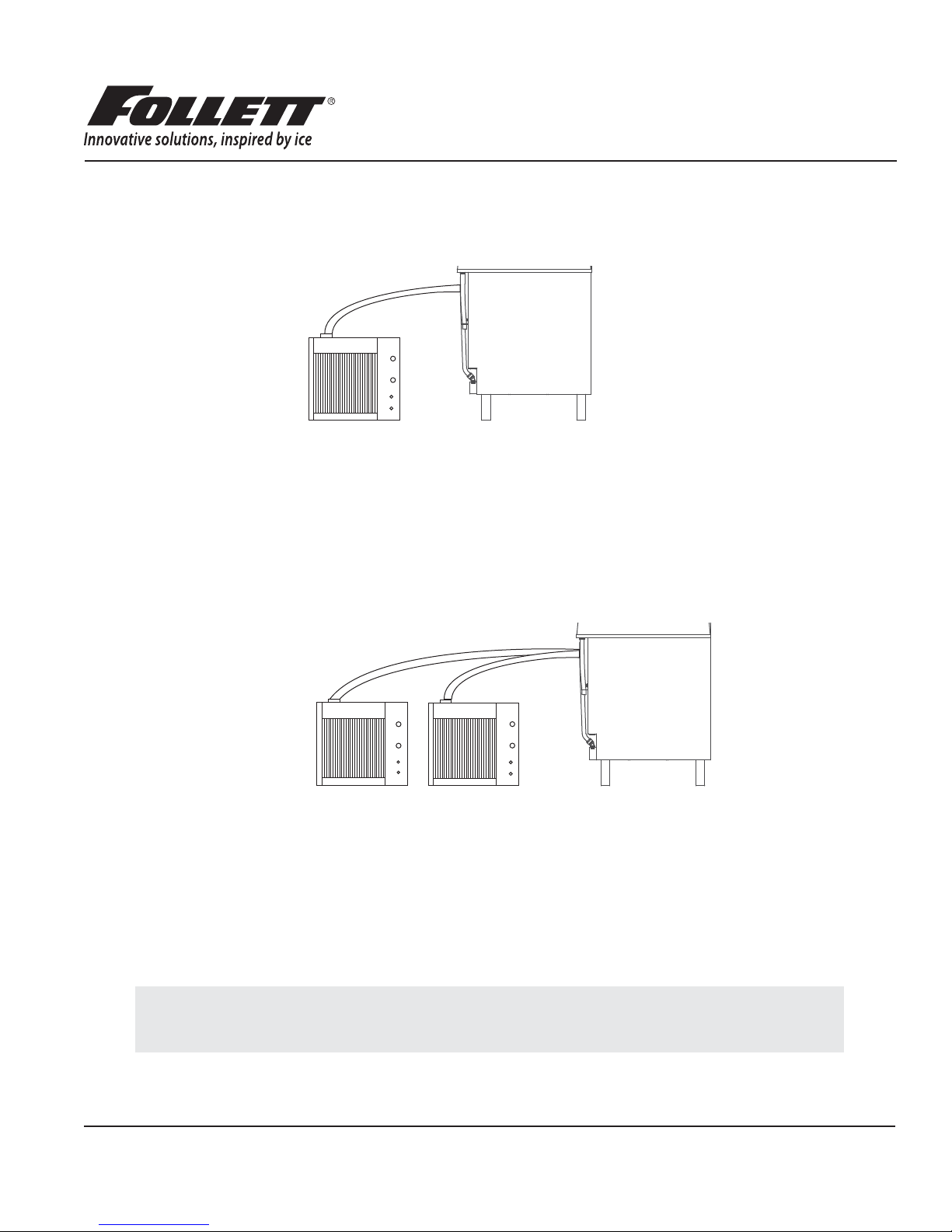

Automatic load units with one ice machine
Automatic load units with one ice machine
Order parts online:
www.follettice.com
00120303R02
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
Following installation, please forward this manual
totheappropriate operations person.
Installation, Operation and Service Manual
EU155N Series - 230V, 50 Hz
Ice and Water Dispensers

EU155N Ice and Water Dispensers 2

EU155N Ice and Water Dispensers 3
Contents
Welcome to Follett. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Clearance and access information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Field wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing EU155N dispenser in counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing remote ice machine (automatic load units only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
To start up and operate dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
User information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
How the dispenser works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and sanitizing procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning bin before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Periodic cleaning of dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Quarterly cleaning of ice machine system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disassembly instructions for periodic cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

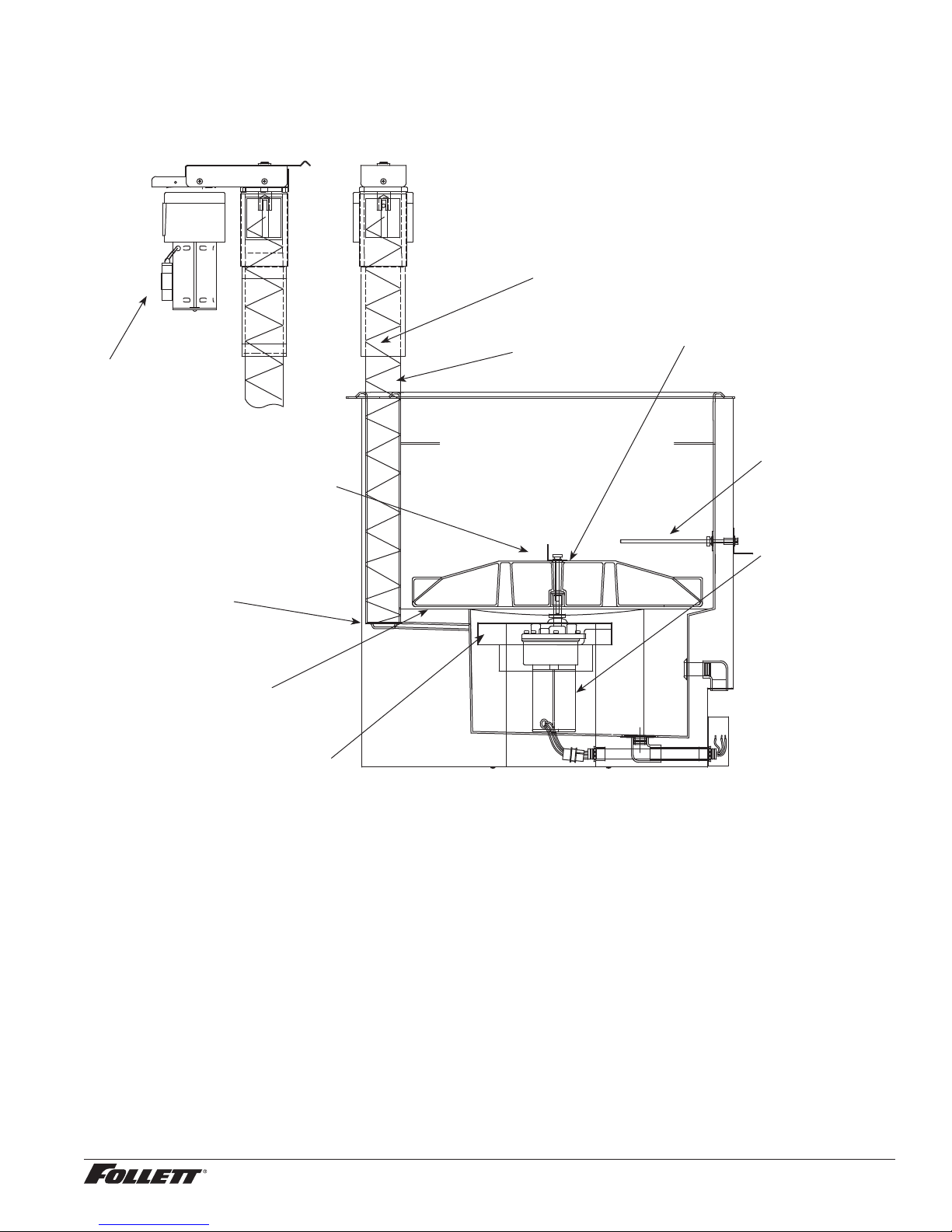

Dispense wheel motor removal (Fig. 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before calling for service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Dispenser troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

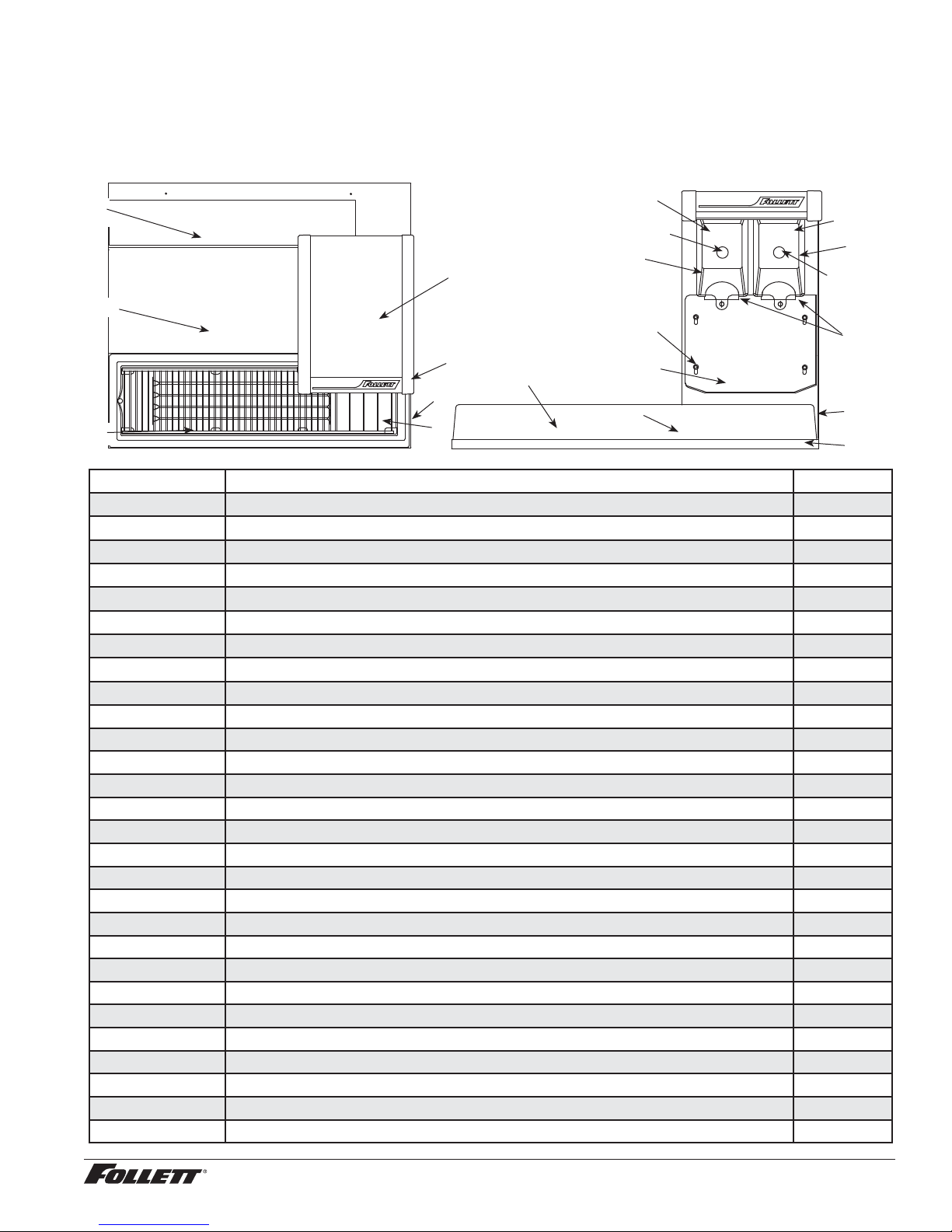

Dispenser exterior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

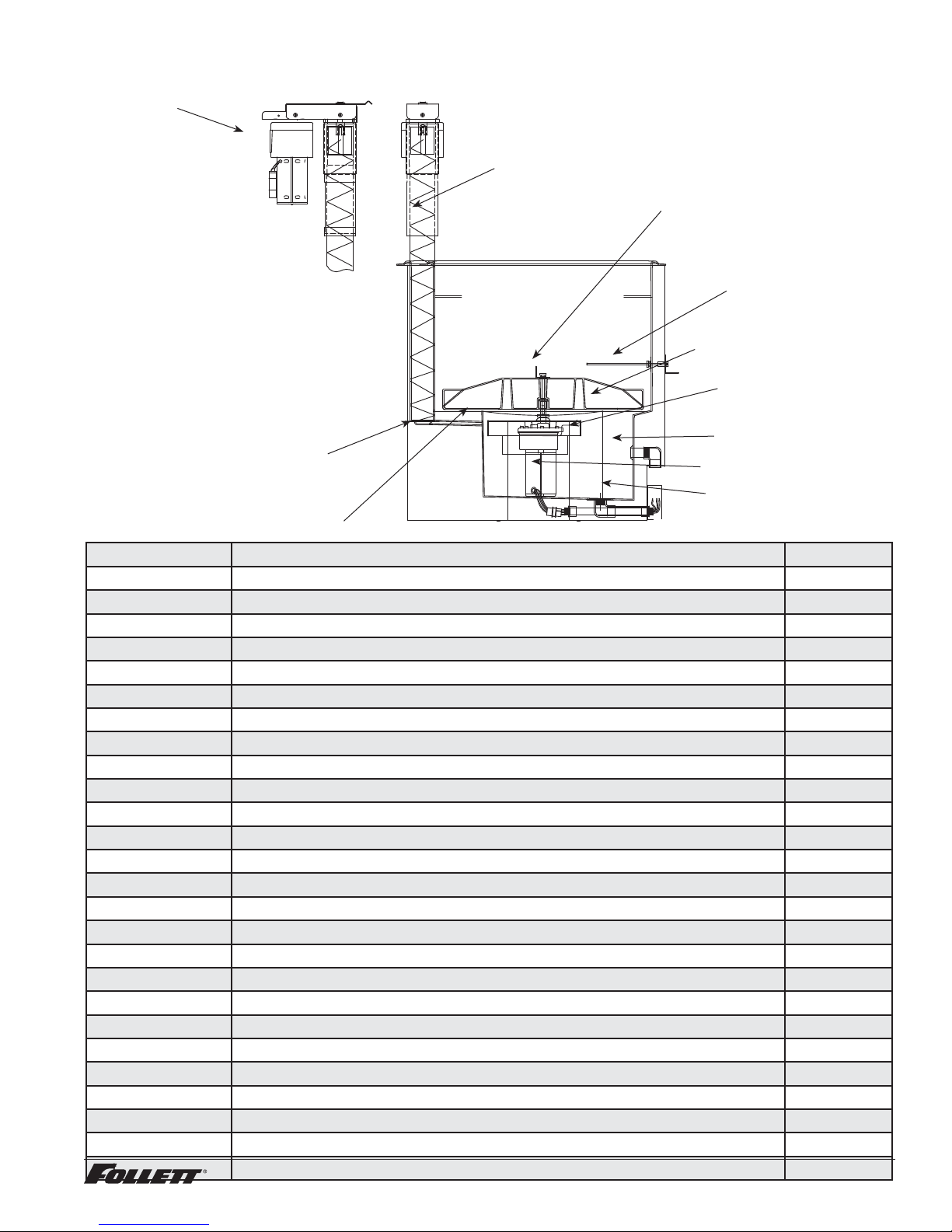

Dispense assembly – side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Hopper – side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Auger motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Welcome to Follett––––––––––––––––––––––––––––––––––––––––––––––––––
Follett ice and water dispensers enjoy a well-deserved reputation for excellent performance, long-term reliability and
outstanding after-the-sale support. To ensure that this dispenser delivers that same degree of service, we ask that
you take a moment to review this manual before beginning the installation of the dispenser. Should you have any
questions or require technical help at any point, please call our technical service group at [phone].
Before you begin
§After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If
damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the
ling of a claim, if necessary.
§Check your paperwork to determine which model you have. Follett model numbers are designed to provide
information about the type and capacity of Follett ice dispensing equipment. Following is an explanation of
the different model numbers in the U155 Series.
Important Safety Information –––––––––––––––––––––––––––––––––––––––––
Please read and adhere to the following safety information while installing, using, or servicing your Follett 7 Series
Ice Dispenser.
1. Always disconnect power before servicing the dispenser.
2. Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.
3. Ice is food. Follow the recommended cleaning and sanitizing instructions to maintain cleanliness of delivered
ice.
4. Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett
compressed nugget ice. Crushed, ake, bagged, nugget or congealed ice cannot be used. Use of these ices
can jam dispenser and void warranty. Separate any “waffle-like” sections of cubes before adding to dispenser.
For ice compatibility questions, please call Follett customer service at [phone] or [phone].
5. Follett recommends use of an activated carbon lter for units equipped with ice machines.
6. Storage area of dispenser contains mechanical, moving parts. Keep hands and arms clear of this area at all
times. If access to this area is required, power to unit must be disconnected rst.
EU155NR400AR
Condenser type – A = air-cooled, W = water-cooled
Remote ice machine(s) capacity and refrigerant – 400 = 400 lbs (181kg)/day, R404A
800 = 800 lbs (363kg)/day, R404A
absence of = manual ll unit
N = ice and water only, no beverage rail or valves
Approximate storage capacity in lbs
Dispenser conguration – U = undercounter
Ice dispense chute location – R = right side, L = left side
Alternate voltage – C = 230V 50Hz
EU155N Ice and Water Dispensers 4

Side view Front view
553mm
305mm
305mm
696mm
712mm
1264mm
794mm
305mm min
480mm min
153mm min
480mm min
432mm
661mm
water connection
hopper drain
beverage
pan drain
Automatic load units with 1 ice machine
Automatic load units with 2 ice machine
Specications –––––––––––––––––––––––––––––––––––––––––––––––––––––
Electrical requirements
§Each ice machine and dispenser requires separate circuit with electrical disconnect within 6m. Equipment
ground required.
§230V, 50 Hz, 2A
Plumbing
Dispenser
§3/4" PVC slip joint for hopper drain
§3/4" PVC pipe nipple for beverage drain pan
§3/8" ID red line tubing for water in
§Drains should be hard piped and insulated. Maintain at least 6 mm per 304 mm (1/4" per 12 in.)run slope on
drain line run
Ice machine
§Refer to Ice machine Installation Manual packed with ice machine for installation instructions
Clearance and access information
§1296mm above counter
§305mm on side opposite tower, below counter
§Counter front or rear panel must be removable for service access to both sides of dispenser and ice
machine(s), if any
§Below counter access to drain clean-out required on utility side of dispenser
§See Ice machine Installation Manual packed with ice machine(s) for clearance requirements for automatic
load dispensers
EU155N Ice and Water Dispensers 5

Junction box
Junction box
L1
L2
GND
Electric supply
230V 50Hz
L1
L2
GND
Electric supply
230V 50Hz
EU155N
Dispenser
Connections to complete
ER400A/W
ice machine
Junction box
L1
L2
GND
Electric supply
230V 50Hz
optional second
ER400A/W

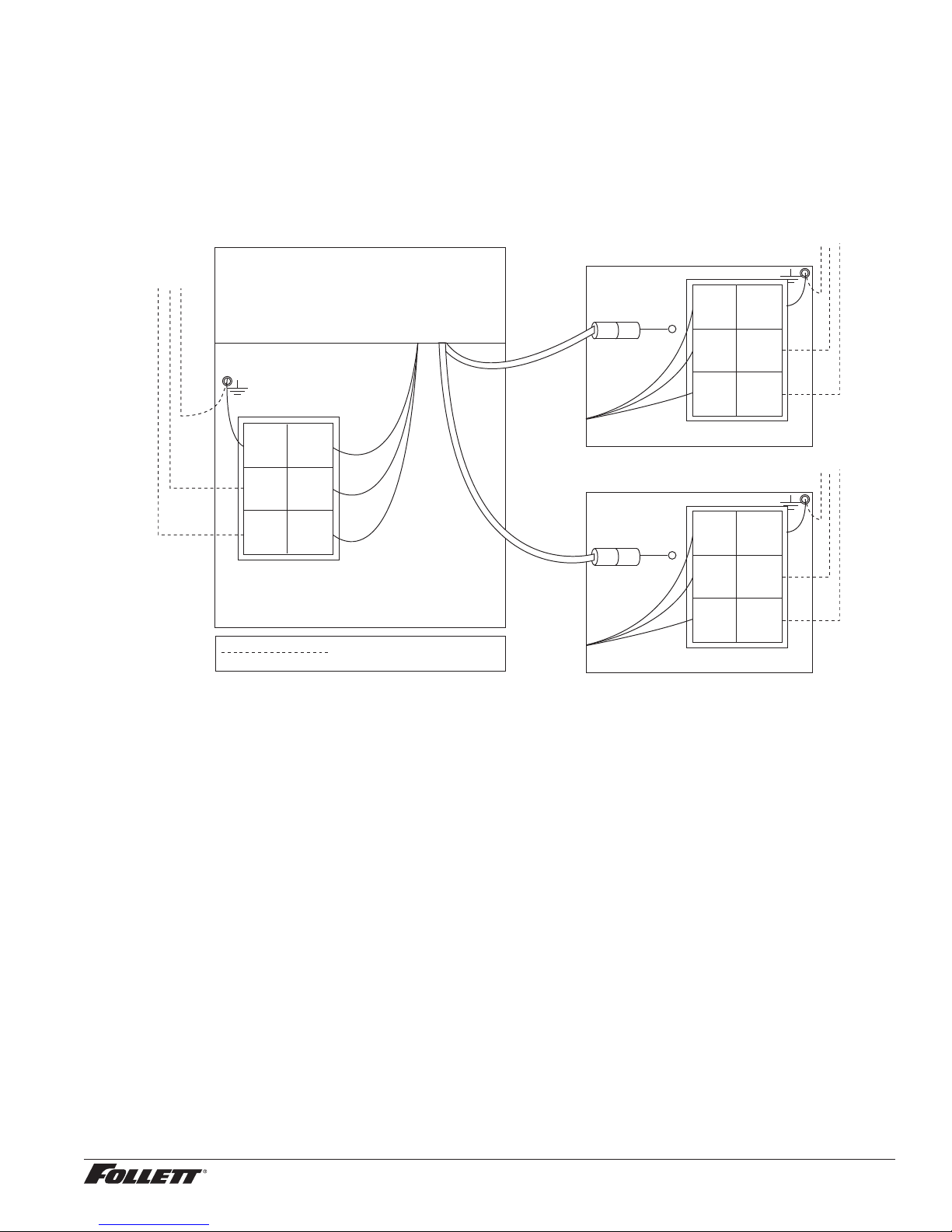

Field wiring diagrams
Automatic load units
One 230V, 50 Hz circuit is required. The eld wiring diagram is intended to aid the elelectrician or technician in
understanding how the equipment works.
EU155N Ice and Water Dispensers 6

Installation ––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Installing EU155N dispenser in counter
All EU155N dispensers must be installed level in both directions and supported from below with 153
– 229mm adjustable legs provided, or channels installed on site. DO not hang dispenser on ange of
counter.
1. Check that dispenser location meets all requirements in this manual and cut counter as shown.
2. Block up area below counter cut-out to support dispenser when lowered into place.
3. For automatic load dispensers, disconnect ice transport tube from bracket in storage area of dispenser. (Since
this tube must be reinstalled in bracket after dispenser is dropped into counter, note how tube is held by bracket
tabs before disconnecting.)
4. Carefully lower dispenser into counter until it rests on support blocks.
5. Adjust height from below with standard leg kit until dispenser ange rests ush with counter.
6. Apply a bead of NSF listed silicone sealant (Dow-Corning RTV-732 or equivalent) approximately 6mm in
diameter around perimeter of dispenser where it meets counter and smooth sealant to a 4mm radius.
7. Install a hard drain line, maintaining at least a 6mm per 304mm run slope, and insulate line to prevent
PVC pipe is suggested. Care must be taken in sweating any metal drain pipe used. Excessive heat
applied while sweating metal pipe may melt plastic tting on dispenser. condensation.
8. Make electrical connections in accordance with applicable wiring diagrams provided, as well as NEC and local
codes. Provide disconnects within 3m of dispenser and ice machine for servicing.
Front of counter
(772mm) +3mm 
- 3mm (667mm)
+3mm
- 3mm


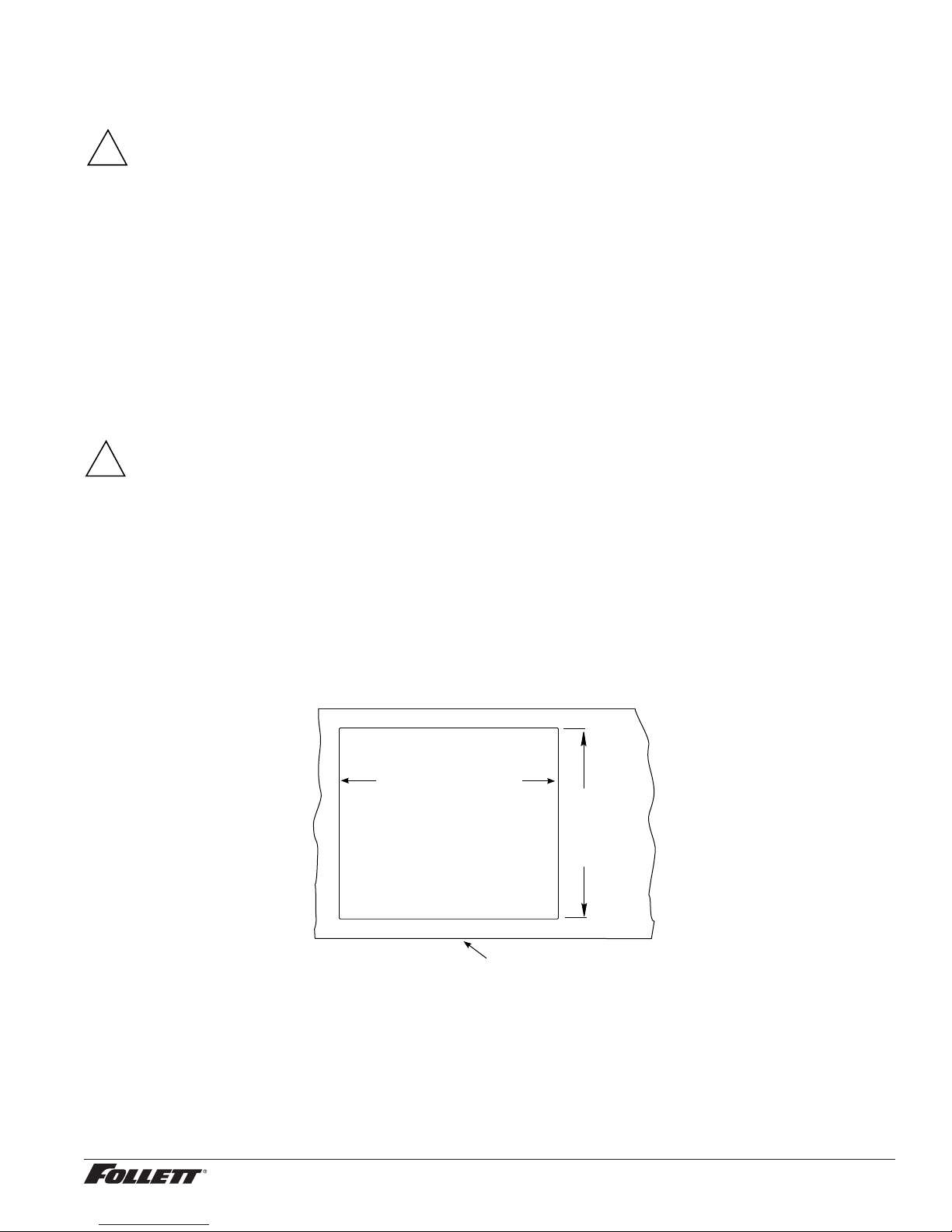

Counter cut-out
!
!
EU155N Ice and Water Dispensers 7

Installing remote ice machine (automatic load units only) ––––––––––––––––––––––––––––––
Correct installation of remote ice machine(s) is critical to proper performance of ice machine
and dispenser.
Check to make sure bin signal on ice machine control board is switched to 24 V connection.
Refer to installation manual packed with ice machine for important details on ice transport
tube run, ventilation requirements and other installation requirements. Failure to comply with
instructions will void warranty.
1. Position ice machine in desired location.
2. Push one end of ice transport tube(s) through hole(s) provided in side of dispenser.
3. Route tube into ice tube bracket inside dispenser and engage bracket tabs in holes located in end of ice
transport tube(s). (See drawings below.)
4. Proceed with ice transport tube installation from dispenser to ice machine in compliance with instructions
contained in ice machine installation manual packed with ice machine.
!
Tabs in ice tube
retainer bracket
engage holes in ice
tube and hold tube
in place
25mm
ice tube
Side view
ice tube
Ice tube retainer bracket
thermostat
Front view
thermostat
EU155N Ice and Water Dispensers 8

To start up and operate dispenser ––––––––––––––––––––––––––––––––––––
1. Follow detailed cleaning instructions in service manual before operating dispenser.
2. For manual load units, remove front drain pan or rear lid and ll storage area with compatible ice.
Follett manual load dispensers can accommodate most cube/cubelet ices up to 26mm square and
Follett compressed nugget ice. Crushed, ake, nugget, bagged or congealed ice cannot be used. Use
of these ices can jam dispenser and void warranty. Separate any“waffle-like” sections of cubes before
adding to dispenser. For questions about ice compatibility, call Follett's customer service group at (610)
252-7301.
3. Turn power switch located on control box to “ON” position.
4. For automatic ll units, follow detailed instructions in ice machine installation section of installation manual, then
turn ice machine (bin signal) switch(es) located on control box to “ON” position and begin to make ice.
5. When dispenser has at least 153mm of ice in storage area, press “PUSH FOR ICE” lever or button to ensure
that dispenser is operating properly. Note: If additional start-up information is needed, call Follett Corporation at
[phone].
User information –––––––––––––––––––––––––––––––––––––––––––––––––––
How the dispenser works
Follett's EU155N Series ice and water dispensers are available in manual load congurations (using ice from
another source) or automatic load congurations, fed from one or two Follett 400 lb (181kg)/day remote ice
machines.
In all models, ice is stored below the counter in the dispenser storage area. When the dispense lever or button is
pushed, the dispense motor is activated. This causes the wheel assembly in the storage area to turn, moving ice to
the vertical auger assembly, which carries ice up to the dispense chute where it drops by gravity into the container.
In automatic load units, ice is manufactured in either one or two Follett remote ice machines. These ice machines
may be located up to 6m away from the dispenser. As water freezes to the inside walls of the ice machine
evaporator, a rotating stainless steel auger removes ice and carries it to the top of the evaporator assembly where it
is compressed and extruded through an outlet port. The extruded ice is then pushed through the tube to the storage
compartment of the dispenser. A level ll circuit maximizes ll in the storage area by rotating the wheel at intervals
until the bin is completely lled. When the bin is lled, a bin stat shuts the ice machine off to avoid overlling of the
bin. The ice machine will restart after 20 minutes if the bin is calling for ice.
Cleaning and sanitizing procedures –––––––––––––––––––––––––––––––––––
Warning!
Always disconnect power before cleaning dispenser.
Using solutions below, clean and sanitize storage area and beverage lines before starting up unit and on a routine
basis as noted below.
Solution A: Prepare a cleaning solution (200 ppm of available chlorine content) of chlorinated detergent. Cleaning
solution temperature must be at 75˚– 125˚F (24˚to 52˚C).
Solution B: Prepare a sanitizing solution (50 ppm of available chlorine content) of chlorinated detergent.
Sanitizing solution temperature must be at 75˚– 125˚F (24˚to 52˚C).
!
!
EU155N Ice and Water Dispensers 9

Cleaning bin before use
1. Wipe storage area with Solution A.
2. Rinse thoroughly with clear, potable water.
3. Wipe with Solution B to sanitize.
Periodic cleaning of dispenser
Recommended daily cleaning of drain pan
Notice!
DO NOT run plastic parts (drain pan, dispense chute cover, dispense wheel) through a dishwasher.
1. Remove all debris from drain pan.
2. Pour 1 gallon (4L) hot water into drain pan to keep drain lines clear.
Recommended weekly cleaning
1. Remove drain pan and grill and wash with Solution A. Rinse thoroughly.
2. Pour a solution of one cup (8oz/237ml) household bleach mixed with one gallon (3.8L) hot water into drain pan
to help prevent algae growth in drain lines.
Recommended quarterly cleaning (every 3 months)
Notice!
On push button units, remove dispense switch from dispense chute cover before
1. Turn power switch to “OFF” position and remove top from dispenser.
2. Remove ice from storage area.
3. Remove dispense chute cover, chute, auger motor assembly, auger and auger tube (page 10).
4. Remove drain pan, grille, dispense wheel and cover plate (page 11).
5. Clean all components and bin storage area with Solution A, rinse thoroughly with clear water and sanitize with
Solution B.
6. Remove clean-out plug from drain line tee on side opposite dispense tower and let bath drain.
7. Use a bottle brush to clean coil with Solution A, then rinse and sanitize with Solution B.
8. Reinstall clean-out plug in drain line tee.
9. Pour potable water into bath to submerge coil.
Putting unit back in service after quarterly cleaning
1. Reassemble components.
2. For manual load units, ll unit with an approved ice (see caution statement on page 1).
3. For automatic load units with R400A/W (R404A refrigerant) ice machines, turn bin signal switch(es) and
dispenser power switch to “ON” position and allow storage area to ll.
4. Push dispense button or lever to test that dispenser is functioning properly.
Quarterly cleaning of ice machine system
Units equipped with ice machines require cleaning of ice machine system at least every three months, and more
often if local water conditions dictate. Failure to clean ice machine system will result in decreased performance and
potential damage to ice machine. Refer to Ice machine Operation and Service Manual.
!
!
EU155N Ice and Water Dispensers 10

Dispense chute cover removal
1. Remove top cover.
2. Push chute cover up vertically to slip off holding
tab.
3. After clearing tab, pull chute cover forward to
remove.
Dispense mechanism assembly removal
1. Remove top cover.
2. Remove chute cover (see above).
3. Remove auger motor assembly (see above).
4. Remove quick release pins from the ice chutes
and gates, then unplug wires from solenoids.
5. Lift dispense mechanism up and off auger tube.
Auger and auger tube removal (Fig. 3)
1. Remove auger motor and dispense mechanism
assembly (see above).
2. Pull auger upward to clear auger tube.
3. Lift auger tube upward to clear dispenser top.
4. Slide tube and bearing plate through auger tube
gasket.
Dispense wheel removal
1. Remove drain pan assembly and bin access
cover.
2. Remove center thumbnut and threaded rod on
dispense wheel assembly and lift wheel out front
access opening.
Auger motor assembly removal
1. Remove top cover.
2. Remove one thumbnut on rear of motor bracket.
3. Lift motor bracket up and unplug electric quick
disconnects.
4. Remove motor assembly.
solenoid
quick
release
pin
gate
Disassembly instructions for periodic cleaning
Dispense assembly, top view
right-hand unit
Front view
right-hand unit
dispense
chute
drain pan
assembly
chute
cover
top cover
ice chute
Fig. 1
Fig. 2
EU155N Ice and Water Dispensers 11

Service ––––––––––––––––––––––––––––––––––––––––––––
Disassembly instructions for service requirements only – NOT required for any cleaning procedure.
Dispense wheel motor removal (Fig. 3)
1. Remove drain pan, bin access cover and dispense wheel.
2. Remove stainless steel baffle plate under dispense wheel.
3. Remove two screws holding wheel motor bracket on bin.
4. Lift plate and motor up.
5. Unplug electric quick disconnects from motor.
6. Lift motor and mounting plate out front access opening.
wheel
motor
baffle
plate
wheel motor
mounting plate
dispense wheel
auger tube
auger
auger motor
(side view)
auger bearing
plate
stationary
agitator
rotating
agitator
front viewside view
Fig. 3
EU155N Ice and Water Dispensers 12

Blk
Blk
COUNTERCLOCKWISE ROTATION
COUNTERCLOCKWISE ROTATION
Red Yel
Red
Red
SWITCH NO. 1
SWITCH NO. 2
IM_#2
IM_#1
AutoFill Timer
24 Volts
R1
Blu
T-STAT
BIN
22
Red
33
96
18 MIN OFF
5 SEC ON
2
NO
C
DISPENSE RELAY
DISPENSE SWITCH
Brn
DISPENSE SOLENOID
Yel
Brn
3
1
AUTOFILL RELAY
BA
R2 Yel
Yel
DISPENSE RELAY
B
R1
A
Yel
EU155N
Right hand
dispenser
Right or
left hand
dispenser
BLK
Blk
POWER
L1
Orn Pur RedRed
Pur
R2
220 Volts
1
T1
Orn
9
AUTOFILL R2
Pur
AUTOFILL
47
7
Blu
6
Blu
Blu
Red
WHEEL
Red
M2
Blu
M1
WATER SWITCH
DISPENSE RELAY
R1
Orn
CNO
WATER SOLENOID
AUGER MOTOR
TERMINAL STRIP CONNECTION
PIN and SOCKET CONNECTION
LEGEND:
CLOCKWISE ROTATION
CLOCKWISE ROTATION
EU155N
Left hand
dispenser
Wht
Orn Pur
Wht
Wht
71
R2
Orn
6
AUTOFILL
9
AUTOFILL R2
Pur
4 7
Pur
L2
Wht
R1
DISPENSE RELAY
Orn
Wht
Blk
RedRed
Blu Blu
BlkRedRed
M2
WHEEL
Blu Blu
M1
Wht
AUGER MOTOR
PL2-1 PL2-2
PL2-3
PL3-2
PL3-1
PL3-3
PL2-1
PL2-3
PL2-2
PL3-2
PL3-1
PL3-3
Blk
white
SWITCH SWITCH
white
TOP LID
CNO
white
DRAINPAN
CNO
SWITCH
REAR LID
CNO
interlock relay
R3
B
Yel
A
INterlock RELAY
7
R3
4
Ice Machine 2
BIN SIGNAL
to
WHITE
BLACK
BIN SIGNAL
Ice Machine 1
to
BLACK
WHITE
Blu
Wiring diagrams
EU155N Ice and Water Dispensers 13

Before calling for service
1. Check that there is ice in dispenser and that congealed cubes are not causing a jam.
2. Check that circuit breaker and switches are in “ON” position.
3. Check that drain pan, rear lid and top are on securely. If ajar, dispenser will not operate. When the top is off,
auger does not operate, even though the solenoids do.
4. Check that all drains are clear.
Note: For units equipped with Follett compressed nugget ice machine, see Ice machine Operation and Service
Manual for service and troubleshooting information.
Dispenser troubleshooting guide
Sympton Possible cause Solution
Ice does not dispense.
• Auger motor does not run
• Wheel motor does not run
1. Power switch faulty or in OFF position;
loose connection.
2. Faulty dispense switch.
3. Faulty transformer.
4. Drain pan ajar.
5. Faulty drain pan safety switch.
1. Turn power switch to ON position;
check connections.
2. Replace switch.
3. Replace transformer.
4. Check pan and reseat.
5. Replace switch.
Ice does not dispense.
• Auger motor runs
• Wheel motor runs
• Gate does not open
1. Loose electrical connection.
2. Linkage problem between solenoid and
gate.
3. Faulty solenoid.
1. Check connections.
2. Check linkage.
3. Replace solenoid.
Ice does not dispense.
• Auger motor does not run
• Wheel motor runs
1. Loose electrical connection.
2. Faulty auger motor.
3. Faulty run capacitor.
1. Check connections.
2. Check auger motor.
3. Check run capacitor.
Ice does not dispense.
• Auger motor runs
• Wheel motor does not run
1. Loose electrical connection.
2. Faulty wheel motor.
3. Faulty run capacitor.
1. Check connections.
2. Check wheel motor.
3. Check capacitor.
No ice in dispenser. 1. Power switch in OFF position or faulty.
2. Bin signal switches in OFF position or
faulty.
3. Faulty bin t-stat.
4. Faulty transformer.
5. Ice machine related problem.
6. Faulty run capacitor.
1. Check switch and replace if
necessary.
2. Check switch and replace if
necessary.
3. Replace bin t-stat.
4. Replace transformer.
5. Refer to ice machine Operation and
Service Manual for diagnosing.
6. Check for power and bin signal on
ice machine PC board.
If problems persist after following this basic troubleshooting guide, call Follett’s technical service department at
+1[phone].
EU155N Ice and Water Dispensers 14

Top view
unit with right hand (RH) tower
Front view
right hand (RH) tower
(push button dispensing)
Replacement parts
Dispenser exterior
5
4
2
1
3
13
3
14
10
7
11
17
68
15
12
9
16
17
4
Reference # Description Part #
1 Label, “Follett” 502438
2 Top cover (includes label and magnet) 502905
3 Drain pan (includes magnet) 502903
4 Grille, drain pan 502450
5 Cover, electrical components 502902
6 Lid, rear access (includes magnet) 502904
Not shown Cover, ice storage (under drain pan) 502453
7 Label, ice, dispense cover, push button 502623
8 Label, water, dispense cover, push button 502617
9 Cover, dispense chute, push button operation (includes button and label), ice 502440
10 Cover, dispense chute, push button operation (includes button and label), water 502440
11 Chute, focus, clear plastic 502459
Not shown Push pin, clear chute 502610
12 Switch, push button operation, for ice (includes label) 502441
13 Splash shield, right hand unit 502612
Not shown Splash shield, left hand unit 502613
14 Thumbscrew, splash shield, 10-32 x 1/2 501100
Not shown Panel, access, right hand and left hand units 502907
16 Panel, wrap, right hand unit 502909
Not shown Panel, wrap, left hand unit 502908
Not shown Panel, rear, motor support, right hand unit 502586
Not shown Panel, rear, motor support, left hand unit 502587
Not shown Clip, Tinnerman, 10-32 502621
Not shown Screw, 10-32 x 1/2 502287
Not shown Legs, 153mm adjustable to 229mm, set of 4 502454
17 Switch, water dispense, push button operation (includes label) 502648
Not shown Plug 2 lead, male 502333
Not shown Plug 2 lead, female 502334
EU155N Ice and Water Dispensers 15

Dispense assembly side view
(RH unit shown)
Reference # Description Part #
1 Gate, dispense 502455
2 Linkage pin, gate/solenoid 502456
3 Pin, quick release, 141mm, dispense gate 502102
4 Solenoid (includes linkage pin) 00120295
5 Dispense mechanism assembly, right hand unit 502458
Not shown Dispense mechanism assembly, left hand unit 502496
6 Spring, dispense mechanism (1 per side) 501950
7 Chute, ice 502457
8 Wrap, dispense mechanism 502607
9 Bushing, Ni liners 501249
10 Screw, 8-32 x 5/16 502625
11 Pin, spring 502624
5
Dispense assembly – side view
top view
1
2
3
4
6
7
8
9
10
11
9
EU155N Ice and Water Dispensers 16

Reference # Description Part #
1 Auger, LH unit (black, stamped with “1”) 502491
Not shown Auger, RH unit (gray, stamped with “2”) 502492
2 Plate, auger bearing 501696
Not shown Tube, auger, right hand unit 502487
Not shown Tube, auger, left hand unit 502488
3 Wheel, dispense (includes stud and rotating agitator) 501681
4 Baffle (under dispense wheel) 501684
Not shown Drive bar (under dispense wheel) 501682
5 Motor, vertical auger 502889
6 Motor, wheel 502890
Not shown Seal, wheel motor 501333
Not shown Spacer, wheel motor 501768
Not shown Capacitor, wheel motor 502891
7 Agitator, rotating, 534mm long 502484
8 Plate, wheel motor mounting 502615
9 Agitator, stationery 502490
Not shown Bracket, ice tube, double tube 502497
Not shown Ice transport tube (sold by the foot) 500366
Not shown Ice transport tube, 10 ft 502522
Not shown Ice transport tube, 20 ft 502523
Not shown Insulation, transport tube (sold by the foot) 501176
10 Coil, plain water 502461
11 Tubing, water (sold by the foot) 502356
Not shown Cover, blank ice entry 502674
Not shown Gasket, ice entry 502672
Not shown Plate, ice entry, 2 holes 502673
Hopper – side view
9
6
7
4
8
3
1
5
2
10
left-hand unit shown
11
EU155N Ice and Water Dispensers 17

Reference # Description Part #
Auger motor/drive assembly, vertical (includes all items below) 5028931
1 Motor, vertical auger (includes gearbox and capacitor) 502889
2 Chain, auger drive #35, 40p 502477
3 Sprocket 35#, 22T 5/8 bore 50247
4 Sprocket 35#, 12T 5/8 bore 502479
5 Drive shaft 502480
6 Bearing, auger, upper and lower 501314
7 Cover and bearing, chain drive (includes 501314) 502912
8 Capacitor, 25mf, 270V 502892
9 Key, Woodruff 502482
10 Washers, thrust (4) 501765
11 Mounting plate, auger motor (includes 501314) 502913
Auger motor
7
6
1
8
4
3
2
11
10
5
side view top view
9
6
EU155N Ice and Water Dispensers 18

Reference # Description Part #
1 Transformer, 24V 502885
2 Relay, dispense 501826
3 Relay, auto ll 501826
4 Timer, auto ll (automatic ll units) 502471
5 Strip, terminal 502472
6 Tube, water dispense, stainless steel 502356
7 Bracket, water solenoid 502611
8 Fitting, outlet, 1/8 MPT x 3/8, compression 502562
9 Valve, solenoid, water 208103
10 Fitting, inlet, plastic, 1/4 barb 502637
11 Tubing, water (sold by the foot) 502356
13 Switches (power and ice machine) 502209
14 Bracket, switch mounting, RH (power and ice machine) 502914
Not shown Bracket, switch mounting, LH (power and ice machine) 502906
15 Chute, focus, clear plastic 502459
Not shown Thermostat, bin level 501432
Not shown Magnetic switch
(1) one located under top cover
(2) two located under electrical component cover
502887
Not shown Magnets
(2) two located on drain pan
(1) one located on top cover
(1) one located on rear cover
502888
Electrical components
11
1
5
2
4 3 7 6 15
9
13
14
15
6
8
9
10
11
7
EU155N Ice and Water Dispensers 19

00120303R02
03/12
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
SafeCLEAN and SensorSAFE are trademarks of Follett Corporation.
Chewblet and Follett are registered trademarks, and Horizon is a trademark of Follett Corporation, registered in US.
®
