Follett U155N Series Setup guide

Installation, Operation and Service Manual
U155N Series
Ice and Water Dispensers
208599R01
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
Fax [phone] • www.follettice.com
Following installation, please forward this manual
to the appropriate operations person.
Automatic load units
with two icemakers
Manual load units Automatic load units
with one icemaker
Order parts online
www.follettice.com

Contents
Welcome to Follett. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Field wiring diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing dispenser in counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing remote icemaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Disassembly for cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disassembly for service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dispenser troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Dispenser exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Dispense assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Auger motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Welcome to Follett
Follett ice and water dispensers enjoy a well-deserved reputation for excellent performance, long-term reliability and
outstanding after-the-sale support. To ensure that this dispenser delivers that same degree of service, we ask that you
take a moment to review this manual before beginning the installation of the dispenser. Should you have any questions
or require technical help at any point, please call our technical service group toll free at [phone] or
[phone].
Before you begin
• After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If
damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing
of a claim, if necessary.
• Check your paperwork to determine which model you have. Follett model numbers are designed to provide
information about the type and capacity of Follett ice dispensing equipment. Following is an explanation of the
different model numbers in the U155 series.
Specifications
Electrical
Each icemaker and dispenser requires separate circuit with electrical disconnect within 10 feet (6m).
Equipment ground required. Standard electrical - 115V, 60Hz, 1 phase. Max. fuse dispenser – 15 amps; each
icemaker – 20 amps
U155NR400AR
Condenser type – A = air-cooled, W = water-cooled
Remote icemaker(s) capacity and refrigerant – 400 = 400 lbs (181kg)/day, R404A
800 = 800 lbs (363kg)/day, R404A
absence of = manual fill unit
N = ice and water only, no beverage rail or valves
Approximate storage capacity in lbs
Dispenser configuration – U = undercounter
3
Important cautions
• Storage area of dispenser contains mechanical, moving parts. Keep hands and arms clear of this
area at all times. If access to this area is required, power to unit must be disconnected first.
• Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or
Follett compressed nugget ice. Crushed, flake, bagged, nugget or congealed ice cannot be used.
Use of these ices can jam dispenser and void warranty. Separate any “waffle-like” sections of
cubes before adding to dispenser. For ice compatibility questions, please call Follett customer
service toll free at [phone] or [phone].
•Follett recommends use of an activated carbon filter for units equipped with icemakers.
• Ice is slippery. Maintain counters and floors around dispenser in a clean and ice-free condition.
• Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.
Model Icemaker Dispenser
number amperage amperage
U155N - - 2.4 amps
U155NR400A/W 11.0 amps 2.4 amps
U155NR800A/W 11.0 amps ea (2) 2.4 amps
Ice dispense chute location – R = right side, L = left side

Plumbing
Dispenser 3/4" PVC slip joint for hopper drain
3/4" PVC pipe nipple for beverage drain pan
3/8" ID red line tubing for water in
Note: Drains should be hard piped and insulated. Maintain at least 1/4" per foot (6mm per
304mm run) slope on drain line run.
Icemaker Refer to Icemaker Installation Manual packed with icemaker
1/4" FPT water in
1/2" MPT drain
3/8" FPT condenser inlet (water-cooled condenser only)
1/2" FPT condenser drain (water-cooled condenser only)
Water disconnect within 10 feet (3m) of dispenser is suggested for automatic load units.

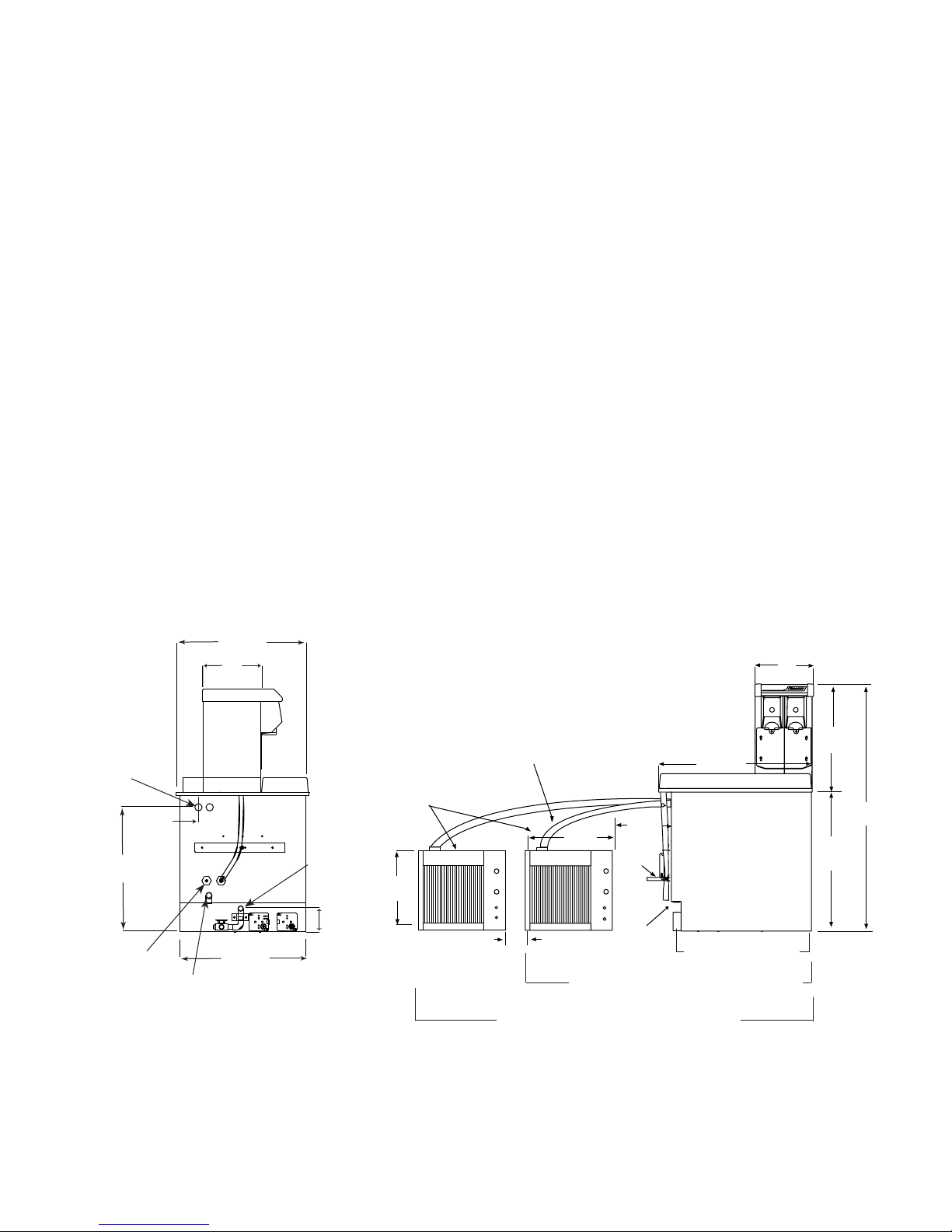

Clearance and access information
• 51" (1296mm) above counter
• 12" (305mm) on side opposite tower, below counter
• Counter front or rear panel must be removable for service access to both sides of dispenser and
icemaker(s), if any
• Below counter access to drain clean-out required on utility side of dispenser
4
31.25
12"
(305mm)
(794mm)
"
electric
conn.
18.875"
(480mm)
17"
(432mm)
6" min
(153mm)
one remote icemaker
models U155NR400A/W
two remote icemakers
models U155NR800A/W
21.75"
(553mm)
28"
(712mm)
49.75"
(1264mm)
and drain
clean-out
12" min
(305mm)
plain
water
Manual load units
Automatic load units with 1 icemaker
Automatic load units with 2 icemakers
Front view
Side view - right hand dispenser
(side opposite dispense tower)
26"
(661mm)
5.25"
12"
27.375"
(305mm)
(696mm)
(134mm)
26"
(661mm)
3.5"
(89mm)
3/4" PVC
slip joint
drain
air break:
do not
connect
to drain
system
ice
transport
tube
entrance
plain water
connection

Model
U155N
U155NR400A/W
U155NR800A/W
Electrical Connection
• Hard-wiring of dispenser
required.
• Dispenser power – hard wiring
required.
• Bin signal – cord and plug
supplied.
• Icemaker – cord and plug
supplied on power and bin
signal.
• Dispenser power – hard wiring
required.
• Bin signal – cord and plug
supplied.
• Icemaker – cord and plug
supplied on power and bin
signal.
Circuit(s) required
115V, 60Hz, 1 phase
Max. fuse dispenser – 15 amps.
115V, 60Hz, 1 phase
(2) circuits required
• Dispenser – 15 amps max. fuse
size.
• Icemaker – 20 amps max. fuse
size.
115V, 60Hz, 1 phase
(3) circuits required
• Dispenser – 15 amps max. fuse
size.
• (2) icemakers – 20 amps max.
fuse size each.
Note: equipment must be wired according to local and NEC codes.
Attention – Should local codes require a hard-wired connection and/or shielded wiring,
eliminate the cord(s) and plug(s) and follow the appropriate field wiring diagram on the
following page.
See icemaker Installation and Operation manual for recommended junction box preparation of
hard-wired remote icemaker(s).
!
5

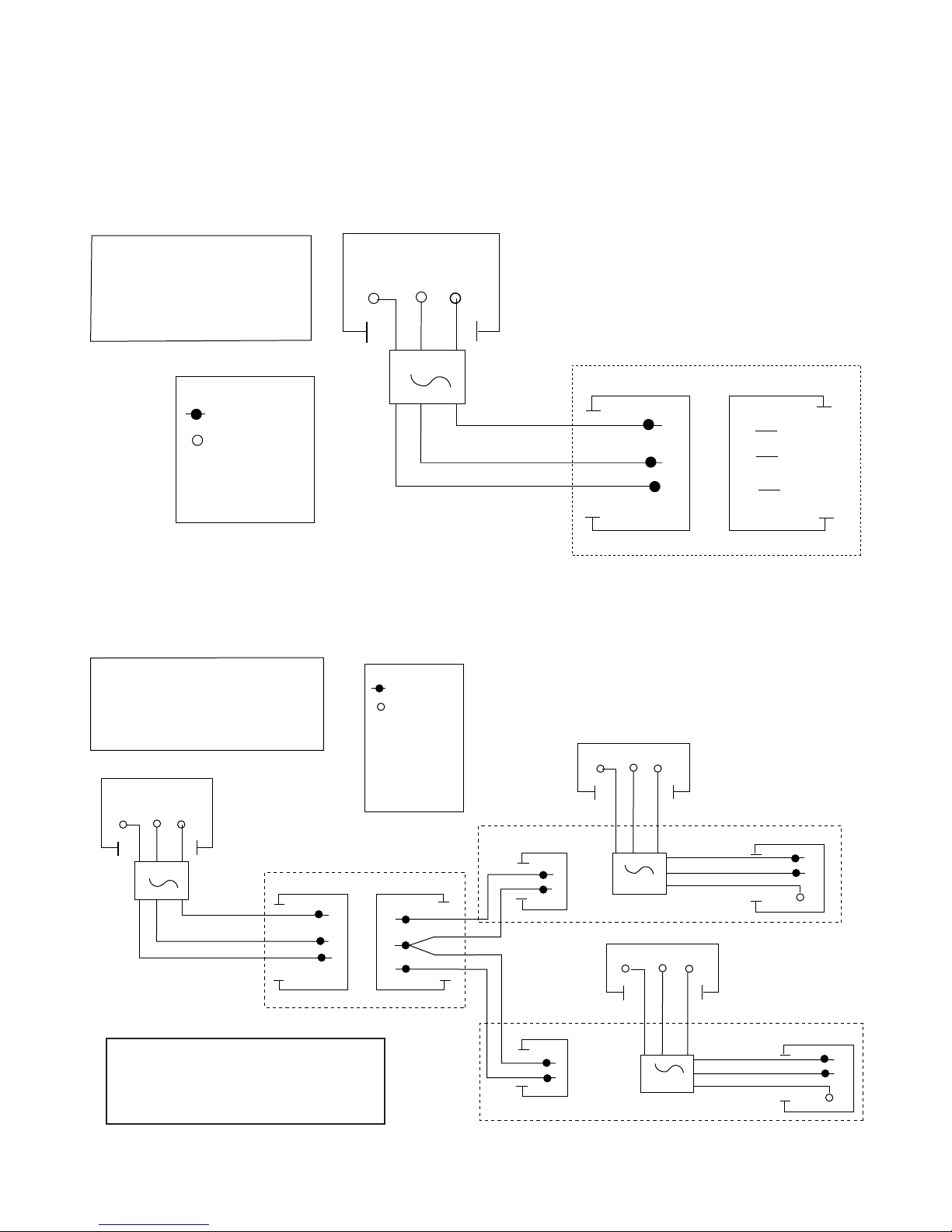

Electrical hookup information

X
Electric power source Standard electrical - 115V, 1 Ph, 60Hz,
max. fuse size 15 amps
BL W
GND
GRN
GND
GRN
BL
W
LEGEND
Wirenut field
connections
X
Equipment
ground
BL - black
W - white
GRN - green
Left junction box
Field wiring diagram is intended to aid
electrician or technician in understanding
how equipment works. All field wiring
must be installed in accordance with NEC
and local electrical codes.
IMPORTANT
15 amp fused
disconnect Right junction box
BL
Y
R
U155 dispenser
NOT USED
(115 volts)
6
Standard electrical - 115V, 1 Ph, 60Hz,
max. fuse size 15 amps
LEGEND
Wirenut field
XEquipment
BL - black
W - white
GRN - green
Left junction box
Field wiring diagram is intended to aid
electrician or technician in understanding
how equipment works. All field wiring
must be installed in accordance with NEC
and local electrical codes.
IMPORTANT
X
Electric power source
BL W
GND
GRN
GND
GRN
BL
W
15 amp fused
disconnect Right junction box
B
Y
R
U155 dispenser BL
W
W
BL
X
Electric power source
BL W
GND
GRN
X
GND GRN
BL
W
15 amp fused
disconnect
BL W
GND
GRN
X
GND GRN
BL
W
15 amp fused
disconnect
Icemaker #1
Lower junction box
Lower junction box
Icemaker #2 (optional)
Upper junction box
Upper junction box
(115 volts)
GND - ground
B - blue
R - red
Y - yellow
(115 volts) (24 volts)
(115 volts)
(24 volts)
X
(24 volts)
connections
ground
Automatic load units
Field wiring diagrams
Manual load units
On all models with remote icemaker(s),
the black wire on the icemaker control
board’s(s’) LINE VAC terminal must be
moved to the 24V terminal.

Installation
Installing U155 dispenser in counter
1. Check that dispenser location meets all requirements in this manual and cut counter as shown.
2. Block up area below counter cut-out to support dispenser when lowered into place.
3. For automatic load dispensers, disconnect ice transport tube from bracket in storage area of dispenser.
(Since this tube must be reinstalled in bracket after dispenser is dropped into counter, note how tube is held
by bracket tabs before disconnecting.)
4. Carefully lower dispenser into counter until it rests on support blocks.
5. Adjust height from below until dispenser flange rests flush with counter.
6. Apply a bead approximately 1/4" (6mm) in diameter of NSF listed silicone sealant (Dow-Corning RTV-732
or equivalent) around perimeter of dispenser where it meets counter and smooth sealant to a 1/8" (4mm)
radius.
7. Install a hard drain line, maintaining at least a 1/4" per foot (20mm per 1m) slope, and insulate line to
prevent condensation.
8. Make electrical connections in accordance with applicable wiring diagrams provided, as well as NEC and
local codes. Provide disconnects within 10 ft (3m) of dispenser and icemaker for servicing.
26.25"
Front of counter
+.125"
- .125" + .125"
- .125"
30.375"
(772mm) +3 mm
- 3 mm (667mm)
+3 mm
- 3 mm
Counter cut-out
All U155 dispensers must be installed level in both directions and supported from
below with 6" - 9" (153 – 229mm) adjustable leg accessory provided, or channels
installed on site. DO NOT hang dispenser on flange.
!
PVC pipe is suggested. Care must be taken in sweating any metal drain pipe
used. Excessive heat applied while sweating metal pipe may melt plastic fitting on
dispenser.
!
7

Installing remote icemaker (automatic load units only)
1. Position icemaker in desired location.
2. Push one end of ice transport tube(s) through hole(s) provided in side of dispenser.
3. Route tube into ice tube bracket inside dispenser and engage bracket tabs in holes located in end of ice
transport tube(s). (See drawings below.)
4. Proceed with ice transport tube installation from dispenser to icemaker in compliance with instructions
contained in icemaker installation manual packed with icemaker.
8
Correct installation of remote icemaker(s) is critical to proper performance of
icemaker and dispenser.
Check to make sure bin signal on icemaker control board is switched to 24 volt
connection.
Refer to installation manual packed with icemaker for important details on ice
transport tube run, ventilation requirements and other installation requirements.
Failure to comply with instructions will void warranty.
!

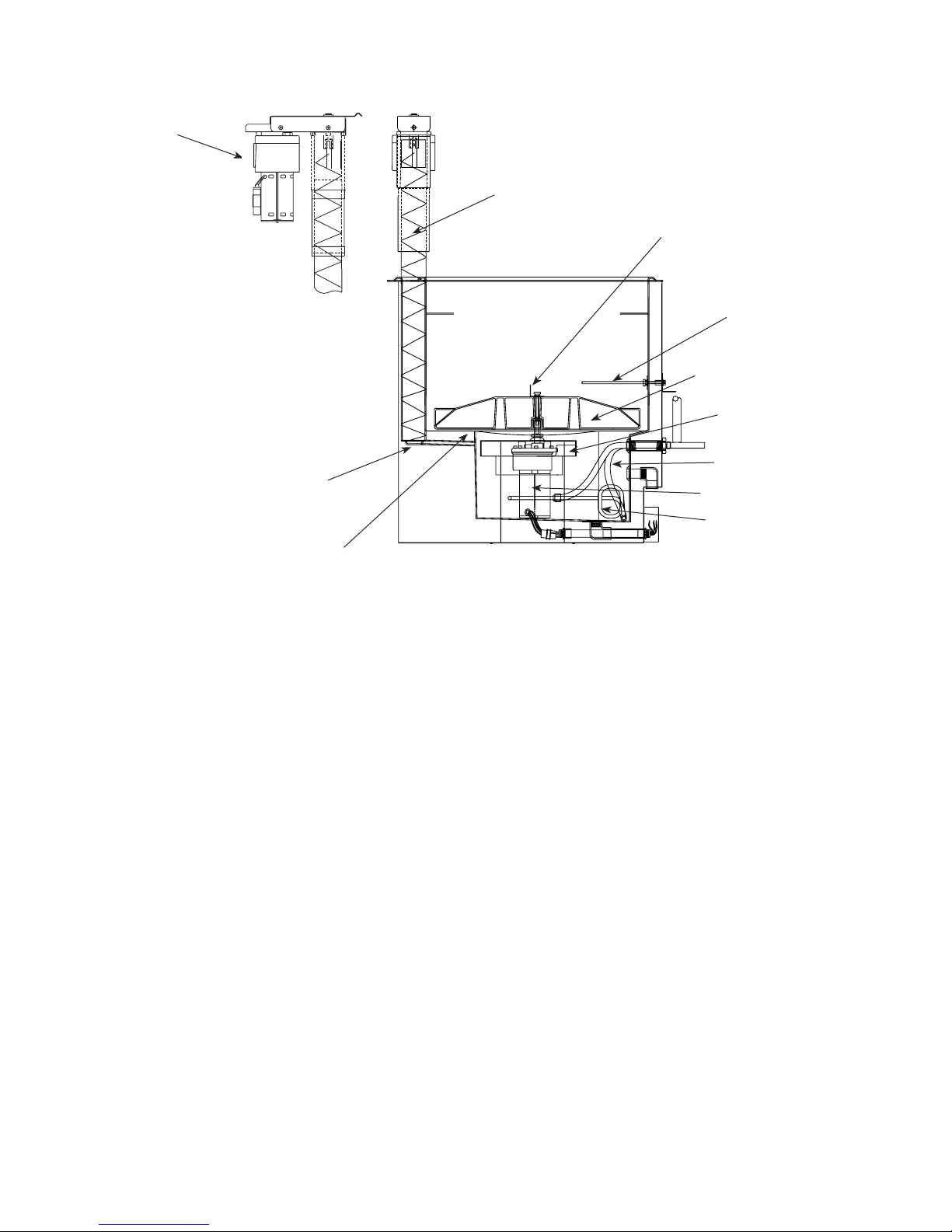

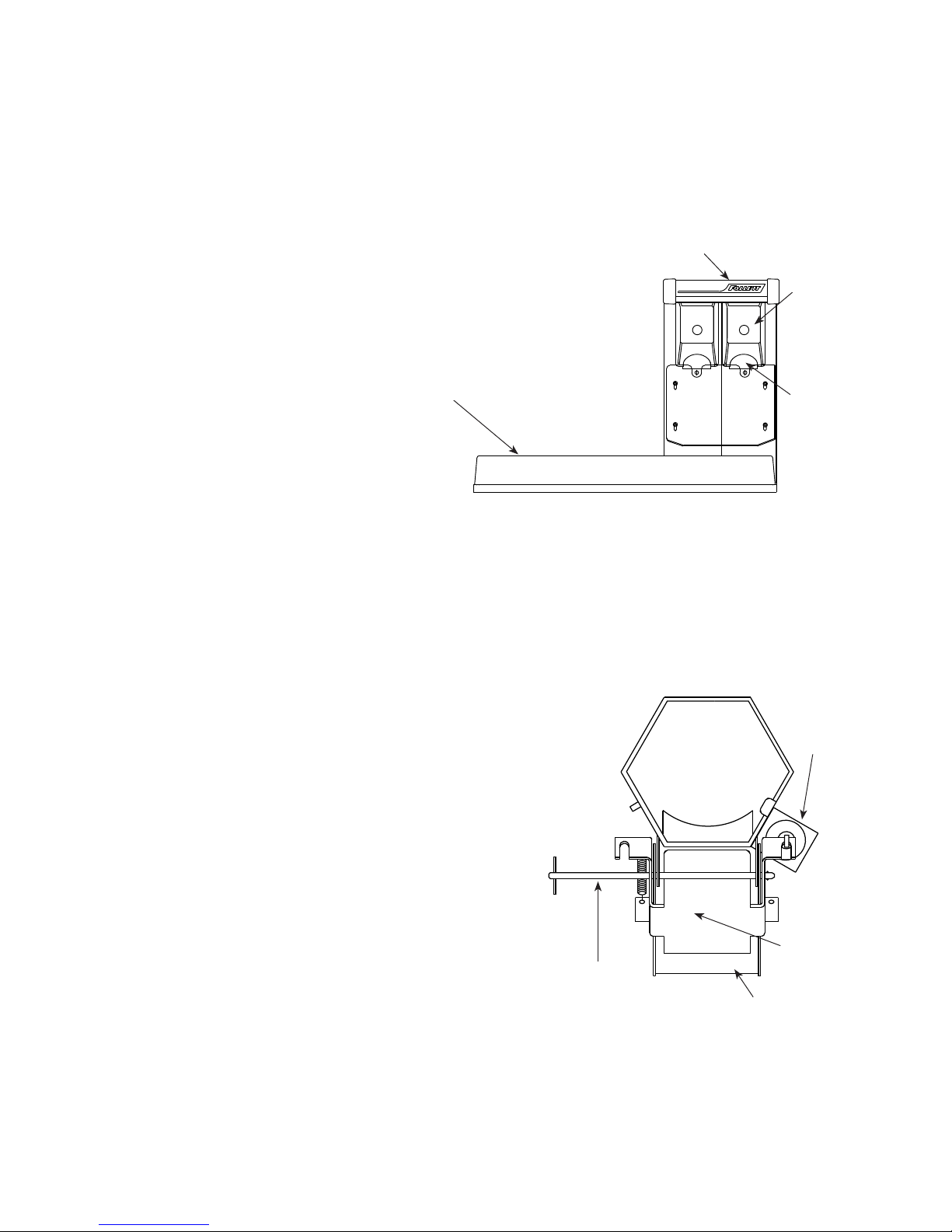

Ice tube retainer bracket
tabs in ice tube
retainer bracket
engage holes in ice
tube and hold tube
in place
1"(25mm)
ice tube
Side view
Front view
thermostat
ice tube
thermostat

To start-up and operate dispenser
1. Follow detailed cleaning instructions in service manual before operating dispenser.
2. For manual load units, remove front drain pan or rear lid and fill storage area with compatible ice.
3. Turn power switch located on control box to ON position.
4. For automatic fill units, follow detailed instructions in icemaker installation section of installation manual,
then turn icemaker (bin signal) switch(es) located on control box to ON position and begin to make ice.
5. When dispenser has at least 6" (153mm) of ice in storage area, press “PUSH FOR ICE” lever or button to
ensure that dispenser is operating properly.
Note: If additional start-up information is needed, call Follett Corporation at [phone].
User information
How the dispenser works
Follett’s U155N series ice and water dispensers are available in manual load configurations (using ice from
another source) or automatic load configurations, fed from one or two Follett 400 lb (181kg)/day remote
icemakers.
In all models, ice is stored below the counter in the dispenser storage area. When the dispense lever or button
is pushed, the dispense motor is activated. This causes the wheel assembly in the storage area to turn, moving
ice to the vertical auger assembly, which carries ice up to the dispense chute where it drops by gravity into the
container.
In automatic load units, ice is manufactured in either one or two Follett remote icemakers. These icemakers
may be located up to 20 ft (6m) away from the dispenser. As water freezes to the inside walls of the icemaker
evaporator, a rotating stainless steel auger removes ice and carries it to the top of the evaporator assembly where
it is compressed and extruded through an outlet port. The extruded ice is then pushed through the tube to the
storage compartment of the dispenser. A level fill circuit maximizes fill in the storage area by rotating the wheel at
intervals until the bin is completely filled. When the bin is filled, a bin stat shuts the icemaker off to avoid overfilling
of the bin. The icemaker will restart after 20 minutes if the bin is calling for ice.
Cleaning
Using solutions below, clean and sanitize storage area and beverage lines before starting up unit and on a routine
basis as noted below.
Solution A: Prepare a cleaning solution (200 ppm of available chlorine content) of Ecolab Mikro-chlor
Cleaner or equal chlorinated detergent. Cleaning solution temperature must be at
75˚ – 125˚F (24˚ to 52˚C).
Solution B: Prepare a sanitizing solution (50 ppm of available chlorine content) of Ecolab Mikro-chlor
Cleaner or equal chlorinated detergent. Sanitizing solution temperature must be at
75˚ – 125˚F (24˚ to 52˚C).
9
Follett manual load dispensers can accommodate most cube/cubelet ices up to
1" square and Follett compressed nugget ice. Crushed, flake, nugget, bagged
or congealed ice cannot be used. Use of these ices can jam dispenser and void
warranty. Separate any “waffle-like” sections of cubes before adding to dispenser. For
questions about ice compatibility, call Follett’s customer service group toll free
at [phone] or [phone].
!
Warning: Always disconnect power before cleaning dispenser.
!

10
Cleaning bin before use
1. Wipe storage area with Solution A.
2. Rinse thoroughly with clear, potable water.
3. Wipe with Solution B to sanitize.
Periodic cleaning of dispenser
Recommended daily cleaning of drain pan
1. Remove all debris from drain pan.
2. Pour 1 gallon (4L) hot water into drain pan to keep drain lines clear.
Recommended weekly cleaning
1. Remove drain pan and grille and wash with Solution A. Rinse thoroughly.
2. Pour a solution of one cup (8oz/237ml) household bleach mixed with one gallon (3.8L) hot water into drain
pan to help prevent algae growth in drain lines.
Recommended quarterly cleaning (every 3 months)
1. Turn power switch to OFF position and remove top from dispenser.
2. Remove ice from storage area.
3. Remove dispense chute cover, chute, auger motor assembly, auger and auger tube (page 11).
4. Remove drain pan, grille, dispense wheel and cover plate (page 12).
5. Clean all components and bin storage area with Solution A, rinse thoroughly with clear water and sanitize
with Solution B.
6. Remove clean-out plug from drain line tee on side opposite dispense tower and let bath drain.
7. Use a bottle brush to clean coil with Solution A, then rinse and sanitize with Solution B.
8. Reinstall clean-out plug in drain line tee.
9. Pour potable water into bath to submerge coil.
Putting unit back in service after quarterly cleaning
1. Reassemble components.
2. For manual load units, fill unit with an approved ice (see caution statement on page 3).
3. For automatic load units with R400A/W (R404A refrigerant) icemakers, turn bin signal switch(es) and
dispenser power switch to ON position and allow storage area to fill.
4. Push dispense button or lever to test that dispenser is functioning properly.
Quarterly cleaning of icemaker system
Units equipped with icemakers require cleaning of icemaker system at least every three months, and
more often if local water conditions dictate. Failure to clean icemaker system will result in decreased
performance and potential damage to icemaker. Refer to Icemaker Operation and Service Manual.
DO NOT run plastic parts (drain pan, dispense chute cover, dispense wheel)
through a dishwasher.
!
On push-button units, remove dispense switch from dispense chute cover
before cleaning chute cover.
!

Dispense chute cover removal
1. Remove top cover.
2. Push chute cover up vertically to slip off
holding tab.
3. After clearing tab, pull chute cover forward
to remove.
Dispense mechanism assembly
removal
1. Remove top cover.
2. Remove chute cover (see above).
3. Remove auger motor assembly (see
above).
4. Remove quick release pins from the ice chutes
and gates, then unplug wires from solenoids.
5. Lift dispense mechanism up and off auger tube.
Auger and auger tube removal

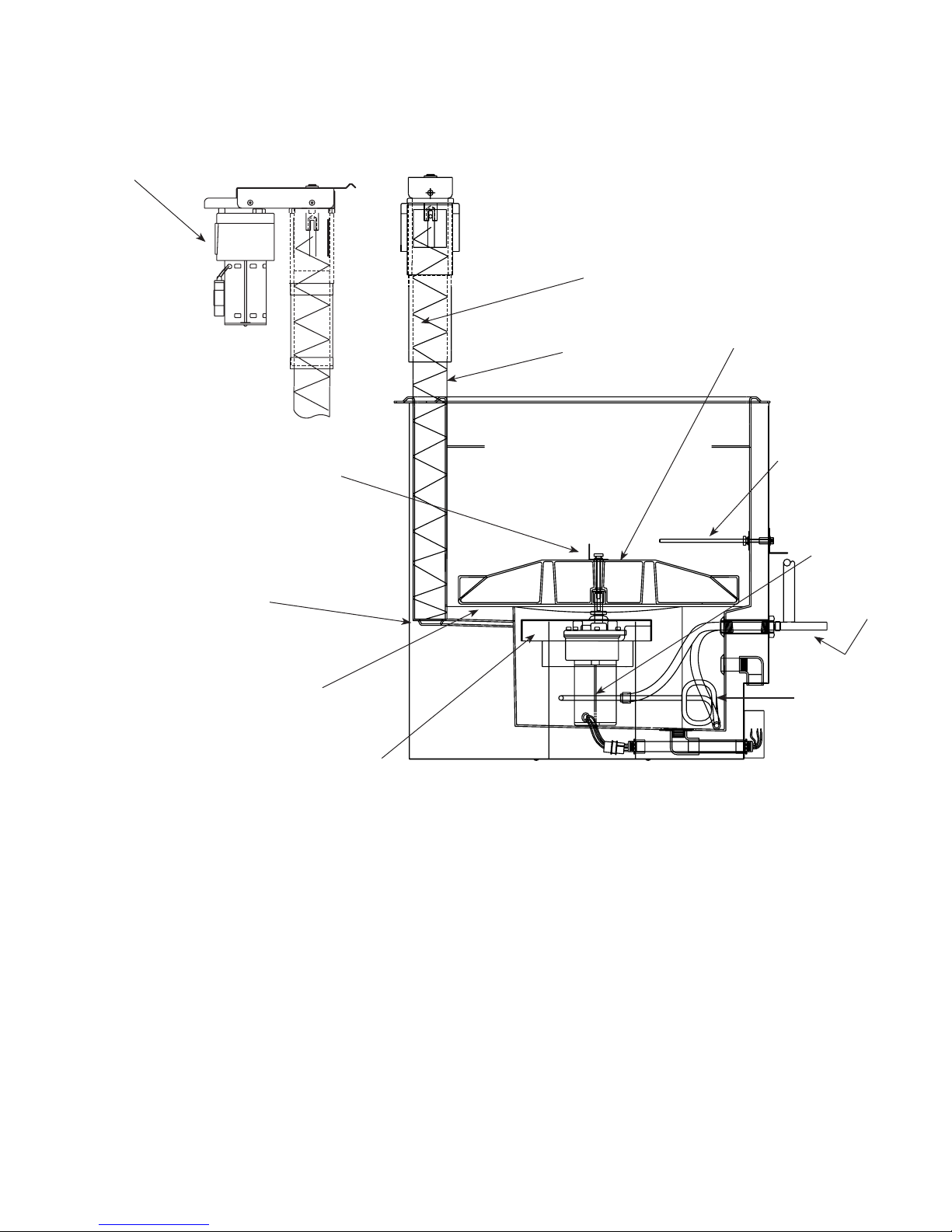

(Fig. 3)
1. Remove auger motor and dispense mechanism
assembly (see above).
2. Pull auger upward to clear auger tube.
3. Lift auger tube upward to clear dispenser top.
4. Slide tube and bearing plate through auger
tube gasket.
Dispense wheel removal
1. Remove drain pan assembly and bin access cover.
2. Remove center thumbnut and threaded rod on
dispense wheel assembly and lift wheel out front
access opening.
Auger motor assembly removal
1. Remove top cover.
2. Remove one thumbnut on rear of motor bracket.
3. Lift motor bracket up and unplug electric
quick disconnects.
4. Remove motor assembly.
11
solenoid
quick
release
pin
gate
Disassembly instructions for periodic cleaning
Fig. 2
WATER ICE
Fig. 1
dispense
chute
drain pan
assembly
chute
cover
top cover
ice chute
Front View
right-hand unit
Dispense assembly, top View
right-hand unit

Service
Disassembly instructions for service requirements only – NOT required for
any cleaning procedure
Dispense wheel motor removal (Fig. 3)
1. Remove drain pan, bin access cover and dispense wheel.
2. Remove stainless steel baffle plate under dispense wheel.
3. Remove two screws holding wheel motor bracket on bin.
4. Lift plate and motor up.
5. Unplug electric quick disconnects from motor.
6. Lift motor and mounting plate out front access opening.
12
2
wheel
motor
baffle
plate
wheel motor
mounting plate
dispense wheel
auger tube
auger
auger motor
(side view)
auger bearing
plate
stationary
agitator
rotating
agitator
Front view
2
plain water
hook-up
chilled water coil
Fig. 3

Wiring diagrams
13
PL3-1
69
AUTOFILL OPTION
2
Red
6
Red
Red
Red
Blk
Brn Ye l
Red
24V JUNCTION BOX
ICEMAKER #2
BIN SIGNAL (24V)
5 SEC ON
18 MIN OFF
AutoFill Timer
Blu
Blu
32
ICEMAKER #1
BIN SIGNAL (24V)
3
1
Ye l
Ye l
A
B
9
Brn
CNO
Brn
B
115 Volts 24 Volts
Ye l Ye l
A
Wht
Ye l
Blk
AUTOFILL OPTION
Blk
L1
BLK
CNO
Gry
CNO
PL3-2
PL2-1
Red
Blu
COUNTERCLOCKWISE
COUNTERCLOCKWISE
Pur
Orn
17
PL2-3
Orn
CNO
Orn
4
C
Pur
7
Pur
NO Blk
PL3-3
Wht
Blu
Red Blk
Blu
Blu
Wht
Wht
Red Red Blk
PL2-2
L2
96
PIN and SOCKET CONNECTION TERMINAL STRIP CONNECTION
LEGEND:
PL3-1
Red
Red
CLOCKWISE ROTATION
CLOCKWISE ROTATION
Orn
Pur
17PL3-2
Blu
Red
Pur
PL2-3
Blu
Pur
Orn
Orn
47
Red
PL2-1
Blk
Blu
PL3-3
Wht
Blu
Blk Wht
PL2-2
ROTATION
ROTATION
DISPENSE SWITCH
DISPENSE RELAY
BIN
T- S TAT
IM_#2
SWITCH NO. 2
SWITCH NO. 1
IM_#1
AUTOFILL RELAY
R2
DISPENSE RELAY
DISPENSE SOLENOID
R1
R1
T1
SWITCH SWITCH
POWER
TOP LID DRAINPAN
WATER SOLENOID
AUTOFILL
AUTOFILL
SWITCH
R2
R2
DISPENSE RELAY
WATER SWITCH
REAR LID
R1
M2
WHEEL
AUGER MOTOR
M1
R2
R2AUTOFILL
AUTOFILL
DISPENSE RELAY
R1
M2
WHEEL
M1
AUGER MOTOR
Right hand unit Left hand unit

Symptom
Ice does not dispense.
• Auger motor does not run
• Wheel motor does not run
Ice does not dispense.
• Auger motor runs
• Wheel motor runs
• Gate does not open
Ice does not dispense.
• Auger motor does not run
• Wheel motor runs
Ice does not dispense.
• Auger motor runs
• Wheel motor does not run
No ice in dispenser.
Possible cause
1. Power switch faulty or in OFF
position; loose connection.
2. Faulty dispense switch.
3. Faulty transformer.
4. Drain pan ajar.
5. Faulty drain pan safety switch.
1. Loose electrical connection.
2. Linkage problem between
solenoid and gate.
3. Faulty solenoid.
1. Loose electrical connection.
2. Faulty auger motor.
3. Faulty run capacitor.
1. Loose electrical connection.
2. Faulty wheel motor.
3. Faulty run capacitor.
1. Power switch in OFF position or
faulty.
2. Bin signal switches in OFF
position or faulty.
3. Faulty bin thermostat.
4. Faulty transformer.
5. Icemaker related problem.
6. Faulty run capacitor.
Solution
1. Turn power switch to ON position;
check connections.
2. Replace switch.
3. Replace transformer.
4. Check pan and reseat.
5. Replace switch.
1. Check connections.
2. Check linkage.
3. Replace solenoid.
1. Check connections.
2. Check auger motor.
3. Check run capacitor.
1. Check connections.
2. Check wheel motor.
3. Check capacitor.
1. Check switch and replace if
necessary.
2. Check switch and replace if
necessary.
3. Replace bin thermostat.
4. Replace transformer.
5. Refer to icemaker Operation and
Service Manual for diagnosing.
6. Check for power and bin signal on
icemaker PC board.
Dispenser troubleshooting guide
14
Before calling for service
1. Check that there is ice in dispenser and that congealed cubes are not causing a jam.
2. Check that circuit breaker and switches are in ON position.
3. Check that drain pan, rear lid and top are on securely. If ajar, dispenser will not operate. When the top is off,
auger does not operate, even though the solenoids do.
4. Check that all drains are clear.
Note: For units equipped with Follett compressed nugget icemaker, see Icemaker Operation and Service
Manual for service and troubleshooting information.
If problems persist after following this basic troubleshooting guide, call Follett’s technical
service department toll free at [phone] or [phone].

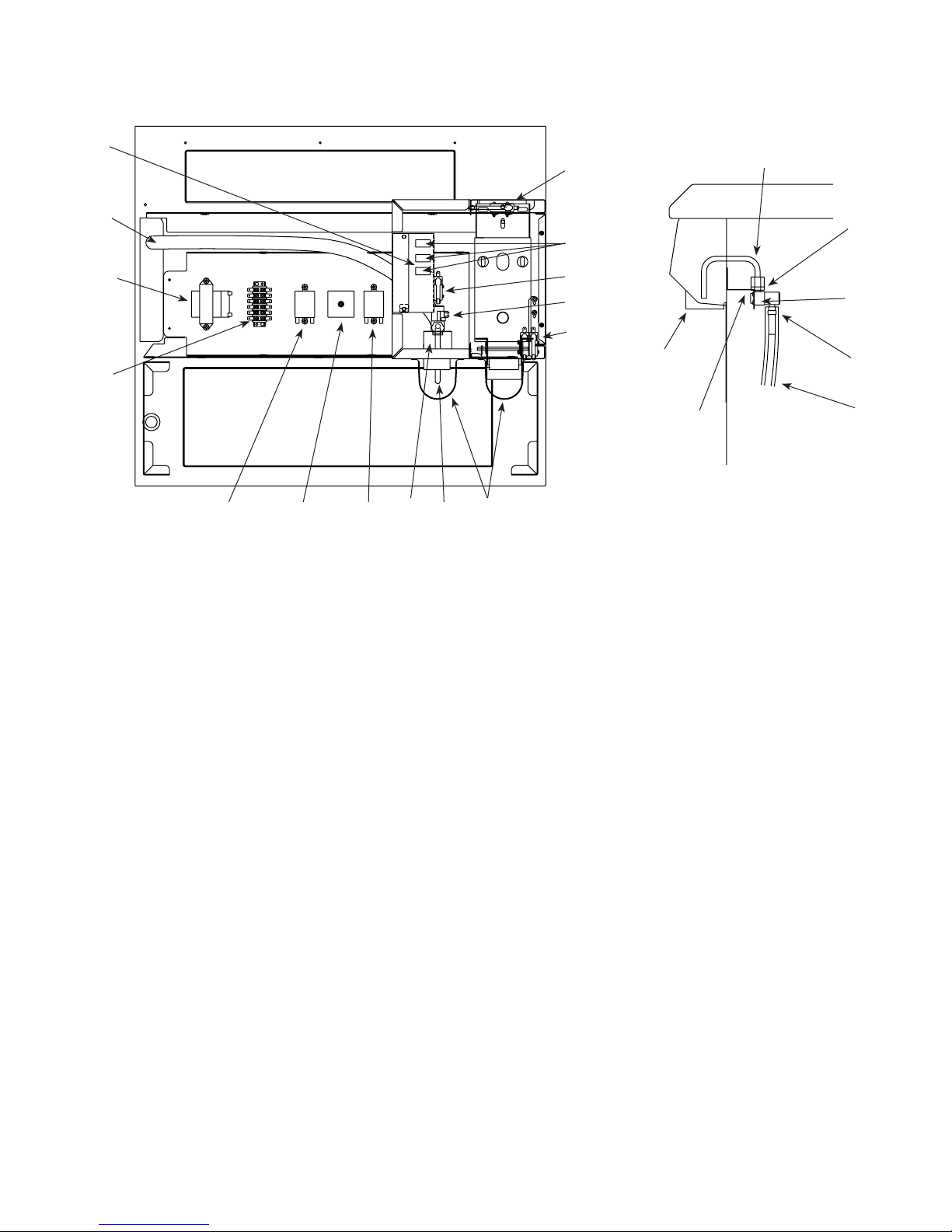

Reference # Description Part #
1 Label, “Follett” 502438
2Top cover (includes label) 502606
3 Drain pan 502446
4 Grille, drain pan 502450
5 Cover, electrical components 502593
6Lid, rear access 502594
Not shown Cover, ice storage (under drain pan) 502453
7 Label, ice, dispense cover, push-button 502623
Not shown Label, ice, dispense cover, lever 502622
8 Label, water, dispense cover, push-button 502617
Not shown Label, water, dispense cover, lever 502616
9 Cover, dispense chute, push-button operation (includes button and label), ice 502440
Not shown Cover, dispense chute, lever operation, ice 502439
10 Cover, dispense chute, push-button operation (includes button and label), water 502620
Not shown Cover, dispense chute, lever operation, water 502619
11 Chute, focus, clear plastic 502459
Not shown Push pin, clear chute 502618
Not shown Lever, dispense for water and ice 501953
12 Switch, push-button operation, for ice (includes label) 502441
13 Splash shield, right hand unit 502612
Not shown Splash shield, left hand unit 502613
14 Thumbscrew, splash shield, 10-32 x 1/2 501100
Not shown Switch, dispense lever for ice and water 502505
15 Panel, access, right hand and left hand units 502585
16 Panel, front, dispense mechanism, ice, right hand unit 502588
Not shown Panel, front, dispense mechanism, ice, left hand unit 502589
17 Panel, front, side, back wrap, water dispense, right hand unit 502634
Not shown Panel, front, side, back wrap, water dispense, left hand unit 502592
Not shown Panel, rear, motor support, right hand unit 502586
Not shown Panel, rear, motor support, left hand unit 502587
Not shown Clip, Tinnerman, 10-32 502621
Not shown Screw, 10-32 x 1/2 502287
Not shown Legs, 6" (153mm) adjustable to 9" (229mm), set of 4 502454
18 Switch, water dispense, push-button operation (includes label) 502648
Not shown Plug 2 lead, male 502333
Not shown Plug 2 lead, female 502334
Top view
unit with right hand (RH) tower
Front view
right hand (RH) tower
(push-button dispensing)
15
Dispenser exterior
WATER ICE
Replacement parts
5
4
2
1
3
13
3
14
10
7
11
18
68
15
12
9
16
17

Dispense assembly side view
(RH unit shown)
Reference # Description Part #
1 Gate, dispense 502455
2 Linkage pin, gate/solenoid 502456
3 Pin, quick release, 5.53" (141mm), dispense gate 502102
4 Solenoid (includes linkage pin) 00126607
5 Dispense mechanism assembly, right hand unit 502458
Not shown Dispense mechanism assembly, left hand unit 502496
6 Spring, dispense mechanism (1 per side) 501950
7 Chute, ice 502457
8 Wrap, dispense mechanism 502607
9 Bushing, Ni liners 501249
10 Screw, 8-32 x 5/16 502625
11 Pin, spring 502624
16
5
Dispense assembly
Top view
1
2
3
4
6
7
8
9
10
11
9

17
2
Reference # Description Part #
1 Auger, LH unit (black, stamped with “1”) 502491
Not shown Auger, RH unit (gray, stamped with “2”) 502492
2 Plate, auger bearing 501696
Not shown Tube, auger, right hand unit 502487
Not shown Tube, auger, left hand unit 502488
3 Wheel, dispense (includes stud and rotating agitator) 501681
4 Baffle (under dispense wheel) 501684
Not shown Drive bar (under dispense wheel) 501682
5 Motor, vertical auger 502476
6 Motor, wheel 502560
Not shown Seal, wheel motor 501333
Not shown Spacer, wheel motor 501768
Not shown Capacitor, wheel motor 501782
7 Agitator, rotating, 21" (534mm) long 502484
8 Plate, wheel motor mounting 502615
9 Agitator, stationery 502490
Not shown Bracket, ice tube, double tube 502497
Not shown Ice transport tube (sold by the foot) 500366
Not shown Ice transport tube, 10 ft 502522
Not shown Ice transport tube, 20 ft 502523
Not shown Insulation, transport tube (sold by the foot) 501176
10 Coil, plain water 502461
11 Tubing, water (sold by the foot) 502356
Not shown Cover, blank ice entry 502674
Not shown Gasket, ice entry 502672
Not shown Plate, ice entry, 2 holes 502673
Hopper
9
6
7
4
8
3
1
5
2
Side view
2
10
left-hand unit shown
11

18
Reference # Description Part #
Auger motor/drive assembly, vertical (includes all items below) 502493
1 Motor, vertical auger (includes gearbox and capacitor) 502476
2 Chain, auger drive #35, 40p 502477
3 Sprocket 35#, 22T 5/8 bore 502478
4 Sprocket 35#, 12T 5/8 bore 502479
5 Drive shaft 502480
6 Bearing, auger, upper and lower 501314
7 Cover and bearing, chain drive (includes 501314) 502481
8 Capacitor, 25mf, 270V 501550
9 Key, Woodruff 502482
10 Washers, thrust (4) 501765
11 Mounting plate, auger motor (includes 501314) 502483
Auger motor
7
6
1
8
4
3
2
11
10
5
Side view Top view
9
6

Reference # Description Part #
1 Transformer, 24V 502058
2Relay, dispense 501826
3 Relay, auto fill 501826
4Timer, auto fill (automatic fill units) 502471
5 Strip, terminal 502472
6 Tube, water dispense, stainless steel 502356
7 Bracket, water solenoid 502611
8 Fitting, outlet, 1/8 MPT x 3/8, compression 502562
9 Valve, solenoid, water 502243
10 Fitting, inlet, plastic, 1/4 barb 502637
11 Tubing, water (sold by the foot) 502356
12 Switch, safety 502511
13 Switches (power and icemaker) 502209
14 Bracket, switch, mounting (power and icemaker) 502638
15 Chute, focus, clear plastic 502459
Not shown Switch, safety, rear cover assembly, left hand unit 502498
16 Switch, safety, rear cover assembly, right hand unit 502499
Not shown Switch, safety, drain pan assembly, left hand unit 502500
17 Switch, safety, drain pan assembly, right hand unit 502501
Not shown Switch, dispense, lever 502505
18 Bracket, safety switch, drain pan, right hand unit 502609
Not shown Bracket, safety switch, drain pan, left hand unit 502610
19 Bracket, safety switch, rear 502608
Not shown Thermostat, bin level 500514
Electrical components
19
11
1
5
24 3 7 6 15
12,17,18
9
12
13
12,16,19
14
15
6
8
9
10
11
7

208599R01
02/06
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
Fax [phone] • www.follettice.com
