Follett VU155N Series Manual

Following installation, please forward this manual
to the appropriate operations person.
Installation, Operation and Service Manual
VU155N Series
Ice and Water Dispensers
Order parts online
www.follettice.com
Service numbers above B50000
00119602R00
801 Church Lane • PO Box D, Easton, PA 18044, USA
Toll free [phone] • (888) 2-FOLLETT
[phone] • Fax [phone] • www.follettice.com
UL
®UL
®
C

Welcome to Follett Corporation
Important cautions
Specifications
Installation
Installing dispenser in counter
Field wiring diagrams
Installing optional icemaker
Operation
How the dispenser works
Cleaning
Service
Dispense chute cover removal
Auger motor assembly removal
Gate assembly removal
Auger and auger tube removal
Dispenser wheel removal

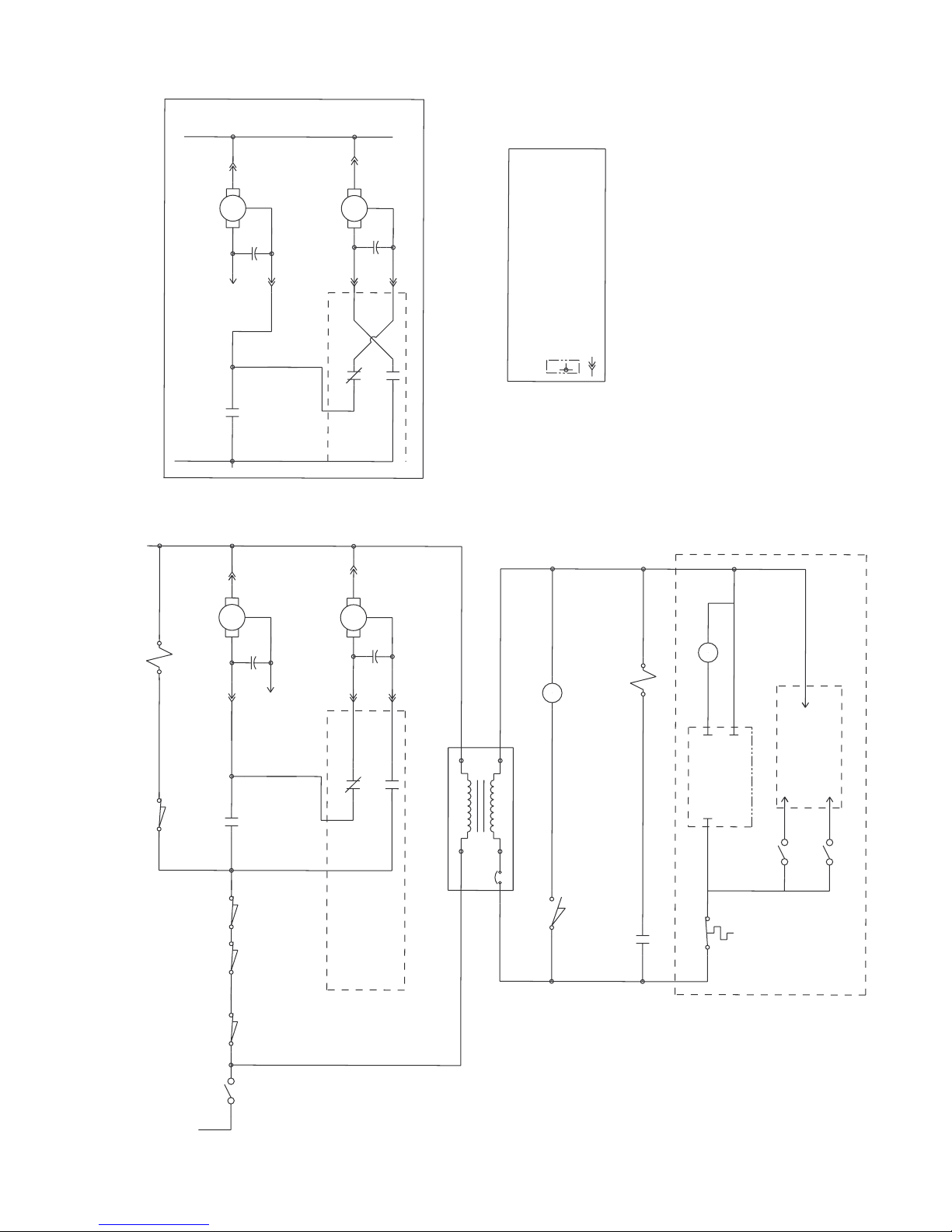

Wiring diagrams
Troubleshooting
Replacement parts
Table of contents
Follett Corporation
Equipment Return Policy
Follett equipment may be returned for credit under the following conditions:
1. The equipment is new and unused.
2. A return authorization number has been issued by customer service.
3. Follett receives the equipment at the factory in Easton, PA within 30 days of the issue of the return authorization number.
4. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward, at the customer’s
expense, new packaging.
Note: Return freight charges are the responsibility of the customer. If equipment is returned and is damaged because of improper packaging, Follett
Corporation will not be held responsible.
Credit will be issued when:
The equipment has been inspected by Follett and deemed suitable to be returned to stock.
Note: A 15% restocking charge will be deducted from the credit. If the cost to return the product to stock exceeds 15%, the actual cost will be deducted.
3
3
4
6
6
7
7
8
8
8
10
10
10
10
10
10
12
13
14

Welcome to Follett
Follett ice dispensers enjoy a well-deserved reputation for excellent performance, long-term reliability and
outstanding after-the-sale support. To ensure that this dispenser delivers that same degree of service, we ask
that you take a moment to review this manual before beginning the installation of the dispenser. Should you have
any questions or require technical help at any point, please call our technical service group, [phone] or
(888) 2-FOLLETT or [phone].
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If
damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of
a claim, if necessary.
Check your paperwork to determine which model you have. Follett model numbers are designed to provide
information about the type and capacity of Follett ice dispensing equipment. Following is an explanation of the
different model numbers in the VU155 series.
VU155N0LP
Model series
Beverage cooling
N –Ice and water only
Tower side (facing unit)
L –Left hand side
R –Right hand side
Ice and valve actuation
P –Pushbutton
L –Lever
Number of valves
0 (N series only), 8 or 10
3
Important cautions
Storage area of dispenser contains mechanical, moving parts. Keep hands and arms clear of
this area at all times. If access to this area is required, power to unit must be
disconnected first.
Ice is slippery. Maintain counters and floors around dispenser in a clean and ice-free condition.
Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.
Always disconnect power before cleaning or servicing the dispenser.
Failure to remove all sanitizer may result in health hazard.
Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett
compressed nugget ice. Crushed, flake, bagged, nugget or congealed ice cannot be used. Use of
these ices can jam dispenser and void warranty. Separate any “waffle-like” sections of cubes before
adding to dispenser. For ice compatibility questions, please call Follett customer service at
[phone] or (888) 2-FOLLETT or [phone].
!

Specifications
Electrical
Each icemaker and dispenser require a separate circuit with with electrical disconnect within 10 ft (6m).
Equipment ground required. Standard electrical – 115V, 60Hz, 1 phase. Maximum dispenser fuse – 15 amps,
Maximum icemaker fuse – 20 amps each.
Model Icemaker Dispenser
number amperage amperage
VU155N series 11.0 amps ea 2.4 amps
Plumbing
Dispenser 3/4" PVC pipe nipple for bin drain
3/4" PVC pipe nipple for drain pan drain
3/8" ID red line tubing for water in
Icemaker Refer to detailed specifications in icemaker installation manual packed with icemaker
4

Dimensions and clearances
Required clearances
51" (1295mm) minimum above counter for installation if dispenser will be dropped into counter
36" (915mm) minimum above counter for all units after installation for auger cleaning and servicing
12" (305mm) minimum on side opposite ice chute for service
12" (305mm) minimum on ice chute side if ice transport tube enters this side
12" (305mm) minimum between dispenser side(s) and optional icemaker(s)
*DO NOT
CONNECT TO
DRAIN SYSTEM
6"
min
27.375"
(696mm)
ice transport
Side View
Front View
tube entrance
6"
(153mm)
25.8"
(656mm)
bin
signal
power
8.75"
(223mm)
3/4 PVC
slip joint
drain
3/4 PVC slip
joint drain
18.5"
(470mm)
beverage
waterbath
overflow
beverage
drain pan
drain
3.5"
(889mm)
17"
(432 mm)
18.875"
(479mm)
18.875"
(479mm)
air break*
electrical
connections
21.75"
(553mm)
28"
(712mm)
counter top
ice
transport
tube
49.75"
(1264mm)
12"
min
31.25
12"
(305mm)
(794mm)
"
plain
water
Manual load unit
Dispenser with 1 optional auto-fill icemaker kit(s)
Dispenser with 2 optional auto-fill icemaker kit(s)
5

Installation
Installing dispenser in counter
Note: All dispensers must be supported from below with supplied 6" – 9" (153 – 229mm) adjustable leg accessory,
or equivalent. Do not hang dispenser on flange.
All dispensers must be installed level in both directions to ensure proper operation.
1. Check that dispenser location meets all requirements in this manual and cut counter as shown.
Plan View
counter cut-out
2. Place support blocks in cabinet to raise dispenser to a height of 12" (305mm).
3. Place dispenser in counter onto support blocks.
4. Attach adjustable legs to dispenser.
5. Remove support blocks and lower dispenser feet to floor.
6. Adjust legs for 1/8" (4mm) clearance between dispenser lip and countertop to verify there is no load on flange.
7. Apply a bead approximately 1/4" (6mm) in diameter of NSF-listed silicone sealant (Dow Corning RTV-732 or
equivalent) around perimeter of dispenser where it meets counter. Smooth sealant to a 1/8" (4mm) radius.
8. Install a PVC drain line with at least a 1/4" per foot (20mm per 1m) slope. Insulate drain line to prevent
condensation.
Note: Do not apply excessive heat if any sweating of fittings is necessary. Heat conduction through metal may
melt threads in plastic drain.
Do not reduce drain line size or tie drains together.
9. Make electrical connections in accordance with applicable wiring diagrams provided. Provide disconnects within
10 ft (3m) of dispenser and icemaker for servicing.
6
26.25"
Front of counter
+.125" + .125"
30.375"
(772mm)+3 mm (667mm)
- .125"
+3 mm
- 3 mm
- 3 mm
- .125"

Field wiring diagrams
Note: Field wiring diagrams are intended to aid electricians or technicians in understanding how equipment
works. All field wiring must be installed in accordance with all local and NEC codes.
LEGEND
WIRENUT FIELD
CONNECTIONS
XEQUIPMENT
GROUND
B
W
GRN
BL
Y
DISPENSER
LEFT JUNCTION BOX RIGHT JUNCTION BOX
BL
Y
RD
W
B
LOWER JUNCTION BOX
ICEMAKER #2
(OPTIONAL)
W
B
X
GND GRN
B
W
LOWER JUNCTION BOX
ICEMAKER #1
(OPTIONAL)
UPPER JUNCTION BOX
BLACK
WHITE
GREEN
BLUE
YELLOW
RD RED
ELECTRIC
POWER
SOURCE
X
GND GRN
B
W
UPPER JUNCTION BOX
ELECTRIC
POWER
SOURCE
Electric
Power
Source
GND
GRN
B
W
If attaching optional Chewblet FC400A
auto-fill icemaker kit(s)
Installing optional auto-fill icemaker kit(s)
Correct installation of remote icemaker(s) is critical to proper performance of icemaker. Refer to installation
manual packed with icemaker for important details on ice transport tube run, ventilation requirements and other
installation requirements. Failure to comply with instructions may void warranty.
To start and operate dispenser
1. Follow detailed cleaning instructions in service manual before operating dispenser.
2. For manual load units, remove front drain pan or rear lid and fill storage area with approved ice.
Note: Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett
compressed nugget ice. Crushed, flake, bagged, nugget or congealed ice cannot be used. Use of these
ices can jam dispenser and void warranty. Separate any “waffle-like” sections of cubes before adding to
dispenser. For ice compatibility questions, please call Follett customer service at [phone]
or (888) 2-FOLLETT or [phone].
3. Turn power switch located on dispenser control box to ON position.
4. For automatic fill units, follow detailed instructions in icemaker installation section of installation manual, then
turn icemaker (bin signal) switch(es) located on dispenser control box to ON position and begin to make ice.
5. When dispenser has at least 6" (153mm) of ice in storage area, test operation.
7

Operation
How the dispenser works
Follett’s dispensers are available in automatic
load configurations, fed from one or two Follett
remote icemakers or manual load configurations
(using ice from another source).
In all models, ice is stored below the counter in
the dispenser storage area. When the dispense
lever or button is pushed, the dispense motors
are activated. This causes the wheel assembly in
the storage area to turn, moving ice to the vertical
auger assembly, which carries ice up to the
dispense chute where it drops by gravity into the
container.
In automatic load units, ice is manufactured in
either one or two Follett remote icemakers. These
icemakers may be located up to 20 ft (6m) away
from the dispenser. Extruded ice is transported
through a tube and pushed to the storage
compartment of the dispenser. When the bin is
filled, a bin thermostat shuts the icemaker off to
avoid overfilling of the bin. The icemaker will
restart after 20 minutes if the bin is calling for ice.
Cleaning
Using solutions below, clean and sanitize storage area and beverage lines before starting unit and on a routine
basis as noted below.
Note: Always disconnect power before cleaning dispenser.
Do not run plastic parts through a dishwasher.
Solution A: Combine 1 oz (250ml) bleach with 2 gal (8L) hot water or use Ecolab Mikro-chlor Cleaner
per manufacturers instructions.
Solution B: Combine 1/4 oz (50ml) bleach with 2 gal (8L) hot water or use Ecolab Mikro-chlor Cleaner
per manufacturers instructions.
Note: Cleaning solutions temperature must be at 75˚ – 125˚F (24˚ to 52˚C)
Ice movement
8

Recommended cleaning prior to start up
Cleaning ice storage area before use
1. Refer to disassembly instructions (see Service section) and remove dispense wheel from ice storage area.
2. Remove auger, auger tube and dispense mechanism.
3. Wipe all components and ice storage area with cleaning Solution A.
4. Rinse all components and ice storage area thoroughly with clear, potable water.
5. Wipe all components and ice storage area with sanitizing Solution B.
Recommended daily dispenser cleaning
1. Remove all debris from drain pan.
2. Pour 1 gallon (4L) hot water into drain pan to keep drain lines clear.
Recommended weekly dispenser cleaning
1. Remove drain pan and grille and wash with Solution A. Rinse thoroughly.
2. Pour a solution of one cup (8oz/237ml) household bleach mixed with one gallon (3.8L) hot water into
drain pan to help prevent algae growth in drain lines.
Recommended quarterly dispenser cleaning
1. Remove top from dispenser and turn power switch to OFF position.
2. Remove ice from storage area.
3. Remove dispense chute cover, chute, auger motor assembly, auger and auger tube (see Service section).
4. Remove drain pan, grille and dispense wheel (see Service section).
5. Clean all components and bin storage area with Solution A, rinse thoroughly with clear water and sanitize
with Solution B.
Putting unit back in service after quarterly cleaning
1. Reassemble components.
2. For manual load units, fill unit with an approved ice (see important cautions on page 4).
3. For automatic load units with FC400A/W (R404A refrigerant) icemakers, turn bin signal switch(es) and
dispenser power switch to ON position and allow storage area to fill.
4. Dispense and discard all ice, verifying dispenser is functioning properly.
Recommended quarterly cleaning of optional icemaker.
Units equipped with optional icemakers require cleaning of icemaker system at least every six months, and more
often if local water conditions dictate. Failure to clean icemaker system will result in decreased performance and
potential damage to icemaker. Refer to Icemaker Installation, Operation and Service Manual.
9

Dispense chute cover removal
1. Remove top cover.
2. Push chute cover up vertically to slip off
holding tab.
3. After clearing tab, pull chute cover forward
to remove.
Dispense mechanism assembly removal
1. Remove top cover.
2. Remove chute cover (see above).
3. Remove auger motor assembly (see above).
4. Remove quick release pins from the ice chutes and
gates, then unplug wires from solenoids.
5. Lift dispense mechanism up and off auger tube.
Auger and auger tube removal (Fig. 3)
1. Remove auger motor and dispense mechanism
assembly (see above).
2. Pull auger upward to clear auger tube.
3. Lift auger tube upward to clear dispenser top.
4. Slide tube and bearing plate through auger
tube gasket.
Dispense wheel removal
1. Remove drain pan assembly and bin access cover.
2. Remove center thumbnut and threaded rod on
dispense wheel assembly and lift wheel out front
access opening.
Auger motor assembly removal
1. Remove top cover.
2. Remove one thumbnut on rear of motor bracket.
3. Lift motor bracket up and unplug electric
quick disconnects.
4. Remove motor assembly.
Dispense wheel motor removal (Fig. 3)
1. Remove drain pan, bin access cover and
dispense wheel.
2. Remove stainless steel baffle plate under
dispense wheel.
3. Remove two screws holding wheel motor
bracket on bin.
4. Lift plate and motor up.
5. Unplug electric quick disconnects from motor.
6. Lift motor and mounting plate out front
access opening.
solenoid
quick
release
pin
gate
Service
Fig. 2
Fig. 1
dispense
chute
drain pan
assembly
chute
cover
top cover
ice chute
Front View
right-hand unit
Dispense assembly, Top View
right-hand unit
10

wheel
motor
baffle
plate
wheel motor
mounting plate
dispense wheel
auger tube
auger
auger motor
(side view)
auger bearing
plate
stationary
agitator
rotating
agitator
Front View
plain water
hook-up
chilled water coil
Fig. 3
11

Wiring diagrams
PL3-1
69
AUTOFILL
2
Red
6
Red
Red
Red
Blk
Brn
Ye l
Red
24V JUNCTION BOX
ICEMAKER #2
BIN SIGNAL (24V)
5 SEC ON
18 MIN OFF
AutoFill Timer
Blu
Blu
32
ICEMAKER #1
BIN SIGNAL (24V)
3
1
Ye l
Ye l
A
B
9
Brn
CNO
Brn
B
115 Volts
24 Volts
Ye l
Ye l
A
Wht
Ye l
Blk
AUTOFILL
Blk
L1
BLK
CNO
Gry
CNO
PL3-2
PL2-1
Red
Blu
COUNTERCLOCKWISE
COUNTERCLOCKWISE
Pur
Orn
17
PL2-3
Orn
CNO
Orn
4
C
Pur
7
Pur
NO Blk
PL3-3
Wht
Blu
Red Blk
Blu
Blu
Wht
Wht
Red Red Blk
PL2-2
L2
96
PIN and SOCKET CONNECTION
TERMINAL STRIP CONNECTION
LEGEND:
PL3-1
Red
Red
CLOCKWISE ROTATIO N
CLOCKWISE ROTATIO N
Orn
Pur
17PL3-2
Blu
Red
Pur
PL2-3
Blu
Pur
Orn
Orn
47
Red
PL2-1
Blk
Blu
PL3-3
Wht
Blu
Blk Wht
PL2-2
ROTATI O N
ROTATI O N
DISPENSE SWITCH
DISPENSE RELAY
BIN
T- S TAT
IM_#2
SWITCH NO. 2
SWITCH NO. 1
IM_#1
AUTOFILL RELAY
R2
DISPENSE RELAY
DISPENSE SOLENOID
R1
R1
T1
SWITCH SWITCH
POWER
TOP LID DRAINPAN
WATER SOLENOID
AUTOFILL
AUTOFILL
SWITCH
R2
R2
DISPENSE RELAY
WATER SWITCH
REAR LID
R1
M2
WHEEL
AUGER MOTOR
M1
R2
R2AUTOFILL
AUTOFILL
DISPENSE RELAY
R1
M2
WHEEL
M1
AUGER MOTOR
Right hand unit Left hand unit
12

Symptom
Ice does not dispense.
• Auger motor does not run
• Wheel motor does not run
Ice does not dispense.
• Auger motor runs
• Wheel motor runs
• Gate does not open
Ice does not dispense.
• Auger motor does not run
• Wheel motor runs
Ice does not dispense.
• Auger motor runs
• Wheel motor does not run
No ice in dispenser.
Possible cause
1. Power switch faulty or in OFF
position; loose connection.
2. Faulty dispense switch.
3. Faulty transformer.
4. Drain pan ajar.
5. Faulty drain pan safety switch.
1. Loose electrical connection.
2. Linkage problem between
solenoid and gate.
3. Faulty solenoid.
1. Loose electrical connection.
2. Faulty auger motor.
3. Faulty run capacitor.
1. Loose electrical connection.
2. Faulty wheel motor.
3. Faulty run capacitor.
1. Power switch in OFF position or
faulty.
2. Bin signal switches in OFF
position or faulty.
3. Faulty bin thermostat.
4. Faulty transformer.
5. Icemaker related problem.
6. Faulty run capacitor.
Solution
1. Turn power switch to ON position;
check connections.
2. Replace switch.
3. Replace transformer.
4. Check pan and reseat.
5. Replace switch.
1. Check connections.
2. Check linkage.
3. Replace solenoid.
1. Check connections.
2. Check auger motor.
3. Check run capacitor.
1. Check connections.
2. Check wheel motor.
3. Check capacitor.
1. Check switch and replace if
necessary.
2. Check switch and replace if
necessary.
3. Replace bin thermostat.
4. Replace transformer.
5. Refer to icemaker Operation and
Service Manual for diagnosing.
6. Check for power and bin signal on
icemaker PC board.
13
Dispenser troubleshooting guide
Before calling for service
1. Check that ice is in the dispenser and that congealed cubes are not causing a jam.
2. Check that circuit breaker and switches are in ON position.
3. Check that drain pan, rear lid and top are on securely. If ajar, dispenser will not operate. When the top is off,
auger does not operate, even though the solenoids do (page 16).
4. Check that all drains are clear.
Note: For units equipped with Follett compressed nugget icemaker, see Icemaker Operation and Service
Manual for service and troubleshooting information.
If problems persist after following this basic troubleshooting guide, call Follett’s
technical service department at [phone] or (888) 2-FOLLETT
or [phone].

Reference # Description Part #
1Label, “Follett” 502438
2Top cover (includes label) 502606
3Drain pan 502446
4Grille, drain pan 502450
5Cover, electrical components 502593
6Lid, rear access 502594
Not shown Cover, ice storage (under drain pan) 502453
7Label, ice, dispense cover, push-button 502623
Not shown Label, ice, dispense cover, lever 502622
8Label, water, dispense cover, push-button 502617
Not shown Label, water, dispense cover, lever 502616
9Cover, dispense chute, push-button operation (includes button and label), ice 502440
Not shown Cover, dispense chute, lever operation, ice 502439
10 Cover, dispense chute, push-button operation (includes button and label), water 502440
Not shown Cover, dispense chute, lever operation, water 502622
11 Chute, focus, clear plastic 502459
Not shown Push pin, clear chute 502610
Not shown Lever, dispense for water and ice 501953
12 Switch, push-button operation, for ice (includes label) 502441
13 Splash shield, right hand unit 502612
Not shown Splash shield, left hand unit 502613
14 Thumbscrew, splash shield, 10-32 x 1/2 501100
Not shown Switch, dispense lever for ice and water 502505
15 Panel, access, right hand and left hand units 502585
16 Panel, front, dispense mechanism, ice, right hand unit 502588
Not shown Panel, front, dispense mechanism, ice, left hand unit 502589
17 Panel, front, side, back wrap, water dispense, right hand unit 502634
Not shown Panel, front, side, back wrap, water dispense, left hand unit 502592
Not shown Panel, rear, motor support, right hand unit 502586
Not shown Panel, rear, motor support, left hand unit 502587
Not shown Clip, Tinnerman, 10-32 502621
Not shown Screw, 10-32 x 1/2 502287
Not shown Legs, 6" (153mm) adjustable to 9" (229mm), set of 4 502454
18 Switch, water dispense, push-button operation (includes label) 502648
Not shown Plug 2 lead, male 502333
Not shown Plug 2 lead, female 502334

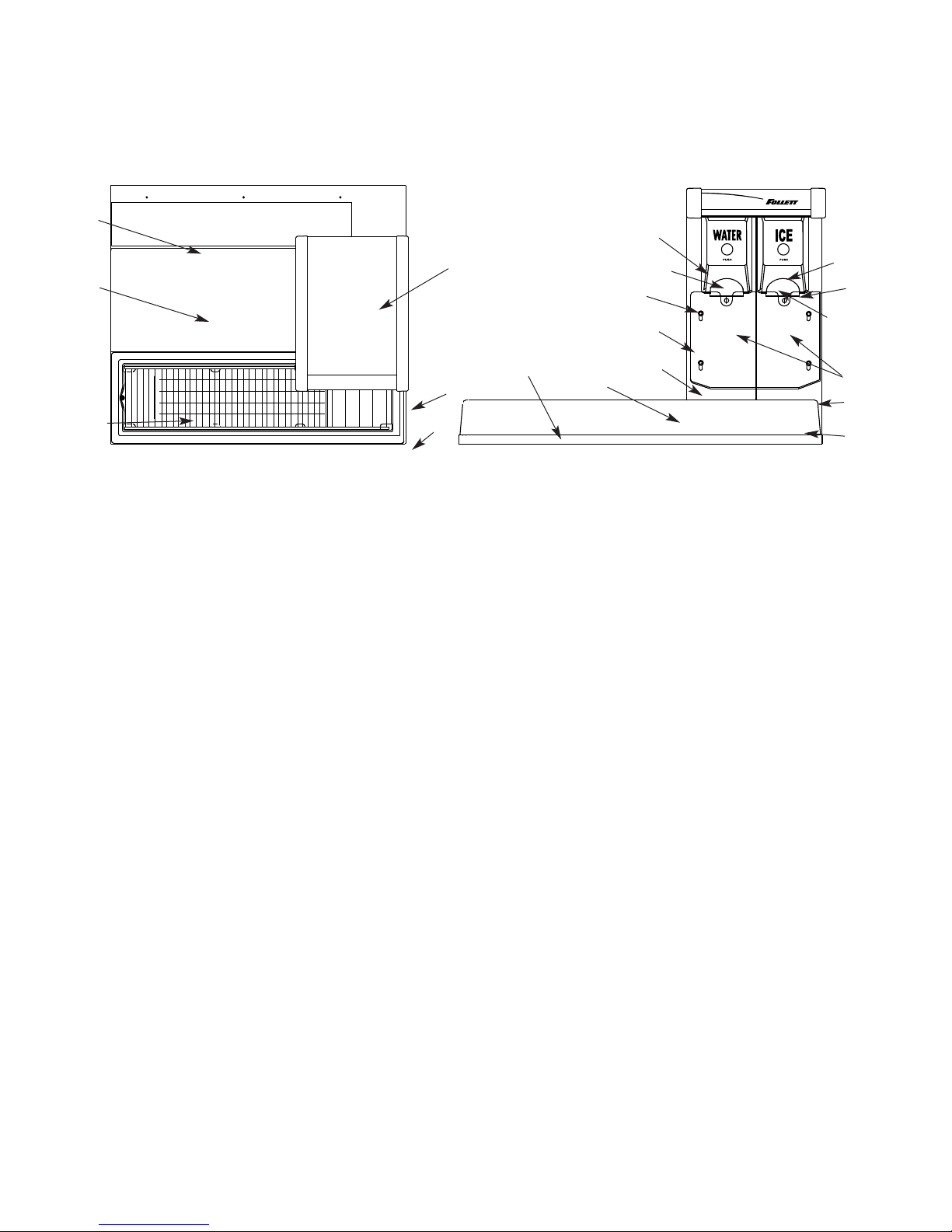

Top View
unit with right hand (RH) tower
Front View
right hand (RH) tower
(push-button dispensing)
Dispenser exterior
Replacement parts
5
4
2
1
3
13
3
14
10
7
11
18
6
8
15
12
9
16
17
14

Dispense assembly
Side View
(RH unit shown)
Reference # Description Part #
1Gate, dispense 502455
2Linkage pin, gate/solenoid 502456
3Pin, quick release, 5.53" (141mm), dispense gate 502102
4Solenoid (includes linkage pin) 501961
5Dispense mechanism assembly, right hand unit 502458
Not shown Dispense mechanism assembly, left hand unit 502496
6Spring, dispense mechanism (1 per side) 501950
7Chute, ice 502457
8Wrap, dispense mechanism 502607
9Bushing, Ni liners 501249
10 Screw, 8-32 x 5/16 502625
11 Pin, spring 502624
1
2
3
4
6
7
8
9
10
11
9
15
5
Top View

Reference # Description Part #
1Auger, LH unit (black, stamped with “1”) 502491
Not shown Auger, RH unit (gray, stamped with “2”) 502492
2Plate, auger bearing 501696
Not shown Tube, auger, right hand unit 502487
Not shown Tube, auger, left hand unit 502488
3Wheel, dispense (includes stud and rotating agitator) 501681
4Baffle (under dispense wheel) 501684
Not shown Drive bar (under dispense wheel) 501682
5Motor, vertical auger 502476
6Motor, wheel 502560
Not shown Seal, wheel motor 501333
Not shown Spacer, wheel motor 501768
Not shown Capacitor, wheel motor 501782
7Agitator, rotating, 21" (534mm) long 502484
8Plate, wheel motor mounting 502615
9Agitator, stationery 502490
Not shown Bracket, ice tube, double tube 502497
Not shown Ice transport tube (sold by the foot) 500366
Not shown Ice transport tube, 10 ft 502522
Not shown Ice transport tube, 20 ft 502523
Not shown Insulation, transport tube (sold by the foot) 501176
10 Coil, plain water 502461
11 Tubing, water (sold by the foot) 502356
Not shown Cover, blank ice entry 502674
Not shown Gasket, ice entry 502672
Not shown Plate, ice entry, 2 holes 502673
Hopper
9
6
7
4
8
3
1
5
2
Side View
10
left-hand unit shown
11
16

Reference # Description Part #
Auger motor/drive assembly, vertical (includes all items below) 502493
1Motor, vertical auger (includes gearbox and capacitor) 502476
2Chain, auger drive #35, 40p 502477
3Sprocket 35#, 22T 5/8 bore 502478
4Sprocket 35#, 12T 5/8 bore 502479
5Drive shaft 502480
6Bearing, auger, upper and lower 501314
7Cover and bearing, chain drive (includes 501314) 502481
8Capacitor, 25mf, 270V 501550
9Key, Woodruff 502482
10 Washers, thrust (4) 501765
11 Mounting plate, auger motor (includes 501314) 502483
Auger motor
7
6
1
8
4
3
2
11
10
5
Side View Top View
9
6
17

Reference # Description Part #
1Transformer, 24V 502058
2Relay, dispense 501826
3Relay, auto fill 501826
4Timer, auto fill (automatic fill units) 502471
5Strip, terminal 502472
6Tube, water dispense, stainless steel 502356
7Bracket, water solenoid 502611
8Fitting, outlet, 1/8 MPT x 3/8, compression 502562
9Valve, solenoid, water 502243
10 Fitting, inlet, plastic, 1/4 barb 502637
11 Tubing, water (sold by the foot) 502356
12 Switch, safety 502511
13 Switches (power and icemaker) 502209
14 Bracket, switch, mounting (power and icemaker) 502638
15 Chute, focus, clear plastic 502459
Not shown Switch, safety, rear cover assembly, left hand unit 502498
16 Switch, safety, rear cover assembly, right hand unit 502499
Not shown Switch, safety, drain pan assembly, left hand unit 502500
17 Switch, safety, drain pan assembly, right hand unit 502501
Not shown Switch, dispense, lever 502505
18 Bracket, safety switch, drain pan, right hand unit 502609
Not shown Bracket, safety switch, drain pan, left hand unit 502610
19 Bracket, safety switch, rear 502608
Not shown Thermostat, bin level 500514
Electrical components
11
1
5
24 3 7 6 15
12,17,18
9
12
13
12,16,19
14
15
6
8
9
10
11
7
18

19

00119602R00
04/04
801 Church Lane • PO Box D, Easton, PA 18044, USA
Toll free [phone] • (888) 2-FOLLETT
[phone] • Fax [phone] • www.follettice.com
UL
®UL
®
C
