Follett VU155N Series Setup guide

Following installation, please forward this manual
to the appropriate operations person.
Installation, Operation and Service Manual
VU155N Series
Ice and Water Dispensers
Order parts online
www.follettice.com
Service numbers above B50000
00119602R04
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com

Welcome to Follett Corporation
Important cautions
Specications
Installation
Installing dispenser in counter
Field wiring diagrams
Installing optional ice machine
Operation
How the dispenser works
Cleaning
Service
Dispense chute cover removal
Auger motor assembly removal
Gate assembly removal
Auger and auger tube removal
Dispenser wheel removal
Wiring diagrams
Troubleshooting
Replacement parts
Table of contents
3
3
4
6
6
7
7
8
8
8
10
10
10
10
10
10
12
13
14

Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and
outstanding after-the-sale support. To ensure that this dispenser delivers that same degree of service, we ask
that you take a moment to review this manual before beginning the installation of the dispenser. Should you
have any questions or require technical help at any point, please call our technical service group,
[phone] or [phone].
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If
damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling
of a claim, if necessary.
Check your paperwork to determine which model you have. Follett model numbers are designed to provide
information about the type and capacity of Follett ice dispensing equipment. Following is an explanation of the
different model numbers in the VU155 series.
VU155N0LP
Model series
Beverage cooling
N – Ice and water only
Tower side (facing unit)
L – Left hand side
R – Right hand side
Ice and valve actuation
P – Pushbutton
L – Lever
Number of valves
0 (N series only), 8 or 10
3
Important cautions
Storage area of dispenser contains mechanical, moving parts. Keep hands and arms clear of
this area at all times. If access to this area is required, power to unit must be
disconnected rst.
Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.
Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.
Always disconnect power before cleaning or servicing the dispenser.
Failure to remove all sanitizer may result in health hazard.
Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett
compressed nugget ice. Crushed, ake, bagged, nugget or congealed ice cannot be used. Use of
these ices can jam dispenser and void warranty. Separate any “waffle-like” sections of cubes before
adding to dispenser. For ice compatibility questions, please call Follett customer service at
[phone] or [phone].

Specications
Electrical
Each ice machine and dispenser require a separate circuit with electrical disconnect within 10 ft (6 m). Equipment
ground required. Standard electrical – 115V, 60Hz, 1 phase. For ice machine circuit requirements, refer to the ice
machine specication sheet.
Model Dispenser
number amperage
VU155N series 2.4 amps
Plumbing
Dispenser 3/4" PVC pipe nipple for bin drain
3/4" PVC pipe nipple for drain pan drain
3/8" ID red line tubing for water in
Ice machine Refer to detailed specications in ice machine installation manual packed with ice machine
4

Dimensions and clearances
Required clearances
51" (1295 mm) minimum above counter for installation if dispenser will be dropped into counter
36" (915 mm) minimum above counter for all units after installation for auger cleaning and servicing
12" (305 mm) minimum on side opposite ice chute for service
12" (305 mm) minimum on ice chute side if ice transport tube enters this side
12" (305 mm) minimum between dispenser side(s) and optional ice machine(s)
6"
min
Side View
Front View
17"
(432 mm)
18.875"
(479mm)
18.875"
(479mm)
ice
transport
tube
Manual load unit
Dispenser with 1 optional auto-fill ice machine kit(s)
Dispenser with 2 optional auto-fill ice machine kit(s)
27.375" (696mm)
12" (305mm)
18.5"
(470mm)
3.5"
(889mm)
bin signal
power
6"
(153mm)
3/4 PVC
slip joint
drain
air break*
3/8 water inlet
3/4 PVC
drain pan
drain
*DO NOT CONNECT
AIR BREAK TO
DRAIN SYSTEM
PVC
joint
drain
slip
3/4"
air break*
electrical
connections
counter top
12"
(305mm)
12" min.
(305mm)
31.25"
(794mm)
21.75"
(553mm)
49.75"
(1264mm)
28"
(712mm)
2.8125"
(71mm)
5

Installation
Installing dispenser in counter
Note: All dispensers must be supported from below with supplied 6" – 9" (153 – 229 mm) adjustable leg accessory,
or equivalent. Do not hang dispenser on ange.
All dispensers must be installed level in both directions to ensure proper operation.
1. Check that dispenser location meets all requirements in this manual and cut counter as shown.
Plan View
counter cut-out
2. Place support blocks in cabinet to raise dispenser to a height of 12" (305 mm).
3. Place dispenser in counter onto support blocks.
4. Attach adjustable legs to dispenser.
5. Remove support blocks and lower dispenser feet to oor.
6. Adjust legs for 1/8" (4 mm) clearance between dispenser lip and countertop to verify there is no load on ange.
7. Apply a bead approximately 1/4" (6 mm) in diameter of NSF-listed silicone sealant (Dow Corning RTV-732 or
equivalent) around perimeter of dispenser where it meets counter. Smooth sealant to a 1/8" (4 mm) radius.
8. Install a PVC drain line with at least a 1/4" per foot (20 mm per 1 m) slope. Insulate drain line to prevent
condensation.
Note: Do not apply excessive heat if any sweating of ttings is necessary. Heat conduction through metal may
melt threads in plastic drain.
Do not reduce drain line size or tie drains together.
9. Make electrical connections in accordance with applicable wiring diagrams provided. Provide disconnects within
10 ft (3 m) of dispenser and ice machine for servicing.
6
26.25"
Front of counter
+.125" + .125"
30.375"
(772mm)
+3 mm
(667mm)
- .125"
+3 mm
- 3 mm
- 3 mm
- .125"

Field wiring diagrams
Note: Field wiring diagrams are intended to aid electricians or technicians in understanding how equipment
works. All eld wiring must be installed in accordance with all local and NEC codes.
LEGEND
WIRENUT FIELD
CONNECTIONS
XEQUIPMENT
GROUND
B
W
GRN
BL
Y
DISPENSER
LEFT JUNCTION BOX RIGHT JUNCTION BOX
BL
Y
RD
W
B
LOWER JUNCTION BOX
ICE MACHINE #2
(OPTIONAL)
W
B
X
GND GRN
B
W
LOWER JUNCTION BOX
ICE MACHINE #1
(OPTIONAL)
UPPER JUNCTION BOX
BLACK
WHITE
GREEN
BLUE
YELLOW
RD RED
ELECTRIC
POWER
SOURCE
X
GND GRN
B
W
UPPER JUNCTION BOX
ELECTRIC
POWER
SOURCE
Electric
Power
Source
GND
GRN
B
W
If attaching optional Chewblet®MC400A
auto-fill ice machine kit(s)
Installing optional auto-ll ice machine kit(s)
Correct installation of RIDE™model ice machine(s) is critical to proper performance of the ice machine. Refer to
installation manual packed with ice machine for important details on ice transport tube run, ventilation
requirements and other installation requirements. Failure to comply with instructions may void warranty.
To start and operate dispenser
1. Follow detailed cleaning instructions in service manual before operating dispenser.
2. For manual load units, remove front drain pan or rear lid and ll storage area with approved ice.
Note: Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett
compressed nugget ice. Crushed, ake, bagged, nugget or congealed ice cannot be used. Use of these
ices can jam dispenser and void warranty. Separate any “waffle-like” sections of cubes before adding to
dispenser. For ice compatibility questions, please call Follett customer service at [phone] or
[phone].
3. Turn power switch located on dispenser control box to ON position.
4. For automatic ll units, follow detailed instructions in ice machine installation section of installation manual,
then turn ice machine (bin signal) switch(es) located on dispenser control box to ON position and begin to
make ice.
5. When dispenser has at least 6" (153 mm) of ice in storage area, test operation.
7

Operation
How the dispenser works
Follett’s dispensers are available in automatic load
congurations, fed from one or two Follett RIDE
model ice machines or manual load congurations
(using ice from another source).
In all models, ice is stored below the counter in the
dispenser storage area. When the dispense lever
or button is pushed, the dispense motors are
activated. This causes the wheel assembly in the
storage area to turn, moving ice to the vertical
auger assembly, which carries ice up to the
dispense chute where it drops by gravity into the
container.
In automatic load units, ice is manufactured in
either one or two Follett RIDE model ice machines.
These ice machines may be located up to 20 ft (6
m) away from the dispenser. Extruded ice is
transported through a tube and pushed to the
storage compartment of the dispenser. When the
bin is lled, a bin thermostat shuts the ice machine
off to avoid overlling of the bin. The ice machine
will restart after 20 minutes if the bin is calling for
ice.
Cleaning
Using solutions below, clean and sanitize storage area and beverage lines before starting unit and on a routine
basis as noted below.
Note: Always disconnect power before cleaning dispenser.
Do not run plastic parts through a dishwasher.
Solution A: Combine 1 oz (30 ml) bleach with 2 gal (8 L) hot water.
Solution B: Combine 1/4 oz (7 ml) bleach with 2 gal (8 L) hot water.
Note: Cleaning solutions temperature must be at 75 – 125 F (24 to 52 C)
Recommended cleaning prior to start up
Cleaning ice storage area before use
1. Refer to disassembly instructions (see Service section) and remove dispense wheel from ice storage area.
2. Remove auger, auger tube and dispense mechanism.
3. Wipe all components and ice storage area with cleaning Solution A.
4. Rinse all components and ice storage area thoroughly with clear, potable water.
5. Wipe all components and ice storage area with sanitizing Solution B.
Ice movement
8

Recommended daily dispenser cleaning
1. Remove all debris from drain pan.
2. Pour 1 gallon (4 L) hot water into drain pan to keep drain lines clear.
Recommended weekly dispenser cleaning
1. Remove drain pan and grille and wash with Solution A. Rinse thoroughly.
2. Pour a solution of one cup (8 oz/237 ml) household bleach mixed with one gallon (3.8 L) hot water into
drain pan to help prevent algae growth in drain lines.
Recommended quarterly dispenser cleaning
1. Remove top from dispenser and turn power switch to OFF position.
2. Remove ice from storage area.
3. Remove dispense chute cover, chute, auger motor assembly, auger and auger tube (see Service section).
4. Remove drain pan, grille and dispense wheel (see Service section).
5. Clean all components and bin storage area with Solution A, rinse thoroughly with clear water and sanitize
with Solution B.
Putting unit back in service after quarterly cleaning
1. Reassemble components.
2. For manual load units, ll unit with an approved ice (see important cautions on page 4).
3. For automatic load units with MC400A/W (R404A refrigerant) ice machines, turn bin signal switch(es) and
dispenser power switch to ON position and allow storage area to ll.
4. Dispense and discard all ice, verifying dispenser is functioning properly.
Recommended quarterly cleaning of optional ice machine.
Units equipped with optional ice machines require cleaning of ice machine system at least every six months, and
more often if local water conditions dictate. Failure to clean ice machine system will result in decreased
performance and potential damage to ice machine. Refer to Ice machine Installation, Operation and Service
Manual.
9

Dispense chute cover removal
1. Remove top cover.
2. Push chute cover up vertically to slip off
holding tab.
3. After clearing tab, pull chute cover forward
to remove.
Dispense mechanism assembly removal
1. Remove top cover.
2. Remove chute cover (see above).
3. Remove auger motor assembly (see above).
4. Remove quick release pins from the ice chutes and
gates, then unplug wires from solenoids.
5. Lift dispense mechanism up and off auger tube.
Auger and auger tube removal (Fig. 3)
1. Remove auger motor and dispense mechanism
assembly (see above).
2. Pull auger upward to clear auger tube.
3. Lift auger tube upward to clear dispenser top.
4. Slide tube and bearing plate through auger
tube gasket.
Dispense wheel removal
1. Remove drain pan assembly and bin access cover.
2. Remove center thumbnut and threaded rod on
dispense wheel assembly and lift wheel out front
access opening.
Auger motor assembly removal
1. Remove top cover.
2. Remove one thumbnut on rear of motor bracket.
3. Lift motor bracket up and unplug electric
quick disconnects.
4. Remove motor assembly.
Dispense wheel motor removal (Fig. 3)
1. Remove drain pan, bin access cover and
dispense wheel.
2. Remove stainless steel baffle plate under
dispense wheel.
3. Remove two screws holding wheel motor
bracket on bin.
4. Lift plate and motor up.
5. Unplug electric quick disconnects from motor.
6. Lift motor and mounting plate out front
access opening.
solenoid
quick
release pin
gate
Service
Fig. 2 – Top View, Dispense Assembly, Right Hand Unit
Fig. 1 – Front View, Right Hand Unit
dispense
chute
drain pan assembly
chute
cover
top cover
ice chute
10

wheel motor
baffle plate
wheel motor
mounting plate
dispense wheel
auger tube
auger
auger bearing plate
stationary
agitator
rotating agitator
plain water
hook-up
chilled water coil
Fig. 3 – Front View
11
auger motor (side view)

Wiring diagrams
PL3-1
69
2
Red
6
Red
Red
Red
Blk
Brn
Ye l
Red
24V JUNCTION BOX
ICEMAKER #2
BIN SIGNAL (24V)
5 SEC ON
18 MIN OFF
AutoFill Timer
Blu
Blu
32
ICEMAKER #1
BIN SIGNAL (24V)
3
1
Ye l
Ye l
A
B
9
Brn
CNO
Brn
B
115 Volts
24 Volts
Ye l
Ye l
A
Wht
Ye l
Blk
Blk
L1
BLK
CNO
Gry
CNO
PL3-2
PL2-1
Red
Blu
COUNTERCLOCKWISE
COUNTERCLOCKWISE
Pur
Orn
17
PL2-3
Orn
CNO
Orn
4
C
Pur
7
Pur
NO Blk
PL3-3
Wht
Blu
Red Blk
Red
Red
Wht
Wht
Blk Blk Ylw
PL2-2
L2
96
PIN and SOCKET CONNECTION
TERMINAL STRIP CONNECTION
LEGEND:
PL3-1
Red
Blk
CLOCKWISE ROTATION
CLOCKWISE ROTATION
Orn
Pur
17PL3-2
Blu
Red
Pur
PL2-3
Red
Pur
Orn
Orn
47
Blk
PL2-1
Blk
Blu
PL3-3
Wht
Red
Ylw
PL2-2
ROTATION
R OTAT I O N
DISPENSE SWITCH
DISPENSE RELAY
BIN
T- S TAT
IM_#2
SWITCH NO. 2
SWITCH NO. 1
IM_#1
AUTOFILL RELAY
R2
DISPENSE RELAY
DISPENSE SOLENOID
R1
R1
T1
SWITCH SWITCH
POWER
TOP LID DRAINPAN
WATER SOLENOID
AUTOFILL
AUTOFILL
SWITCH
R2
R2
DISPENSE RELAY
WATER SWITCH
REAR LID
R1
M2
WHEEL
AUGER MOTOR
M1
R2
R2AUTOFILL
AUTOFILL
DISPENSE RELAY
R1
M2
WHEEL
M1
AUGER MOTOR
Wht WhtWht
Right hand unit Left hand unit
12

Symptom
Ice does not dispense.
• Auger motor does not run
• Wheel motor does not run
Ice does not dispense.
• Auger motor runs
• Wheel motor runs
• Gate does not open
Ice does not dispense.
• Auger motor does not run
• Wheel motor runs
Ice does not dispense.
• Auger motor runs
• Wheel motor does not run
No ice in dispenser.
Possible cause
1. Power switch faulty or in OFF
position; loose connection.
2. Faulty dispense switch.
3. Faulty transformer.
4. Drain pan ajar.
5. Faulty drain pan safety switch.
1. Loose electrical connection.
2. Linkage problem between
solenoid and gate.
3. Faulty solenoid.
1. Loose electrical connection.
2. Faulty auger motor.
3. Faulty run capacitor.
1. Loose electrical connection.
2. Faulty wheel motor.
3. Faulty run capacitor.
1. Power switch in OFF position or
faulty.
2. Bin signal switches in OFF
position or faulty.
3. Faulty bin thermostat.
4. Faulty transformer.
5. Ice machine related problem.
6. Faulty run capacitor.
Solution
1. Turn power switch to ON position;
check connections.
2. Replace switch.
3. Replace transformer.
4. Check pan and reseat.
5. Replace switch.
1. Check connections.
2. Check linkage.
3. Replace solenoid.
1. Check connections.
2. Check auger motor.
3. Check run capacitor.
1. Check connections.
2. Check wheel motor.
3. Check capacitor.
1. Check switch and replace if
necessary.
2. Check switch and replace if
necessary.
3. Replace bin thermostat.
4. Replace transformer.
5. Refer to ice machine Operation
and Service Manual for diagnosing.
6. Check for power and bin signal on
ice machine PC board.
13
Dispenser troubleshooting guide
Before calling for service
1. Check that ice is in the dispenser and that congealed cubes are not causing a jam.
2. Check that circuit breaker and switches are in ON position.
3. Check that drain pan, rear lid and top are on securely. If ajar, dispenser will not operate. When the top is off,
auger does not operate, even though the solenoids do (page 16).
4. Check that all drains are clear.
Note: For units equipped with Follett compressed nugget ice machine, see Ice machine Operation and
Service Manual for service and troubleshooting information.
If problems persist after following this basic troubleshooting guide, call Follett’s
technical service department at [phone] or [phone].

Reference # Description Part #
1 Label, “Follett” 502438
2Top cover (includes label) 502606
3 Drain pan 502446
4 Grille, drain pan 502450
5 Cover, electrical components 502593
6Lid, rear access 502594
Not shown Cover, ice storage (under drain pan) 502453
7 Label, ice, dispense cover, push-button 502623
Not shown Label, ice, dispense cover, lever 502622
8 Label, water, dispense cover, push-button 502617
Not shown Label, water, dispense cover, lever 502616
9 Cover, dispense chute, push-button operation (includes button and label), ice 502440
Not shown Cover, dispense chute, lever operation, ice 502439
10 Cover, dispense chute, push-button operation (includes button and label), water 502440
Not shown Cover, dispense chute, lever operation, water 502622
11 Chute, focus, clear plastic 502459
Not shown Push pin, clear chute 502610
Not shown Lever, dispense for water and ice 501953
12 Switch, push-button operation, for ice (includes label) 502441
13 Splash shield, right hand unit 502612
Not shown Splash shield, left hand unit 502613
14 Thumbscrew, splash shield, 10-32 x 1/2 501100
Not shown Switch, dispense lever for ice and water 502505
15 Panel, access, right hand and left hand units 502585
16 Panel, front, dispense mechanism, ice, right hand unit 502588
Not shown Panel, front, dispense mechanism, ice, left hand unit 502589
17 Panel, front, side, back wrap, water dispense, right hand unit 502634
Not shown Panel, front, side, back wrap, water dispense, left hand unit 502592
Not shown Panel, rear, motor support, right hand unit 502586
Not shown Panel, rear, motor support, left hand unit 502587
Not shown Clip, Tinnerman, 10-32 502621
Not shown Screw, 10-32 x 1/2 502287
Not shown Legs, 6" (153 mm) adjustable to 9" (229 mm), set of 4 502454
18 Switch, water dispense, push-button operation (includes label) 502648
Not shown Plug 2 lead, male 502333
Not shown Plug 2 lead, female 502334

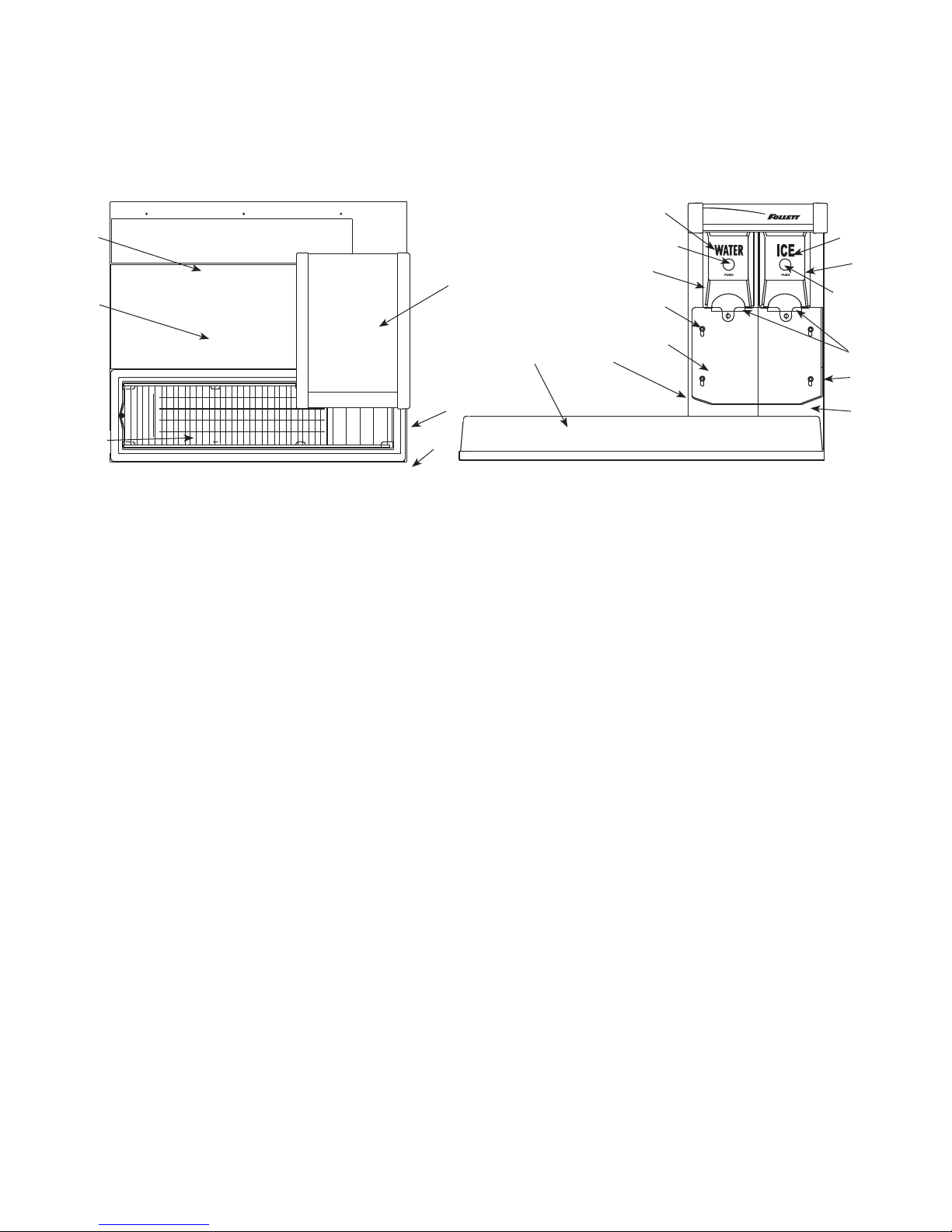

Top View – Right Hand (RH) Tower Front View – Right Hand (RH) Tower
(push-button dispensing)
5
4
2
1
3
13
3
14
10
7
11
18
6
8
15
12
9
16
17
14
Replacement parts
Dispenser exterior
Order parts online
www.follettice.com

Side View (RH unit shown)
Reference # Description Part #
1 Gate, dispense 502455
2 Linkage pin, gate/solenoid 502456
3 Pin, quick release, 5.53" (141 mm), dispense gate 502102
4 Solenoid (includes linkage pin) 501961
5 Dispense mechanism assembly, right hand unit 502458
Not shown Dispense mechanism assembly, left hand unit 502496
6 Spring, dispense mechanism (1 per side) 501950
7 Chute, ice 502457
8 Wrap, dispense mechanism 502607
9 Bushing, Ni liners 501249
10 Screw, 8-32 x 5/16 502625
11 Pin, spring 502624
1
2
3
4
6
7
8
9
10
11
9
15
5
Top View
Order parts online
www.follettice.com
Dispense assembly

Reference # Description Part #
1 Auger, LH unit (black, stamped with “1”) 502491
Not shown Auger, RH unit (gray, stamped with “2”) 502492
2 Plate, auger bearing 501696
Not shown Tube, auger, right hand unit 502487
Not shown Tube, auger, left hand unit 502488
3 Wheel, dispense (includes stud and rotating agitator) 501681
4 Baffle (under dispense wheel) 501684
Not shown Drive bar (under dispense wheel) 501682
5 Motor, vertical auger 502476
6 Motor, wheel 502560
Not shown Seal, wheel motor 501333
Not shown Spacer, wheel motor 501768
Not shown Capacitor, wheel motor 501782
7 Agitator, rotating, 21" (534 mm) long 502484
8 Plate, wheel motor mounting 502615
9 Agitator, stationery 502490
Not shown Bracket, ice tube, double tube 502497
Not shown Ice transport tube (sold by the foot) 500366
Not shown Ice transport tube, 10 ft 502522
Not shown Ice transport tube, 20 ft 502523
Not shown Insulation, transport tube (sold by the foot) 501176
10 Coil, plain water 502461
11 Tubing, water (sold by the foot) 502356
Not shown Cover, blank ice entry 502674
Not shown Gasket, ice entry 502672
Not shown Plate, ice entry, 2 holes 502673
Hopper
9
6
7
4
8
3
1
5
2
10
11
16
Order parts online
www.follettice.com
Side View (LH unit shown)

Reference # Description Part #
Auger motor/drive assembly, vertical (includes all items below) 502493
1 Motor, vertical auger (includes gearbox and capacitor) 502476
2 Chain, auger drive #35, 42 link 00931790
3 Sprocket #35, 22T 5/8 bore 502478
4 Sprocket #35, 12T 5/8 bore 502479
5 Drive shaft 502480
6 Bearing, auger, upper and lower 501314
7 Cover and bearing, chain drive (includes 501314) 502481
8 Capacitor, 25 mf, 270 V 501550
9 Key, Woodruff 502482
10 Washers, thrust (4) 501765
11 Mounting plate, auger motor (includes 501314) 502483
For dispensers with serial number C74152 and above only:
1 Motor, vertical auger (includes capacitor) 00907170
For dispensers with serial number below C74152 only:
2 Chain, auger drive #35, 40 link 502477
Auger motor
7
6
1
8
4
3
2
11
10
5
Side View Top View
9
6
17
Order parts online
www.follettice.com

Reference # Description Part #
1 Transformer, 24V 502058
2Relay, dispense 501826
3 Relay, auto ll 501826
4Timer, auto ll (automatic ll units) 502471
5 Strip, terminal 502472
6 Tube, water dispense, stainless steel 502356
7 Bracket, water solenoid 502611
8 Fitting, outlet, 1/8 MPT x 3/8, compression 502562
9 Valve, solenoid, water 502243
10 Fitting, inlet, plastic, 1/4 barb 502637
11 Tubing, water (sold by the foot) 502356
12 Switch, safety 502511
13 Switches (power and ice machine) 502209
14 Bracket, switch, mounting (power and ice machine) 502638
15 Chute, focus, clear plastic 502459
Not shown Switch, safety, rear cover assembly, left hand unit 502498
16 Switch, safety, rear cover assembly, right hand unit 502499
Not shown Switch, safety, drain pan assembly, left hand unit 502500
17 Switch, safety, drain pan assembly, right hand unit 502501
Not shown Switch, dispense, lever 502505
18 Bracket, safety switch, drain pan, right hand unit 502609
Not shown Bracket, safety switch, drain pan, left hand unit 502610
19 Bracket, safety switch, rear 502608
Not shown Thermostat, bin level 500514
Electrical components
11
1
5
24 3 7 6 15
12,17,18
9
12
13
12,16,19
14
15
6
8
9
10
11
7
18
Order parts online
www.follettice.com

19
This page intentionally left blank.

00119602R04
3/12
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
RIDE is a trademark of Follett Corporation.
Chewblet is a registered trademark of Follett Corporation, registered in the US.
