FOR-A USF-105S Installation manual

USF-105S
Universal System Frame
USF-105PS
Power Supply Unit
1st Edition - Rev. 1
OPERATION
MANUAL

2
Precautions
Important Safety Warnings
[Power]
Caution
Operate unit only at the specified supply voltage.
Disconnect the power cord via the power plug only. Do not pull on the cable portion.
Stop
Do not place or drop heavy or sharp-edged objects on the power cord. A damaged
cord can cause fire or electrical shock hazards. Regularly check the power cord for
excessive wear or damage to avoid possible fire / electrical hazards.
Caution
Ensure the power cord is firmly plugged into the AC outlet.
[Grounding]
Caution
Ensure the unit is properly grounded at all times to prevent electrical shock.
Hazard
Do not ground the unit to gas lines, units, or fixtures of an explosive or dangerous
nature.
[Operation]
Hazard
Do not operate the unit under hazardous or potentially explosive atmospheric
conditions. Doing so could result in fire, explosion, or other hazardous results.
Hazard
Do not allow liquids, metal pieces, or other foreign materials to enter the unit. Doing so
could result in fire, other hazards, or a unit malfunction.
If a foreign material does enter the unit, turn the power off and immediately disconnect
the power cord. Remove the material and contact an authorized service representative
if damage has occurred.
[Transportation]
Hazard
Handle with care to avoid impact shock during transit, which may cause malfunction.
When you need to transport the unit, use the original or suitable alternative packing
material.

3
[Circuitry Access]
Do not remove covers, panels, casing, or access the circuitry with power applied to the
unit. Turn the power off and disconnect the power cord prior to removal. Internal
servicing / adjustment of unit should only be performed by qualified personnel.
Stop
Do not touch any parts / circuitry with a high heat factor.
Capacitors can retain enough electric charge to cause mild to serious shock, even after
the power has been disconnected. Capacitors associated with the power supply are
especially hazardous.
Hazard
Unit should not be operated or stored with cover, panels, and / or casing removed.
Operating the unit with circuitry exposed could result in electric shock / fire hazards or
a unit malfunction.
[Potential Hazards]
Caution
If abnormal odors or noises are noticed coming from the unit, immediately turn the
power off and disconnect the power cord to avoid potentially hazardous conditions. If
problems similar to the above occur, contact an authorized service representative
before attempting to operate the unit again.
[Rack Mount Brackets, Ground Terminal, and Rubber Feet]
Caution
To rack-mount or ground the unit, or to install rubber feet, do not use screws or
materials other than those supplied. Doing so may cause damage to the internal
circuits or components of the unit. If you remove the rubber feet that are attached to the
unit, do not reinsert the screws that secure the rubber feet.
[Consumables]
Caution
Consumable items that are used in the unit must be periodically replaced. For further
details on which parts are consumables and when they should be replaced, refer to the
specifications at the end of the Operation Manual. Since the service life of the
consumables varies greatly depending on the environment in which they are used,
such items should be replaced at an early date. For details on replacing consumable
items, contact your dealer.

4
Upon Receipt
USF-105S units and their accessories are fully inspected and adjusted prior to shipment. Check your
received items against the packing lists below. Check to ensure no damage has occurred during
shipment. If damage has occurred, or items are missing, inform your supplier immediately.
USF-105S Box
ITEM
QTY
REMARKS
USF-105S
1
AC Cable
1 set
(Includes an AC cord retaining clip)
CD-ROM
1
Operation Manual (PDF)
USF-105PS Option
ITEM
QTY
REMARKS
USF-105PS
1
Redundant Power Supply Unit
AC Cable
1 set
(Includes an AC cord retaining clip)

5
Table of Contents
1. Prior to Starting.....................................................................................................................................6
1-1. Overview .....................................................................................................................................6
1-2. Features......................................................................................................................................6
1-3. About This Manual......................................................................................................................6
2. Installing the AC Cord Retention Clip...................................................................................................7
3. USF-105S Module List .........................................................................................................................8
4. Part Descriptions..................................................................................................................................8
4-1. Front Panel..................................................................................................................................8
4-2. Opening and Closing the Front Panel.........................................................................................9
4-3. Front Interior..............................................................................................................................10
4-4. Slot Number..............................................................................................................................10
4-5. Power Supply............................................................................................................................11
4-6. Rear Panel................................................................................................................................11
4-7. Fan............................................................................................................................................12
4-8. Internal SDI Bus........................................................................................................................12
4-9. ALARM Connector....................................................................................................................13
4-9-1. Example of Alarm Connection...........................................................................................13
5. USF Module Installation.....................................................................................................................14
5-1. Installing a USF Rear Module...................................................................................................14
5-2. Installing a USF Front Module ..................................................................................................15
6. Replacing a USF Module ...................................................................................................................16
6-1. Removing a Front Module.........................................................................................................16
6-2. Removing a Rear Module.........................................................................................................16
7. Installing or Replacing a Power Supply Unit ......................................................................................17
7-1. Installing a Power Supply Unit..................................................................................................17
7-2. Removing a Power Supply Unit................................................................................................18
8. Control Module...................................................................................................................................19
8-1. Internal Control Module Settings...............................................................................................19
9. Web Control........................................................................................................................................21
9-1. Connecting USF-105S to a PC.................................................................................................21
9-1-1. Connecting LAN 1 Port......................................................................................................21
9-1-2. LAN A Port.........................................................................................................................22
9-2. PC System Requirements.........................................................................................................22
10. USF-105S WebGUI..........................................................................................................................23
10-1. Status Tab...............................................................................................................................23
10-2. Alarm Tab................................................................................................................................25
10-3. Network Tab............................................................................................................................26
10-4. SNMP Tab...............................................................................................................................28
10-5. Utility Tab................................................................................................................................30
11. About SNMP.....................................................................................................................................32
12. Specifications and Dimensions ........................................................................................................34
12-1. Specifications..........................................................................................................................34
12-1-1. USF-105S........................................................................................................................34
12-1-2. USF-105PS......................................................................................................................34
12-2. External Dimensions...............................................................................................................35
12-2-1. USF-105S........................................................................................................................35
12-2-2. USF-105PS......................................................................................................................35

6
1. Prior to Starting
1-1. Overview
The USF-105S is a low cost and space saving Universal System Frame that can be freely
configured. Up to 5 modules can be installed into one USF frame.
Dual, redundant power supplies can be configured by adding an optional USF-105PS power unit,
improving operation safety.
An internal switching hub and router allows high speed network communications and flexible
network systems.
1-2. Features
Up to 5 USF modules (boards) can be installed to match your system requirements.
Installing a USF-105PS enables a redundant (dual power supply) configuration.
All modules can be replaced from the front. Power supply units and front USF module units
both support hot-swapping.
Alarm sensors (Fan Stop/ Power Unit Voltage Error/ Temperature Error) and status indicators
(Power/ Fan/ Temperature) are shown on front LEDs.
Alarm data able to output from rear ports.
A genlock input (BB or Tri-level sync) with loop-through.
(Input reference signal able to be supplied to all frame modules installed in the unit.)
EIA Standard 1U size.
Monitoring with SNMP available.
High speed connection of each module via internal switching hub.
USF modules can be monitored and controlled via PC web browser.
1-3. About This Manual
This manual is intended to help the user easily operate this product and make full use of its
functions during operation. Before connecting or operating your unit, read this operation manual
thoroughly to ensure you understand the product. Afterwards, store this manual in a safe place for
future reference.

7
2. Installing the AC Cord Retention Clip
Secure the AC cord with the supplied ladder strap/retention clip assembly to prevent accidental removal
from the unit.
Installing the clip
1) Wrap the retention clip around the AC cord (with the anchor of the ladder strap toward the
unit.)
2) Insert the anchor into the hole next to the AC IN socket.
3) Lightly fasten the clip around the AC cord.
4) Plug in the power cord.
5) Slide the clip on the ladder strap toward the plug.
6) Fasten the clip tightly.
7) Gently pull on the AC cord to ensure it is secured.
Unplugging the AC cord
1) Push the tab on the retention clip up to unfasten the clip.
2) Push the tab on the ladder strap up and slide the clip back.
3) Unplug the AC cord.
2)
4)
3)
5)
6)
1)
2)

8
3. USF-105S Module List
Module
Comments
USF-1040VEA
Optional USF-VEAIF is required to set via WebGUI.
USF-1100VEA
Optional USF-VEAIF is required to set via WebGUI.
USF-1053DDA
USF-108ADA
Optional USF-ADAIF is required to set via WebGUI.
USF-1043FS
USF-105DADA
USF-1013MUX
USF-1013DEMUX
USF-1044UDC
USF-402AADC
4. Part Descriptions

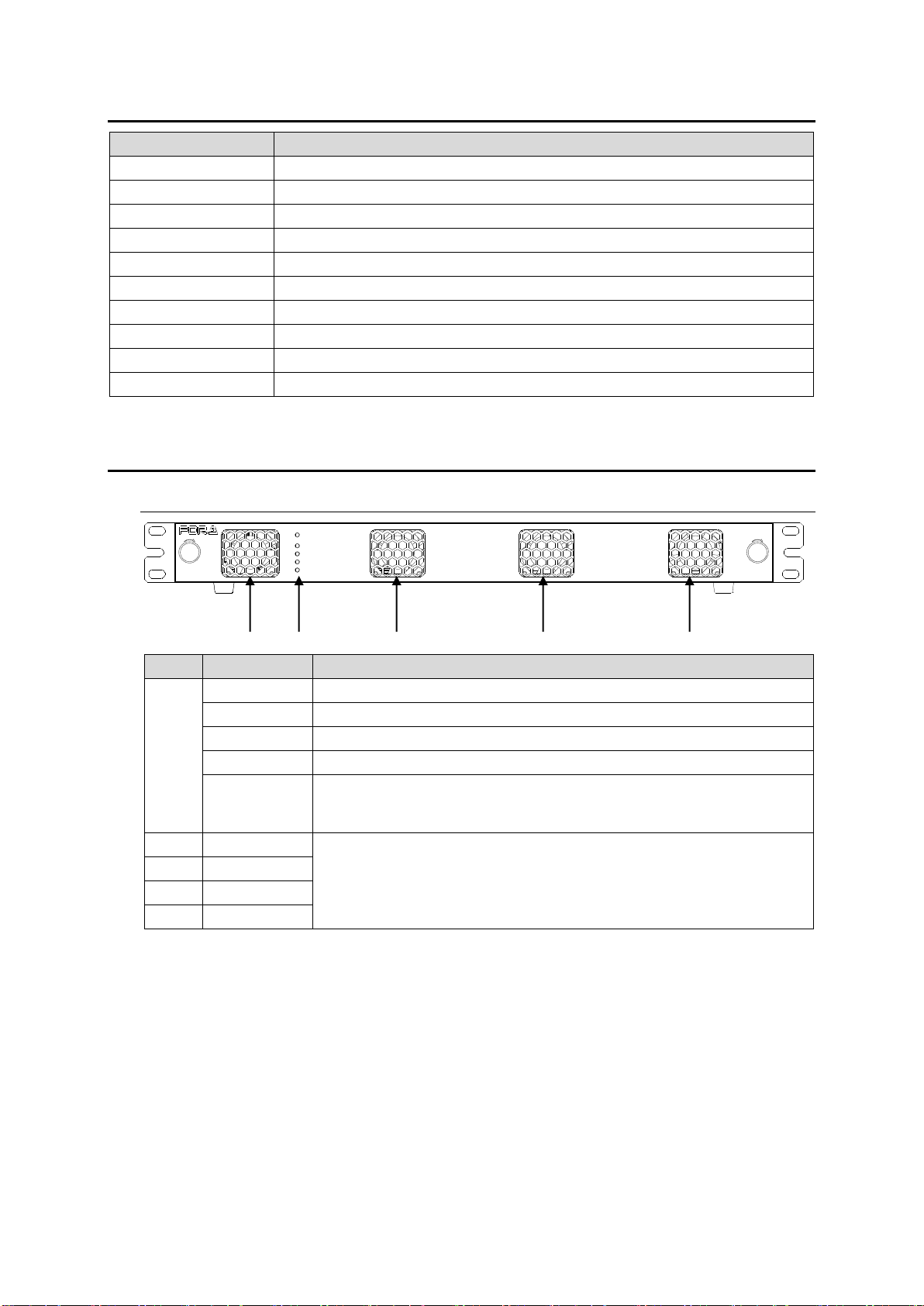

4-1. Front Panel
TEMP
FAN
DC 2
DC 1
ALARM
ON
POWER USF-105S
UNIVERSAL SYSTEM FRAME
LOCKLOCK
No.
Name
Description
(1)
POWER ON
This LED lights green when DC power is supplied normally
DC 1 *
This LED lights red when a voltage error occurs in power module 1.
DC 2 *
This LED lights red when a voltage error occurs in power module 2.
FAN
This LED lights red when at least one fan has stopped.
TEMP
This LED lights red when a temperature error occurs in the power
supply module(s). Lower the environmental temperature to continue
operation.
(2)
FAN1
Cooling fans. Operation status can be monitored by WebGUI Status
Tab. Refer to Sec.10-1. “Status Tab.”
(3)
FAN2
(4)
FAN3
(5)
FAN4
* DC 1 and DC 2 become functional when a USF-105PS power supply option is installed.
(1)
(4)
(3)
(2)
(5)

9
4-2. Opening and Closing the Front Panel
IMPORTANT
The front panel may be difficult to open if the USF frame is placed on a desk, and may be
damaged if it is forced to open. Perform the following steps after setting the frame in a rack.
1. Loosen the two thumbscrews on the front panel by turning them counterclockwise.
TEMP
FAN
DC 2
DC 1
ALARM
ON
POWER USF-105S
UNIVERSAL SYSTEM FRAME
LOCKLOCK
2. Pull out the front panel grasping the thumbscrews. Cooling fans stop while the front panel is
open.
IMPORTANT
An OPEN alarm sounds intermittently, every 30 seconds, when the front panel is opened.
After 5 minutes, the alarm will sound continuously until the front panel is closed.
In case the power is on, complete the procedure in a short period of time
3. Pull out the front panel as shown in the figure below.
IMPORTANAT
Carefully pull out the front panel slowly so as not to drop the panel.
4. Reinsert the front panel slowly along the guide grooves on both sides of the case.
5. Tighten the thumbscrews on both ends clockwise.
6. Verify that the front panel POWER ON LED is lit.

10
4-3. Front Interior
The slot configuration as shown below is revealed when the front panel is removed.
No.
Slot Type
Description
(1)
Power Supply 1
Slot
Dedicated power unit installed in this slot as standard.
Power is supplied when the power supply switch is turned on.
(2)
Power Supply 2
Slot
Slot for redundant power supply USF-105PS. Redundant
operation available when optional USF-105PS is installed.
(3)
Control Module
Slot
Network module slot.
SNMP Monitoring and GPI alarm output from LAN1/LAN A rear
ports are available. Allows control over the respective modules.
Supplies GENLOCK signal to respective slots.
(4)
USF Module Slots
Dedicated USF module slots. (Front USF modules)
For details on module operation, refer to the respective operation
manuals.

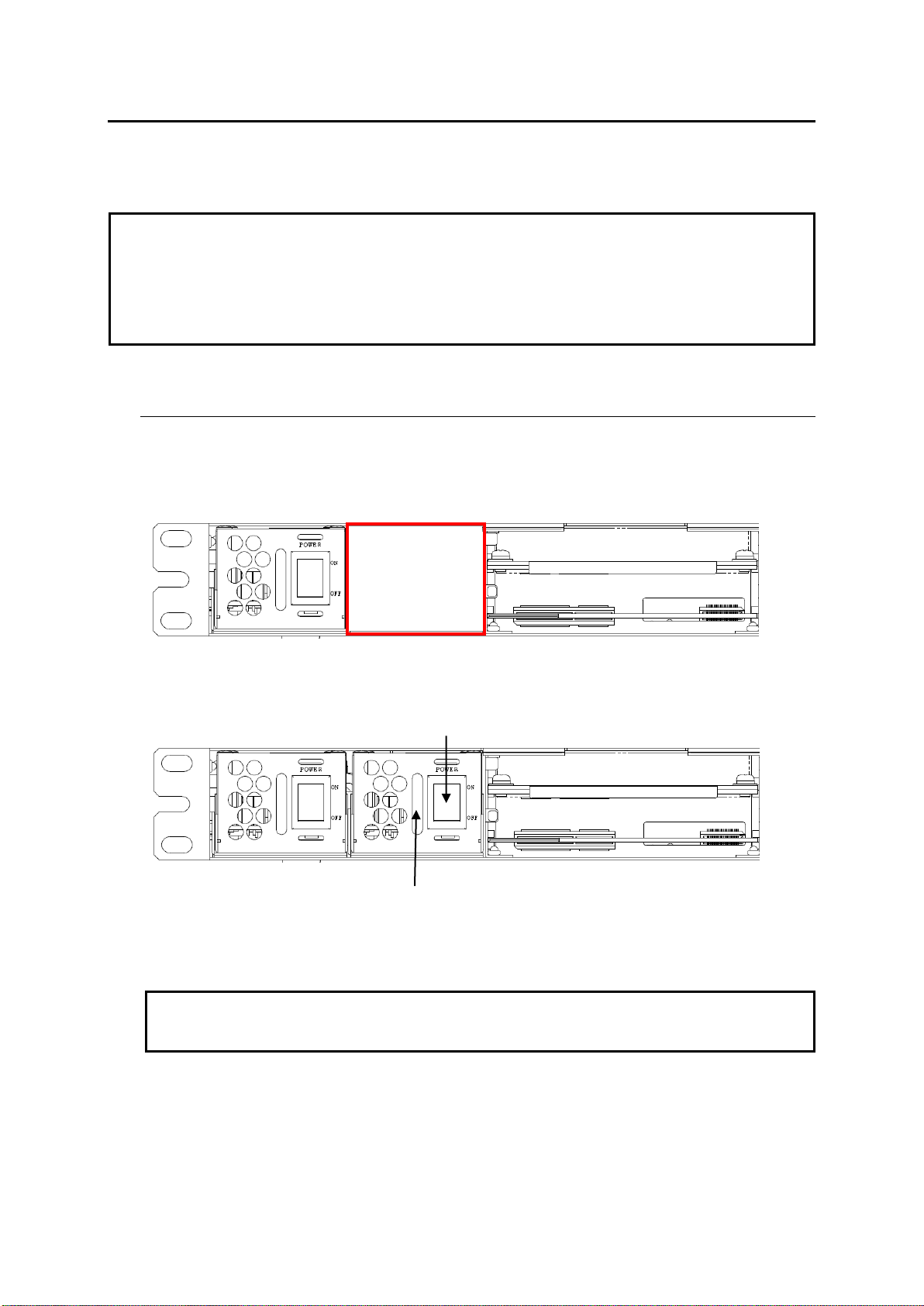

Redundant Power Supply System
Two power supply units can be mounted in the USF-105S. By mounting two power supply units and
turning both units on, operation can continue without the DC power supply shutting down if either
power unit fails.
The dedicated and optional USF-105PS power supply units are the same configuration, and can be
exchanged. Refer to Sec. 7. "Installing or Replacing a Power Supply Unit” for installation details.

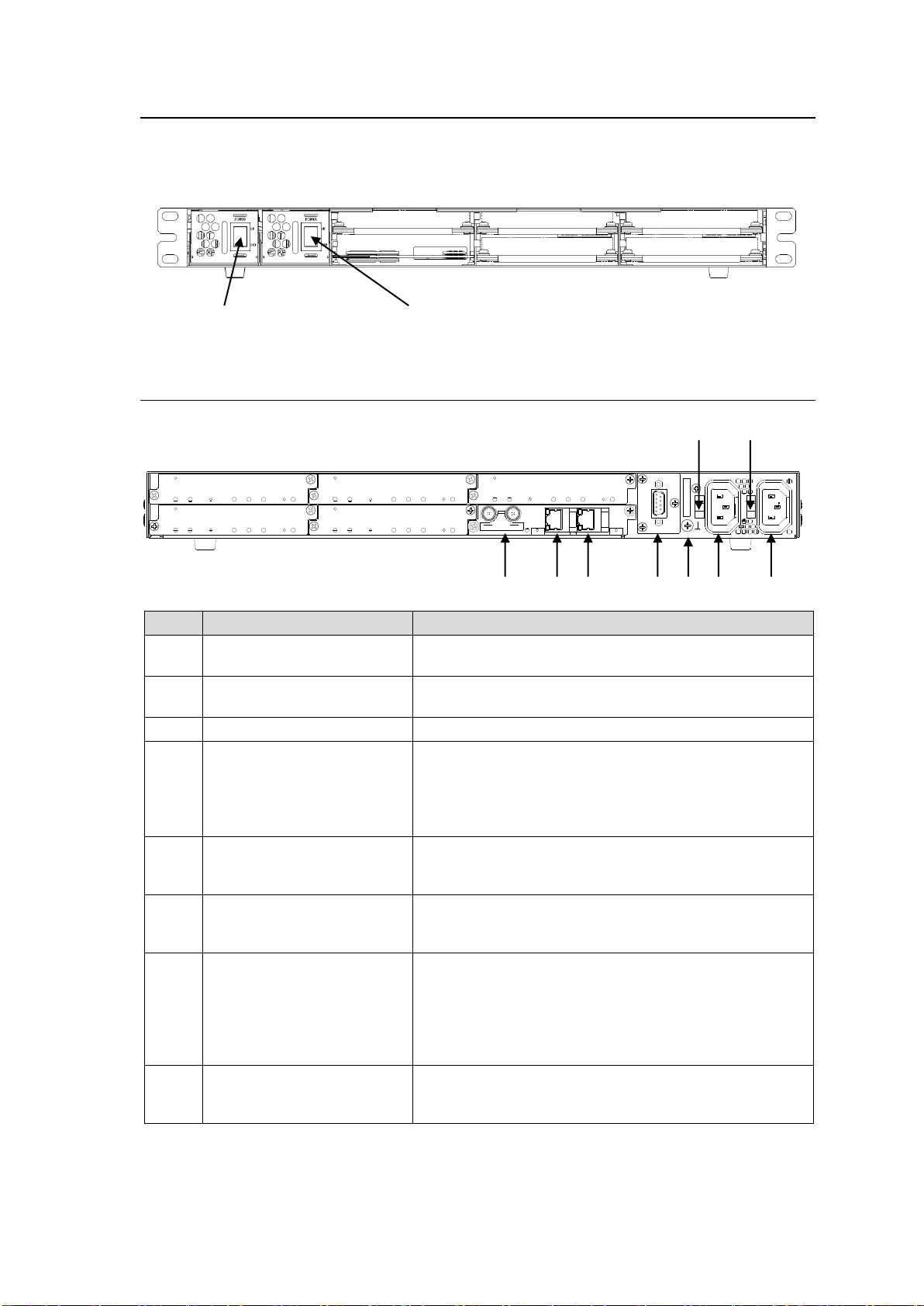

4-4. Slot Number
Front internal view
Rear view
ALARM
12 AC100-240V 50/60Hz IN
LAN1
LANA
GENLOCK
(1)
(3)
(2)
(4)
(4)
