Forest garden OPAMSFP User manual

Pre-drill
for each screw
used.
This article contains biocidal products to give protection against
wood destroying insects & wood rotting fungi. Contents may vary.
May contain : Basic copper carbonate (Copper (II) carbonate –
Copper (II) hydroxide (1:1), Cupric oxide, Copper hydroxide
carbonate, oxyethyl, ammoniumpropionate, Copper HDO,
Propiconazole, Tebuconazole, Boric acid, Benzalkonium chloride.
Wear gloves when handling freshly treated wood. Avoid breathing
dust when cutting treated or untreated wood. Dispose of off-cuts
responsibly – do not burn.

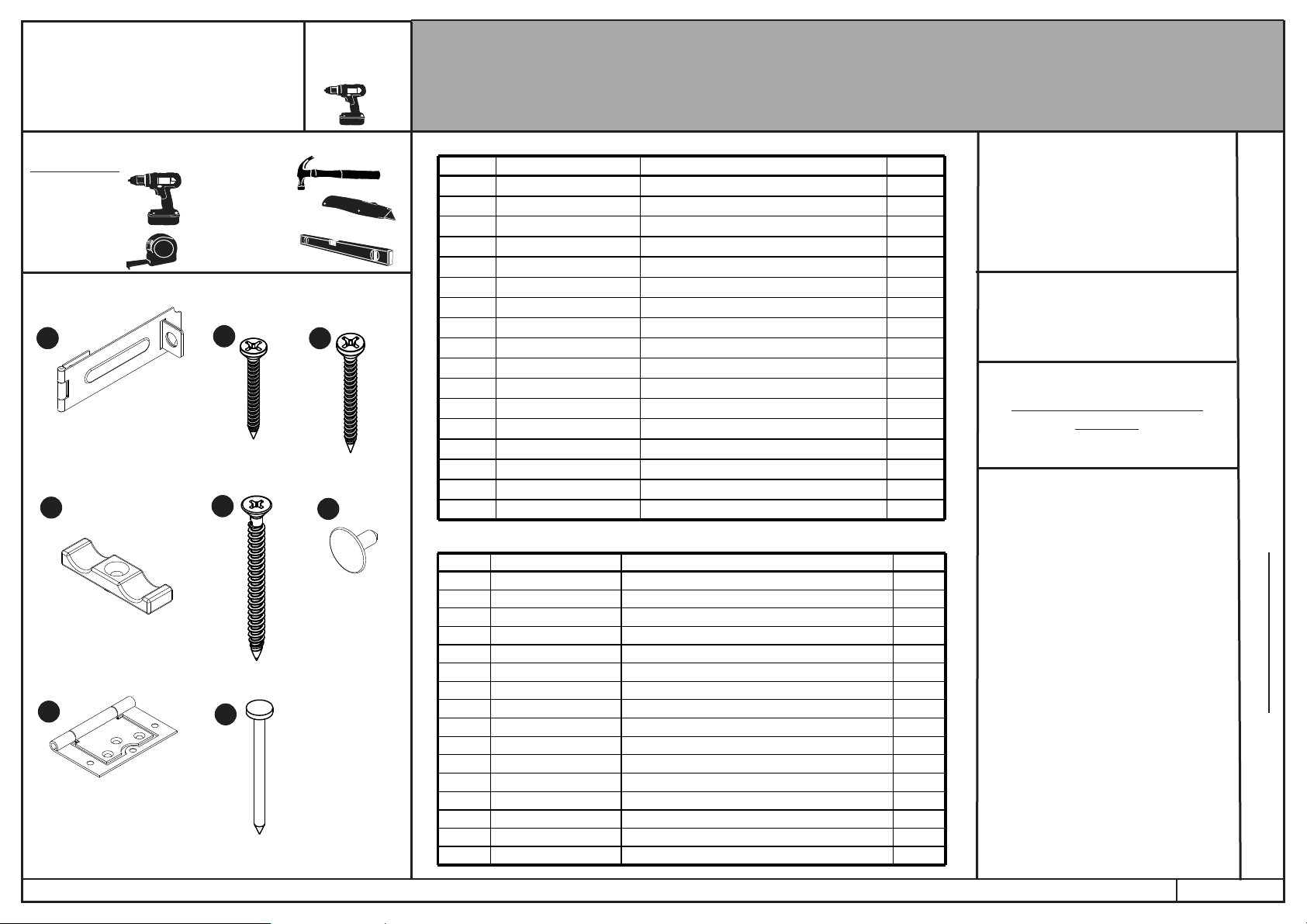

Drill/Pozi Drive
Screwdriver
Tape Measure
Tools Required
Not Supplied
Spirit Level
Hammer
Sharp Knife
Fixing Pack Code = OPAMSFP
a
b
c
aad
ae
f
g
50mm Screw Qty 18 25mm Screw Qty 79
30mm Nail Qty 43
Hasp And Staple Qty 1
Flush Hinge Qty 4
Turn Button Qty 2
h
30mm Screw Qty 2
Help line: 08:30 to 17:00 Monday to Friday0333 7777 089
Item Part Code Part Description Quantity
1 OPMSBP OLAP PTR MIDI STORE BACK PANEL 1
2 OPMSSP OLAP PTR MIDI STORE SIDE PANEL 2
3 MSFRP MIDI STORE FRONT PANEL 1
4 PMSDR PTR MIDI STORE DOOR 2
5 28280953PT BATTEN 28x28x953mm PTREAT 2
6 9534478 OSB 953x447x8mm 1
7 121120481PPT BOARD 121x12x481mm PAR PTREAT 2
8 37281073PT BATTEN 37x28x1073mm PTREAT 1
9 44121255PPT STRIP 44x12x1255mm PTREAT 2
10 121120476PAII80PT BOARD 121x12x476mm PAR ANGLED 4
11 5354818 OSB 535x481x8mm 2
12 45280296PT BATTEN 45x28x296mm PTREAT 4
13 28280482PT BATTEN 28x28x482mm PTREAT 2
14 121120580PAII80PT BOARD 121x12x570mm PAR ANGLED 4
15 28280070PT BATTEN 28x28x70mm PTREAT 4
16 44161255PT STRIP 44x16x1255mm PTREAT 2
17 85069 BLACK FELT 1.3x1 METRE 1
OPAGS (Overlap ) PARTS LIST
Item Part Code Part Description Quantity
1 SPMSBP SLAP PTR MIDI STORE BACK PANEL 1
2 SPMSSP SLAP PTR MIDI STORE SIDE PANEL 2
3 MSFRP MIDI STORE FRONT PANEL 1
4 PMSDR PTR MIDI STORE DOOR 2
5 28280953PT BATTEN 28x28x953mm PTREAT 2
6 9534478 OSB 953x447x8mm 1
7 121120481PPT BOARD 121x12x481mm PAR PTREAT 2
8 37281073PT BATTEN 37x28x1073mm PTREAT 1
9 44121255PPT STRIP 44x12x1255mm PTREAT 4
10 121120476PAII80PT BOARD 121x12x476mm PAR ANGLED 4
11 5354818 OSB 535x481x8mm 2
12 45280296PT BATTEN 45x28x296mm PTREAT 4
13 28280482PT BATTEN 28x28x482mm PTREAT 2
14 121120580PAII80PT BOARD 121x12x580mm PAR ANGLED 4
15 28280070PT BATTEN 28x28x70mm PTREAT 4
17 85068 GREEN FELT 1.3x1 METRE 1
Felt Tacks Qty 40
SPAGS (Shiplap ) PARTS LIST
Important:
Assembly of this product requires a
minimum of two adults.
Attention:
nFor Domestic Use Only.
nMust be built on a andsolid level
base.
nRegularly check that all fixing are
tight and secure.
nRegularly check the felt for damage.
This product is pressure totreated
ensure longevity of all timber
components and to protect against rot.
This may leave a colour difference on
some parts that will even out as the
moisture content stabilises This will.
not need additional treatment.
nPlease keep all plastic bags and
small parts away from children.
nThe roof of this product is not a
load bearing structure.
nTimber is a natural material and
will shrink and swell as a result of
varying moisture content.
Assembly of damaged parts may be
deemed to be acceptance and this
may affect the remedies you are
entitled to.
If the product is not constructed in
accordance with the instructions, or is
altered in anyway (e.g. painted), the
manufacturer cannot be held liable for
any resulting damage.
Please check all parts prior to
assembly.
Issue 0617
Forest Garden Ltd. | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury| Worcestershire | DY10 4JB
Apex Garden Store
OPAMSFP
This fixing pack covers multiple products. Please make sure you quote from the relevant parts list in the event you need to order missing or damaged parts.

AB
CD
ae
3
1
e
e
e
e
2
e
Place the panels on top
of the base making sure
that they are all tight
and flush before fixing
the panels together
using 3 x 50mm screws
for each corner.
Fix the front and back
panels to the floor
screwing down through
the bottom batten from
inside the unit using 3 x
50mm screws for each
panel.
f
f
f
f
f
f
f
f
f
f
5
6
8mm
10
9
16
Place the angled boards against the
front and back panels as shown to
create an apex. Fix each board in
place using 3 x 25mm screws.
fd fd fd
16 is for the
Overlap Garden
Store only.
Fix each of the corner strips
along the edges so that they
are flush and fix each in
place using 4 x nails.
f
f
f
f
Board and bearer
must be flush
Floor Assembly
PRE-DRILL PRE-DRILL PRE-DRILLPRE-DRILL

EF
GH
d
x 6
The top of the hinge should be in
line with the horizontal batten.
Fix the smaller
piece of the hinge
to the door.
ac
ag ab
8
Place and fix a turn button on the
top and bottom of the batten.
11
12
12
13
f
f
f
f
f
f
ff
ff a
d
x 2
Fix the roof board to the battens as
shown using nails.
Repeat for the other roof section.
Slot the roof sections so that they line up at the apex. Fix these from the inside screwing through
the apex boards into the 296mm battens using 2 x 25mm screws for each.
4
8
f
f
f
f
The batten should be fixed so it is
tight against the horizontal battens
on the reverse of the door and offset
14mm from the top.
f
Apex
Boards
Slamming Strip
PRE-DRILL PRE-DRILL PRE-DRILLPRE-DRILL
28mm
Offset 14mm
at the top

IJ
K
PRE-DRILL PRE-DRILL PRE-DRILL
7
15
14
d
d
d
d
d
d
d
d
d
dPosition and line up the hasp
and staple with framing on the
inside of the door.
a
d
x 7
Fix the 481mm board to two of the 70mm battens.
These should be flush with the short side and off
set 10mm from the long. Fix the battens in place
using 2 x 25mm screws for each.
Repeat this with the remaining blocks and board.
ah
Take care when
trimming the roof
felt.
17
ah
ah
Place the felt over the roof so that there is
approximately a 45mm overhang on all sides.
Secure the felt to the roof, nailing into the
ba! ens from the sides and in 150mm
intervals.
Cut and fold the felt at the corners as shown.
Forest Garden Ltd. | Unit 288 | Oak Drive | Hartlebury Trading Estate | Hartlebury | Worcestershire | DY10 4JB Issue 0617
J
L
PRE-DRILL
Make sure that the screws are
positioned so that each locates
into the batten.
