Forest garden 8 x 6 T & G SHED User manual

8’ x 6’ T & G SHED
Fixing Pack (MTGSH86V2FP) Not to Scale
REQUIRED TOOLS :
(NOT SUPPLIED)
TAPE MEASURE
HAMMER
Issue 0319
FELT
B
MTGSH86PE
PLAIN END
MTGSH86WS
WINDOW PANEL
MTGSH86PS
PLAIN PANEL
MTGSH86RF
ROOF BOARD
QTY 2
FELT81RED
QTY 1
C D E G J F
95180135PPT
135mm LOCK BLOCK
QTY 1
FIN20510012PPT
FINIAL
QTY 2
A
Place the panels on top of the completed floor. Make sure that all the panels are tight and flush before fixing them
to each other using 3x50mm screws.
When the panels are secured to each other, make sure they are square and fix to the floor using 3x50mm screws
for each panel ensuring that the screws are located into the bearers underneath.

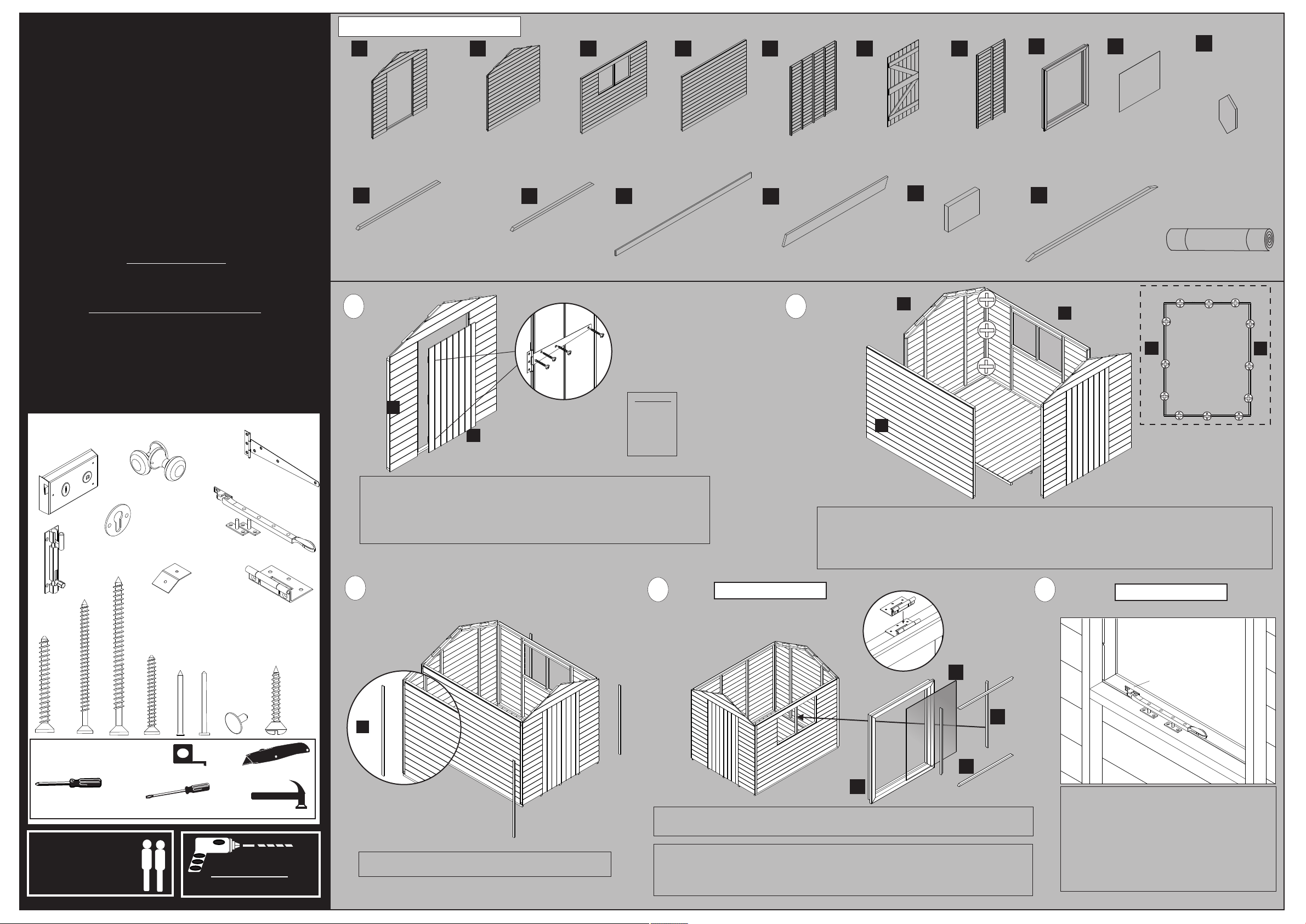

MTGSH86 PARTS LIST
4
1
3
MTGSH46FL
FLOOR
QTY 2
MTGSH86DR
DOOR
MTGSH86DE
DOOR END
57121710PPT
1710mm CORNER STRIP
QTY 4
BARGE BOARD
QTY 4
HOP
N
H
M
F
Top View
2B
C
D
C
Shoot Bolt
Cranked Hinge
Qty 2
30mm Screw Qty 28
50mm Screw Qty 27
25mm Screw Qty 18
Ridge Plate
Place the corner strips so that they cover the joins between the
panels. Fix each in place using 3x30mm screws.
IMPORTANT, RETAIN FOR FUTURE REFERENCE;
READ CAREFULLY
This buildings is pressure treated to ensure longevity of all
timber components and to protect against rot. This may
leave a colour difference on some parts that will even out
as the moisture content stabilises. This will not require
additional treatment.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Please keep all plastic bags and small parts away from
children
- The roof of this building is not a load bearing structure.
- This product must be built on a solid level base.
- Please use suitable gloves when handling glass.
Technical Help line: 0333 7777 089 8.30 am to 5.00
pm Monday to Friday.
Check all parts prior to assembly
In line with your statutory rights, please check all parts
prior to assembly, as assembly of damaged parts may be
deemed to be acceptance and this may affect the
remedies you are entitled to. If the product is not
constructed in accordance with the instructions, or is
altered in anyway (e.g. painted), the manufacturer cannot
be held liable for any resulting damage.
25mm Nail Qty 4
DRIP STRIP
QTY 1
MTGWIN
WINDOW
QTY 2
A
Attention:
Take care
when placing
the screws.
These can
not be
backed out.
Place and secure two hinges to the door so that they line up with the battens on the
reverse, using 25mm Security Screws for each.
Place the door into the door end ensuring that the door is square. Fix the doors in place
using 3x25mm Security Screws for the other section of each hinge.
D
M
M
H
Place the acrylic sheet inside the window frame and position the beading so that
each section fits flush and keeps the sheet tight. Fix each piece using 3 x Panel Pins.
L
K
I 12mm Offset
Place and fix the Casement Stay centrally
against the inside of the opening window and
make sure it is offset at least 12mm from the to
top of the frame so as not to hit the acrylic sheet.
Fix in place using 2 x 25mm screws.
Mark the position of the holes of the casement
stay when the window is closed before fixing the
pins in place using the 25mm screws provided.
5
40mm Screw Qty 32
10mm Felt Tacks
Qty 100
25mm Countersunk
Security Screws Qty 14
Casement Stay Qty 1
25mm Panel Pins Qty 28
Tee Hinge Qty 2
Important : Assembly of
this shed requires a
minimum of two adults. Must Pre drill for
each screw used.
Escutcheon
Rim Lock
Handle Set
I
XT623502
ACRYLIC SHEET
QTY 2
HL
HK
15120508PAII45PT
508mm GLAZING STRIP
QTY 4
15120629PAII45PT
629mm GLAZING STRIP
QTY 4
For the opening window fix two cranked hinges to the top of the window so that it
sits in the rebate. Fix the smaller section of the hinge to the window using 2 x 25mm
screws for each. Open up the hinges and fix the remaining section of each hinge to
the top of the window panel using another 3 x 25mm screws for each hinge.
Opening Window
Opening Window
POZI DRIVE
SCREWDRIVER
SHARP KNIFE
FLAT HEAD
SCREWDRIVER

9
10
8
12
7
Forest Garden Ltd, Unit 288 Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
Lift the roof sections in place so that they sit level on all sides and lock over the locating
battens on the end panels as illustrated.
From inside the shed fix the two sections together using the ridge plate provided and 2 x
25mm screws.
Fix each roof section in place using 4 x 30mm screws at each end, screwing into the
locating battens and 3 x 40mm screws along the eaves.
11
Biocidal Product Regulation (EU 528/2012) Article 58 Information
This article contains timber treated with Celcure AC-500, incorporating biocidal products to give protection against wood destroying insects & wood rotting fungi.
Contains: Basic copper carbonate (Copper (II) carbonate – Copper (II) hydroxide (1:1)), Boric acid, Benzalkonium chloride.
Wear gloves when handling freshly treated wood. Avoid breathing dust when cutting treated or untreated wood. Dispose of off-cuts responsibly – do not burn.
Unroll the felt and cut it into three equal lengths. Place a section on each eaves so that
there is a 50mm overhang on each edge as shown. Fix this to the roof using felt nails
spaced in 150mm intervals. Cut and fold the corners securing with a single felt nail for
each.
Place the remaining section as shown making sure that the it overlaps the others. Again
secure each sheet in place using felt nails spaced in 150mm intervals.
Fix the lock block to the back of the door using 4 x
25mm nails, nailing through the outside of the door first.
Place the Shoot Bolt against the block and secure this
in place using the screws provided.
25mm’s
Place the barge boards against the ends of the building so that
they are flush with the overhang of the roof and in line with the
top. Fix each in place using 3x40mm screws.
Place the finials over the join making sure they are centred.
Secure in place using 2x40mm screws for each.
ATTENTION:
1.THE ROOF IS NOT
LOAD BEARING.
2.TAKE CARE WHEN
CUTTING THE ROOF
FELT.
Place the Drip Strip against the door
end above the door and fix it in place
using 3 x 50mm screws.
J
N
P
O
G
Maintenance.
Regularly check that all fixings are secure.
Regularly check the quality of the roofing felt and that it is free of holes and splits.
Fix the escutcheon over the key hole using the small screws provided
6
Before glazing the remaining window place the window frame into the window side
and fix it to the framing using 8 x 40mm screws, making sure that the screw heads
are flush. (Pre-drill)
Glaze the window the same as you have done previously in step 4.
13
Place the lock against the framing as shown and using a pencil mark the position where the
key hole and spindle will be.
For the key hole we recommend a whole 25 x 10mm.
Fix the lock and handles in place using the screws provided.
Notch a small recess opposite the lock 5mm deep and fix the receiver to the batten using the
screws provided.
75mm
24mm
