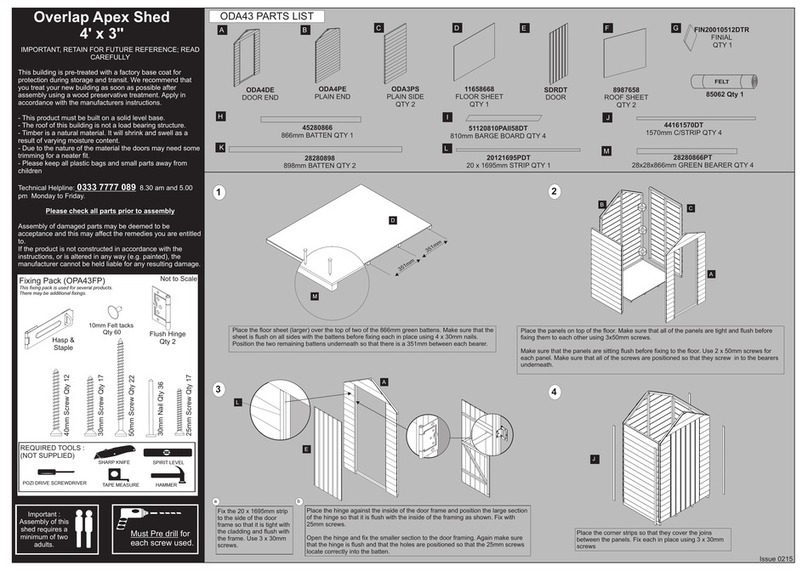

Forest garden Overlap Apex Shed 4x3 User manual

Overlap Apex Shed
4' x 3''
Important :
Assembly of this
shed requires a
minimum of two
adults.
Issue 0115
B
OPA4PE
PLAIN END
8987658
ROOF SHEET
QTY 2
E
A
OPA43 PARTS LIST
BRDFL43
FLOOR
SDRPT
DOOR
OPA4DE
DOOR END
44121570PT
1570mm C/STRIP QTY 4
H
K
H
45280866PT
866mm BATTEN QTY 1
F
Place the corner strips so that they cover the joins
between the panels. Fix each in place using 3 x 30mm
screws
A2
4
11
C
OPA3PS
PLAIN SIDE
QTY 2
J
3
REQUIRED TOOLS :
(NOT SUPPLIED)
POZI DRIVE SCREWDRIVER
SPIRIT LEVEL
TAPE MEASURE HAMMER
51120810PAII58PT
810mm BARGE BOARD QTY 4
I
A
Must Pre drill for
each screw used.
28280898PT
898mm BATTEN QTY 2
J
FELT
85062 Qty 1
C
Fixing Pack (OPA43FP)
This fixing pack is used for several products.
There may be additional fixings.
Not to Scale
Flush Hinge
Qty 2
50mm Screw Qty 22
30mm Nail Qty 36
25mm Screw Qty 17
Hasp &
Staple
30mm Screw Qty 17
10mm Felt tacks
Qty 60
GFIN20010512PT
FINIAL
QTY 1
20121695PPT
20 x1695mm STRIP QTY 1
L
A
Fix the 20 x 1695mm strip to the side
of the door frame so that it is tight
with the cladding and flush with the
frame. Use 3 x 30mm screws.
L
SHARP KNIFE
D
Place the hinge against the inside of the door frame and
position the large section of the hinge so that it is with the
inside of the framing as shown and fix with 25mm screws.
Open the hinge and fix the smaller section to the door
framing. Again make sure that the hinge is flush and that the
holes are positioned so that the 25mm screws locate
correctly into the batten.
AB
ab
E
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This buildings is pressure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises. This will not need additional
treatment.
- This product must be built on a solid level base.
- The roof of this building is not a load bearing structure.
- Please keep all plastic bags and small parts away from
children.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
Technical Helpline: 0333 7777 089 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in any way (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
40mm Screw Qty 12
flush
H
Place the 866mm batten so that it connects the door end and plain end.
Fix this in position using a 50mm screw for each end as shown.
Place the panels on top of the floor. Make sure that all of the panels are tight and flush before
fixing them to each other using 3x50mm screws.
Make sure that the panels are sitting flush before fixing to the floor using 2 x 50mm screws for
each panel. Make sure that all of the screws are positioned so that they screw in to the bearers
underneath.

6
Forest Garden Ltd, Unit 288 Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
Maintenance.
Regularly check all fixings are secure and the roofing felt has no holes or tears.
Sand off any rough/sharp edges.
Biocidal Product Regulation (EU 528/2012) Article 58 Information
This article contains timber treated with Celcure AC-500, incorporating biocidal products to give protection against wood destroying insects & wood rotting fungi.
Contains: Basic copper carbonate (Copper (II) carbonate – Copper (II) hydroxide (1:1)), Boric acid, Benzalkonium chloride.
Wear gloves when handling freshly treated wood. Avoid breathing dust when cutting treated or untreated wood. Dispose of off-cuts responsibly – do not burn.
7
Lift the roof sections in to place making sure that they are in line with the apex and
the door and plain ends.
Fix the roof in place using 30mm nails spaced in approximately 300mm intervals.
(Make sure the nails locate into the framework of the panels)
Place the barge boards against the front and back of the
shed. Make sure that these are in line with the roof sheet
and meet at the apex. Fix each in place using 3 x 40mm
screws.
Place a finial over the top of where the barge boards meet
and fix it in place using 2 x 30mm screws.
Unroll the felt and cut it in to two equal lengths. Place the
sheets on each side so that there is a 50mm overhang on the
eaves and they overlap at the apex. Fix these to the roof using
felt nails spaced in 150mm intervals. Cut and fold the corners
securing with a single felt nail for each.
8
5
I
9
Place the roof board on to one of the 898mm battens. Make sure that the
board is flush on all sides.
Fix each batten in place using 30mm nails spaced in 300mm intervals.
(Repeat for the other roof section)
K
JF
G
Attention
Take care when
cutting and
trimming the roof
felt.
Place the hinge against the inside of the door frame and position the
large section of the hinge so that it is flush with the inside of the
framing as shown. Fix with 25mm screws.
Open the hinge and fix the smaller section to the door framing. Again
make sure that the hinge is flush and that the holes are positioned so
that the 25mm screws locate correctly into the batten.
