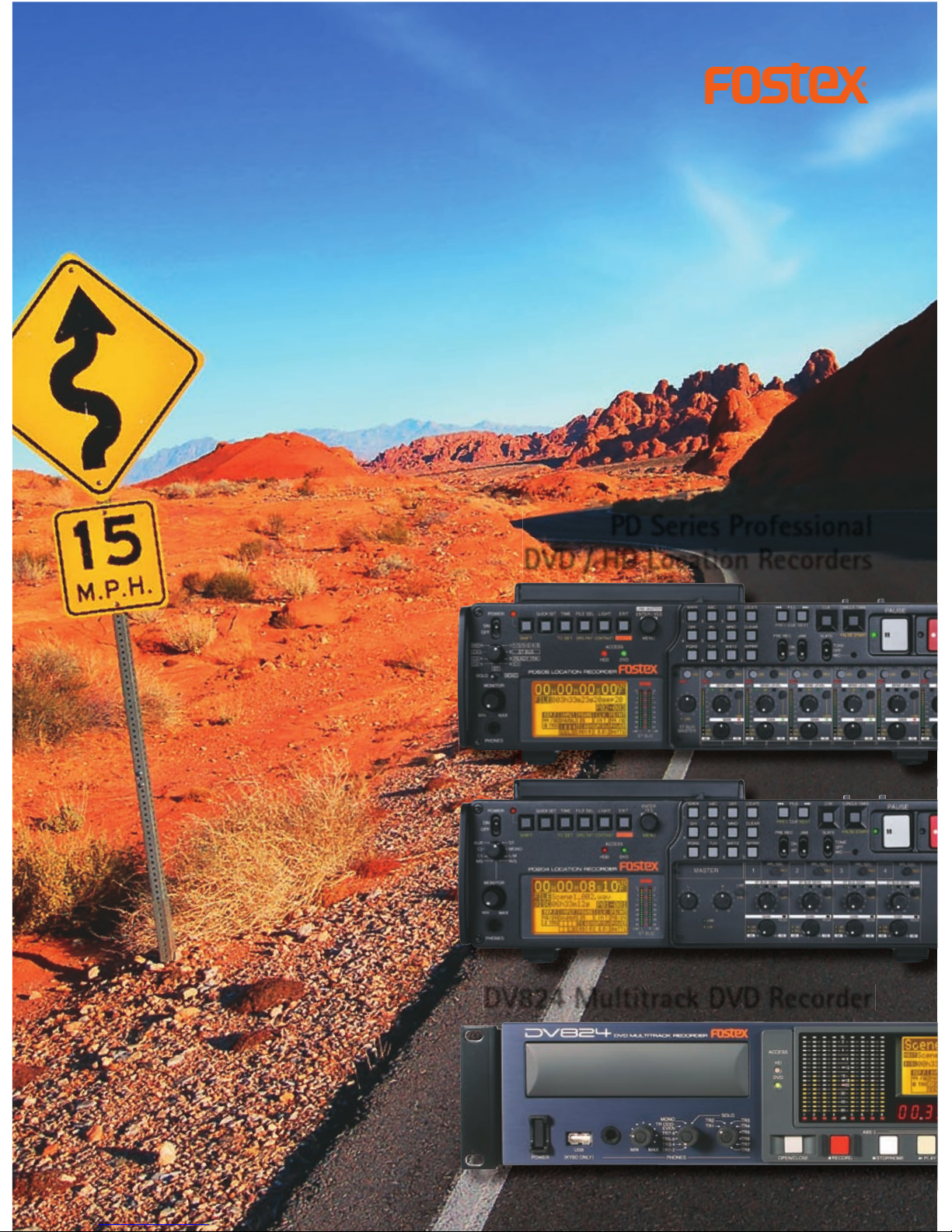

Fostex DV-824 User manual

PD Series Professional
DVD / HD Location Recorders
DV824 Multitrack DVD Recorder

Portable Location Recorders
PD204
PD606

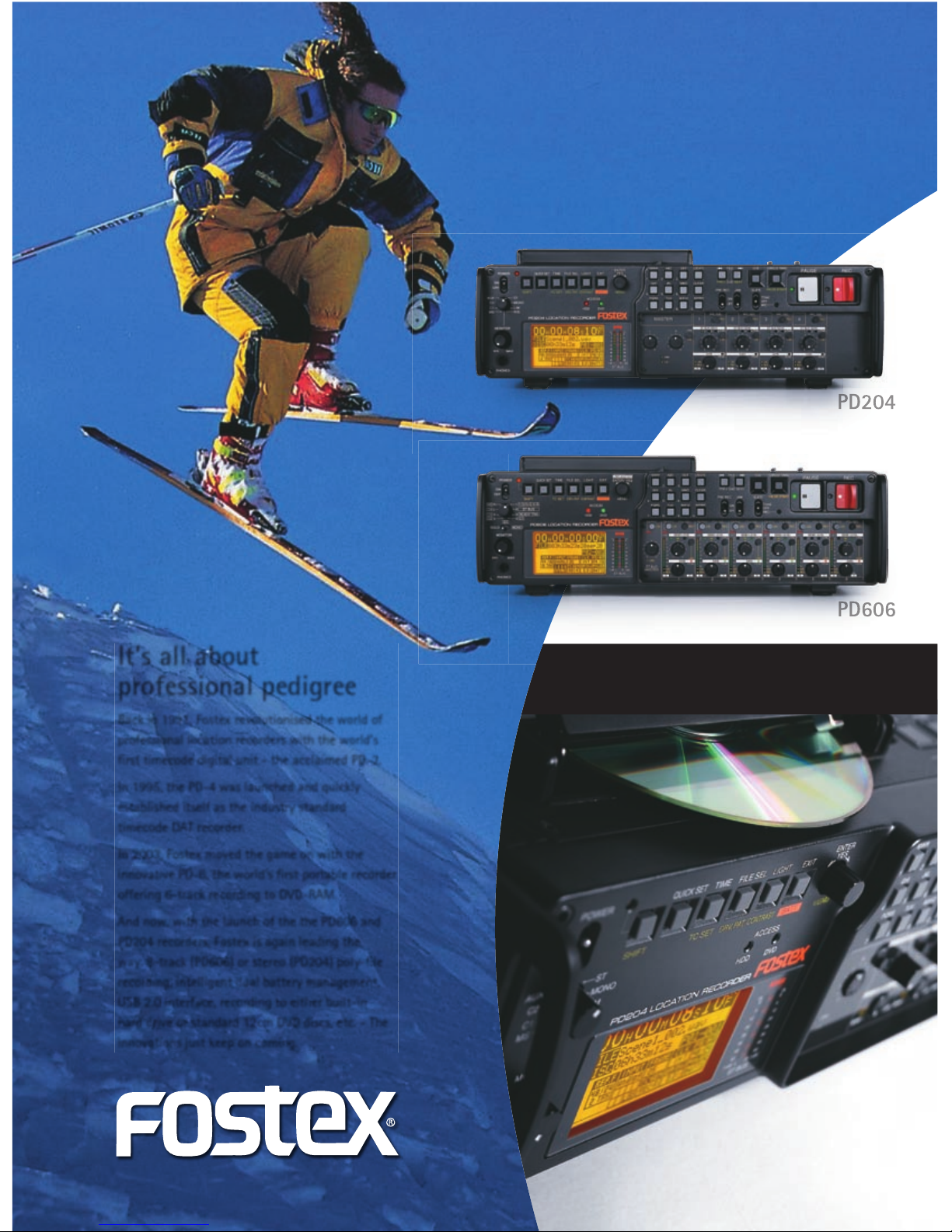

It’s all about
professional pedigree
Back in 1991, Fostex revolutionised the world of
professional location recorders with the world’s
first timecode digital unit - the acclaimed PD-2.
In 1995, the PD-4 was launched and quickly
established itself as the industry standard
timecode DAT recorder.
In 2003, Fostex moved the game on with the
innovative PD-6, the world’s first portable recorder
offering 6-track recording to DVD-RAM.
And now, with the launch of the the PD606 and
PD204 recorders, Fostex is again leading the
way. 8-track (PD606) or stereo (PD204) poly-file
recording, intelligent dual battery management,
USB 2.0 interface, recording to either built-in
hard drive or standard 12cm DVD discs, etc. - The
innovations just keep on coming.
PD606
PD204

Extended battery life
New for the PD606 and PD204 are V-
Mounts for mounting Endura battery cells.
With each battery offering up to 4 hours
of operation and intelligent power man-
agement, these recorders are always ready
for that important take.
USB 2.0 data transfer
The new PD series offer a high-speed USB
2.0 port for easy data transfer of files to a
PC or Mac for further audio editing.
Timecode and sync
Typically with a professional Fostex
machine, timecode implementation is
exemplary with ±1ppm (0.0001%) accuracy
for recording and playback of SMPTE format
timecode. Jam Sync, VIDEO, WORD, DIGITAL
and Tri-Level sync also available.
HD and DVD recording
Direct recording at 24bit/192kHz to either
internal hard drive, standard 12cm DVD-
RAM discs or both at the same time.*
Up to 8 tracks
The PD606 can record up to 8 tracks of
audio simultaneously (6 channels analog
+ stereo mix tracks or 8 channels digital),
to industry standard BWF files. The PD204
can record 2 tracks from 4 channels of
analog or 2 channels of digital.
Real knobs and switches
Both the PD606 and PD204 feature an
army of real knobs, switches and buttons.
The ‘analog’ nature is a direct result of
our dialog with professional users who
value the ability to control and use their
machines without scrolling through mul-
tiple menus on a screen.
03H 02M 52S 05F 43SF
Portable Location Recorders
Portable Professional DVD / HD Location Recorders
Carrying on from the revered PD-6, Fostex are proud to announce the new PD606 and PD204
professional location recorders - the culmination of years of market research canvassing opinion from
our professional users, listening to their needs and acting upon their experience.
Designed from the ground up to excel in ‘real-world’ applications, both offer spectacular audio quality,
flexible multi-drive recording options, rock solid timecode implementation, extended battery life, loads of
‘instant access’ knobs, buttons and switches plus a whole battery of interface options.
But impressive features are only part of the script. Fostex’s unrivalled pedigree in designing and
manufacturing world class location recorders for over 16 years and our unique understanding of the
broadcast, film, tv and audio acquisition environments means that these new recorders aren’t just the
best PD recorders ever, they’re simply the best professional location recorders available today.
PD Series
The new PD machines can
record to either internal hard
disc drive, DVD-RAM, or both
simultaneously.
Feature films
Documentary
Broadcast
TV
*Direct recording to DVD-RAM requires the unit to be mounted horizontally on a stable surface.
Mirror recording up to 48kHz/8trk or 96kHz/2trk

PD204
* Mirror recording up to 48kHz/6trk or 96kHz/2trk. †Future firmware update
Portable Location Recorders
PD204
The PD204 offers identical timecode implementation
and smart battery management as the PD606, but
can only record to 2 tracks simultaneously.
PD204 Main Features
2 track simultaneous recording
4 ch Analog inputs (XLR)
2 ch Analog outputs (XLR),
2 ch AES/EBU Digital I/O’s (XLR)
Recording to (user replaceable) 1.8” 80GB
HDD (Model EX-HD1) and 12cm DVD-RAM
Backup to DVD-RAM, -R and -RW disc.
Approx. 256 min recording at 24bit/ 48kHz
per 4.7GB DVD-RAM or HDD partition
Recording across multiple HD partitions
Mirror recording to HD and DVD*
BWF file format files - easily imported into
PC editing software with TC.
24bit audio at 44.1/ 48/ 88.2/ 96/ 176.4/
192kHz, 16bit audio at 44.1/ 48kHz
Digital Mixer with Analog like operation.
Equipped with channel link, HPF and limiter
0.1% Fs pull up/down
Automatic file closing every 60 seconds
10 seconds (max) of pre record to minimises
the risk of missing the start of a take
USB 2.0 interface for mounting HDD
partitions as well as DVD-RAM contents on
PC desktop
Two battery V-Mounts (up to 4 cells
mounted)
AUX input for headphone monitoring of
audio from a camcorder
9 pin remote port enabling connection of
a 2nd PD606 or PD204 for simultaneous
recording†
Fully functional SMPTE Timecode generator
with jam sync to external TC
VIDEO, Tri-Level and WORD sync available
PD606
Recording to 80GB HD and 12cm DVD
Both the PD204 and PD606 records audio to the
internal (user replaceable) 1.8-inch 80GB hard disc
drive (HDD) and standard-size 12cm DVD-RAM discs.
In addition simultaneous recording to both media is
available either by mirroring or auto-copy. Further
confidence is offered with an intelligent ‘background
mode’ which automatically copies recorded audio from
the HDD to DVD when the machine is idling. The DVD
drive can also write to DVD-R/RW and CD-R/RW discs
for easy data copy / backup.
Digital mixing and 8-track recording
Following Fostex’s philosophy of ‘real knobs and
buttons are better’, recording, mixing and routing on
these new recorders is an intuitive experience. No
multiple button pushes and complex menus to change
a level, just turn a knob. Yet don’t confuse ease of use
with a lack of features as these units offer a multitude
of mixing options and recording sophistication. The
PD606 for example offers flexible 8 track simultaneous
recording via AES/EBU, (6 channels when using the
analog XLR inputs), full 8 channel analog outputs and
the ability to digitally store monitor mix settings.
Intelligent battery management
Battery life is perhaps one of the most important
features of a location recorder and it’s here these
new machines really show their class. Not one, but
two standard V-mounts are offered for with the user
being in control of power management. Choose BATT.1,
BATT.2 or External DC power. A smart function switches
which battery is used when the primary source voltage
falls below user-definable level.
High speed data transfer to PC / Mac
When connected to a host computer via the USB 2.0
interface, the recorder can be directly mounted on the
desktop for easy drag and drop data copying. Future
enhancements will include the ability to use USB 2.0
flash memory pens. A standard QWERTY keyboard can
also be connected for easy file name editing.
Sophisticated timecode facilities
These being Fostex recorders, the implementation of
timecode is beyond reproach with an incredible ±1ppm
accuracy. That’s 0.0001% accuracy for both recording
and playback of IEC format timecode with Jam Sync
also available. Four modes of timecode are offered:
24H RUN (sync to the internal clock); REC RUN; FREE
RUN; and EXT RUN with 7 frame rates (23.97, 24, 25,
29.97ND, 29.97DF, 30ND, 30DF).
Professional operation, rugged reliability
Use a PD606 or PD204 in the field and you’re
immediately aware that Fostex know a thing or two
about professional location recording. At almost
every point in the acquisition process there are clues:
Automatic file closing in the background every 60
seconds means fast data recovery in the event of a
power outage, 10 seconds (max) of pre-record means
never missing the beginning of a take, the 99 cue
point memory, an Avid™ compatible EDL file (ALE) can
be created and edited, a 9pin remote connector for
simultaneous recording using two PD606 or PD204s,
the crystal clear 16 segment LED metering, the slate
tone generator with hold mode, etc., the list goes on.
These units are also tough, being manufactured from
ultra-durable materials specifically designed for a busy
life in the field.
Up to 24bit / 192kHz audio
No MP3. No compression. No short cuts. No
compromise. The new PD606 and PD204 simply feature
sonically superior recording at up to 24-bit / 192kHz
resolution.

The PD606 displays no shortage
of interface options with full 6
channel analog I/O, AES-EBU
digital I/O, timecode and more.
PD606
PD606 Main Features
8 track poly file recording. 6 individual
tracks + 2 stereo mix tracks or straight 8
track recording via 6 ch Analog I/O (XLR)
or 8 channel AES/EBU Digital I/O’s
(D-sub25pin)
Using the Stereo Bus output (XLR-5pin)
together with the 6 channel discrete
analog outputs creates 8 simultaneous
analog outputs
Recording to (user replaceable) 1.8” 80GB
HDD (Model EX-HD1) and 12cm DVD-RAM
Backup to DVD-RAM, -R and -RW disc.
Approx. 85 min recording at 24bit/ 48kHz
per 4.7GB DVD-RAM or HDD partition
Recording across multiple HD partitions
Mirror recording to HD and DVD*
BWF file format files - easily imported into
PC editing software with TC.
8 track recording using 24bit/16bit,
44.1/48kHz, 6 track recording using 24bit,
88.2/96kHz (HDD only), 2 track recording
using 24bit, 176.4/192kHz
Digital Mixer with Analog like operation.
Equipped with channel link, HPF and limiter
0.1% Fs pull up/down
Automatic file closing every 60 seconds
10 seconds (max) of pre record to minimises
the risk of missing the start of a take
USB 2.0 interface for mounting HDD
partitions as well as DVD-RAM contents on
PC desktop
Two battery V-Mounts (up to 4 cells
mounted)
9 pin remote port enabling connection of
a 2nd PD606 or PD204 for simultaneous
recording†
Fully functional SMPTE Timecode generator
with jam sync to external TC
VIDEO, Tri-Level and WORD sync available
Recording to 80GB HD and 12cm DVD
Both the PD204 and PD606 records audio to the
internal (user replaceable) 1.8-inch 80GB hard disc
drive (HDD) and standard-size 12cm DVD-RAM discs.
In addition simultaneous recording to both media is
available either by mirroring or auto-copy. Further
confidence is offered with an intelligent ‘background
mode’ which automatically copies recorded audio from
the HDD to DVD when the machine is idling. The DVD
drive can also write to DVD-R/RW and CD-R/RW discs
for easy data copy / backup.
Digital mixing and 8-track recording
Following Fostex’s philosophy of ‘real knobs and
buttons are better’, recording, mixing and routing on
these new recorders is an intuitive experience. No
multiple button pushes and complex menus to change
a level, just turn a knob. Yet don’t confuse ease of use
with a lack of features as these units offer a multitude
of mixing options and recording sophistication. The
PD606 for example offers flexible 8 track simultaneous
recording via AES/EBU, (6 channels when using the
analog XLR inputs), full 8 channel analog outputs and
the ability to digitally store monitor mix settings.
Intelligent battery management
Battery life is perhaps one of the most important
features of a location recorder and it’s here these
new machines really show their class. Not one, but
two standard V-mounts are offered for with the user
being in control of power management. Choose BATT.1,
BATT.2 or External DC power. A smart function switches
which battery is used when the primary source voltage
falls below user-definable level.
High speed data transfer to PC / Mac
When connected to a host computer via the USB 2.0
interface, the recorder can be directly mounted on the
desktop for easy drag and drop data copying. Future
enhancements will include the ability to use USB 2.0
flash memory pens. A standard QWERTY keyboard can
also be connected for easy file name editing.
Sophisticated timecode facilities
These being Fostex recorders, the implementation of
timecode is beyond reproach with an incredible ±1ppm
accuracy. That’s 0.0001% accuracy for both recording
and playback of IEC format timecode with Jam Sync
also available. Four modes of timecode are offered:
24H RUN (sync to the internal clock); REC RUN; FREE
RUN; and EXT RUN with 7 frame rates (23.97, 24, 25,
29.97ND, 29.97DF, 30ND, 30DF).
Professional operation, rugged reliability
Use a PD606 or PD204 in the field and you’re
immediately aware that Fostex know a thing or two
about professional location recording. At almost
every point in the acquisition process there are clues:
Automatic file closing in the background every 60
seconds means fast data recovery in the event of a
power outage, 10 seconds (max) of pre-record means
never missing the beginning of a take, the 99 cue
point memory, an Avid™ compatible EDL file (ALE) can
be created and edited, a 9pin remote connector for
simultaneous recording using two PD606 or PD204s,
the crystal clear 16 segment LED metering, the slate
tone generator with hold mode, etc., the list goes on.
These units are also tough, being manufactured from
ultra-durable materials specifically designed for a busy
life in the field.
Up to 24bit / 192kHz audio
No MP3. No compression. No short cuts. No
compromise. The new PD606 and PD204 simply feature
sonically superior recording at up to 24-bit / 192kHz
resolution.

RECORDING / PLAYBACK
Recording Medium HD/DVD-RAM/DVD-R/DVD-RW
Recording Time approx. 85 min. (48kHz/24bit/6trk)
HD partition or DVD-RAM)
File Format BWF (Broadcast Wave Format)
Sampling Frequency 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Quantization 16-bit linear (44.1 / 48 kHz)
24bit linear (44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz)
No. of Recording Track 1 – 8 tracks (4trk – 88.2/96kHz, 2trk – 176.4/192kHz)
Recording/Reproduction Frequency 20 Hz - 20 kHz +-1dB (FS 44.1/48kHz)
20 Hz - 40 kHz +-2dB (FS 88.2/96kHz)
20 Hz - 70kHz +-3dB (FS 176.4/192kHz)
Dynamic Range more than 110dB (typical)
T.H.D. less than 0.008% (1kHz, -1dBFS,typical)
Reference Level -20dB
AUDIO INPUTS / OUTPUTS
Analog In
Connector XLR-3-31 type (balanced) x 6
Input Level -32 to +4dBu (LINE) / -70dBu (MIC)
Max Input Level +24dBu (LINE) / -14dBu (MIC)
Input Impedance more than 10k ohm (LINE) / more than 2k ohm (MIC)
Analog Out
Connector XLR-3-32 type (balanced) x 6
Ref Output Level +4dBu
Max Output Level +24dBu
Load Impedance more than 10k ohm
Stereo Buss (TRK7~8) Out
Connector XLR-5-32 type (balanced)
Ref Output Level +4dBu / -10dBu / -60dBu (selectable)
Max Output Level +24dBu
Load Impedance more than 10k ohm
Digital I/O
Connector D-sub25pin
Format AES/EBU(IEC60958) or S/P DIF(IEC60958)
SYNC INPUTS / OUTPUTS
Timecode In
Connector XLR-3-31 type
Format SMPTE/EBU
Ref Input Level 2Vp-p
Min Input Level 0.25Vp-p
Input Impedance more than 20k ohm
Timecode Out
Connector XLR-3-32 type
Format SMPTE/EBU
Ref Output Level 2Vp-p
Output Impedance less than 1k ohm
Load Impedance more than 600 ohm
WORD/VIDEO In BNC type (automatic)
Ref Input Level: TTL with 75 ohm terminator SW
WORD Out BNC type
Ref Output Level: TTL
USB
For PC Connector B type (USB2.0)
For HOST Connector A type (Keyboard USB1.1, Device USB2.0)
Phones
Connector 6.3mm dia. Stereo Phone
Maximum Output more than 200mW (32 ohm loaded)
Load Impedance more than 32k ohm
Parallel Remote Mini DIN 8pin
9PIN Remote D-SUB 9pin, Protocol: Sony 9pin (P2)
DC In (DC11.5 ~ 24V) XLR4-32 type
DC Out Hirose 4pin (HR10A-7R-4S, female), Max 0.5A
GENERAL
Dimensions 116.5(H) x 325(W) x 234(D) mm
Weight Approx. 3.4kgs
Power Requirement IDX Endura V-mount battery
AD-15C (optional)
Power Consumption 16W
PD606 Specifications
RECORDING / PLAYBACK
Recording Medium HD/DVD-RAM/DVD-R/DVD-RW
Recording Time approx. 256 min. (48kHz/24bit/2trk)
HD partition or DVD RAM)
File Format BWF (Broadcast Wave Format)
Sampling Frequency 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Quantization 16-bit linear (44.1 / 48 kHz)
24bit linear (44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz)
No. of Recording Track 2 tracks
Recording/Reproduction Frequency 20 Hz - 20 kHz +-1dB (FS 44.1/48kHz)
20 Hz - 40 kHz +-2dB (FS 88.2/96kHz)
20 Hz - 70kHz +-3dB (FS 176.4/192kHz)
Dynamic Range more than 110dB (typical)
T.H.D. less than 0.008% (1kHz, -1dBFS,typical)
Reference Level -20dB
INPUTS / OUTPUTS
Analog In
Connector XLR-3-31 type (balanced) x 4
Input Level -32 to + 4dBu (LINE) / -70dBu (MIC)
Max Input Level +24dBu (LINE) / -14dBu (MIC)
Input Impedance more than 10k ohm (LINE) / more than 2k ohm (MIC)
Analog Out
Connector XLR-3-32 type (balanced) x 2
Ref Output Level +4dBu
Max Output Level +24dBu
Load Impedance more than 10k ohm
AUX In
Connector XLR-5-31 type (balanced)
Ref Input Level +4dBu / -10dBu / -60dBu (selectable)
Max Input Level +24dBu
Load Impedance more than 10k ohm
Digital I/O
Connector XLR-5-31 type (Input) / XLR-3-32 type (Output)
Format AES/EBU(IEC60958) or S/P DIF(IEC60958)
SYNC INPUTS / OUTPUTS
All timecode and sync specifications as per PD606
GENERAL
Dimensions 116.5(H) x 325(W) x 234(D) mm
Weight Approx. 3.3kgs
Power Requirement IDX Endura V-mount battery
AD-15C (optional)
Power Consumption 13W
PD204 Specifications
DVD Multi Drive
PD606 and PD204 both feature a DVD multidrive. In
additions to recording direct to DVD-RAM discs, the
drive also backs up and copies data to DVD-R/RW
and CD-R/RW.
Optonal Accessories (for PD606 and PD204)
Fostex Accesories
EX-HD1
Pre-formatted 80GB HDD unit
AD-15C
AC Adapter
EX-BP1
Replacement V-connector Panel
for IDX A-NH2E
ZP-62
PortaBrace™ Carrying Case for
PD606 / PD204
IDX Accesories
ENDURA-10 (E-10) 98Wh
ENDURA-7 (E-7) 71Wh
Lithium Ion V-Mount Battery Packs with
Power Link*
NH-100
Single NP Battery Holder
IDX A-NH2E
V-Mount Adaptor Plate for NP/BP battery
holder*
NH-100
Single NP Battery Holder*
Digital Mixing
PD606 and PD204 both feature on-board digital
mixers with rotary controls for gain and buss send
and pan. The PD606 also has the ability to select and
store channel combinations to output from Monitor.
Channel LED Indicators
PD606 features individual metering for each channels
for more precise mixing.
Specifications
EX-HD1
IDX NH-100
IDX ENDURA-7 (E-7)
IDX A-NH2E
Dual Battery V-mounts
Both recorders are equipped with dual V-mounts
and intelligent battery management with auto cell
switching on low voltage levels. Fostex recommends
Endura™ cells from IDX Co., Ltd. Conventional NP-
type batteiers can be used with the dedicated holder
from IDX with the optional EX-BP1 attachment.
Recording Times
All times are in minutes
3,5,7TRK omitted
*HDD recording only
PD606 16-BIT 24-BIT
4.7GB 44.1kHz 48kHz 44.1kHz 48kHz 88.2kHz 96kHz 176.4kHz 192kHz
MONO 838 770 558 513 279 256 139 128
2-TRK 419 385 279 256 139 128 69 64
4-TRK 209 192 139 128 69 64 - -
6-TRK 140 128 93 85 *46 *42 - -
8-TRK 105 96 70 64 - - - -
PD204 16-BIT 24-BIT
4.7GB 44.1kHz 48kHz 44.1kHz 48kHz 88.2kHz 96kHz 176.4kHz 192kHz
2-TRK 419 385 279 256 139 128 69 64
* IDX products are not
supplied from Fostex.
For details,
visit www.idx.tv
D
™

DV824 Main Features
Up to 8-track simultaneous recording at
24bit/48kHz. Up to 4-track simultaneous
recording at 24bit/96kHz
New v2 software allows recording across
multiple HD partitions
Analog balanced XLR inputs and outputs
for all 8 channels
AES/EBU digital I/O for connection to
analog and digital audio mixers
Flexible AC or DC (for location use) power
operation
BWF file format and UDF disk format
combine for excellent PC/Mac
compatibility
Playback of disks recorded on both Fostex
PD204, PD606, DV40 and PD-6.
High-speed 10/100Base-T Ethernet
Flexible programmable playback function
Interface expansion available via optional
cards (fitted at a Fostex service centre)
Optional Timecode/Sync (Model 8348)
card allows for both internally-generated
and external timecode with +/-1ppm
accuracy to be integrated into the
recording process. An LTC offset can be set
independently for each file
Bi-Phase input included on Timecode/Sync
card for synchronization to film projectors
Optional Hard Drive (Model 9058) allows
for Dual Disk Recording as well as
Auto Backup functions
Optional IEEE1394/USB 2.0 (Model 8370)
for fast data transfer to/from PC/Mac
DV824
Up to 8-track simultaneous recording at
24bit/48kHz. Up to 4-track simultaneous
New v2 software allows recording across
Analog balanced XLR inputs and outputs
AES/EBU digital I/O for connection to
Flexible AC or DC (for location use) power
BWF file format and UDF disk format
Playback of disks recorded on both Fostex
Easy integration with PC / Mac
Fast transfer to computer-based audio editing
packages is a snap.
With the model 8370, USB/Firewire card, the
DV824’s internal hard disc (if fitted), can be
mounted on a PC or Mac desktop via USB2.0 or
Firewire in addition to the DVD media.

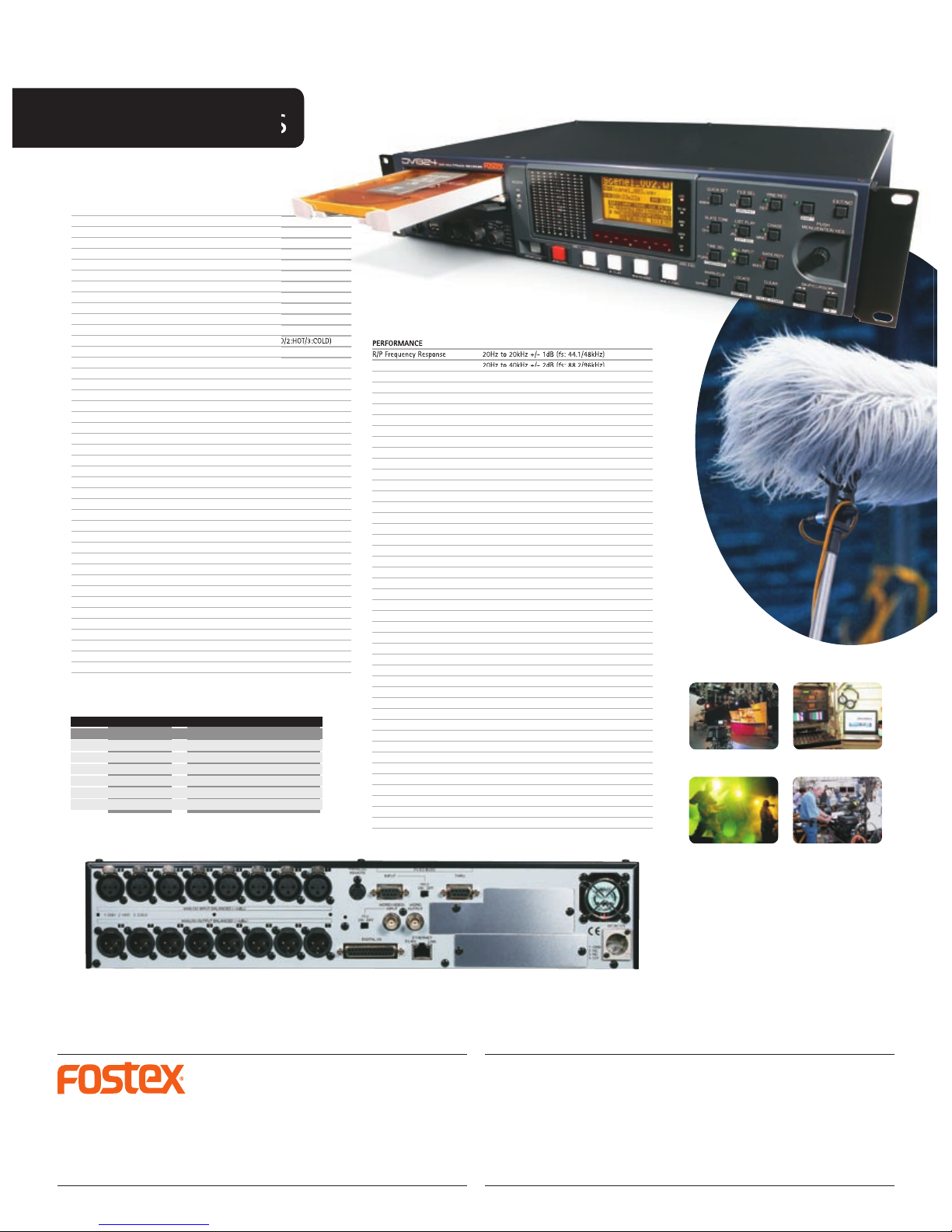

DVD Multitrack Recorder
c
DV824
Recording to DVD-RAM and HD
The DV824 provides supreme quality 8-track recording to standard 12cm DVD-RAM disks
(or optional internal hard disk), in a unique package representing the very forefront of
multitrack recorder design. Able to record up to 8 channels of simultaneous audio in
BWF format, supporting the FAT32 disc format in playback and the universal nature of
UDF formatted discs means that the DV824 offers seamless integration into the daily
acquisition, editing and screening ‘rushes’ process.
Predictably with Fostex, excellent audio quality is assured thanks to the high-definition
recording engine which allows multitrack recording in one of seven audio formats up to
24bit / 96kHz. There’s a full compliment of balanced analog I/O and AES/EBU digital I/O,
a programmable playback feature (ideal for telecine playback), comprehensive headphone
monitoring, smart file administration and Ethernet networking.
Plus, as the DV824 can be powered via AC or DC current, it‘s ideally suited to on-cart
location applications.
Intuitive operation, wide-ranging applications
Fostex multitrack recorders have always been intuitive in operation and the DV824 is no
exception. The large 132 x 64 dot LCD display, the positive-action buttons / switches, a
large LED time indicator, 18-bar level metering and intelligently written software all aid
the ease of use.
Ready for TV show recording, live stage recording, small event playback, large scale live
theatre SE playback, on-cart location sound recording, telecine playback, and more, the
Fostex DV824 is probably the most versatile multitrack ever designed.

Distributor / Authorised Dealer
In accordance with our policy of continuous development, we reserve the right to change specifications without notice. E&OE.
Fostex Company, 3-2-35 Musashino, Akishima, Tokyo, Japan 196-0021
Tel: [phone] Fax: [phone]
www.fostex.jp
GENERAL
Recording Medium 12cm DVD-RAM
(optional internal 2.5” hard disk)
File Format BWF
Sampling Frequency 22.05/44.1/48/88.2/96kHz
Quantization 16bit (22.05/44.1/48kHz)
24bit (44.1/48/88.2/96kHz)
Recording Tracks See chart below
INPUT/OUTPUT (0dBu=0.775Vrms, 0dBV=1Vrms)
Reference Input Level +4dBu
Analog Input (Tr 1 – 8)
Connector XLR-3-31 type (balanced) (1:GND/2:HOT/3:COLD)
Input Impedance 10k ohm or more
Rated Input Level +4dBu
Max. Input Level +24dBu
Analog Output (Tr 1-8)
Connector XLR-3-32 type (balanced) (1:GND/2:HOT/3:COLD)
Output Load Impedance 10k ohm or more
Rated Output Level +4dBu
Max. Output Level +24dBu
Headphones Output
Connector 6mm stereo phone jack
Load Impedance 8 ohm or more
Max. Output Level 100mW (at 32ohm)
Digital Input (Tr 1 – 8)
Connector D-sub 25 pin (balanced)
Format IEC60958 (AES/EBU) or IEC69058 (S/P DIF)
Digital Output (Tr 1 – 8)
Connector D-sub 25 pin (balanced)
Format IEC60958 (AES/EBU) or IEC60958 (S/P DIF)
9P-REMOTE / ES BUSS (RS422)
Connector D-sub 9 pin
Protocol Sony 9 pin protocol / ES BUSS
9P-REMOTE / ES BUSS Thru Out
Connector D-sub 9 pin
Parallel Remote
Connector Mini-DIN 8 pin
USB (for Keyboard only)
Connector USB Series “A” Receptacle
Ethernet
Connector RJ-45
Format IEEE802.3 (10BASE-T & 100BASE-TX standard)
PERFORMANCE
R/P Frequency Response 20Hz to 20kHz +/- 1dB (fs: 44.1/48kHz)
20Hz to 40kHz +/- 2dB (fs: 88.2/96kHz)
Signal to Noise Ratio 105dB (typical)
Dynamic Range 105dB (typical)
Reference Record Level -12dB / -18dB / -20dB (switchable on software)
PHYSICAL
Power Handling 120VAC / 230VAC
Dimensions 482 (W) x 98.5 (H) x 345 (D) mm
Weight 5.7kg
TC SYNC Card (Model 8348, optional)
TC Input
Connector XLR-3-31 type (balanced) (1:GND/2:HOT/3:COLD)
Format SMPTE/EBU
Rated Input 2Vp-p
Transfer Rate 2.4kbit/sec (SMPTE)
Input Impedance 20k ohm or more
Min. Input Level 0.25Vp-p
TC Output
Connector XLR-3-32 type (balanced) (1:GND/2:HOT/3:COLD)
Format SMPTE / EBU
Rated Output 2Vp-p
Output Impedance 1k ohm or less
Load Impedance 600 ohm or more
Bi-Phase In
Connector D-sub 9 pin
Level 5V (470 ohm) or 24V (2k ohm) switchable
Word/Video Input
Connector BNC
Rated Input Level 1Vp-p (with 75 ohm terminator SW)
Word Output
Connector BNC
Rated Output Level TTL Level
IEEE1394/USB Card (Model 8370 optional)
IEEE1394 (for PC communication)
Connector FireWire 400 (6 pin)
USB (for PC communication)
Connector USB Series “B” Receptacle
OPTIONAL ACCESSORIES
9058 Hard Disk Drive
8370 USB / Firewire Interface Card
8348 TC/Sync Card
DV824 Specifications
Specifications
Recording Times
All times are in minutes
DV824 16-BIT 24-BIT
4.7GB 44.1kHz 48kHz 44.1kHz 48kHz 88.2kHz 96kHz
MONO 838 770 558 513 279 256
2-TRK 419 385 279 256 139 128
4-TRK 209 192 139 128 69 64
5-TRK 167 154 111 102 N/A N/A
6-TRK 140 128 93 85 N/A N/A
8-TRK 105 96 70 64 N/A N/A
TV Studio Recording On-Cart Location
Stage Recording TV / Movie Production
Versatile Applications
Perfect for today’s surround TV sound recording
requirements, the DV824 provides a full 8 channels
of 24-bit recording and Timecode/Sync facilities
with Model 8348 card fitted.
The DV824 also fits right into the location
recording and outside broadcast acquisition
environments. Full timecode facilities are available
with the Timecode/Sync card fitted.
And being able to record 8-tracks simultaneously,
the DV824 is well suited for recording live stage
audio. Balanced XLR inputs are present for all 8
recording tracks.
DV824 Interfacing
8 channels of balanced analog I/O, AES/EBU digital I/O, 100BaseT Ethernet and RS422 Sony 9-pin.
Timecode and sync facilities along with USB/Firewire card ports available as optional extras.
D
™
Connector XLR-3-31 type (balanced) (1:GND/2:HOT/3:COLD)
PERFORMANCE
R/P Frequency Response 20Hz to 20kHz +/- 1dB (fs: 44.1/48kHz)
20Hz to 40kHz +/- 2dB (fs: 88.2/96kHz)
Specifications
