Four-Faith F2 16-DK Series User manual

F2X16-DK Series IP Modem
User Manual
Document Version
Confidential
V2.0.0
Product name: F2X16-DK
Total:33
F2X16-DK Series IP Modem User Manual
The user manual is suitable for the following model:
Model
Product Type
F2416-DK
WCDMA IP MODEM
F2616-DK
EVDO IP MODEM
F2716-DK
TDD-LTE IP MODEM
F2816-DK
FDD-LTE IP MODEM
F2A16-DK
LTE IP MODEM
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Hotline ：[phone]
Tel：[phone]
Fax：[phone]
Web：https://en.four-faith.net/
Add：11th Floor, A-06 Area, No.370, Chengyi
Street,Jimei, Xiamen, Fujian, China.

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 2 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Files Revised Record
Date
Version
Remark
Author
2016/9/27
V1.0.0
Initial version
WSP
2017/9/23
V2.0.0
Update address
Faine
2020/4/15
V2.0.0
Contents translation and layout
Zoe

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 3 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Copyright Notice
All contents in the files are protected by copyright law, and all copyrights are reserved
by Xiamen Four-Faith Communication Technology Co., Ltd. Without written permission, all
commercial use of the files from Four-Faith are forbidden, such as copy, distribute,
reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual
(all files shall be not revised, and the copyright and other proprietorship notice shall be
reserved) are welcome.
Trademark Notice
Four-Faith、四信、 、 、 are all registered trademarks of
Xiamen Four-Faith Communication Technology Co., Ltd., illegal use of the name of
Four-Faith, trademarks and other marks of Four-Faith is forbidden, unless written
permission is authorized in advance.

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 4 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/

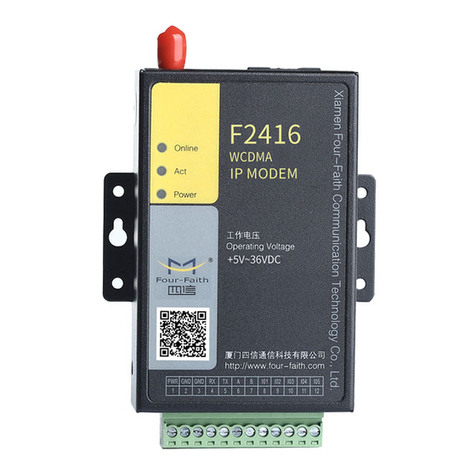

Product appearance

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 5 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Content
Chapter1 Introduction of Product...................................................................................................7
1.1 General.............................................................................................................................. 7
1.2 Product Features............................................................................................................... 7
1.3 Product Specification........................................................................................................8
Chapter 2 Installation................................................................................................................... 12
2.1 General............................................................................................................................ 12
2.2 Encasement List...............................................................................................................12
2.3 Installation and Cable Connection...................................................................................12
2.4 Power introduction.......................................................................................................... 15
2.5 Indicator...........................................................................................................................15
Chapter 3 Configuration................................................................................................................ 16
3.1 Interface specification..................................................................................................... 16
3.2 Configuration options......................................................................................................18
3.2.1 “Local serial port Settings”.................................................................................. 18
3.2.2 “Local serial port 2 Settings”............................................................................... 18
3.2.3 “DTU Working mode Setting”............................................................................. 18
3.2.4 “GPRS dial parameter setting”.............................................................................19
3.2.5 “Support platform related Settings”..................................................................... 19
3.2.6 “Enterprise gateway related Settings”..............................................................20
3.2.7 “Multi IP data center”..........................................................................................20
3.2.8 “Multi connection strategy”................................................................................. 20
3.2.9 “Other configuration”...........................................................................................21
3.2.10 “ Related settings of network management platform”....................................... 21
3.2.11 “Administrator login Settings”........................................................................... 21
3.2.12 “ICMP parameter setting”.................................................................................. 21
3.2.13 “User-defined UDP frame format”....................................................................21

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 6 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
3.3 Read/Write configuration................................................................................................ 22
3.4 Modification configuration..............................................................................................23
Chapter 4 Use Description.............................................................................................................24
4.1 Working mode description...............................................................................................24
4.1.1 DC mode...............................................................................................................24
4.2 Connection mode description.......................................................................................... 24
4.2.1 Long connection mode......................................................................................... 24
4.2.2 Short connection mode......................................................................................... 25
4.3 Check system and connection status.............................................................................. 26
4.4 Remote upgarde..............................................................................................................26
4.5 Local serial upgrade........................................................................................................ 27
Charpter 5 Test..............................................................................................................................29
5.1 DC Test............................................................................................................................29
5.1.1 DCUDP mode.......................................................................................................29
5.1.2 DCTCP mode test.................................................................................................32
Appendix 1 FAQ............................................................................................................................30

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 7 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Chapter1 Introduction of Product
1.1 General
F2X16-DK Series IP Modem is a kind of cellular terminal device that provides data transfer function by
WCDMA /EVDO/ TDD-LTE/ FDD-LTE network.
It adopts high-powered industrial 32 bits CPU and embedded real time operating system., it is dual serial port
design, supports RS232 or RS485 port (Optional) that can conveniently and transparently connect one device to
a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It also has
low power consumption states.
It has been widely used on M2M fields, such as intelligent substation, intelligent distribution network, smart
electricity meters, intelligent interactive terminal, intelligent scheduling, intelligent home appliances, intelligent
electricity building, power grids for smart cities, intelligent power generation system, smart grids (Such as new
energy storage systems)and so on.
Application topology
1.2 Product Features
Design for Industrial Application
High-powered industrial cellular module
High-powered industrial 32 bits CPU
Low power consumption design, to reduce the power dissipation in the most way
Embedded Real Time Clock(RTC)
Metal shell, IP30.Metal enclosure is safely isolated with system , especially suitable for industrial control
field applications
Power range: DC 5~36V
Operating temperature:-40~75℃

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 8 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make it always
online
RS232/RS485 ports:15KV ESD and surge protection
Power port: reverse-voltage and overvoltage protection
SIM/UIM port: 15KV ESD protection
Standard and Convenience
Support standard RS232/RS485 ports (Optional) that can connect to serial devices directly
Support intellectual mode, enter into communication state automatically when power is on
Provide management software for remote management (Optional)
Support a variety of working modes which make it easy and flexible to use
Convenient configuration and maintenance interface
Support serial update,remote update, can export the serial log
Wall mounted , easy installation, fast fixing, conveniently and quickly
High-performance
Support TCP server and support 4 TCP client connection (optional)
Support protocol conversion between ModBus and RTU/TCP (optional)
Support dual data center backup transmission and multiple data center synchronous transmission (5 data
centers)
Support multi data centers and it can support 1-5 data centers at the same time
Support protocol conversion between 101 and 104 (optional)
Support standard TCP/UDP protocol, support data transfer transparently
Support login security authentication
Multiple indicator lights that can indicate a variety of system states
Support read deivce status in real-time by serial ports, such as IMEI, SIM card status,IP address, signal
value and so on.
1.3 Product Specification
Wireless parameters
Item
Content
F2416-DK WCDMA IP MODEM
Standard and
Band
UMTS/WCDMA/HSDPA/ HSUPA/HSPA+ 850/1900/2100MHz
850/900/1900/2100MHz (Optional)
GSM850/900/1800/1900MHz
GPRS/EDGE CLASS 12

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 9 of 33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Bandwidth
HSUPA:5.76Mbps(Upload speed)/HSDPA:7.2Mbps(Download speed)
UMTS: 384Kbps(Download speed/Upload speed)
HSPA+:21Mbps(Download speed)5.76Mbps(Upload speed)
TX power
<24dBm
RX sensitivity
<-109dBm
F2616-DK EVDO IP MODEM
Standard and
Band
CDMA2000 1X EVDO Rev A 800MHz
800/1900MHz (Optional),450MHz
IS-95 A/B and CDMA2000 1xRTT wireless network
Bandwidth
Download speed 3.1Mbps, Upload speed 1.8Mbps,可选 EVDO Rev.
B:Download speed
14.7Mbps,Upload speed 5.4Mbps
TX power
<23dBm
RX sensitivity
<-104dBm
F2716-DK TDD-LTE IP MODEM
Standard and Band
TDD-LTE 2600/1900/2300MHz(Band
38/39/40)
800/1400/1800MHz(Band 27/61/62)(Optional)
TD-SCDMA 2010/1900MHz(A/F Band : 34/39) GSM/GPRS/EDGE
900/1800/1900MHz
Bandwidth
TDD-LTE(Download speed 61Mbps,Upload speed 18Mbps)
TD-SCDMA :2.2Mbps(Upload speed)/2.8Mbps(Download speed)
TX power
<23dBm
RX sensitivity
<-97dBm
F2816-DK FDD-LTE IP MODEM
Standard and Band
FDD-LTE 2600/2100/1800/900/800MHz（Band1/3/7/8/20）
700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25) (Optional)
DC-HSPA+/HSPA+/HSDPA/HSUPA/WCDMA/UMTS
2100/1900/900/850/800MHz(Band 1/2/5/6/8）
EDGE/GPRS/GSM 850/900/1800/1900MHz
Bandwidth
FDD-LTE(Download speed 100Mbps,Upload speed 50Mbps)
HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)
UMTS:384Kbps (Download speed/Upload speed)
HSPA+: 42Mbps Download speed) 5.76Mbps(Upload speed)
TX power
<23dBm
RX sensitivity
<-93.3dBm
F2A16-DK LTE IP MODEM
Standard and Band
TDD-LTE、FDD-LTE、EVDO、WCDMA、TD-SCDMA、
CDMA1X、GPRS/EDGE

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 10 of
33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Bandwidth
FDD-LTE(Download speed 100Mbps，Upload speed 50Mbps)
TDD-LTE(Download speed 61Mbps，Upload speed 18Mbps)
CDMA2000 1X EVDO Rev A (Download speed 3.1Mbps，Upload speed
1.8Mbps)
WCDMA(Download speed 42Mbps，Upload speed 5.76Mbps)
TD-SCDMA(Download speed 4.2Mbps，Upload speed 2.2Mbps)
TX power
<23dBm
RX sensitivity
<-93.3dBm
Interface type
Item
Content
SDI
Num.of ports：2
Port 1：RS232
Port 2：RS232(Standard)/ RS485(Optional)
Serial port type ：Terminal interface
Stop bits：1、2
Parity: none, even, odd,
Baud rate：300~115200bps
Antenna
Standard SMA female antenna interface, 50 ohm
SIM/UIM
Standard clamshell socket interface, support 1.8V/3V SIM/UIM card, 15KV
ESD protection
Indicator
Power、Module、SIM、Status
Power supply
Item
Content
Standard
power
DC 12V/0.5A
Power range
DC 5~36V
Consumption
Item
Content
Communication
120mA@12VDC 255mA@5VDC
Standby
41 mA@12VDC 85 mA@5VDC
Sleeping mode
3mA@12VDC 6mA@5VDC
Physical Characteristics
Item
Content
Housing
Metal, IP30
Dimension
110x85x32mm(Except antenna )
Weight
About 290 g

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 11 of
33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Other parameters
Item
Content
Working
temperature
-40~+75ºC(-40~+167℉)
Storage
temperature
-40~+85ºC(-40~+185℉)
Relative humidity
95%(( unfreezing)

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 12 of
33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Chapter 2 Installation
2.1 General
F2X16-DK must be installed correctly to make it work properly.
Warning ：
Forbid to install the IP MODEM when powered!
2.2 Encasement List
For transport safely, proper packaging IP MODEM is usually required. Please take
good care of the packing materials when you unpack, so that they can be used for future
transportation.
IP MODEM include below components：
IP MODEM host : 1 pcs(According to customer's order)
User manual:1 pcs
Car antenna:1 pcs (SMA male interface)
Wiring terminal : 1 pcs (8 pin, 3.5mm)
Three-core wiring line with terminal which use in serial port: 1pcs(1M )
Power adapter : 1pcs (Optional)
2.3 Installation and Cable Connection
IP MODEM has 4 mounting holes with the diameter of 4mm,
which are easy to fix to the user's equipment.
Product size (Unit：mm)

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 13 of
33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Antenna and SIM card installation：
IP MODEM antenna interface is for SMA female interface. Rotate the SMA male
header to the antenna interface of IP Modem, make sure that the connection is good, so as
not to affect the signal quality.
When the SIM card is removed, remove the SIM card block first. When the SIM card is
installed, make sure the card is in place.

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 14 of
33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
Terminal block definition(3.5mm interval, 8PIN):
PIN
Definition
Description
1
V-
Power negative
2
V+
Power positive
3
TXD
RS232 sending end of F2X16-DK
4
GND
For signal
5
RXD
RS232 receiving end of F2X16-DK
6
RXD2
Extended serial port 2 of F2X16-DK for receiving //RS485_A
7
TXD2
Extended serial port 2 of F2X16-DK for sending //RS485_B
8
GND
For signal

F2X16-DK Series IP Modem User Manual
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
Page 15 of
33
Hotline：[phone]
Tel：[phone]
Fax：[phone]
https://en.four-faith.net/
2.4 Power introduction
IP MODEM usually apply to complex external environments. In order to adapt to the complex
application environment and improve the stability of the system, IP MODEM adopts advanced
power technology. It can use DC 5-36V to power IP MODEM directly. When users use external
power, must ensure power stability.(Ripple is less than 300mV, and make sure instantaneous
voltage does not exceed 36V), and ensure that the power supply is greater than 4W.
(12VDC/0.5A power supply is recommended.)
2.5 Indicator
IP MODEM provides four indicators, definition as below：Power,Module, SIM, Status
States of indicators is as follows:
Through display of indicator light , the user can see the system and connection status:
No.
Power
Module
SIM
Status
Definition
Power
Network
SIM Card
Operation
1
ON
X
Flash alternately
Module is on and at AT mode
2
ON
X
OFF
Flash slowly
Initialize the module by AT command
3
ON
Flash quickly
OFF
Flash slowly
Dialing
4
ON
X
Flash slowly
OFF
Waiting for activation (short connection mode)
5
ON
X
Flash alternately
System dialing is successful, the module is in
data mode but the centers are not connected
6
ON
X
Flash in the same time
APP is normal
Note:
1.”ON” means LED always bright, hold for at least 3 seconds ;
2.”OFF” means LED always off, hold for at least 3 seconds ;
3.”Flash slowly” means flash frequency is about 1 /S.

F2X16-DK Series IP Modem User Manual
Page 16 of 33
Fax：[phone]
Tel：[phone]
https://en.four-faith.net/
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei,
Xiamen.China
Hotline：[phone]
Chapter 3 Configuration
3.1 Interface specification
Open configuration tool -“F2x14d_Soft15031718.exe” , use RS232 serial port line
connect F2X16-DK to computer, power on, after chosing right serial configuration
parameters, the serial port can be used for system parameter configuration(Note：The
configuration page can be entered with baudrates of 115200 and 8N1 in the first 3 seconds
after booting)
Open configuration tool -“F2x14d_Soft15031718.exe” , showing as below：
Open the configuration tool, after chosing right serial port parameter, checking
the hardware first, if hardware is normal, click the login dialog box, input user name
and password, showing as below：

F2X16-DK Series IP Modem User Manual
Page 17 of 33
Fax：[phone]
Tel：[phone]
https://en.four-faith.net/
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei,
Xiamen.China
Hotline：[phone]
After this step, click”Confirm”,upon successful login, the user will have the appropriate level
of permissions, system parameters can be set within this permission, showing as below:
If you do not log in at the beginning, you can click “Cancel”, and then you can click the
login button to log in at any time. After logging in, the original login button becomes log out,
and users can also click log out to cancel their login.
(Note: The initial administrator user name is adm , and password is 123456, the initial
normal user username is guest and the password is 123456. User names and passwords
are case sensitive.)
The interface is described as follows:
1、Parameters such as serial port, baud rate and parity bit can be selected in the
"overall control" option of the interface. The configuration software has the function of
automatically identifying the available serial ports of the current PC, these serial ports are
listed in the “select serial port “ (Please be patient when you click this item because it is
slow to automatically identify the currently available serial port), please select the serial port
that was connected to F2X16-DK, and chose right parameter which be used. Check the
"auto" option, configuration software can automatically detect the parameters that match the
communication.
2、After chosing right serial port, click “Download configuration”、“Read configuration”
to write/read confuguration infomation. Moreover, click “Export configuartion file” can export
configuration information from the configurator to a text file for saving, click“Import
configuration file” can import the saved configuration information file into the configuration
program.
3、The information window at the bottom of the interface displays the operation
performed and whether the operation was successful.
4、“Sync to PC time” can set the device's system time to the PC's current time, after
this step, the configuration software will automatically set the current PC time to the
device, the “overalll control” bar also displays the time of the current device, and it
automatically reads the device time once a minute.
5、“Query version” can query the device version. The system version will display in the

F2X16-DK Series IP Modem User Manual
Page 18 of 33
Fax：[phone]
Tel：[phone]
https://en.four-faith.net/
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei,
Xiamen.China
Hotline：[phone]
status bar above the configuration software if it query successfully.
6、Click the tree menu on the left of the screen, the information window in the middle of
the interface will display the configuration information under the tree menu, especially click
the level 1 tree menu. All the configuration information is displayed in the information
window, where you can view all the configuration information through the drop-down scroll
bar.
3.2 Configuration options
The configuration content of each configuration is described below
3.2.1 “Local serial port Settings”
Serial port baud rate：1200、2400、4800、9600、14400、19200、38400、57600、
115200(bps) (Option) ; 115200 (Default)
Serial port data bits: 8
Serial port stop bits: 1 、1.5 、2 (Option)
Serial port parity bits: None/odd/Even
Local serial port scan interval (100 ms):10 (Default)
Packet response timeout (seconds): 5 (Default)
Local serial port frame size (bytes): 1024 (Default),set optionally, Range:：(10~1024)
3.2.2 “Local serial port 2 Settings”
Serial port baud rate: 1200、2400、4800、9600、14400、19200、38400、57600、
115200(bps) ; 9600(Default)
Serial port data bits: 8
Serial port stop bits: 1 、1.5 、2 (Option)
Serial port parity bits: None/odd/Even
Local serial port scan interval (100 ms):10 (Default)
Packet response timeout (seconds): 5 (Default)
Local serial port frame size (bytes): 1024 (Default) ; set optionally; Range:：(10~1024)
Note：1、Local serial port is usually used for configuration. Local serial port 2 is
used to transfer data and support configuration function.
2、For data ports, changes can be made through the software version.
3.2.3 “DTU Working mode Setting”
Whether to connect the support platform:Yes or No(If chose “No”, the item "Support
platform related Settings" is invalid, do not need to set it. In general, choose "No", to use the

F2X16-DK Series IP Modem User Manual
Page 19 of 33
Fax：[phone]
Tel：[phone]
https://en.four-faith.net/
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei,
Xiamen.China
Hotline：[phone]
WMMP protocol, you need to choose "Yes").
Connection mode:Long connection or short connection (In the “long connection” mode,
real-time online, reconnection automatically if it break up; only in the "short connection"
mode, there are phone activation, local data activation, timing activation).
Phone Activation：Open or close the phone activation ( In general, select "Open") ,in
short connection mode, activate the network if any calls come in.
SMS activation:Open or close SMS activation, in short connection mode, if a DM or
WMMP message is received, the network will be activated
Local data activation:Open or close local data activation.(In general, select "Open"),in
short connection mode, if the local serial port has data, the network will be activated.
Timing activation interval (minutes):According to this time, the timer starts when
entering the sleep mode, and when the time is up, the network will be reconnected to realize
the timing activation function. Range : 0 ~ 1440.
Timing offline interval (minutes): According to this time ,the network will be unblocked
and restarted,value is 0 means the time is infinite .(Generally fill in 0, range: 0~60).
Whether the data flow and business flow are separated:Yes.
Note：In the state of short connection, open at least one activation mode.
3.2.4 “GPRS dial parameter setting”
GPRS/CDMA dial number:A dialing number for accessing a mobile network
Access point name(APN)：This is required when accessing a mobile network
GPRS/CDMA dial user name:A user name is required when dialing into a mobile
network.
GPRS/CDMA dial password:A password is required for dial-up access to a mobile
network
PPP heartbeat interval (Seconds)：Time interval of heartbeat pack in PPP layer, input
range: 0~9999
Redial interval (seconds):The interval between redialing after PPP disconnection, input
range: 0~3600
Maximum number of redial:Restart the system after several consecutive dialing
failures, input range: 0~10
Please refer to local rule of GPRS/CDMA network dial parameters
3.2.5 “Support platform related Settings”
This bar option is only valid if "Whether connect to support platform or not" in "DTU
working mode Settings" is set to "yes"
Support platform equipment number: Device number identification required in the
WMMP protocol;

F2X16-DK Series IP Modem User Manual
Page 20 of 33
Fax：[phone]
Tel：[phone]
https://en.four-faith.net/
Xiamen Four-Faith Smart Power Technology Co.,Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei,
Xiamen.China
Hotline：[phone]
Support platform gateway: Need to fill in the IP address and port number of the
WMMP center;
Support platform connection mode: Only support UDP;
Support platform heartbeat interval (seconds): Heartbeat interval associated with
the WMMP protocol only, range: 4~3600
SMS center number: SMS center number which is needed, in Xiamen is
8613800592500
SMS alarm number (SMS data number): SMS registration, binding, alarm number
that WMMP protocol requires.
3.2.6 “Enterprise gateway related Settings”
DTU device number：The user set it to identify DTU
Enterprise Gateway: Need to fill in IP address ,port number and domain name of
center(if IP and domain name are filled in at the same time, IP shall prevail)
Enterprise gateway connection mode: TCP、UDP、DCTCP、DCUDP (Option)
Maximum number of retransmission allowed for transmission failure: 0 (TCP
protocol retransmission utomatically).
Enterprise gateway heartbeat interval (minutes): Time interval of heartbeat pack,
range: 1~60
DNS IP1：0.0.0.0 or fill in private domain name resolution server address
DNS IP2：0.0.0.0
3.2.7 “Multi IP data center”
When chose multi centers mode, fill in the IP address, port number and connection
mode of extension 1 enterprise gateway ~ extension 4 enterprise gateway, leave blank for
single center mode.
Note: In the case of multi-center setting, please fill in the IP and port of each center
correctly. In the case of non-multi-center setting, please set all non-center IP and port to
zero.
3.2.8 “Multi connection strategy”
Minimum reconnection interval (seconds): The minimum interval in TCP between failed
connections and reconnections.
Maximum reconnection interval (seconds): The maximum interval in TCP between
failed connections and reconnections.
Polling mode(Y/N): In multicenter mode, select multicenter connections for polling or
concurrent mode, input “Y”or”y” indicate using polling mode, all other inputs indicate using
concurrent mode.
TCP serve port/UDP source port：Listen on the port when it as TCP Server (Fill in 0
