Four-Faith F1303 User manual

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 1 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com

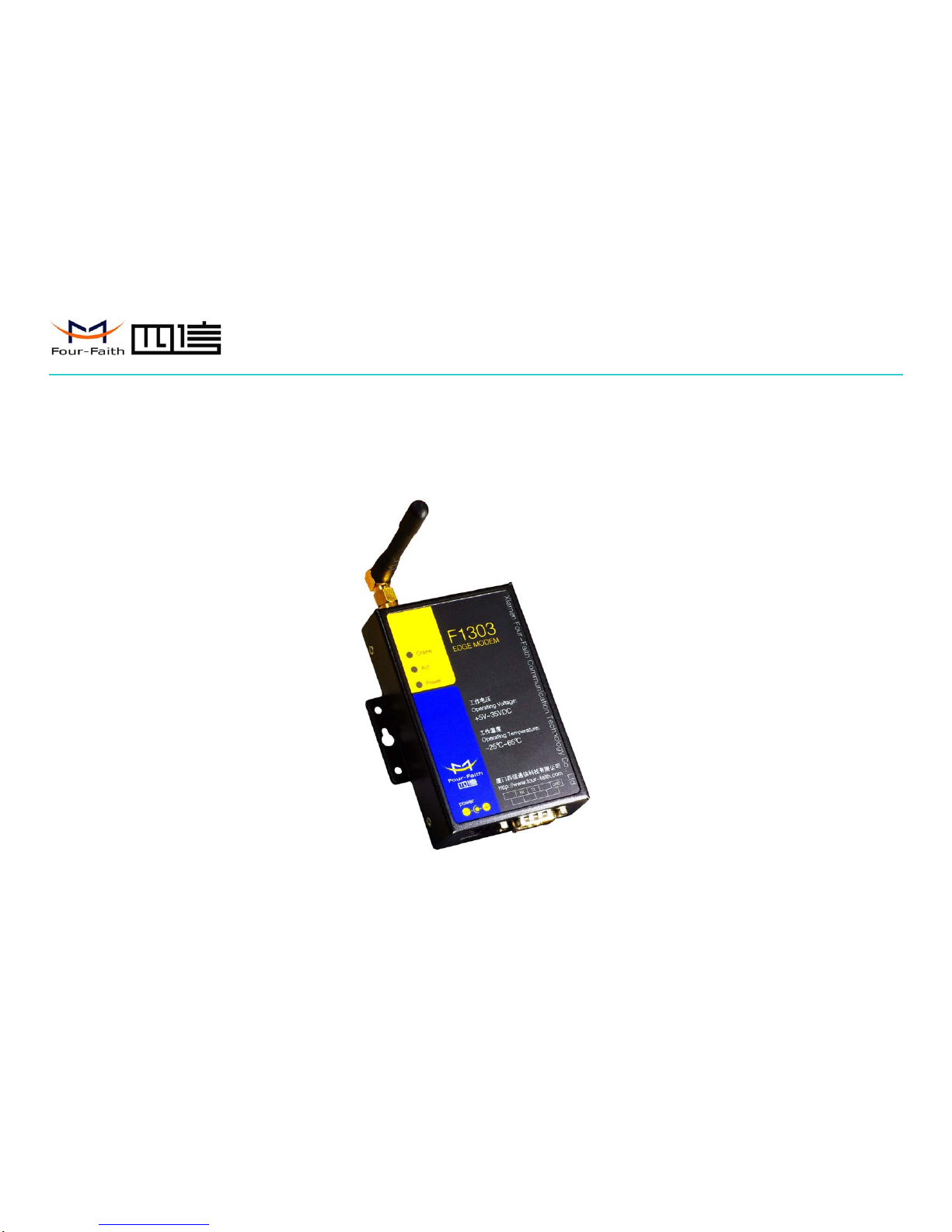

F1303 EDGE MODEM
USER MANUAL

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 2 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
C
Co on nt te en nt ts s
Chapter 1 Brief Introduction of Product.........................................................................3
1.1 General..............................................................................................................3
1.2 Product Features...............................................................................................3
1.3 System Component...........................................................................................3
1.4 Working Principle.............................................................................................3
1.5 Technical Specification ...................................................................................3
Chapter 2 Installation Introduction.................................................................................5
2.1 General..............................................................................................................5
2.2 Encasement List................................................................................................5
2.3 Installation and Cable Connection....................................................................5
2.4 Power................................................................................................................6
2.5 Indicator Lights Introduction............................................................................6
Chapter 3 Dial-Up Settings.............................................................................................7
3.1 MODEM Connection........................................................................................7
3.2 Dial-Up Settings...............................................................................................7
Chapter 4 SMS Test......................................................................................................21

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 3 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
Chapter 1 Brief Introduction of Product
1.1 General
F1303 EDGE MODEM is based on EDGE network and adopts industrial wireless
EDGE module. It supports SMS, CSD and data function. It is designed with industrial
standard and has been widely used on finance, water supply, environment protection,
electric power system, post, weather fields and so on.
1.2 Product Features
Designed with industrial standard
Support SMS, CSD and data function
Support RS232
Power range: DC 5~35V
1.3 System Component
The MODEM is composed of the following parts mainly:
Industrial EDGE module
DC/DC module
RS232 module
1.4 Working Principle
The principle chart of the MODEM is as following:
1.5 Technical Specification
Wireless specification:
GSM850/900/1800/1900MHz
Multislot Class 10
Support DTMF
Support SMS, CSD and data function
Standard AT command interface
EDGE Module
Power RS232 serial
Interface Indicator lights
User interface

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 4 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
Interface:
RS232 serial port, rates: 110~230400bits/s
Indicator lights: “Power”, “ACT”, “Online”
Antenna interface: standard SMA female interface, 50 ohm
SIM/UIM interface: standard user card interface
Power interface: standard 3-PIN power jack
Power supply:
Standard power: DC 12V/0.5A
Power range: DC 5~35V
Others:
Operation temperature:-25~+65ºC
Storage temperature: -40~+85ºC
Humidity: 95% (unfreezing)
Outline dimension: 91x58.5x22 mm

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 5 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
Chapter 2 Installation Introduction
2.1 General
The MODEM must be installed correctly to make it work properly.
Warning: Forbid to install the MODEM when powered!
2.2 Encasement List
Name Quantity Remark
MODEM host 1
Antenna 1
Power adapter 1
RS232 data cable 1
Manual CD 1
Certification card 1
Maintenance card 1
2.3 Installation and Cable Connection

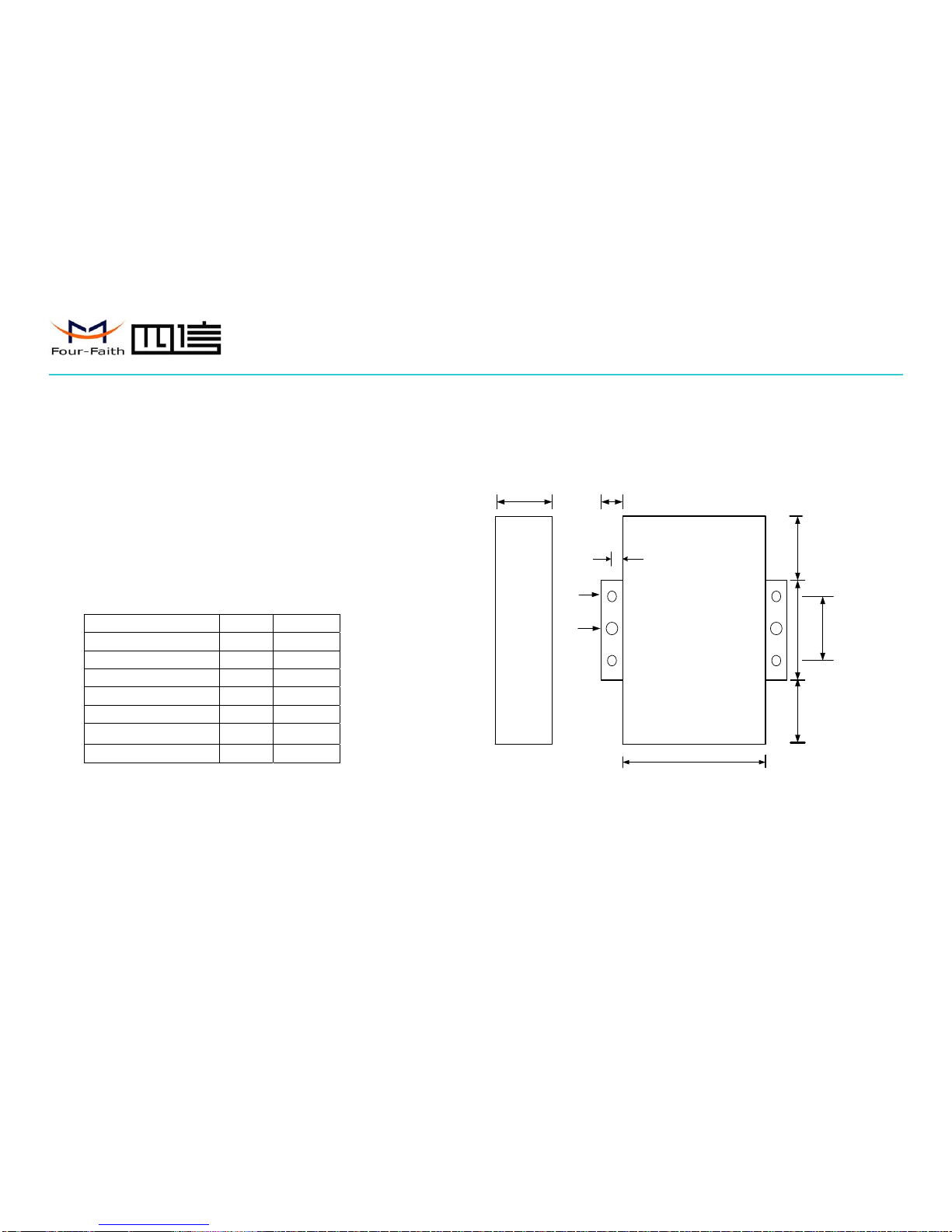

Dimension: (unit: mm)
58.5
35
28
28
22 8
25
Ф3
Ф5
4
Installation of SIM/UIM card:
Firstly power off the MODEM, and press the out button of the SIM/UIM card
outlet with a needle object. Then the SIM/UIM card sheath will flick out at once. Put
SIM/UIM card into the card sheath (Pay attention to put the side which has metal point

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 6 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
outside), and insert card sheath back to the SIM/UIM card outlet.
Warning: Forbid to install SIM/UIM card when powered!
Installation of antenna:
Screw the SMA male pin of the antenna to the female SMA outlet of the
MODEM tightly. Warning: The antenna must be screwed tightly, or the signal quality
of antenna will be influenced!
Installation of cable:
Insert DB9F end of the RS232 data cable into the DB9M interface of MODEM,
and connect the other end with user’s device.
The signal connection of the RS232 data cable is as follows:
2.4 Power
The power range of the MODEM is DC 5~35V.
Warning: When we use other power, we should make sure that the power can
supply power above 4W.
We recommend user to use the standard DC 12V/0.5Apower adaptor.
2.5 Indicator Lights Introduction
The MODEM provides three indicator lights: “Power”, “ACT”, “Online”.
Indicator
Light
State Introduction
Power Bright MODEM is powered on
Dark MODEM is powered off
ACT Twinkle Data is communicating
Dark No data
Online Bright/
Twinkle
MODEM has logged on network
Dark MODEM hasn’t logged on network
DB9F DB9F
RS232 data cable
1
RXD 2
TXD 3
4
GND 5
6
7
8
9
1
2 RXD
3 TXD
4
5GND
6
7
8
9

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 7 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
Chapter 3 Dial-Up Settings
3.1 MODEM Connection
Connect Modem and PC with the shipped RS-232 cable as following:
3.2 Dial-Up Settings
1. Press “start” Æ“Settings” Æ“Control Panel”, Double click “Phone and Modem
Options”

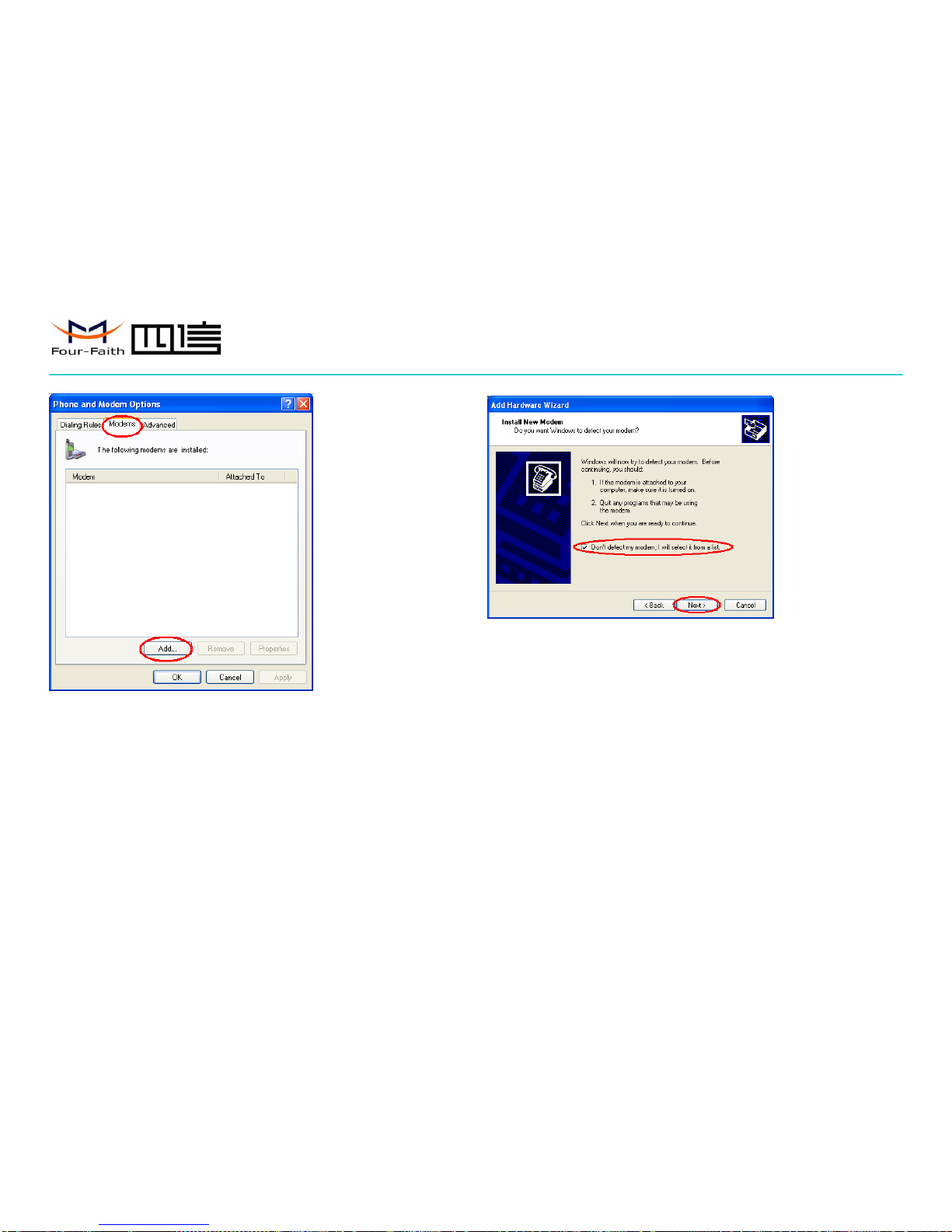

2. Choose “Modems”, Press “Add” button

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 8 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
3. Choose “Don’t detect my modem;I will select it from a list”, and click “Next”
4. Manufacture choose ”Standard Modem Types”, Models choose “Standard 33600
bps Modem”, click “Next” button

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 9 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
5. “Selected ports” choose the actual COM port which connects to Modem, click
“Next” button.
6. click “Finish” button, return back to “Modems” page

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 10 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com

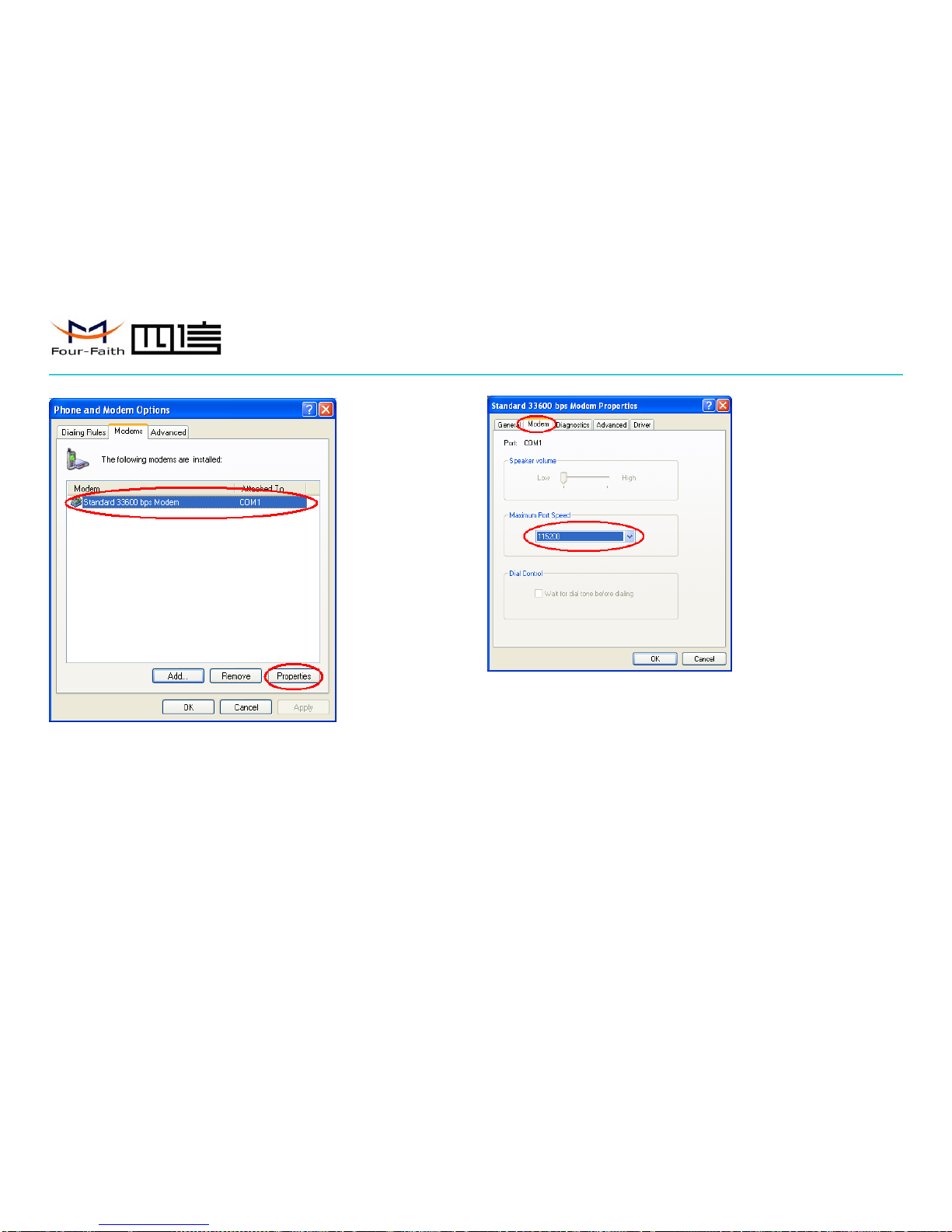

7. Choose the modem you have just installed, click “properties“ button to configure
the modem driver

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 11 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
8. Choose “Modem” page, set Maximum Port Speed as 115200.
9. Choose “Advanced” page, input Extra Initialization commands:
AT+CGDCONT=1,”IP”,”CMNET” , CMNET is the Access Point Name(APN) of
China, please replace it with your own APN name, click “Change Default
Preferences” button

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 12 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
10. “Port Speed” choose 115200，”Flow control” choose None, click “OK” button.

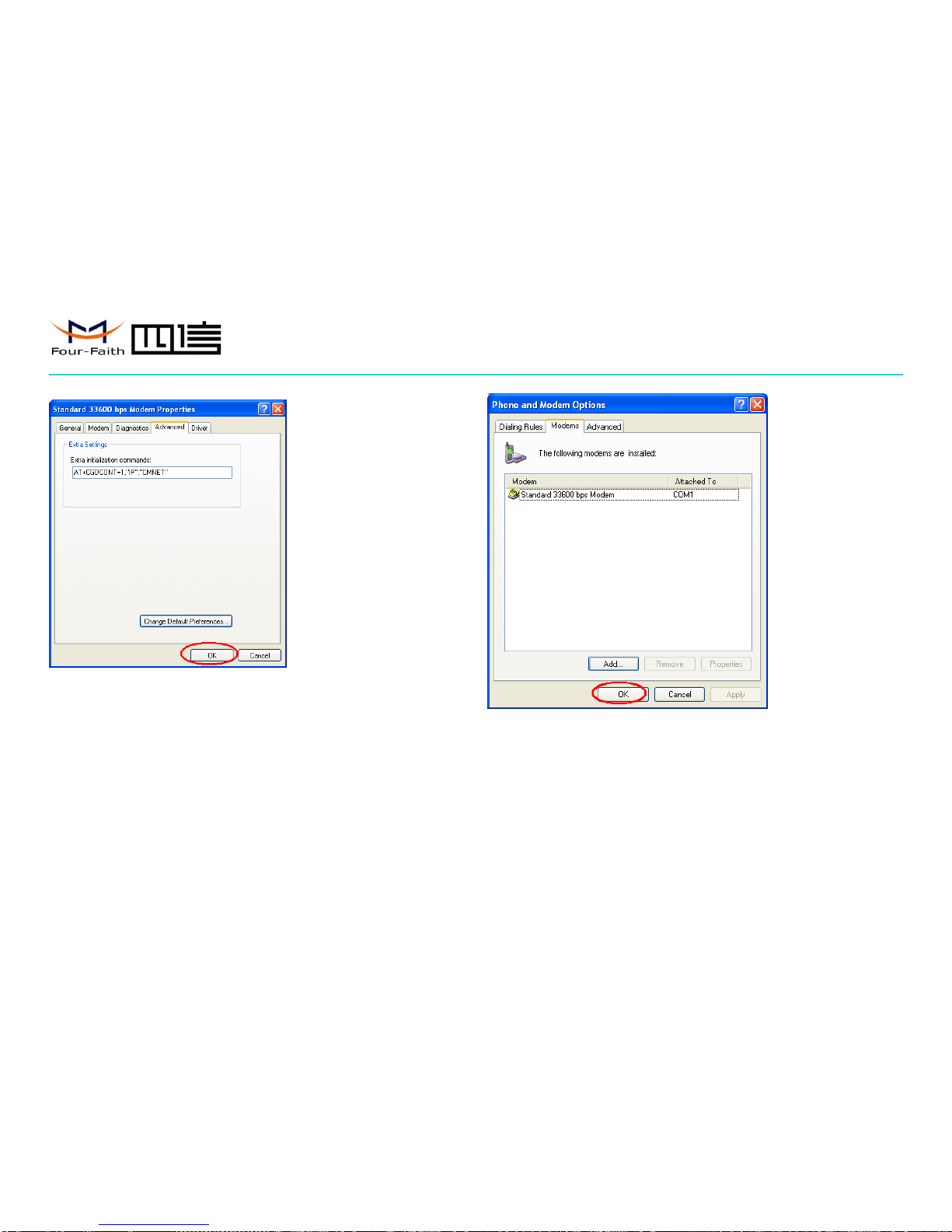

11. On the “Advanced” page, click “OK” button return to “Phone and Modems” page,
click “OK” button to finish the Modem driver installation

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 13 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
12. Finish installing Modem driver, It’s necessary to install the Dial-Up connection.

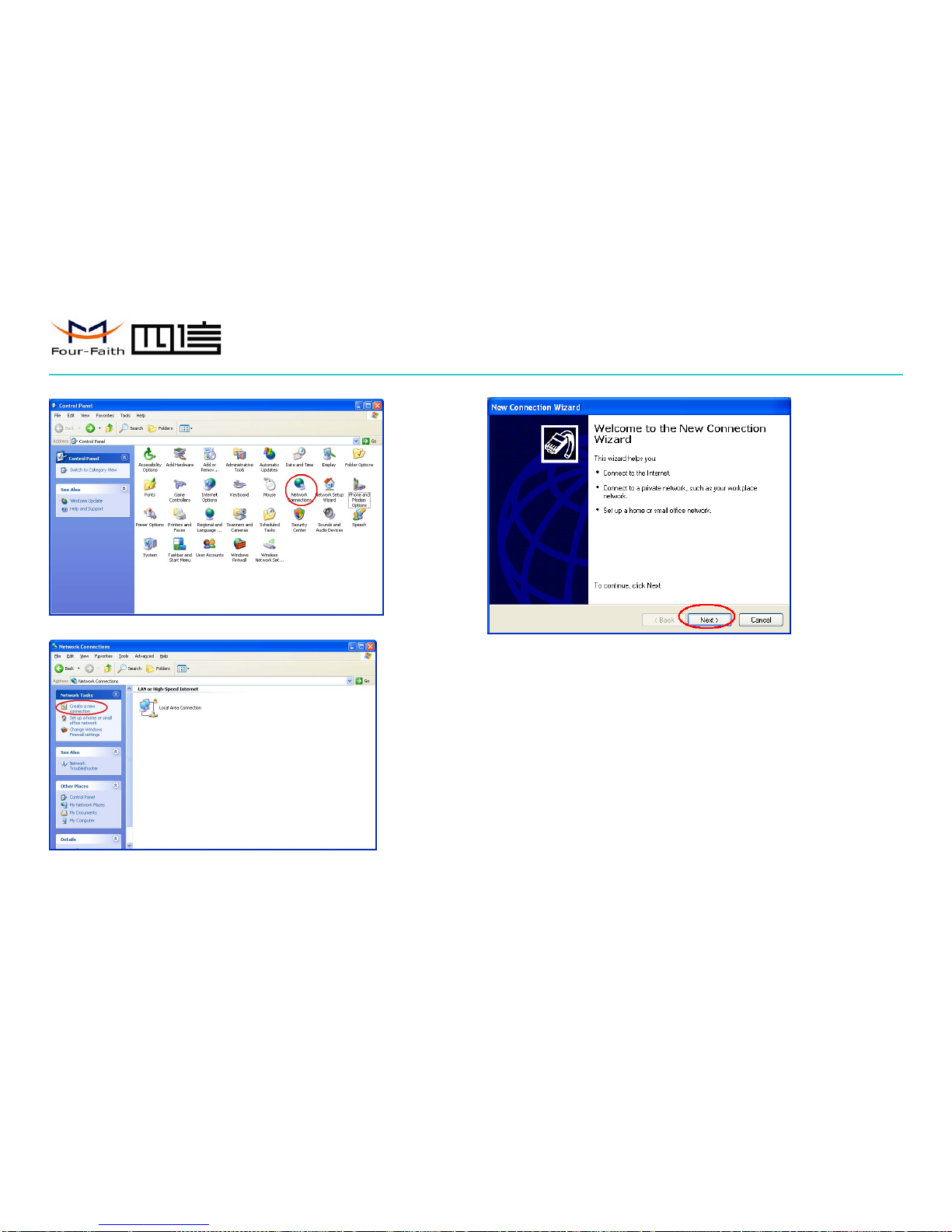

Open “Control Panel”, double click “Network connections”

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 14 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
13．Click “Create a new connection” to start creating a new Dial-Up connection.
14．Click “Next” button
15．Choose “Connect to the Internet”, click “Next” button

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 15 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
16．Choose “Set up my connection manually”, click “Next”
17．Choose “Connect using a dial-up modem”, click “Next”

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 16 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
18．Choose the Modem driver installed just now, click “Next” button
19．Input the ISP Name , click “Next” button

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 17 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com

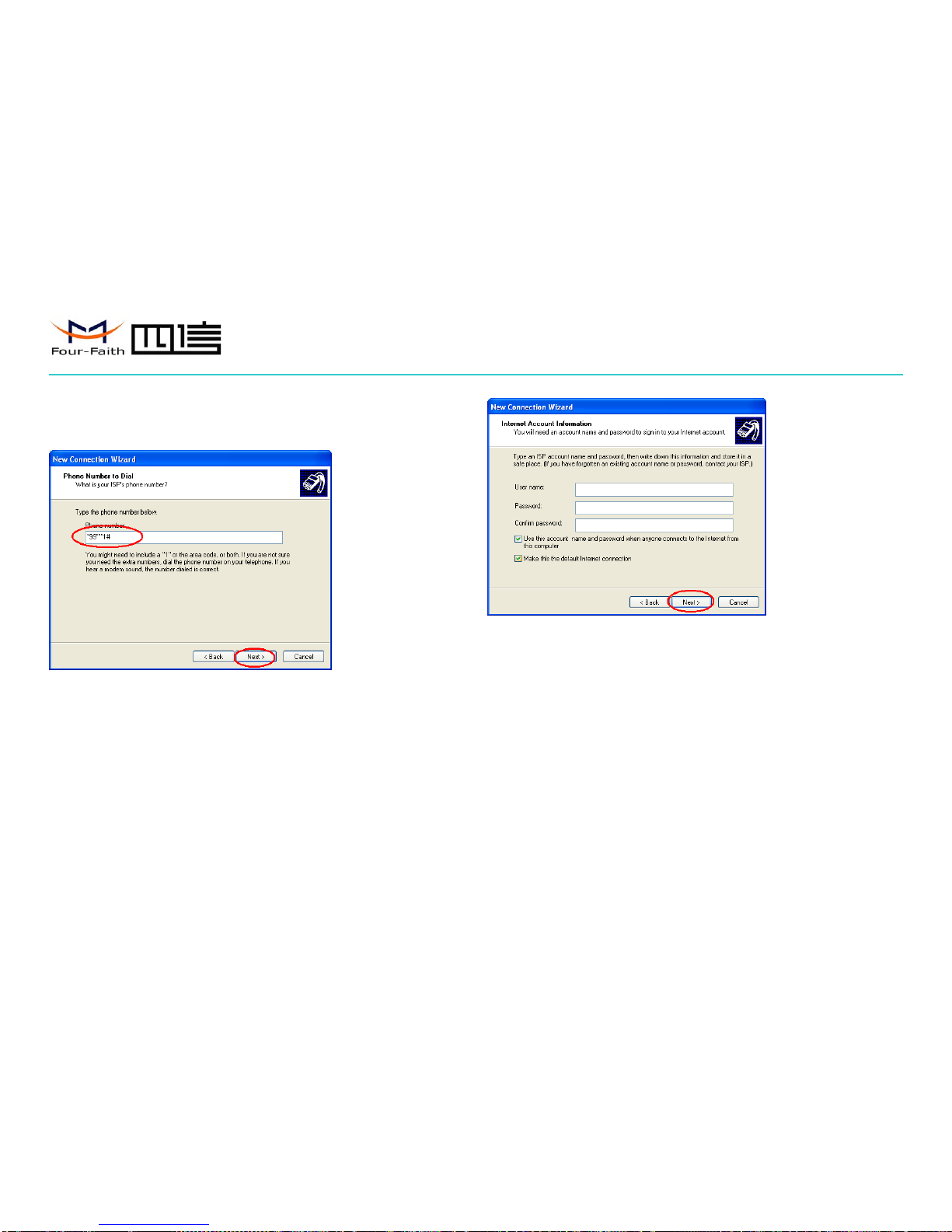

20．Input the call center number of your ISP. In China, It is *99***1#. Click “Next”
button.
21．Input the username and password. In china they are both null. Click “Next”.

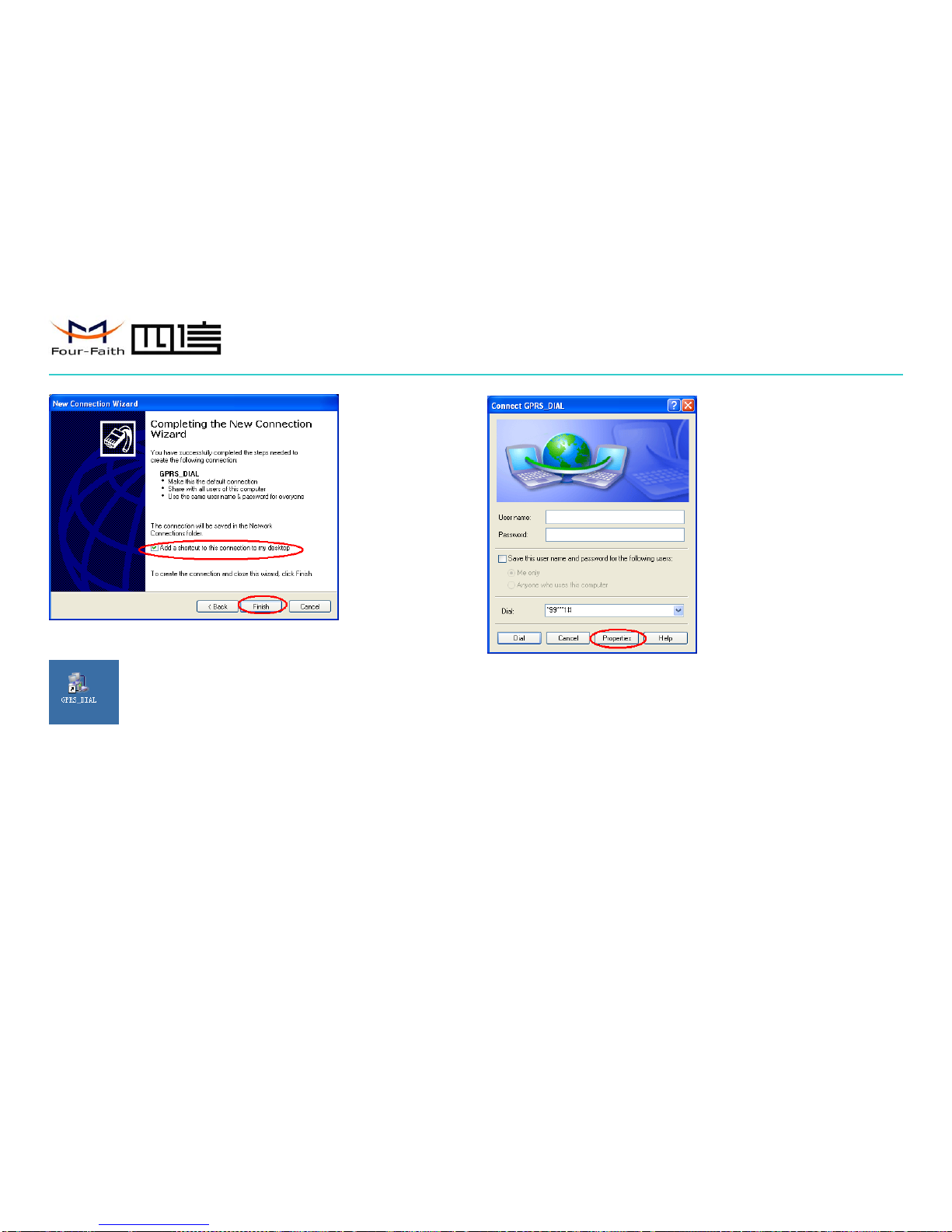

22．Choose “Add a shortcut to this connection to my desktop”, click “Finish” button.

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 18 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
23．Double click the Dial-Up shortcut on your desktop to run Dial-Up program.
24．Click the “Properties” button of the Dial-Up program
25．Choose the Modem driver installed before, Click “Configure” button

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 19 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
26．Set “Maximum Speed [bps]” as 115200, set Hardware features as following, click
“OK” button
27．Click “OK” button to finish Dial-Up program configuration

厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 20 Zip Code：361008
Tel：[phone] Fax：[phone] http://www.four-faith.com www.fourfaith.com
28．Click “Dial” button to start dial
29．When dial success, There is a connection icon on the right of your taskbar.
