Four Seasons Courtyard SRGF11811B User manual

Questions, problems, missing / replacement parts? Before returning to your retailer,
call our customer service department at 1-866-814-0585, 8 a.m. - 8 p.m., EST
Monday-Friday.
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area
immediately.
After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion,
which could cause property damage,
personal injury, or death.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
DANGER
WARNING
WARNING:For Outdoor Use Only.
INSTALLER: Leave this manual with
the appliance.
CONSUMER: Retain this manual for
future reference.
Read the instructions before use. This
appliance must be installed in accordance
with such regulations as are in force.
Owner’s Manual
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
Item# 258364
Model# SRGF11811B
●
●
●
●
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
48" Gas Fire Pit

Gas Fire Pit
SRGF11811B
50,000 Btu/h (14.65kW)Input
Min. gas supply for input adj.
Propane
25PSI (175kPa)
Max. gas supply: 250PSI (1750kPa)
11 in wc (2.74kPa).
20-lb. LP - gas cylinder
2.22 mm
tDo not try to light the appliance.
tDo not touch any electrical switch; do not use any phone in the vicinity of this product.
tImmediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
tIf you cannot reach your gas supplier, call the fire department.
WARNING
CARBON MONOXIDE HAZARD
: Improper installation, adjustment, alteration, service or maintenance
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
can cause injury or property damage. Read the installation, operation
and maintenance instructions thoroughly before installing or
servicing this equipment.
WHAT TO DO IF YOU SMELL GAS?
Installation and service must be performed by a qualified installer, service agency or gas
supplier.


PRECAUTIONS
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
1

IMPORTANT SAFETY INFORMATION
tThe installation must conform with local codes or, in the absence of local codes, with either the
Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling
Code, CSA B 149.2.
tAlways place the appliance on a firm and level surface.
tDo not burn solid fuels in this gas appliance.
tUse the appliance outdoors in a well-ventilated space only, not in a building, garage, or any other
enclosed area.
tWhen using the appliance, keep the appliance area clear and at least 50 inches from combustible
materials, gasoline and other flammable liquid and vapors. Certain items or materials, when stored
under the appliance or nearby, will be subjected to radiant heat and could be seriously damaged.
t
Inspect the gas connections of appliance prior to each use. Do not operate the unit if there is gas leak.
t
Inspect the hose before each use of the appliance. The hose assembly must be replaced prior to the
appliance being put into operation if there is evidence of excessive abrasion or wear or if the hose is
damaged. The replacement hose assembly shall be that specified by the manufacturer.
A qualified service person should inspect the appliance annually.
tAlert children and adults to the hazards of high surface temperatures and keep them away
to avoid burns or clothing ignition.
tCarefully supervise children and pets when they are near the appliance.
t Any guard, barrier, or other protective device removed for servicing the appliance shall be
replaced prior to operating the appliance.
tDo not hang clothing or other flammable materials on or near the appliance.
tDo not use the appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
t
t
Use only a cylinder supply system arranged for vapor withdrawal, and the cylinder must include a
tThe LP-gas supply cylinder to be used must be: Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT); or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission,
CAN/CSA-B339, as applicable;
The LP-gas supply cylinder to be used must be provided with a listed overfilling prevention device;
and provided with a cylinder connection device compatible with the connection for the appliance.
collar to protect the cylinder valve.
tThis appliance requires 20 lb (9 kg) LP gas supply cylinder.
tThe burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner shall be that specified by the manufacturer.
tInstallation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners,
and circulating air passageways of the appliance be kept clean.
WARNINGS AND CAUTIONS
2

This appliance is designed to operate with a standard 20 Ib propane cylinder with Approved
Cylinder Connection.
WARNING:
This product can expose you to chemicals including lead, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.ca.gov.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Perform a leak test with a soapy solution:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.
WARNINGS AND CAUTIONS
PREPARATION

3

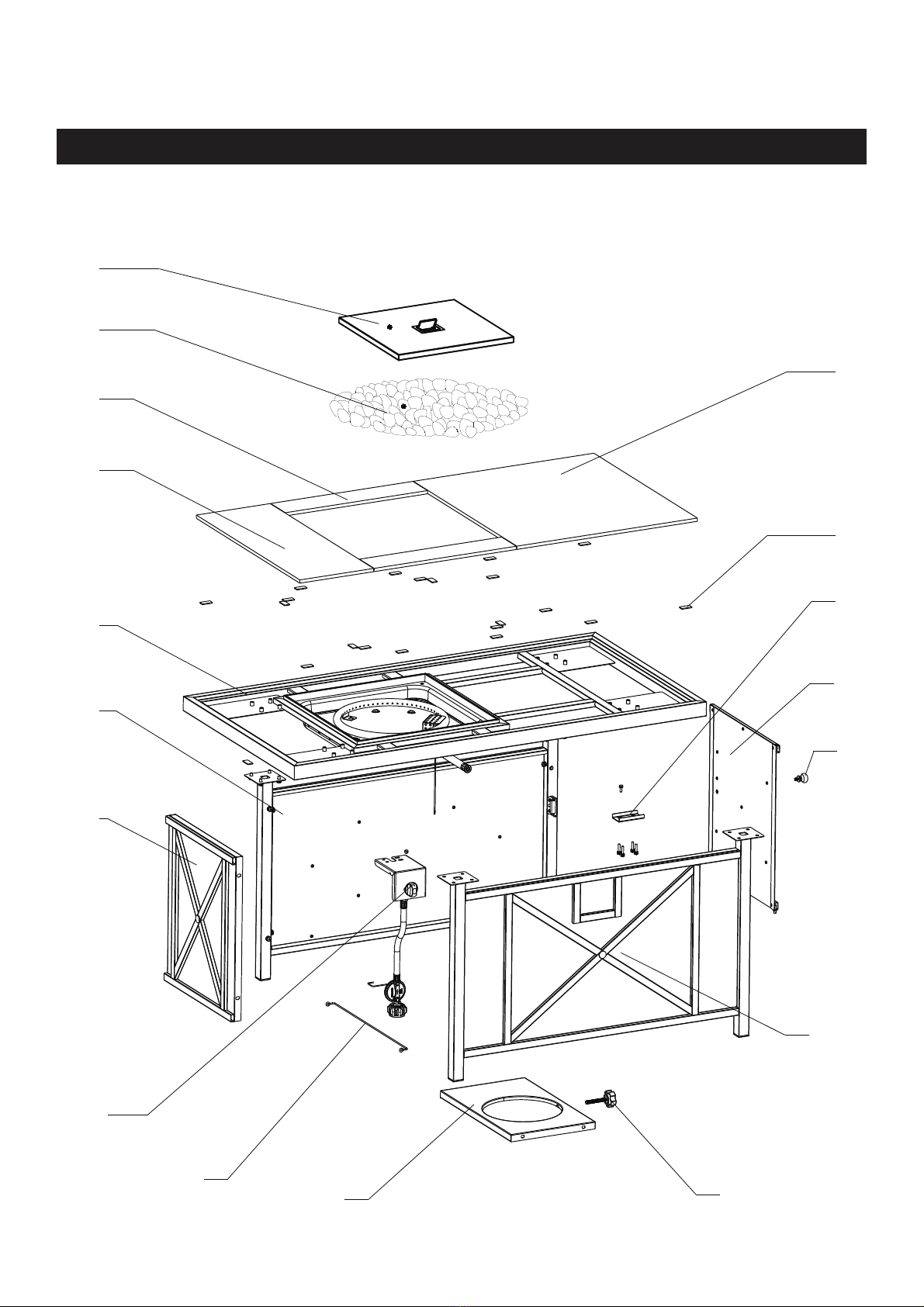

EXPLODED VIEW
Please check the contents of the packaging to ensure all parts are included. If missing parts
please contact customer service.
4
A
B
C
D
F
G
H
F1
M
LK
J
N
I
F2
E
O

24AA
BB
Screw
M6 x 14 Bolt
2
Parts Description Quantity Picture
Cover Lid
Lava Rocks
Side Panel
Back Panel
Cylinder Holder Assembly
Door
Door Knob
Front Panel
Cylinder Locking Bolt
A
B
C
D
E
F
G
H
I
J
Protecting Bar
K
QuantityDescription
Please check the contents of the packaging to ensure all parts are included.
Part
1
1 bag
TOOLS AND PARTS
HARDWARE
TOOLS NEEDED:
Philips screwdriver (Not Included)
Non-adjustable wrench（Included）
Estimated time for assembly: 30 minutes
Ceramic Tile 2 2
Ceramic Tile 3 1
Ceramic Tile 1 1
1
L
M
1
1
1
1
1
1
1
CC M5 x 14
M4 x 12
Bolt 1
5
1
N
O
F1
F2
DD
1
1
4
Gas Control Set
Tabletop Frame
Control Board Fixing Plate
M5 x 25 Bolt with washer
22pcs
Crash pad

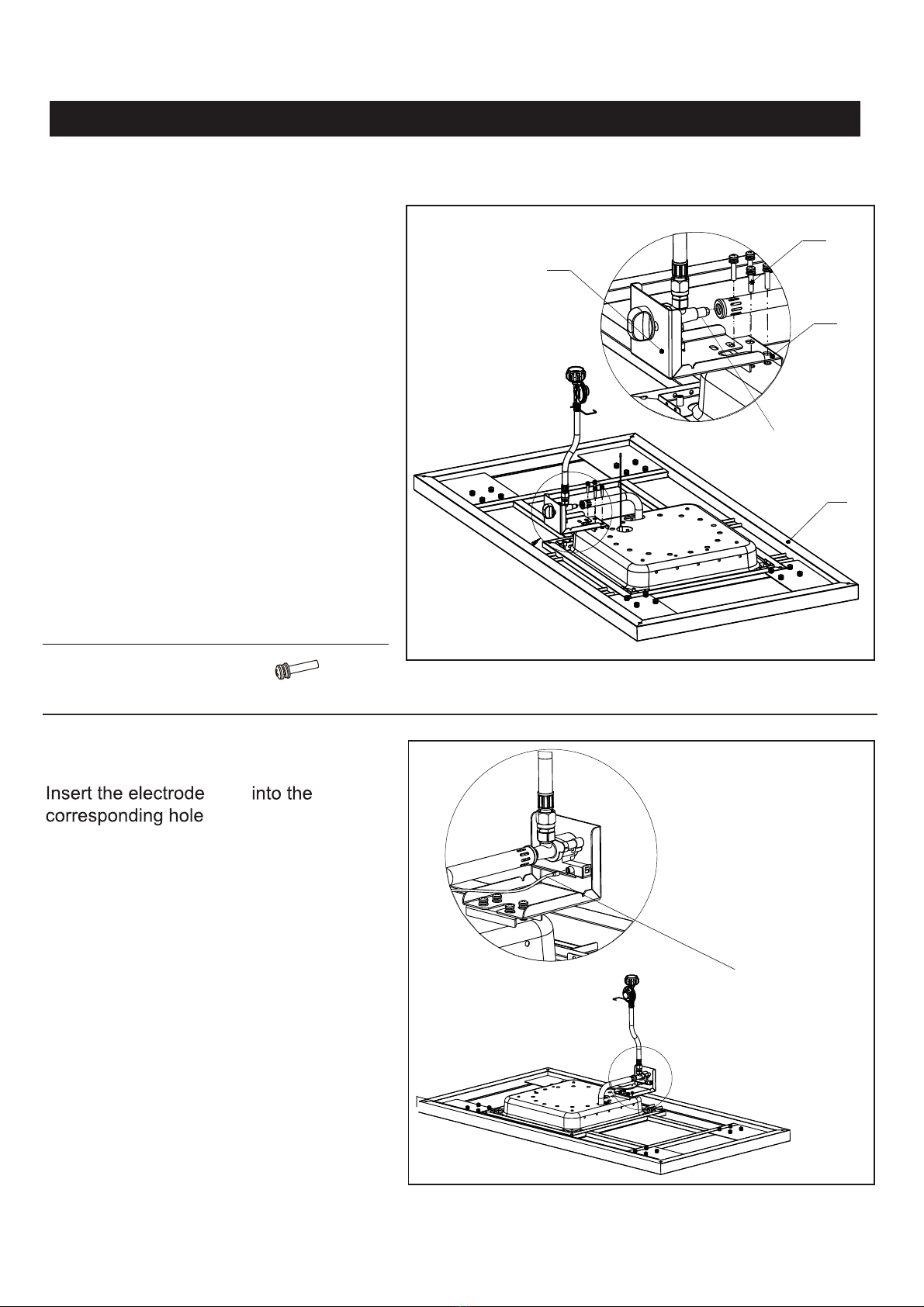

Step 1
Put tabletop frame (F) upside down on
soft, horizontal land, attach gas control set
(F1) to tabletop frame (F) with control
boarding fixing plate (F2) and 4 pcs
M5x25 bolt with washers(DD) per image.
Note: With the help of a friend, turn the
table top frame upside down to begin
assembly.
Leave hardware installed HALF-
TIGHTENED on the gas fire pit during
assembly until unit is completely
assembled, then finish tightening all
hardware installed.
Step 2
at the backside of
gas controal set (F1) as illustrated.
wire
Choose a clear area for assembly, and a soft surface or cardboard to protect from damages. 2 person
assembly recommended.
ASSEMBLY INSTRUCTIONS
Step 1
Step 2
6
Electrode Wire
F1
F2
F
DD
DD M5 x 25 bolt with washer 4 pcs
Hardware Used
put this into facing
pipeline

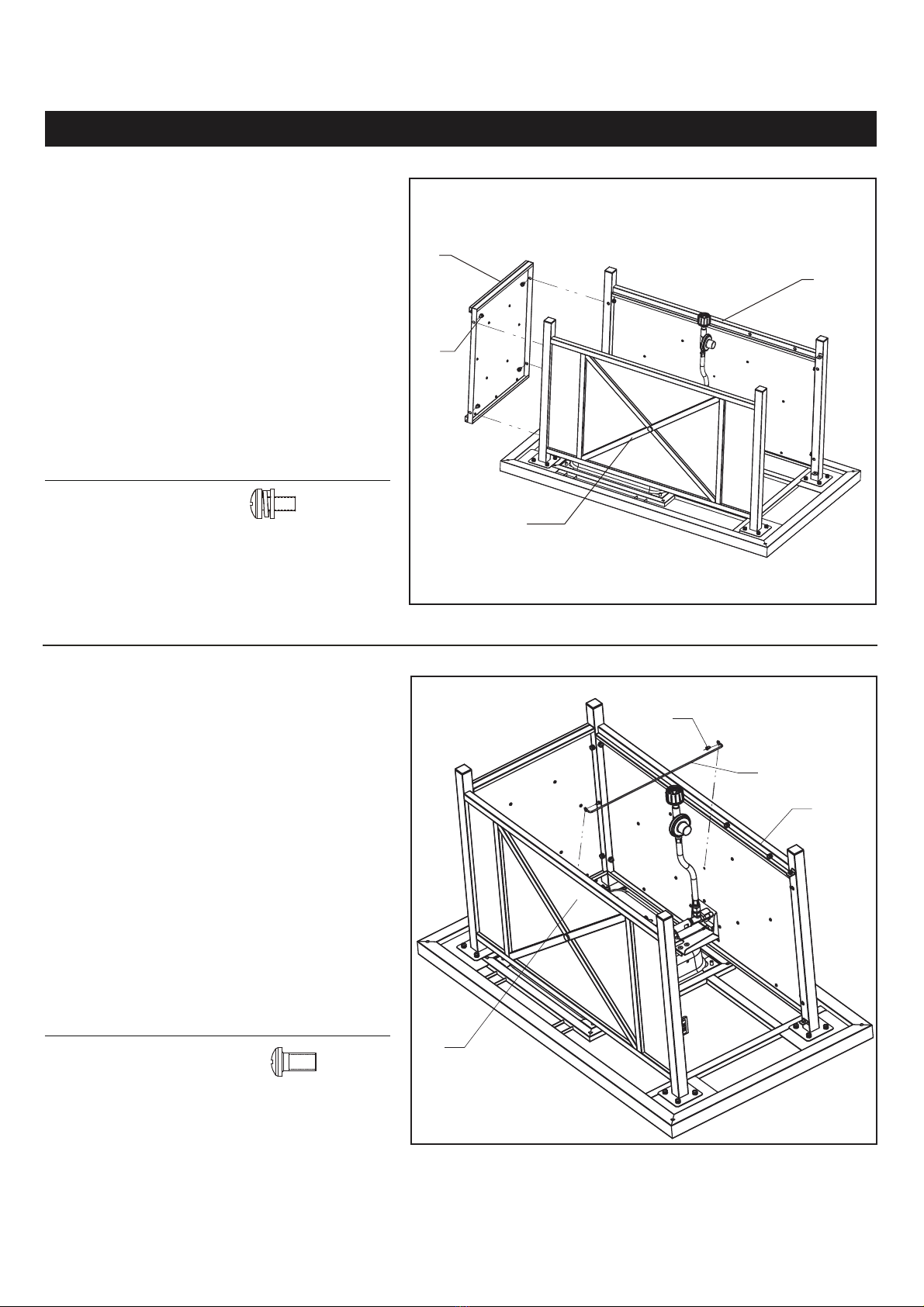

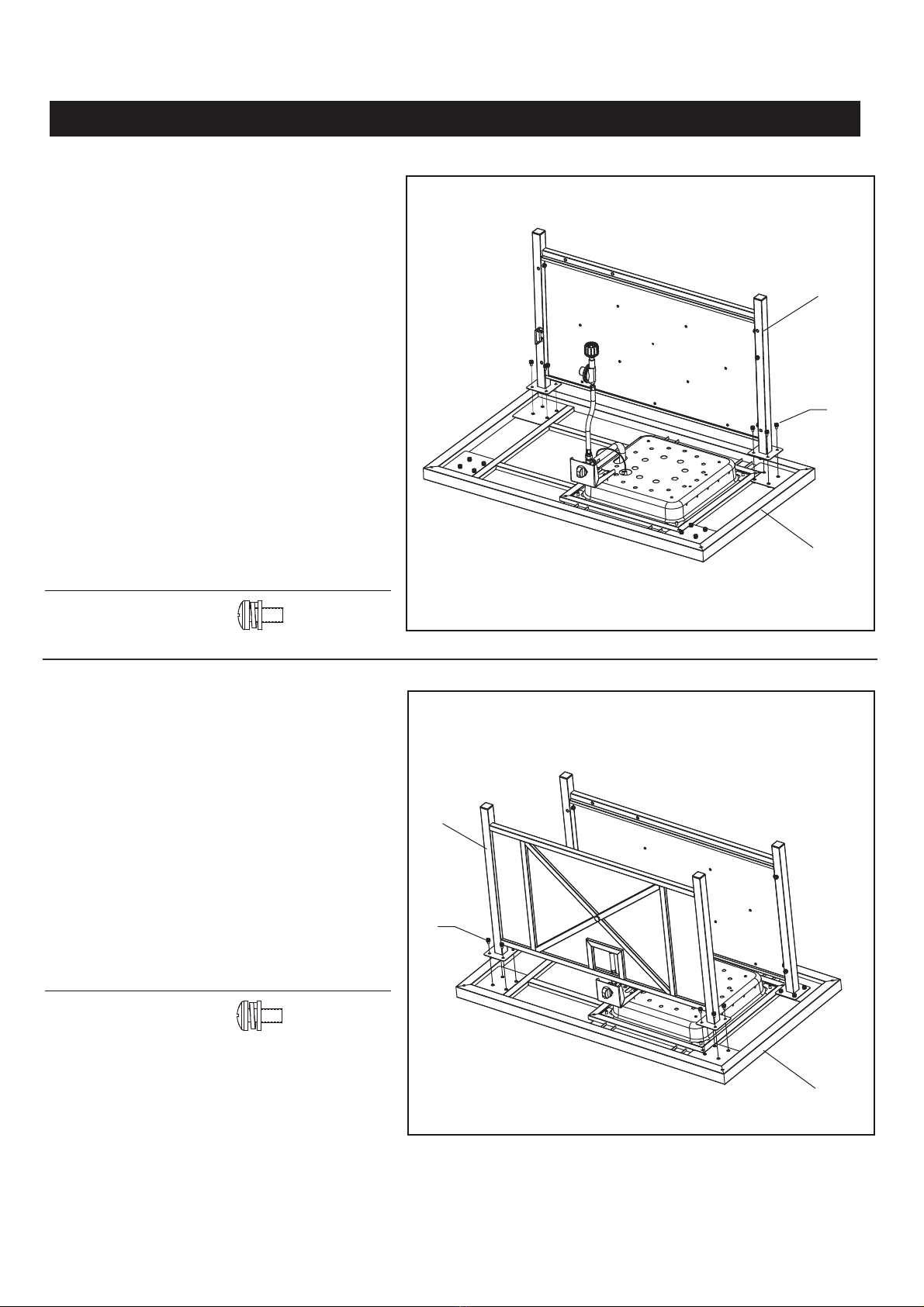

Step 3
Keep the tabletop frame (F) face down,
attach the back panel (G) to it with 8 pcs
M6 x 14 bolts (AA) as illustrated.
Step 4
Attach the front panel (J) to the table
top frame (F) with 8 pcs M6 x 14 bolts
(AA) as illustrated.
AA
J
G
ASSEMBLY INSTRUCTIONS
AA
AA M6 x 14 bolt 8 pcs
Hardware Used
AA M6 x 14 bolt 8 pcs
Hardware Used
Step 3
Step 4
F
F
7

Step 5
Attach the side panel (H) to the front panel
(J) and the back panel (G) with 4 pcs M6 x
14 bolts (AA) as illustrated.
Step 6
Attach the protecting bar (M) to the front
panel (J) and the back panel (G) with 2
pcs M4 x 12 Screws (BB).
J
ASSEMBLY INSTRUCTIONS
BB M4 x 12 Screw 2 pcs
G
BB
M
G
J
AA M6 x 14 bolt 4 pcs
Hardware Used
Hardware Used
Step 5
Step 6
AA
H
8

ASSEMBLY INSTRUCTIONS
Step 8
Step 8
Attach the door shaft at the of the
door (I) to the corresponding hole of the
front panel (J) as illustrated image 1.
Fix the of the door to the front panel
(J) with 1 pc M5 x 14 bolt (CC). Attach
the door knob (N) to the matching hole of
the door (I) as illustrated image 2.
1.Don't tighten the screw (CC) too tightly.
You need to keep the door rotate smoothly.
2.With the help of a friend, turn the gas fire
pit into upright position after this step
finished.
CC 14
Hardware Used
Step 7
Attach the cylinder holder assembly (L) to
the front panel (J) and the back
panel (G) with 4 pcs M6 x 14 bolts (AA) as
illustrated. Attach the cylinder locking bolt
(K) to cylinder holder assembly (L).
J
L
AA
AA M6 x 14 bolt 4 pcs
G
Hardware Used
Step 7
K
9
image 2image 1
N
IJ
2
1
Non-adjustable wrench
(Included)
CC

10

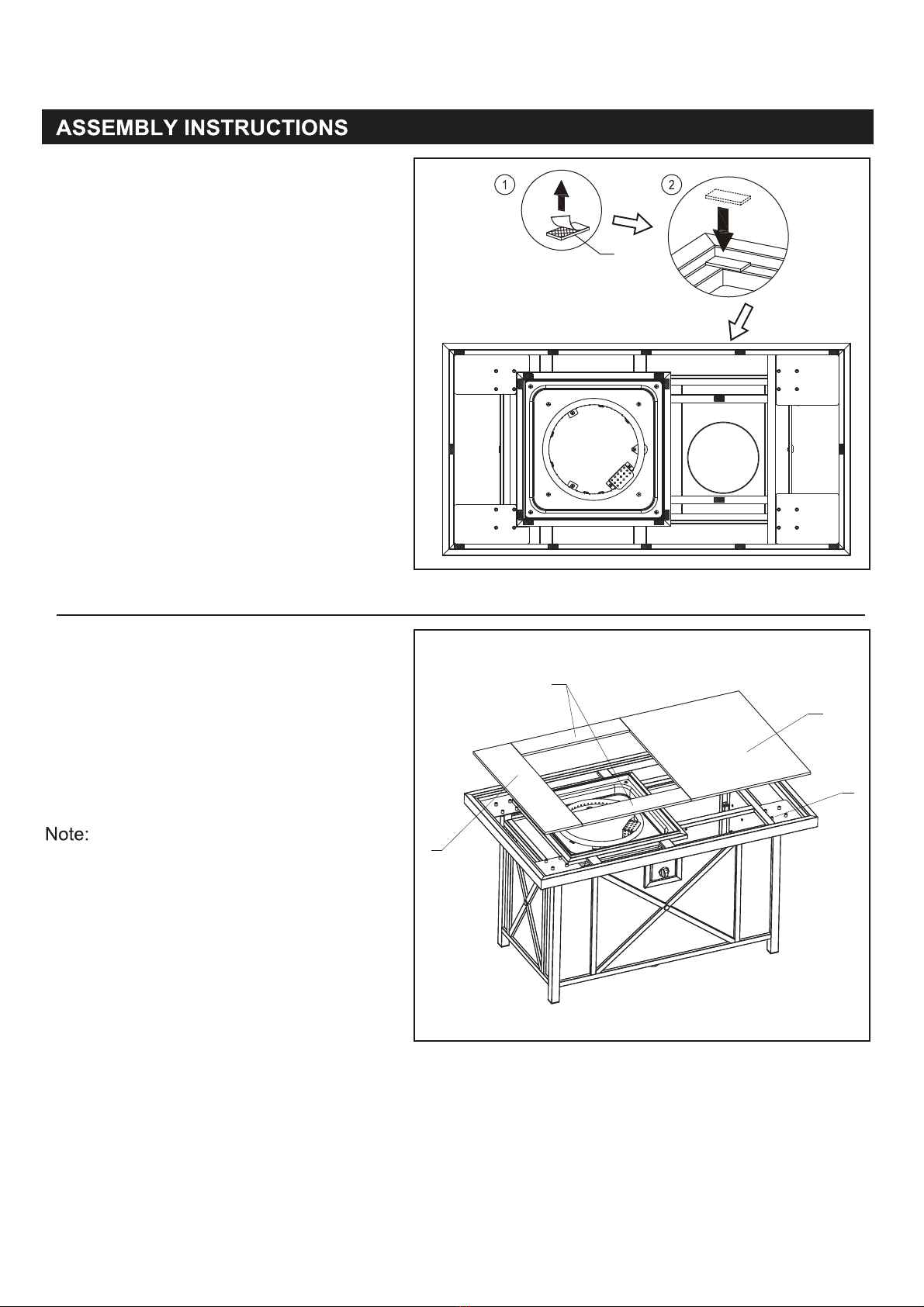

Peel and stick the crash pads (O) on
each edge of the metal frame as
illustrated, totalling 22 crash pads.
Note: Before applying the adhesive
crash pads, be sure to wipe down the
metal surface and make sure it is free of
any dust or debris.
Step 9 Step 9
Place these ceramic tiles with caution.
Put 2 pcs ceramic tiles (C) and 1pc
ceramic tile (D) and 1pc ceramic tile (E)
onto the table top frame (F).
Step 10 Step 10
C
E
F
D
O

Place the lava rocks (B) into the burning
area of the table top.
Place the cover lid (A) onto the table top
when the gas fire pit is not used.
Note: To avoid ignition failure, do not cover
the flame orifice with lava rocks.
WARNING: Failure to position the parts in
accordance with these diagrams or failure to use
only parts specifically approved with this appliance
may result in property damage or personal injury.
Step 11
Step 11
B
A
11

11
12
15
LAVA rocks (7.7lbs)
Open the door (I)
For you safety, please make sure the regulator
& hose going through under the protecting bar. (Fig.11)
cylinder holder
4. Turn the cylinder locking bolt clockwise to secure the
gas cylinder. (Fig. 12)
13
14
6
INSTALLATION INSTRUCTIONS
Your gas fire pit has been checked at all connections at the
factory for leakage.
LEAK TESTING
In transportation and handling some connections may have
loosened. Follow these steps to check the hose/
regulator/cylinder connections:
1) Make leakage solution by mixing 1part liquid dish soap and 3
parts water.
2) Spoon or brush several drops (or use squirt bottle) of the
solution onto hose/regulator/cylinder connection.
3) Turn on gas cylinder. Inspect the connections and look for
bubbles.
4) If no bubbles appear, the connection is safe.
5) If bubble appear, there is a leak. Turn off the cylinder valve,
loosen and re-tighten this connection. Check for leakage again.
If there is still a leak, please call customer service:1-866-814-0585.
Note:
1) The cylinder supply system must be arranged for vapor
withdrawal;
2) The cylinder used must include a collar to protect the cylinder
valve.
The hose assembly must be replaced prior to the appliance being
put into operation if there is evidence of excessive abrasion or
wear, or if the hose is damaged.
At least once a year, a complete inspection of the entire gas path
components should be performed.
If there is need to replace parts, proceed to leak test after
reassembly (These procedures should be performed by a profes-
sional technician).
13
14P2
P1
Tighten
regulator & cylinder
connection
I
Two or more people are recommended for easier installation.
on a flat,
12
Please make sure the
regulator & hose going
through under the
protecting bar

WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS . FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
WARNING
WARNING
WARNING
FOR YOUR SAFETY:
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Lighting operations should comply
with Lighting Instruction section.
Improper lighting operations will
cause serious injury and explosion.
Before turning gas supply ON
Your
fire pit was designed and approved for OUTDOOR
USE ONLY. DO NOT use it inside a building or any other
enclosed area.
Make sure surrounding areas are free of combustible
materials, gasoline, and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
FOR YOUR SAFETY:
WARNING!!!
Do not use an open flame to check for leakage.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas
cylinder is replaced.
NOTE:
U
se only the pressure regulator supplied with this fire pit.
Replace them with those specified by the manufacturer
only.
OPERATION
If at any time you are unable to
light burner and smell gas, wait 5
minutes to allow gas to dissipate
before attempting to light gas
appliance. If after 1 minute, you
are unable to light burner, wait 5
minutes and allow flammable
vapors to dissipate before
attempting to light gas appliance.
13

ATION
Before Lighting
The gas fire pit should be thoroughly inspected before each
use, and by a qualified service person at least annually.
If relighting a hot gas fire pit, always wait at least 5 minutes.

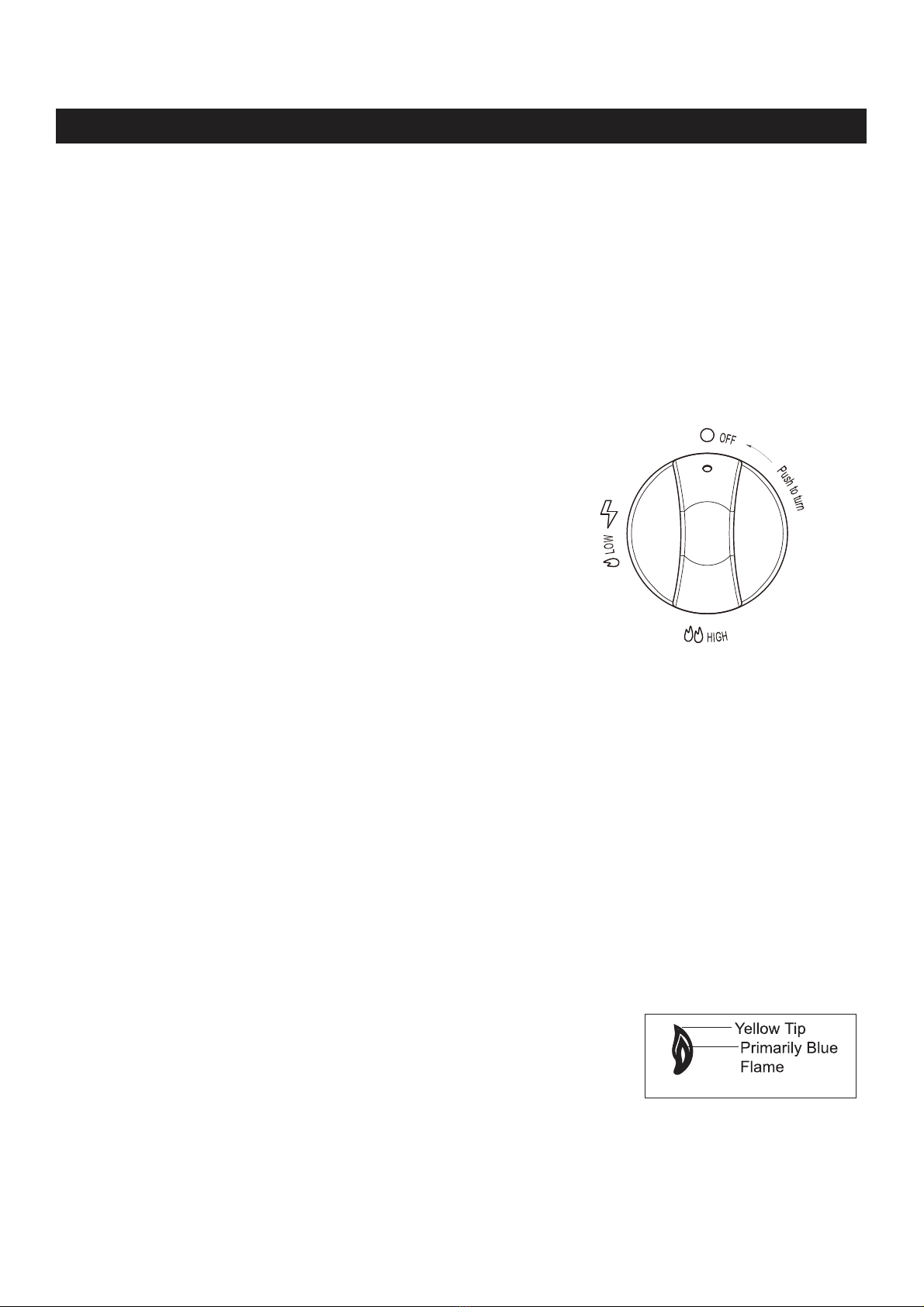

Lighting instructions
1. Make sure control knob is in the “OFF” position.
2. Turn LP cylinder gas valve to fully open position.
3. Press down control knob and turn it counter clockwise
to "LOW" position, this will light the burner. (You will hear 1
clicking noise.)
4. If the burner is not lit immediately (within 5 seconds), press
down the control knob and turn clockwise to "OFF" position,
repeat from step 3 after 5 minutes.
5. When burner is lit, turn the control knob to desired heat output position between "LOW"
and "HIGH".
6. Press down and turn the control knob clockwise to "OFF" position to shut down the appliance.
Turn off cylinder gas valve.
Flame Characteristic
Normally the burner flame is yellow.
If the burner flame is blue and very small, please check the
gas cylinder, as it may be low gas pressure or empty. If there
is enough gas in the cylinder, please contact customer service
to change the burner of the gas fire pit.
If flames lift away from burner or backfire happens,or produce
thick black smoke, the fire pit should be turned off immediately.
The fire pit should not be operated again until the unit is serviced
and/or repaired by a qualified service technician.
WARNING:DO NOT ATTEMPT TO OPERATE THIS HEATER UNTIL YOU HAVE READ
AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN
PROPERTY DAMAGE,SERIOUS INJURY,OR DEATH.
OPERATION
14

CAUTION:AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE.
SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL
APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30
MINUTES.THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE.
NOTE:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the
LOW position.Then, turn the knob to the level of heat desired.
Operation pressure checked:
If the flame is very small, this is because the supply
pressure is not enough. Please refill gas cylinder.
Re-light:
1) Turn the control knob to "OFF" position.
2)
3) Repeat steps beginning with step 3 of the lighting
instruction.
Shut down instructions:
1) Push in and turn control knob clockwise to "OFF"
position.
2)
2) Turn LP cylinder valve to "OFF" position.
The Event of Gas Leakage:
1) Turn the control knob to "OFF" position.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call gas supplier.
WARNING : Gas appliance will be hot after use.
Handle with extreme care.
Wait five (5) minutes before attempting to relight appliance.
Turn LP cylinder gas valve clockwise to "OFF" position
when appliance is not in use.
OPERATION
15

&$87,21:+(1&(57$,10$7(5,$/625,7(06 $5(/()7 $%29(%(6,'(2581'(5
7+,6+($7(5:+,/(,186(7+(<:,//%(68%-(&7725$',$17+($7 $1'&28/'%(
6(5,286/<'$0$*('
7KLVJDVILUHSLWLVSULPDULO\XVHGIRUWKHKHDWLQJ
RIRXWGRRUSDWLRVGHFNVVSDVSRROVDQGRSHQ
ZRUNLQJDUHDV
$OZD\VPDNHVXUHWKDWDGHTXDWHIUHVKDLU
YHQWLODWLRQLVSURYLGHG)ROORZWKHVSDFLQJ
WROHUDQFHVVKRZQLQ)LJXUH6DWDOOWLPHV
7KLVJDVILUHSLWPXVWEHSODFHGRQOHYHOILUP
JURXQG
6
1HYHURSHUDWHLQDQH[SORVLYHDWPRVSKHUH
.HHSDZD\IURPDUHDVZKHUHJDVROLQHRURWKHU
IODPPDEOHOLTXLGVRUYDSRUVDUHVWRUHGRUXVHG

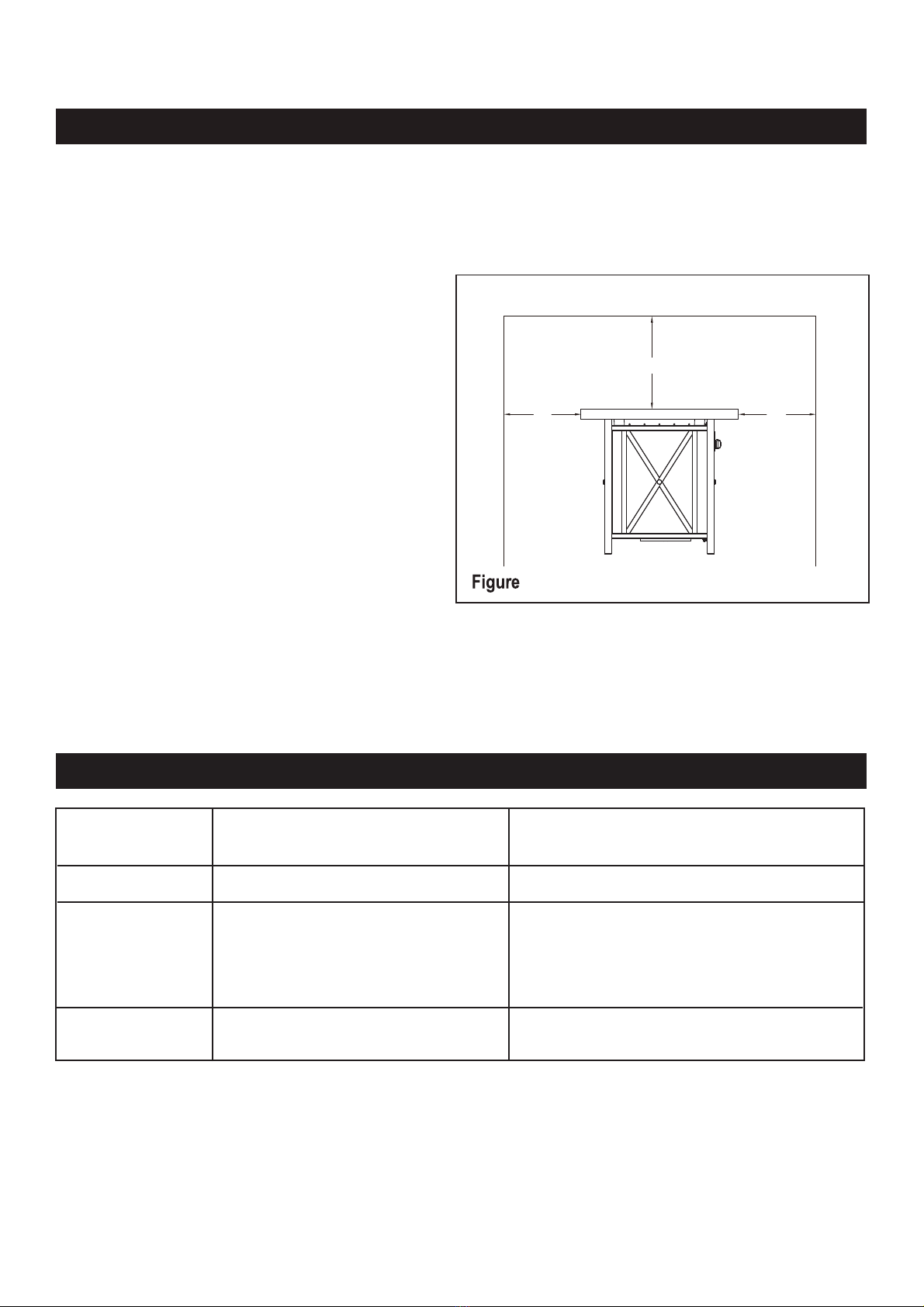

/2&$7,1*+($7(5)2586(
36”36”
58”
16
Gas leak
Low gas pressure
Clogged or dirty burner ports
Gas odor
Delayed ignition
Incorrect burner
flame
PROBLEM
OBSERVED POSSIBLE CAUSE
Incorrect gas supply or pressure
Clogged or dirty burner ports
CORRECTIVE MEASURES
Check all gas connections
Check gas supply pressure
Clean burner parts--see manual
"CLEANING AND MAINTENANCE" section
Check gas supply pressure
Clean burner parts
TROUBLESHOOTING

T
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Allow all burner elements to cool
before touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environment (such as
near an ocean). corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
Wait until gas appliance is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
gas fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner dry at all times. If the gas control is
exposed to water in any way, do NOT try to use it. It
must be replaced.
Keep the appliance area free and clean from combustible
Check if there are cracks or worn sections on hose. If
yes, please call our customer service to replace hose.
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Gas fire pit does NOT reach the desired temperature.
Gas fire pit glow is excessively uneven.
Gas fire pit makes popping noises.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage gas fire pit and render
it unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
MAINTENANCE/STORAGE
17

NOTE:
Wait until the appliance is
cool before covering.
Store the fire pit indoors during the winter if it will be subjected to
freezing temperatures.
Disconnect and remove the cylinder from the appliance before the
appliance can be stored indoors.
STORAGE
Turn the control knob to "OFF" position.
Allow at least 45 minutes for the tip erif to cool down after use,
Turn LP cylinder to OFF position.
Cylinder must be stored outdoors in a well-ventilated area out of
the reach of children. When the cylinder is disconnected, tightly
install the threaded valve plugs, and do not store it in a building,
garage or any other closed area.
of
You may store product indoors ONLY if the cylinder is
disconnected and removed.
Keep the tip erif area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
If you are not using the tip erif cover it to protect exterior surfaces
and to help prevent build up in air passages.
Store gas fire pit in an area sheltered from direct contact with
sleet, hail, snow, dust and debris).inclement weather (such as rai ,n
A qualified service person should install and repair the fire pit and
inspect it annually.
It might be necessary to clean this fire pit frequently. You must
passageways clean.
MAINTENANCE AND STORAGE
keep the control compartment, burner and circulating air
and then turn regulator counterclockwise to disconnect the regulator
from cylinder, turn the cylinder clamp screw counterclockwise to
loose the cylinder and remove the cylinder.
18

19
Warranty Information
Need help?
call our toll free number at:
1 (866)-814-0585
e-mail us at:
Shinerichgroup
2019 2019
