Foxconn J20H081 User manual

!
2!
Project Name WiFi+BT module
Approval Sheet Rev. 1.2
Foxconn Part No. J20H081.00
Prepared by Reviewed by Approved by
Clon Liu Eddie Huang
Ambit Microsystems (Shanghai) LTD.
No 1925, Nanle Road Songjiang Export
Processing Zone Shanghai, China
Tel :[phone] Ext:22165
FAX:[phone]
User Manual of J20H081

!
3!
CONTENTS
1REVISION HISTORY
!/////////////////////////////////////////////////////////////////////!4
2MANUFACTURING INFORMATION
!////////////////////////////////////////////////////////!5
3PRODUCT OVERVIEW
!///////////////////////////////////////////////////////////////////!6
3.1 APPLICATION SCOPE!////////////////////////////////////////////////////////////////////!6
4MODULE HARDWARE OVERVIEW
!////////////////////////////////////////////////////////!7
4.1 BLOCK DIAGRAM!///////////////////////////////////////////////////////////////////////!7
4.2 FEATURES!////////////////////////////////////////////////////////////////////////////!7
4.3 INTERFACE AND CONNECTOR!/////////////////////////////////////////////////////////////!7
5ELECTRICAL SPECIFICATION
!////////////////////////////////////////////////////////////!9
5.1 ABSOLUTE MAXIMUM RATING!/////////////////////////////////////////////////////////////!9
5.2 RECOMMENDED OPERATING RATING!///////////////////////////////////////////////////////!9
5.3 DC CHARACTERISTICS!//////////////////////////////////////////////////////////////////!9
5.4 ESD INFORMATION!/////////////////////////////////////////////////////////////////////!9
5.5 ENVIRONMENT STORAGE CONDITION!///////////////////////////////////////////////////////!9
6RF SPECIFICATION
!////////////////////////////////////////////////////////////////////!21
6.1 IEEE802.11B!////////////////////////////////////////////////////////////////////////!21
6.2 IEEE802.11G!////////////////////////////////////////////////////////////////////////!22
6.3 802.11NHT20!///////////////////////////////////////////////////////////////////////!23
6.4 802.11A!/////////////////////////////////////////////////////////////////////////////!25
6.5 802.11AN HT20!//////////////////////////////////////////////////////////////////////!26
6.6 802.11AN HT40!//////////////////////////////////////////////////////////////////////!27
6.7 802.11AC HT80!//////////////////////////////////////////////////////////////////////!28
6.8 BLUETOOTH 3.0!///////////////////////////////////////////////////////////////////////!29
6.9 ANTENNA ELECTRICAL SPECIFICATION/////////////////////////////////////////////////////!2:
7MECHANICAL SPECIFICATIONS
/////////////////////////////////////////////////////////!31
7.1 SHIELDING COVER DIMENSION!///////////////////////////////////////////////////////////!31
7.2 PCB ASSEMBLY DIMENSION!/////////////////////////////////////////////////////////////!32

!
4!
1 Revision History
!
Date Document revision Change Description
2013/08/31 1.0
Initial release
2013/10/14 1.1
Add BT specification and modify Wifi specification
2013/10/15 1.2
Modify BT standard from V3.0+HS standard to V3.0 standard
Add specification of Aux antenna
!

!
5!
2 Manufacturing Information
Manufacture Country:
Made in China
Manufacturer:
Ambit Microsystems (Shanghai) LTD.
Manufacture Address:
No 1925, Nanle Road Songjiang Export Processing Zone Shanghai, China

!
6!
3 Product Overview
The J20H081.00 802.11a/b/g/n/ac and BT3.0 module provides wireless modem
functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. This
module is based on MTK MT7650U solution .It fully complies with IEEE 802.11n,IEEE
802.11 a/b/g and ,IEEE 802.11 ac standards,!Bluetooth v2.1+EDR,
v3.0 standard, offering feature-rich wireless connectivity at high standards, and delivering
reliable, cost-effective throughput from an extended distance. Optimized RF architecture
and baseband algorithms provide superb performance and low power consumption.
Intelligent MAC design deploys a high efficient DMA engine and hardware data processing
accelerators which offloads the host processor.
3.1 Application scope
The wireless LAN is compliant to IEEE 802.11n,IEEE 802.11 a/b/g and IEEE 802.11 ac
standards . The data rate of 802.11b is up to 11Mbps and fallback rates of 5.5, 2, 1Mbps.
The data rate of 802.11a/g is up to 54Mbps and fallback rates of 48,36,24,18,12,9, 6Mbps.
The data rate of 802.11n HT20 is up to 65Mbps and fallback rates of 58.5, 52, 39, 26, 19.5,
13, 6.5Mbps;
The data rate of 802.11n HT40 is up to 130Mbps and fallback rates of 117, 104, 78, 52, 39,
26, 13Mbps;
The data rate of 802.11ac VHT80 is up to 433.3Mbps and fallback rates of
390,325,292.5,260,195,130,97.5,65,32.5Mbps;
!
The BT Module is compliant to Bluetooth 3.0 and EDR standard:
Carrier Frequency: 2402MHz ~ 2480 MHz
Carrier Spacing: 1.0MHz
Duplexing: TDD
Modulation: FHSS
GFSK, pi/4-DQPSK, 8DPSK
Symbol Rate: 1Mbps (GFSK), 2Mbps (pi/4-DQPSK), 3Mbps (8DPSK)

!
7!
4 Module Hardware Overview
4.1 Block Diagram

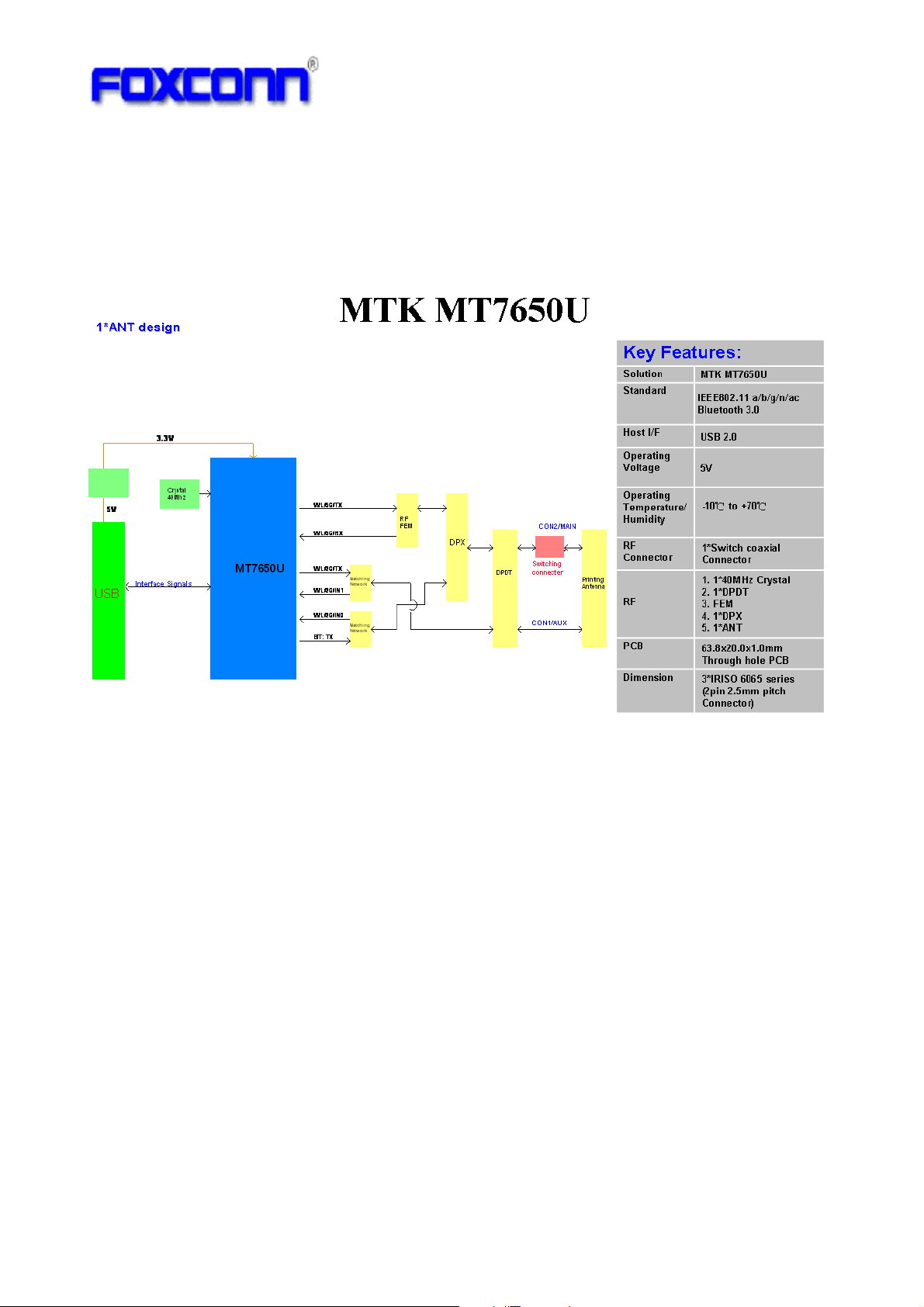

The general HW architecture is shown below Figure:
.
Module Block Diagram
4.2 Features
iIEEE802.11a/b/g/n/ac (1X1) based on MTK MT7650U solution.
iSupport BT3.0
iUSB 2.0 Interface, High and Full Speeds supported.
iModule is powered by the host with a 5.0V +/- 5% supply.
iExternal PCB printed antennas.
i4 layers through hole PCB design with FR4 material

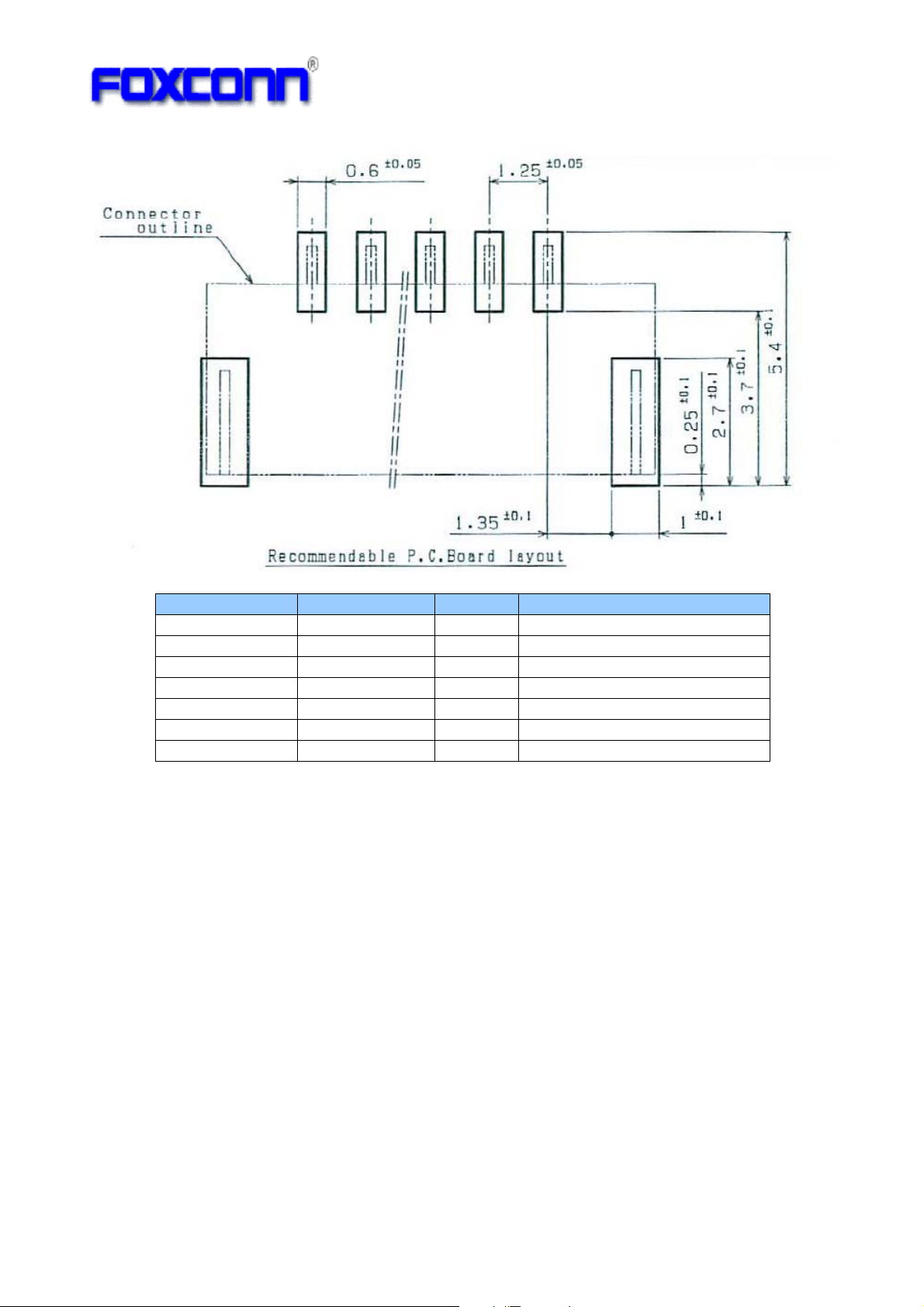

4.3 Interface and Connector
iPin definition:
iVendor: JST
iVendor P/N: SM05B-GHS-TB

!
8!
Pin Number Symbol Name Status Pin definition
1GND Ground
2DP I/O USB positive data
3DM I/O USB negative data
4UV+ P USB +5V power input
5GND Ground
S1 GND Ground
S2 GND Ground

!
9!
5 Electrical Specification
5.1 Absolute maximum rating
!
Element Symbol Min Typ Max Unit
DC supply voltage UV+ 5.0 6.5 (V)
5.2 Recommended operating rating
!
Element Symbol Min Typ Max Unit
DC supply voltage UV+ 4.5 5.0 5.5 (V)
5.3 DC Characteristics
Symbol Parameter Min Typ. Max Unit
UV+
Supply voltage 4.5 5.0 5.5 (V)
2.4GHz Tx Current(1M/15dBm) 200 (mA)
2.4GHz Tx Current(11M/15dBm) - (mA)
2.4GHz Tx Current(6M/15dBm) - (mA)
2.4GHz Tx Current(54M/15dBm) 220 (mA)
2.4GHz Tx
Current(MCS0/15Bm/HT20)
220 (mA)
2.4GHz Tx
Current(MCS7/15dBm/HT20)
220 (mA)
Rx Current 80 (mA)
5GHz Tx Current(6M/12dBm) - (mA)
5GHz Tx Current(54M/12dBm) - (mA)
5GHz Tx
Current(MCS0/12Bm/HT20)
- (mA)
5GHz Tx
Current(MCS7/12dBm/HT20)
- (mA)
5GHz Tx
Current(MCS0/12Bm/HT40)
- (mA)
5GHz Tx
Current(MCS7/12dBm/HT40)
300 (mA)
5GHz Tx
Current(MCS0/11Bm/VHT80)
- (mA)
5GHz Tx
Current(MCS9/11dBm/VHT80)
- (mA)
!
5.4 ESD Information
Mode Level Unit
HBM 1000 V
!
5.5 Environment Storage Condition
!

!
:!
!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!
Environment condition
Temperature Operating Temperature: -10 deg.C ~70 deg.C
Storage Temperature: -40 deg.C ~85 deg.C
Humidity Operating Humidity: 20% ~90%
Storage Humidity: 20% ~90%

!
21!
6 RF Specification
6.1 IEEE802.11b
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Items Contents
Specification IEEE802.11b
Mode DSSS / CCK
Channel CH1 to CH11
Data rate 1, 2, 5.5, 11Mbps
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@1Mbps 13.5 15 16.5 dBm
2) Target Power@2Mbps 13.5 15 16.5 dBm
3) Target [email protected] 13.5 15 16.5 dBm
4) Target Power@11Mbps 13.5 15 16.5 dBm
2. Spectrum Mask @15dBm
1) fc-33MHz Іf Іfc-22MHz - - -50 dBr
2) fc-22MHz Іf Іfc-11MHz - - -30 dBr
3) fc+11MHz Іf Іfc+22MHz - - -30 dBr
4) fc+22MHz Іf Іfc+33MHz - - -50 dBr
3. Frequency Error -10 - +10 ppm
4 Modulation Accuracy(EVM)@15dBm
1) 1Mbps - -10 dB
2) 2Mbps - -10 dB
3) 5.5Mbps - -10 dB
4) 11Mbps - -10 dB
RX Characteristics Min. Typ. Max. Unit
5 Minimum Input Level Sensitivity
1) 1Mbps (FERЉ8%) - -92 -91 dBm
2) 2Mbps (FERЉ8%) --91 -89 dBm
3) 5.5Mbps (FERЉ8%) --90 -87 dBm
4) 11Mbps (FERЉ8%) --89 -85 dBm
6 Maximum Input Level (FERЉ8%) -10 -5 - dBm
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

!
22!
6.2 IEEE802.11g
Items Contents
Specification IEEE802.11g
Mode OFDM
Channel CH1 to CH11
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@6Mbps 13.5 15 16.5 dBm
2) Target Power@9Mbps 13.5 15 16.5 dBm
3) Target Power@12Mbps 13.5 15 16.5 dBm
4) Target Power@18Mbps 13.5 15 16.5 dBm
5) Target Power@24Mbps 13.5 15 16.5 dBm
6) Target Power@36Mbps 13.5 15 16.5 dBm
7) Target Power@48Mbps 13.5 15 16.5 dBm
8) Target Power@54Mbps 13.5 15 16.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -40 dBr
3 Modulation Accuracy(EVM)@15dBm
1) 6Mbps - - -5 dB
2) 9Mbps - - -8 dB
3) 12Mbps - - -10 dB
4) 18Mbps - - -13 dB
5) 24Mbps - - -16 dB
6) 36Mbps - - -19 dB
7) 48Mbps - - -22 dB
8) 54Mbps - -28 -25 dB
4 Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5 Minimum Input Level Sensitivity
1) 6Mbps (PER <10%) - -92 -83 dBm
2) 9Mbps (PER < 10%) - -91 -81 dBm
3) 12Mbps (PER < 10%) - -90 -79 dBm
4) 18Mbps (PER < 10%) - -87 -77 dBm
5) 24Mbps (PER < 10%) - -85 -75 dBm
6) 36Mbps (PER < 10%) - -80 -73 dBm
7) 48Mbps (PER < 10%) - -77 -71 dBm
8) 54Mbps (PER < 10%) - -75 -69 dBm
6 Maximum Input Level (PER < 10%) -20 -11 - dBm
!

!
23!
6.3 802.11n HT20
Items Contents
Specification IEEE802.11n HT20
Mode OFDM
Channel CH2 to CH10
Data rate (MCS index) MCS0/1/2/3/4/5/6/7
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@MCS0 13.5 15 16.5 dBm
2) Target Power@ MCS1 13.5 15 16.5 dBm
3) Target Power@ MCS2 13.5 15 16.5 dBm
4) Target Power@ MCS3 13.5 15 16.5 dBm
5) Target Power@ MCS4 13.5 15 16.5 dBm
6) Target Power@ MCS5 13.5 15 16.5 dBm
7) Target Power@ MCS6 13.5 15 16.5 dBm
8) Target Power@ MCS7 13.5 15 16.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -45 dBr
3. Modulation Accuracy(EVM)@15dBm
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - - -28 dB
4. Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5. Minimum Input Level Sensitivity
1) MCS0 (PER < 10%) - -91 -81 dBm
2) MCS1 (PER < 10%) - -89 -79 dBm
3) MCS2 (PER < 10%) - -87 -77 dBm
4) MCS3 (PER < 10%) - -84 -75 dBm
5) MCS4 (PER < 10%) - -80 -73 dBm
6) MCS5 (PER < 10%) - -75 -71 dBm
7) MCS6 (PER < 10%) - -74 -69 dBm
8) MCS7 (PER < 10%) - -72 -67 dBm
6. Maximum Input Level (PER < 10%) -20 -10 - dBm

!
24!
Items Contents
Specification IEEE802.11n HT20
Mode OFDM
Channel CH1, CH11
Data rate (MCS index) MCS0/1/2/3/4/5/6/7
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@MCS0 12.5 14 15.5 dBm
2) Target Power@ MCS1 12.5 14 15.5 dBm
3) Target Power@ MCS2 12.5 14 15.5 dBm
4) Target Power@ MCS3 12.5 14 15.5 dBm
5) Target Power@ MCS4 12.5 14 15.5 dBm
6) Target Power@ MCS5 12.5 14 15.5 dBm
7) Target Power@ MCS6 12.5 14 15.5 dBm
8) Target Power@ MCS7 12.5 14 15.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -45 dBr
3. Modulation Accuracy(EVM)@15dBm
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - - -28 dB
4. Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5. Minimum Input Level Sensitivity
1) MCS0 (PER < 10%) - -91 -81 dBm
2) MCS1 (PER < 10%) - -89 -79 dBm
3) MCS2 (PER < 10%) - -87 -77 dBm
4) MCS3 (PER < 10%) - -84 -75 dBm
5) MCS4 (PER < 10%) - -80 -73 dBm
6) MCS5 (PER < 10%) - -75 -71 dBm
7) MCS6 (PER < 10%) - -74 -69 dBm
8) MCS7 (PER < 10%) - -72 -67 dBm
6. Maximum Input Level (PER < 10%) -20 -10 - dBm

!
25!
6.4 802.11a
Items Contents
Specification IEEE802.11a
Mode OFDM
Channel CH36 to CH165
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@6Mbps 10.5 12 13.5 dBm
2) Target Power@9Mbps 10.5 12 13.5 dBm
3) Target Power@12Mbps 10.5 12 13.5 dBm
4) Target Power@18Mbps 10.5 12 13.5 dBm
5) Target Power@24Mbps 10.5 12 13.5 dBm
6) Target Power@36Mbps 10.5 12 13.5 dBm
7) Target Power@48Mbps 10.5 12 13.5 dBm
8) Target Power@54Mbps 10.5 12 13.5 dBm
2. Spectrum Mask @12dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -40 dBr
3 Modulation Accuracy(EVM)@15dBm
1) 6Mbps - - -5 dB
2) 9Mbps - - -8 dB
3) 12Mbps - - -10 dB
4) 18Mbps - - -13 dB
5) 24Mbps - - -16 dB
6) 36Mbps - - -19 dB
7) 48Mbps - - -22 dB
8) 54Mbps - -28 -25 dB
4 Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5 Minimum Input Level Sensitivity
1) 6Mbps (PER <10%) - -92 -83 dBm
2) 9Mbps (PER < 10%) - -91 -81 dBm
3) 12Mbps (PER < 10%) - -90 -79 dBm
4) 18Mbps (PER < 10%) - -87 -77 dBm
5) 24Mbps (PER < 10%) - -85 -75 dBm
6) 36Mbps (PER < 10%) - -80 -73 dBm
7) 48Mbps (PER < 10%) - -77 -71 dBm
8) 54Mbps (PER < 10%) - -75 -69 dBm
6 Maximum Input Level (PER < 10%) -20 -11 - dBm
!
!
!
!
!
!
!
!
!
!
!
!

!
26!
6.5 802.11an HT20
!
!
!
!
!
!
!
!
!
Items Contents
Specification IEEE802.11an HT20
Mode OFDM
Channel CH36 to CH165
Data rate (MCS index) MCS0/1/2/3/4/5/6/7
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@MCS0 10.5 12 13.5 dBm
2) Target Power@ MCS1 10.5 12 13.5 dBm
3) Target Power@ MCS2 10.5 12 13.5 dBm
4) Target Power@ MCS3 10.5 12 13.5 dBm
5) Target Power@ MCS4 10.5 12 13.5 dBm
6) Target Power@ MCS5 10.5 12 13.5 dBm
7) Target Power@ MCS6 10.5 12 13.5 dBm
8) Target Power@ MCS7 10.5 12 13.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -45 dBr
3. Modulation Accuracy(EVM)@15dBm
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - - -28 dB
4. Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5. Minimum Input Level Sensitivity
1) MCS0 (PER < 10%) - -91 -81 dBm
2) MCS1 (PER < 10%) - -89 -79 dBm
3) MCS2 (PER < 10%) - -87 -77 dBm
4) MCS3 (PER < 10%) - -84 -75 dBm
5) MCS4 (PER < 10%) - -80 -73 dBm
6) MCS5 (PER < 10%) - -75 -71 dBm
7) MCS6 (PER < 10%) - -74 -69 dBm
8) MCS7 (PER < 10%) - -72 -67 dBm
6. Maximum Input Level (PER < 10%) -20 -10 - dBm

!
27!
6.6 802.11an HT40
!
Items Contents
Specification IEEE802.11an HT20
Mode OFDM
Channel CH38 to CH159
Data rate (MCS index) MCS0/1/2/3/4/5/6/7
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@MCS0 10.5 12 13.5 dBm
2) Target Power@ MCS1 10.5 12 13.5 dBm
3) Target Power@ MCS2 10.5 12 13.5 dBm
4) Target Power@ MCS3 10.5 12 13.5 dBm
5) Target Power@ MCS4 10.5 12 13.5 dBm
6) Target Power@ MCS5 10.5 12 13.5 dBm
7) Target Power@ MCS6 10.5 12 13.5 dBm
8) Target Power@ MCS7 10.5 12 13.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -45 dBr
3. Modulation Accuracy(EVM)@15dBm
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - - -28 dB
4. Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5. Minimum Input Level Sensitivity
1) MCS0 (PER < 10%) - -88 -78 dBm
2) MCS1 (PER < 10%) - -86 -76 dBm
3) MCS2 (PER < 10%) - -84 -74 dBm
4) MCS3 (PER < 10%) - -81 -72 dBm
5) MCS4 (PER < 10%) - -77 -70 dBm
6) MCS5 (PER < 10%) - -72 -68 dBm
7) MCS6 (PER < 10%) - -71 -66 dBm
8) MCS7 (PER < 10%) - -69 -64 dBm
6. Maximum Input Level (PER < 10%) -20 -10 - dBm

!
28!
6.7 802.11ac HT80
!
!
!
!
!
!
!
!
Items Contents
Specification IEEE802.11ac HT80
Mode OFDM
Channel CH42 to CH155
Data rate (MCS index) MCS0/1/2/3/4/5/6/7/8/9
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@MCS0 9.5 11 12.5 dBm
2) Target Power@ MCS1 9.5 11 12.5 dBm
3) Target Power@ MCS2 9.5 11 12.5 dBm
4) Target Power@ MCS3 9.5 11 12.5 dBm
5) Target Power@ MCS4 9.5 11 12.5 dBm
6) Target Power@ MCS5 9.5 11 12.5 dBm
7) Target Power@ MCS6 9.5 11 12.5 dBm
8) Target Power@ MCS7 9.5 11 12.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -45 dBr
3. Modulation Accuracy(EVM)@15dBm
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - - -28 dB
4. Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5. Minimum Input Level Sensitivity
1) MCS0 (PER < 10%) - -80 -75 dBm
2) MCS1 (PER < 10%) - -78 -73 dBm
3) MCS2 (PER < 10%) - -76 -71 dBm
4) MCS3 (PER < 10%) - -74 -69 dBm
5) MCS4 (PER < 10%) - -72 -67 dBm
6) MCS5 (PER < 10%) - -70 -65 dBm
7) MCS6 (PER < 10%) - -68 -63 dBm
8) MCS7 (PER < 10%) - -66 -61 dBm
9) MCS7 (PER < 10%) - -63 -58 dBm
10) MCS7 (PER < 10%) - -59 -54 dBm
6. Maximum Input Level (PER < 10%) -20 -10 - dBm

!
29!
6.8 Bluetooth 3.0
!
!
!
Items Contents
- TX Characteristics - Min. Typ. Max. Unit
1. Power Levels !
BT Output Power (Basic Data Rate) -3 0 2 dBm
2. Initial Carrier Frequenc
y
Tolerance
Average Offset -75 0 75 kHz
3. Carrier Drift
Drift Rate
DH1 -20 0 20 kHz/50us
DH3 -20 0 20 kHz/50us
DH5 -20 0 20 kHz/50us
Average Drift
DH1 -25 0 25 kHz
DH3 -40 0 40
kHz
DH5 -40 0 40
kHz
4. Modulation Characteristic
F1avg 140 150 175 kHz
F2max 115 140 kHz
F1/F2 Ratio 0.8 0.96
5. EDR Carrier Frequency Stability and Modulation Accuracy
2Mbps:
±
/4 DQPSK
Initial Frequency Error: j-75 0 75 kHz
Frequency Error: 1-10 0 10
kHz
Block Frequency Error: j!,!1-75 0 75 kHz
RMS DEVM - 0.05 0.2
Peak DEVM - 0.12 0.35
99% DEVM (% Symbols <=0.3) 99% 100%
3Mbps:

8DPSK
Initial Frequency Error: j-75 0 75 kHz
Frequency Error: 1-10 0 10 kHz
Block Frequency Error: j!,!1-75 0 75
kHz
RMS DEVM - 0.05 0.13
Peak DEVM - 0.13 0.25
99% DEVM (% Symbols <=0.13) 99% 100%
- RX Characteristics - Min. Typ. Max. Unit
1. Minimum Input Level Sensitivit
y
!!! !
GFSK (1Mbps) - -88 -79 dBm
±/4 DQPSK (2Mbps) - -88 -79 dBm
8DPSK (3Mbps) - -84 -76 dBm

!
2:!
6.9 Antenna Electrical Specification
!
Parameter Value Units
Operating frequency range 2.4 ~ 2.4835
5.15~5.85
GHz
Antenna gain (max) -0.4
1.12
dBi (Main Antenna)
Antenna gain (max) 0.28
0.9
dBi (Aux Antenna)

!
31!
7 Mechanical Specifications

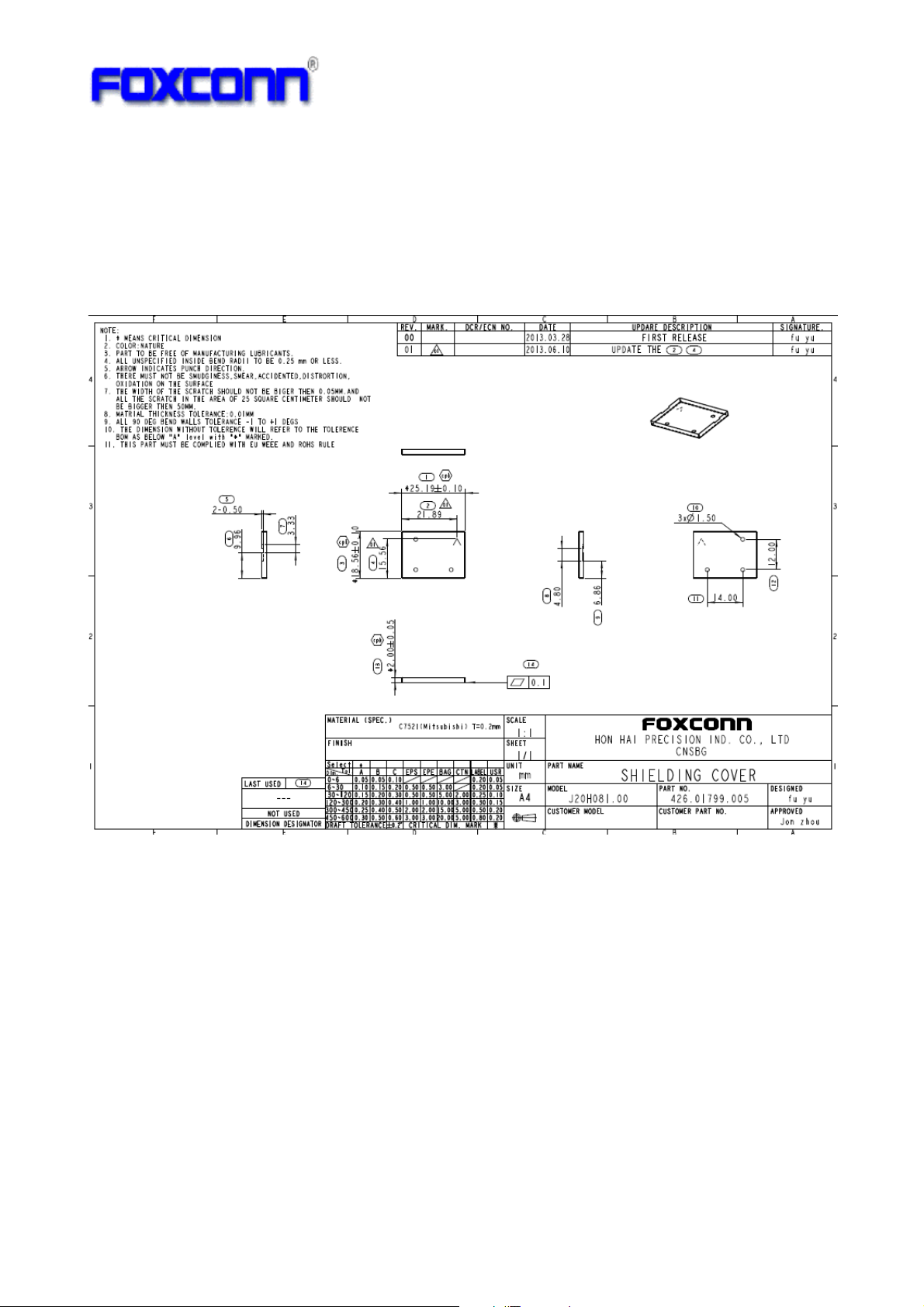

7.1 Shielding Cover Dimension
Dimension (LxWxH): 25.19mm x 18.56mm x 2.0mm
Thickness: 0.2mm
!
!
!
!
!
!
!
!
