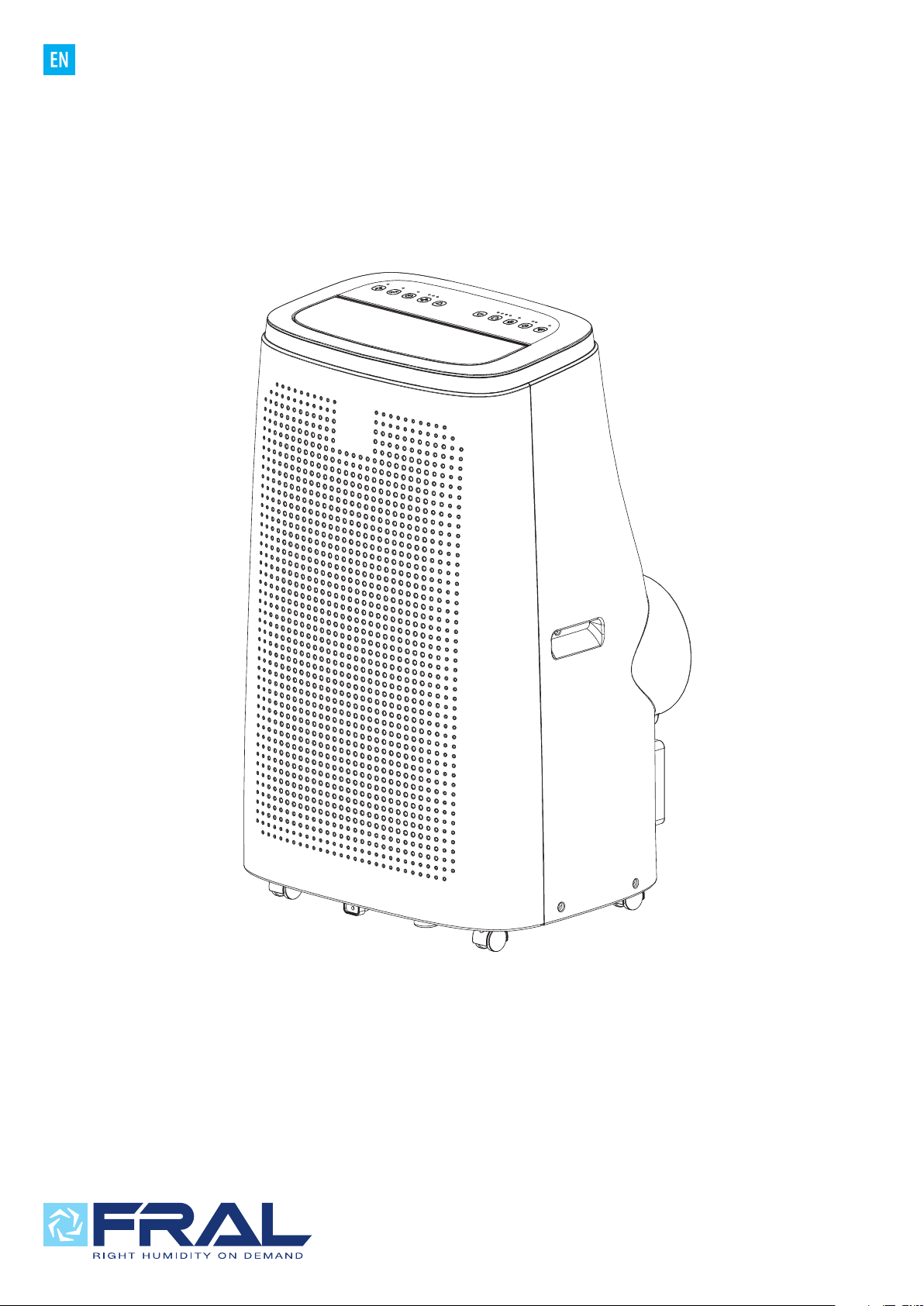

Fral SUPER COOL User manual

USER’S MANUAL
LOCAL PORTABLE AIR CONDITIONER
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER
FRAL SUPER COOL
Mod. FSC12H
INST._PL_IT_EN_DE_FSC12H_WER.1

FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER
INST._PL_IT_EN_DE_FSC12H_WER.1 21
Thank you for buying our FRAL SUPER COOL Portable Air Conditioner. To ensure its optimum performance and avoid possible faults, please read
this Operator Manual carefully.
• Read this Operator Manual carefully before the unit is operated rst time. Caution: This unit is for indoor use only; can be used outdoors
under certain conditions.
• Ensure that the unit’s air inlet and outlet is not obstructed or blocked in any manner.
• Place the unit in dry place and on level ground to avoid any water leaking from the tank.
• Installation has to be performed in accordance with appropriate regulations applicable in the country where the unit is to be operated.
• The unit has to be connected to an electrical grid with parameters of 220-240V and 50Hz.
• In case of any doubts concerning electrical connection, check it and have it repaired by a qualied electrician, if necessary.
• The unit has been tested and is safe for use.
• The unit’s power supply has to be disconnected before handling, checking or cleaning.
• Avoid touching or moving any movable parts of the unit.
• Never place your ngers, pens or any other items in the unit’s vent grate.
• The unit cannot be used by persons (including children) with limited physical, sensory or mental abilities. Persons without appropriate
experience or knowledge cannot use the unit as well.
• Do not leave children unattended if playing close to the unit.
• Do not clean the unit by submerging it in water.
• Never plug the unit to an extension cord.
• Never use the unit if its cable or its plug is damaged. Ensure that the unit’s cable does not touch any sharp objects.
• Any activity concerning the unit other than cleaning or lter replacement has to be performed by a qualied technician. Incorrect mainte-
nance may void the unit’s warranty.
• The unit’s purpose is to provide air conditioning and air drying indoors; any other use is not authorised.
• The unit has to be transported in upright position, otherwise its compressor may sustain damage. In case of any doubts wait no less than
24 hours before starting the unit.
• Do not restart the unit within a 3 minutes period after it has been shut down. Otherwise the unit may sustain damage.
• Do not turn on/off the unit only by putting / taking the plug in / out of the socket. Use the ON/OFF button located at the unit’s display.
• The unit cannot be used in places where it may be exposed to direct contact with moisture (rain, mist etc.) or in explosive or corrosive
atmosphere.
• Before the unit is transported or handled, discharge water from the tank.
1. IMPORTANT! Safety precautions
2. IMPORTANT! Applicable to R290 refrigerant
• Read all precautions carefully.
• While defrosting or cleaning the unit, do not use any other tools than the ones recommended by the manufacturer.
• The unit has to be placed in space free from any xed ignition sources (such as open ame, operational gas devices or electrical units).
• Position the unit in a room where, in case of refrigerant leak, the coolant does not collect in particular spot.
• Gases used as refrigerant may be odourless.
• Do not allow the unit’s housing to be pierced; do not burn the unit.
• Install, use and store the unit in a room with area of more than 14m2.
• R290 is a refrigerant gas, complying with EU Directives concerning environment protection. Do not allow the unit’s cooling circuit to be
pierced in any place.
• If the unit is installed, used or stored in a room without ventilation system, ensure appropriate solution preventing collection of leaking
refrigerant and potential re or explosion hazard resulting from possible ignition of such refrigerant caused by an electrical heater, a stove
or any other ignition source.
• The unit has to be stored in a manner preventing any mechanical damage.
• Any person maintaining or modifying the unit’s cooling circuit has to appropriately authorised for such activities by an accredited organi-
sation, thus ensuring professional handling of refrigerant, with such authorisation acknowledged by renowned organisations in the HVAC
industry.
• Any repairs should be performed in compliance with the manufacturer’s instructions and with the unit’s repair manual (additional document).
The unit’s repair manual may also be acquired from the manufacturer upon specic order.
• Any maintenance of repair requiring presence of another industry professionals should be supervised by a person authorised for use of
ammable refrigerants.
CAUTION! DANGER! COMPLY WITH PROVISIONS OF
THE OPERATOR MANUAL
PLEASE REFER TO THE
REPAIR MANUAL

FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER
INST._PL_IT_EN_DE_FSC12H_WER.122
Danger
Natural refrigerant propane (R290)!
H220 – Extremely ammable gas.
H280 – Contains gas under pressure; may explode if heated.
P210 – Keep away from heat, hot surfaces, sparks, open ames and other ignition sources. No smoking. Leaking gas re: do not extin-
guish unless leak can be stopped safely.
P410+P403 – Protect from sunlight. Store in a well-ventilated place.
3. OTHER HAZARDS
High voltage warning
Any operations on the electrical system are only allowed to be by an authorised electrical service.
High voltage warning
Before the unit is repaired, pull the power cable plug out of the electrical socket! Remember to turn off the unit by pulling the power plug.
Warning
Additional hazard is possible if the unit is used incorrectly! Ensure your personnel is appropriately trained!
Warning
The unit is not a toy and cannot be provided to children.
Warning
Do not operate the unit without the air lter installed! The unit operating without the air lter gets contaminated inside, its drying performan-
ce is impaired, and its damage is possible.
Tip
Nie eksploatuj urządzenia bez założonego ltra powietrza! Praca bez ltra spowoduje silne zanieczyszczenia wnętrza urządzenia, obniże-
nie skuteczności osuszania oraz uszkodzenie.

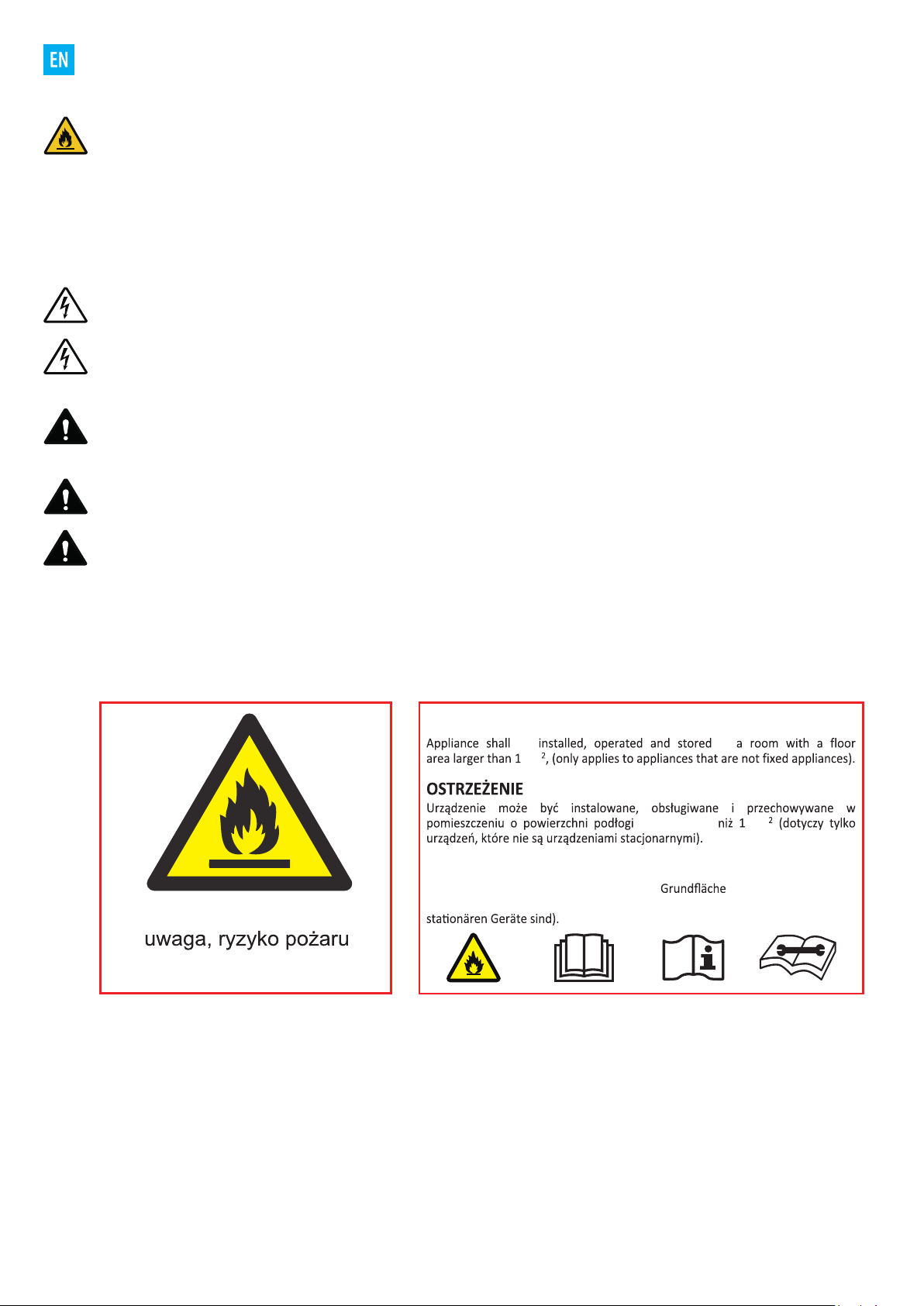

Do not remove any safety symbols or stickers located at the unit:
caution, risk of fire
Achtung! Brandgefahr!
WARNING:
be in
4 m
:
nie mniejszej 4 m
WARNUNG:
Das Gerät kann i n einem Raum m it e iner v on m indestens 1 4 m
2
installiert, betrieben und gelagert werden ( gilt nur f ür G eräte, d ie keine

INST._PL_IT_EN_DE_FSC12H_WER.1 23
4. PORTABLE AND EASY TO USE
• The unit can be easily transported from one room to another.
• The air capacity is adjusted with three ventilation levels available.
• Installation by a qualied service is not required.
• All you need is to connect it to an electrical socket with parameters of 220-240V and 50Hz.
• The air outlet pipe may be stored in the unit during transport or with the air conditioner not operated at the moment.
• Do not connect the hot air pipe to any air ducts. It may cause the unit to sustain damage not covered with its warranty. Make sure that hot air ows
out freely from the outlet pipe.
• Do not extend the hot air pipe beyond its maximum length of 2 metres. If extended, the unit’s temperature cannot exceed 32°C. Otherwise, it may
cause the unit to sustain damage not covered with its warranty.

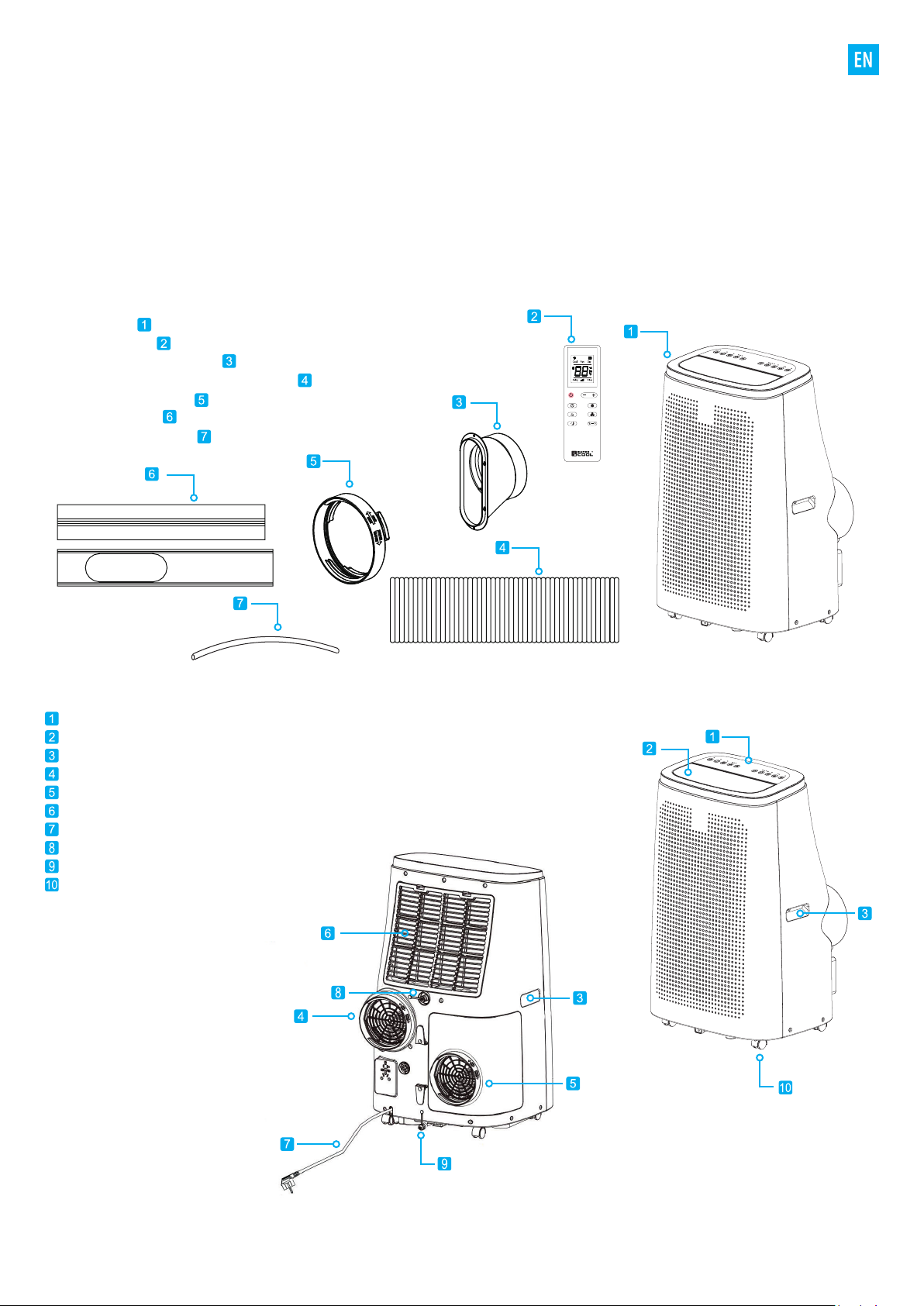

5. THIS DELIVERY SHOULD INCLUDE:
1 x Central unit
1 x Remote control
1 x Large at-headed pipe end
1 x Air discharge pipe 1.5 m, 15cm diameter
1 x Hot air pipe connector
1 x Window adapter
1 x Water discharge hose
6. UNIT DESCRIPTION
Control panel
Cold air outlet
Grip holes
Hot air outlet
Condenser air intake plus air lter
Evaporator air intake plus air lter
Power cable
Upper water drain valve
Lower water drain valve
Wheel casters
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER

INST._PL_IT_EN_DE_FSC12H_WER.124
7. INSTALLATION
Caution: Before the unit is started, please wait 3 to 4 hours with the unit positioned upright.
The unit may be easily moved from one place to another. While moving the unit, make sure it is in upright position, and place it on level
surface.
Open the packaging and remove the upper box. Take the product and other items delivered out of the packaging. Remove the transport protection
tape from the sides of the device.
1. Screw the at-headed pipe end to the unit’s hot air pipe, making at least 3 full turns.
2. Screw the pipe to the hot air pipe connector, making at least 3 full turns. Next, connect the pipe with the connector to the hot air outlet at the air
conditioner.
If the unit is meant to operate primarily as air conditioner, we recommend to attach the hot air pipe to the windowl window kit is available as an option.
Partially open the window, and put in the window adapter vertically or horizontally. Connect the pipe to the adapter, pressing rmly, and make sure it
won’t disconnect.
Caution: The window kit has been designed to be used with double-leaf or sliding windows/doors. In case any other window type is available, the
window kit cannot be used. Also, please make sure to minimize any air inow.
Distances to be noted:
The pipe can be extended to no more than 150cm. If extended beyond this limit, its performance will be reduced. The most appropriate length is 50cm.
The hot air pipe has to be installed correctly, otherwise overheating is possible. Do not bend the pipe by more than 30º.
8. WINDOW KIT INSTALLATION
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER
NOTE:
A small amount of water remains in the drip
trays in the air conditioner. If the air
conditioner is moved too vigorously, it may
spill onto the floor.

INST._PL_IT_EN_DE_FSC12H_WER.1 25
9. OPERATION MODES
1. COOLING MODE
• The “Cool” LED at the control panel is on.
• The temperature range is adjustable from 16°C to 31°C.
• In this mode, press the ON/OFF button to turn the unit off. The unit shuts down, saving the most recent temperature setting. Press the ON/OFF button
again to turn the unit on; the temperature setting saved at the shutdown is used.
• In this mode, you can adjust the fan speed as well as set the TIMER and SLEEP features.
• To ensure minimum noise, operate the unit at low fan speed.
2. HEATING MODE
• The “Heat” LED at the control panel is on.
• The temperature range is adjustable from 16°C to 31°C.
• In this mode, press the ON/OFF button to turn the unit off. The unit shuts down, saving the most recent temperature setting. Press the ON/OFF button
again to turn the unit on; the temperature setting saved at the shutdown is used.
• In this mode, you can adjust the fan speed as well as set the TIMER and SLEEP features.
• To ensure minimum noise, operate the unit at low fan speed.
3. DRYING MODE
• Press the MODE button to choose the drying mode.
• In this mode, temperature is controlled by the circuit board and cannot be adjusted.
• In this mode, press the ON/OFF button to turn the unit off. The unit shuts down, saving the most recent temperature setting. This temperature setting
is kept when the unit is turned on.
•The fan speed is set at low and cannot be adjusted.
CAUTION
While operating as a drying unit, the product does not provide cooling performance. Do not connect the pipe when the unit is operated in drying mode.
The drying mode is recommended for the autumn and winter seasons. In case it is used in summer, it is best to leave the exible pipe connected so
that hot air is discharged outside, instead of being released indoors. While drying, ensure continuous water supply.
4. VENTILATION MODE (FAN ONLY)
• Press MODE multiple times until the FAN icon appears.
• In this mode, you can adjust the fan speed.
• Temperature cannot be adjusted.

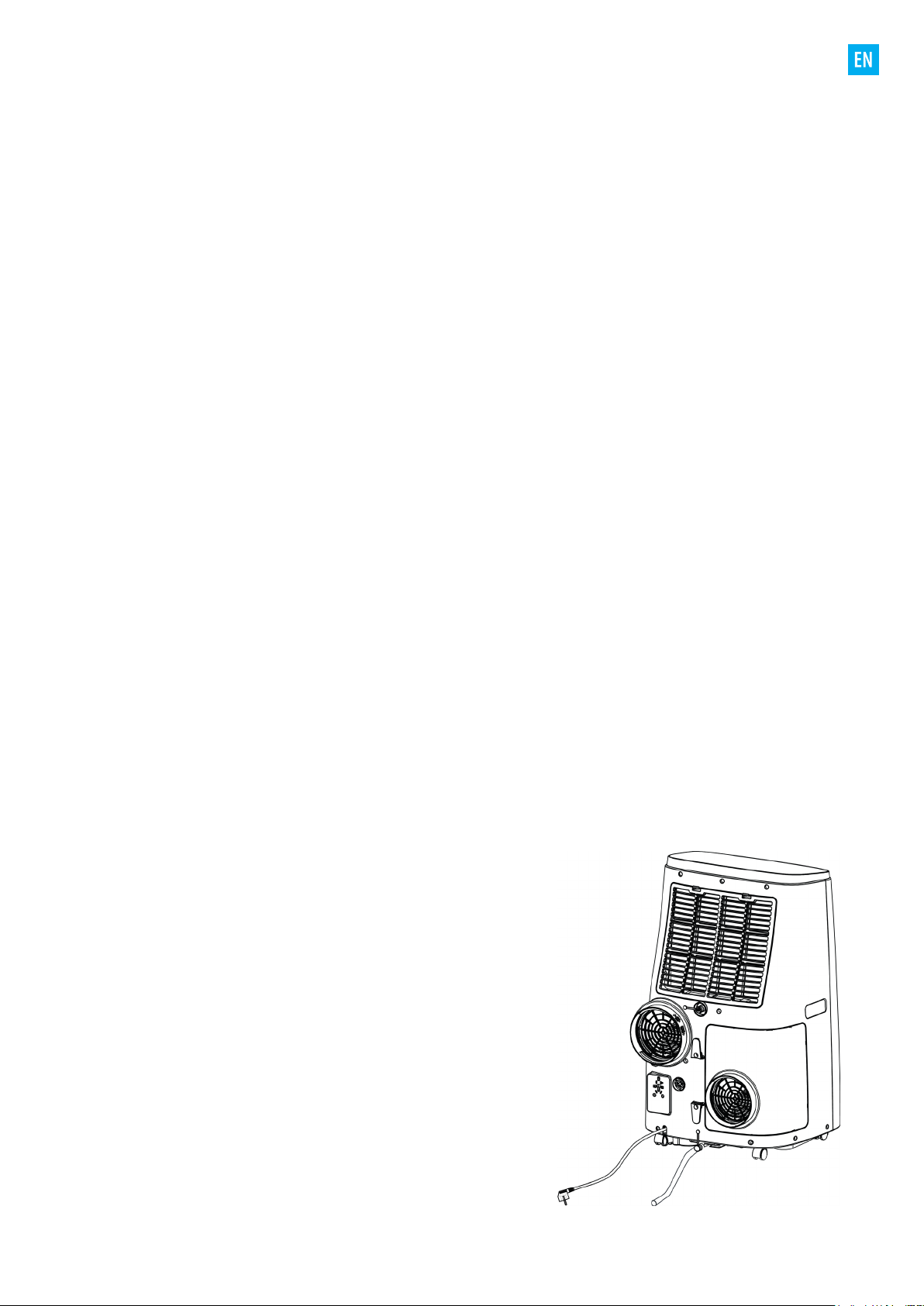

10. REGULAR WATER DISCHARGE
The unit automatically evaporates condensate in the cooling and heating modes. When the unit is operated in the cooling or heating mode, there is
no need to discharge condensate regularly; although, in certain weather conditions, with high humidity, water may condense inside the unit. When the
inner tank is full, the air conditioner emits 8 sound signals, and the display shows “FL” indicating the tank is full and the unit has stopped.
Cooling and heating
When the unit is operated in the cooling or heating mode, make sure that a rubber end cap in the
discharge valve at the back panel is correctly placed.
To drain the tank, turn off the unit and disconnect its power cable.
Remove the plug from the water discharge valve and position its end over any drain. Make sure
the hose is not twisted or bent.
The hose has to be directed downwards. Use the plug to seal the discharge valve, put the hose
back in the hose tie and restart the unit.
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER

INST._PL_IT_EN_DE_FSC12H_WER.126
Drying
WARNING!
In case the unit is used in the drying mode, it is recommended to provide continuous water discharge through the upper discharge valve to
maximise drying performance. The water can be discharged to any drain simply by connecting the included discharge pipe.
1. Remove the end cap, turning it left, and pull out the plug.
2. Then, place the drain pipe in the connector port.
3. Do not bend the drain pipe.
11. REMOTE CONTROL OPERATION
Place batteries in the remote, complying with indicated polarisation. Use alkaline batteries only, type AAA,
LR03, 1.5V, according to the Directive 2006/66/EC on batteries, and its amendments according to the Directive
56/2013/EU.
Remove the batteries if the remote is not used for a month or longer.
Do not recharge the batteries. Replace all batteries at the same time. Do not put batteries in re: this may cause
an explosion.
INFORMATION ON CORRECT DISPOSAL OF BATTERIES ACCORDING TO EUROPEAN DIRECTIVE 2006/66/EU and amendment of the
Directive 2013/56/EU
Replace the batteries as soon as they are discharged. Any discharged batteries have to be disposed of separately from any unsorted waste. Such
batteries should be supplied to appropriate separate waste disposal companies or dealers providing similar services. Separate treatment of batteries
prevents any negative effect on the environment and human health resulting from possible unsuitable treatment and allows for recovery and recycling
of their source materials in order to save energy and resources to a signicant extent. The obligation to dispose of batteries separately is highlighted by
the crossed-out waste bin symbol displayed at batteries. Any illegal disposal of this product by its user is liable to administrative penalties in accordance
with applicable regulations.
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER

INST._PL_IT_EN_DE_FSC12H_WER.1 27

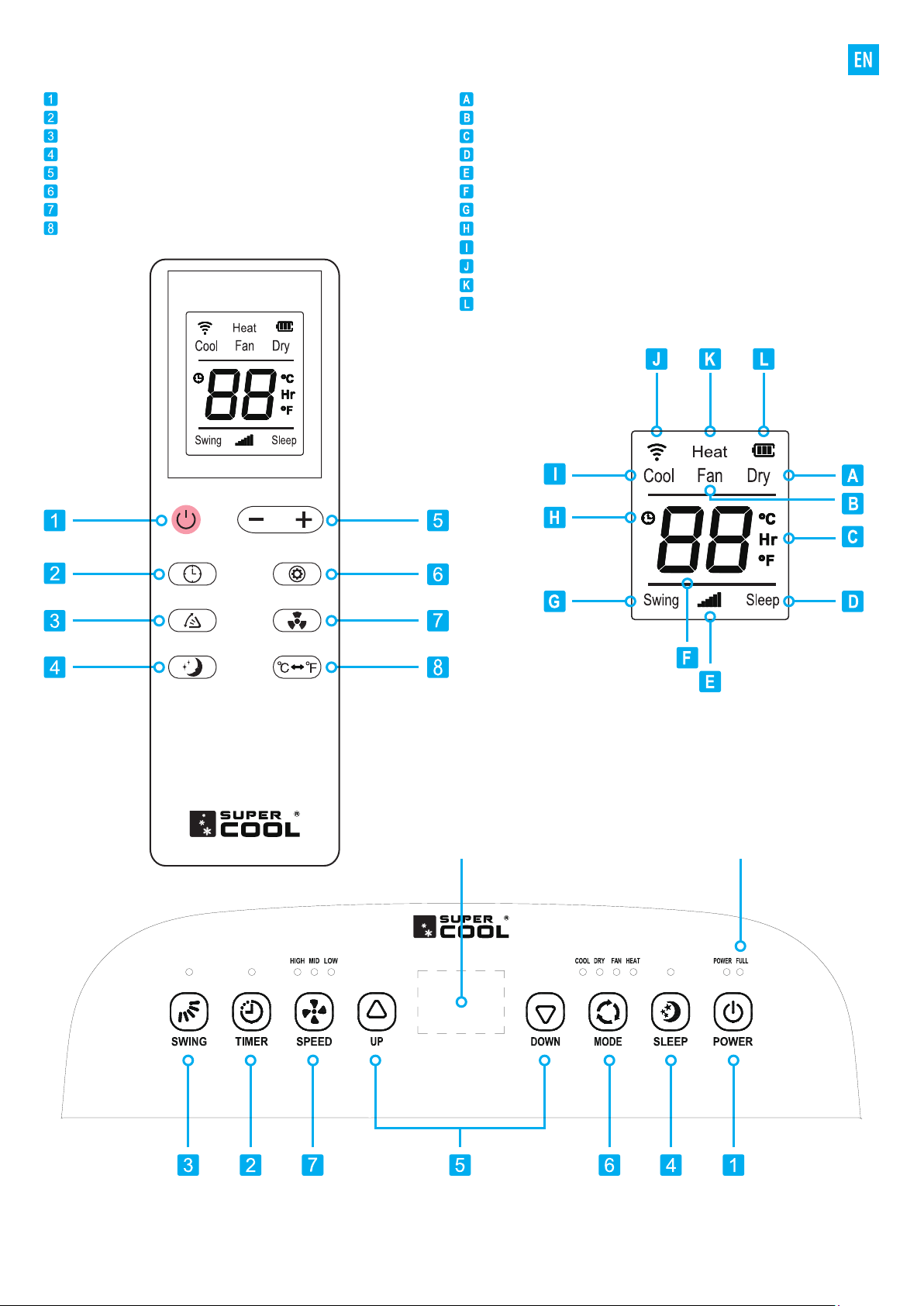

SWITCH TIMER
ON/OFF
SWING
SLEEP - NIGHT MODE
TEMPERATURE AND TIME ADJUSTMENT
BUTTON FEATURE SELECTION
FAN SPEED
TEMPERATURE °C/°F
OPERATION MODE INDICATOR - DRYING
OPERATION MODE INDICATOR - VENTILATION
TEMPERATURE AND TIME
FEATURE INDICATOR - SLEEP (NIGHT MODE)
FAN OPERATION
INDICATOR TEMPERATURE AND TIME DISPLAY FEATURE
INDICATOR - SWING
FEATURE INDICATOR - TIMER
OPERATION MODE INDICATOR - COOLING
SIGNAL TRANSMISSION
OPERATION MODE INDICATOR - HEATING
BATTERY CHARGE INDICATOR
TEMPERATURE/TIME/ERROR
DISPLAY
TANK OVERFLOW INDICATOR
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER

INST._PL_IT_EN_DE_FSC12H_WER.128
SWITCH ON/OFF
Press this button to switch on/off the unit. Once switched on, the unit operates in accordance with the most recent settings (save feature).
TIMER
Press this button and hold it for 1 second to set the timer. Switching on the control timer (automatic start).
When the unit is shut down, this button may be used to set the time delay after which the unit starts. Remote: press the TIMER button to set the
unit start time. Press +/- to set the time and press the TIMER button again to conrm. The “G” icon remains on to indicate the timed start is set.
Portable unit: Press the TIMER button. Press the TIMER again and choose the number of hours, 1 to 24. Press the TIMED START button to conrm.
SWING
Press the SWING button to switch on/off the swing feature.
SLEEP - NIGHT MODE
Press this button to minimise ventilation so that the unit operates as quietly as possible. Caution: The SLEEP mode cannot be started in the ven-
tilation mode.
TEMPERATURE AND TIME ADJUSTMENT BUTTON (+) (-)
The temperature range is adjustable from 16°C to 30°C.
Temperature up (+)
1) This allows to adjust temperature set in the cooling or heating mode.
2) With each press of the (+) button, set temperature rises by 1°C.
Temperature down (-)
1) This allows to adjust temperature set in the cooling or heating mode.
2) With each press of the (-) button, set temperature drops by 1°C.
The same button controls TIMER setting.
OPERATION MODE SELECTION
Press this button to cycle through different modes. COOLING -- VENTILATION -- DRYING -- HEATING
FAN SPEED ADJUSTMENT
Press this button with the unit on to adjust fan speed in the cooling mode (AUTO), setting High, Medium or Low.
TANK OVERFLOW INDICATOR
If the tank is full, this LED turns on.
TEMPERATURE/TIME/ERROR DISPLAY
In case of failure the LED display shows appropriate error code, making it easier to identify the problem. Except for the FL message (“tank is full”), do
not repair the air conditioner in case of error. Instead, deliver it to authorised repair service.
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER

INST._PL_IT_EN_DE_FSC12H_WER.1 29
13. SAFETY FEATURES
14. CARE AND MAINTENANCE
COMPRESSOR PROTECTION
Its duration is 3 minutes after the unit has been shut down; within this period, the unit cannot be restarted.
WARNING!
Before cleaning or maintenance, make sure to disconnect the unit’s power cable.
AUTOMATIC DEFROSTING
In case the unit operates in the heating mode, ice may form at the evaporator. In such case, the unit stops operation to melt ice and is restarted later.
1. Air lter cleaning
The air lter has to be inspected at least once every two weeks of operation. Operating the unit with contaminated or blocked air lters reduces its
performance and may cause serious problems. To remove the lter, take the back grate off and pull it gently.
Use a vacuum cleaner to remove dust. If it is not sufcient, wash the lter using slightly warm water with neutral detergent (if necessary), rinse it with
cold water, and leave it until it dries before reinstalling. Once the lter is reinstalled in its place, put the grate back on and restart the unit.
2. Housing cleaning
Use soft, dampened cloth to clean the outer surfaces of the air conditioner. Do not use hot water, solvents, petrol or any aggressive chemicals, talcum
powder or brushes: such agents may damage the surface or discolour it. Any stains should be removed using warm water with a drop of neutral de-
tergent. Do not drain the water tank for cleaning: it may damage its internal components or cause a short circuit.
Issue / Error Cause Solution
FL Water tank full Drain the tank. If the error persists, contact authorised repair service.
E1 Indoor temperature sensor failure. Contact authorised repair service.
E2 Evaporator temperature sensor failure. Contact authorised repair service.
The unit won’t start
No power. Connect the cable to an electrical socket and turn the unit on.
Water tank full: FL error. Drain the tank.
Timer is active. Reset timer.
Indoor temperature is too low or too high. Use only in the range of 7°C to 35°C.
The unit starts, but is
inactive
The unit is exposed to excessive sunlight. Draw the curtains.
The windows are open. Too many people in the
room or too many devices generate heat. Close the windows.
The lter is very contaminated. Clean or replace the lter.
The air inlet is obstructed. Remove all possible obstructions.
Indoor temperature is lower than set tempera-
ture. Change the temperature setting.
The unit operates
noisily The unit has not been placed on level ground. Place the unit on rm and level ground.
The compressor
won’t start The overheating protection has activated. Check ventilation. Restart the unit in 5 minutes once the compressor cools down.
The remote is not
operational
The remote is too far away from the air con-
ditioner. Move the remote closer to the unit.
The control panel has not sensed the remote
signal.
Batteries are down. Replace the batteries.
12. POSSIBLE ISSUES
Do not repair the unit by yourself. Any unauthorised repair may void the warranty
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER

INST._PL_IT_EN_DE_FSC12H_WER.130

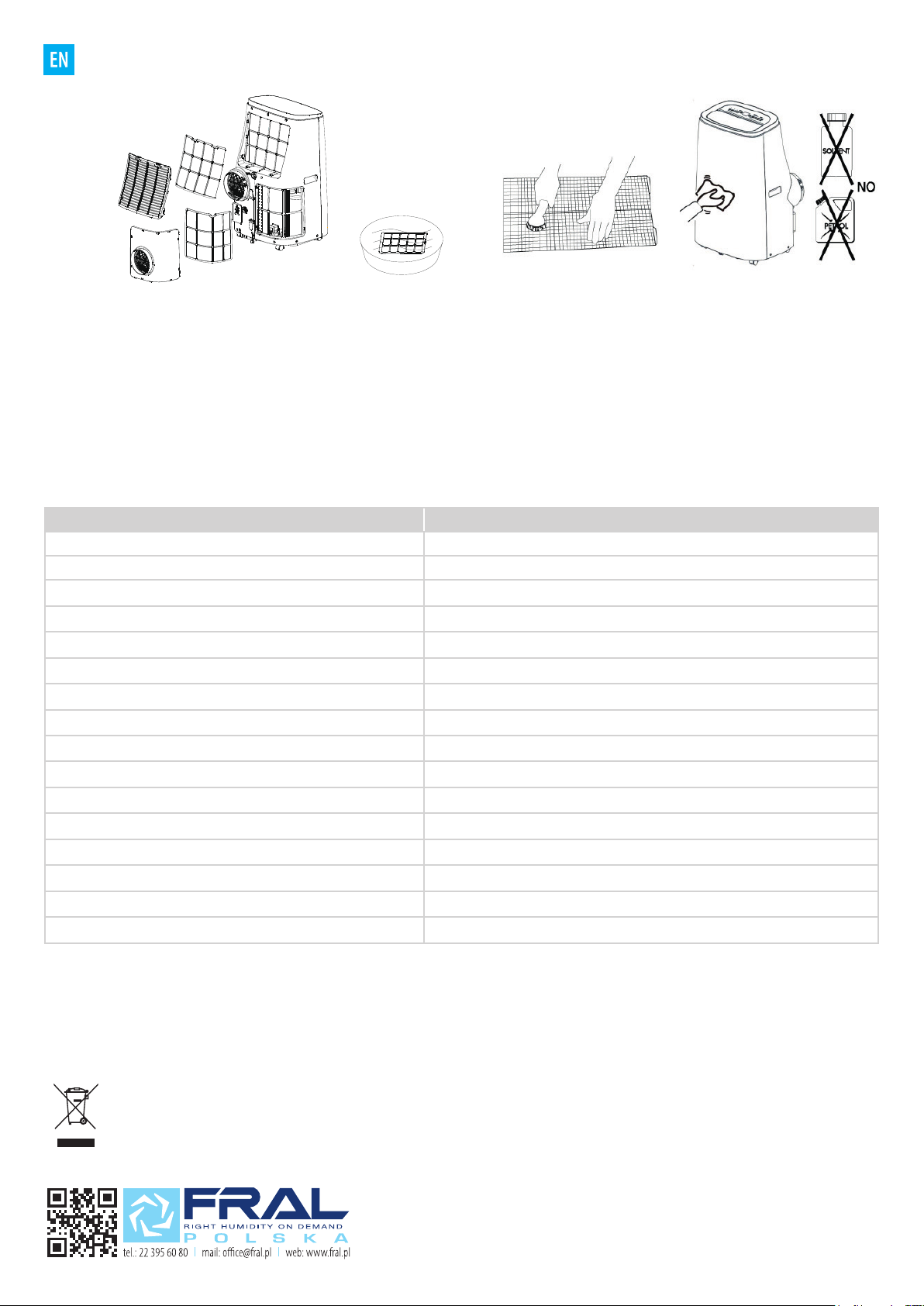

15. SPECIFICATION
3. Storage
If the unit is planned to be out of operation for a longer period of time, clean the lters before putting them back in positions. The unit has to be stored
in upright position at all times. Do not put any heavy objects on the unit. Protect the air conditioner with plastic cover, if possible.
4. Transport
During transport, it is best to keep the unit in upright position. If it is not possible, lay it on its right side. Upon arrival in destination, swiftly put the unit
back in upright position and wait no less than 4 hours before starting in cooling mode. To ensure maximum safety, inspect the power cable regularly.
In case it is damaged during operation, contact authorised repair service to replace the cable.
SPECIFICATION FSC12H
Cooling performance 3,52 kW
Heating performance 2,78 kW
Drying performance 28 l / 24 h
Nominal power consumption - cooling / heating 1,34 / 1,1 kW
Nominal current 4.5 A
Air ow 400m3/h
Temperature adjustment range - cooling / heating 16-31ºC / 16-31ºC
Permissible ambient temperature range - cooling / heating 7-35ºC / 7-35ºC
Refrigerant R290a (0,29 kg)
Noise level (acoustic pressure) 51 db(A)
Dimensions: W x D x H 470 x 382 x 770 mm
Net weight 31,5 kg
Safety standard CE
Auto Restart yes
Energy Efciency Rating (EER) - cooling / heating 2,61 / 2,30
Energy class A/A
In case of any problem with the unit, answer the following questions.
1. Has the unit been out of operation for at least 2 hours?
2. Is the unit’s power cable connected to an electrical socket?
3. Are all fuses OK?
4. If so, turn the unit off for 3 minutes to check whether the problem has been solved. Restart the unit.
5. Check whether the water tank is full.
Environment. Take care of it
Cardboard box should be delivered to a paper waste collection company. Any polyethylene (PE) bags should be put in the plastic waste
container; any plastic components should be delivered to a waste recycling company. Any metal components should be delivered to a
scrap collection company. The authorities responsible for organisation of recyclable waste collection spots as well as information on their
locations are Communal/Municipal Ofces and County Ofces.
FRAL SUPER COOL FSC12H
PORTABLE AIR CONDITIONER
Subject to the right to make technical changes and printing errors 06/2020
