Franke FMY 45 CM User manual

EN Installation and user manual Built-in coffee machine
DE Einbau- und Bedienungsanleitung Einbaukaffeemaschin
FR Manuel d’installation et d’utilisation Machine à café
IT Manuale di installazione e uso Macchina da caffè
ES Manual de instalación y uso Cafetera integrada
PT Manual de instalação e do utilizador Máquina de café
PL Instrukcja montażu i obsługi Ekspres do kawy do zabudowy
FMY 45 CM

FMY 45 CM

FMY 45 CM
– 3 –
LANGUAGES
Sprachen/Langues/Lingue/Idiomas/Idiomas/Języki
EN Installation and user manual 4
DE Einbau- und Bedienungsanleitung 30
FR Manuel d’installation et d’utilisation 57
IT Manuale di installazione e uso 85
ES Manual de instalación y uso 113
PT Manual de instalação e do utilizador 141
PL Instrukcja montażu i obsługi 168

– 5 –
FMY 45 CM EN
TABLE OF CONTENTS
About this manual 6
Introduction 6
Safety Information 6
Control panel 9
Installation 12
Operation 14
Using the appliance for the first time 14
Making coffee using coffee beans 16
Cleaning and care 22
Displayed messages 25
Troubleshooting 26
Faults table 26
Technical data 28
Support 29
Disposal 29

– 6 –
FMY 45 CM
EN
INTRODUCTION
The coffee machine was developed exclusively for
non-professional, domestic use in the household.
The coffee machine is designed to offer professional
performance in the household.
This coffee machine will make delicious cups of
coffee, espresso and cappuccino. You can customise
the settings of the machine to suit your personal
preferences and tastes.
Coffee has been used in the factory to test the
appliance and it is therefore completely normal that
there are traces of coffee in the mill. This appliance
is however guaranteed to be new.
SAFETY INFORMATION
This appliance is not intended for use
by persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that
they do not play with the appliance.
The manufacturer can not be made liable for
possible damage which may occur due to
incorrect installation and incorrect, improper or
unreasonable use of the device.
ABOUT THIS MANUAL
This user manual applies to several models of the
device. Thus it may be possible that some of the
described features and functions are not available
on your specific model.
The explanatory images and figures, described in
the various sections, are available at the end of the
manual.
XCarefully read the user manual before using the
device.
XKeep the user manual.
XUse the device described in this user manual only
according to the intended use.
Franke reserves the right to make modifications
to the product without prior notice. All information
correct at time of issuance.
Symbol Meaning
Warning symbol. Warning against risks of injury.
Warning symbol. Electrical appliance.
Warning symbol. Warning against risk of burns.
Actions in safety and warning notes to avoid injury or damage.
Action step. Specifies an action to be done.
Result. Result of one or more action steps.
9Precondition that has to be fulfilled before performing the following action.

– 7 –
FMY 45 CM EN
Proper installation and placement
ZThis is an household appliance only.
ZIt is not intended to be used in: staff kitchen
areas in shops, offices and other working
environments; farm houses; by clients in hotels,
motels and other residential type environments;
bed and breakfast type environments.
ZThis appliance is intended for domestic use
only (around 3000 cups a year). Any other use
is considered improper and in that case no
guarantee will be given.
ZThis appliance can be installed over a built-in
oven if the latter is fitted with a cooling fan at
the rear.
ZIf the plug or power cable is damaged, it must
be replaced by customer services only to avoid
all risk.
ZOnly ask for original spare parts to be used.
Failure to respect the above could reduce the
safety of the appliance.
Risk of burns!
ZThe surface of the heating element remains hot
after use and the outside of the appliance may
retain the heat for several minutes depending
on use.
ZWhen using the appliance, do not touch the hot
surfaces. Use the knobs or handles.
ZIn case of failures:
– Make sure the appliance is not connected to
the mains power supply.
– Turn the main power switch on the right side
(behind the front panel) to 0.
–Refer to our service department for repairs.
Proper use
ZThis appliance is designed to “make espresso
coffee” and “heat drinks”. Use it with care to
avoid scalds from the water and steam jets or
through incorrect use.
ZDo not lean or hang on the machine when it
has come out of the cabinet and do not place
heavy or unstable objects on the machine.
ZEnsure that there are no children or animals
near or around the appliance when it is pulled
out from the kitchen cabinet.
ZDo not leave the machine pulled out of the
kitchen cabinet when the machine isin use.
ZDo not leave the machine pulled out of the
kitchen cabinet when itisnotneeded.
ZThe machine must be installed according to
the instructions provided in the booklet, to
guarantee that it is securely held in place when
it is pulled out of the kitchen cabinet.
ZDo not put objects containing liquids,
inflammable orcorrosive materials
onthemachine.
ZUse the accessories holder to contain coffee
accessories (for example coffee beans).
ZNever touch the appliance with damp hands.
ZUnplug directly from theplugonly.
ZNever pull the power cable as you could
damage it.
ZTo disconnect the appliance completely, place
the main switch on the side of the appliance in
the 0 (off) position.
Models with glass surfaces:
ZDo not use the appliance if the surface is
cracked.
Maintenance and cleaning
ZCleaning and user maintenance shall not be
made by children without supervision.
ZNever immerse the appliance in water.
ZCAUTION: To prevent damage to the appliance
do not use alkaline cleaning agents when
cleaning, use a soft cloth and a mild detergent.
ZAppliances with removable cord: avoid
splashes of water on the power cord connector
or socket at the back of the appliance.
ZClean all the components thoroughly, taking
particular care with parts in contact with coffee
and milk.
Information for european markets
This appliance can be used by children
aged from 8 years and above if they have been
given supervision or instruction concerning
use of the appliance in a safe way and if they
understand the hazard involved. Cleaning and
user maintenance shall not be made by children
unless they are older than 8 and supervised.
ZKeep the appliance and its cord out of the
reach of children aged less than 8years.
ZAppliances can be used by persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved.
ZChildren shall not play with the appliance.
ZWhen not in use and before cleaning, always
unplug the appliance.
Risk of burns!
ZSurfaces become hot during use.

– 8 –
FMY 45 CM
EN
OVERVIEW
A1. Cup tray
A2 A1
A3 A4 A5
A12
A13
A18
A20
A14
A17
A16
A15
A19
A21
A22
A23
8A6A7A A10
A24
A9
A11
A2. Service door
A3. Coffee guide
A4. Waste coffee container
A5. Brewing unit
A6. Cup tray lights
A7. On-Off/stand-by button
A8. Control panel
A9. Water softener filter (optional)
A10. Hot water and steam nozzle
A11. IEC connector
A12. Water tank
A13. Coffee spout (adjustable height)
A14. Drip tray
C7
C6
C1
C3
C2
C5
C4
A15. Bean container lid
A16. Bean container
A17. Grinding adjustment knob
A18. Pre-ground coffee funnel door
A19. Measure
A20. Compartment for measure
A21. Pre-ground coffee funnel
A2 A1
A3 A4 A5
A12
A13
A18
A20
A14
A17
A16
A15
A19
A21
A22
A23
8A6A7A A10
A24
A9
A11
A22. Power cable
A23. Main switch
A24. Tray
C1. Frothed milk regulator
C2. Milk container handle
C3. CLEAN button
C4. Milk intake tube
C5. Frothed milk spout
C6. Milk frother
C7. Hot water spout

– 9 –
FMY 45 CM EN
Control panel
B6 B7 B8 B9
B3B2 B4 B5 B10 B11 B12 B13
B1
IMPORTANT
– Only the icons relating to the controls enabled for
the particular function currently being used will be
lit on the touch screen.
– A light touch is enough to activate the icon.
B1. Display: guides the user in using the appliance.
B2. icon to activate or deactivate menu parameter
setting mode.
B3. icon rinse.
B4. icon to select the coffee taste.
B5. icon to select the type of coffee.
(espresso, small cup, medium cup, large cup, mug)
B6. icon to exit the selected mode.
B7-B8. icons to scroll forwards or
backwards through the menu and display
the various modes.
B9. icon to confirm the selected function.
B10. icon to deliver a cup of coffee.
B11. icon to deliver two cups of coffee.
B12. icon to deliver cappuccino.
B13. icon to deliver hot water.
Changing and setting menu parameters
When the appliance is ready, you can use the internal
menu to modify the following parameters and
functions:
–Choose language
–Shut-off time
–Set clock
–Start time
–Auto-start
–Temperature
–Water hardness
– Program coffee
–Program cappuccino
–Program water
–Descale
–Reset to default
–Statistics
–Install filter
–Reset filter
–Buzzer
–Contrast
Setting the language
To change the language on the display, proceed as
follows:
XPress the icon (B2) to enter the menu
"CHOOSE LANGUAGE" is displayed.
XPress the icon (B9).
XPress the icons (B7) and (B8) until the
required language is displayed.
XPress the icon (B9) to confirm.
XPress the icon (B6) to exit the menu.
IMPORTANT: If you choose the wrong
language, you can access the menu directly to
modify the parameter.
XPress the icon button (B2) for at least
7 seconds until the appliance displays the various
languages.
XChoose the required language as described in the
section "Using the appliance for the first time".
Changing the length of time the appliance
remains on
The appliance is set by default to go off automatically
30 minutes after the last coffee has been made.
To change this interval (max. 120 min), proceed as
follows:
XPress the icon (B2) to enter the menu and then
the icons (B7) and (B8) until "SHUT-OFF
TIME" is displayed.
XPress the icon (B9) to confirm.

– 10 –
FMY 45 CM
EN
XPress the icons (B7) and (B8) to set the
time after which the appliance will go off
(after 1/2 hour, 1 hour, 2 hours).
XPress the icon (B9) to confirm.
XPress the icon (B6) to exit.
Setting the clock
XPress the icon (B2) to enter the menu and then
the icons (B7) and (B8) until "SET CLOCK"
is displayed.
XPress the icon (B9).
XUse the icons (B7) and (B8) to set the hour,
then press the icon (B9) to confirm.
XUse the icons (B7) and (B8) to set the
minutes, then press the icon (B9) to confirm.
XPress the icon (B6) to exit the menu.
Setting auto-start time
This function programmes the time the machine will
come on automatically.
XMake sure the clock on the appliance has been
set.
XPress the icon (B2) to enter the menu and then
the icons (B7) and (B8) until "START TIME"
is displayed.
XPress the icon (B9).
XUse the icons (B7) and (B8) to set the auto-
start time, then press the icon (B9) to confirm.
XUse the icons (B7) and (B8) to set the
minutes, then press the icon (B9) to confirm.
Auto-start
XPress the icons (B7) and (B8) to activate
the auto-start function until "AUTO START" is
displayed.
XPress the icon (B9) to confirm. The symbol
appears on the display.
XPress the icon (B6) to exit the menu.
XTo deactivate the automatic start-up function,
press the (B2) icon, then press the (B7)
and (B8) icons until the appliance displays the
message AUTO START. Press the (B9) icon.
CONFIRM will appear on the display. Press to
deactivate and the symbol will disappear.
Changing coffee temperature
To change coffee temperature, proceed as follows:
XPress the icon (B2) to enter the menu
and then the icons (B7) and (B8) until
"TEMPERATURE" is displayed.
XPress the icon (B9).
XPress the icons (B7) and (B8) to select the
required coffee temperature from low, medium
and high.
XPress the button (B9) to confirm the
temperature selected.
XPress the icon (B6) to exit the menu.
Setting water hardness
The operating period can be extended if required,
making descaling less frequent by programming the
machine on the basis of the real lime content in the
water used.
Proceed as follows:
XRemove the "Total Hardness Test" strip (attached
to page 2) from its packaging then dip it fully in
the water for a few seconds,
XThen remove and wait about 30 seconds (until it
changes colour and forms red squares).
XTurn the appliance on by pressing the On-Off/
stand-by button (A7).
XPress the icon (B2) to enter the menu and
then the icons (B7) and (B8) until "WATER
HARDNESS" is displayed. Press the icon (B9).
XPress the icons (B7) and (B8) until the
number coincides with the number of red squares
on the test strip (for example, if there are 3 red
squares on the test strip, select the message
"WATER HARDNESS 3".
XPress the icon (B9) to confirm.
XThe coffee maker is now programmed to provide
the descale warning when actually necessary.
Descaling
IMPORTANT
– Descaler contains acids. Respect the safety
warnings provided by the manufacturer and given
on the descaler pack.
– Use the descaler recommended by the
manufacturer only. Use of other descalers
invalidates the guarantee. Failure to descale
the appliance as described also invalidates the
guarantee.
– Before descaling, make sure the water softener
filter has been removed.
When "PLEASE DESCALE!" is displayed, the machine
requires descaling. Proceed as follows:
XMake sure the machine is ready.
XAttach the hot water spout (C7) to the nozzle (A10).
XPress the icon (B2) to enter the menu and then
the icons (B7) and (B8) until "DESCALE" is
displayed.

– 11 –
FMY 45 CM EN
XPress the icon (B9) and the appliance displays
"DESCALE PLEASE CONFIRM".
XPress the icon (B9).
The message "ADD DESCALER PLEASE
CONFIRM" is displayed.
XEmpty the tank of water, pour the contents of
the descaler bottle into the tank respecting the
instructions given on the descaler pack, then add
water.
XPosition a container with a capacity of about
2 litres under the hot water spout.
XPress the icon (B9). Descaler flows out of the
hot water spout into the container below. The
appliance displays: "DESCALING".
XThe descale programme automatically performs
a series of deliveries and pauses.
XAfter about 30 minutes "DESCALE COMPLETE
PLEASE CONFIRM" is displayed.
XPress the icon (B9). "RINSING PLEASE
CONFIRM" is displayed.
XEmpty the water tank, rinse to eliminate descaler
residues, then fill with clean water.
XReplace the tank full of clean water. "RINSING
PLEASE CONFIRM" is displayed again.
XPress the icon (B9) again. Hot water flows
out of the spout into the container below and
"RINSING" is displayed.
XWait until "RINSING COMPLETE PLEASE
CONFIRM" is displayed.
XPress the icon (B9). "DESCALE COMPLETE" is
displayed, then "FILL TANK". Fill the tank again
with clean water.
XThe descale programme is now terminated and
the appliance is ready to make coffee again.
XNote: If descaling is interrupted before
completion, the process must be begun again
from the beginning.
IMPORTANT: Failure to descale the
Appliance regularly invalidates the Guarantee.
Resetting default values (reset)
If you change the original values, the default values
can be reset as follows:
XPress the icon (B2) to enter the menu and
then the icons (B7) and (B8) until "RESET
TO DEFAULT" is displayed.
XPress the icon (B9) and the appliance displays
"RESET TO DEFAULT PLEASE CONFIRM".
XPress the icon (B9) to reset the default values.
Statistics
XThis displays statistics relating to the machine.
To display, proceed as follows:
XPress the icon (B2) to enter the menu and then
the icons (B7) and (B8) until "STATISTICS" is
displayed.
XPress the icon (B9).
XPress the icons (B7) and (B8) to verify:
– How many coffees and cappuccinos have been
made.
– How many times the machine has been descaled.
– The total number of litres of water delivered.
XPress the icon (B6) once to exit the function or
twice to exit the menu.
Buzzer
This activates or deactivates the buzzer emitted
by the machine each time an icon is pressed or an
accessory is inserted/removed.
The buzzer is active by default.
XPress the icon (B2) to enter the menu and then
the icons (B7) and (B8) until "BUZZER" is
displayed.
XPress the icon (B9). "BUZZER PLEASE
CONFIRM" is displayed.Press the icon (B6) to
disable or the icon (B9) to enable the buzzer.
XPress the icon (B6) to exit the menu.
Adjusting contrast
To increase or reduce the contrast of the display,
proceed as follows:
XPress the icon (B2) to enter the menu and then
the icons (B7) and (B8) until "CONTRAST" is
displayed.
XPress the icon (B9).
XPress the icons (B7) and (B8) until the
required display contrast is reached. The
progressive bar indicates the level of contrast
selected.
XPress the icon (B9) to confirm.
XPress the icon (B6) once to exit the function
or twice to exit the menu.

– 12 –
FMY 45 CM
EN
INSTALLATION
Controls after transport
After removing the packaging, make sure the product
is complete and undamaged and that all accessories
are present. Do not use the appliance if it is visibly
damaged. Contact Customer Services.
Installing the appliance
IMPORTANT
XInstallation must be performed by a qualified
professional in compliance with legislation in
force in the country of installation (see Built-in
installation).
XThe packing elements (plastic bags, polystyrene
foam, etc.) should be kept out of reach of
children.
XDo not install the appliance in rooms where the
temperature may drop to 0°C or lower.
XCustomise the water hardness as soon as
possible following the instructions in the "Setting
water hardness" section.
Connecting the appliance
DANGER!
XCheck that the mains power supply voltage
corresponds to the value indicated on the rating
plate on the bottom of the appliance.
XConnect the appliance to an efficiently earthed
and correctly installed socket with a minimum
current rating of 10A only.
XIf the power socket does not match the plug on
the appliance, have the socket replaced with
a suitable type by a qualified professional.
XTo comply with safety directives, an omnipolar
switch with a minimum contact distance of 3 mm
must be installed.
XDo not use multiple sockets or extensions.
IMPORTANT: Safety cutout devices must be
included in the mains power supply in compliance
with the installation regulations in the country
concerned.
Built-in installation
XVerify the minimum measurements required for
correct installation of the appliance (Figure 1, 2
and 3).
XThe coffee maker must be installed in a column
and the column must be firmly fixed to the wall
with commercially available brackets.
m
m
65
4
595 mm
24 mm
412 mm
45 mm
45 mm
45 mm
45 mm
054 mm2+
500 mm
058 iMmm n
545 mm Min.
200 cm
2
560 + 8 mm
361 mm
528 mm
m
m
2
7
3
30 mm
Fig. 1
m
m
65
4
595 mm
24 mm
412 mm
45 mm
45 mm
45 mm
45 mm
054 mm2+
500 mm
058 iMmm n
545 mm Min.
200 cm
2
560 + 8 mm
361 mm
528 mm
m
m
2
7
3
30 mm
Fig. 2
IMPORTANT
All installation or maintenance operations must be
performed with the appliance disconnected from
the mains electricity supply.
Kitchen furniture in direct contact with the
appliance must be heat resistant (65°C min).
To guarantee correct ventilation, leave a gap at
the bottom of the cabinet (see measurements in
(Figure 3).

– 13 –
FMY 45 CM EN
m
m
65
4
595 mm
24 mm
412 mm
45 mm
45 mm
45 mm
45 mm
054 mm2+
500 mm
058 iMmm n
545 mm Min.
200 cm2
560 + 8 mm
361 mm
528 mm
m
m
2
7
3
30 mm
Fig. 3
XPosition the rails on the sides of the cabinet as
shown in the Figure 4. Fix with the screws supplied,
then extract them completely. If the coffee maker
is installed over a warmer drawer, use the top
surface of this as a reference to position the rails.
In this case, there will be no surface to rest the
rails on.
x 16 x 2
x 4 x 8
approx. 350 mm
x 1
x 4
560+1mm
Fig. 4
XPosition the appliance on the rails, making sure the
pins are correctly inserted in the housings, then fix
it with the screws supplied (Fig. 5). If the height of
the appliance requires adjusting, use the spacer
disks provided.
x 16 x 2
x 4 x 8
approx. 350 mm
x 1
x 4
560+1mm
Fig. 5
XFix the power cable with the clip (Fig. 6). The
power cable must be long enough to allow the
appliance to be extracted from the cabinet to fill
the coffee bean container.
x 16 x 2
x 4 x 8
approx. 350 mm
x 1
x 4
560+1mm
Fig. 6
IMPORTANT
XThe appliance must be earthed in compliance
with legislation.
XElectrical connections must be performed by
a qualified electrician following the instructions.
XIf necessary, correct alignment of the appliance
by positioning the spacers supplied under or at
the sides of the support (Fig. 7).
x 16 x 2
x 4 x 8
approx. 350 mm
x 1
x 4
560+1mm
Fig. 7
XThe rail fixing panel must have a thickness suited
to the fixing screws provided.
XThe panel material must be suited to the machine
weight of approximately 25 kg.

– 14 –
FMY 45 CM
EN
OPERATION
Using the appliance for the first time
IMPORTANT
XCoffee has been used to factory test the
appliance and it is therefore completely normal
for there to be traces of coffee in the mill.
XCustomise water hardness as soon as possible
following the instructions in the “Setting water
hardness” section.
XConnect the appliance to the mains supply.

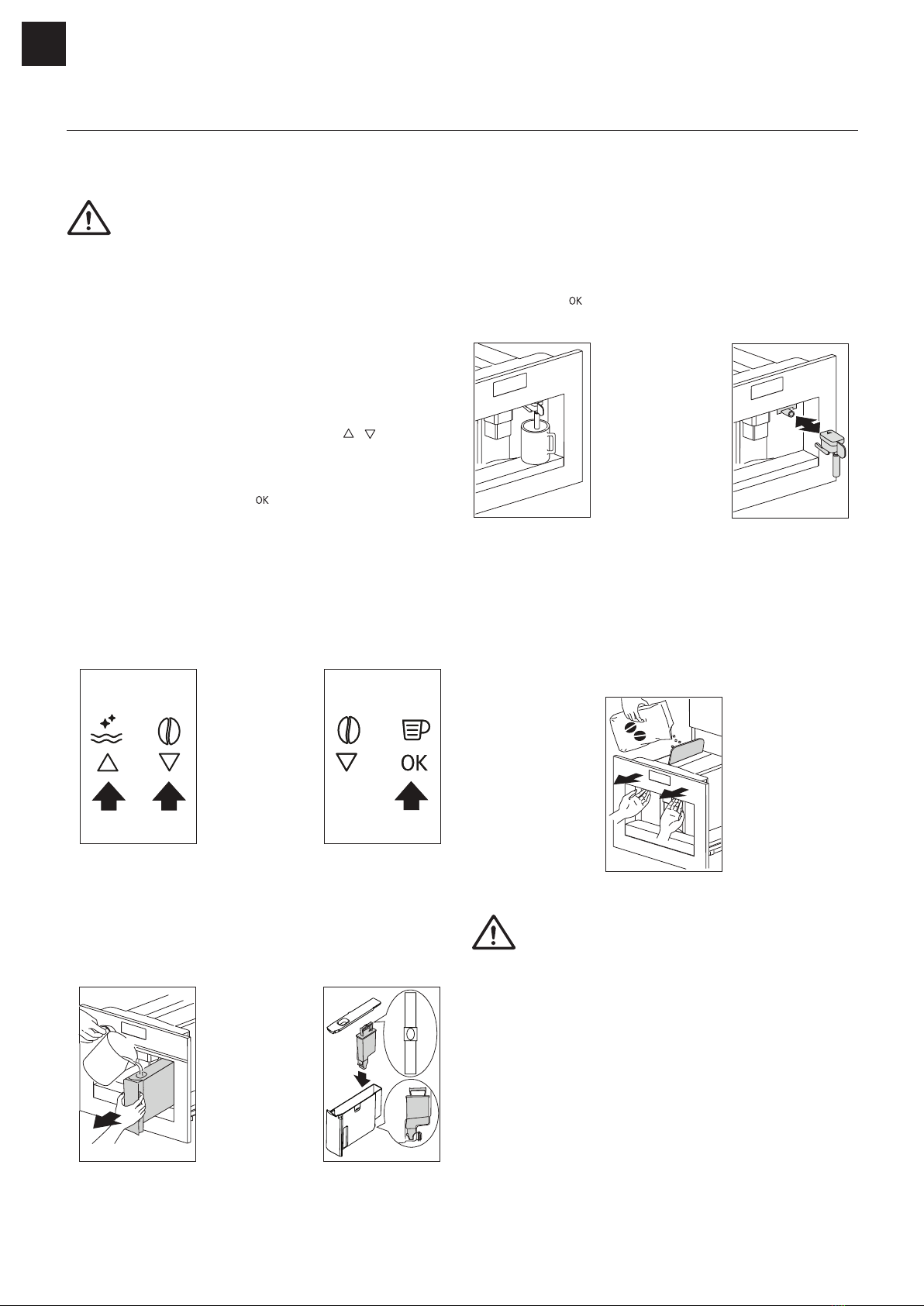

Set the required language.
XTo set the language, use the icons (B7 and
B8) to choose the required language (Fig.9). When
the message "PRESS OK TO CHOOSE ENGLISH"
is displayed, press the icon (B11) (Fig. 10)
for 3 seconds until "ENGLISH INSTALLED" is
displayed. If you set the wrong language, follow
the instructions in the "Setting the language"
section. If your language is not available, select
one from those displayed. The instructions refer
to the English version. Then follow the instructions
displayed.
2
1
Fig. 8F
ig.
9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
2
1
Fig. 8Fig. 9F
ig. 10
Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
XAfter 5 seconds, the appliance displays "FILL
TANK". Extract the water tank (Fig. 11), rinse and
fill with fresh water without exceeding the MAX
line. Replace and push as far as it will go. A water
softener filter can be installed in the tank (Fig. 37).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24 Fig. 25 Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
XPlace a cup under the hot water spout (Fig. 12).
(If the hot water spout is not inserted, the
appliance displays "INSERT WATER SPOUT".
Attach it as shown in figure 13. The appliance
displays: "HOT WATER PRESS OK".
XPress the icon (B9) (Fig. 10) and after a few
seconds a little water comes out of the spout.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13
Fig. 14 Fig. 15
XThe machine now displays "TURNING OFF...
PLEASE WAIT" and goes off.
XExtract the appliance by pulling it out using
the handles (Fig. 14). Open the lid and fill the
container with coffee beans, then close the lid
and push the appliance in.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
The coffee maker is now ready for normal use.
IMPORTANT
XNever introduce pre-ground coffee, freeze dried
coffee, caramelised beans or anything else which
could damage the appliance.
XWhen using the appliance for the first time,
you need to make 4-5 cups of coffee and
4-5 cappuccinos before the appliance gives
satisfactory results.
XEach time you turn the coffee maker on by the
ON/OFF switch (A23), it performs
a SELF-DIAGNOSIS cycle and then goes off.
To turn it on again, press the ON/OFF button (A7)
(see page 8).

– 15 –
FMY 45 CM EN
Installing the filter
Some models are fitted with a water softener filter to
improve the quality of the water used and extend the
working life of the appliance.
To install, proceed as follows:
XRemove the filter (A9) from the packaging
(see page 8)
XSlide the date indicator pointer (see Fig. 37)
until the months of use are displayed.
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24 Fig. 25 Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36
Fig. 37
Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
IMPORTANT
– The filter lasts about two months if the appliance
is used normally.
– If the coffee maker is left unused with the filter
installed, it will last a maximum of three weeks.
– Fill the tank with a little water up to the level
shown in the figure:
XInsert the filter in the water tank and press it until
it touches the bottom of the tank (see Fig. 37);
Place the hot water spout if it is not there.
XFill the water tank and place it in the coffee
maker, then insert the hot water spout (C7)
(see page 8).
XPosition a container under the spout
(min. capacity: 100 ml).
XPress the icon (B2) to enter the menu.
XPress the icons (B7) and (B8) until "INSTALL
FILTER" is displayed.
XPress the icon (B9).
XThe message "INSTALL FILTER PLEASE CONFIRM"
is displayed.
XPress the icon (B9) to confirm the selection
(or (B6) to cancel). "HOT WATER PRESS OK"
is displayed.
XPress the icon (B9) again. The appliance begins
delivering hot water and the message "PLEASE
WAIT... " is displayed.
XWhen delivery stops, the appliance automatically
displays the basic modes set again.
IMPORTANT
– The appliance may request the operation to
be repeated a number of times until the air is
completely elminated from the hydraulic circuit.
Replacing the filter ("Filter reset")
When "REPLACE FILTER" is displayed or after
2 months of use (see date indicator), the filter must
be replaced:
XRemove the exhausted filter.
XRemove the new filter from the packaging.
XSlide the pointer of the date indicator (see Fig. 37)
until the months of use are displayed (the filter
lasts about 2 months).
XInsert the filter in the water tank and press it until
it touches the bottom of the tank (see Fig. 37).
XFill the water tank and place it in the coffee
maker, then insert the hot water spout (C7)
(see page 8).
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24 Fig. 25 Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36
Fig. 37
Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
XPosition a container under the spout
(min. capacity: 100 ml).
XPress the icon (B2) to enter the menu.
XPress the icons (B7) and (B8) until "FILTER
RESET" is displayed.
XPress the OK icon (B9).
XThe message "FILTER RESET CONFIRM" is
displayed.
XPress the icon (B9) to confirm the selection
(or (B6) to cancel). "HOT WATER PRESS OK" is
displayed.
XPress the icon (B9) again.
XThe appliance begins delivering hot water and the
message "PLEASE WAIT..." is displayed.
XWhen delivery stops, the appliance automatically
displays the basic modes set again.

– 16 –
FMY 45 CM
EN
Removing the filter
To use the appliance without a filter, you must
remove it and notify the appliance of its removal as
follows:
XPress the icon (B2) to enter the menu.
XPress the icons (B7) and (B8) until "INSTALL
FILTER*" is displayed.
XPress the icon (B9).
XThe message "INSTALL FILTER* CONFIRM" is
displayed.
XPress the icon (B6).
XWhen the asterisk has disappeared from the
top right of the display, press (B6) to exit the
menu.
IMPORTANT: Use the filters recommended
by the manufacturer only. Use of unsuitable filters
could damage the appliance.
Turning on and heating up
Each time the appliance is turned on, it performs an
automatic preheat and rinse cycle which cannot be
interrupted. The appliance is ready for use only after
completion of this cycle.
DANGER OF BURNS!
During rinsing, a little hot water flows from the coffee
spouts.
XTo turn the appliance on, press the On-Off/
standby button (A7) (see page 8). The
message "HEATING UP... PLEASE WAIT" is
displayed.
XWhen heating is complete, the message changes
to "RINSING".
XThe appliance is at temperature when the
message "MEDIUM CUP NORMAL TASTE" is
displayed.
XIf no icon is pressed within about 2 minutes, the
time (if set, see the "Setting the clock" section) is
displayed.
XIf the time has not been set, the appliance
displays the last functions set.
XWhen any icon is pressed, "MEDIUM CUP
NORMAL TASTE" is displayed again. The appliance
is ready to make coffee again.
Making coffee using coffee beans
XThe appliance is preset to make coffee witha
normal taste. You can also choose coffee with an
extramild, mild, standard, strong or extra-strong
taste. There is also a pre-ground coffee option. To
choose the required taste, press more times the
icon (B4) (Fig. 15). The required coffee taste is
displayed.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
XPlace 1 cup under the spouts to make 1 coffee
(Fig. 16) or 2 cups for 2 coffees (Fig. 16). Lower
the spouts as near as possible to the cup for
a creamier coffee (Fig. 17).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
XPress the icon (B5) (Fig. 18) to select the type of
coffee: espresso, small cup, medium cup, large cup,
mug. Press the icon (B10) (Fig. 19) if you want
to make a coffee and the icon (B11) (Fig. 20) if
you want to make 2 coffees. The appliance now
grinds the beans and starts delivering the coffee into
the cup. Once the set amount of coffee has been
delivered, the machine stops delivery automatically
and expels the exhausted waste coffee into the
waste coffee container.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17
Fig. 18
Fig. 19
Fig. 13 Fig. 14 Fig. 15
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15

– 17 –
FMY 45 CM EN
XAfter a few seconds, the appliance is ready for
use again.
XTo turn the appliance off, press the On-Off/stand-
by button (A7) (see page 8). (Before going off,
the appliance performs an automatic rinse cycle.
Take care to avoid scalds).
Note: If the coffee is delivered a drop at a time
or not at all, see the "Adjusting the coffee mill"
section.
Note: If the coffee is delivered too fast and the
cream is not satisfactory, see the "Adjusting the
coffee mill" section.
Tips for a hotter coffee
– When you turn the appliance on, if you want to
make a small cup of coffee (less than 60 ml),
preheat the cup by rinsing it with hot water.
– If on the other hand more than 2/3 minutes have
passed since the last coffee was made, before
requesting another coffee, you must preheat
the brewing unit by pressing the icon (B3).
Deliver the water into the underlying drip tray or
alternatively use this water to fill (and then empty)
the cup to be used for the coffee to preheat it.
– Unless preheated, do not use excessively thick
cups as they will absorb too much heat.
–Preheat the cups by rinsing them with hot water.
– Coffee delivery can be interrupted at any moment
by re-pressing the previously selected icon which
remains lit during the operation.
– As soon as delivery is finished, to increase the
quantity of coffee in the cup, just keep pressing
the previously selected icon within 3 seconds
after delivery has finished.
– When the appliance displays "FILL TANK", fill the
tank with water or the appliance will not deliver
coffee. (It is normal for there to be a little water
left in the tank).
Empty the waste coffee container
After about 14 single (or 7 double) coffees, the
appliance displays "EMPTY WASTE COFFEE
CONTAINER". Even if not full, the empty waste coffee
container message is displayed 72 hours after the
first coffee has been delivered. For the 72 hours to
be calculated correctly, the machine must never be
turned off with the main switch in the 0 position.
XTo clean, open the service door on the front of the
appliance by pulling the spout (Fig. 23), extract
the drip tray (Fig. 24) and clean (Fig. 39).
ZWhen cleaning, always extract the drip tray
completely.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24
Fig. 25 Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
Fig. 39
CAUTION: When extracting the drip tray,
the waste coffee container MUST always be
emptied. If this is not done, the machine may be
clogged.
Note: Never extract the water tank while the
machine is delivering coffee.
XIf it is removed, it will not be possible to make the
coffee and the appliance will display "GROUND
TOO FINE ADJUST MILL AND PRESS OK" and then
"FILL TANK!".
XCheck the level of water in the tank and replace in
the appliance.
XTo use the appliance again, insert the hot water
spout (Fig. 13) if not already in position, press
the icon (B9). "HOT WATER PRESS OK" is
displayed. Press the icon (B9) within a few
seconds and deliver water from the spout for
about 30 seconds. When delivery stops, the basic
modes are displayed again.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13
Fig. 14 Fig. 15

– 18 –
FMY 45 CM
EN
CAUTION: The coffee maker may request the
operation to be repeated a number of times until the
air is completely elminated from the hydraulic circuit.
CAUTION: If this operation is not performed
correctly or if the machine is turned off, the basic
modes may be displayed, although the problem is in
fact still present.
Changing the quantity of coffee in the cup
The appliance is set by default to automatically make
the following types of coffee:
–espresso
–small cup
– medium cup
–large cup
–mug
To change these quantities, proceed as follows:
XPress the icon (B2) to enter the menu (Fig. 22).
Press the icons (B7) and (B8) (Fig. 9) until
"PROGRAM COFFEE" is displayed.
2
1
Fig. 8F
ig.
9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21
Fig. 22
Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
XPress the OK icon (B9).
XSelect the type of coffee you want to change by
pressing the icons (B7) and (B8).
XPress the icon (B9) to confirm the type of coffee
you want to make.
XUse the icons (B7) and (B8) to change the
quantity of coffee. The progress bar shows the
quantity of coffee selected.
XPress the icon (B9) again to confirm (or the
icon (B6) to cancel the operation).
XPress the icon (B6) (Fig. 25) twice to exit the
menu.
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24
Fig. 25
Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
The appliance is now reprogrammed with the new
settings and is ready.
Adjusting the coffee mill
The coffee mill is preset in the factory and should not
require adjusting. However, if after making the first
few coffees you find that delivery is either too fast or
too slow (a drop at a time), this can be corrected by
adjusting the grinding adjustment knob (Fig. 21).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
CAUTION: The grinding adjustment knob
must only be turned when the coffee mill is in
operation.
XFor slower delivery and creamier coffee, turn one
click anticlockwise (finer pre-ground coffee). For
faster delivery (not a drop at a time), turn one click
clockwise (coarser pre-ground coffee) (Fig. 40).
Fig. 40
Making espresso coffee with pre-ground coffee
(instead of beans)
XPress the icon (B4) (Fig. 15) and select the pre-
ground coffee function.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14
Fig. 15

– 19 –
FMY 45 CM EN
XExtract the machine by pulling it outwards using
the handles (Fig. 14).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13
Fig. 14
Fig. 15
XLift the central lid, place one measure of
preground coffee in the funnel (Fig. 26), push the
appliance in then proceed as described in the
section "Making coffee using coffee beans".
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24 Fig. 25 Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
XYou can make just one coffee at a time by
pressing the icon (B10) (Fig. 19).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18
Fig. 19
Fig. 13 Fig. 14 Fig. 15
XAfter using the machine with pre-ground coffee,
to go back to making coffee using beans,
deactivate the pre-ground coffee function by
pressing the icon (B4) (Fig. 15).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14
Fig. 15
IMPORTANT:
– Never introduce pre-ground coffee when the
machine is off or it could spread through the
inside of the appliance.
–Never add more than 1 measure, otherwise the
appliance will not make the coffee.
–Use the measure provided only.
– Introduce only pre-ground coffee for espresso
coffee machines into the funnel.
– If more than one measure of pre-ground coffee is
used and the funnel clogs, push the coffee down
with a knife (Fig. 21). Then remove and clean the
brewing unit and machine as described in the
“Cleaning the brewing unit” section.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20
Fig. 21
Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
Delivering hot water
XAlways make sure the appliance is ready.
XMake sure the water spout is in place and
attached to the nozzle (Fig. 13).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13
Fig. 14 Fig. 15
XPosition a container under the spout.
XPress the icon (B13) (Fig. 27).
The appliance displays: "HOT WATER
PRESS OK".
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24 Fig. 25 Fig. 26
Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31

– 20 –
FMY 45 CM
EN
XPress the icon (B9) again and hot water is
delivered from the water spout into the container
underneath.
XYou should not deliver hot water for more than
2 minutes at a time.
XTo interrupt, press the icon (B13) or the icon
(B6).
The appliance stops delivery once the set
quantity is reached.
Changing the quantity of hot water
The machine is set by default to automatically
delivery 150 ml of hot water. To change these
quantities, proceed as follows:
XPlace a container underneath the water spout
(Fig. 12).
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
XPress the icon (B2) to enter the menu (Fig. 22)
or press the icons (B7) and (B8) (Fig. 9) until
"PROGRAM HOT WATER is displayed.
2
1
Fig. 8Fig. 9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21
Fig. 22
Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
2
1
Fig. 8F
ig.
9Fig. 10 Fig. 11
Fig. 12
Fig. 16
Fig. 20 Fig. 21 Fig. 22 Fig. 23
Fig. 17 Fig. 18 Fig. 19
Fig. 13 Fig. 14 Fig. 15
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24
Fig. 25
Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
XPress the icon (B9) to confirm.
XSelect the required quantity of water by pressing
the icons (B7) and (B8).
The progress bar shows the quantity of water
selected.
XPress the icon (B9) to confirm (or the icon
(B6) to cancel the operation.
XPress the icon (B6) (Fig. 25) twice to exit the
menu.
The appliance is now reprogrammed with the
new settings and is ready.
Making cappuccino
IMPORTANT:
Set the quantity of coffee you want to use to make
the cappuccino in the "Program cappuccino" function
in the menu.
XSelect the taste of the coffee you want to use
to make the cappuccino by pressing the icon
(B4).
XRemove the lid of the milk container.
XFill the container with about 100 grams of milk for
each cappuccino to be prepared (Fig. 30). Never
exceed the MAX level (corresponding to about
750 ml) marked on the container. You should
ideally use skimmed or semi-skimmed milk at
refrigerator temperature (about 5°C).
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24 Fig. 25 Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30 Fig. 31
XMake sure the intake tube is correctly inserted in
the rubber washer (Fig. 31), then replace the milk
container lid.
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
Fig. 24 Fig. 25 Fig. 26 Fig. 27
Fig. 28
Fig. 32
Fig. 36 Fig. 37 Fig. 38 Fig. 39
Fig. 33 Fig. 34 Fig. 35
Fig. 29 Fig. 30
Fig. 31
XPosition the frothed milk regulator (C1) between
the words CAPPUCCINO and CAFFELATTE printed
on the milk container lid. The quantity of froth
can be adjusted by moving the regulator towards
the word CAFFELATTE for a denser froth. Moving
it towards the word CAPPUCCINO obtains a less
dense froth (Fig. 41).
Fig. 41
