Franke FMY 24 WCR User manual

FMY 24 WCR
EN Installation and user manual

5
EN
Table of Contents
Safety information................................................................................................................................................................. 6
Installation..................................................................................................................................................................................9
Overview ................................................................................................................................................................................... 11
Operations............................................................................................................................................................................... 12
Cleaning and maintenance .............................................................................................................................................. 12
Troubleshooting .................................................................................................................................................................... 13
Support ..................................................................................................................................................................................... 13

6
Safety information Important to be read and observed
Before the installation and use of the
appliance, carefully read the supplied
instructions.
Always keep the instructions with the
appliance for future reference.
To prevent danger stemming from instability
of the device, you must fasten it in place,
following the assembly instructions strictly.
Whenevermoving or transportingthedevice,
keep it in a vertical position.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.
Children shall not play with the
appliance.
Cleaning and user maintenance shall
be made by the user and not by children
without supervision!
Young children should be supervised
to ensure that they do not play with the
appliance.
This appliance may be used by children
between 3 and 8 years of age and persons
with very extensive and complex disabilities,
if they have been properly instructed.
Children of less than 3 years of age
should be kept away from the appliance
unless continuously supervised.
Do not let children play with the
appliance.
Children shall not carry out cleaning
and user maintenance of the appliance
without supervision.
Keep all packaging away from children
and dispose of it appropriately.
This refrigerating appliance is intended
to be used at ambient temperatures ranging
from 16°C to 38°C.
Wait at least 4 hours before connecting
the appliance to the power supply.This is to
allow the oil to flow back in the compressor.
This appliance is not suitable for
freezing foodstus.
There is no dierence in consumption
between the possible conguration of the
shelves/basket.
WARNING: When positioning the
appliance, ensure the supply cord is not
trapped or damaged.
This appliance is intended to be used in
household and similar applications.
WARNING: Do not locate multiple
portable socket-outletsor portable power
supplies at the rear of the appliance.
After installing the device, ensure the
power cable and socket are easy to reach.If
it not possible to reach the power cable and
socket, ensure that the plug is connected to
a circuit breaker.
Keep the ventilation openings on the
casing of the device free.
Do not use mechanical devices, or any
means not suggested by the manufacturer,
to speed up defrosting.

7
EN
Do not damage the coolant circuit.
Contact the after sales service to
replace the LEDs.
Do not stare at operating lamp.It may
be harmful to the eyes.
The cable must not be bent or crushed.
Thecablemustbechecked onaroutine
basis and replaced only by authorised
technicians.
The power supply cable is of a Y type.
Contact the after sales service to replace it.
Do not use electrical equipment inside
the wine compartments, unless they are of a
kind suggested by the manufacturer.
Do not store explosive substances
such as aerosol cans with aflammable
propellant in this appliance.
The Manufacturer shall not be liable if
any of the above rules are not complied with.
WARNING: Keep ventilation openings,
in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING: Do not use mechanical
devices or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not damage the
refrigerant circuit.
WARNING: Do not use electrical
appliances inside the wine compartment of
the appliance, unless they are of the type
recommended by the manufacturer.
Do not store explosive substances
such as aerosol cans with aflammable
propellant in this appliance.
Risk ofre and electrical shock orre.
Be careful not to cause damage to the
refrigerant circuit.It contains isobutane
(R600a), a natural gas with ahigh level of
environmental compatibility.This gas is
flammable.
If damage occurs to the refrigerant
circuit, make sure that there are noflame and
sources of ignition in the room.Ventilate the
room.
Do not let hot items to touch the plastic
parts of the appliance.
Do not storeflammable gas and liquid
in the appliance.
Do not putflammable products or
items that are wet withflammable products
in, near or on the appliance.
Do not touch the compressor or the
condenser. They are hot.
The device is a wine cooler.It is only
intended for storing wine.
Only store wine in unopened bottles.
The wine cooler is not suitable for
cooling foods.
Do not store any perishable food in the
wine cooler.
The fridge is not intended to be brought
into contact with food.
The fridge is not intended for the
storage of medicines.
NOTE: Condensating moisture on glass
doors.
When the ambient humidity is above 65 % in
25 °C ambient temperature, moisture will
condense on the glass door.

8
Disposal
The symbol on the product or on the
packaging indicates that the device must not
be disposed of in the domestic waste.
This appliance is manufactured with recyclable or reusable
materials.Dispose of it in accordance with local waste disposal
regulations.For further information on the treatment, recovery
and recycling of household electrical appliances, contact your
local authority, the collection service for household waste or
the store where you purchased the appliance.This appliance is
marked in compliance with European Directive 2012/19/EU,
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help
prevent negative consequences for the environment and
human health.
The symbol on the product or on the accompanying
documentation indicates that it should not be treated as
domestic waste but must be taken to an appropriate collection
center for the recycling of electrical and electronic equipment.
Package information
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National
Environment Regulations.Do not dispose of the packaging
materials together with the domestic or other wastes.Take
them to the packaging material collection points designated
by the local authorities.
Energy saving tips
Do not open the door frequently or leave it open longer than
absolutely necessary.

9
EN
Installation

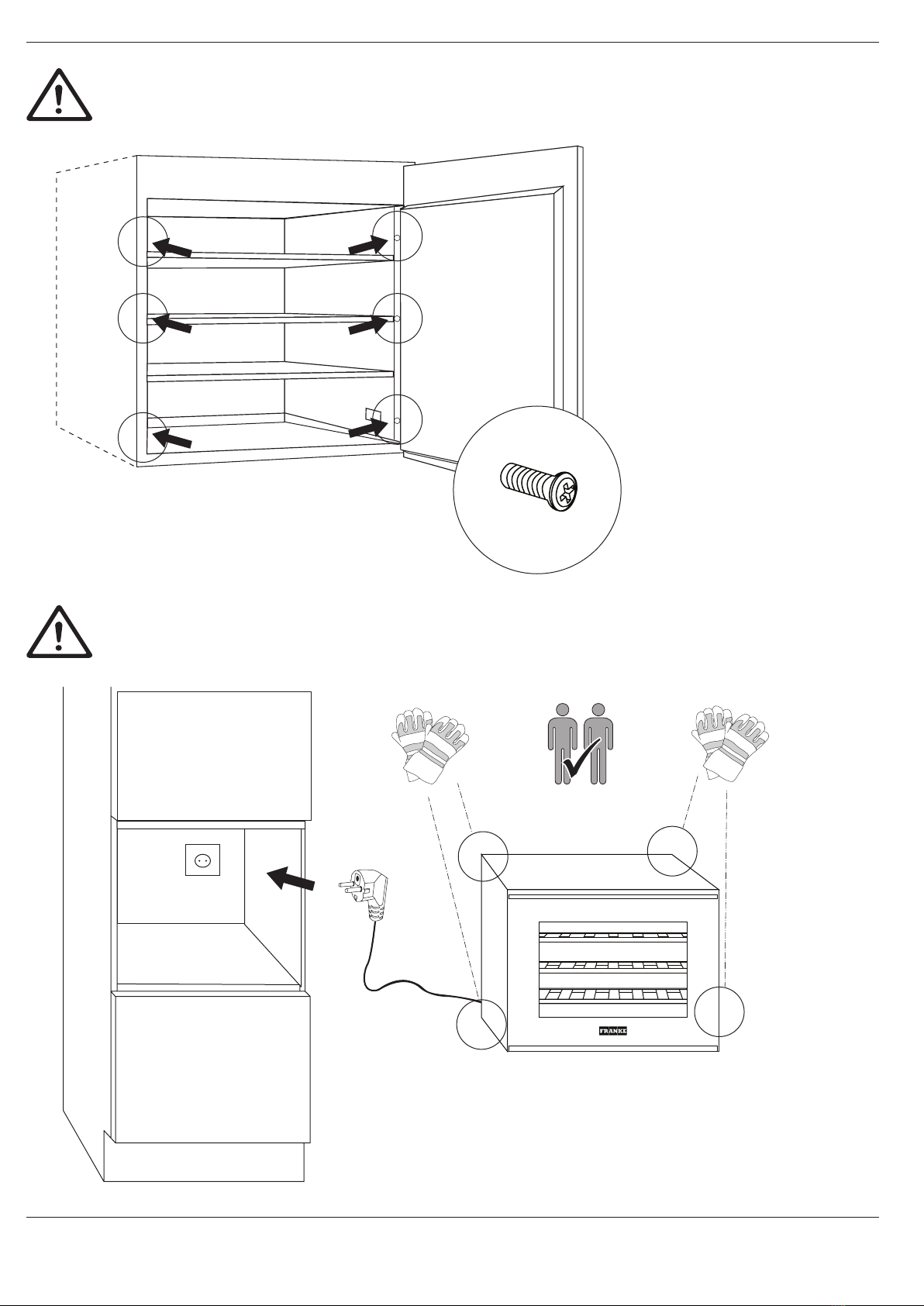

Positioning and connection
Installation, electrical connections and repairs must be carried
out by aqualied technician.
Unpacking
Unpack the device immediately and make sure it has not been
damaged during transport.Should it be damaged, do not
connect, and get in touch with the Dealer.
Carefully remove the protections and the adhesives, open the
door and make sure all the components are present.
Take out the power supply cable.
Positioning
Position the device in a well ventilated area, not damp and free
(avoid cabinets with closed walls).
Keep the device away from heat sources.
Make sure the minimum distances between the device and the
walls of the room where it is placed are kept, in order to ensure
perfect ventilation of the device.
See gure.
Wiring connection
After transport, stand the device vertically, and wait for at least
3 hours before connecting it to the wiring system.Before
putting the plug into the power socket, make sure that:
• the socket is earthed and according to legal regulations;
•the socket is able to hold up to the maximum power load of
the machine, indicated on the Data Sheet table or on the
feature plate to the bottom right (see Overview);
•the power supply voltage falls within the range indicated on
the Data Sheet table or on the feature plate to the bottom
right (see Overview);
•the power socket is compatible with the plug of the device.
Otherwise, replace the socket or the plug; do not use
extensions or multiple sockets.

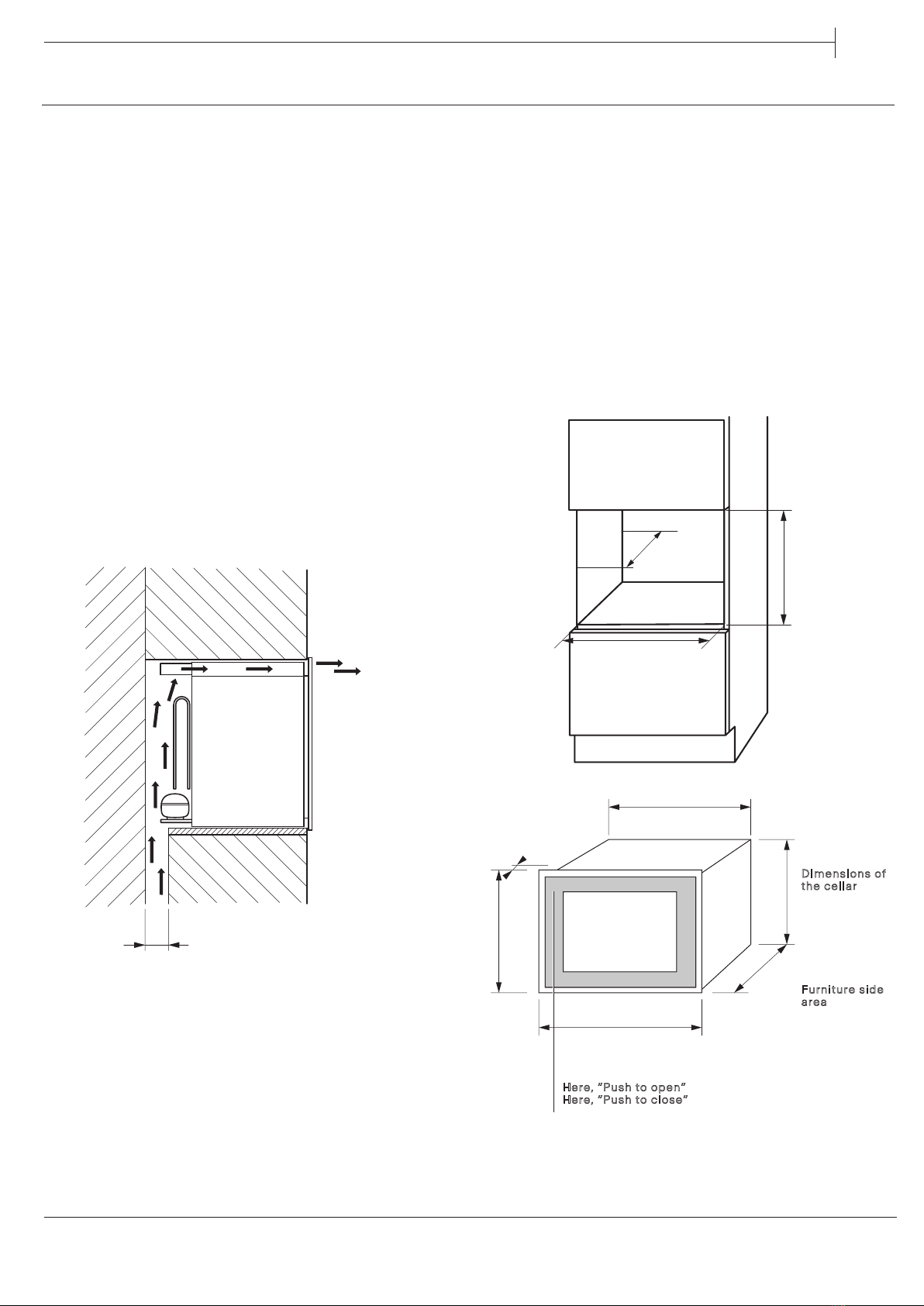

Dimensions of the compartment
450 mm
min. 560 mm
min.
560 mm
Dimensions of
the cellar
Furniture side
area
Here, “Push to open”
Here, “Push to close”
444 mm
555 mm
24 mm
455 mm
560 mm
588 mm
Ventilation space:
at least 50 mm

10

11
EN
Overview
Control
panel
Leaf
glass
Bottle Ageing
Compartment Shelves Data plate
CONTROL PANEL
ON
Warning lamp
for light on
Light
Warning
lamp
for power
supply on
Display Reduce
temperature
Operation
warning lamp
Increase
temperature
ON/OFF
button

12
Operations
Bottle ageing compartment
Theageingcompartment‘smainfunctionisthatofguaranteeing
that your wines are preserved in optimal conditions.
The wine cellar‘s temperature was factory pre-set at 15° C, a
temperature that is considered optimal for most wines.
Wine has a complex nature and it derives from a long and slow
process. In order to best express its attributes, very specic
conditions are necessary.
All wines are preserved at the same temperature, but,
depending on their dierent characteristics, wines are served
and tasted at very dierent temperatures.
Therefore, just as for manufacturers‘ wine cellars, for your new
appliance, the absolute temperature value is not important for
preserving your wine.Rather, the constant temperature
through time is important.Wine preservation is ideal at any
temperature, as long as that temperature does not vary.
Manual temperature control
Should you need to adjust the temperature inside the wine
cellar, follow the instructions below:
•When you plug in your wine cellar, the display shows the
temperature that has been set.
•Press the button (see Control Panel) for one second.
Thetemperature will begin to blink.
•Press the or buttons until you reach the desired
temperature.
• Wait 5 seconds for the temperature to stop blinking.
•Wait until the wine cellar reaches its temperature before you
place the wine bottles inside.
The inside light does not go on (or it goes o temporarily) when
the inside temperature goes over 24° C. This allows you to
reach the pre-set temperature more quickly.
This appliance is intended to be used exclusively for the
storage of wine.
The appliance is recommended to be used at 18°C for the best
maintaining of red wine, 8°C for white wine or 12°C as an
average temperature for both red and white wine.The
temperature may be adjusted for wine that requires particular
maintaining temperature.
Normal operating sounds
The following sounds are normal during operation:
-A faint gurgling and bubbling sound from coils sound when
refrigerant is pumped.
-A whirring and pulsating sound from the compressor when
refrigerant is pumped.
-A sudden cracking noise from inside appliance caused by
thermic dilatation (a natural and not dangerous physical
phenomenon).
-A faint click noise from the temperature regulator when the
compressor switches on or o.
Stocking the wine bottles
Standard 24-bottle stock
The 24-bottle stock (for standard, mixed, and renana bottles) is
recommended for wines that need to be visible and easily
removed.
STANDARD
24 Bottles
(100% lying down)
3 shelves
Position each bottle into the slots on the 3 wooden shelves.
6 bottles can be placed on the bottom of the wine cooler.
We suggest placing the longer bottles (Rhine wine type) at the
cellar base.The base is suitable for hosting larger bottles.
Cleaning and maintenance
Regularly clean the inside and outside of the refrigerator using
only warm water and a neutral detergent.
Subsequent to washing, rinse with clean water and dry
thoroughly using a soft cloth.
Do not use the following: special glass and mirror cleaning
products, liquid, powder, or spray detergents, alcohol,
ammonia or abrasive products.
If you are not using the minibar, we suggest cleaning it well
inside and leaving the door ajar to ventilate the interior.
Before maintenance, deactivate the appliance and disconnect
the mains plug from the mains socket.
This appliance contains hydrocarbons in the cooling unit.Only
aqualied person must do the maintenance and the recharging
ofthe unit.
Regularly examine the drain of the appliance and if necessary,
clean it. Ifthe drain is blocked, defrosted water collects in the
bottom of the appliance.
The interior of the wine cooler should be cleaned regularly to
avoid odor.
Check the door gasket regularly to make sure there are no
debris.
Please turn o the power before cleaning.
Clean the inside surfaces with a warm water and baking soda
solution. The solution should be about 2tablespoons of baking
soda to a quart of water.
Rinse and dry thoroughly.

13
EN
Troubleshooting
If you notice that your wine cooler is not working properly,
check with the following list before you call your Service
Centre.
Problem Possible causes/Solutions
The compressor does not work
The plug is not plugged into the wall-outlet or not enough to make
contact. Or, there could be a power failure in your home.
The wall-outlet is not in working order. Plug the wine cellar into
another wall-outlet to check.
The compressor never stops Contact the Service Centre.
Any work that is done to the wine cellar should be performed
by your authorized local Service Centre.
Short term faults, such as power failure, will not compromise
the wines.It is only when working faults are left unsettled for a
long time that the wine may suer.
Support
In case of any operation problems, contact a Franke Technical
Service Centre.
Never use the services of unauthorised technicians.
When contacting our Service Centre, please state the codes
provided on your product‘s identication plate.
-the type of fault
-the appliance model (Art./Cod.)
-the serial number (S.N.)
This information is given on the data plate (see Overview).
You must also have proof of purchase if you are still within the
warranty period.
WWW.FRANKE.COM
©Franke Technology and Trademark Ltd., Switzerland

© Franke Technology and Trademark Ltd., Switzerland | 2022-08-31 | V01 | xxxxxxxxx | ID: yyyyyyyyyy
© Franke Technology and Trademark Ltd., Switzerland | 2022-12-22 | V04 | 991.0674.708 | ID: 20226213
