1. SAFETY INFORMA-
TION
For your own safety and to
ensure proper operation of
the appliance, please read
this manual carefully be-
fore installation and oper-
ation. Keep these instruc-
tions together with the ap-
pliance, even if it is sold or
transferred to third parties.
It is important that users
know all the appliance's
operating and safety char-
acteristics.
The cables must be con-
nected by a trained techni-
cian.
• The manufacturer shall not be
considered responsible for
any injury or damage caused
by improper installation or
use.
• The minimum safety distance
between the hob and the suc-
tion hood is 650 mm (some
models may be fitted at a
lower height; please see the
paragraph relating to working
dimensions and installation).
• If the instructions for installa-
tion of the gas hob specify a
distance greater than the one
indicated, this must be taken
into account.
• Check that the mains power
supply corresponds to the
one indicated on the data
plate affixed inside the hood.
• The cut-out devices must be
installed in the fixed system
according to wiring system
regulations.
• For Class I appliances, check
that the domestic power sup-
ply is adequately earthed.
• Connect the hood to the flue
using a pipe with a minimum
diameter of 120 mm. The
fumes must travel the
shortest distance possible.
• All the air venting regulations
must be complied with.
• Do not connect the ducting
hood to flues that also carry
combustion fumes (e.g. boil-
ers, chimneys, etc.).
• If the hood is used in combina-
tion with non electric appli-
ances (e.g. gas appliances),
a sufficient level of ventilation
must be guaranteed in the
room to prevent any exhaust
backflow. If the kitchen hood
is used in combination with
appliances that are not elec-
trically powered, the negative
pressure in the room must not
exceed 0.04 mbar to avoid
any risk of the fumes being
sucked back into the room by
the hood.
• The air must not be extracted
through a flue that is also used
as an exhaust flue for fumes
from gas or other fuel
powered combustion
devices.
• If it is damaged, the power
cable must be replaced by the
manufacturer or by a service
technician.
• Connect the plug to a socket
that complies with current
regulations and is in an ac-
cessible position.
3

• As regards the technical and
safety measures to be taken
for exhausting of fumes, it is
important that the regulations
set by local authorities be
complied with scrupulously.
CAUTION: remove the
protective films before in-
stalling the hood.
• Only use screws and hard-
ware of a sort suitable for the
hood.
CAUTION: failure to install
the screws or fixing
devices as described in
these instructions may
mean there is a risk of elec-
tric shocks.
• Do not look directly at the light
through optical devices (bin-
oculars, magnifying
glasses…).
• Do not flambé food under the
hood: you might cause a fire.
• This appliance may be used
by children over the age of 8
years and by persons with
limited psycho-physical and
sensory abilities or with insuf-
ficient experience and know-
ledge, provided they are care-
fully supervised and instruc-
ted on how to use the appli-
ance safely and on the
dangers that it involves. Make
sure that children are not al-
lowed to play with the appli-
ance. Cleaning and mainten-
ance to be performed by the
user must not be carried out
by children, unless they are
under supervision.
• Supervise children, to make
sure they do not play with the
appliance.
• The appliance must not be
used by persons (including
children) with limited psycho-
physical or sensory capacit-
ies or with insufficient experi-
ence and knowledge, unless
they are carefully supervised
and instructed.
Accessible parts may be-
come extremely hot during
the use of cooking appli-
ances
• Clean and/or replace the fil-
ters after the period of time in-
dicated (danger of fire). See
the paragraph on Mainten-
ance and cleaning.
• The room must be adequately
ventilated when the hood is
used simultaneously with ap-
pliances that use gas or other
fuels (not applicable to appli-
ances that only discharge air
into the room).
• The symbol on the product
or on its packaging indicates
that the product must not be
disposed of with the normal
domestic waste. The product
must be disposed of at a spe-
cialist re-cycling centre for
electrical and electronic com-
ponents. By making sure that
this product is disposed of
properly, you will help prevent
possible negative con-
sequences for the environ-
ment and for health that might
result from its improper dis-
posal. For more detailed in-
formation on how to re-cycle
4

this product, please contact
your local municipal offices,
local waste disposal service
or the shop in which the
product was purchased.
Declaration of Conformity
The manufacturer declares that
this device with wireless radio
functionality complies with dir-
ective 2014/53/EU.
The complete text of the EU de-
claration of conformity is avail-
able at the following link by
searching for the product code:
“https://www.franke.com”
This code can be found on the
label located inside the product.
Fre-
quency
bands
Maximum transmit-
ted power
2.4 GHz 100 mW max.
2. USE
• The suction hood has been designed
exclusively for domestic use, to elim-
inate kitchen odours.
• Never use the hood for purposes
other than those for which it was de-
signed.
• Never leave high flames under the
hood when it is in operation.
• Adjust the intensity of the flame so
that it is directed onto the bottom of
the cooking pan, making sure it does
not wrap around the sides.
• Deep-fryers must be kept under con-
stant supervision when in use: the oil
may catch fire if it gets too hot.
3. CLEANING AND
MAINTENANCE
• The activated carbon filter is neither
washable nor regenerable and must
be replaced approximately every 4
months of operation or more fre-
quently in case of very intense use
(W).
W
• The grease filters must be cleaned
every 2 months of operation or more
frequently in case of very intense use
and can be washed in a dishwasher
(Z).
Z
Z
• Clean the hood using a damp cloth
and a neutral liquid detergent.
• Avoid using alcohol or silicone-based
products to clean the inside and out-
side of the cooker hood.
• When frying food or a lot of steam is
being produced, it is advisable to
open the perimeter suction panel and
instead use the lower cooking area.
5

4. CONTROLS
A B C D E GF
Key Key press Function Display/Led
AShort Hold the key pressed to turn the hood on/off at the first speed. The display shows 1.
BShort Press or move your finger from left to right to increase the speed from
1 to 2, 3, Intensive.
The intensive speed is timed for 6 minutes. At the end of this time the
system automatically returns to the previously set speed.
Repeat the operation in reverse to decrease the speed (from right to
left).
The display shows the
selected speed.
If the Intensive speed is
selected the display
shows an animation.
Long press on
the leftmost lines
when all loads
are off (motor
and lights)
Keypad Lock function
Activates/deactivates the keypad lock for hood cleaning.
This function is automatically deactivated after 2 minutes.
All LEDs flashing
Long press on
the rightmost
lines when all
loads are off
(motor and
lights)
Induction/Gas Cooktop Selection
Select the type of cooktop in use, either Induction or Gas.
The Induction Cooktop is set by default.
1 flashing LED G: con-
firms Induction Hob se-
lection.
2 flashes LED G: con-
firms Gas Hob selec-
tion.
CShort Switches the lights on/off at maximum intensity. Fixed
Long press with
all loads off (mo-
tor and lights)
Connected Mode Coupling
Before starting the procedure follow the specific instructions of the
manuals of the devices to be coupled.
The procedure for pairing of the hood with devices compatible with
the Connected Mode (remote control) starts. Only one remote control
can be paired. See the manual of the devices for details of the opera-
tions that need to be performed on these.
The coupling procedure takes 2 minutes. If no devices are recognised
within this time check that you have previously activated the proced-
ure for the devices to be coupled. The maximum number of linkable
devices may have been reached.
The display shows an
animation:
coupling in progress.
Upon successful com-
pletion of the procedure
all the LEDs will light up
for 2 seconds.
DShort Switches the lights on/off at medium intensity. Fixed
Long press with
all loads off (mo-
tor and lights)
Performs a Filters saturation alarm reset. The display shows F 3
times, indicating that the
filter reset has been
completed.
Signals the Metal Grease Filters saturation alarm and the need to
wash them. The alarm is activated after 100 hours of effective hood
operation.
With the motor off, the
display shows F + 1
multiple times altern-
ately.
Signals the Activated Carbon Odour Filter saturation alarm. The
alarm is activated after 200 hours of effective hood operation. With the motor off, the
display shows F + 2
multiple times altern-
ately.
6

E Short Delay Function
Activates/Deactivates the Delay function (automatic shutdown of the
Motor and of the lighting delayed by 30').
Cannot be activated with Intensive or 24h function.
Deactivate the function by pressing the same key or press the A key
for about 1 second to shut down the motor.
LED A remains lit (fixed)
and LED E lights up.
The display shows an
animation.
Long press with
light or motor on 24h Function
Activates/Deactivates the motor in the 24h Air Exchange mode, a
speed that allows suction of 10 minutes every hour, for a 24-hour
cycle.
LED A remains lit (fixed)
and LED E flashes. The
display shows an anim-
ation.
Long press with
all loads off (mo-
tor and lights)
Connected Mode Decoupling
The procedure for deleting all devices compatible with the Connected
Mode previously associated with the Connected Mode Coupling func-
tion starts.
Upon successful com-
pletion of the procedure
all the LEDs flash 5
times.
F Short Wi-Fi connection
Activates/Deactivates the Wi-Fi Connection function.
Note: the Wi-Fi function is automatically activated when the user re-
quests the Wi-Fi configuration procedure.
Flashing:
connection to domestic
network in progress.
Fixed:
Wi-Fi connection activ-
ated
Long press with
all loads off (mo-
tor and lights)
Wi-Fi configuration
Activates/Deactivates the Wi-Fi set-up procedure.
Before starting the procedure, use the Franke@Home App to re-
gister with the Franke IOT system. Then follow the instructions to add
a new device and register the domestic router.
If the procedure is not successfully completed within a few minutes,
deactivate it by long pressing the key again, then make another at-
tempt. The hood will nonetheless abandon the procedure if it is not
successfully completed within 10 minutes.
The display shows an
animation:
configuration procedure
in progress.
Upon confirmation that
the procedure was suc-
cessful, all the LEDs will
light up for 2 seconds.
GShort AUTO Mode
Activates/Deactivates the Automatic operating mode.
AUTO mode is deactivated whenever any other keys are pressed.
Cannot be activated with Intensive, Delay or 24h on.
Thanks to the presence of the Air Quality Sensor, an algorithm is
able to modulate the speeds based on the quality level of the intake
air.
WARNING: The algorithm function is optimised for the most common
types of cooking. Uncommon preparations may produce a non-optim-
ised response.
Fixed:
AUTO mode activated.
Off:
AUTO mode temporarily
deactivated.
Long press with
all loads off (mo-
tor and lights)
Activates/Deactivates the Activated Carbon Filters alarm. With the motor off, the
display shows F + 2
alarm activated.
With the motor off, the
display shows F + 0
alarm deactivated.
Recommended device coupling sequence:
1 - Connected Mode (See remote control manual)
2 - Connected Mode Coupling (See hood manual)
3 - Remote Control-Hood Coupling (See remote control manual)
5. FRANKE@HOME APP

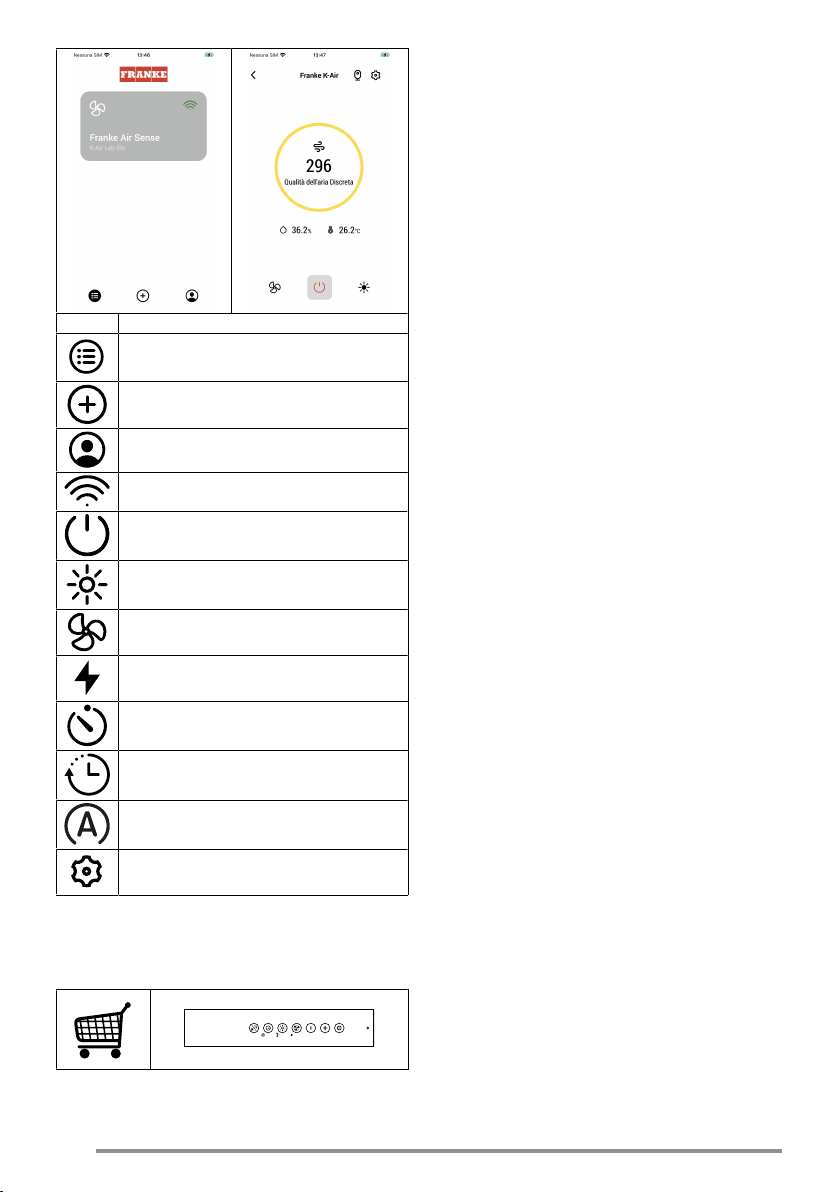

The Franke@Home App is available for
iOS and Android smartphones and al-
lows remote access to all hood func-
tions.
7

Icon Function
Home page
Add new device
User profile management
Connected to the Wi-Fi Franke network
Hood on/off
Lighting system management
Motor speed management
Intensive Function
24h Function
Delay Function
Automatic Function
App settings management
6. REMOTE CONTROL
(OPTIONAL)
7. LIGHTING
• Please contact the Service Depart-
ment to change it ("Please contact
the service department to purchase
it").
8

330.0657.270
Franke UK Ltd.
MIOC, Suite 1, Styal Road
Manchester
M22 5WB
www.franke.com/gb/en/hs.html
