Franklin Electric CADD-5000 KIT User manual

FUELING SYSTEMS
GRID SOLUTIONS
EV SYSTEMS
CELLTRON™ ADVANTAGE DIGITAL
BATTERY TESTER FEATURING UNITE™
OPERATION GUIDE
167-000450 r8
MODEL NUMBER
CADD-5000 KIT
CADD-5500 KIT
CADD-5200 KIT

The information in this publication is provided for reference only. While every eort has been made to ensure the reliability and accuracy of the information contained in
this document at the time of printing, we recommend that you refer to the appropriate website for the most current version of this manual. All product specifications, as
well as the information contained in this publication, are subject to change without notice. Franklin Electric does not assume responsibility and expressly disclaims liability
for loss, damage, or expense arising out of, or in any way connected with, installation, operation, use, or maintenance by using this document. Franklin Electric assumes
no responsibility for any infringement of patents or other rights of third parties that may result from use of this document or the products. We make no warranty of any kind
with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Copyright © 2023 Franklin Electric Co., Inc., Madison, WI 53718. All world rights reserved. No part of this publication may be stored in a retrieval system, transmitted, or
reproduced in any way, including, but not limited to, photocopy, photograph, magnetic, or other record, without the prior written permission of Franklin Electric.
For technical support, please contact:
Franklin Electric Technical Support
Web: franklingrid.com/support-center
Tel: [phone]
For additional questions and concerns, please contact:
Franklin Electric
3760 Marsh Rd
Madison, WI 53718 USA
Web: franklingrid.com
Tel: USA & Canada [phone] • Tel: UK [phone]
Tel: Mex 001 800 738 7610 • Tel: DE [phone] • Tel: CN [phone]
Incon is registered trademark of Franklin Electric Co., Inc.
167-000450 r8
CONVENTIONS USED IN THIS MANUAL
This manual includes safety precautions and other important information presented in the following format:
NOTE: This provides helpful supplementary information.
IMPORTANT: This provides important supplementary information and instructions to avoid damaging hardware or a potential hazard.
CAUTION: This indicates a potentially hazardous situation that could result in minor or moderate injury if not avoided. This may also be used to alert against
unsafe practices.
WARNING: This indicates a potentially hazardous situation that could result in severe injury or death if not avoided.
DANGER: This indicates an imminently hazardous situation that will result in death if not avoided.
OPERATING PRECAUTIONS
WARNING: Important safety instructions. Before installing any Franklin Electric equipment, read this document and follow safety and operating instructions.
Save these instructions.
WARNING: Risk of explosive gases: Batteries generate explosive gases during normal operation, and when discharged or charged.
WARNING: To reduce risk of battery explosion, follow these safety instructions and those published by the battery manufacturer and the manufacturer of any
equipment to be used in the vicinity of a battery. Review cautionary marking on these products and on the battery cabinets, battery racks, battery rooms, and on
equipment containing the battery.
WARNING: Do not disassemble any equipment; contact Franklin Electric when a repair is required. Incorrect reassembly may result in a risk of electric shock, fire or
other hazardous situation.
WARNING: Use Franklin Electric equipment in dry, well-ventilated area(s).
WARNING: Do not expose Franklin Electric equipment to rain, snow, or other moisture.
WARNING: To avoid electric shock when testing jars, abide by your company’s safety practices and the following guidelines:
WARNING: Service work may only be performed by authorized personnel for procedures which they have satisfactorily been trained to execute.
WARNING: Refer to NFPA 70E for electrical safety requirements.
WARNING: Use of Personal Protection Equipment (PPE) and Protective Clothing per NFPA 70E guidelines is required. Some examples of these (but not limited
to) are: Electrical-insulating, acid-resistant, and protective gloves and sleeves per ASTM D 120, OSHA 29 CFR 1910.137, and NFPA 70E requirements; Protective
footwear; Aprons (acid-resistant); Insulating blankets; On-site spill kits; Protective clothing for voltage levels, level of corrosive protection, and the amount of arc-flash
protection provided; Insulated rescue hooks or other means for pulling personnel from live circuits; Eyewash stations or portable eyewash bottles; Class “C” dry chemical
re-extinguishers instead of water around battery systems.
WARNING: Always have someone within vocal range, or close enough to come to aid, when working around lead acid batteries.
WARNING: Have plenty of fresh water and baking soda nearby in case battery acid contacts skin, clothing or eyes.
WARNING: If battery acid contacts skin or clothing, wash immediately with baking soda and water. If acid enters the eye, immediately flush with cold running water for
at least 10 – 15 minutes, and seek medical attention.
WARNING: Never smoke or allow a spark or flame in the vicinity of a battery or engine.
WARNING: Be extra cautious to reduce the risk of dropping a metal tool onto the battery or other component, potentially causing a spark, short circuit or other
electrical part to possibly explode.
WARNING: Before working with a lead-acid battery, remove personal metal items such as rings, bracelets, necklaces, watches, etc. A lead-acid battery can produce a
short circuit current high enough to weld such items causing a severe burn.
WARNING: Always wear safety glasses with side shields in the vicinity of battery work per 29CFR1910.133 (OSHA).
WARNING: Do not disconnect the battery cables from power systems during the test without authorization.
WARNING: Do not place yourself in an electrical circuit.
WARNING: Avoid simultaneous contact with the jar and with the battery cabinet, racks, or hardware that may be grounded.
WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

Contents
1 Introduction.......................................................................................................................1
1.1 Documentation..........................................................................................................1
1.1.1 Symbol Legend ...............................................................................................1
2 Safety/Security ..................................................................................................................2
2.1 General Safety Information.........................................................................................2
2.2 Hazard Assessment ...................................................................................................3
2.3 Required Personal Protective Equipment (PPEs) ........................................................3
2.4 Cyber Security ...........................................................................................................3
3 Overview ...........................................................................................................................4
3.1 Specifications............................................................................................................5

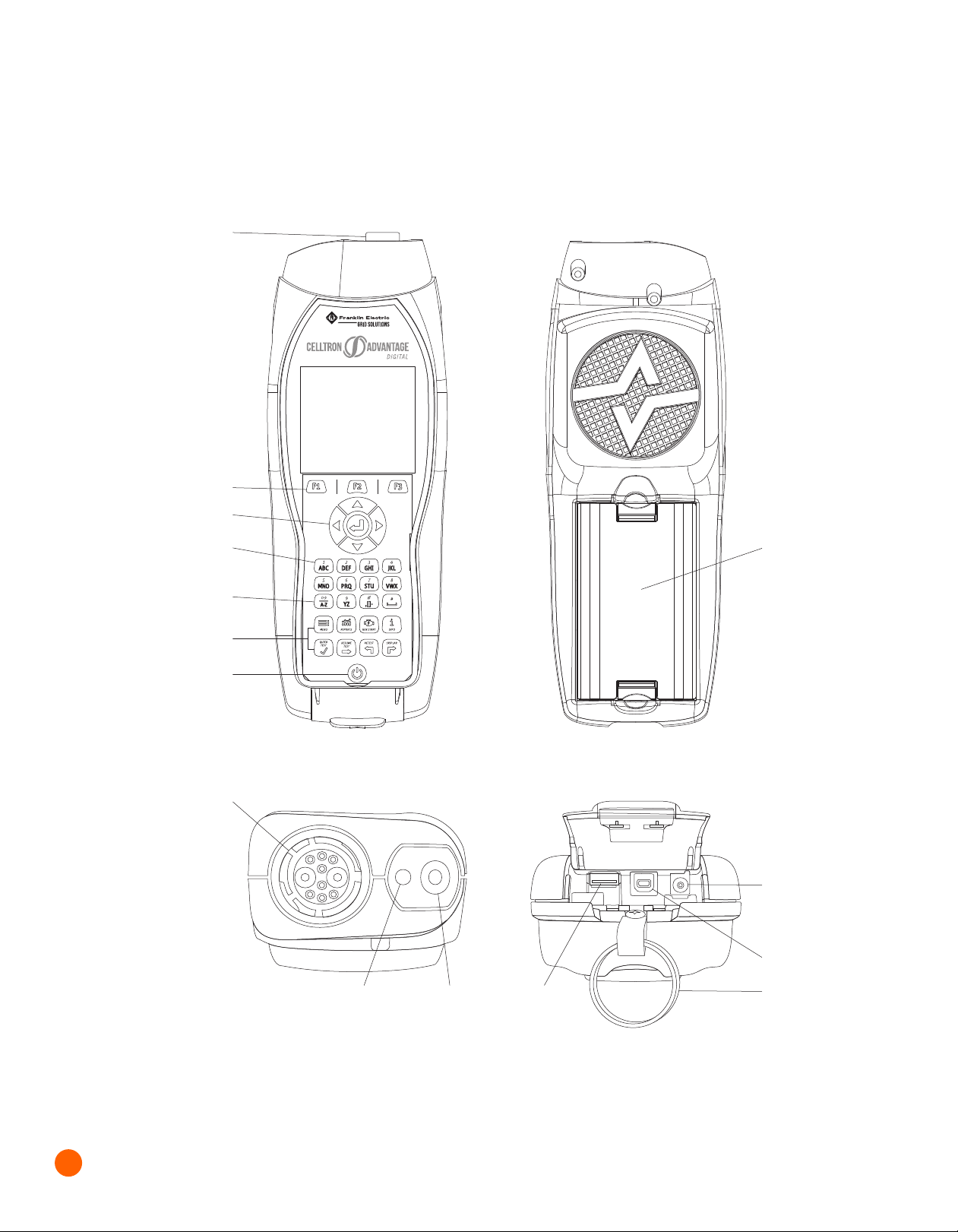

3.2 Product Map..............................................................................................................6
3.3 Navigation Help / Quick Navigation / Hot Keys..............................................................7
3.4 Menus .......................................................................................................................8

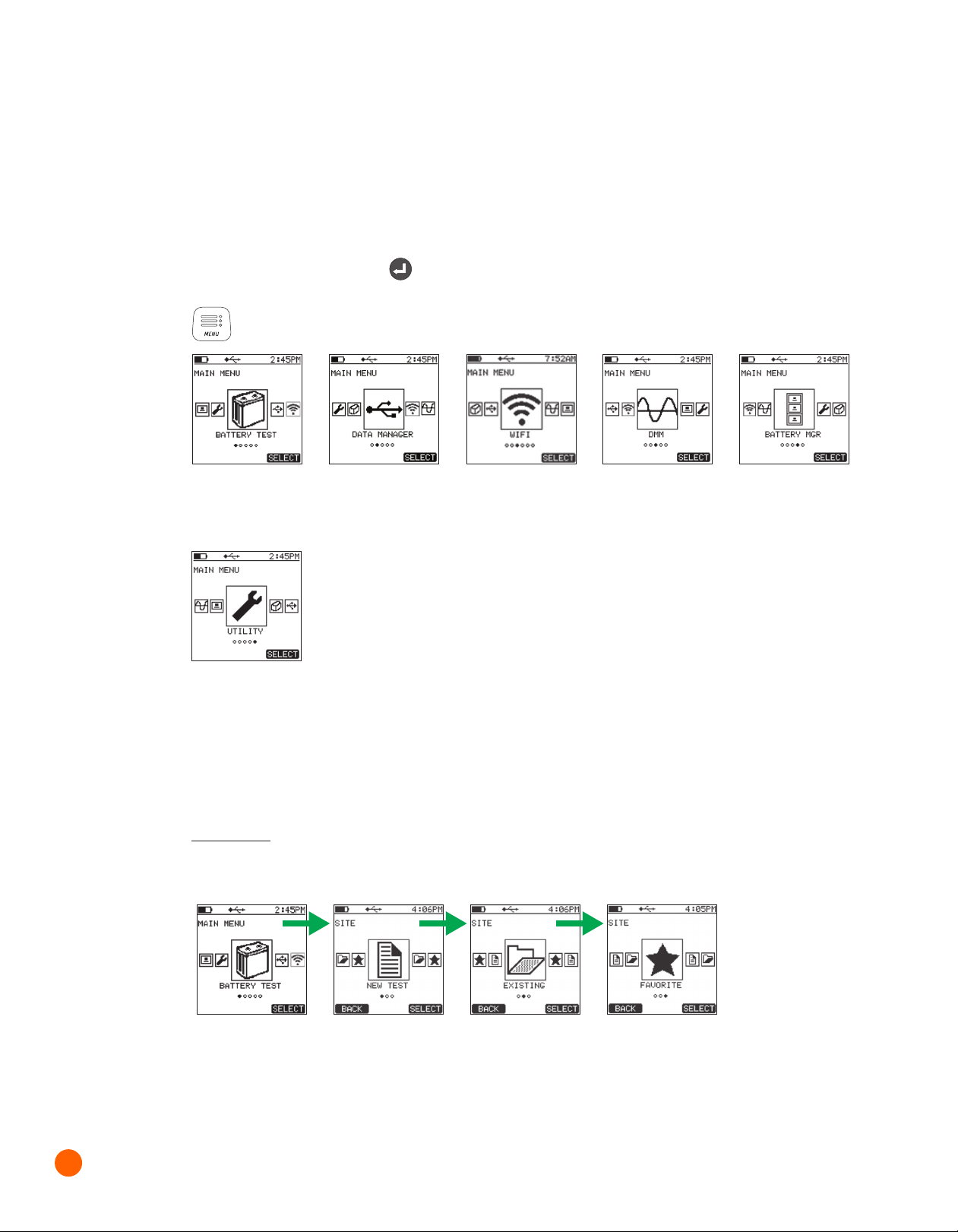

3.4.1 Main Menu .....................................................................................................8
3.4.2 Battery Test Menu...........................................................................................8
3.4.3 Data Manager Menu .......................................................................................9
3.4.4 Wi-Fi Menu .....................................................................................................9
3.4.5 DMM Multimeter Menu ...................................................................................9
3.4.6 Battery Library Manager Menu........................................................................9
3.4.7 Utility Menu ..................................................................................................10
3.5 Initial Utility Menu Settings ......................................................................................11
3.5.1 File Type .......................................................................................................11
3.5.2 Temp Mode...................................................................................................11
3.5.3 Date / Time....................................................................................................12
3.5.4 Display Time-Out ..........................................................................................12
4 UNITE™ CAD (Testing) Organizations ...............................................................................13
4.1 CADD (Tester) / UNITE™ Overview............................................................................13
4.2 Create Wi-Fi Profiles (CADD to UNITE™ Link)............................................................13
4.2.1 Wi-Fi Profile Setup on the CADD ....................................................................14
4.2.2 Connect to a Wi-Fi network with the CADD.....................................................15
4.3 Creating CAD (Testing) Organizations in UNITE™......................................................16
4.4 Adding a CADD to a CAD Organization in UNITE™ ....................................................17
4.4.1 Verify the CADD is Connected to UNITE™ ......................................................18
4.5 Creating a Plant in UNITE™......................................................................................19
4.5.1 Creating a Battery Specification ....................................................................20
4.5.2 Creating a Battery String ...............................................................................21
4.5.3 Adding Batteries to a String...........................................................................22
4.6 Editing a Plant .........................................................................................................23
4.7 Editing a Battery String ............................................................................................24

4.7.1 Editing a Battery ...........................................................................................25
4.7.2 Editing a Battery Specification.......................................................................26
4.8 Staging a Download to the CADD..............................................................................27
4.9 Uploading CADD Data to UNITE™ ............................................................................29
4.9.1 Wireless Uploading of CADD Data to UNITE™ ................................................29
4.9.2 Manual Uploading of CADD Data to UNITE™..................................................29
4.10 Hierarchies..............................................................................................................32
4.10.1 Overview.......................................................................................................32
4.10.2 Format PHSD Files........................................................................................32
4.10.3 Upload Hierarchies .......................................................................................33
4.10.4 Subsequent Menu Navigation .......................................................................34
5 Battery Testing Overview..................................................................................................35
5.1 Taking Measurements..............................................................................................35
5.1.1 Temperature.................................................................................................35
5.1.2 Probe Placement ..........................................................................................35
5.2 Tester Setup ............................................................................................................37
5.3 Reference Values.....................................................................................................38
5.4 Test Type .................................................................................................................38
5.5 Save ........................................................................................................................39
6 Testing Jars and Inter-Cell Straps .....................................................................................40
6.5.1 Jars and No or One Strap...............................................................................40
6.5.2 Jars and Two Straps ......................................................................................41
6.5.3 Jars and Three Straps ...................................................................................42
6.5.4 Testing Sequence (Series).............................................................................45
7 Determining A Reference Value........................................................................................46
7.1 Before Testing A String.............................................................................................46
7.2 Options In Determining A Reference Value ...............................................................46
7.3 Testing A Sample Of Cells / Batteries.........................................................................47
8 Data Manager..................................................................................................................48
8.1 Updating The Firmware ...........................................................................................48
9 Troubleshooting ...............................................................................................................49
9.1 Device Connection Issues ........................................................................................49
9.1.1 Root Cause: Date/Time Issue.........................................................................49
10 Appendix.........................................................................................................................50
10.1 Contact Information.................................................................................................50
10.2 Related Documents .................................................................................................50
10.3 Glossary ..................................................................................................................50
10.4 Drawings .................................................................................................................51
10.4.1 Four Terminal Cell Array (Typical) ..................................................................51
10.4.2 Six Terminal Cell Array (Typical) ....................................................................52
10.4.3 Six Terminal Series Cell Array (Typical)...........................................................53
10.5 Notes ......................................................................................................................54

1
1 Introduction
The CELLTRON™ Advantage Digital is a fast, user-friendly, premium handheld tester
for measuring battery conductance, voltage, temperature and strap resistance in high-
noise environments for a complete battery state-of-health analysis.
1.1 Documentation
• This document is intended for qualified persons.
• Instructions of this document are in English. All other language versions are
translations of this original document.
• Information / illustrations in this document are given as a guide for instruction
and description purposes only. It is the user’s responsibility to ensure that proper
procedures are followed at all times.
• This document and related documents (Section 7.2) are available from
Franklin Electric at www.franklingrid.com.
1.1.1 Symbol Legend
Wear Protective Headwear Wear Eye Protection
Wear Protective Clothing Wear High-Visibility Clothing
Wear Protective Gloves Wear Safety Footwear
Refer to instruction guide. Ventilate Before & During Entering
Ensure Continuous Ventilation Connect an earth terminal to the ground
Wear opaque eye protection Hands must be washed
General Warning Warning: Electricity
Warning: Flammable Material Warning: Toxic Material
Warning: Battery Charging Warning: Arc Flash
Warning: Corrosive Substance
No open flame; Fire, open ignition source and smoking prohibited

2
2 Safety/Security
2.1 General Safety Information
• Only perform procedures in this document that you are qualified and certified to perform.
• Personnel working on or with energized equipment must be authorized by
relevant regulatory bodies to carry out such work and must have the appropriate
training. Check with your employer and relevant regulatory body’s rules for
working with energized equipment.
• Obey all local laws, rules, regulations, and instructions in this document. In
case of inconsistency or contradiction between information contained in this
document and any laws, rules and regulations, obey the stricter of the two.
• Keep unqualified personnel at a safe distance during installation.
• Always wear all required PPE (see Section 2.3) on-site and during installation.
• If it is necessary to remove safety/security devices, immediately reinstall the
safety / security devices after completing the work.
• If you are uncertain as to the type of battery you are trying to test, contact the
seller or battery manufacturer.
• Do not operate the tester if it has received a sharp blow, been dropped or
otherwise damaged in any way; contact Franklin Electric customer service.
EMERGENCY EQUIPMENT
• Insulating blankets.
• On-site spill kits.
• See Section 2.3 for PPEs.
• Insulated rescue hooks or other means for pulling personnel from live circuits.
• Plenty of fresh water and baking soda nearby in case battery acid contact.
• If acid enters the eye, immediately flush with cold running water for at least
10 minutes, and seek medical attention.
• If battery acid contacts skin or clothing, wash immediately with baking soda
and water.

3
2.2 Hazard Assessment
Prior to beginning work and prior to recommencing work after leaving and returning
to the worksite, a worksite, pre-job hazard assessment must be performed to identify
safety and environmental needs. At a minimum, this hazard assessment should:
• Identify possible hazards and risks.
• Identify the safety needs of the job.
• Identify the correct procedures, practices and equipment.
• Eliminate unsafe conditions and actions from the worksite.
• Identify the need for personal protective equipment.
• Inspect equipment before use.
• Confirm sheaths of all cables are secured and undamaged.
• Confirm plugs and connectors are properly connected and serviceable.
• Perform ongoing risk assessment during the project.
2.3 Required Personal Protective Equipment (PPEs)
NOTE: Reference inside front cover for details covering PPEs.
Wear Protective Clothing Wear Eye Protection
Wear High-Visibility Clothing Wear Protective Gloves
Wear Protective Headwear Wear Safety Footwear
Wear opaque eye protection (arc flash)
2.4 Cyber Security
This product is designed to be connected to and to communicate information and
data via a network interface. It is solely the Owner’s responsibility to provide and
continuously ensure a secure connection between the product and Owner’s network or
any other network (as the case may be).
The Owner shall establish and maintain appropriate measures (such as but not limited
to the installation of firewalls, application of authentication measures, encryption of
data, installation of anti-virus programs, etc) to protect the product, the network, its
system and the interface against any kind of security breaches, unauthorized access,
interference, intrusion, leakage and/or theft of data or information.
The manufacturer. Franklin Electric, and its aliates are not liable for damages and / or
losses related to such security breaches, unauthorized access, interference, intrusion,
leakage and / or theft of data or information.

4
3 Overview
This lightweight handheld tester, lets
users quickly conduct a full battery
performance assessment which
can be uploaded wirelessly to the
web-based UNITE™ database for
centralized data storage, proactive
maintenance planning, and
compliance reporting.
The CADD easily performs
conductance testing on stationary batteries used in UPS systems, power utility, and
telecommunications industries. Its advanced analysis and data management tools are
designed for universal use in the following applications regardless of configuration:
• UPS Systems, 120, 220/240, 480, 600 VDC.
• Power Utility (Switching, SCADA, etc.).
• Telecommunications , -48 / +24 VDC.
• CATV, 12, 24, 36, 48 VDC.
• The tester features a backlit graphical LCD, a digital multimeter, and 2 MB of
memory for data storage and transfer to a PC. The tester software includes an
icon-based menu and pre-loaded data on over 250 battery models to expedite
testing and record-keeping.
Test Capability
The CADD tests lead-acid cells and NiCd (nickel cadmium) batteries with nominal
voltages of; 1.2, 2, 4, 6, 8, 12 ,16, 18 VDC . The CADD can test batteries providing
power to a load (in service) or not providing power (not in service).
Measurements
The tester measures the status of a cell/battery in voltage, conductance, temperature
and strap resistance values. It displays conductance values in Siemens (S). Ampere
hours (Ah) are a typical measurement of cell/battery capacity; however, they are
dicult to measure without knowing the load to which the cells/batteries supply
power. Franklin Electric recommends that you compare test results to a conductance
reference value. See Section 7 for more information about reference values.
Test Range
The tester has an operating range of 100 - 19,990 S. This range includes cells/batteries
that have about 10 to 6000 Ah of reserve capacity.
Data Storage
The tester’s flash memory can store up to 2MB of hierarchy structure and test data.

5
3.1 Specifications
TABLE 3.1 – Specifications
Feature Description
Applications
Tests individual Lead-Acid or Nickel-Cadmium cells or
Monoblocs (up to 18 V) in any common configuration,
approximately 10-6000 Ah
Voltage Range 0.8 VDC to 23.5 VDC
Conductance Range
• 100 – 19,990 Siemens
• Required voltage range 1.0 V to 23.3 V
• Battery must be fully charged
Test Data Storage 2 MB
Accuracy +/-2% across test range, Voltage and Conductance
Voltmeter Resolution 5 mV
User Programmable Functions
• Preset values for over 250 battery types
• High/Low Voltage thresholds
• High/Low Temperature thresholds
• High/Low Conductance Percentage thresholds
• Test mode (push button/auto start)
Keypad Alpha-numeric, Stainless-steel dome, Polycarbonate overlay,
1,000,000 actuations
Data Transfer
• USB Flash Drive (Type A)
• USB PC Interface (Type B)
• Infra-red, half-duplex IRDA Protocol for printer
• Wi-Fi
Environmental Operating
Temperature 0° C – +40° C, 95% relative humidity, non-condensing
Storage Temperature -20° C – 82° C
Over Voltage Protection
• Protected up to 600 VDC
• Auto-reset disconnect
• Reverse polarity protected
Calibration
Franklin Electric will work with each customer to establish a
regular calibration program if it is required by their quality or other
management system
Cable Options • Dual contact clamps
• Dual contact probes
Power Requirements 7.2 V, 2500 mAh, NiMH Internal exchangeable battery & charger
Display LCD- FST 2.97 in x 2.81 in (75.4 mm x 71.3 mm), 128 x 128 pixels,
40 degree viewing angle, contrast ratio 8, LED backlight
Tester Dimensions 11 in x 4 in x 3 in
(280 mm x 105 mm x 80 mm)
Tester Weight 2.6 lbs / 1 Kg

6
3.2 Product Map
Cable Input
FRONT BACK
TOP BOTTOM
Function Keys
Alphanumeric Keys Battery Pack
Hot Keys
Switch between
Letters and
Numbers
USB
Flash Drive
USB Cable
Belt loop
Charging Input
Test Probe/Cable Input
Temperature
Sensor
Infrared
Printer Port
Navigation
Power

7
3.3 Navigation Help / Quick Navigation / Hot Keys
The number of dots on the
menu screen (as highlighted)
represent the sections of your
tester. To quickly navigate
thru these, without having
to continuously use the
Navigation Buttons, you can
use the number pad to jump
to the screen you want.
NOTE: This quick navigation
feature can be used
anywhere in your tester.
Hot Keys
Using the Quick Keys, you will
be able to easily perform a
function.
Table 3.1 Hot Keys
Hot Key Function
The Main Menu key allows a quick return to the main
menu and all of its functions.
The Reports key generates the report options from
both past and present battery tests.
The Gen Start activates the function to test a
generator or engine start battery.
The Info Key lists tester information.
The Quick Test bypasses the base setup information
for testing a cell, unit, jar, or battery. This allows
you to perform a single test; the test results can be
viewed on the screen but are not saved or stored.
The Resume Test key resumes an interrupted test.
The Retest Key enables you to retest a cell, unit, jar,
or battery that has been previously tested. (Normally
due to a suspect reading.)
The Skip Jar key enables you to put a placeholder
of 0.000 V and 0 conductance for a cell, unit,
jar, battery, that is too low for the CELLTRON™
ADVANTAGE to test in the battery string.
Charge Level Indicator

8
3.4 Menus
Use the following menu screen(s) to select functions to perform desired actions.
3.4.1 Main Menu
Use the “Main Menu” Quick Key to navigate through the options. While viewing the
desired screen, press the button to open the options per screen / section. Choose
the desired function.
Main Menu Quick Key
Begins the process of site,
string, battery setup.
Internal battery reference
base.
DC Voltage Measurement.
Utility setting for system
including temperature,
scale, clock, day/date, etc.
Transfer the data to/from
CELLTRON™ ADVANTAGE.
WIFI settings.
3.4.2 Battery Test Menu
Site Setup
For a standard battery test, a site will need to be imported from UNITE or setup
manually. See § 5.2 for a breakdown of this procedure.
Allows use of existing sites. Pick a favorite site and
plant from UNITE™.
Allows creation of a new
string to test not currently
saved in the existing sites.

9
3.4.3 Data Manager Menu
Allows the upload, download, and deletion of data.
Download test results via
USB flash drive from
CELLTRAQ™ or UNITE™.
Delete old or unwanted
results.
Allows updating tester
from a file via USB.
Upload test results via USB
flash drive to CELLTRAQ™
or UNITE™.
3.4.4 Wi-Fi Menu
Allows CADD users to wirelessly connect and interact with UNITE™.
Connects the CADD to an
existing network.
Allows downloading data
from UNITE™ to the CADD.
Allows uploading data from
the CADD to UNITE™.
Select existing saved WIFI
profiles to use / edit or
create new profiles.
3.4.5 DMM Multimeter Menu
Allows the DMM multimeter function.
DC Voltage Measurement.
3.4.6 Battery Library Manager Menu
Allows CADD users to save known reference values by manufacturer and model.
Allows creating new or
editing battery model
listings on the device.
Allows selecting a battery
configuration for a
selected battery model.
Allows creating new or
editing battery library
listings on the device.
Provides entry to the
battery library listings on
the device.

10
3.4.7 Utility Menu
Helps you set the way you want your CELLTRON™ Advantage Digital to function.
Set the date and time. Choose preferred
language.
Sets tester to activate test
process on contact.
Set thresholds for voltage,
conductance, and
temperature.
Sets the default voltage for
the jar the QUICKTEST
button will test.
Enables you to record cell
voltages on a timed
interval during a capacity
load test.
Set display brightness,
contrast, etc.
File type selection for
exporting data use with
CELLTRAQ™ Express or
CELLTRAQ™ Enterprise.
Set temperature mode:
per jar or per string.
Select and activate
additional capabilities of
the CELLTRON™
Advantage Digital.
Setup a favorite for quick
access.

11
3.5 Initial Utility Menu Settings
Items to setup when the tester is first received.
3.5.1 File Type
• CELLTRAQ™
• Excel (.csv)
• Both
File type selection for
exporting data used w/
CELLTRAQ™ EXPRESS,
CELLTRAQ™ ENTERPRISE,
or manual import to
UNITE™.
3.5.2 Temp Mode
• Units
• Celsius
• Fahrenheit
• Test Mode
• Measure each jar
• One temperature for all
• Edit Temperature
• Disable
• Enable
Set temperature mode:
per jar or per string.
Enables temperature
values to be edited after
measurement.

12
3.5.3 Date / Time
Units ship set to USA Central Time Zone.
• Set the unit to the correct local time.
3.5.4 Display Time-Out
• This value may be set for 1 to 10 minutes.
• 10 minutes is recommended.
Changing the Time-Out:
1. Go to the main menu.
2. Go to UTILITY, and press F3 to choose SELECT.
3. Go to DISPLAY, and press F3 to choose SELECT.
4. Scroll to TIME-OUT in EDIT DISPLAY. Press F3 to choose SELECT.
5. Scroll to your desired time-out (10 minutes, “10M,” is recommended) in
EDIT TIME-OUT.

13
4 UNITE™ CAD (Testing) Organizations
NOTE: If the user does not have a UNITE™ subscription advance to §5.
4.1 CADD (Tester) / UNITE™ Overview
Two-Way Wireless Communication
CADD
UNITE™
The CELLTRON™ Advantage Digital (CADD) is a fast, user-friendly, premium
handheld tester for measuring battery conductance, voltage, temperature and strap
resistance in high-noise environments for a complete battery state-of-health analysis.
This highly reliable tester allows users to upload data wirelessly to the web-based
UNITE™ database for centralized data storage, proactive maintenance planning, and
compliance reporting.
4.2 Create Wi-Fi Profiles (CADD to UNITE™ Link)
IMPORTANT: Do not include “http(s)://” when you enter your web address.
NOTE: The CADD supports unsecured, WPA/WPA2, and WEP networks.
NOTE: The CADD does not support
enterprise Wi-Fi where usernames
are required.
1. Create a text file in NOTEPAD
with your Wi-Fi connection
information.
2. Save the file as WIFI.txt
3. Copy .txt file to a USB flash drive.*
4. Insert the flash drive in the USB A port (data
storage/transfer).
*NOTE: Only use Franklin Electric provided
USB drives (p/n CA089). Other USB drives
are not guaranteed to work with the tester.
Required Information
WiFi connection name (SSID):
Password:
UNITE™ Web Address:
TXT

14
4.2.1 Wi-Fi Profile Setup on the CADD
From the Main Menu
navigate to the WIFI Icon.
Press F3 to SELECT
.
Navigate to the WIFI
Profile icon.
Press F3 to SELECT.
Use the navigation arrows
to highlight the WIFI
Profile you want to setup.
Press F2 to EDIT.
With the USB flash drive
inserted in the CADD port,
Press F3 to confirm
IMPORT.
After import, if required, edit the profile name and match security
TYPE.
NONE
(no password) for an unsecured network or WPA/WPA2 for a secured
network. To edit these fields, highlight the item and press enter on the
selected setting. Press the Main Menu key when finished.
NOTE
: To use an unsecured network, the password line in the Wi-Fi profile
loaded into the CADD must have the word
“NONE” instead of a password or
profile will not work (do not leave blank).
WIFI 2 is now my IPHONE UNITE1 Profile.
With the USB flash drive
inserted in the CADD port,
Press F3 to IMPORT the
WIFI profile you created.

15
4.2.2 Connect to a Wi-Fi network with the CADD
Navigate to the WIFI
Profile icon.
Press F3 to SELECT
.
Use the navigation arrows
to highlight the WIFI
Profile you want.
Press F3 to SELECT.
“X” indicates no
network connection.
indicates network connection.
fig. A fig. B
If the connection times out, repeat the process.
NOTE: The first time connecting to a Wi-Fi profile and if the tester is connected to the
Wi-Fi network in your selected profile, you will see an IP address, NET will be YES, and
UNITE™ will be NO (fig. A).
• UNITE™ in the “WIFI STATUS” refers to the CADD’s state of commissioning with
the UNITE™ server. The first time connecting to it will be NO. But after the CADD
is commissioned to the server it will be YES.
NOTE: If the device obtains and displays an IP address, but NET is NO and UNITE™
is NO (fig. B), the tester is connected to the Wi-Fi router, but you may have entered
something incorrectly in the profile or have a problem with the network.
Understanding the WIFI STATUS page
IP.....................The address assigned to the CADD by the Wi-Fi router.
NET .................Shows the ability of the CADD to communicate with the UNITE™ server.
STATE..............The connection state of the device to the Wi-Fi router itself.
UNITE™...........Displays the commissioning status of the CADD to the configured
UNITE™ server.

16
4.3 Creating CAD (Testing) Organizations in UNITE™
1. Login to UNITE™ with a registered email address and password at
https://unite1.franklingrid.com.
2. Select Organizations.
3. Select Add new organization.
4. Name the Organization
(This can be a company name, region, district oce, etc.)
5. Provide a description of the Organization. (Battery Testing Data, location,
quantity, date / time, for example).
6. Select CAD Testing from the dropdown list.
7. Select Create.
NOTE: Once created, the Organization will list on the Organizations page.
Each individual Organization may be accessed to View monitored devices or to
Manage the Organization. Links to each are located at the bottom left corner ( ).
