Free2Move eSolutions ProWallbox Move User manual

USER MANUAL GB

2
TABLE OF CONTENTS
INTRODUCTION 3
 GENERAL INFORMATION 6
 Fields of use 6
 ESOLUTIONS CHARGING APP 7
 Pairing between eProWallbox Move and app 8
 Charging sessions 9
 OVERALL VIEW 10
 TURNING ON EPROWALLBOX MOVE 11
 Operating mode 12
 INSTRUCTIONS FOR USE 13
 Preliminary charging operations 13
 How to start charging (without authentication) 14
 How to charge with authentication 15
 LED behaviour 16
 MAINTENANCE 17
 PRODUCT DISPOSAL 17
 ASSISTANCE 18
DISCLAIMER 18
PAGESECTION

3
INTRODUCTION
SAFETY RECOMMENDATIONS
End users are required to read this manual and follow the instructions closely.
Keep this document in a safe place for easy access at all times.
Installation must be carried out by qualied personnel. A dedicated, state-of-the-art electricity supply
system must be designed and installed, and the system must be certied in compliance with local
regulations and the energy supply contract.
Free2Move eSolutions S.p.A. cannot be held liable for damage caused to persons and/or property, or to
the equipment, if the conditions described below have not been complied with.
The warranty requirements are described in the Terms and Conditions of Sale section included with the
purchase order for this product.
WARRANTY AND DELIVERY CONDITIONS
Free2Move eSolutions S.p.A. declares that the equipment complies with the legal provisions currently in
force in the country of installation and has issued the relevant declaration of conformity. Free2Move
eSolutions S.p.A. assumes no responsibility for failure to comply with the instructions for proper
installation, and cannot be held responsible for systems upstream or downstream of the equipment supplied.
Free2Move eSolutions S.p.A. cannot be held responsible for defects or malfunctions deriving from:
improper use of the equipment, deterioration due to transport or particular environmental conditions,
incorrect or insufficient maintenance, tampering or unsafe repairs, and use or installation by unqualified
persons.
Free2Move eSolutions S.p.A. is not responsible for any disposal of the equipment, or parts thereof, that
does not comply with the regulations and laws in force in the country of installation.



PURPOSE AND STRUCTURE OF THE DOCUMENT
This use and maintenance manual is a guide to help you work safely, and carry out the operations needed
to keep your equipment in good working order. If the equipment is used in a manner not specied in this
manual, the protection provided by the equipment may be impaired.
This document was originally written in English. In the event of any inconsistencies or doubts, please ask
Free2Move eSolutions S.p.A. for the original document.
LIST OF DOCUMENTS IN THE APPENDIX
In addition to this manual, product documentation can be viewed and downloaded by visiting the
Free2Move eSolutions S.p.A. website esolutionscharging.com

4
WARNINGS

Before installing or using the device, make sure that none of the components have
been damaged. Damaged components can lead to electrocution, short circuits, and re due
to overheating. A device with damage or defects must not be used.
Install eProWallbox Move away from petrol cans or combustible substances in general.
Before carrying out any maintenance, ensure the power supply is switched o.
Before installing eProWallbox Move, ensure the main power source has been
disconnected.
Before putting back or moving eProWallbox Move, ensure the device is not connected to
the power supply.
eProWallbox Move must only be used for the specic applications it is designed for.
Installation, maintenance or repairs not carried out correctly may pose risks to the user.
Please ensure that eProWallbox Move is only used in correct operating conditions.
The device must be connected to an electricity network in compliance with local and
international standards, and all the technical requisites indicated in this manual.
Children or other persons not able to gauge risks related to the installation or use of the
device could suer serious injury, or put their lives at risk. Such persons must not
operate the device and must be supervised when close to it.
Pets or other animals must be kept away from the device and packaging material.
Children must not play with the device, accessories or packaging provided with the product.
eProWallbox Move does not contain components that the user can repair or maintain
autonomously.
The only part that can be removed from eProWallbox Move (solely during the installation
and dismantling stages and following the instructions) is the removable cover.
eProWallbox Move should not be opened further unless by qualied personnel during
installation, dismantling or maintenance.
eProWallbox Move can only be used with an energy source.
eProWallbox Move must be treated and disposed of in compliance with current
legislation, separately from normal household waste, as electric and electronic waste (WEEE).

5
SYMBOL DESCRIPTION
 
General warning
It is mandatory to consult the original manual and additional documentation
Prohibition or restrictions
Although they are not made of materials that are harmful to health, the products
should not be disposed of along with household waste but must be collected
separately, because they are made of materials that can be recycled
Sign for electrical voltage hazard
Electronic device installation carried out by qualied personnel only

6
 GENERAL INFORMATION
eProWallbox Move is an Alternate Current charging solution for powering electric vehicles and
hybrid plug-ins, and is ideal for semi-public and residential use. The device is available in three-
phase or single-phase configurations and is equipped with a Type 2 socket.
The device charges an electric vehicle up to 22kW in three-phase, or up to 7.4 kW in single-phase.
The product includes connectivity options that allow it to be monitored remotely via Web-based
portal. The device can be managed via a dedicated App.
This document describes how to use and maintain the product. A description of the features of
the equipment is provided to indicate its key components and set out the technical terms used
in this manual. This chapter contains information on models, details of equipment, specifications
and technical data, overall dimensions and identification of the equipment. eProWallbox Move
can be integrated to a Home Energy Management System (HEMS) enabling solar panel
integration.
 
F2ME.EPROSEYYXXX
 ields of use
Free2Move eSolutions S.p.A. declines all liability for any damage whatsoever due to incorrect or
careless action.
The equipment may not be used for any purpose other than the one it is intended to full.
The equipment must not be used by inexperienced personnel or even by expert professionals
if the equipment undergoes operations that do not comply with this manual and accompanying
documentation.
This piece of equipment is a charging device for electric vehicles; the following classication
(according to IEC 61851-1) identies its characteristics:
Power supply: permanently connected to the AC power supply grid
Output: alternate current
Environmental conditions: indoor/outdoor use
A device for free access places
Fixed wall installation
Protection against electric shock: Class I
Charging type: Mode 3 in accordance with the IEC 61851-1 standard
Optional function for ventilation not supported.

7
 
eSolutions Charging is a smartphone app, available via Google Play® and App Store®. It can be
used to congure, monitor and set eProWallbox Move via a Bluetooth connection.
When running the app for the rst time, users are asked to provide personal details to register
and create a Free2Move eSolutions account. Personal data and prole settings can be changed
in-app.

8
  Pairing between eProWallbox Move and app
The app authenticates and pairs via a QR Code, linking eProWallbox Move to the owner’s user
account.
This pairing enables all remote features, such as data collection, display and analysis, as well as
seamless customer support.
It is possible to pair more than one eProWallbox Move. The “Device List” menu allows users to
manage all their wallboxes from a single page.
It is possible to congure a Wi-Fi connection for eProWallbox Move via the App.
QR Code information is given on the label on the back of the charger case, or on the label on
the back of the external cover.

9
  Charging sessions
EV drivers have full control of their charging sessions wherever they are. Users can access core
charging session control features, such as:
Start the charging sessions via app
 Stop, delay and schedule charging sessions
 Monitor the status and progress of each charging session in real-time
 Receive notications when charging sessions start and end.
 Over-the-air software update.

10
 

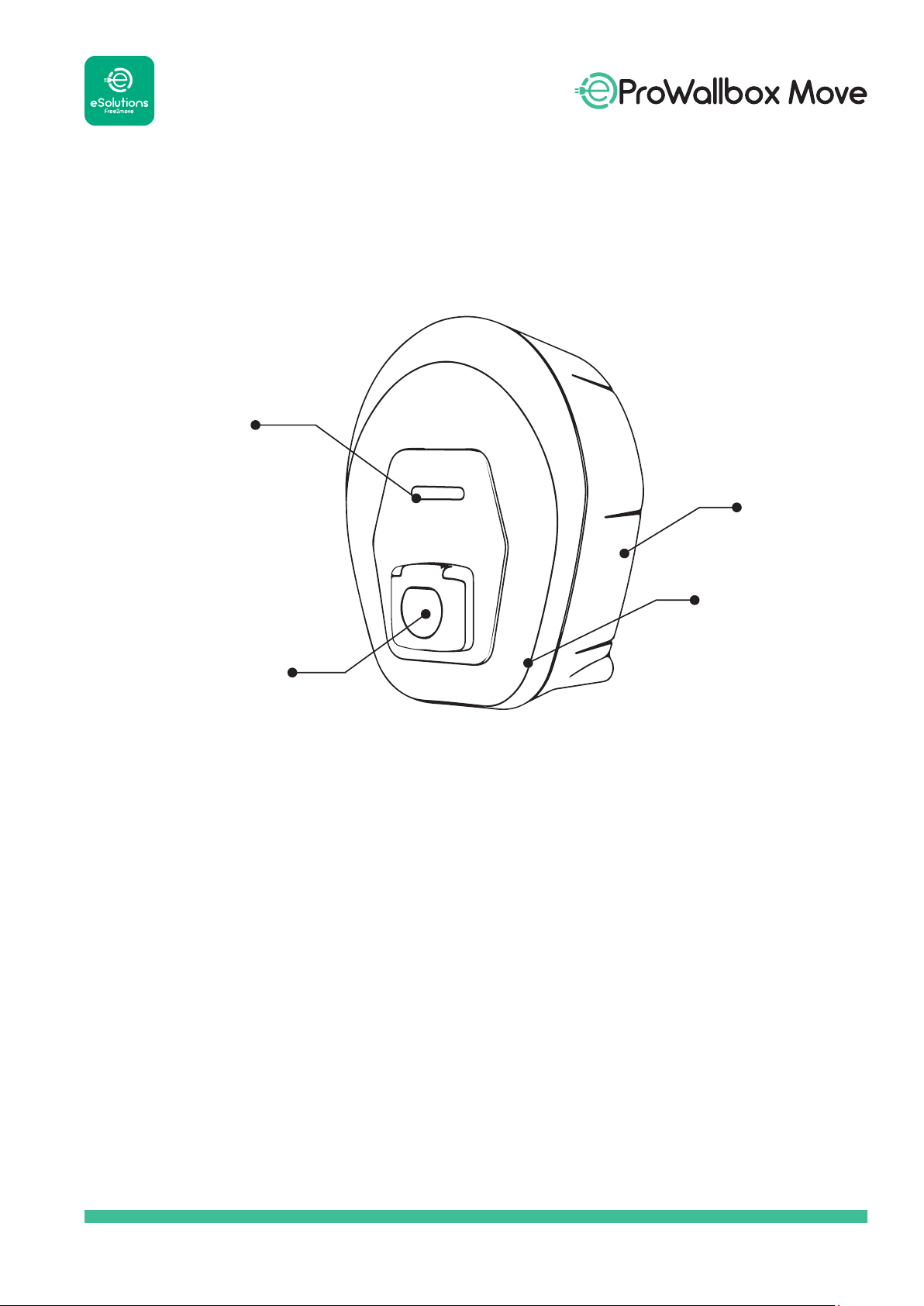

Let’s start by looking at the Figure below, showing eProWallbox Move and its main parts.
LED

Base
External Cover

11
 
The device does not have start/stop buttons. Once installed, it is ready to be congured via App.
This allows the appropriate operating mode to be selected, depending on whether connection
to the charge point management platform is via app or in StandAlone mode, when the following
conditions are fullled:
correct installation, certied by qualied personnel
regular status of the device.




If the device is damaged, follow the instructions below precisely to hazardous situations,
potentially resulting in damage to persons or things:
avoid using the damaged device
clearly label the damaged device so other people do not use it
call a qualied professional promptly so the device can be repaired or, if irreparably
damaged, taken out of service.

12
 Operating mode
On the App, go to wallbox settings and click on Autostart button, to disable or enable the
authentication mode. The 4 operating modes are the following:
1. Autostart connected (default Factory setting): Connected to eSolutions control platform for
charging without authentication
2. Autostart not connected: Not connected to eSolutions control platform and charging
without authentication
3. Authentication connected: Connected to eSolutions control platform, charging using the
App to authenticate
4. Authentication not connected: Not connected to eSolutions control platform, charging using
the App to authenticate
For Business application eProWallbox Move can be also connected to a Charge Point
Management System (CPMS), a web based platform with roaming integration for the remote
management and monetization of the charging points.
For further details check the eSolutions website esolutionscharging.com
If you change operating mode, restart the wallbox via the app to make the changes
effective

13
 
 




Removing the charging connector from the vehicle during the charging process can cause
serious damage to property or people.
Before starting a new charging session:
Ensure the product and its connectors are perfectly intact, dry and free of any impurities.
Do not insert ngers or objects into the socket.
Make sure the product is not, and has not been, exposed to heat sources, explosive or
inammable substances.
Ensure the electric vehicle is compatible with the product’s technical features.
Do not use adapters or extensions not specied by Free2Move eSolutions S.p.A. as they may
damage the product and create safety hazards for the user. eProWallbox Move must only be
used according to the operating parameters specied and at an ambient temperature
between -25 ºC and 50 ºC.
Vehicle adapters must not be used to attach a connector to a vehicle socket.
Adapters between vehicle socket and plug should only be used if specically designated and
approved by the vehicle manufacturer or the manufacturer of the electric vehicle’s power
supply equipment, in accordance with national requirements. Such adapters must, however,
comply with the requirements of the IEC 61851-1 standard and other relevant standards
governing both the plug and socket of the adapter. The adapters must in any case be marked
with specic indications for use permitted by the manufacturer (e.g. IEC 62196).
Keep the charging cable out of the reach of children.
Be careful not to step on the connector or cable.

14
 
If eProWallbox Move is congured with Autostart Operating Mode as the default setting, the
following operations must be performed:
1. eProWallbox Move is ready for charging when the LED is BLUE.
2. Insert the plug of the charging cable into the available socket on the device, until it is
fully engaged.

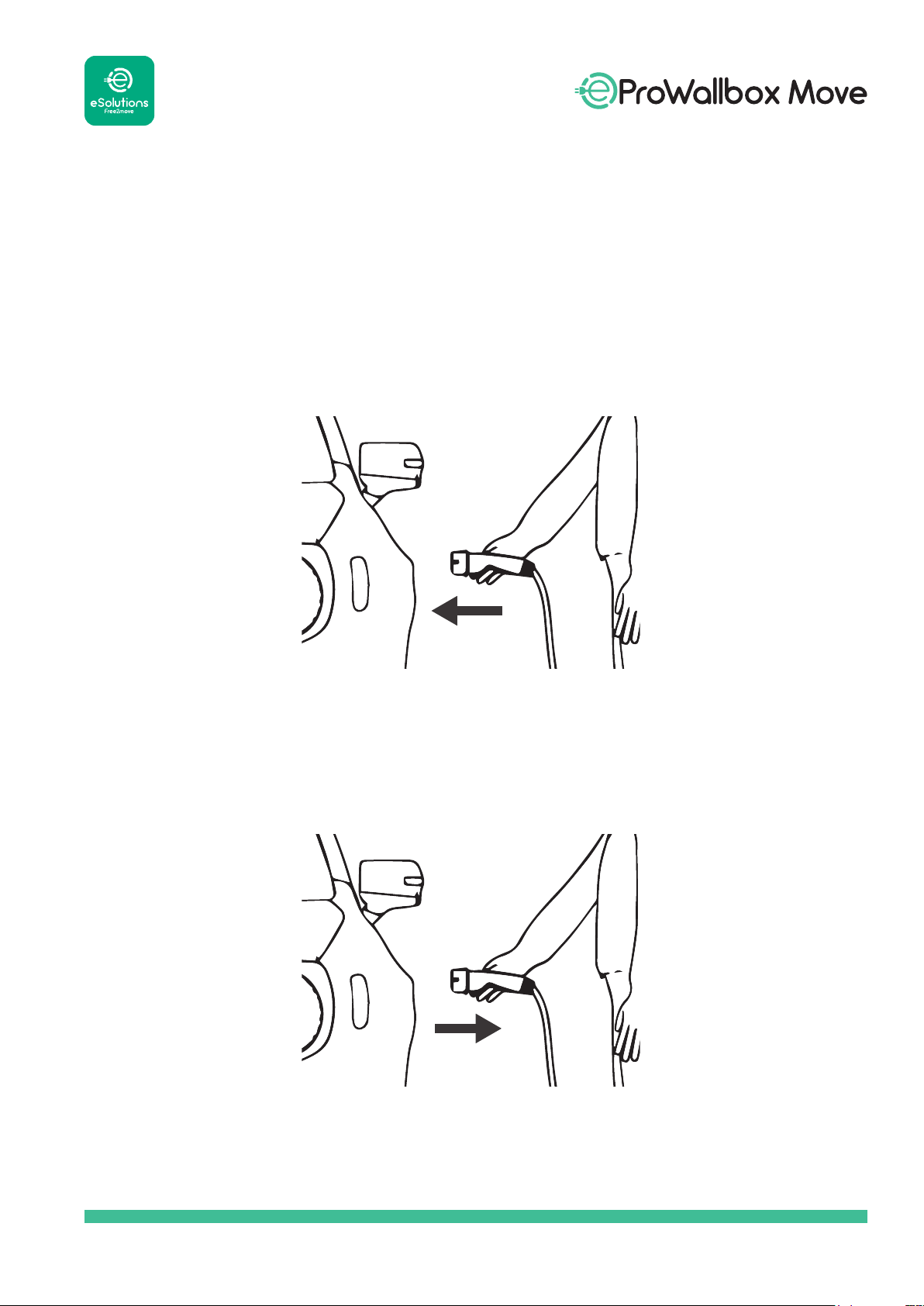

3. Insert the plug of the Type 2 cable in the Charge Port of the electric vehicle.
4. The device will lock the cable for the duration of the entire charging session.
5. The charging session starts, and the LED ashes GREEN.
6. When charging is complete or you need to stop the charging process, unlock the
electric vehicle.
7. The charging cable can then be removed from the device and from the electric vehicle.
8. The product returns to its initial state, ready for a new charging session.

15
 
Charging can be accessed via app if the Authentication Operating Mode is selected.
1. Proceed as per the instructions provided in the previous point, until the cable is inserted
(step 3).
2. Start remotely via app.
3. Charge the vehicle.
4. When charging is complete or the charging process needs to be stopped, the user can
stop the charging process via app to allow the socket to be unlocked and end the
charging session.
5. The charging cable can then be removed from the device and from the electric vehicle.
6. The product returns to its initial state, ready for a new charging session.

16
Pulsing
Solid
Flashing
Loading
Ready to plug in
Waiting for CPMS
connection
Charging in process
Charging
interrupted
Ready to plug out
CPMS
not connected
Error detected See
“Assistance”
Software update
 LED behaviour
Once the device is powered up, the LED ashes in a sequence of colours. Then the status of the
device can be easily monitored through the colours and behaviour of the frontal LED.

17
 
Before carrying out any maintenance work, turn the power supply of the device o, and
disconnect it from the electric vehicle. Only qualied personnel can open the eProWallbox Move
and carry out operations on the components.
The user does not need to maintain any parts of the eProWallbox Move.



Cleaning the outside of the device is always recommended when necessary, and should be
carried out avoiding strong jets of air or water, and avoiding use of soaps or detergents that are
too harsh and corrosive for the materials the product is made of.
Use a soft damp cloth with a mild detergent to clean it. When nished, wipe o any traces of
moisture or liquid with a soft dry cloth.
The owner is responsible for maintenance and condition of the product. Maintenance must
always be carried out in accordance with current regulations while ensuring that people,
property and animals are protected during all maintenance operations.
 
This device is certied in compliance with European Directive 2012/19/UE for used electric and
electronic equipment (Waste Electric and Electronic Equipment - WEEE). The guidelines set out
the framework regulations for returning and recycling used appliances in the EU.
Dispose of packaging in an environmentally friendly manner. The materials used for packaging
this product can be recycled and must be disposed of in compliance with the legislation in force
in the country of use.
Further information about current disposal facilities can be obtained from local authorities.

18
 
If you have any questions about the installation of eProWallbox Move, please contact your
authorised assistance centre.
For any further information or requests for support, please contact Free2Move eSolutions S.p.A.
via the relevant section of the website: esolutionscharging.com/contact-us/.
DISCLAIMER
Free2Move eSolutions S.p.A. will not be held responsible for any damage directly or indirectly
caused to people, things or animals due to the failure to comply with all the provisions set out in
this Manual and the warnings regarding the use and maintenance of eProWallbox Move.
Free2Move eSolutions S.p.A. reserves all rights to this document, the article, and the illustrations
it contains. Any whole or partial reproduction, disclosure to third parties or use of its contents is
prohibited without the prior written consent of Free2Move eSolutions S.p.A.
Any information in this manual may be changed without prior notice and does not represent
any obligation on the part of the manufacturer. Images in this manual are for illustrative
purposes only, and might dier from the delivered product.

Registered oce

Piazzale Lodi, 3
20137 Milan - Italy
V.02.2022
