FREECALL ipcall-200 User manual

Freecall:IPcall-200 Updated:20121125
===============
QuickInstallation Guide:
For DHCP Router Useronly

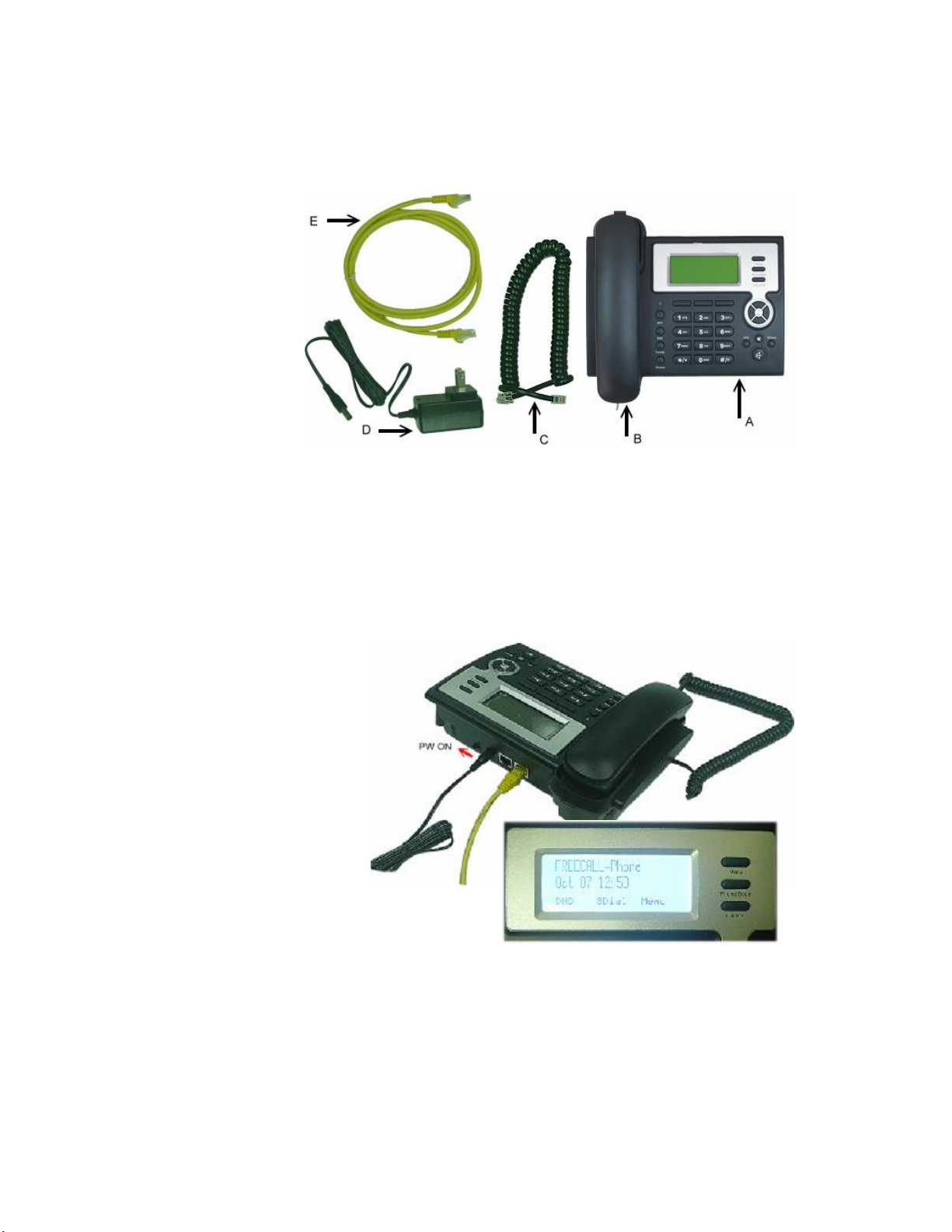

1. PartsIncludinginPacking
a. MainUnit
b. Handset
c. Handset cord
d. PowerAdaptor
e. 5 Feet Lan
cord
2.ConnectionMethod
a. Plugoneendofthehandset cord tohandsetandtheotherend tothe handset portof themain
unit onleftside.
b. Ifa routerisnearofyou, plugoneendoftheattachedLANcable tothe WAN portofboxand
theotherend tothe LANofbroadbandrouter.
c. Incase a routerisnotnearby, but there isa PC whichitalreadyconnectedtothe routerand is
more closed tothisFreecallphone, justdisconnect the PC Lan cord andmove the Router Lan
plugto the WANportofthisphone, andthen insertoneendof attachedLancable E”tothe
LANofthisphoneandthe otherendtoyourPC. Inthis way,your PC andtheFreecallPhone
are sharing internet withsamecable. Therefore, the Phoneis requiredtobe PWONalways.
d. InsertthePowerplugtothePWjackontherearofbox.
See the completion on
theright.
3. OperationandLogin
a. Slidethe PWswitchto
ONlike theshownFig.
b. LCDwillshow VoIP >
INITIALIZING>
FREECALL-Phone
c. Waitforabout20 s after
powerup, areal timecalendarwilldisplaylike
theFig. on the right.
Warning:Otherthana calendar,ifyousee WAN
disconnect”, itisanerrortotell you the LANcable is notyettoa routeroritmightbeconnectedtoan
improperporteitherinthisFreecall unit oryourrouter. Once yousee SIP1RegisterFailed”, itmeans
yournetworkmightnot be running DHCP (yourinternet boxisnota router) mode. Youneedtocheck
the local (In house)networkorcall toyour distributorfortechnicalsupport.
Once youcansee a calendartodisplay,the phone doessubscribe totheFreecall service successfully.
Youare readytocallany regular cellphoneand landlineinthe worldwheretheyarelistedwithinour
standardcountryrange.
4.StarttoUse
a. Pickup handset orpress theSpeakerphonebutton , youwillheara dialingtone. Press buttons
asyourusual tomakea call accordingtothe followingdialrules. You mustkeepgoingto
pushthedigitswithoutinterruptedmorethan2sduring pushing eachdigit. Otherwise, you
willmake a wrongcall.

b. DialRules:
CallLandline: AlwaysdialthePre-fixedNo 900+ CountryCode+ LandlineNo.
ForExam: Call to Thailand 7-6233333; Dial 900 66 7 6233333
Calla Cellphone: Always dial thePre-fixedNo 900+ CountryCode+ LocalcellphoneNo.
ForExam: Call toIndonesia 81-229274618; Dial 90062 81229274618
c. In caseyouarenotquite familiarwithadesiredNo,youcandiallikeyouare usinga
cellphonethat youcanpushthe digitsfirstly,correctanywrongkey-inbythe delete key
where itisabove theDigit 1”. Thenpress R/SENT”andwaitfora ringback.
5. Redial/CallfromHistory
a. InOnHookstate,pressR/Sentkey, youwill see thelastNo whichyoudidcallontheLCD,
press againtomakea re-dial call.
b. IfyouwanttocallanyNofromthehistory,pressR/SendkeyandpushtheUP/Downkeyto
searchthedesiredNo. once youhighlightthe displayed No.,press R/Rendagaintomake acall
instantly.The memorywill able tokeepup to100 calls foryou.
6.SpeedDialingandPhoneBookFunction
There are10 speeddial Noand100receivers phonebooktobe readyforyour convenientusage.
Youneedtodownloadthe instructionmanualor askyour localagentto knowmoredetailsaboutthis
amazingunit.
