QorIQ LS1043A Reference Design
Board Reference Manual
Document Number: LS1043ARDBRM
Rev. 0, 08/2015

QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
2 Freescale Semiconductor, Inc.

Contents
Section number Title Page
Chapter 1
Introduction
1.1 Acronyms and abbreviations.............................................................................................................................................7
1.2 Related documentation......................................................................................................................................................10
1.3 Board features................................................................................................................................................................... 11
1.4 Block diagrams................................................................................................................................................................. 12
1.5 Board drawings................................................................................................................................................................. 14
Chapter 2
Interfaces
2.1 DDR interface................................................................................................................................................................... 17
2.2 IFC interface..................................................................................................................................................................... 18
2.2.1 NOR flash memory.............................................................................................................................................. 19
2.2.2 NAND flash memory...........................................................................................................................................20
2.3 Serial interfaces.................................................................................................................................................................20
2.3.1 UART interface....................................................................................................................................................21
2.3.2 eSDHC interface.................................................................................................................................................. 21
2.3.3 DSPI interface......................................................................................................................................................23
2.4 Ethernet interface..............................................................................................................................................................24
2.4.1 MII buses..............................................................................................................................................................25
2.5 SerDes interface................................................................................................................................................................26
2.5.1 Mini-PCIe card.....................................................................................................................................................27
2.6 USB interface....................................................................................................................................................................28
2.7 I2C interface......................................................................................................................................................................29
Chapter 3
Power Supplies and CPLD Controller
3.1 Power supply block diagram.............................................................................................................................................33
3.2 Power supply operation.....................................................................................................................................................34
3.2.1 Power ON.............................................................................................................................................................34
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 3

Section number Title Page
3.2.2 Power sequencing................................................................................................................................................ 34
3.3 CPLD controller................................................................................................................................................................35
3.3.1 CPLD features......................................................................................................................................................35
3.3.2 CPLD block diagram........................................................................................................................................... 36
3.3.3 CPLD registers.....................................................................................................................................................37
3.4 Power-on reset.................................................................................................................................................................. 38
3.4.1 Reset configuration signals.................................................................................................................................. 39
3.4.2 Reset architecture.................................................................................................................................................40
3.5 DDR supply...................................................................................................................................................................... 41
3.6 POVDD supply.................................................................................................................................................................42
Chapter 4
Clocks, Interrupts, and Temperature Monitoring
4.1 Clocking scheme...............................................................................................................................................................43
4.2 Clock frequency selection.................................................................................................................................................44
4.3 MPIC controller................................................................................................................................................................ 45
4.4 Temperature anode and cathode....................................................................................................................................... 45
Chapter 5
Debug and Input/Output
5.1 ARM/JTAG architecture...................................................................................................................................................47
5.2 CMSIS-DAP..................................................................................................................................................................... 48
5.3 GPIOs................................................................................................................................................................................49
Chapter 6
CPLD Programming
6.1 CPLD memory map / register definitions.........................................................................................................................51
6.1.1 CPLD major version register (CPLD_VER)....................................................................................................... 52
6.1.2 CPLD minor version register (CPLD_VER_SUB)............................................................................................. 52
6.1.3 PCBA version register (CPLD_PCBA_VER)..................................................................................................... 53
6.1.4 System reset register (CPLD_SYSTEM_RST)................................................................................................... 53
6.1.5 CPLD override physical switches enable register (CPLD_SOFT_MUX_ON)...................................................54
6.1.6 POR RCW source location register 1 (CPLD_REG_RCW_SRC1)....................................................................55
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
4 Freescale Semiconductor, Inc.

Section number Title Page
6.1.7 POR RCW source location register 2 (CPLD_REG_RCW_SRC2)....................................................................56
6.1.8 Flash bank selection register (CPLD_REG_BANK)...........................................................................................56
6.1.9 System clock single-ended or differential input selection register (CPLD_SYSCLK_SEL)..............................57
6.1.10 UART1 output selection register (CPLD_UART_SEL)..................................................................................... 57
6.1.11 SerDes PLL1 reference clock input selection register (CPLD_SD1REFCLK_SEL)..........................................58
6.1.12 TDM clock or SDHC/USB selection register (CPLD_TDMCLK_MUX_SEL).................................................59
6.1.13 SDHC or SPI_CS selection register (CPLD_SDHC_SPICS_SEL).................................................................... 59
6.1.14 Status LED control register (CPLD_STATUS_LED).........................................................................................60
6.1.15 Global reset register (CPLD_GLOBAL_RST)....................................................................................................60
6.1.16 TDM riser card presence detection register (CPLD_TDMR_PRS_N)................................................................61
6.1.17 RTC clock assignment register (CPLD_REG_RTC)...........................................................................................61
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 5

QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
6 Freescale Semiconductor, Inc.

Chapter 1
Introduction
The LS1043A reference design board (RDB) is a high-performance computing,
evaluation, and development platform that supports the QorIQ LS1043A LayerScape
architecture processor. The LS1043ARDB provides software development platform for
the Freescale LS1043A processor series, with a complete debugging environment. It
functions as a desktop computer and operates as a development and evaluation system.
The LS1043ARDB is lead-free and RoHS-compliant.
NOTE
Use the part number LS1043ARDB-PA to order the
LS1043ARDB.
You can perform the following operations using the LS1043ARDB onboard resources
and debugging devices:
• Upload and run code
• Set breakpoints
• Display memory and registers
• Connect and incorporate proprietary hardware into the target systems, using the
LS1043A processor as a host processor
• Use the LS1043ARDB as a demonstration tool
A software application developed for the LS1043ARDB can run with various input/
output data streams, for example, PCIe or XFI connections.
The board support package (BSP) is developed using the Linux operating system.
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 7

1.1 Acronyms and abbreviations
The table below lists and describes the acronyms and abbreviations used in this
document.
Table 1-1. Acronyms and abbreviations
Acronym/abbreviation Description
AVDD Supply voltages for the core, platform, DDR, and SerDes PLLs
BCSR Board control and status register
BGA Ball grid array
BRDCFG Board configuration
CLKIN Clock input (interchangeable with SYSCLK)
COP Common on-chip processor
CPLD Complex programmable logic device
CTS Clear to send
CVDD Supply voltage for the DSPI block
DDR Double data rate
DIP Dual inline package
DMA Direct memory access
DRAM Dynamic random access memory
DSPI Deserial serial peripheral interface
DVDD Supply voltage for UART/I2C/DMA
EC Ethernet controllers
ECC Error checking and correction
EEPROM Electrically erasable programmable ROM
EMI Electromagnetic interference
eMMC Embedded multimedia card
eSDHC Enhanced secure digital high capacity card
FCM NAND flash control machine
FMan Frame manager
FPGA Field programmable gate array
G1VDD Supply voltage for the DDR module
GETH Gigabit Ethernet (GbE)
GPCM General-purpose chip-select machine
GPINPUT General purpose input
GPIO General purpose input/output
HRESET Hard reset
I2C Inter-integrated circuit multi-master serial computer bus
IFC Integrated flash controller
IPL Initial program load
JTAG Joint Test Action Group (IEEE® standard 1149.1™)
LBMAP Local bus map
Table continues on the next page...
Acronyms and abbreviations
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
8 Freescale Semiconductor, Inc.

Table 1-1. Acronyms and abbreviations (continued)
Acronym/abbreviation Description
LDO Low-dropout
LED Light-emitting diode
LSB Least significant bit
LVDD Supply voltage for the GETH block
MAC Medium access control
MMC Multimedia card
MII Media-independent interface
MSB Most significant bit
MSD Mass storage device
OCM Offline Configuration Manager (FPGA-embedded)
OVDD Supply voltage for general purpose I/O
PCBA Printed circuit board assembly
PLL Phase-locked loop
PMIC Power management integrated circuit
POR Power-on reset
POVDD Security fuse programming override supply voltage (PROG_SFP)
ppm Parts per million
PROMJet Memory emulator by EmuTec Inc.
QSGMII Quad serial gigabit media-independent interface
RCW Reset configuration word
REFCLK Reference clock (clock synthesizer input value)
RGMII Reduced gigabit media-independent interface
ROM Read-only memory
RTC Real-time clock
RTS Request to send
SATA Serial advanced technology attachment
SCL/SCLK Serial clock
SD Secure digital card
SDHC Secure digital high capacity card
SDRAM Synchronous dynamic random access memory
SDREFCLK SerDes reference clock
SERCLK SerDes clock
SerDes (SRDS) Serializer/deserializer, for example, PEX, XAUI, SGMII, SATA, sRIO,
AURORA, and XFI
SGMII Serial gigabit media-independent interface
SLAC Subscriber line access controller
SLC Single-level cell
SLIC Subscriber line interface controller
SMB Subminiature version B connector
SPD Serial presence detect
Table continues on the next page...
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 9

Table 1-1. Acronyms and abbreviations (continued)
Acronym/abbreviation Description
SPI Serial peripheral interface
SRAM Static random-access memory
SVDD Supply voltage for SerDes1 and SerDes2 core logic
SYSCLK System clock
TAP Test access port, for example, USB TAP or Ethernet TAP
TESTSEL Test select
TH_VDD Supply voltage for the Thermal Monitor unit
TRIG_IN/OUT Trigger input/output
TSEC Three-speed Ethernet controller
UART Universal asynchronous receiver/transmitter
uDIMM Unbuffered dual inline memory module form factor
USB Universal serial bus
USBCLK USB clock
VDD Supply voltage for core and platform
VDD_LP Supply voltage for low-power security monitor
XAUI Ten gigabit attachment unit interface
XVDD Supply voltage for SerDes1 and SerDes2 transceiver
1.2 Related documentation
This table lists and describes the additional documents available for more information on
the LS1043ARDB.
Table 1-2. Related documentation
Document Description
LS1043ARDB Quick Start (LS1043ARDBQS) Describes the LS1043ARDB hardware kit, and lists the settings required
to connect switches, connectors, jumpers, push buttons,and LEDs to the
peripheral devices
QorIQ LS1043A Reference Manual (LS1043ARM) Provides a detailed description on the LS1043A multicore processor and
its features, such as memory map, serial interfaces, power supply, chip
features, and clock information
QorIQ LS1043A Data Sheet Contains information on the LS1043A pin assignments, electrical
characteristics, hardware design considerations, package information,
and ordering information
LS1043A Chip Errata Provides details of all known silicon errata for the LS1043A processor
NOTE
Some of the documents listed in the table above, may be
available only under a non-disclosure agreement (NDA). To
Related documentation
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
10 Freescale Semiconductor, Inc.

request access to such documents, contact your local field
applications engineer or sales representative.
1.3 Board features
The table below lists the features of the LS1043ARDB.
Table 1-3. LS1043ARDB features
LS1043ARDB feature Specification Description
Processor support Core processors 4x64-bit up to 1.5 GHz ARM® Cortex®-v8 A53 cores
High-speed serial ports (SerDes) • Supports 4 lanes, up to 10.3125 GHz SerDes
• Supports PCIe 3.0, QSGMII, and XFI
• Two PCIe connectors supporting:
• Mini-PCIe card
• Standard PCIe card
• X1 RJ45 connector for Ethernet 10G support
• X4 RJ45 connector for QSGMII support
DDR • Supports 2 GB DDR4 SDRAM discrete devices
• 32-bit DDR4 bus
• Supports data rates of up to 1600 MT/s
USB3.0 • Two super-speed USB 3.0 type A ports
• Supports x1 USB2.0 connection on the mini-
PCIe connector
IFC • One 128 MB NOR flash 16-bit data bus (1.8 V)
• One 512 MB SLC NAND flash with ECC
support (1.8 V)
• CPLD connection: 8-bit registers in CPLD to
configure some mux/demux selections
eSDHC • SDHC port connects directly to a full SD/MMC
slot.
DSPI • 16 MB high-speed flash memory (up to 108
MHz in the Single-Transfer Rate mode)
DUART • One RJ45 to DB9 connector with two UART
ports
• UART1 is routed to CMSISDAP circuit and
supports USB port to access serial port as
console
Package • 21 x 21 mm, 621 flip-chip, plastic-ball, grid
array (FC-PBGA)
System logic CPLD • Manages system power and reset sequencing
• Latches IFC address/data multiplexed signals
• Controls signal muxing/demuxing
Clock SYSCLK • Supports single-ended SYSCLK, DDRCLK
clock input, with default value as 100 MHz
• Supports single-source differential
DIFF_SYCLK_/DIFF_SYSCLK_N, 100 MHz
SerDes • Provides clocks to all SerDes blocks and slots
Table continues on the next page...
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 11

Table 1-3. LS1043ARDB features (continued)
LS1043ARDB feature Specification Description
• 100 MHz or 156.25 MHz for PLL1
• 100 MHz for PLL2
RTC • Supports 32.768 kHz for RTC or TA_BB_RTC
Power One dedicated programmable
regulator supplying the LS1043A core
and DDR power domains.
Power supply details for the LS1043ARDB are given
below:
• 1.0 V for core VDD and USB SVDD
• 1.2 V for GVDD
• 1.8 V for LS1043A PROG_SFP and
PROG_MTR (POVDD)
• 1.8 V and 3.3 V for CPLD
• 1.35 V for XVDD
• 1.0 V for SVDD
• 1.8 V for LS1043A general I/O
• 3.3 V for UART/I2C
• 3.3 V for USB HVDD
• 0.6 V for DDR4 VTT/VREF
• 3.3 V / 1.8 V for eSDHC
• 1.0 V for security monitor (VDD_LP)
1.4 Block diagrams
The figure below shows the LS1043A processor block diagram.
Block diagrams
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
12 Freescale Semiconductor, Inc.

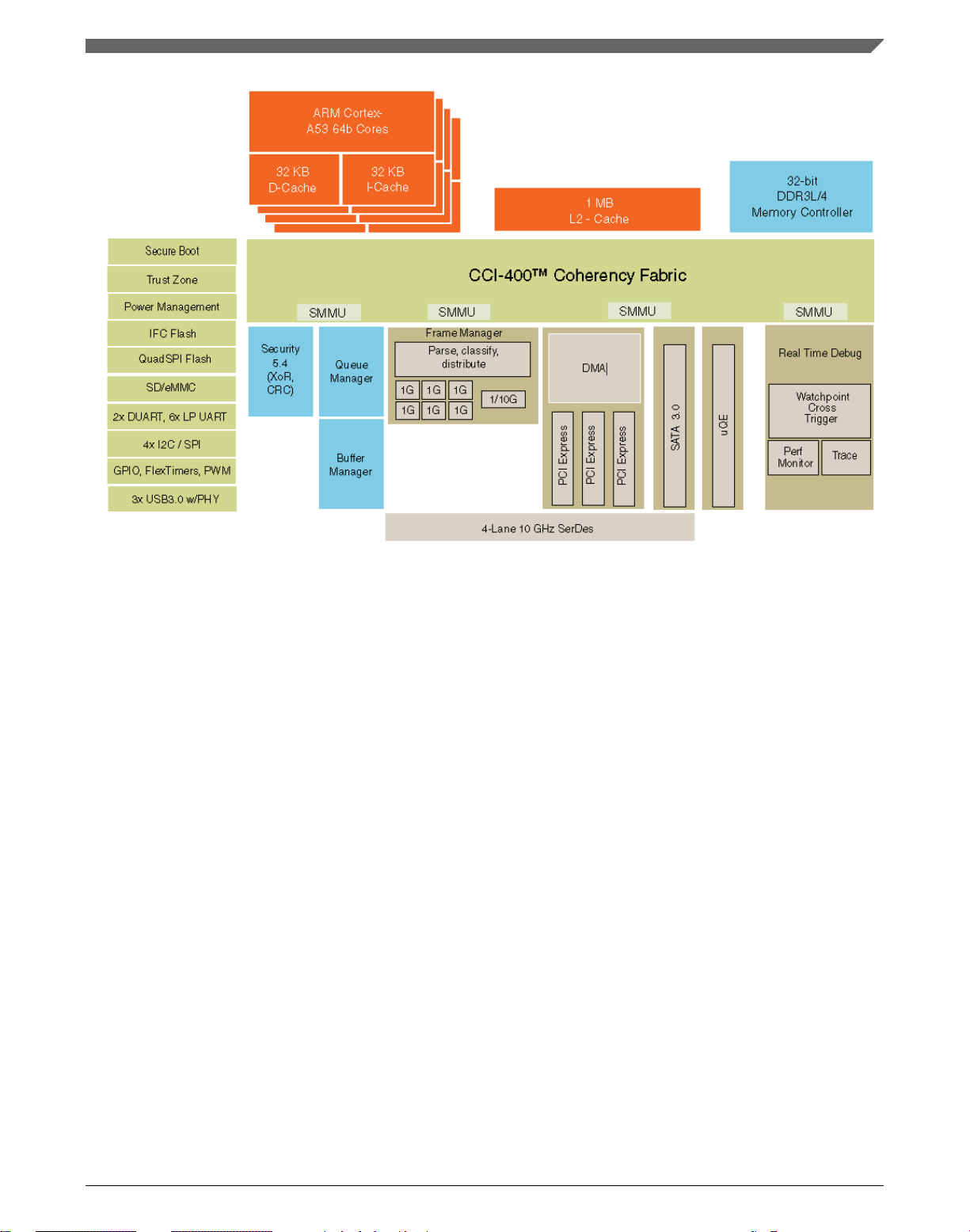

Figure 1-1. LS1043A processor block diagram

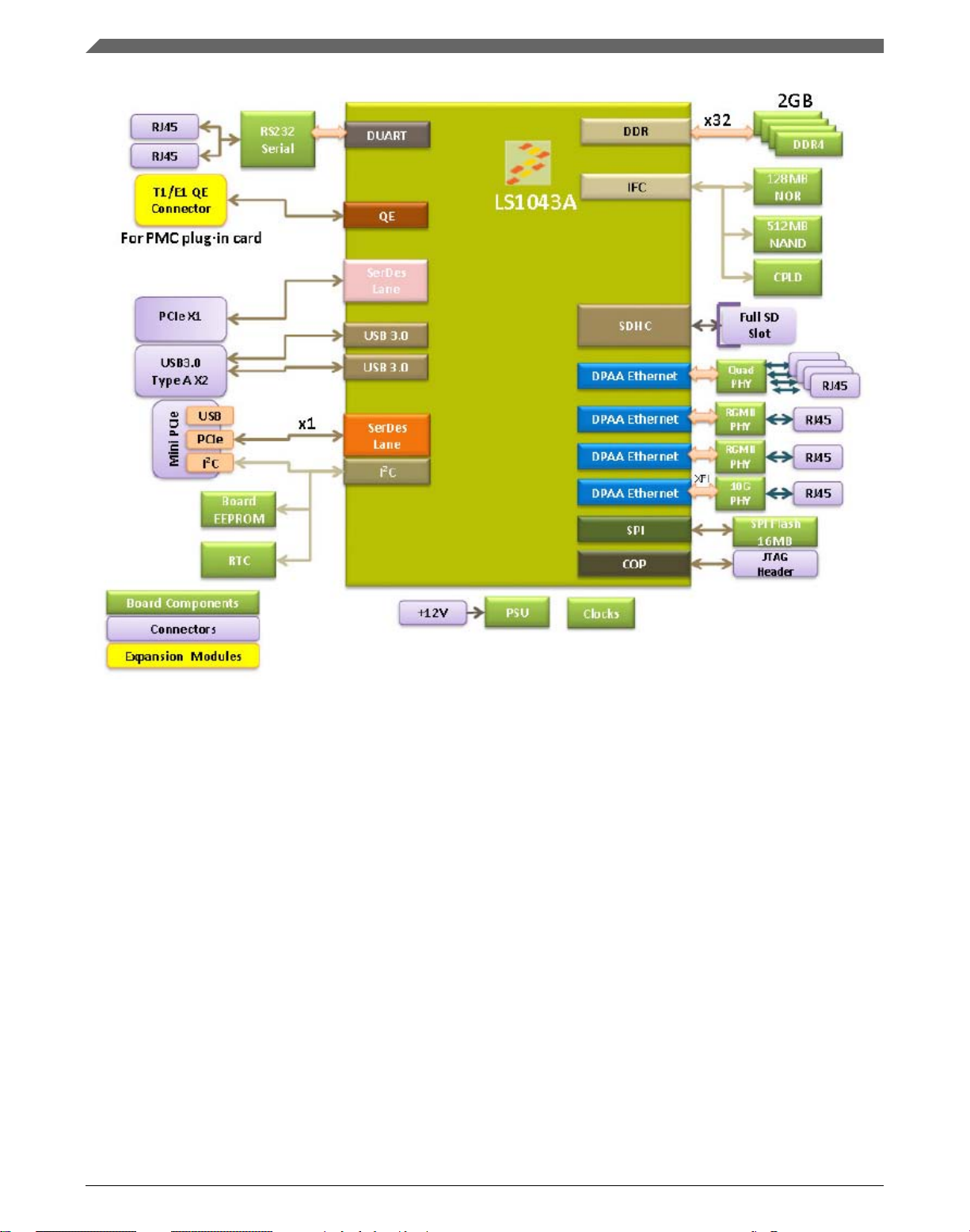

The figure below shows the LS1043ARDB block diagram.
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 13

Figure 1-2. LS1043ARDB block diagram
1.5 Board drawings
The figure below shows the LS1043ARDB top view.
Board drawings
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
14 Freescale Semiconductor, Inc.

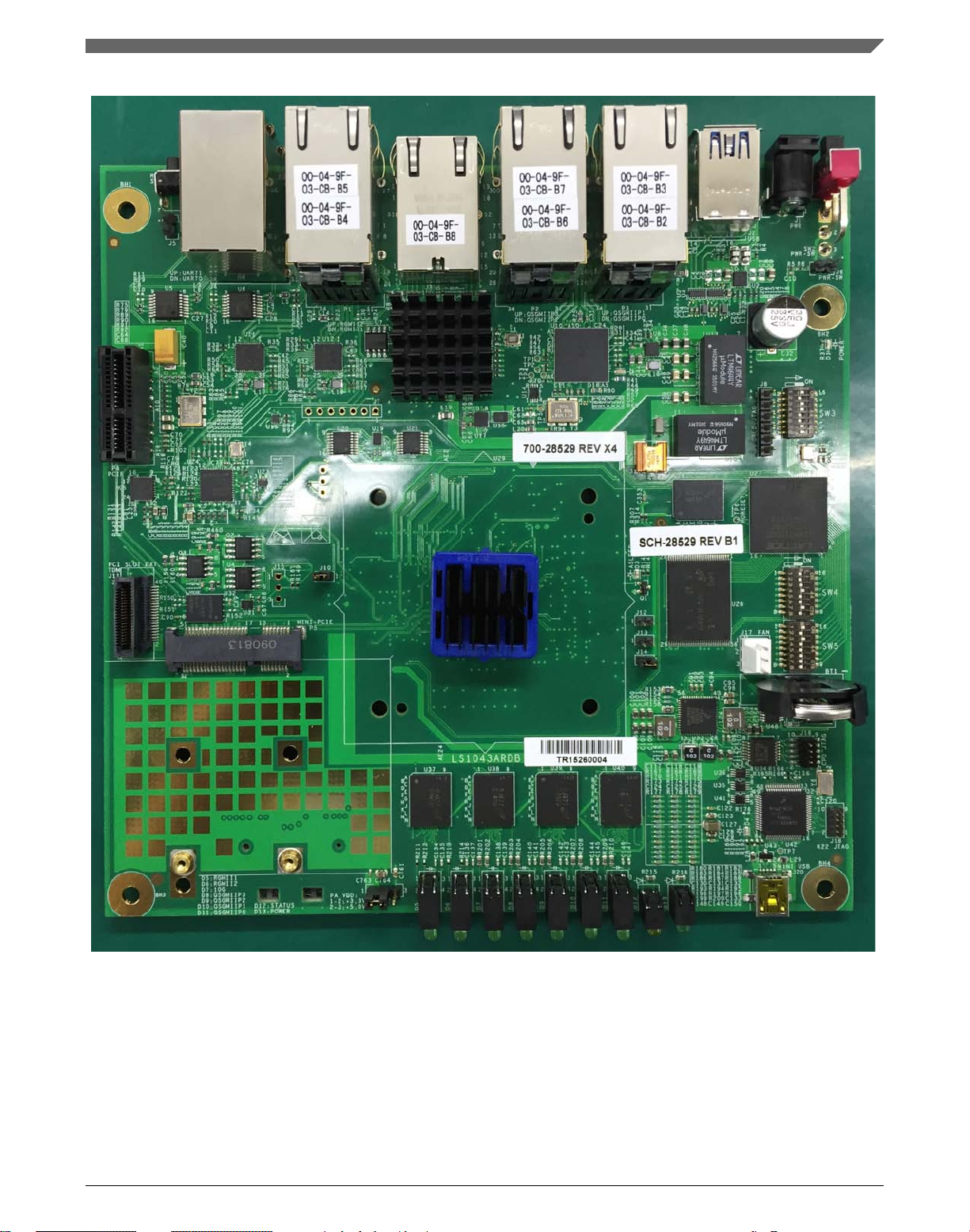

Figure 1-3. LS1043ARDB top view
The figure below shows the LS1043ARDB bottom view.
Chapter 1 Introduction
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 15

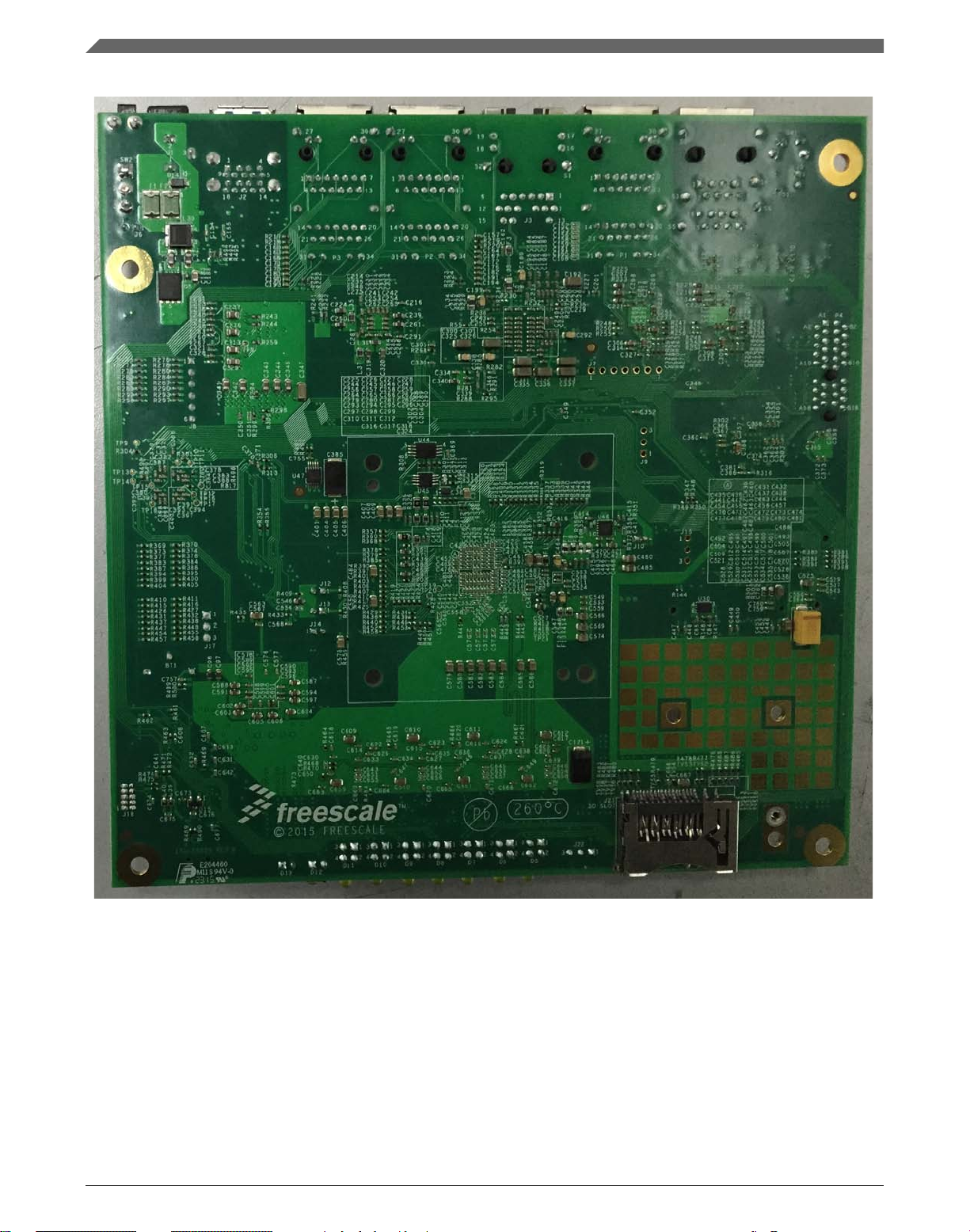

Figure 1-4. LS1043ARDB bottom view
Board drawings
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
16 Freescale Semiconductor, Inc.

Chapter 2
Interfaces
The LS1043ARDB architecture is primarily determined by the LS1043A LayerScape
architecture processor with the need to evaluate LS1043A processor features and to test
its ability to deliver an easily usable off-the-shelf software development platform.
Following are the main interfaces that form the LS1043ARDB architecture:
•DDR interface
•IFC interface
•Serial interfaces
•Ethernet interface
•SerDes interface
•USB interface
•I2C interface
2.1 DDR interface
The LS1043ARDB supports high-speed DRAM with 2 GB double data rate 4 (DDR4)
SDRAM discrete devices (32-bit bus). The memory interface includes all necessary
termination and I/O powers. It is routed such that maximum performance of the memory
bus can be achieved. The figure below shows the DDR memory architecture.
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 17

LS1043A
DDR4
(MT40A512M8)
DDR4_A[0:14], BA[0:2]
MRAS_B, MCAS_B, MWE_B
MCK, MCK_B, MCKE[0:1], MODT[0:1]
MCS[0:1]_B
MDQ[0:31]
MDQS[0:3], MDQS[0:3]_B
MDM[0:3]

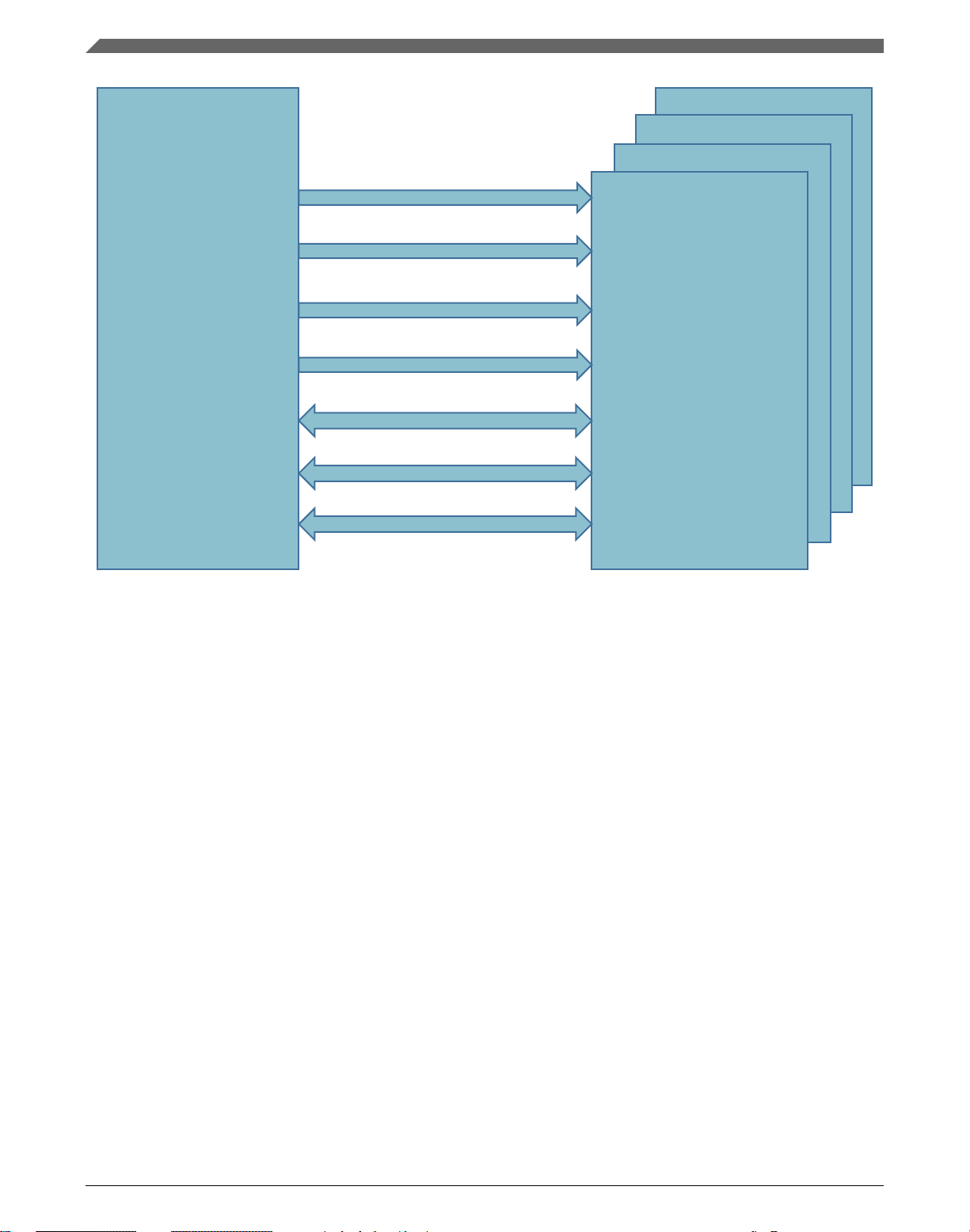

Figure 2-1. DDR memory architecture
For power supply details for the DDR interface, see DDR supply.
2.2 IFC interface
The LS1043ARDB integrated flash controller (IFC) has the following features:
• Supports 1.8 V I/O voltage
•Implements little endian support
• Supports 28-bit addressing and 16-bit data bus
• Supports GPCM, NOR, and NAND FCM
• Supports the following IFC clients on the LS1043ARDB:
• NAND flash (async/sync - ONFI 1.0 compatible)
• NOR flash 16-bit
The figure below shows the IFC block diagram.
IFC interface
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
18 Freescale Semiconductor, Inc.

LS1043A
NOR
(MT28EW01G)
IFC_AD[0:15]
NAND
(MT29F4G08ABB
DAH4)
IFC_ADDR[16:27]
IFC_AD[0:7]
IFC
CPLD
NOR_CS_B
NOR_RB_B
NAND_CS_B
NAND_RB_B
IFC_CLE
IFC_AD[0:15]
IFC_CS[0:3]_B
IFC_WE_B, IFC_OE_B, IFC_AVD
IFC_CLE, IFC_TE, IFC_CLK0
IFC_RB[0:1]_B
Figure 2-2. IFC block diagram
LS1043ARDB uses a combination of the IFC chip select signals and DIP switches to
allow dynamic reconfiguration of the IFC boot device (which addresses IFC_CS_B[0]
only).
The table below summarizes the IFC chip select routing.
Table 2-1. IFC chip select device mapping
SW4[1:8]+SW5[1]= Chip select Memory Data width
000100101 CS0 NOR flash 16 bits
CS1 NAND flash 8 bits
CS2 CPLD registers 8 bits
100000101 CS0 NAND flash 8 bits
CS1 NOR flash 16 bits
CS2 CPLD registers 8 bits
Chapter 2 Interfaces
QorIQ LS1043A Reference Design Board Reference Manual, Rev. 0, 08/2015
Freescale Semiconductor, Inc. 19
