Freescale Semiconductor USB-KW019032 User manual

Freescale Semiconductor, Inc.
User’s Guide
© 2015 Freescale Semiconductor, Inc. All rights reserved.
1 About this document
This user’s guide describes the hardware for the Freescale
USB-KW019032 development platform.
The USB-KW019032 board is the core evaluation and
application development platform for the MKW01Z128
device, and can be used as a standalone evaluation solution
or used to develop software and applications.
The MKW01Z128 transceiver is a highly-integrated,
cost-effective, system-in-package (SiP), sub-GHz wireless
node solution with an FSK, GFSK, MSK, or OOK
modulation-capable transceiver, and a low-power ARM®
Cortex®-M0+ CPU. The highly integrated RF transceiver
operates over a wide frequency range including 315 MHz,
433 MHz, 470 MHz, 868 MHz, 915 MHz, 928 MHz, and
955 MHz in the license-free Industrial, Scientific, and
Medical (ISM) frequency bands.
1.1 Audience
This guide is intended for system designers.
Document Number: USBKW019032UG
Rev. 0, 10/2015
Contents
1. About this document . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1.FCCguidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2.Regulatory approval forCanada (IC RSS 210) . . . 3
2.3.Electrostatic dischargeconsiderations . . . . . . . . . . 3
2.4.Disposalinstructions . . . . . . . . . . . . . . . . . . . . . . . 3
3. USB-KW019032 overview and description . . . . . . . . 4
3.1.Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2.Boardfeatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.3.Software and driver considerations . . . . . . . . . . . . 6
4. USB-KW019032 development board . . . . . . . . . . . . 7
4.1.USB-KW019032board overview . . . . . . . . . . . . . 7
4.2.Functionaldescription . . . . . . . . . . . . . . . . . . . . . . 9

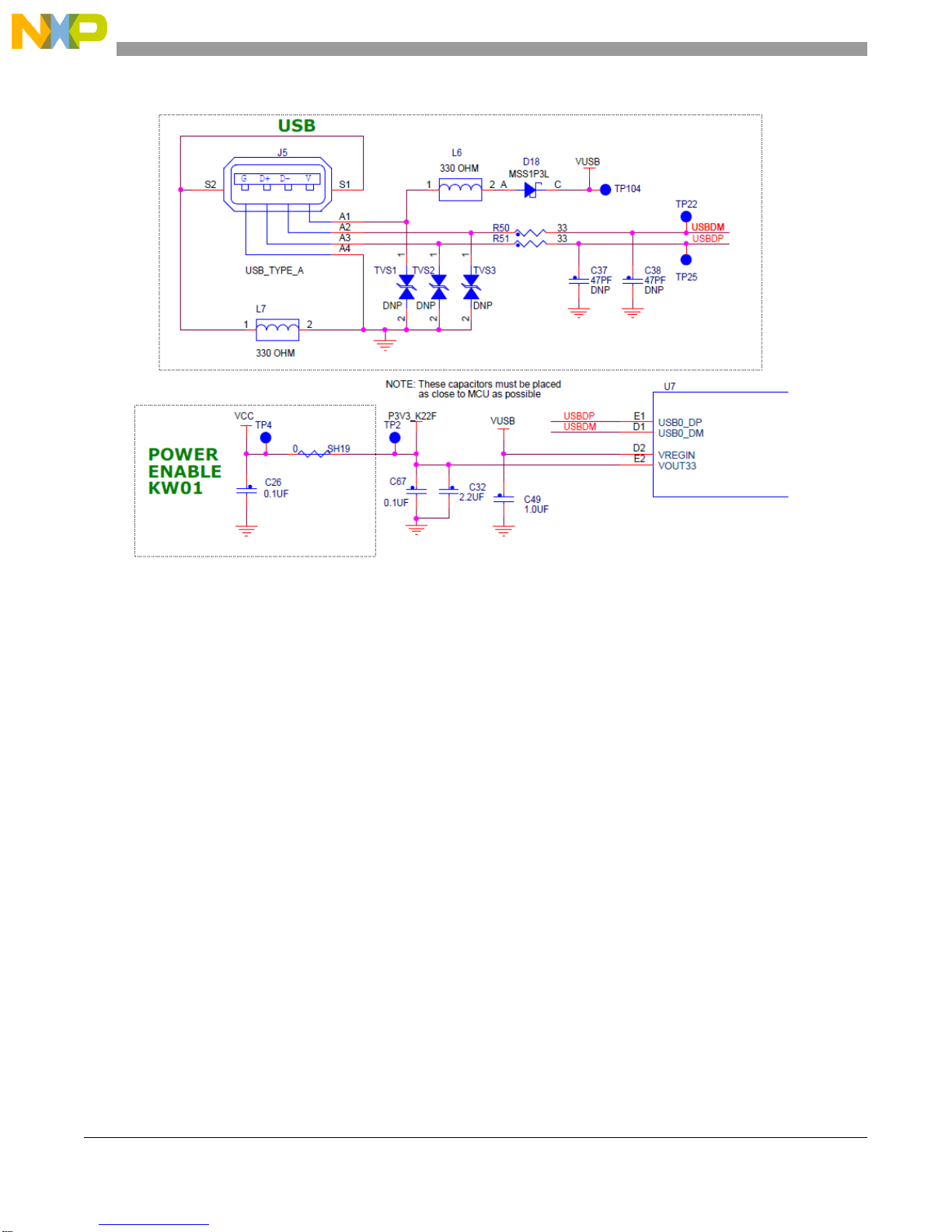

4.3.Schematic, board layout, and bill of materials . . 15
5. PCB manufacturing specifications . . . . . . . . . . . . . . 23
5.1.Single PCBconstruction . . . . . . . . . . . . . . . . . . . 24
5.2.Panelization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.3.Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.4.Soldermask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.5.Silkscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.6.Electrical PCB testing . . . . . . . . . . . . . . . . . . . . . 26
5.7.Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.8.Hole specification / tool table . . . . . . . . . . . . . . . 26
5.9.Filedescription . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6. Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
USB-KW019032 Freescale USB
Dongle Development Board
User’s Guide

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
2Freescale Semiconductor, Inc.
Safety information
2 Safety information
2.1 FCC guidelines
This equipment is to be used by developers for evaluation purposes only, and it must not be incorporated
into any other device or system. This device is not to be sold to the general public. Integrators will be
responsible for reevaluating the end product (including the transmitter), and obtaining a separate FCC
authorization.
The FCC approval of this device only covers the original configuration of this device (as supplied).
Any modifications to this product (including changesshown inthis manual)violate therules of the Federal
Communications Commission and Industry Canada, and make operation of the product unlawful.
2.1.1 Labeling
The FCC labels are located on the back of the board.
2.1.2 Operating conditions
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
• This device must not cause harmful interference
• This device must accept any interference received, including interference that can cause undesired
operation
2.1.3 Exposure limits
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
The antenna(s) used for this equipment must be installed to provide a separation distance of at least
eight inches (20 cm) from people.
2.1.4 Antenna restrictions
An intentional radiator is designed to ensure that no antenna other than that furnished by the responsible
party is used with the device. The use of a permanently attached antenna (or of an antenna that uses unique
coupling to the intentional radiator) is considered sufficient to comply with the provisions of this section.
The manufacturer can design the unit so that a broken antenna can be replaced by the user, but the use of
a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier
current devices or to devices operated under the provisions of sections 15.211, 15.213, 15.217, 15.219, or
15.221 of the IEEE 802.15.4 standard. Further on, this requirement does not apply to intentional radiators
that must be professionally installed, such as perimeter-protection systems and some field-disturbance
sensors, or to other intentional radiators, which, in accordance with section 15.31(d), must be measured at
the installation site. However, the installer is responsible for ensuring that a proper antenna is employed,
so that the limits in this part are not exceeded.

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 3
Safety information
2.2 Regulatory approval for Canada (IC RSS 210)
This equipment complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
1. This board must not cause interference
2. This board must accept any interference, including interference that can cause undesired operation
of the device
2.2.1 26 PART 5 – Appendix
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes:
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
2.3 Electrostatic discharge considerations
Although damage from electrostatic discharge (ESD) is much less common on these devices than on the
early CMOS circuits, normal handling precautions must be used to avoid exposure to static discharge.
Qualification tests are performed to ensure that these devices can withstand exposure to reasonable levels
of static without suffering any permanent damage.
All ESD testing is in conformity with the JESD22 Stress Test Qualification for Commercial Grade
Integrated Circuits. During the device qualification, ESD stresses were performed for the Human Body
Model (HBM), the Machine Model (MM), and the Charge Device Model (CDM).
The latch-up testing is in conformity with the JESD78 IC latch-up test.
When operating or handling the development boards or components, Freescale strongly recommends
using at least the grounding wrist straps, plus any (or all) of the following ESD dissipation methods:
• Flexible fabric, solid fixed size, or disposable ESD wrist straps
• Static control workstations, static control monitors, and table (or floor) static control systems
• Static control packaging and transportation materials, and environmental systems
2.4 Disposal instructions
This product can be subject to special disposal requirements. For product disposal instructions, see
www.freescale.com/productdisposal.

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
4Freescale Semiconductor, Inc.
USB-KW019032 overview and description
3 USB-KW019032 overview and description
3.1 Introduction
The USB-KW019032 development platform is an evaluation environment based on the Freescale
MKW01Z128 device. The MKW01Z128 device is a highly-integrated RF transceiver, and it operates over
a wide frequency range, including 315 MHz, 433 MHz, 470 MHz, 868 MHz, 915 MHz, 928 MHz, and
955 MHz in the license-free Industrial, Scientific, and Medical (ISM) frequency bands. This configuration
enables users to minimize external components.
The MKW01Z128 is targeted for the following low-power wireless applications:
• Automated meter reading
• Wireless sensor networks
• Home and building automation
• Wireless alarm and security systems
• Industrial monitoring and control
• Wireless MBUS Standard (EN13757-4:2005)
Freescale supplements the MKW01Z128 device with tools and software that include hardware evaluation
and development boards, software development IDE and applications, drivers, custom PHY usable with
Freescale IEEE 802.15.4 compatible MAC, SMAC, Thread©, and an available wireless MBUS solution.
3.2 Board features
3.2.1 USB-KW019032 board
The USB-KW019032 development board contains the MKW01Z128 device, and it is one of the simplest
reference designs using the on-chip USB block for power and communication. The USB-KW019032 is a
small-form-factor self-contained board for evaluation of wireless application, and it can be used as
a packet sniffer. The USB type-A connection is used with USB-enabled hardware, such as a computer.
USB-KW019032 evaluation board operates in the 915 MHz and 868 MHz frequency bands with 32 MHz
clock source. You can change the operation band to a different band, but optimize the RF matching
network as per Section 4.3.1, “Bill of materials.”
Figure 1 shows the USB-KW019032 development platform.

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 5
USB-KW019032 overview and description

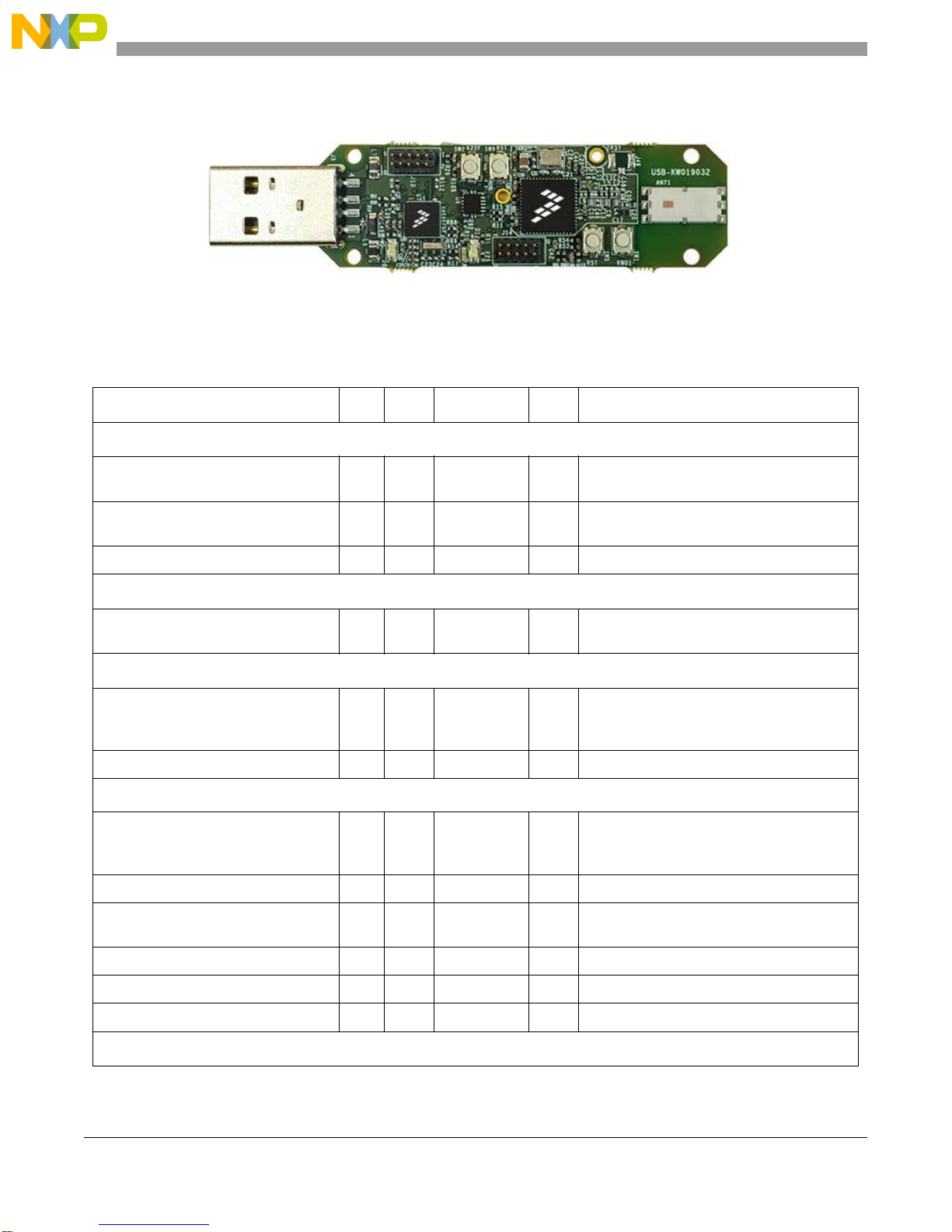

Figure 1. USB-KW019032 development board
The USB-KW019032 development board includes the following features:
• Based on the Freescale low-cost MKW01Z128 transceiver with an ARM Cortex-M0+CPU MCU,
and a functional set of MCU peripherals in a 60-pin LGA package
• Reference design area with small footprint and a low-cost RF node
— Unbalanced input/output port
— Flexible RF front end for operation in different bands
— Programmable output power ranging from -18 dBm to +13 dBm in 1 dB steps
— High sensitivity: down to -120 dBm at 1.2 kbps
• Integrated chip antenna for RFIO port, and footprint U.FL connector for RFIO port
• 32 MHz reference oscillator depending on regional configuration
• Reset switch drive to MKW01Z128 device
• Reset switch drive to debug interface (OpenSDA)
• Cortex 10-pin (0.05 inches) SWD debug port for target MCU
• Cortex 10-pin (0.05 inches) JTAG port for OpenSDA updates
• Integrated open-standard serial and debug interface (OpenSDA)
• One blue LED indicator drive to MKW01Z128 MCU
• One blue LED indicator drive to MK22FN512 MCU
• One push-button switch drive to MKW01Z128 MCU
• One push-button switch drive to MK22FN512 MCU

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
6Freescale Semiconductor, Inc.
USB-KW019032 overview and description

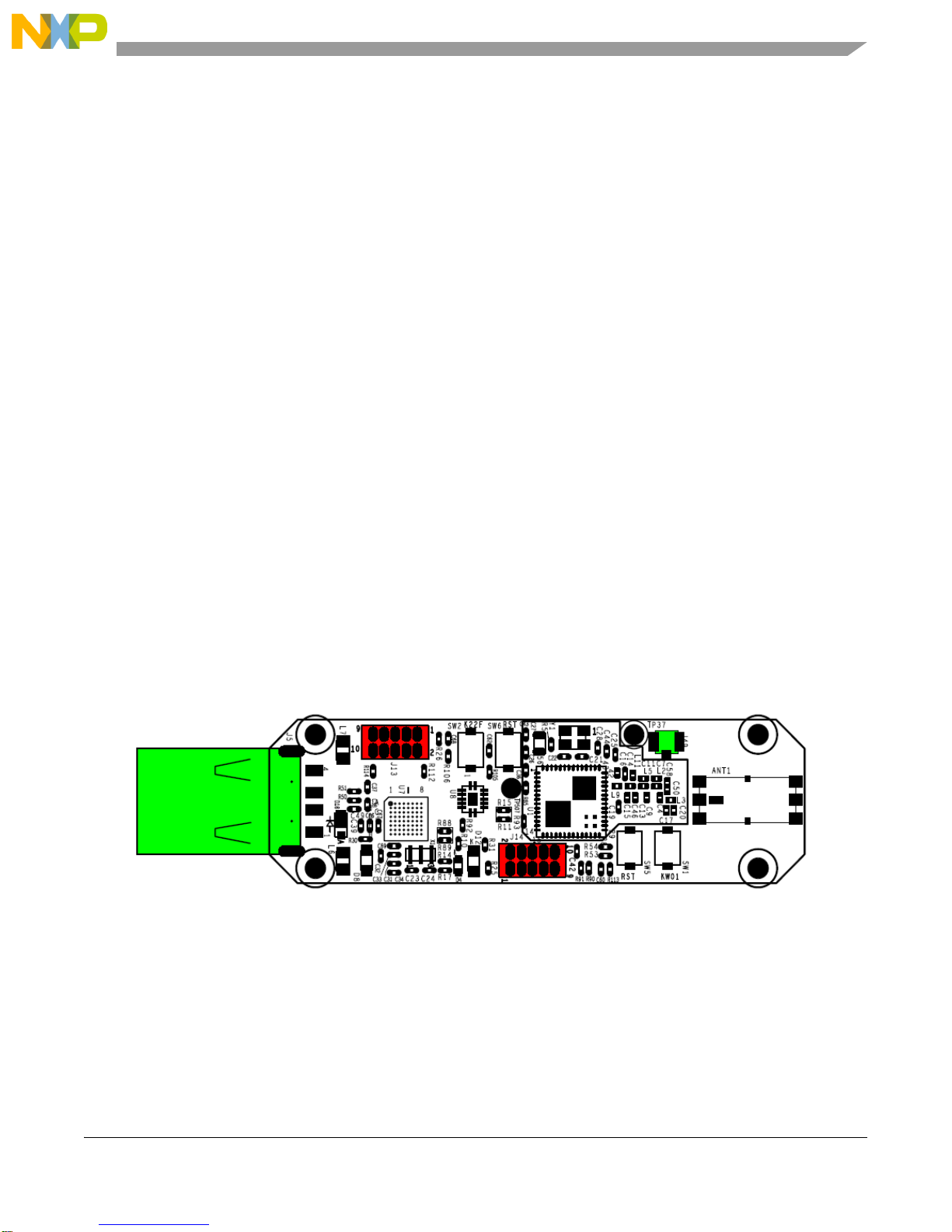

Figure 2 shows the main board features and input/output headers for the Freescale USB-KW019032 board.
Figure 2. USB-KW019032 callouts
3.3 Software and driver considerations
The USB-KW019032 includes OpenSDAv2.1 (CMSIS-DAP), a serial and debug adapter circuit that
includes an open-source bootloader, and debug interface software. It bridges serial and debug
communications between a USB host and an embedded target processor. The hardware circuit is based on
the Kinetis K22F family. You can find more information in the KW019032 Quick Start Card.
To enter the bootloader mode and re-flash the CMSIS-DAP application, hold down the SW2 button while
plugging the USB-KW019032 board to the PC.
For additional information about the sub-GHz Kinetis family platforms, refer to
freescale.com/USB-KW019032.
For ARM mbed™drivers, refer to https://developer.mbed.org/handbook/Windows-serial-configuration.
MCU
MK22F
JTAG K22F Application
button – MK22F
Reset button – MK22F
32 MHz crystal
Application
button – MKW01
Reset button – MKW01
MKW01
SWD KW01
Power-on /
application LED
Chip antenna

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 7
USB-KW019032 development board
4 USB-KW019032 development board
4.1 USB-KW019032 board overview
The USB-KW019032 is an evaluation board based on the Freescale Kinetis MKW01Z128 transceiver.
It provides a platform to evaluate the MKW01Z128 device, and to develop software and applications.
The core device is accompanied by a 32 MHz reference oscillator crystal, RF circuitry (including a chip
antenna), and supporting circuitry.
The USB-KW019032 board is intended as the core PCB for MKW01Z128 device evaluation and
application development, and it can be used as a simple standalone evaluation solution or as a packet
sniffer. This development board covers the 868 MHz, 915 MHz, and 928 MHz bands.
4.1.1 PCB features
The USB-KW019032 board has the following features:
• USB small form factor
• Four-layer, metal, 0.062 inch thick FR4 board
• LGA footprint and power supply bypass
• Chip antenna for RFIO port, and footprint for installing a (user-supplied) U.FL connector on
the RFIO port
• 32 MHz reference oscillator crystal
4.1.2 Form factor
Figure 3 shows the USB-KW019032 board’s connector and header locations.
Figure 3. USB-KW019032 board top-side (component-side) footprint

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
8Freescale Semiconductor, Inc.
USB-KW019032 development board
Figure 4 shows a footprint of the USB-KW019032 with the location of headers.
Figure 4. USB-KW019032 board’s connector and header locations
4.1.3 Board level specifications
Table 1. USB-KW019032 board specifications
Parameter Min Typ Max Units Notes/conditions
General
Size (PCB: X, Y) — — 18.5 × 61.4
0.73 × 2.42 mm inches —
Layer build (PCB) — 1.57
0.062 —mm inches Four-layer
Dielectric material (PCB) — — — — FR4
Power
Current consumption — — — mA Varies with operational mode, Refer to the
datasheet.
Temperature
Operating temperature (see note) -40 +25 +70 °C Operating temperature is limited to +70 °C
due to switches. The basic circuit is capable
to handle maximum temperature of +85 °C.
Storage temperature -30 + 25 +70 °C —
RF receiver
FSK sensitivity — -105
to
-120
—dBm —
OOK sensitivity — -112 — dBm —
Adjacent channel rejection
(offset = ±25 kHz or 50 kHz) —-42 — dB —
2nd order Intercept point — +75 — dBm —
3rd order Intercept point — +20 — dBm —
RSSI dynamic range -115 — 0 — —
RF transmitter

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 9
USB-KW019032 development board
4.2 Functional description
The USB-KW019032 board is built around the Freescale MKW01Z128 device in a 60-pin LGA package.
The device features a highly-integrated, cost-effectivesub-GHz radio frequency transceiver, and a Kinetis
family ultra-low-power, mixed-signal ARM Cortex-M0+ MCU in a single package. This board is intended
as a simple evaluation platform, and as a building block for application development. The four-layer board
provides the MKW01Z128 device with its required RF circuitry and a 32 MHz reference oscillator crystal.
You can use the layout for this base-level functionality as a reference layout for your target board.
Figure 5 shows a simple block diagram.
RF power output (RFIO pin) -18 — +13 dBm Programmable in 1 dB steps.
Adjacent channel power (25 kHz
offset) —— -37 dBm —
Regulatory approval
FCC — — — — Product is approved according to the FCC
part 15 standard.
CE (ETSI) — — — — Product is approved according to the EN
300 328 V1.7.1 (2006-10) standard.
CE (EMC) — — — — Product is approved according to the EN
301 489-1 V1.6.1 (2005-09) and EN 301
489-17 V1.2.1 (2002-08) standards.
Safety
UL — — — — Product is approved according to the IEC
60950-1 and EN 60950-1, first-edition
standards.
Environment
RoHS — — — — Product complies with the EU Directive
2002/95/EC of 27th January 2003.
WEEE — — — — Product complies with the EU Directive
2002/95/EC of 27th January 2003.
Frequency range 290 — 340 MHz Programmable, using a 32 MHz clock.
424 — 510 MHz
862 — 1020 MHz
Table 1. USB-KW019032 board specifications (continued)
Parameter Min Typ Max Units Notes/conditions

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
10 Freescale Semiconductor, Inc.
USB-KW019032 development board
Figure 5. USB-KW019032 block diagram
4.2.1 RF performance and considerations
The MKW01Z128 transceiver is a single-chip integrated circuit ideally suited for today's
high-performance ISM-band RF applications. It is intended to be used as a high-performance, low-cost
FSK and OOK RF transceiver for robust, frequency-agile, half-duplex bi-directional RF links.
The MKW01Z128deviceis intended for applications overa widefrequency range, includingthe 868 MHz
European ISM band, and the 902—928 MHz North American ISM bands. Output power ranges from -18
dBm to +13 dBm (on the RF_IO port).
The USB-KW019032 uses a flexible RF path topology that makes it suitable for working in different
frequency bands by replacing minimum number of components, while providing good RF performance.
The tables in Section 4.3.1, “Bill of materials” show different BOMs according to different frequency
bands of operation.
Figure 6 shows a typical topology of the RF circuitry. The footprint enables installing the U.FL connector
J49 for measurement purposes. When using J49, C58 must be installed and C50 removed.
Figure 6. USB-KW019032 RF circuitry
USB
type A
Power LED Xtal Reset SW
button 32 MHz Xtal Reset
button
Power
Management MCU
K22F SPI / UART / I2CMKW01 Chip Antenna
RST_TGTMKW01
Push-
button Application
LED Push-
button Application LED
JTAG SWD

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 11
USB-KW019032 development board
4.2.2 Clocks
The USB-KW019032 board provides one clock (a 32 MHz reference oscillator). Figure 7 shows the
32 MHz external crystal Y1. This mounted crystal meets the MKW01Z128 transceiver requirements.
— Capacitors C22 and C21 provide the bulk of the crystal load capacitance. At 25 °C, it must have
the frequency accurate to ±10 ppm (or less) to enable temperature variation.
— Signal DIO5/CLKOUT can be used to supply an external clock to the MCU die.
Figure 7. USB-KW019032 32 MHz reference oscillator circuit
4.2.3 Power management
There is a single way to power the USB-KW019032 board. It is made via the type-A USB connector J5 to
supply 5 V (VUSB) directly to the secondary MCU (MK22FN512), which includes an internal LDO and
a 3.3 V output to enable the MKW01Z128 device. The USB-KW019032 power management circuit is
shown in Figure 8.

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
12 Freescale Semiconductor, Inc.
USB-KW019032 development board
Figure 8. USB-KW019032 power management circuit
The green LED marked as D4 functions as a power indicator. For current measurements, you can isolate
the MKW01Z128 device through the SH19 cut-trace, and this will disable the VCC path (including LEDs).
4.2.4 USB-KW019032 board peripheral functions
The board includes two different MCUs, one dedicated to RF acquisition (MKW01Z128), and the second
one used as OpenSDA debugger and coprocessor (MK22FN512).
4.2.4.1 MKW01Z128 device peripheral functions
The USB-KW019032 development board includes two push-buttons; one for general-purpose peripheral
functions to assist with implementing targeted applications, and the other dedicated to the MKW01Z128
hardware reset.
The board also includes two LEDs; one for general purposes, and the other functioning as a power-on
indicator. Figure 9 shows the push-buttons and LEDs for MKW01Z128 transceiver.

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 13
USB-KW019032 development board
Figure 9. USB-KW019032 MKW01Z128 push-buttons and LEDs
4.2.4.2 MK22FN512/Open SDA interface
The USB-KW019032 board includes OpenSDA circuitry based on the MK22FN512 device, which
includes everything that is necessary for enabling, communication, and debugging. The board provides
power output for all the peripherals, including the MKW01Z128 device. Figure 10 shows the OpenSDA
circuitry based on the MK22FN512 MCU, and all the necessary connections to interface with
the MKW01Z128.
Figure 10. USB-KW019032 OpenSDA circuitry

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
14 Freescale Semiconductor, Inc.
USB-KW019032 development board
4.2.4.2.1 OpenSDA interface clock
The USB-KW019032 provides 8 MHz reference oscilator as the clock source for the OpenSDA
MK22FN512 MCU. Figure 11 shows the external 8 MHz crystal X1. This mounted crystal meets
the MK22FN512 requirements. It also provides C23 and C24 to bulk the crystal load capacitance.
Figure 11. USB-KW019032 board's 8 MHz clock source for MK22FN512
4.2.4.2.2 MK22FN512 peripheral functions
The USB-KW019032 OpenSDA interface circuit also includes two switch buttons; one for
general-purpose peripheral functions to assist in implementing targeted applications, and the other for the
MK22FN512 MCU hardware reset.
The USB-KW019032 also includes one general-purpose LED for the OpenSDA interface circuitry.
Figure 12 shows the push-buttons and LEDs for MK22FN512.
Figure 12. USB-KW019032 board’s push-buttons and LEDs for MK22FN512

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 15
USB-KW019032 development board
4.3 Schematic, board layout, and bill of materials
Figure 13. USB-KW019032 schematic rev. A – MK22FN USB and OpenSDA

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
16 Freescale Semiconductor, Inc.
USB-KW019032 development board
Figure 14. USB-KW019032 schematic rev. A – MK01Z

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 17
USB-KW019032 development board
Figure 15. USB-KW019032 board component location (top view)
Figure 16. USB-KW019032 board test points
Figure 17. USB-KW019032 board layout (top view)

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
18 Freescale Semiconductor, Inc.
USB-KW019032 development board
Figure 18. USB-KW019032 board layout (bottom view)
4.3.1 Bill of materials
The following tables list the bill of materials. Table 2 details the parts common for all frequency bands,
Table 3 details the parts for the 915 MHz and 868 MHz frequency bands (default), Table 4 details the parts
for the 433 MHz frequency band, and Table 5 details the parts for the 315 MHz frequency band.
NOTE
The ANT1 component is designed to be used with 900 MHz and 800 MHz
frequencies, and the values for the components L3, C17, and C20 are
calculated for those frequencies and this particular chip antenna; in case
another antenna is required, those values must be readjusted according to
the new antenna and manufacturer recommendations.
Table 2. Bill of materials (parts common for all frequency bands) (Sheet 1 of 4)
Item Qty Reference Value Description Mfg. name Mfg. part number
1 1 C13 6.8 pF CAP CER 6.8PF 50V
0.5PF C0G 0402 MURATA GRM1555C1H6R8DZ01J
21C7DNP 10 pF CAP CER 10PF 50V
5% C0G 0402 AVX 04025A100JAT2A
3 2 C21, C22 11 pF CAP CER 11PF 50V
1% C0G 0402 KEMET CBR04C110F5GAC
4 2 C23, C24 DNP 22 pF CAP CER 22PF 50V
5% C0G 0402 AVX 04025A220JAT2A
5 2 C37, C38 DNP 47 pF CAP CER 47PF 50V
5% C0G 0402 MURATA GRM1555C1H470JA01D
6 2 C50, C58 100 pF CAP CER 100PF 50V
5% C0G 0402 KEMET C0402C101J5GAC
7 1 C16 220 pF CAP CER 220PF 50V
5% C0G 0402 KEMET C0402C221J5GAC
8 2 C60, C61 1000 pF CAPCER1000PF 50V
5% C0G 0402 MURATA GRM1555C1H102JA01D

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc. 19
USB-KW019032 development board
91C51DNP 1000 pF CAPCER1000PF 50V
5% C0G 0402 MURATA GRM1555C1H102JA01D
10 1 C43 0.01 F CAP CER 0.01UF 50V
10% X7R 0402 KEMET C0402C103K5RAC
11 11 C14, C19,
C25, C28,
C36, C39,
C42, C44,
C66, C68, C69
0.1 F CAP CER 0.1UF 16V
10% X7R 0402 KEMET C0402C104K4RAC
12 1 C67 DNP 0.1 F CAP CER 0.1UF 16V
10% X7R 0402 KEMET C0402C104K4RAC
13 4 C31, C33,
C34, C49 1.0 F CAP CER 1.0UF 10V 10% X5R 0402 YAGEO AMERICA CC0402KRX5R6BB105
14 1 C32 2.2 F CAP CER 2.2UF 10V
10% X7R 0603 TAIYO YUDEN LMK107B7225KA-T
15 1 C27 10 F CAP CER 10UF 10V
10% X5R 0805 MURATA GRM21BR71A106KE51L
16 1 D4 GREEN LED GRN SGL 20MA
0603 OSRAM LG L29K-G2J1-24-Z
17 2 D8, D12 BLUE LED BLUE SGL 20MA
SMT 0805 LITE ON LTST-C171TBKT
18 1 D18 MSS1P3L DIODE SCH 1A 20V
MICROSMP SMT VISHAY INTERTECHNOLOGY MSS1P3L-M3/89A
19 1 J5 USB_TYPE_A CON 1X4
USB_TYPE_A_MALE
RA SMT — 178H AU
MOLEX 480371000
20 2 J13, J14 HDR 2X5 CONN,HEAD,2X5,ST
R,50/50
CON-2RH-10-50
SAMTEC FTS-105-01-F-D
21 1 J49 DNP U.FL CON, U.FL, VERT
1.25MM, 50OHM
MALE PIN 6GHZ
HIROSE U.FL-R-SMT-1
22 2 L6, L7 330 IND FER BEAD
330OHM@100MHZ
2.5A — SMT
TDK MPZ2012S331A
23 1 L11 33 nH IND —
0.033UH@100MHZ
200MA 5% 0402
MURATA LQG15HS33NJ02D
24 4 R11,R12,R14,
R15 0 RES MF ZERO OHM 1/16W 5% 0402 VISHAY INTERTECHNOLOGY CRCW04020000Z0ED
25 1 R17 DNP 0 RES MF ZERO OHM
1/16W 5% 0402 VISHAY INTERTECHNOLOGY CRCW04020000Z0ED
Table 2. Bill of materials (parts common for all frequency bands) (Sheet 2 of 4)
Item Qty Reference Value Description Mfg. name Mfg. part number

USB-KW019032 Freescale USB Dongle Development Board , User’s Guide, Rev. 0, 10/2015
20 Freescale Semiconductor, Inc.
USB-KW019032 development board
26 2 R50, R51 33 RES MF 33.0 OHM
1/16W 1% 0402 VISHAY INTERTECHNOLOGY CRCW040233R0FKED
27 1 R85 100 RES MF 100 OHM
1/16W 5% 0402 VISHAY INTERTECHNOLOGY CRCW0402100RJNED
28 3 R10, R30, R31 220 RES MF 220 OHM
1/16W 5% 0402 VISHAY INTERTECHNOLOGY CRCW0402220RJNED
29 6 R88, R89,
R90, R91,
R92, R93
1.0 KRES MF 1.0K 1/16W
1% 0402 YAGEO AMERICA RC0402FR-071KL
30 2 R53, R54 4.7 KRES MF 4.7K 1/16W
5% 0402 YAGEO AMERICA RC0402JR-134K7L
31 1 R5 DNP 4.7 KRES MF 4.7K 1/16W
5% 0402 YAGEO AMERICA RC0402JR-134K7L
32 2 R25, R26 10.0 KRES MF 10.0K 1/16W
1% AEC-Q200 0402 VISHAY INTERTECHNOLOGY CRCW040210K0FKED
33 1 R105 10.0 KRES MF 10.0K 1/16W
1% AEC-Q200 0402 VISHAY INTERTECHNOLOGY CRCW040210K0FKED
34 1 R556 DNP 10.0 KRES MF 10.0K 1/16W
1% AEC-Q200 0402 VISHAY INTERTECHNOLOGY CRCW040210K0FKED
35 2 R113, R114 15 KRES MF 15.0K 1/16W
1% 0402 BOURNS CR0402-FX-1502GLF
36 1 R106 27 KRES MF 27K 1/16W
5% 0402 VISHAY INTERTECHNOLOGY CRCW040227K0JNED
37 1 R112 DNP 27 KRES MF 27K 1/16W
5% 0402 VISHAY INTERTECHNOLOGY CRCW040227K0JNED
38 1 SH19 DNP 0 CUT TRACE
RESISTOR NOTACOMPONENT NOTACOMPONENT
39 6 SH40, SH41,
SH44, SH45,
SH46, SH47
DNP
0 CUT TRACE
RESISTOR NOTACOMPONENT NOTACOMPONENT
40 4 SW1, SW2,
SW5, SW6 TL1015AF160QG SW SPST-NO 0.05A, 12V, SMT E-SWITCH TL1015AF160QG
41 7 TP2, TP4,
TP9, TP10,
TP46, TP48,
TP104
TPAD_040 TEST POINT PAD
40MIL DIA SMT, NO
PART TO ORDER
NOTACOMPONENT NOTACOMPONENT
Table 2. Bill of materials (parts common for all frequency bands) (Sheet 3 of 4)
Item Qty Reference Value Description Mfg. name Mfg. part number
